48"W x 24"H x 48"L, Surface Combustion, Direct Fired Box Furnace, Gas Fired, 2000-F, Fiber Lined

48"W x 24"H x 48"L, Surface Combustion, Direct Fired Box Furnace, Gas Fired, 2000-F, Fiber Lined

$15,500 (USD)

or
Call 248-343-1421

Description

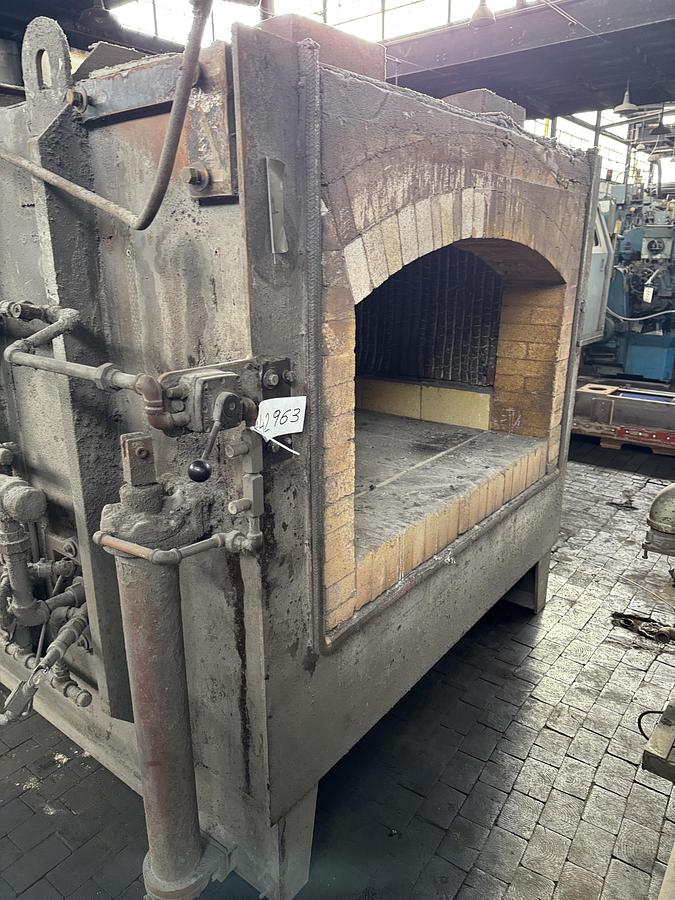

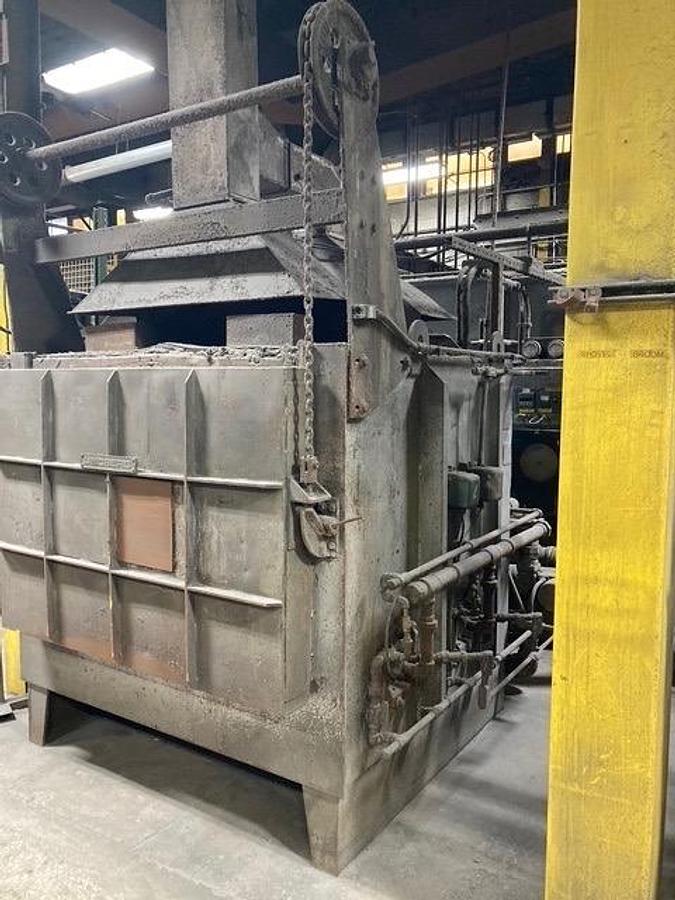

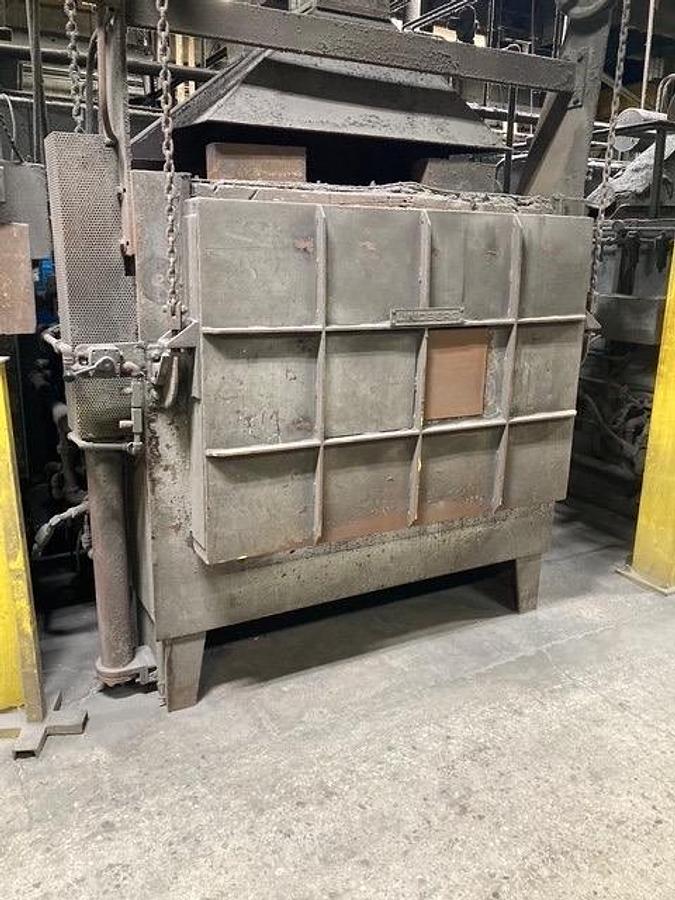

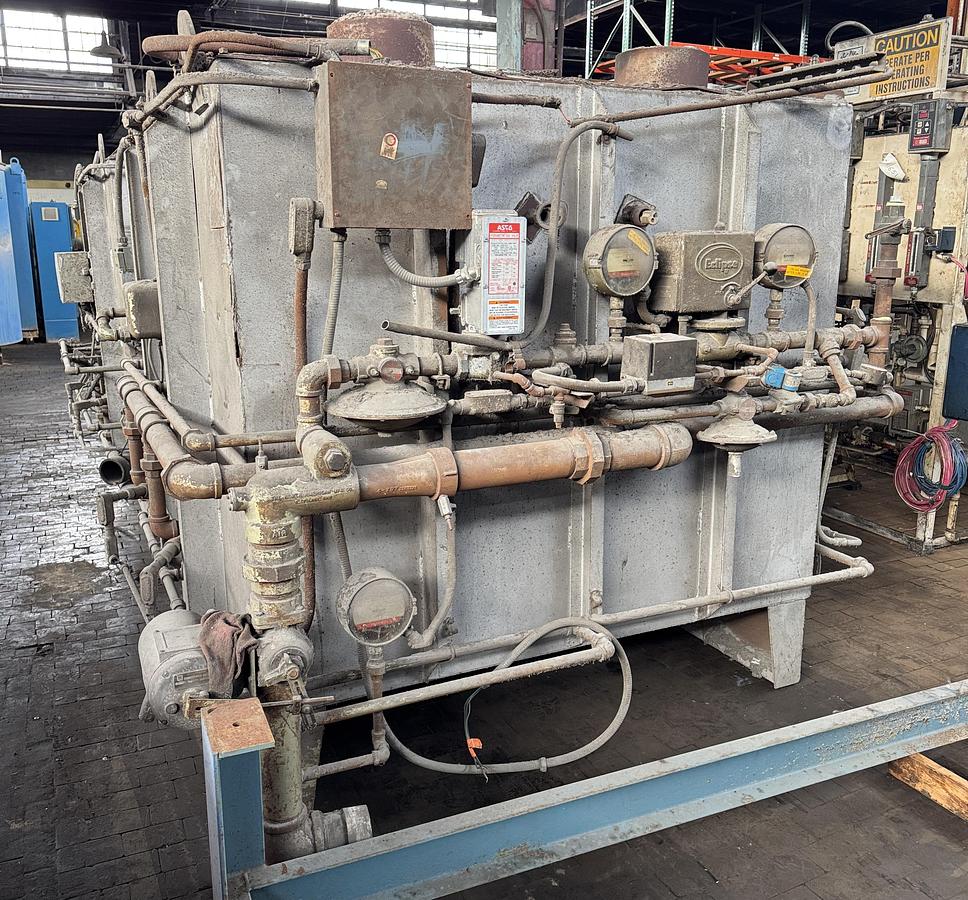

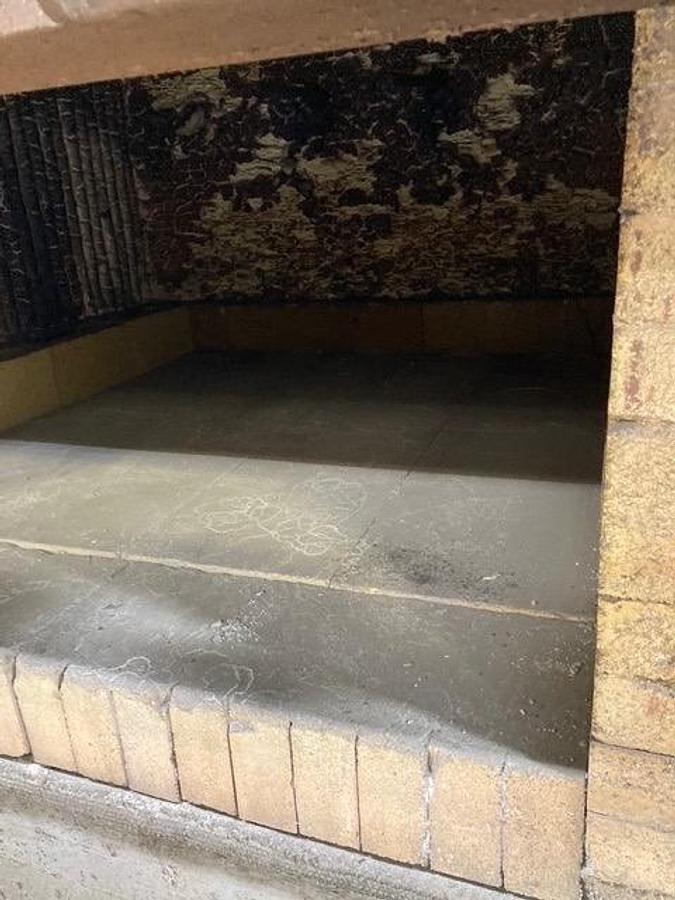

Front loading direct fired box furnace with vertical lift door and flat skid type hearth. A total of four (4) burners, two (2) on each side fired under the hearth.

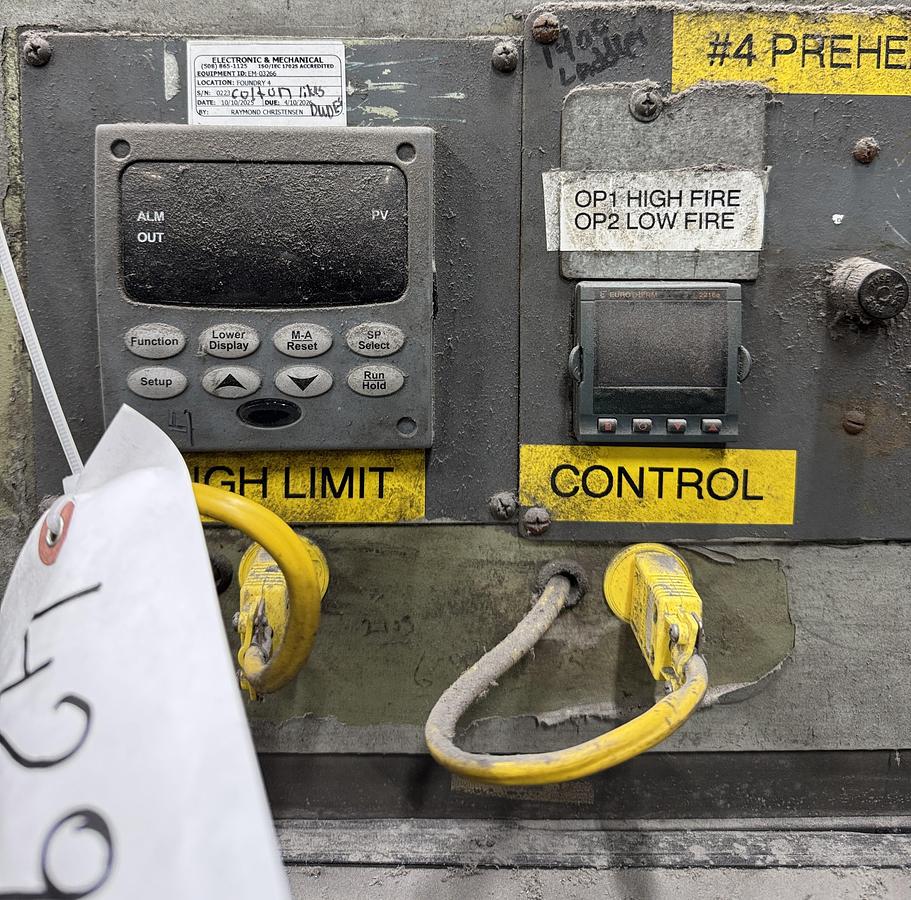

Mounted and wired in a free standing panel includes four (4) Honeywell Flame Relays, one (1) Honeywell UDC 2500 digital high limit, Eurotherm 2216e digital temperature control and a Honeywell DR 4200 digital round chart recorder.

Show All

Specifications

ManufacturerSurface Combustion

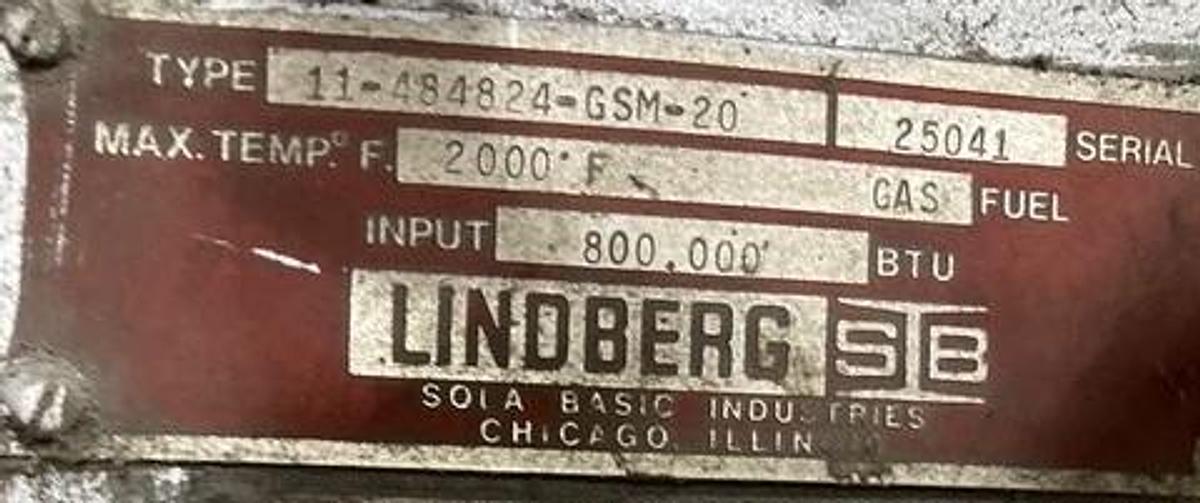

Model11-484824-GSM-20
Year1992
ConditionUsed
Serial Number25041
Stock Number7886
Work area48”W x 24”H x 48”L
HeatedNatural Gas - 800,000 BTU’s/Hr.
Max temperature2000-F
Voltage460/3/60
External dimensions6’ wide x 10’ high x 7’ long
AvailabilityImmediate
