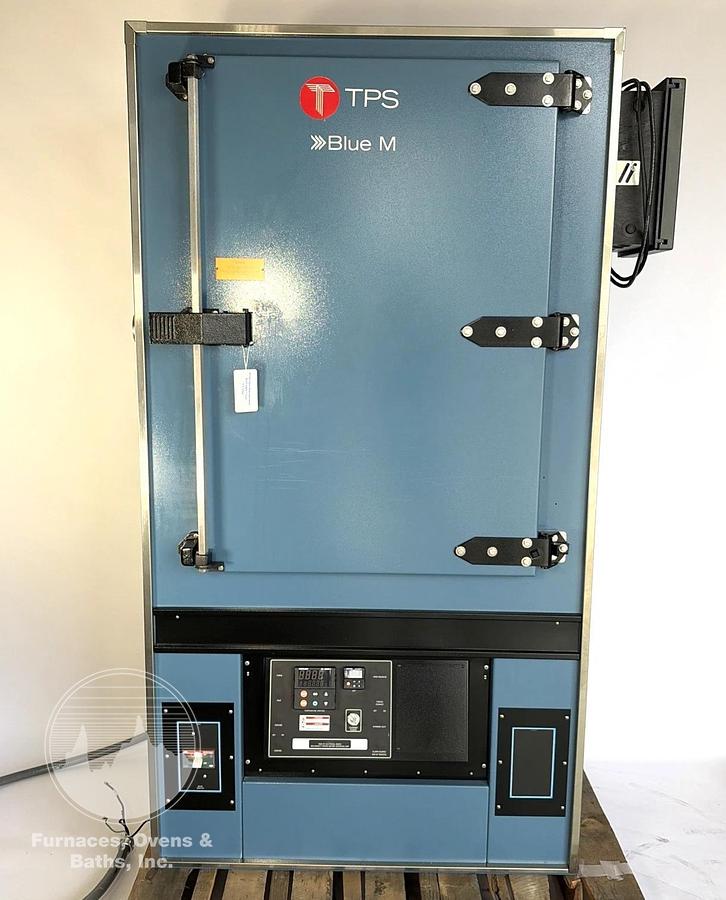

25"W x 38"H x 20"L Blue M DC-336 Cabinet Oven, 650°F, Electric

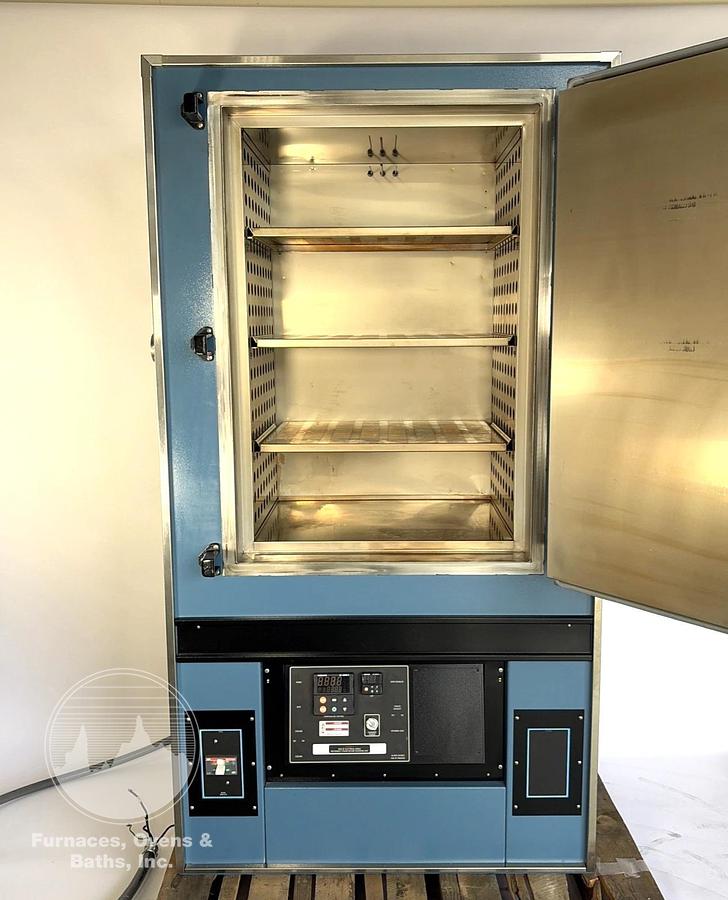

Single door has a silicon rubber gasket and a 2-point cam action positive seal latch for a good door seal. Stainless steel interior with 3 adjustable shelves. Coiled style heating elements and direct driven circulating fan are located under the floor pan. Heated air is circulated in a horizontal pattern across the chamber for good uniform heating. An adjustable fresh air inlet and an exhaust vent with manual damper are located on the left-hand side. An access port is located in the right-hand side wall.

Controls are located in a convenient slide out console located directly under the work chamber. Watlow EZ-ZONE digital temperature controller, a Watlow EZ-ZONE digital high limit, chamber power switch with indicating light is flush mounted in the face of the console. Honeywell digital circular chart recorder mounted on the right-hand side of the oven. A circuit breaker disconnect switch is located to the right of the console. Solid state power relay, high limit contactor, motor starter, fuses, relays etc. are mounted on the console base.
