L&N/Lindberg Pit Nitrider, 28" Dia. x 48"Dp, Electric, 1200°F
Sold
L&N/Lindberg Pit Nitrider, 28" Dia. x 48"Dp, Electric, 1200°F
Description

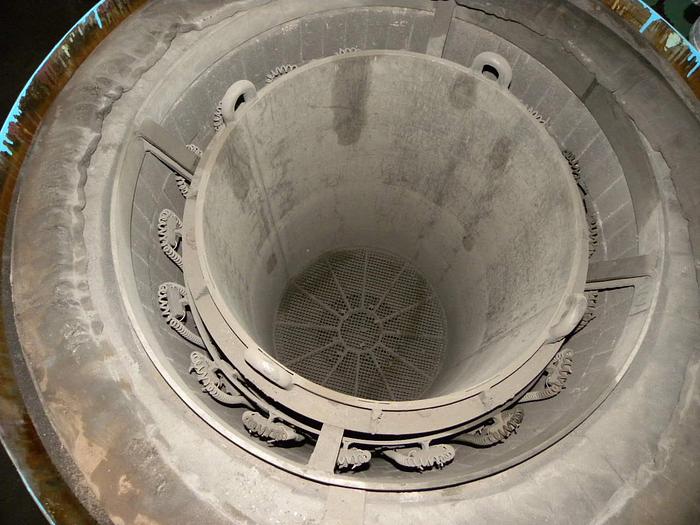

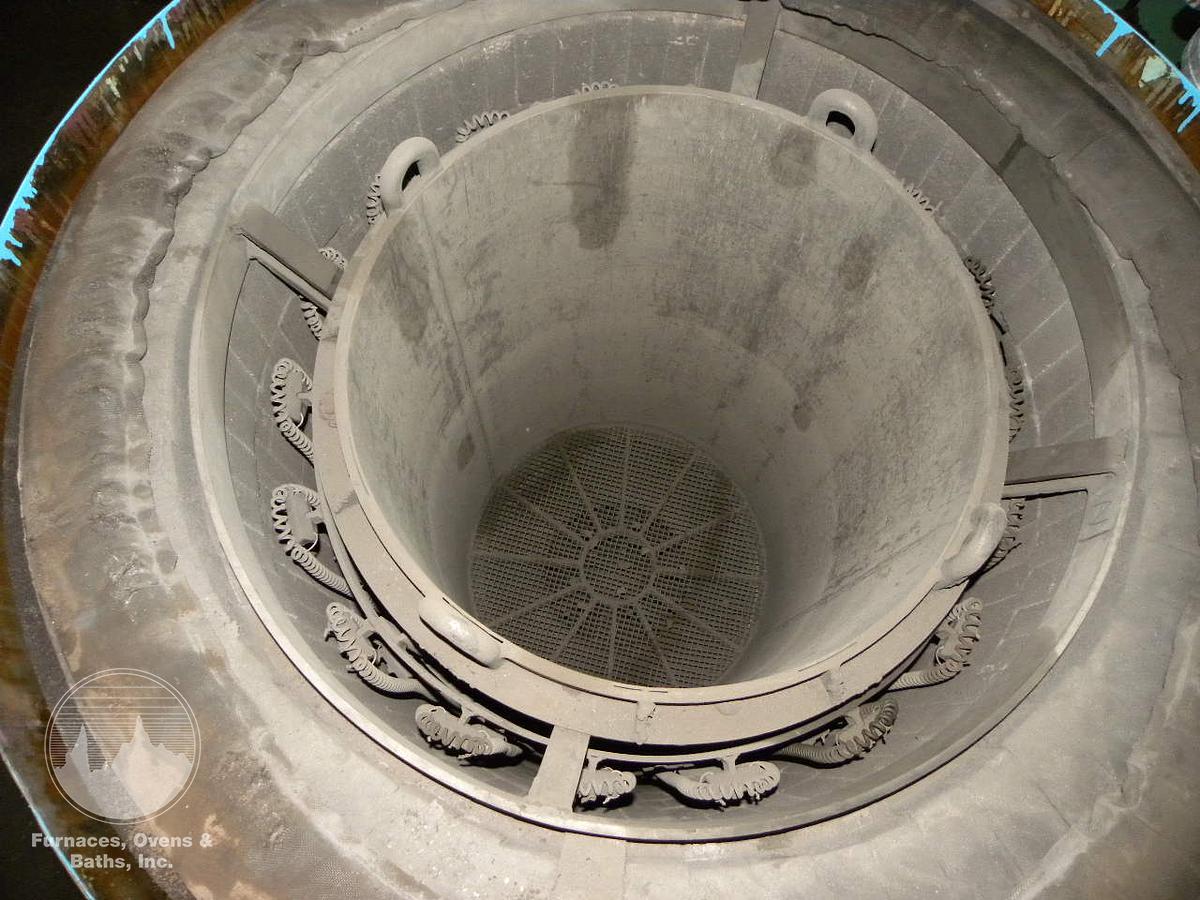

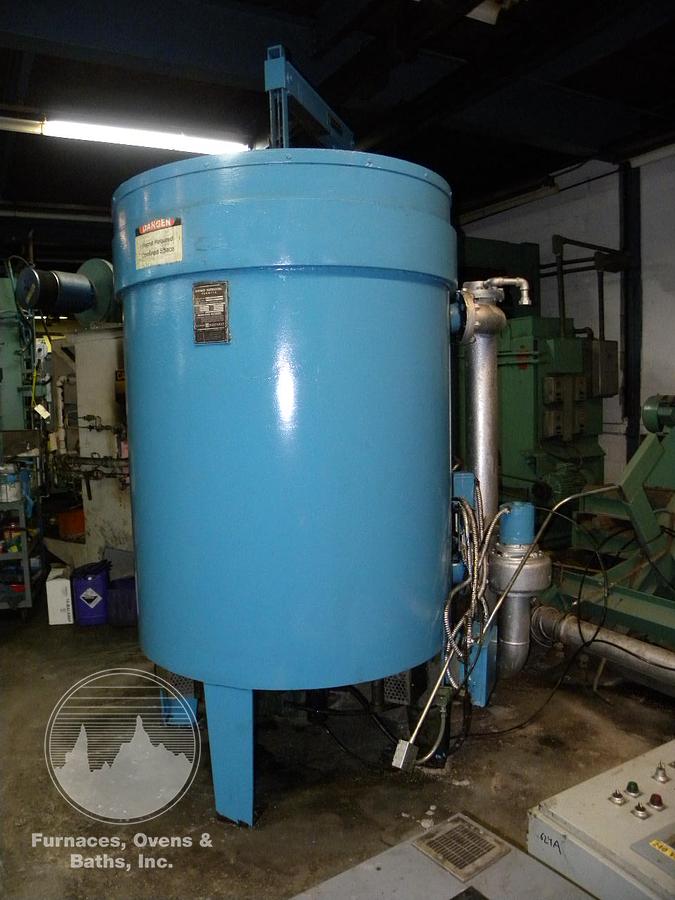

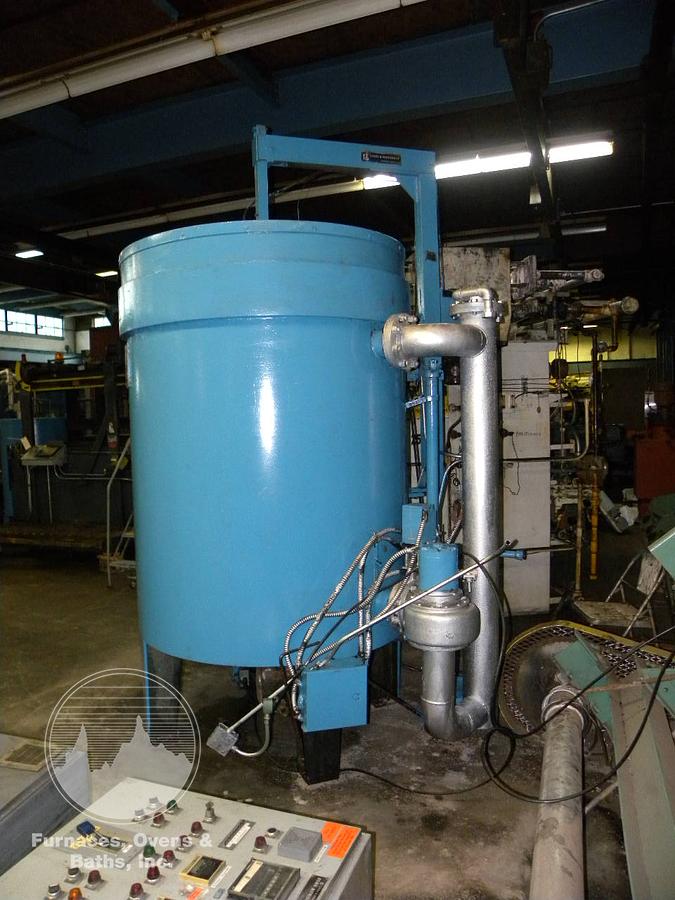

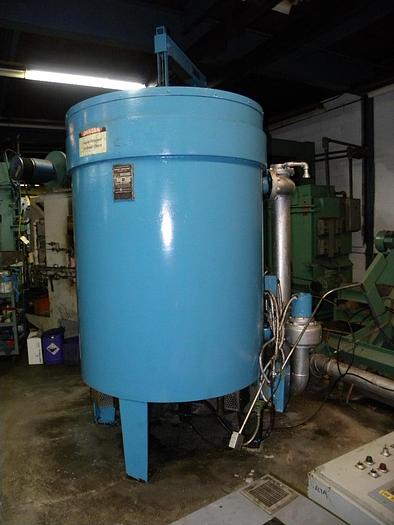

Brick Lined, Top Loading Nitriding Furnace complete with Bottom-Mounted Alloy Recirculating Fan, Top-Mounted Oil Seal, Swing-Away Lid, Side-Mounted Cooling Fan.

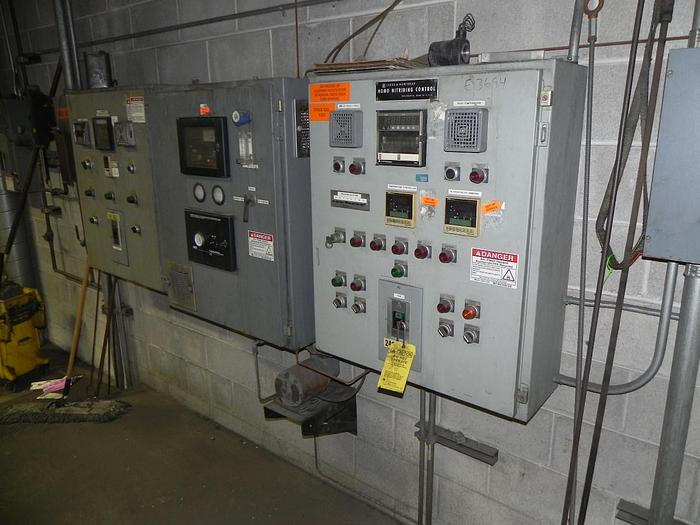

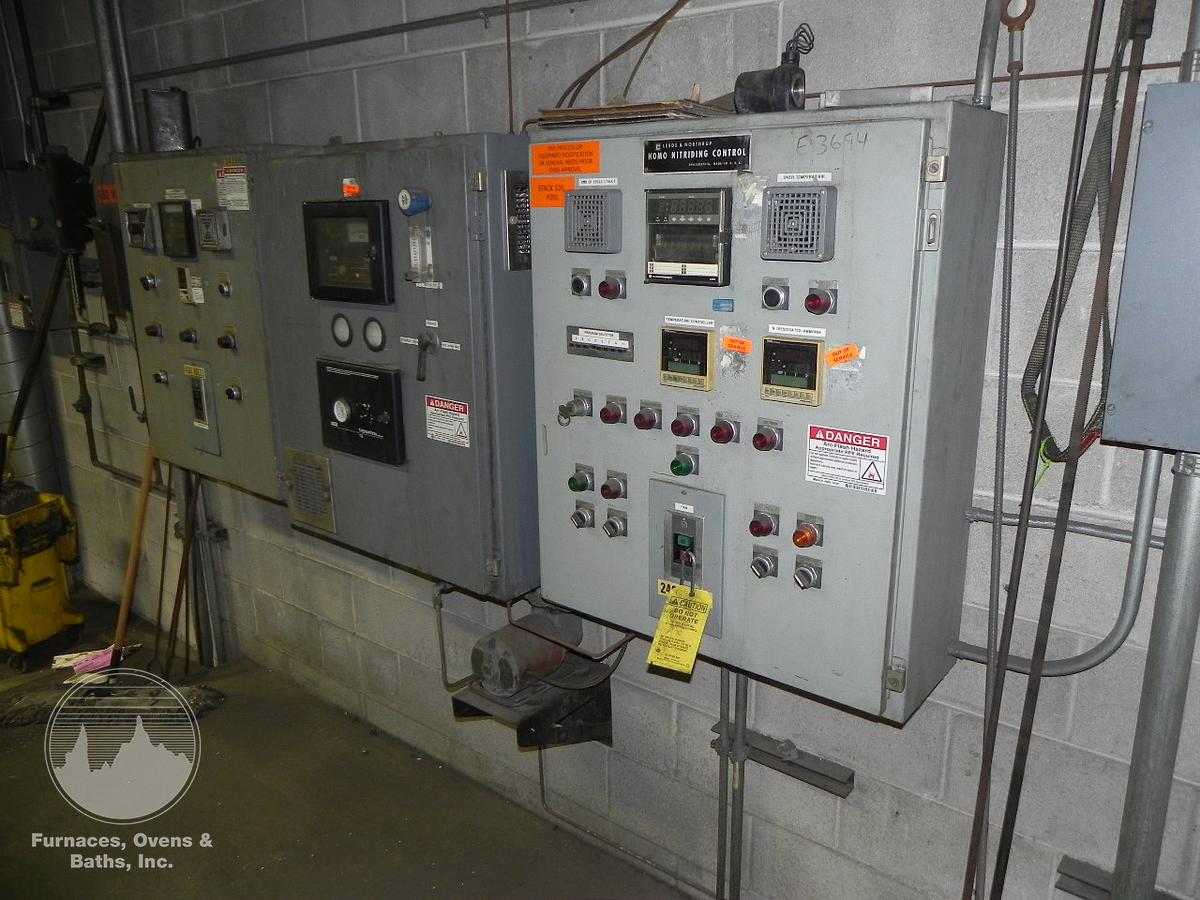

Wall-Mounted Control Panel complete with Shimaden Digital Temperature Controller, Shimaden High Limit, and 6” Strip Chart Recorder.
Specifications
| Manufacturer | L & N |
| Model | 9578-UB-48-10S |
| Condition | Used |
| Serial Number | 1757418 |
| Stock Number | 7492 |
| Work area | 28" Diameter x 48"Dp. |
| Heated | Electric |
| Max temperature | 1200°F |
| Voltage | 230/3/60/48 kW |
| External dimensions | 7' Diameter x 10'6"H - Approx. |
| Availability | Immediate |
