Lindberg Rotary Hearth Furnace 18"W x 9"H Opening x 50" Diameter, Electric, 1600°F

Lindberg Rotary Hearth Furnace 18"W x 9"H Opening x 50" Diameter, Electric, 1600°F
$29,500 (USD)
orCall 248-343-1421
Description

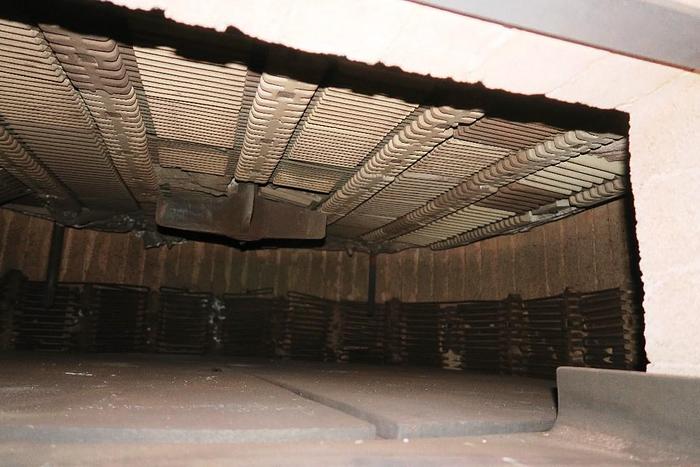

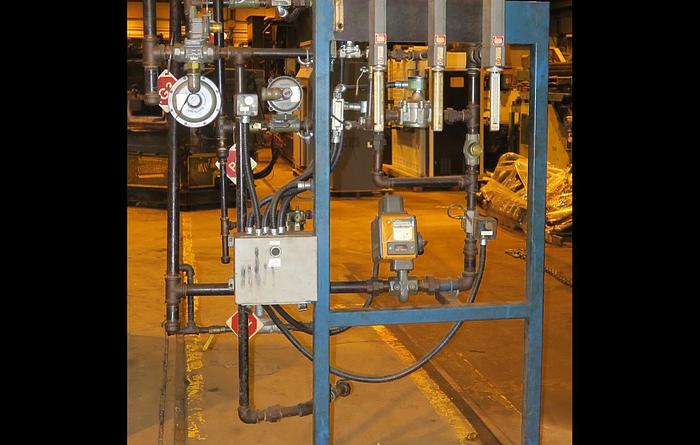

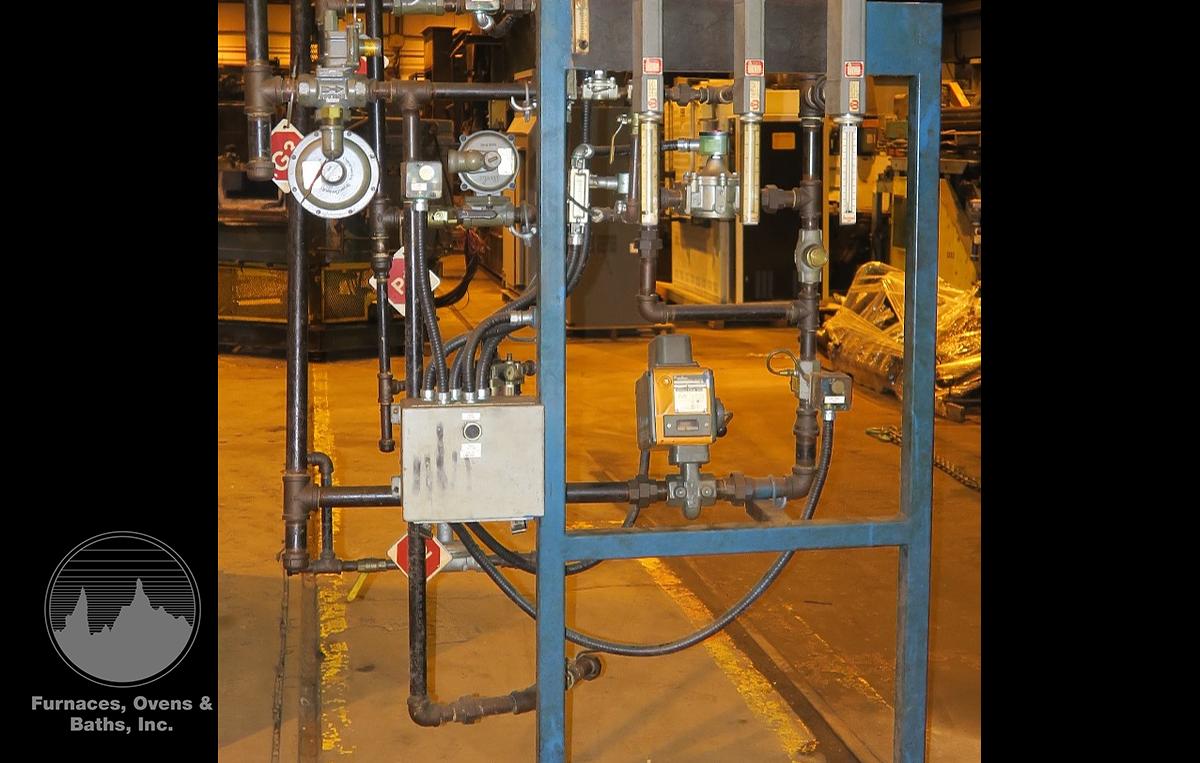

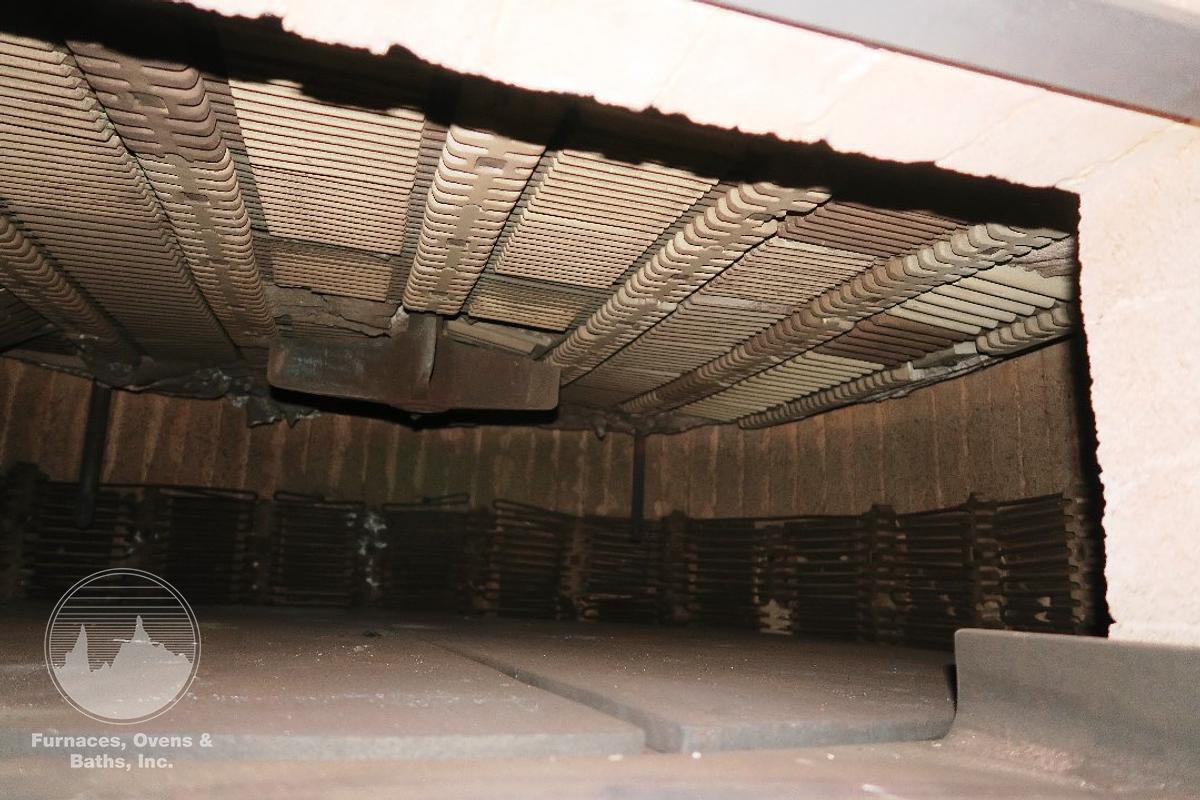

Standard Lindberg atmosphere rotary hearth furnace with vertical lift air operated door and alloy hearth plates. Furnace door is operated with a dual palm type push button station. Furnace is fiber lined and has rod overbend type heating elements located on the roof, below the hearth and the entire circumference. A cast alloy roof mounted fan for circulation. This furnace includes an atmosphere flow panel which includes flow meters for air, natural gas and endo. Furnace door has a flame curtain with Honeywell flame safety and spark ignition as well as a burn-off with Honeywell flame safety and spark ignition. Also included is the electrical prints and component manuals.
Specifications
Manufacturer | Lindberg |
Model | HD-18509-AR |
Condition | Used |
Serial Number | 77889, Reference #70194 |
Stock Number | 7429 |
Work area | 18"W x 9"H Opening x 50" diameter hearth |
Heated | Electric |
Max temperature | 1600°F |
Voltage | 240/3/60/72 kW |
External dimensions | 8' diameter x 10'H |

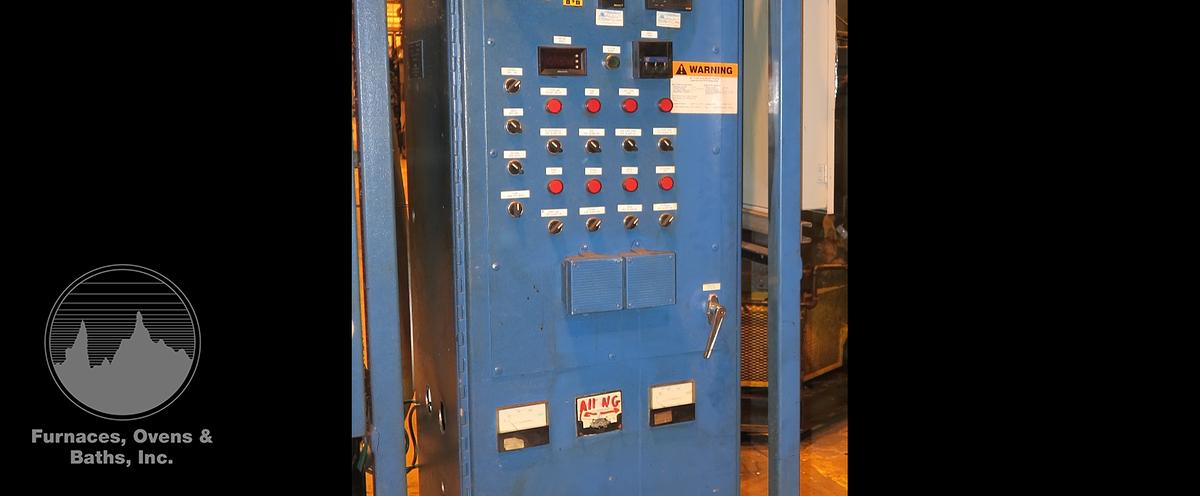

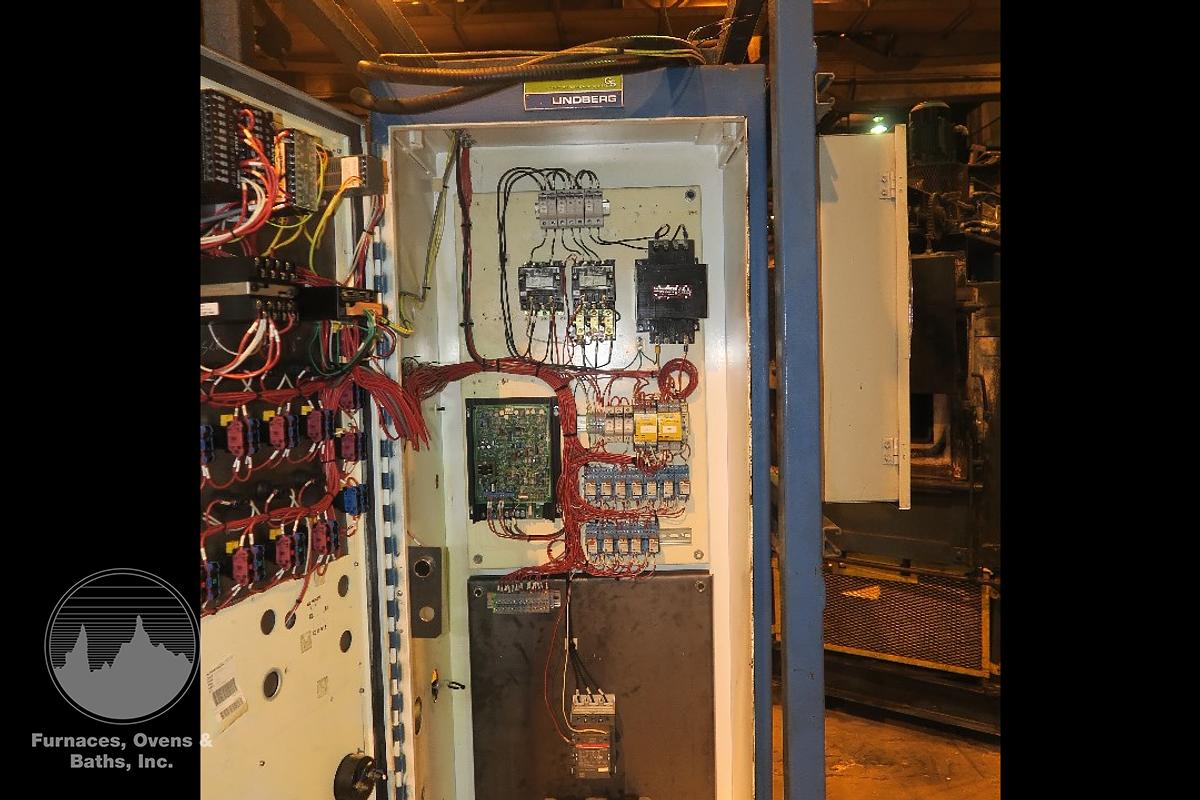

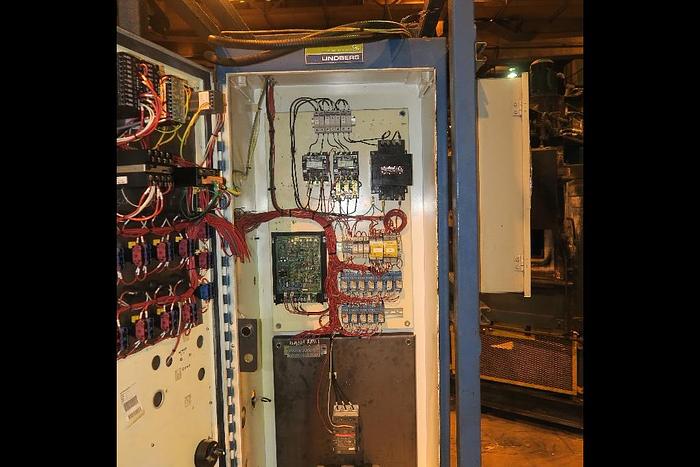

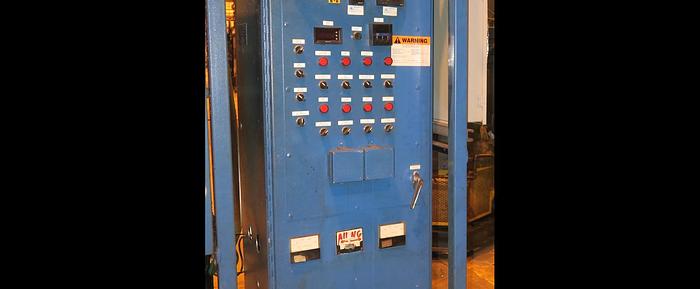

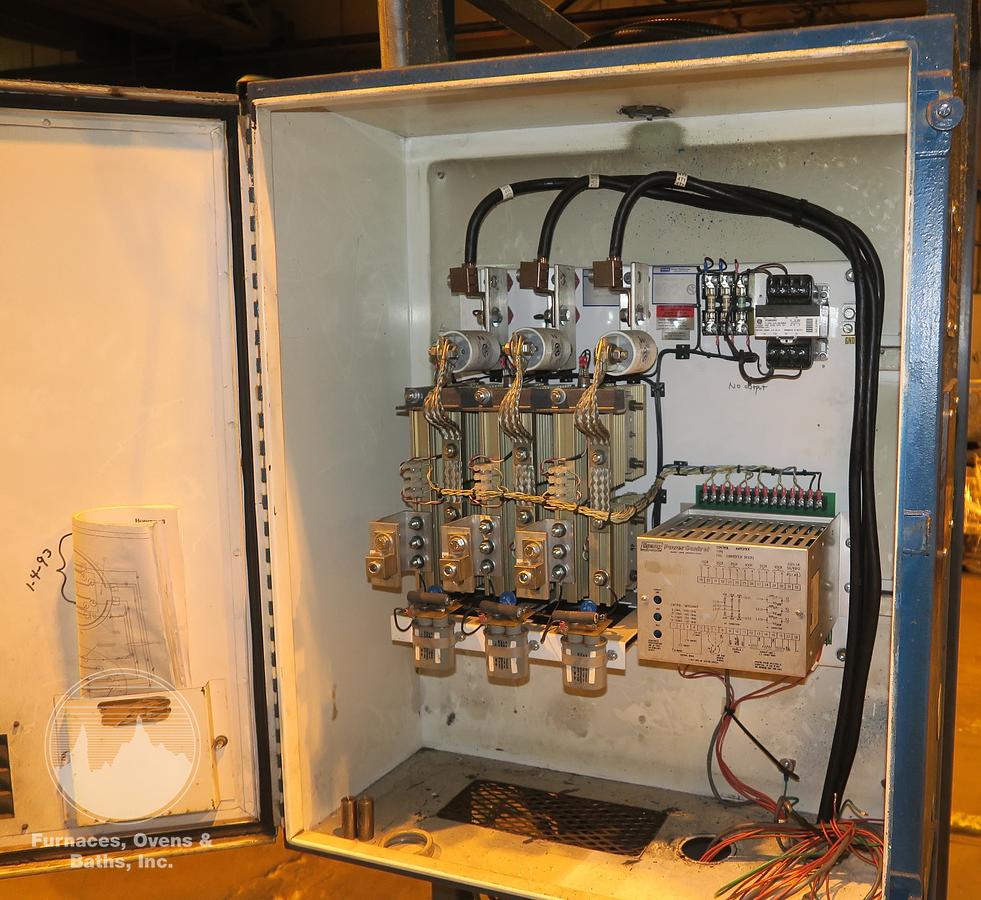

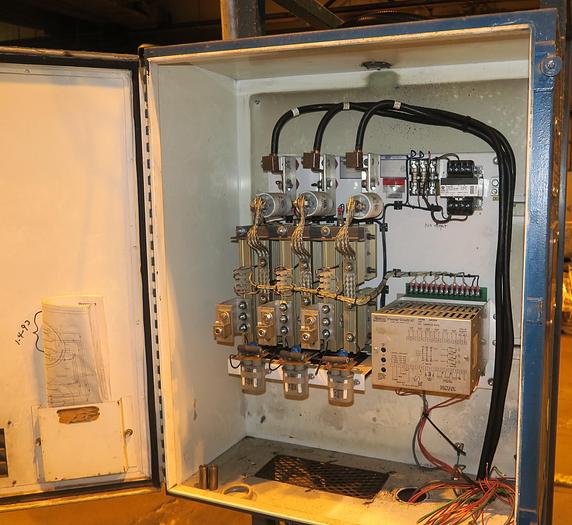

Controls | Mounted and wired in a separate free standing panel with fused disconnect includes an SSi Series 7 digital temperature controller, SS1 75L Limitrol digital high limit and SSi AC20 digital carbon controller with SSi carbon probe. There is also a Minarik digital speed control with display for hearth speed and an ATC analog timer for indexing time. Mounted in a separated enclosure includes a "Spang" SCR power controller for the heating elements. High limit contactor, motor starter, push buttons, signal lights etc mounted in the same enclosure. |
Availability | Immediate |
