37"W x 25"H x 19"L Despatch V-23 STD Cabinet Oven, 500°F, Electric

37"W x 25"H x 19"L Despatch V-23 STD Cabinet Oven, 500°F, Electric

Contact us for price

orCall 248-343-1421

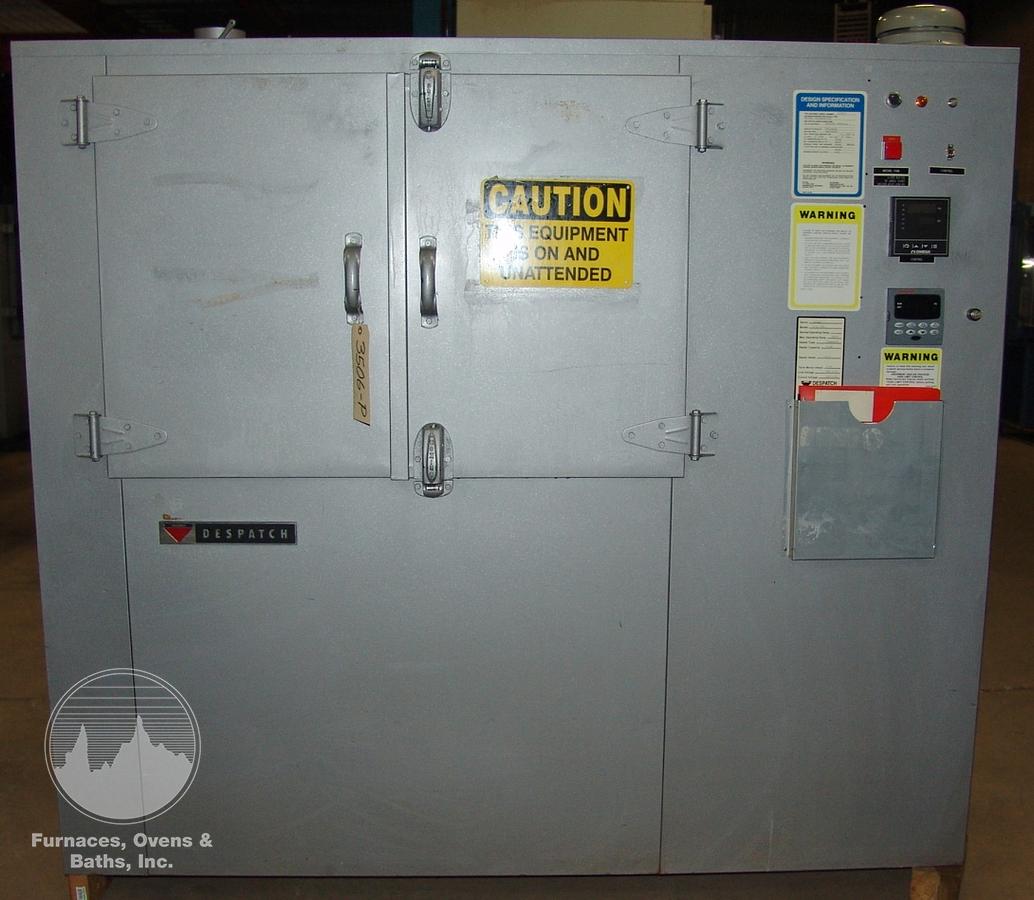

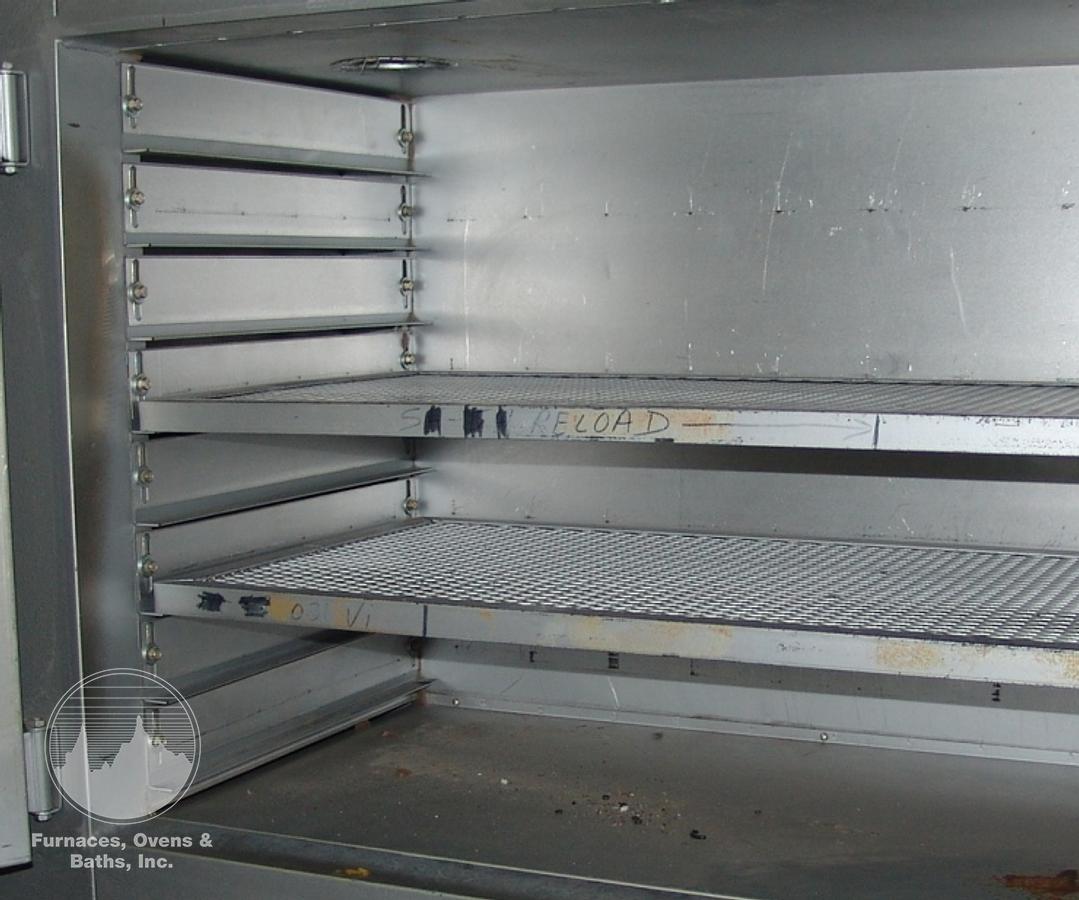

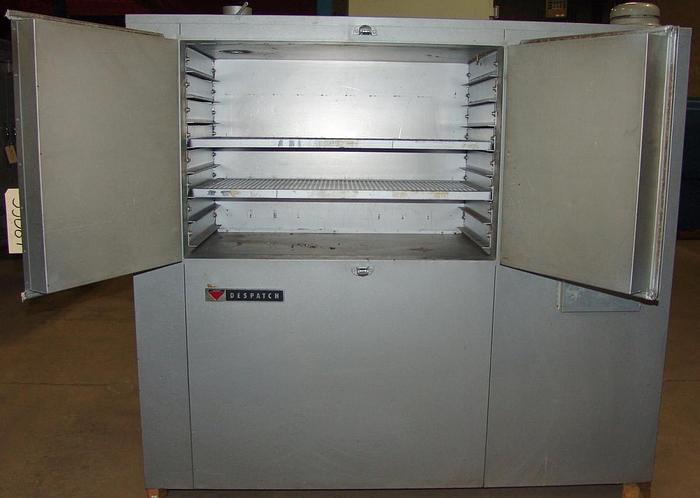

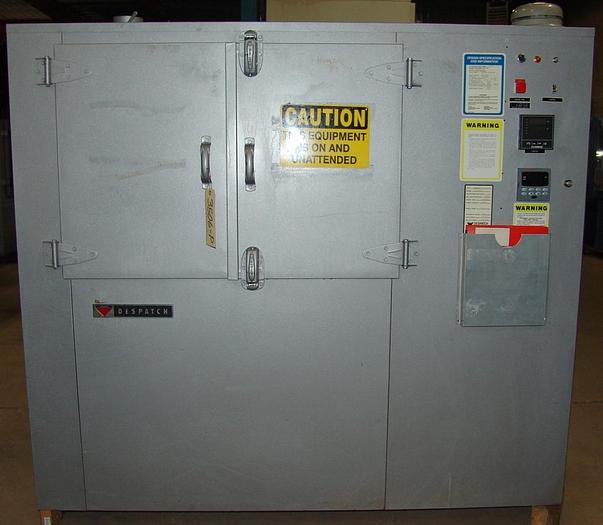

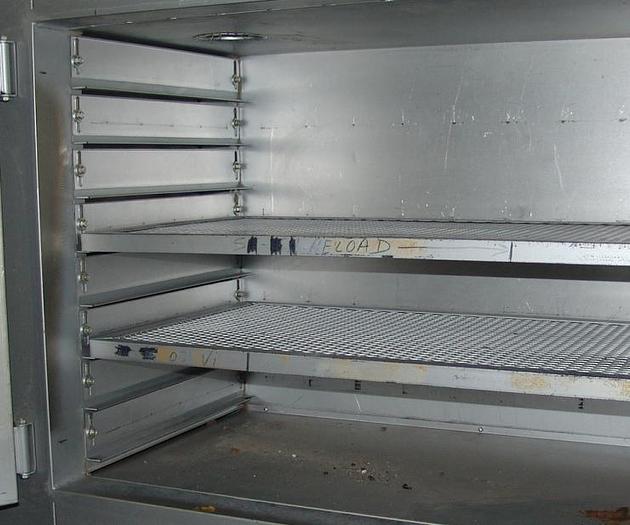

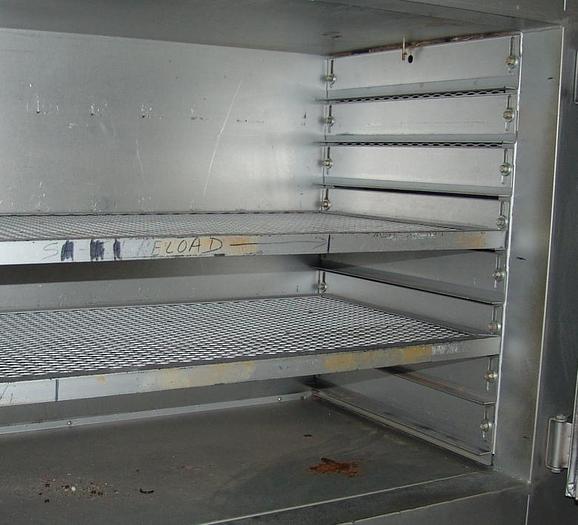

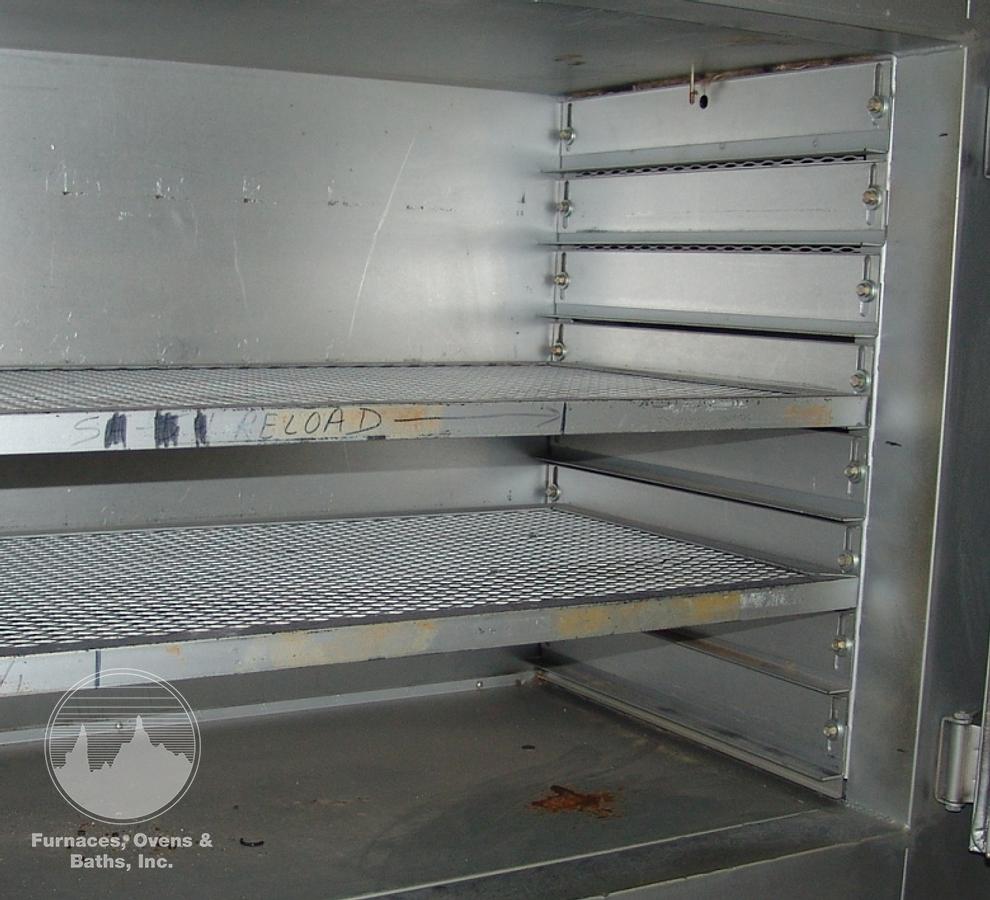

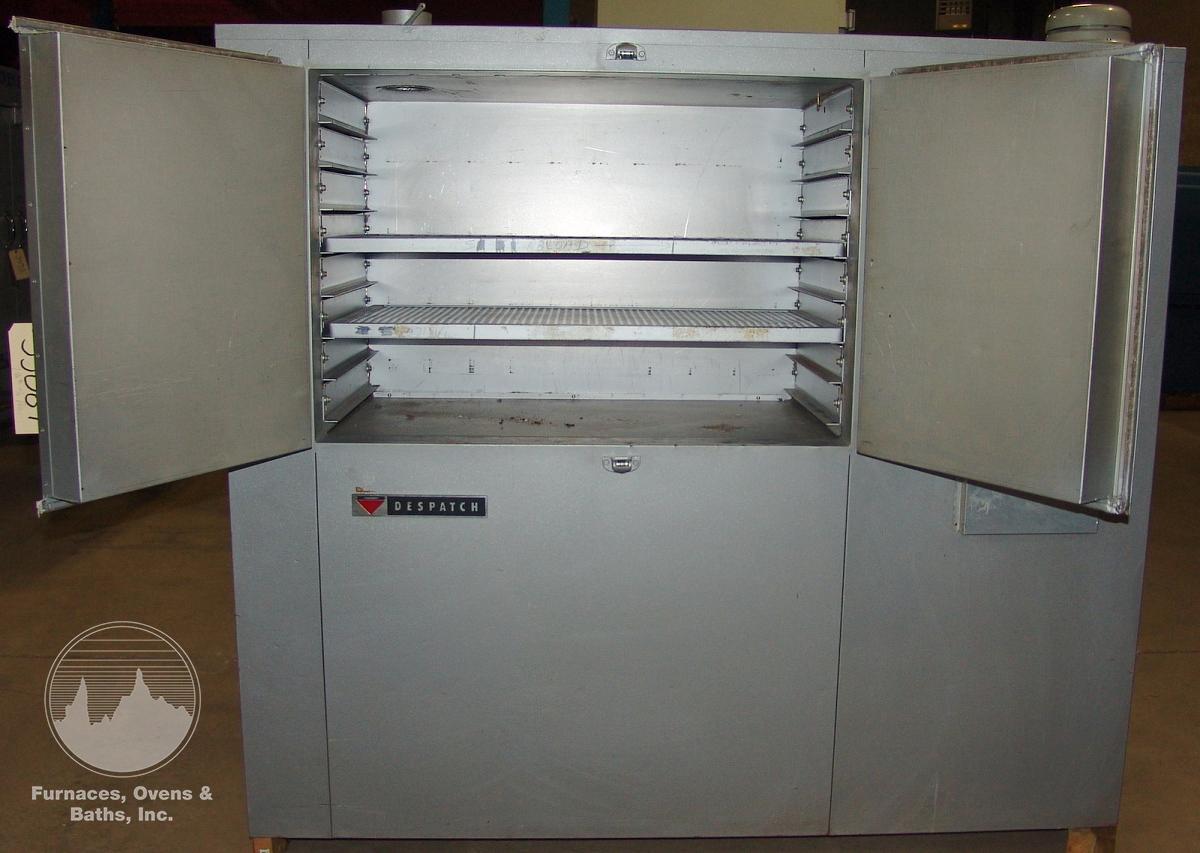

Double doors with fiberglass gasket and "Brixon" spring tension latch for a good door seal. Aluminized steel interior. Adjustable louvers on each side wall to control airflow though the chamber. Seven shelf brackets on 3" centers, 2 shelves are supplied. Heating elements and direct driven circulating fan are located under the work area. Heated air is circulated horizontally across the work chamber for good uniform heating. A fresh air inlet is located on the side and a dampened exhaust vent is on top of the oven.

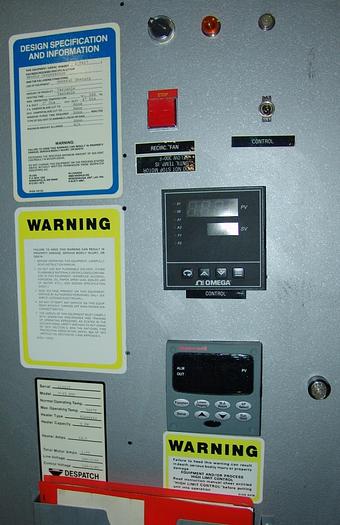

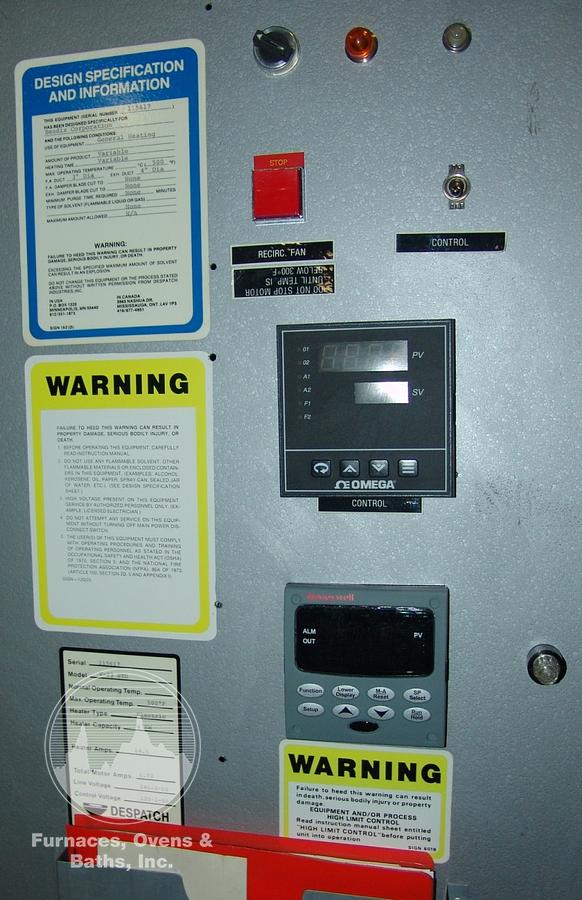

Controls are mounted in the built in control cabinet on the right-hand side. There is an Omega digital temperature controller and a Honeywell UDC 3200 high limit safety. Control switches for the circulating fan and heat are flush mounted in the front panel. SCR power controller, high limit contactor, motor starters, fuses etc. are located inside the cabinet.


ModelV-23 STD
Serial Number115617
Stock Number7169
Work area37"W x 25"H x 19"L
Max temperature500°F
Voltage240/3/60/6 kW
External dimensions66" wide x 26" deep x 61" high. 746# w/o pallet
