20"W x 20"H x 18"L Blue M IGF-6680E Inert Gas Cabinet Oven, 1100°, Electric
20"W x 20"H x 18"L Blue M IGF-6680E Inert Gas Cabinet Oven, 1100°, Electric
Contact us for price
Description

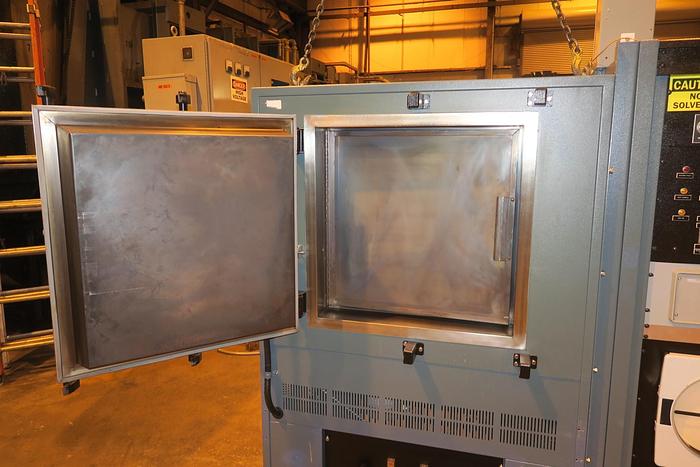

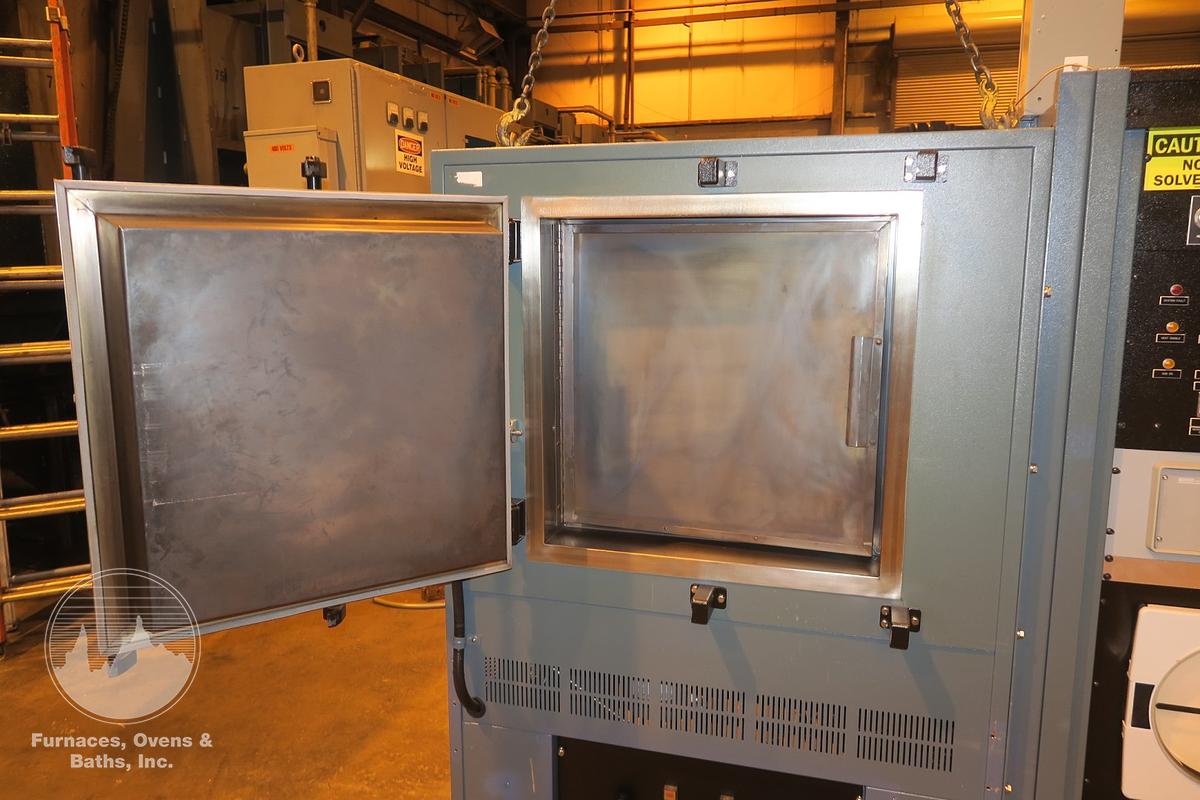

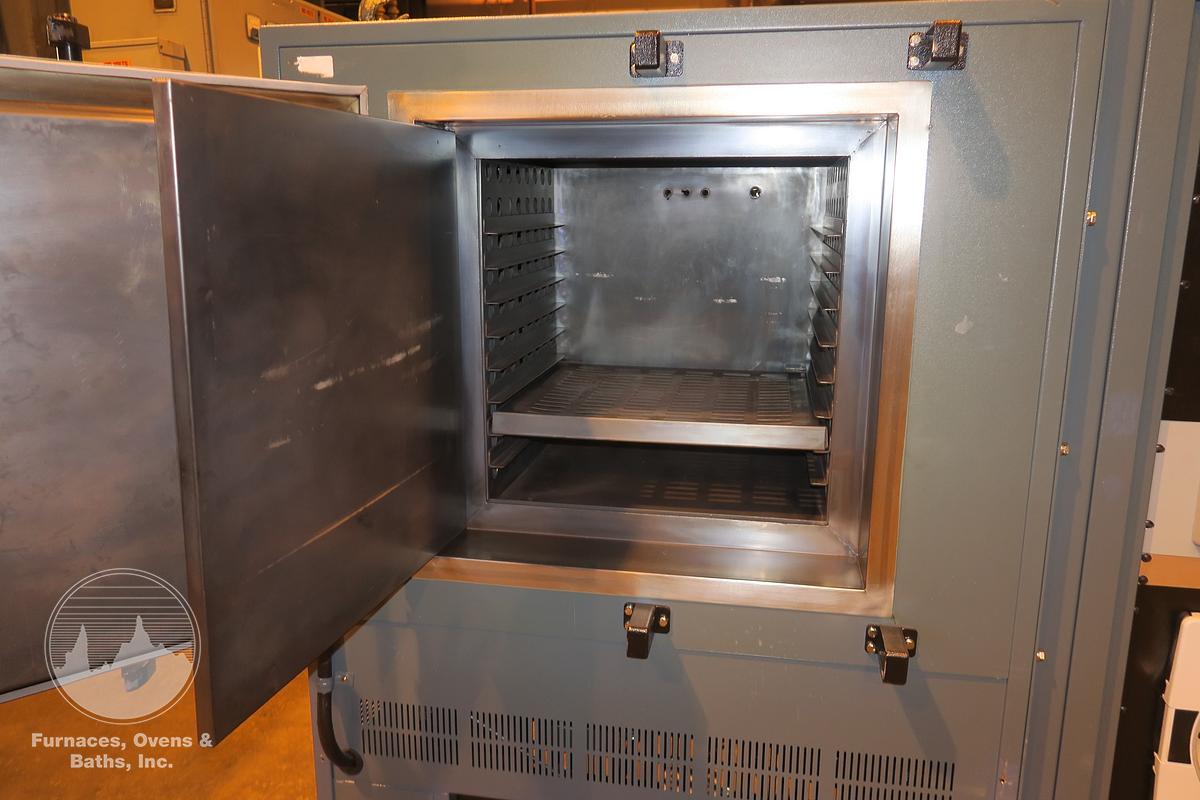

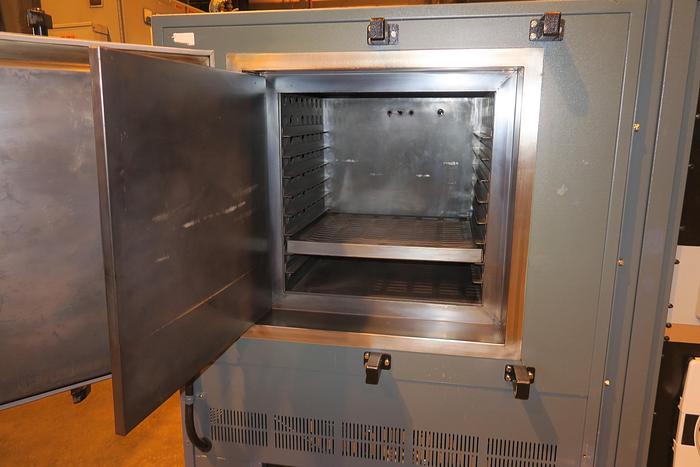

Single door with 2 cam action positive seal latches. Silicon rubber door gasket. Stainless steel interior with 8 shelf brackets, one (1) shelf is included with this oven. Coiled style heating elements and circulating fan are located under the floor pan. Heated air is circulated horizontally across the chamber. Inert gas inlet is located at the blower shaft to ensure proper mixing and eliminate air being drawn into the chamber. Cooling blower is mounted under the chamber and blows air around the inner chamber for rapid cooling without loss of atmosphere.
Controls are mounted and wired in a compartment located on the right-hand side of the oven. There is a Microstar model 828 digital programmable temperature controller, Partlow round chart recorder, high limit and O2 analyzer. A control power switch and process indicating lights are flush mounted to the front panel. Two flowmeters, one for the oven chamber and one for the door "throat" opening. Chamber maintains a positive pressure to eliminate oxidation. Chamber pressure gauge and pressure relief valve.
Specifications

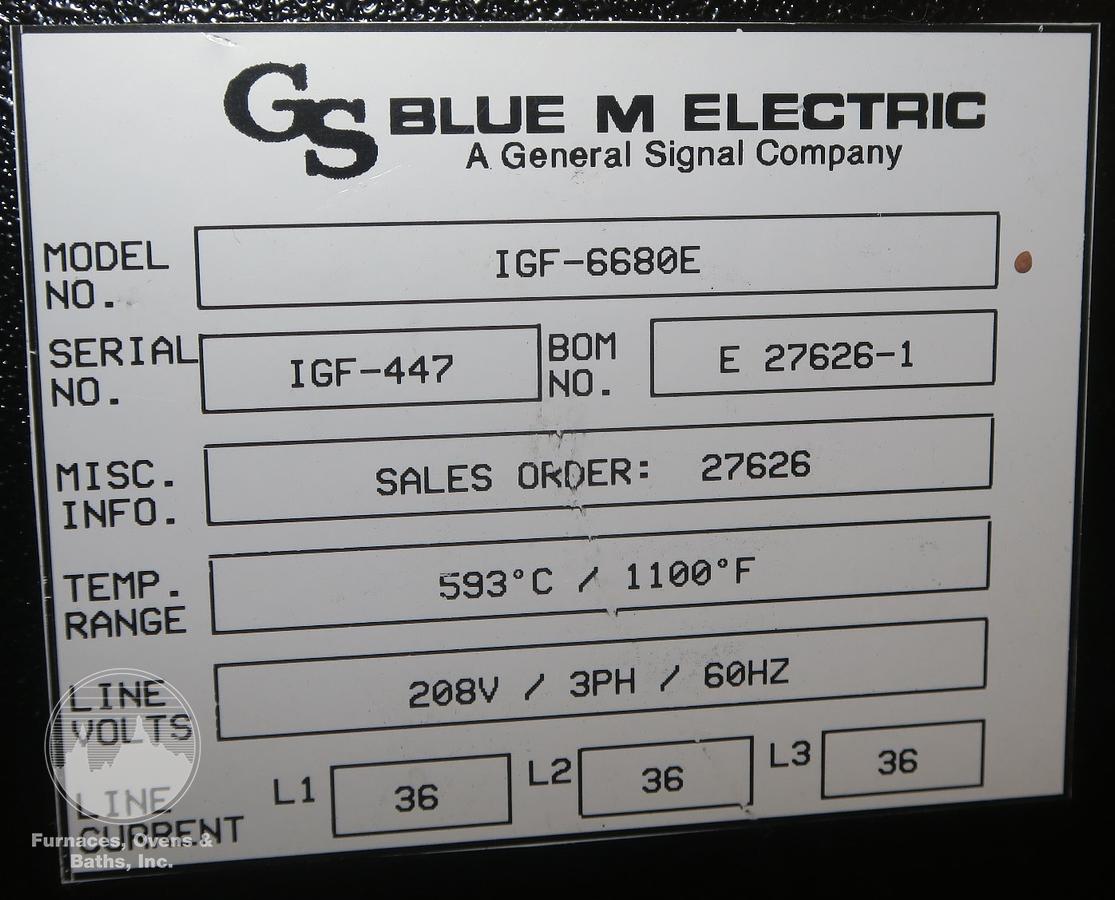

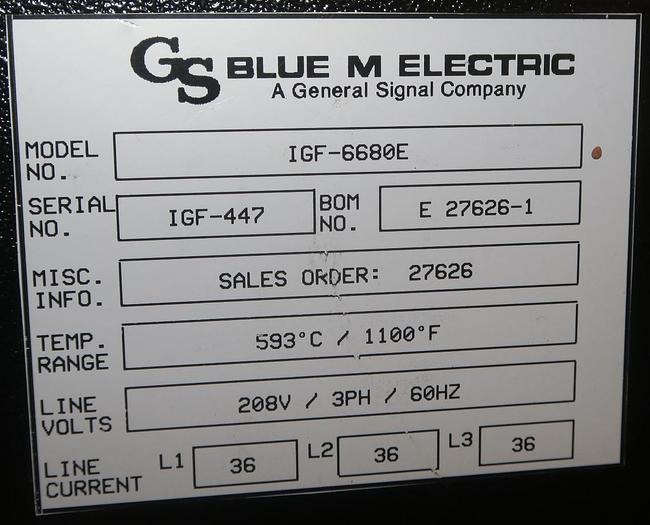

Manufacturer | Blue M |
Model | IGF-6680E |
Condition | Used |
Serial Number | IGF-447 |
Stock Number | 7435 |
Work area | 20"W x 20"H x 18"L |
Heated | Electric |
Max temperature | 1100°F |
Voltage | 208/3 Phase/60 Cycles/36 Amps |
External dimensions | 72" wide x 40" long x 72" high |
Availability | Immediate |
