38"W x 38"H x 18"L Despatch Industries Cabinet Oven, 400°F, Electric

38"W x 38"H x 18"L Despatch Industries Cabinet Oven, 400°F, Electric

Contact us for price

orCall 248-343-1421

Description

Hinged double doors swing open fully giving full access to the work area. The interior is stainless steel. There are two shelves with the unit. The heating elements and circulating fan are located below the work chamber. Heated air is circulated vertically through the oven in a top - down air flow pattern. Louvers located in the floor and roof are adjustable for uniform heating. Air flow pressure switch for the fan will cut power to the elements if the fan fails. Fresh air inlet with adjustable damper and an exhaust vent with adjustable damper are located on the left hand side of the oven.

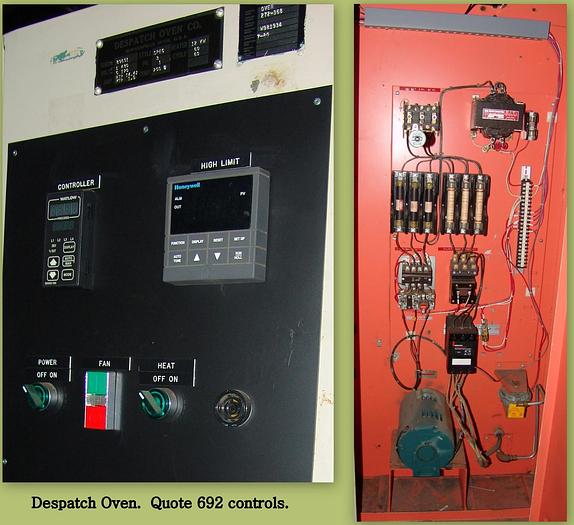

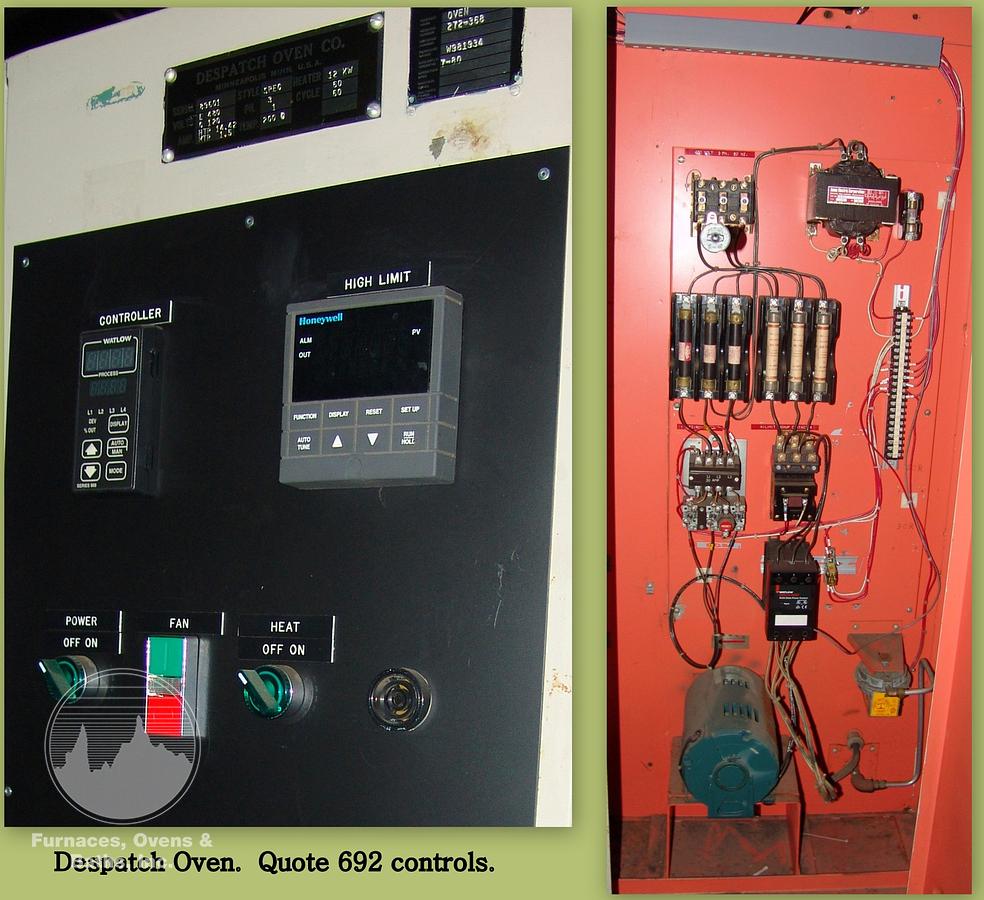

The controls are built into the front of the oven and include a Watlow model 988 digital temperature controller and a Honeywell UDC 2000 digital high limit. Control switches with indicating lights for the control power, circulating fan and heat are flush mounted in the front panel. Motor starter, high limit contactor, Watlow "Din-a-mite" solid state relay, fuses, relays etc. are mounted and wired inside the control enclosure.



Specifications

ManufacturerDespatch Industries
ModelSpecial
ConditionUsed
Serial Number89601
Stock Number7574
Work area38"W x 38"H x 18"L
HeatedElectric
Max temperature400°F
Voltage480/3/60/12 kW
External dimensions72" wide x 32" deep x 70" high. 1076# w/o pallet.
AvailabilityImmediate
