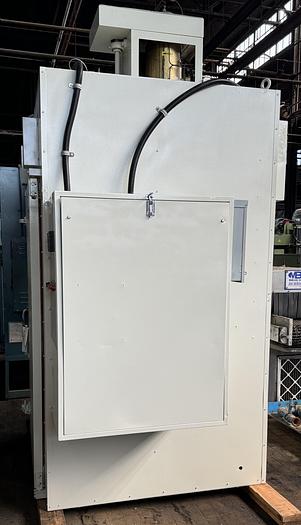

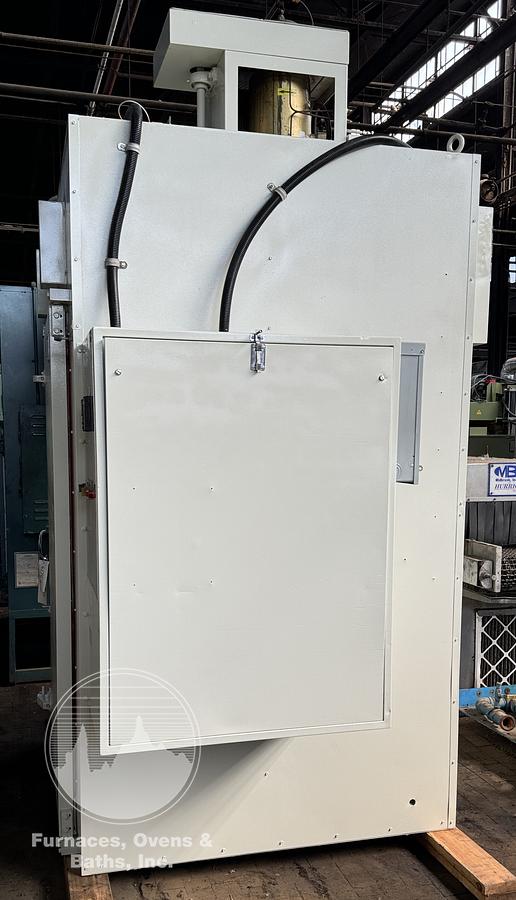

36"W x 72"H x 48"L, Gruenberg, Electric Walk-In Oven, 500°F

36"W x 72"H x 48"L, Gruenberg, Electric Walk-In Oven, 500°F

Contact us for price

orCall 248-343-1421


Single door with Brixon spring tension latches and dual silicon rubber gasket for an excellent door seal. Aluminized steel interior with an insulated floor. Cart tracks in the floor are 4" wide on 26" centers to accept a roll in cart, no cart is supplied with the oven. Adjustable perforated air duct panels are located on both sides. Tubular style heating elements and belt driven circulating fan are located above the work chamber. Heated air is circulated in a horizontal pattern across the work area for good uniform heating. A fresh air inlet with slide damper is located in the front wall. An exhaust vent with adjustable damper is on top. Oven has been tested and is ready for immediate shipment.

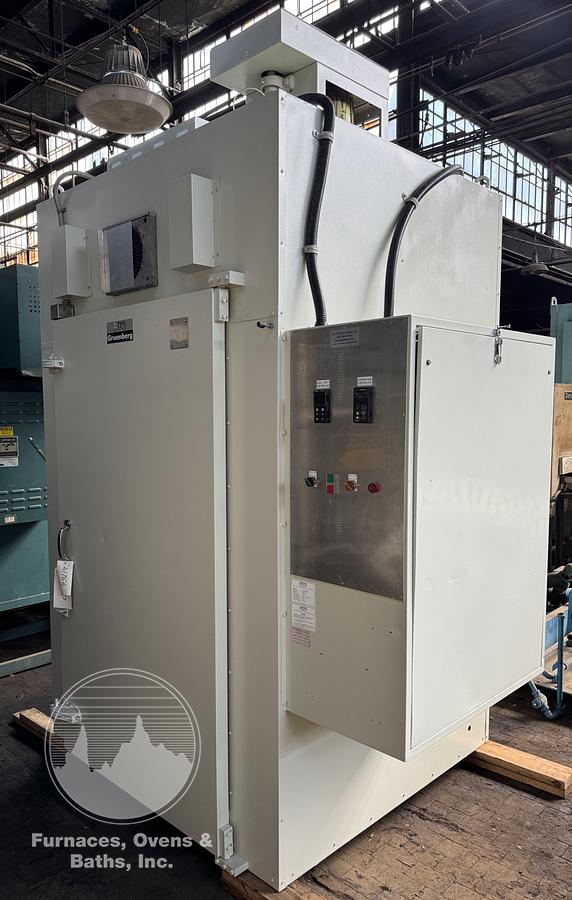

Controls are located in an enclosure attached to the right-hand side of the oven. Watlow model 988digital temperature controller, a new Watlow PM series digital high limit control and new illuminated control switches are flush mounted in the enclosure. High limit contactor, Watlow solid state "Din-A-Mite" power relay, motor starter, fuses, relay etc. are mounted and wired inside the enclosure. A disconnect switch is mounted to the back of the control enclosure.


Serial Number41813-02
Stock Number7557
Work area36"W x 72"H x 48"L
Max temperature500°F
Voltage480/3/60/30 kW
External dimensions73" wide x 72" deep x 120" high.
