48"W x 72"H x 48"L, Grieve, Electric Walk-In Oven, 500°F, Double Ended


48"W x 72"H x 48"L, Grieve, Electric Walk-In Oven, 500°F, Double Ended

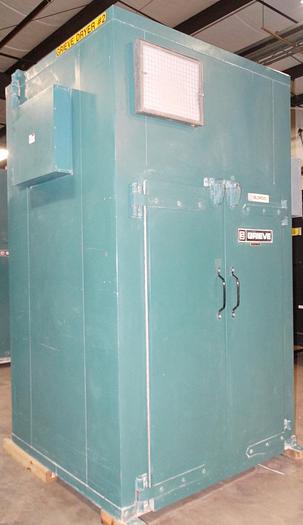

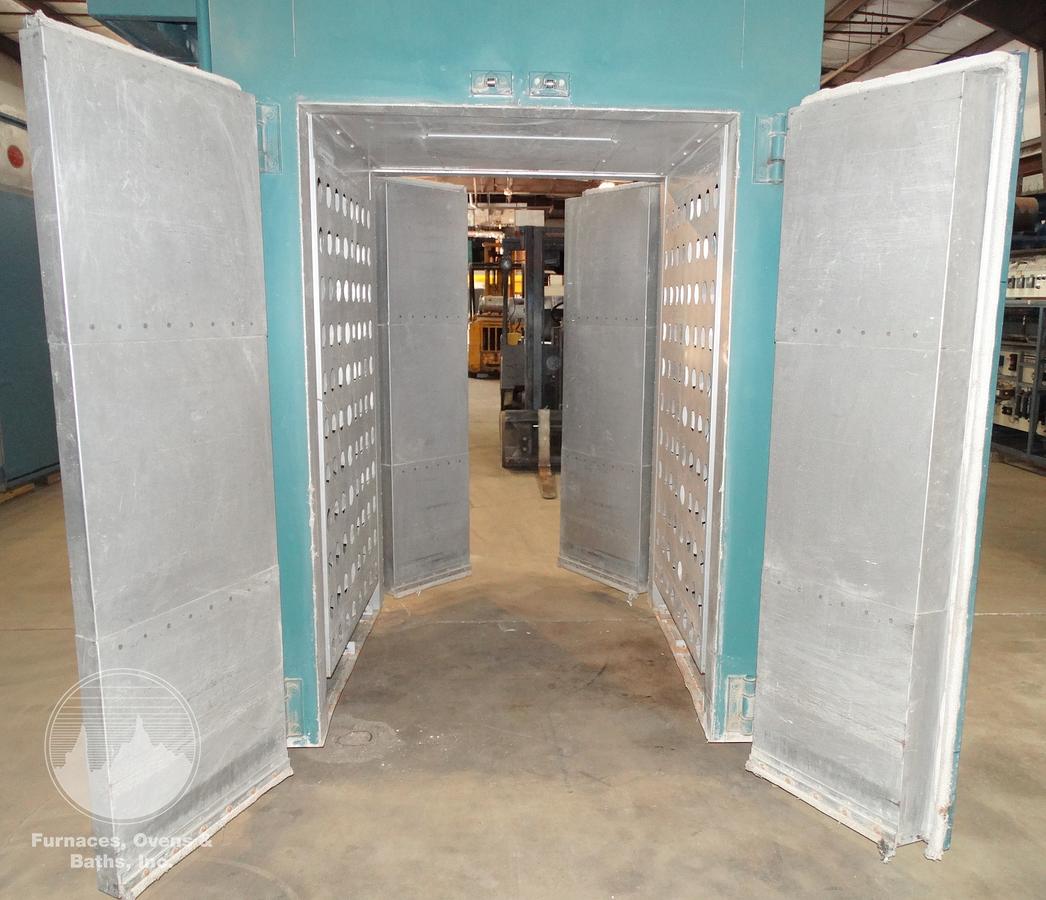

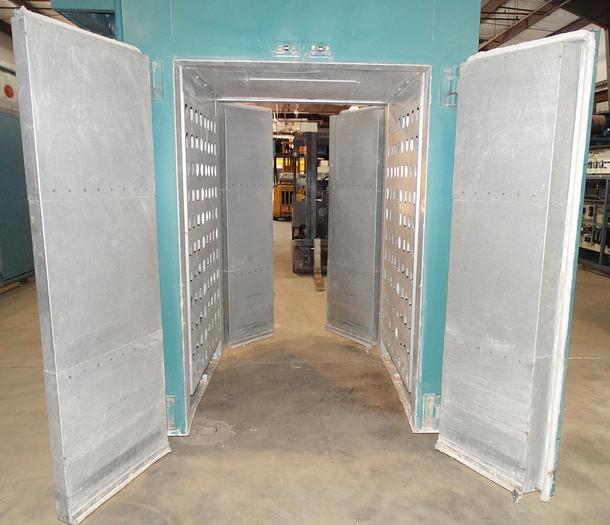

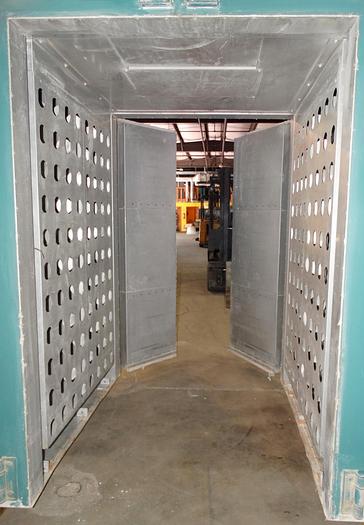

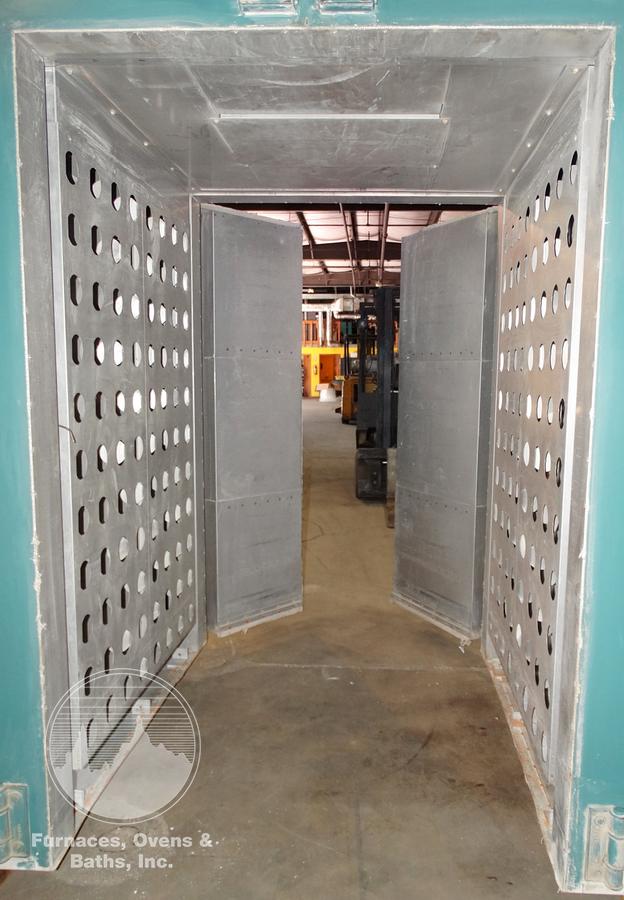

Double doors on each end for use as a pass-through oven. Each door has heavy gauge strap hinges and Brixon spring tension latches. High temperature gaskets provide a good door seal. Aluminized steel interior with a steel plate floor. Adjustable punched louvered air duct panels on both side walls. The belt driven high volume circulating fan (3300 CFM) mounts through the side wall above the work chamber, Tubular style heating elements are also located above the work area. Heated air is circulated in a full horizontal pattern across the work area for good uniform heating. A powered exhaust fan is located on top of the oven.

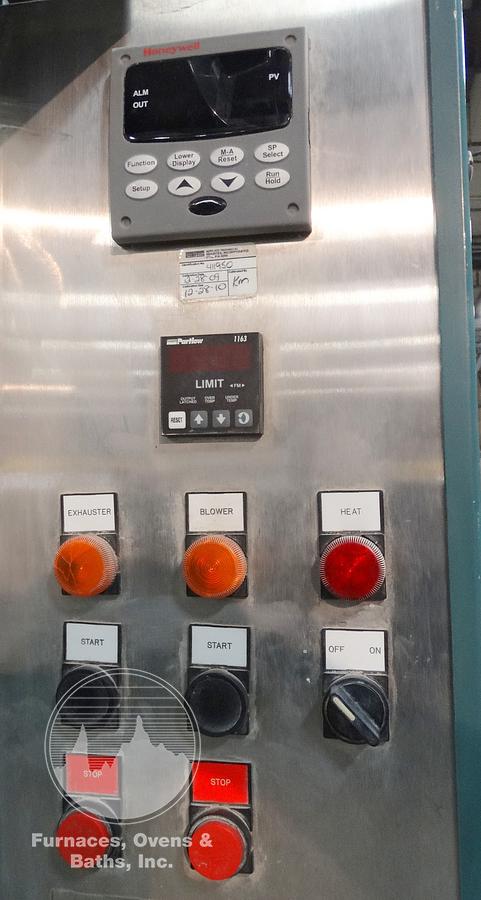

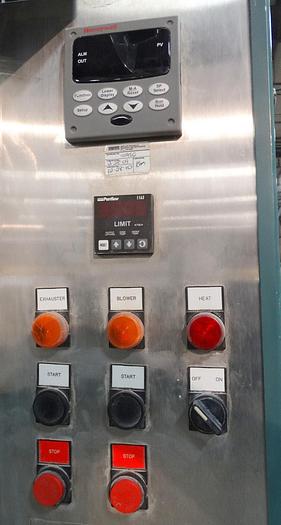

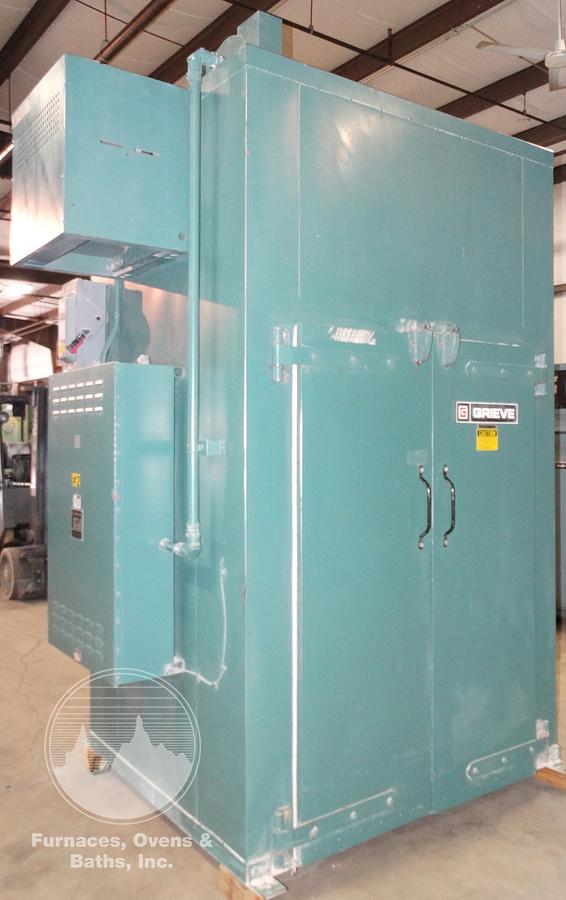

Controls are mounted and wired in an enclosure attached to the side of the oven. Watlow F4 digital programmable temperature controller and a Partlow digital high limit safety control. Control switches with indicating lights are flush mounted in the side of the enclosure. Contactors, motor starters, fuses, relays etc. are mounted inside the control cabinet. A fused disconnect switch is attached to the side.


Serial Number411950 (2001)
Stock Number7512
Work area48"W x 72"H x 48"L
Max temperature500°F
Voltage460/3/60/40 kW
External dimensions86" wide x 66" deep x 112" high
