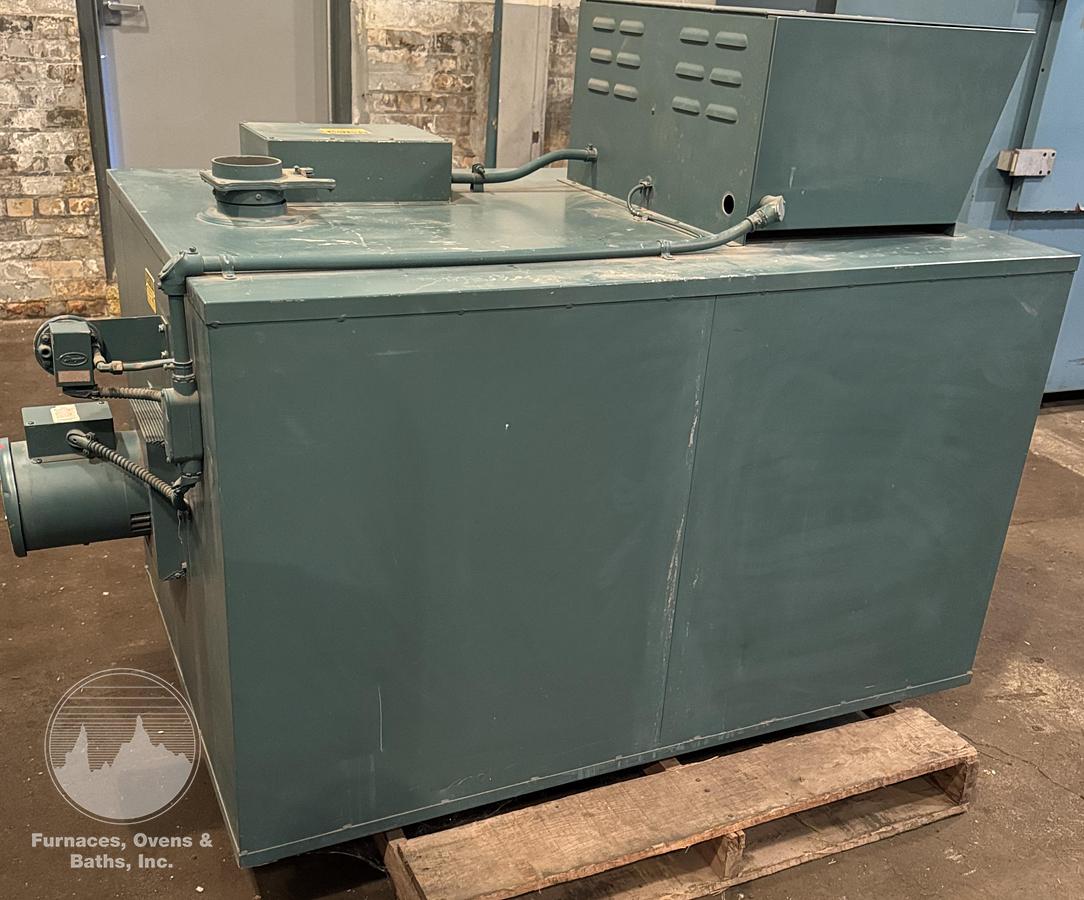

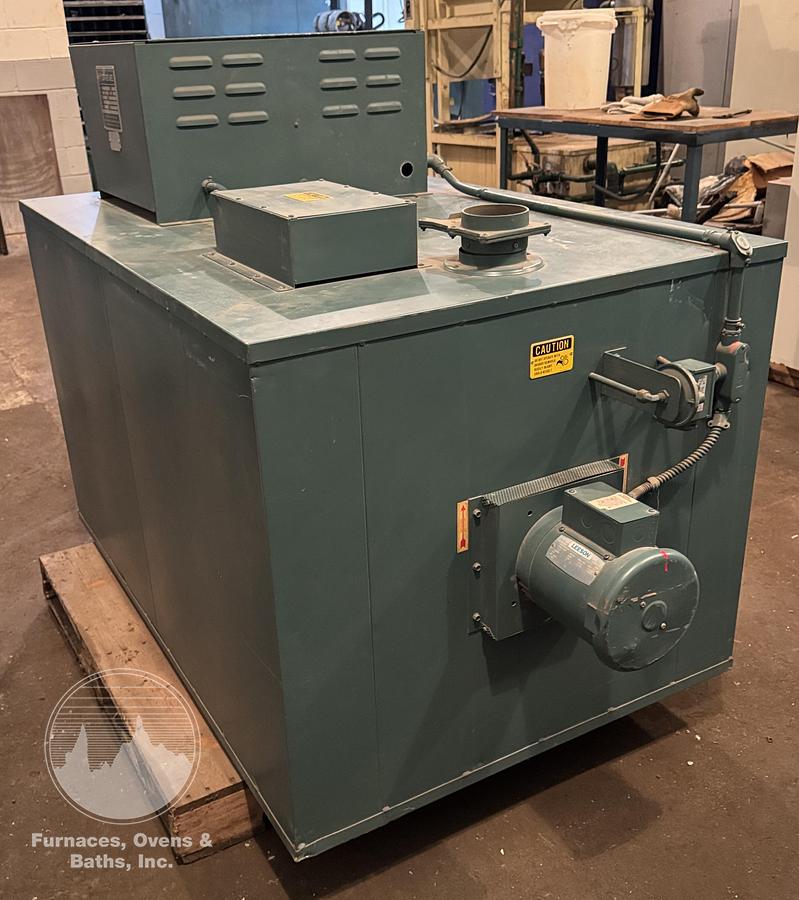

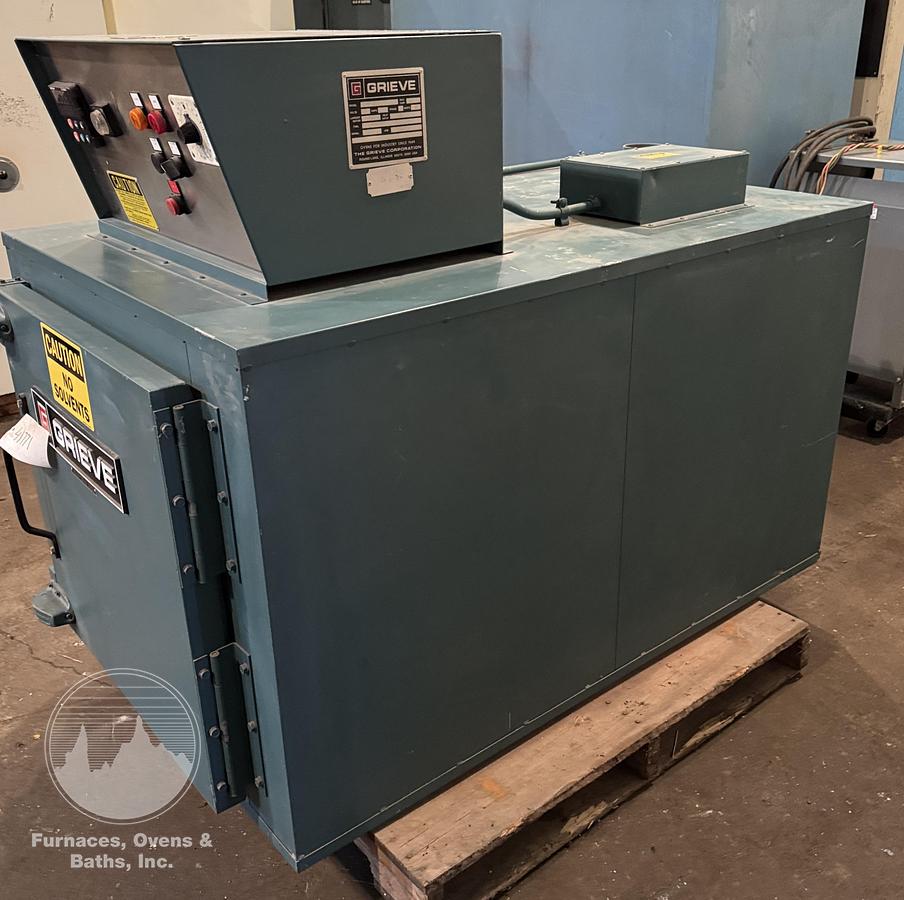

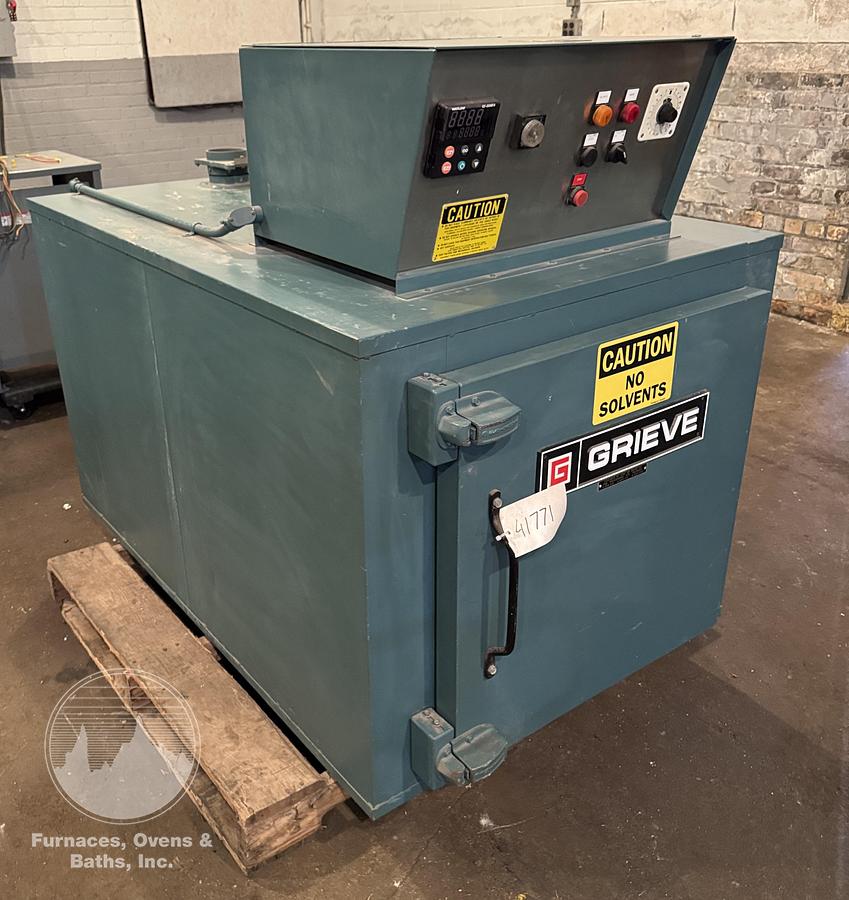

24"W x 24"H x 36"Dp, Grieve AF-500 Cabinet Oven, Electric, 500°F
24"W x 24"H x 36"Dp, Grieve AF-500 Cabinet Oven, Electric, 500°F
Contact us for price
orCall 248-343-1421
Description
Single door with silicon rubber gasket and Brixon spring tension latches for a good door seal. Stainless steel interior with 7 shelf brackets on 3" centers, 2 shelves are supplied with the oven. Coiled style heating elements are located on each side wall behind the air duct side panels. Direct driven circulating fan is mounted through the rear wall. Heated air is circulated in a horizontal front to back pattern for good uniform heating. An exhaust vent with slide gate damper is located on top of the oven.
Specifications
| Manufacturer | Grieve |
| Model | AF-500 |
| Condition | Used |
| Stock Number | 7587 |
| Work area | 24"W x 24"H x 36"L |
| Item | 7587 |
| Heated | Electric |
| Max. temperature | 500°F |
| Voltage | 460/3/60/5 kW |
| External dimensions | 36" wide x 70" long x 45" high. 760# w/o pallet |

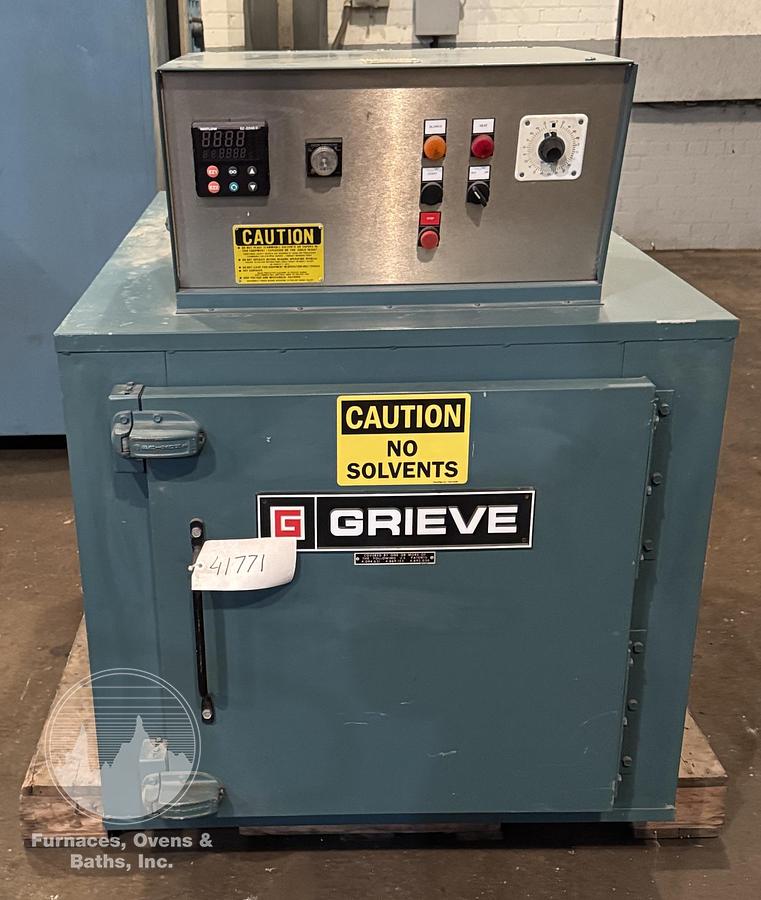

| Controls | Controls are located in a console cabinet mounted on top of the oven. A new Watlow PM seriesdigital temperature controller, Love non indicating high limit and control switches with indicatinglights are flush mounted in the face of the control console. High limit contactor, solid state powerrelay, motor starter, fuses, relays, etc. are mounted inside the console.A 0 - 5 hour process timer is also mounted in the control console. |
