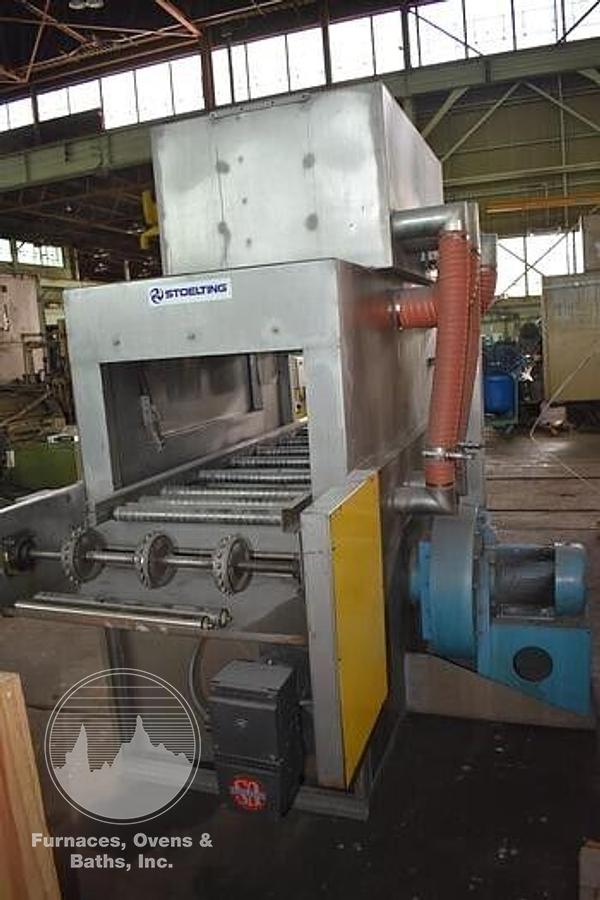

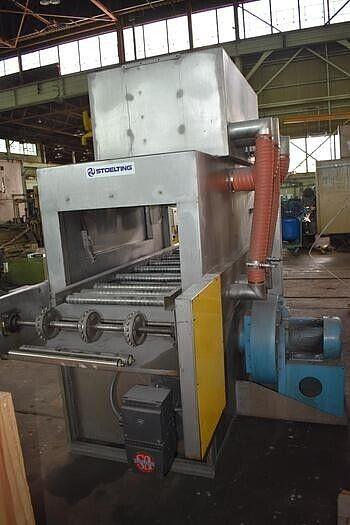

Stoelting SBW-224, 24"W Stainless Steel Belt Washer

Stoelting SBW-224, 24"W Stainless Steel Belt Washer

Contact us for price

orCall 248-343-1421


Work area: 24” x 16” Part Height Opening 18” Tall Loading height: 3’ 6” Load Extension, entry: 2’ 5” Stage 1: 7’ Wash 250 Gallon, Stage 2: 7’ Rinse 250 Gallon Stage 3: 2’-6” Final Rinse Stage 4: 6’ Heated Blow-Off Unload 1’-6” Construction: Tanks: 7 GA Stainless Steel Canopies: 14 GA Stainless Steel Dryer Construction: Stainless Steel Chip Basket: Stainless Steel Piping: Stainless Steel Spray Tubes: Stainless Steel Pumps: Corrosion Resistant Filters: Stainless Steel 20 Micron Wash 10 Micron Rinse Belting Stainless Steel Conveyor Stainless Steel Equipped with: 2-6 FPM Conveyor Speed Stainless Steel Mesh Belt Easy Access tunnel doors Easy Access Cleanout Hatches Chemical Pump Liquid level control Oil Skimmer Wash 2 HP Pump 140 Deg. F. Rinse 2 HP Pump 140 Deg. F. Heated Blow Off 20000 CFM 10 HP 250 Deg. F. 40 KW Emergency Stop on Both Ends

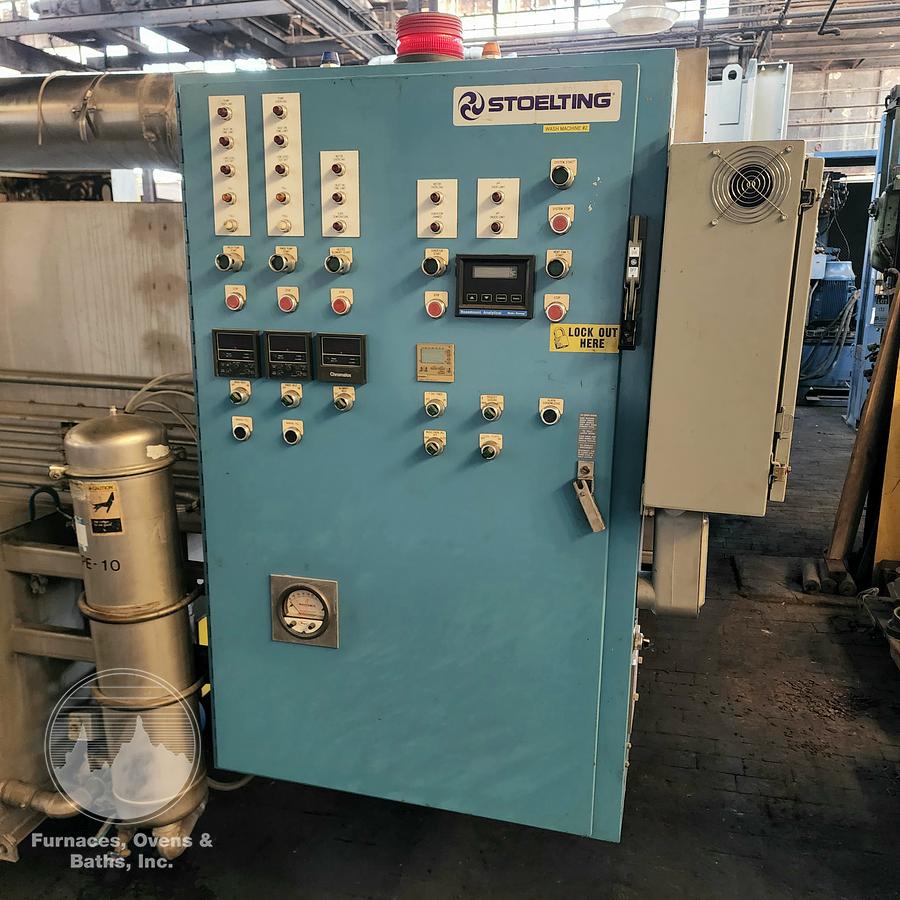

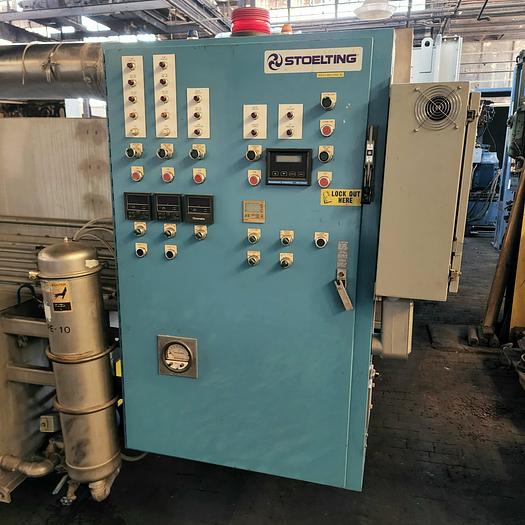

Controls appear to be complete and attached to the side of the washer which includes an Allen Bradley SLC 5/02 PLC controller. Also, temperature controllers for wash, rinse and blow-off.

Shipping Dimensions:

24’x6’5” w x 8’9” H

9’x3’x41” h

3-skids 4x4 77”h highest one


6’x4’x7’4” H

Total weight 20,000 LBS. Max

It will all fit on one flatbed truck.


Serial Number4160375
Stock Number7623
TypeStainless Steel Conveyor Belt Washer
Model NumberSBW-224
Max. temperature140°F/250°F
Voltage460/3/60/300 Amp Breaker
Work area24"W x 18"H Opening (16" part height)
External dimensions9' wide x 9' high x 26' long
