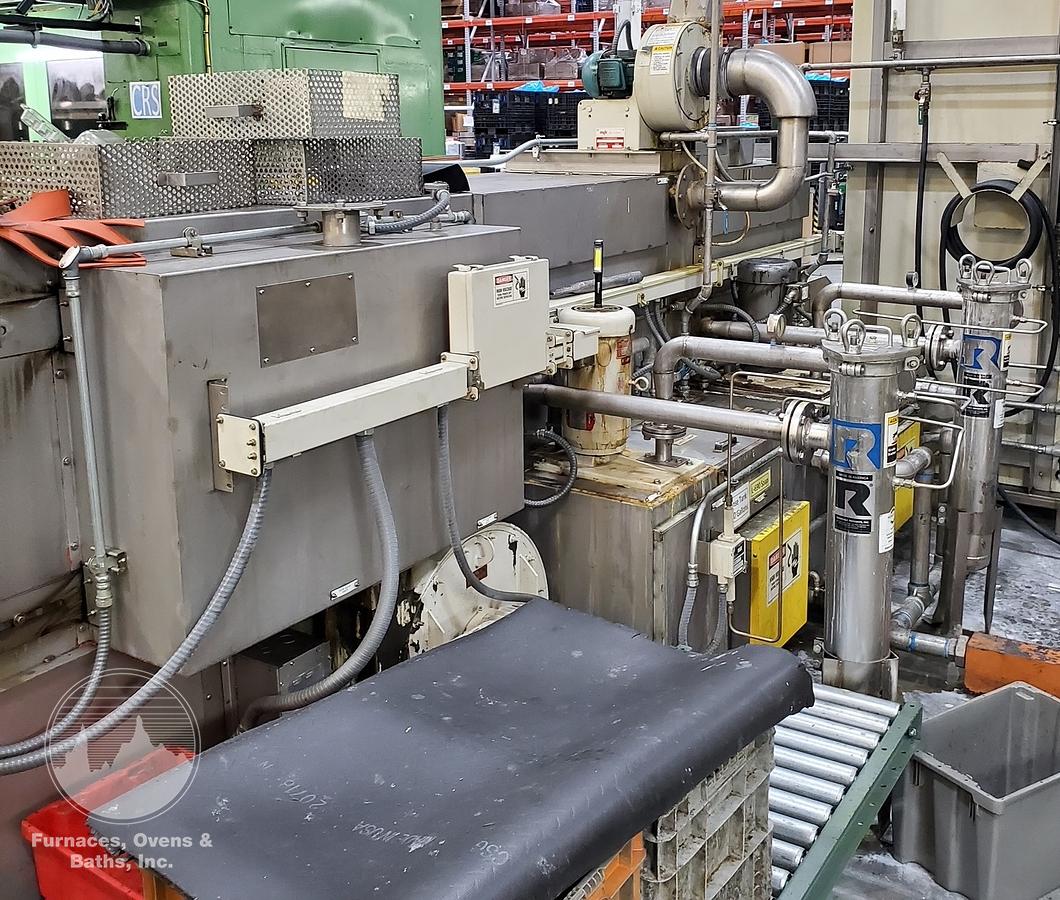

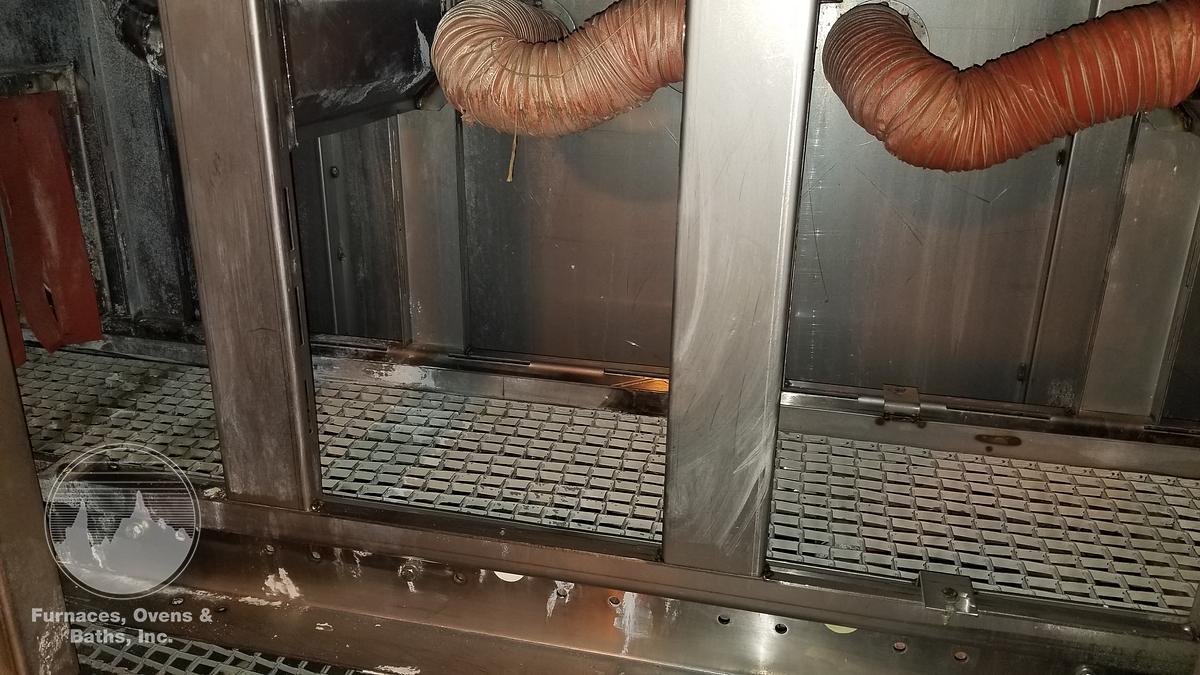

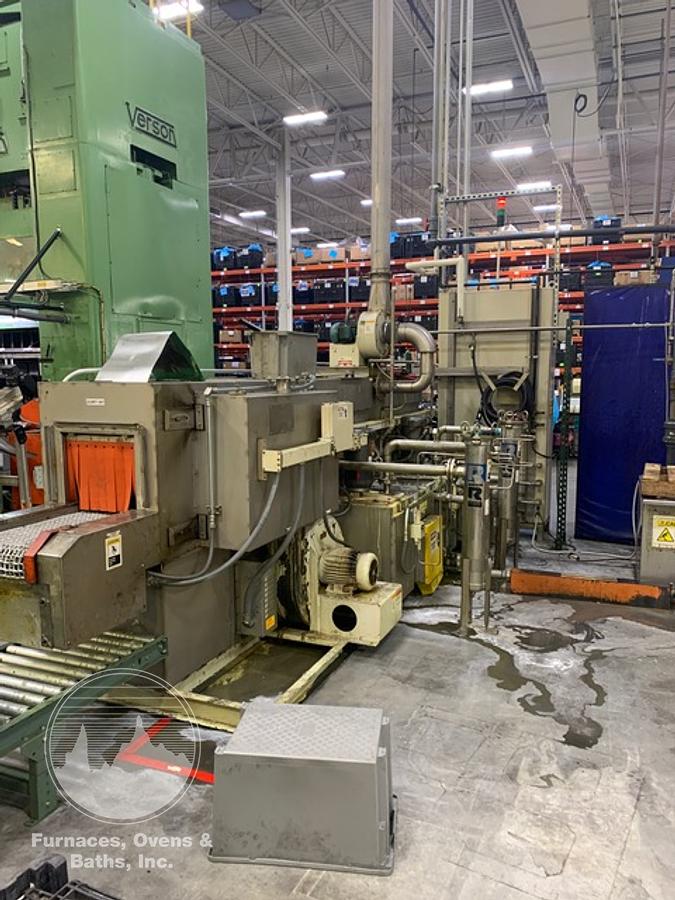

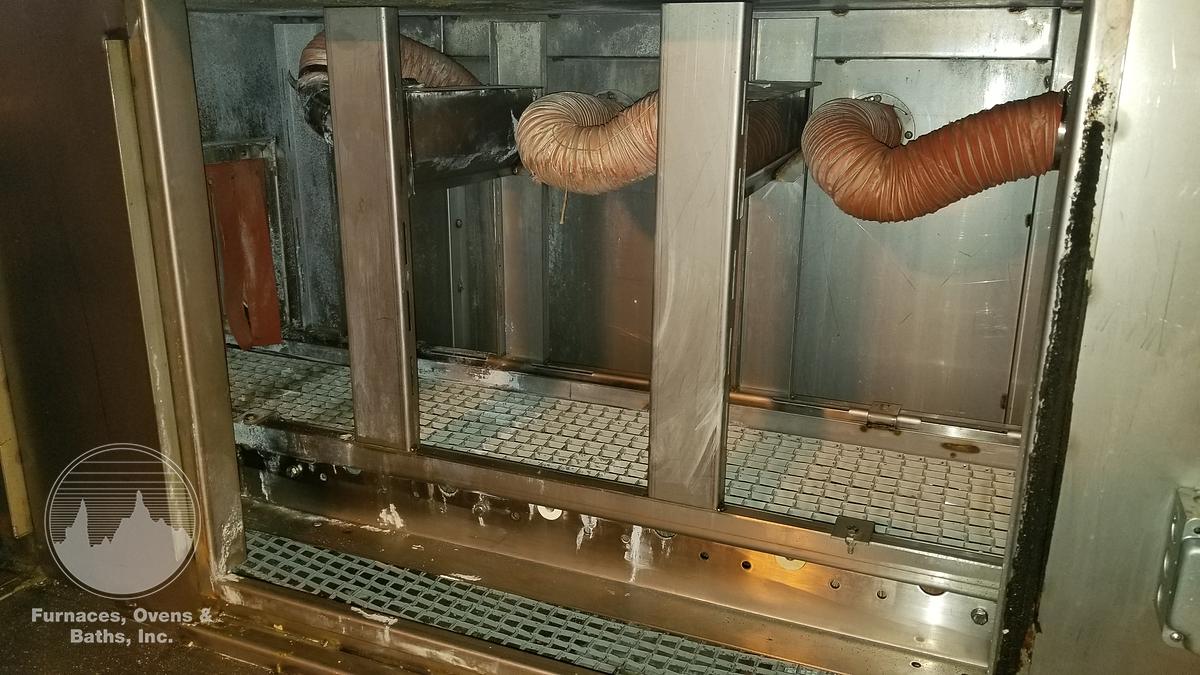

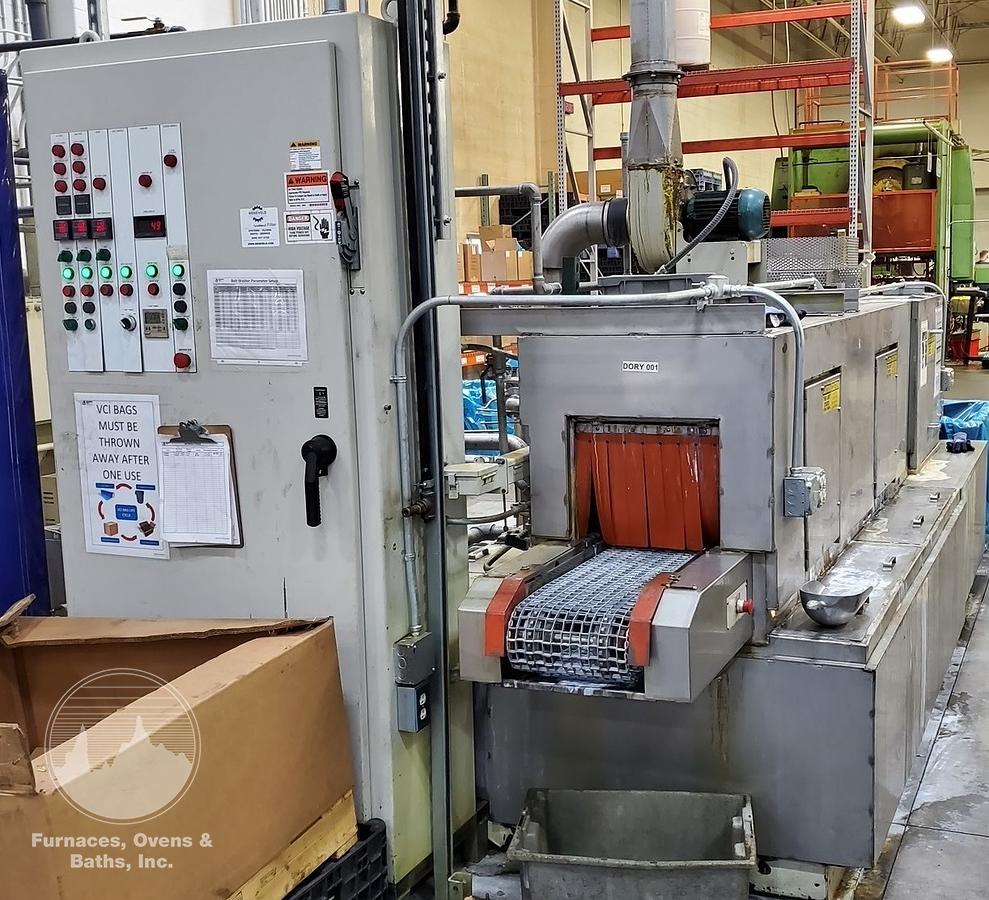

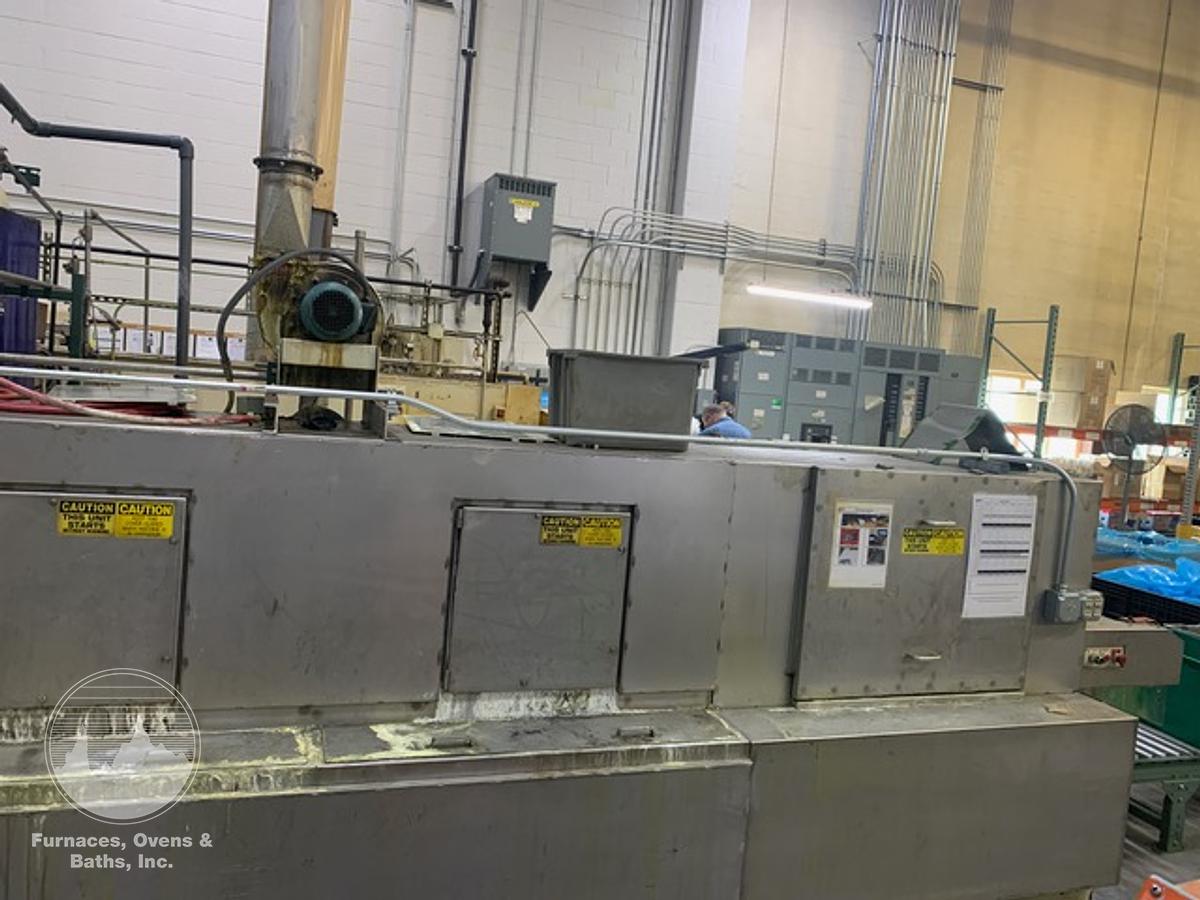

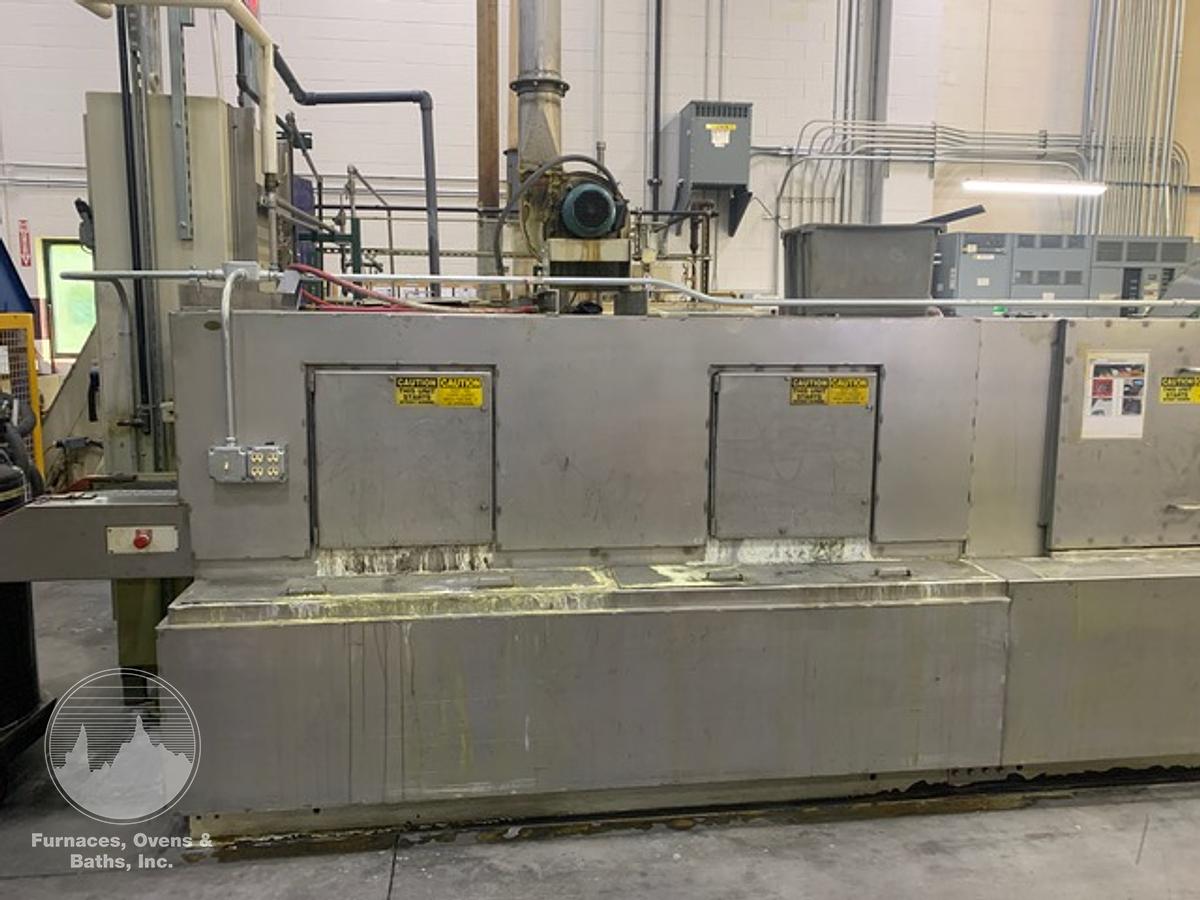

Stoelting Omni Force 212, 12"W Stainless Steel Belt Washer

Equipped With:

Stainless Pumps

Stainless Pipes

Stainless Chip Basket

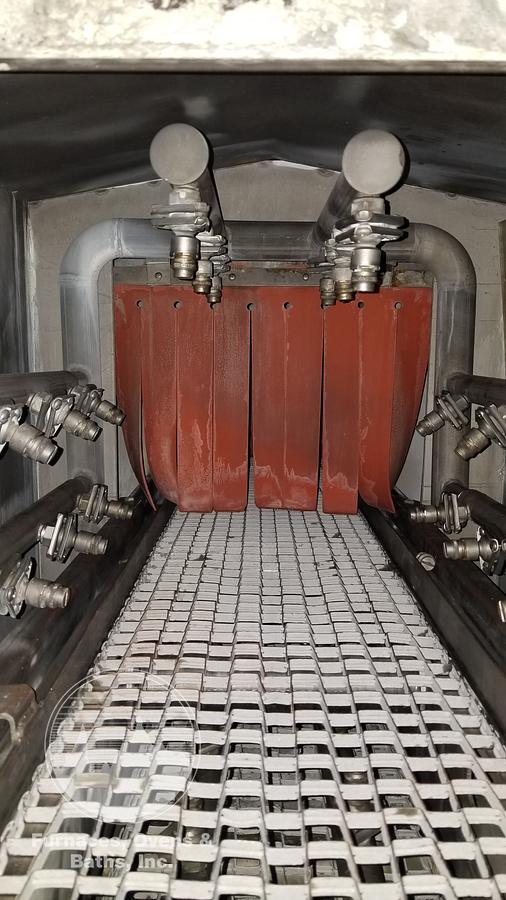

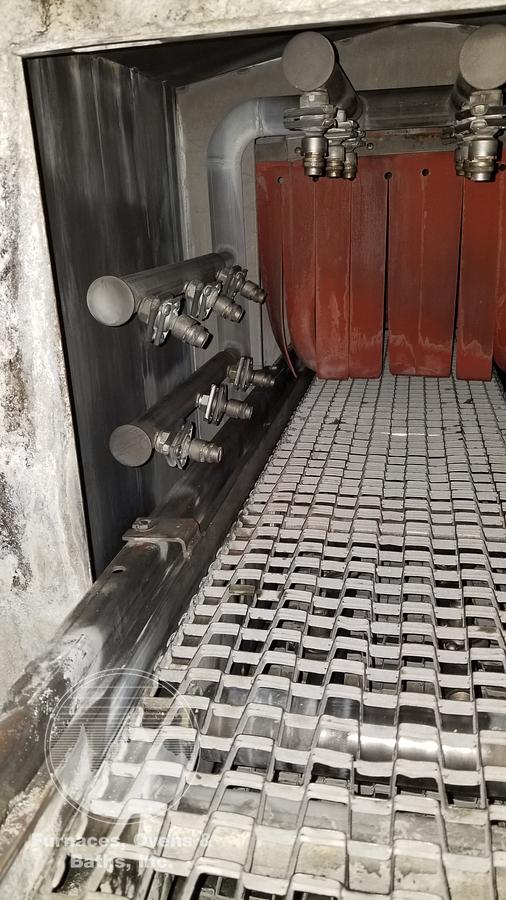

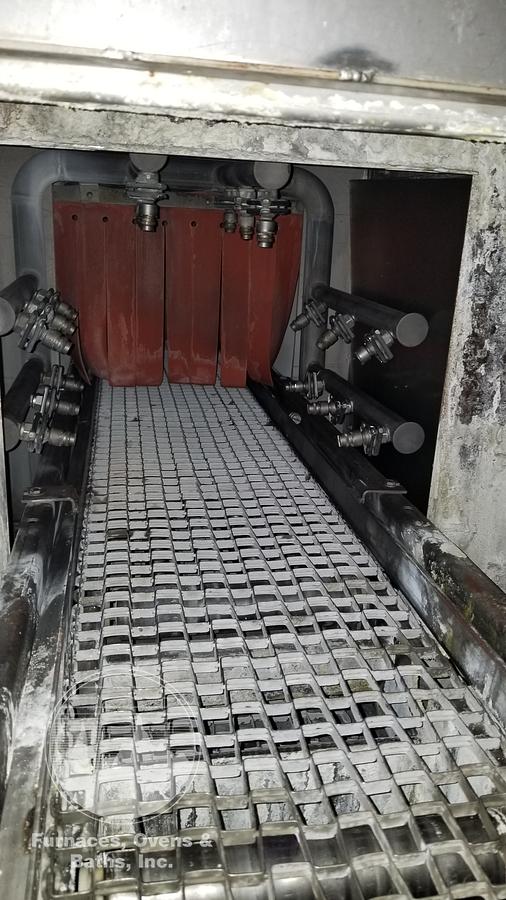

Spray Nozzles with swivels

Stainless Steel Filter 30” Wash 100 Micron

Stainless Steel Filter 30” Rinse 100 Micron

7.5 HP Stainless Wash Pump 60 GPM

7.5 HP Stainless Rinse Pump 60 GPM

Dryer 1100 CFM 5HP 250 Deg. F. 20 KW

42 KW Electric Heating Elements 150 Deg. F. Wash

42 KW Electric Heating Elements 150 Deg. F. Rinse

Product Sensing Eye

Oil Coalescer

Level Controls

Dryer Sound Enclosures

Emergency Stop

3 Access Doors

Digital Temperature Readouts

7 Day Clock

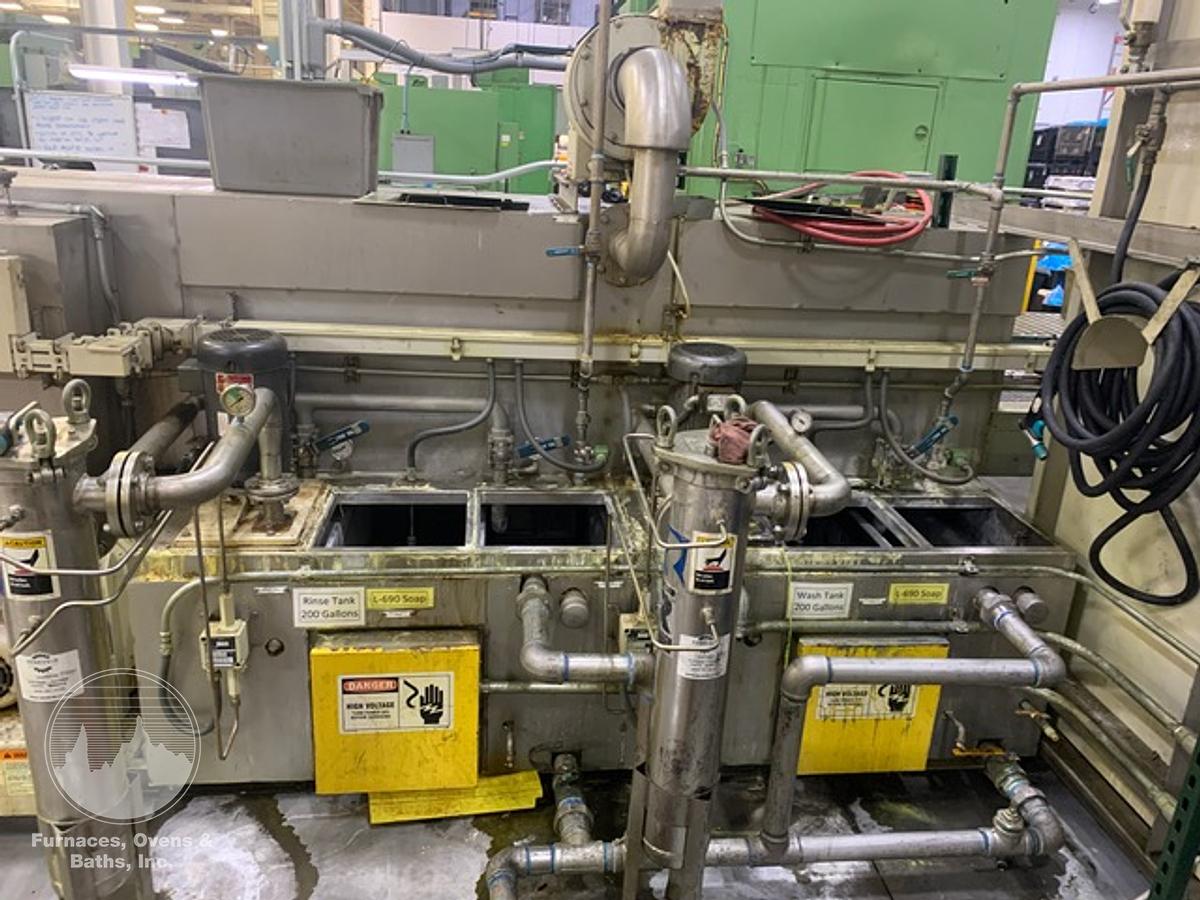

Solution Tanks:

All welded construction

Wash capacity: 200 gallons 7.5 HP Pump Filter Bag 100 Micron

Rinse capacity: 200 gallons 7.5 HP Pump Filter Bag 100 Micron

York Blower 5 HP 20KW Dryer Fan 10 Micron Air Filter

Materials of Construction:

Tanks: 14 Gauge 304 Stainless Steel

Canopies: 14 Gauge 304 Stainless Steel

Frame Under Tanks: Carbon Steel

Exterior Plumbing: Stainless Steel, Bronze Drain and Solenoid Valves

Interior Plumbing: Stainless Steel

Recirculating Spray Manifolds: Stainless Steel

Recirculating Pumps: Stainless Steel Fitted 7.5 HP

Conveyor Frame: 10 Gauge Stainless Steel

Conveyor Belt: Stainless Steel

Conveyor Rollers: Stainless Steel

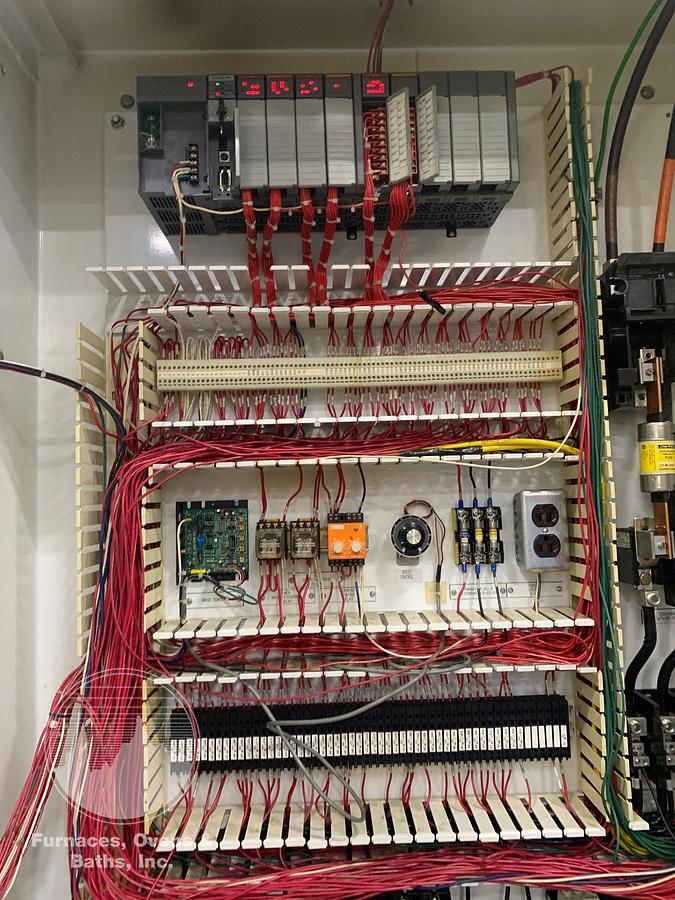

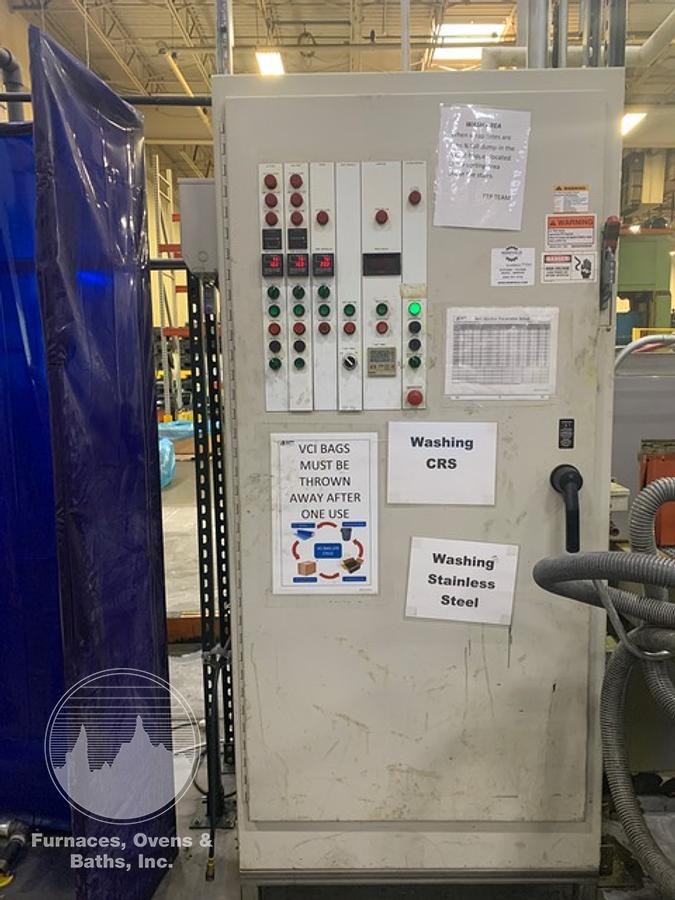

Controls are mounted and wired in an enclosure with fused disconnect. Enclosure is attached to the load end of the washer. Allen Bradley PLC SLC 505 controller etc.
