60"W x 72"H x 72"L Grieve WRH 566-800 Gas Fired Walk-In Oven, 800°F


60"W x 72"H x 72"L Grieve WRH 566-800 Gas Fired Walk-In Oven, 800°F

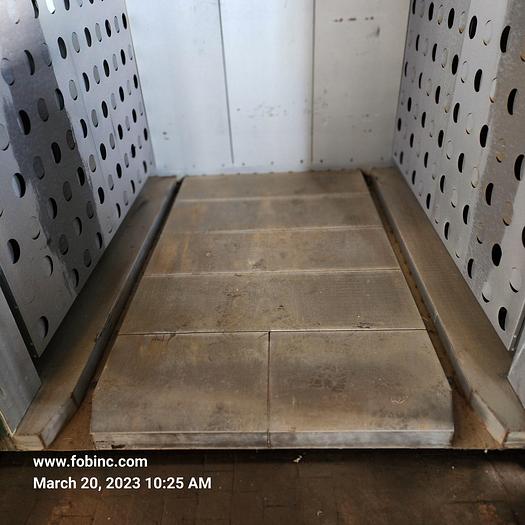

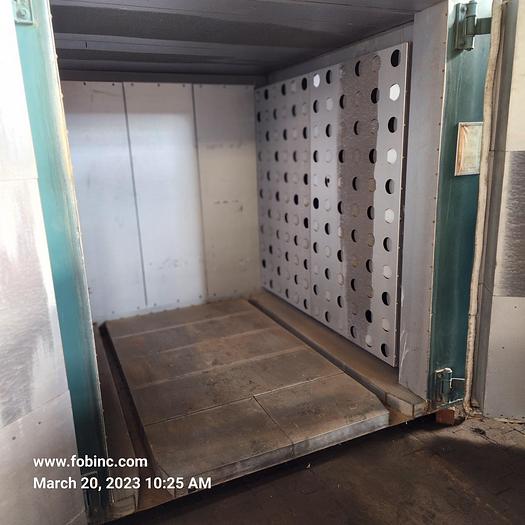

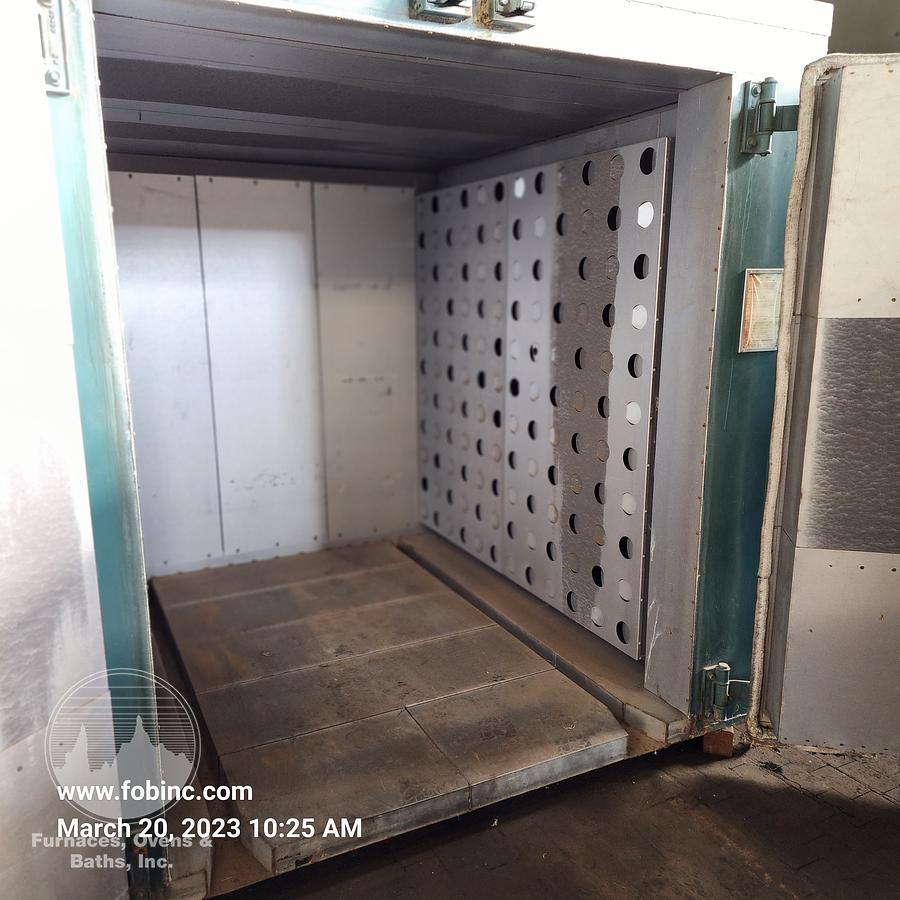

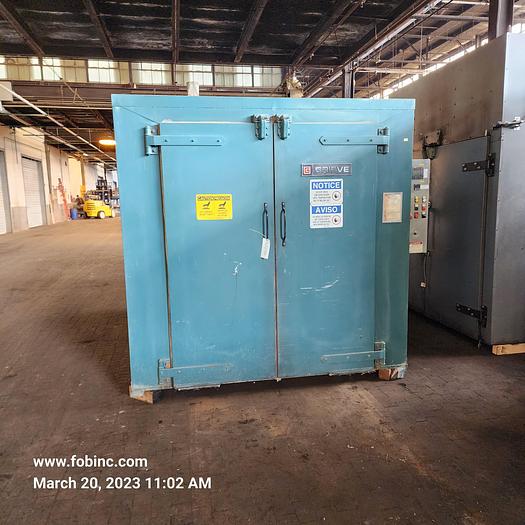

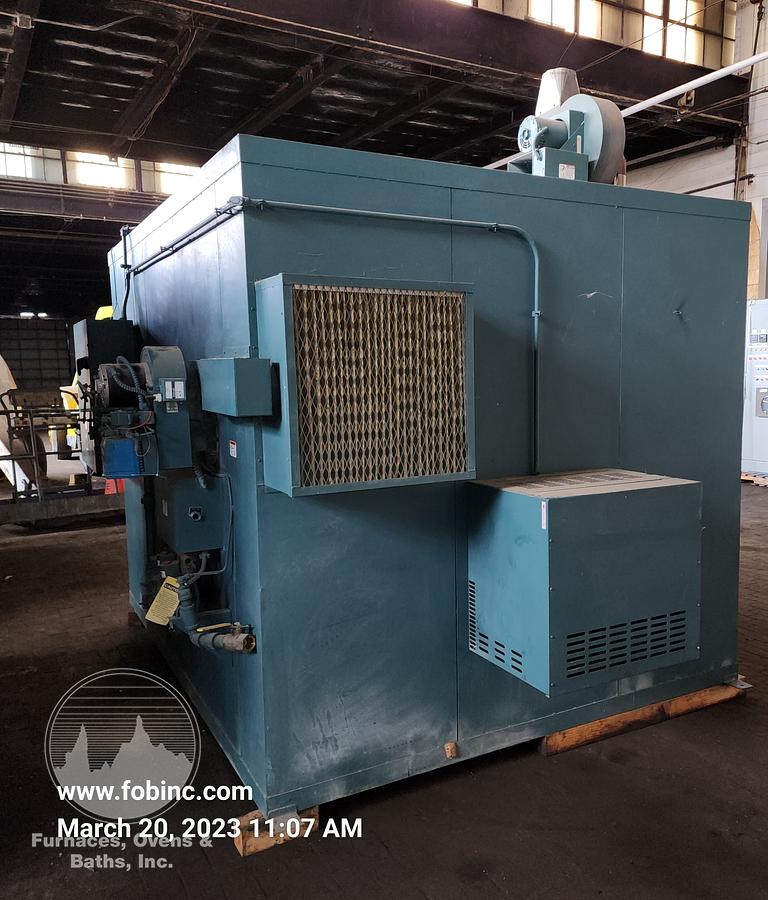

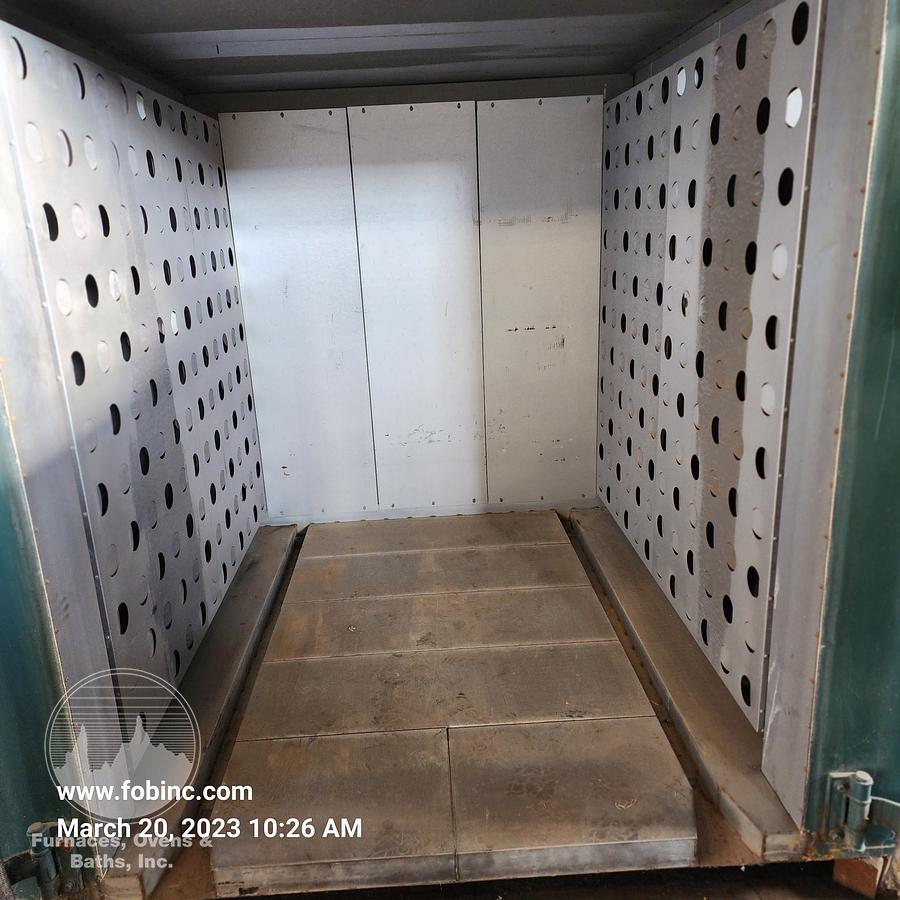

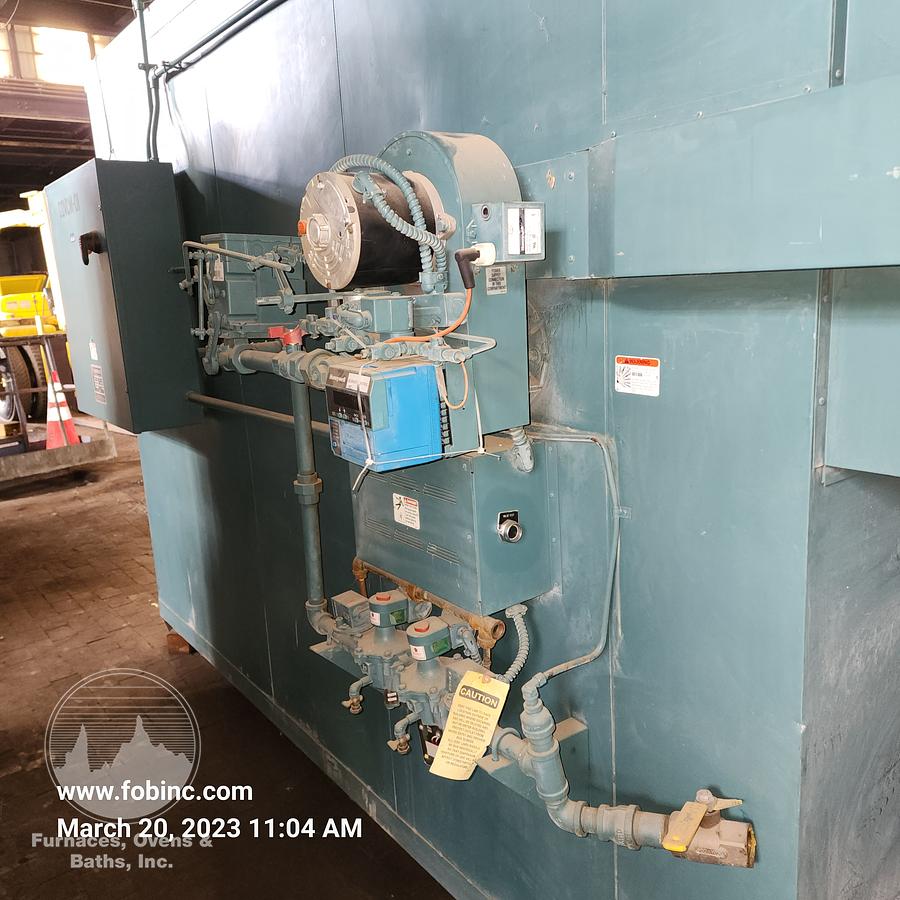

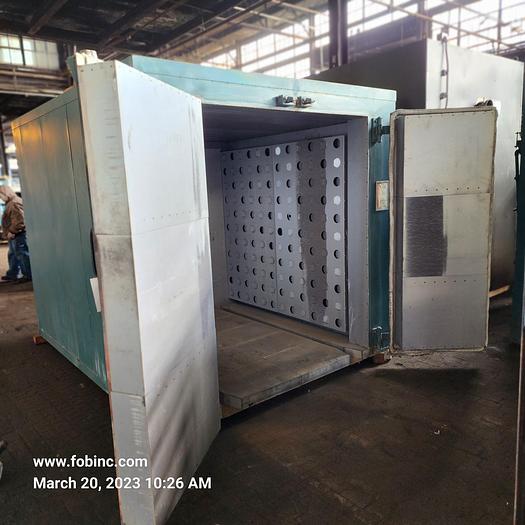

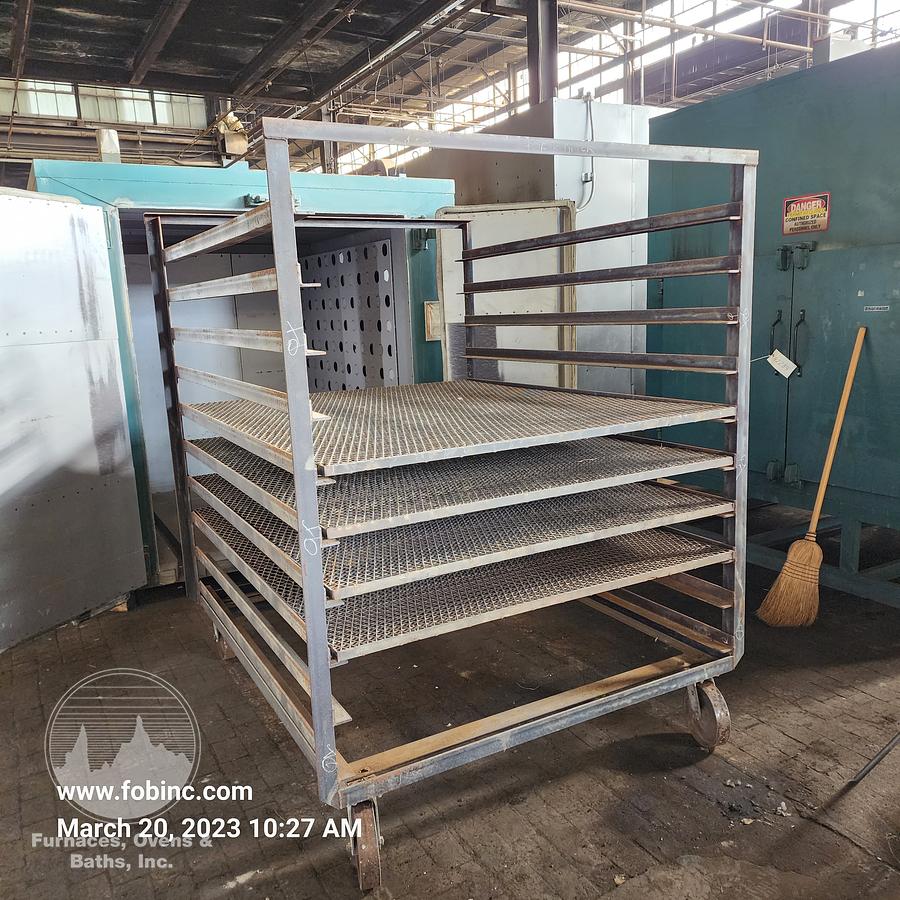

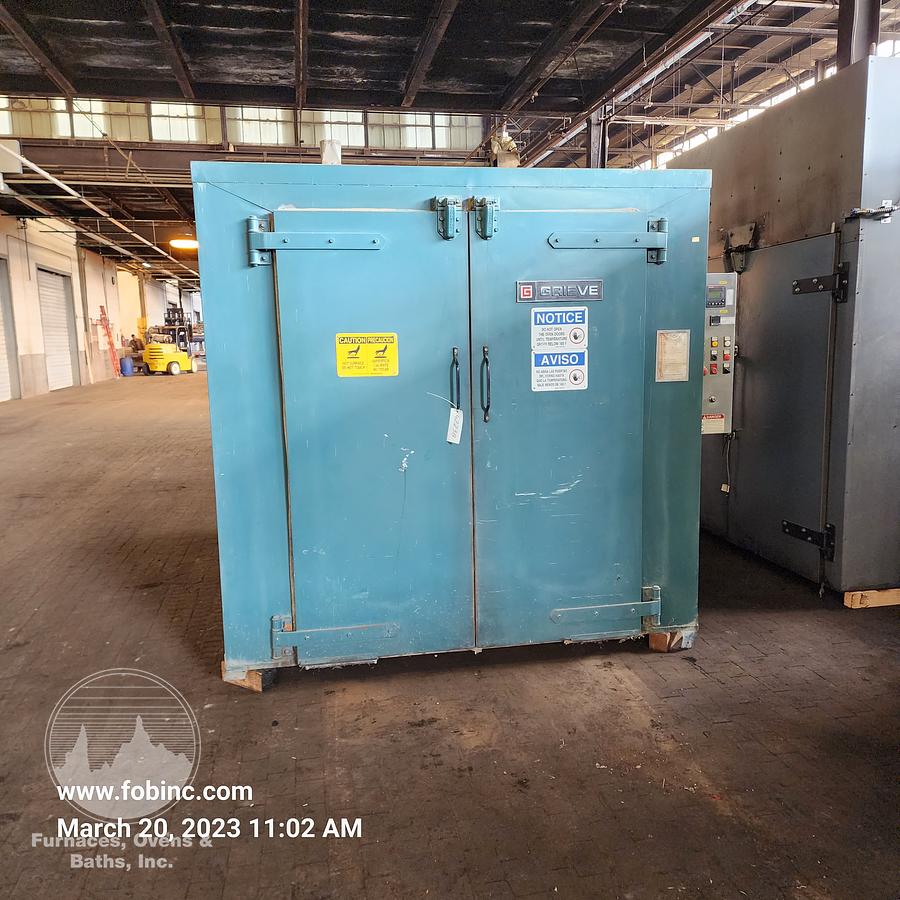

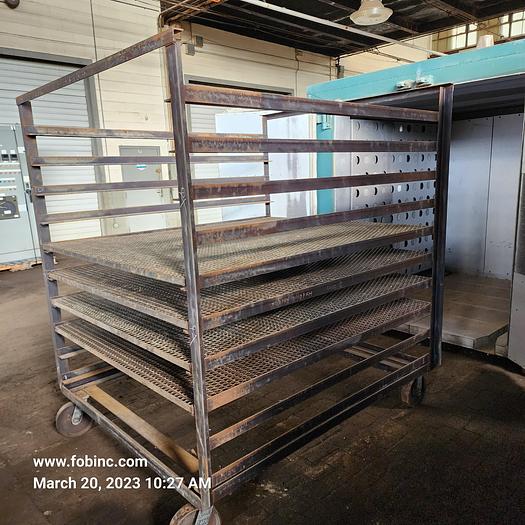

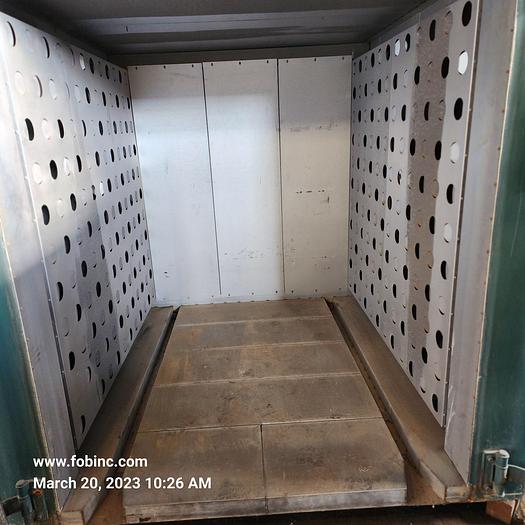

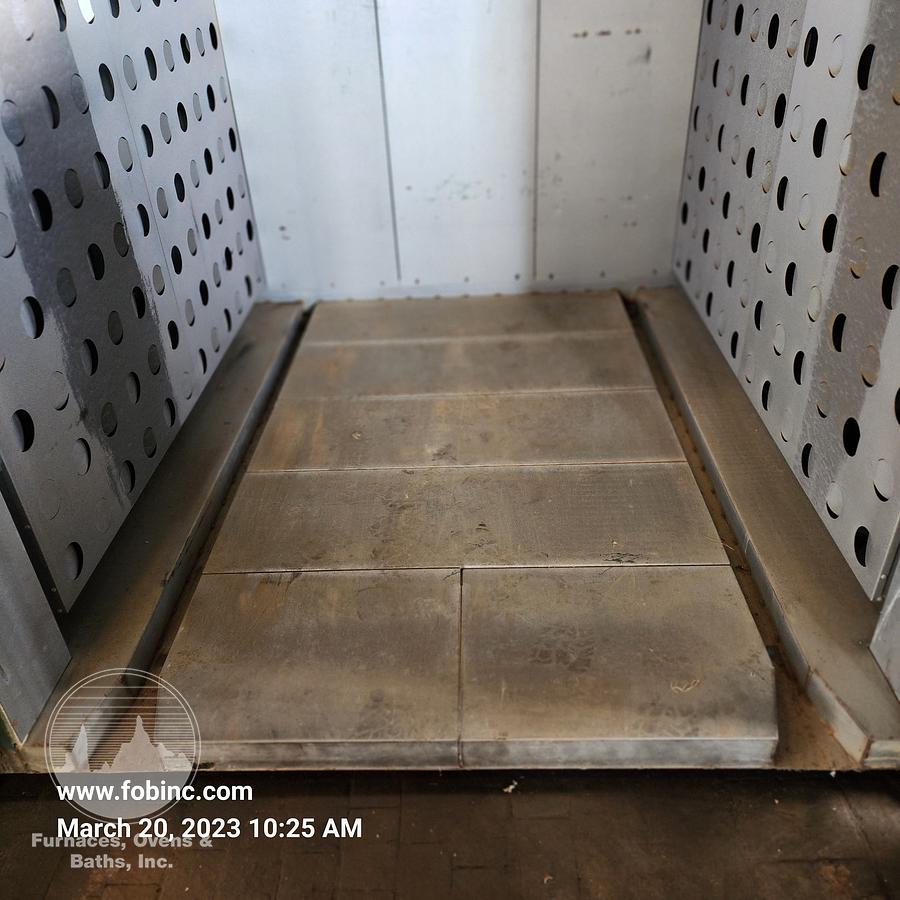

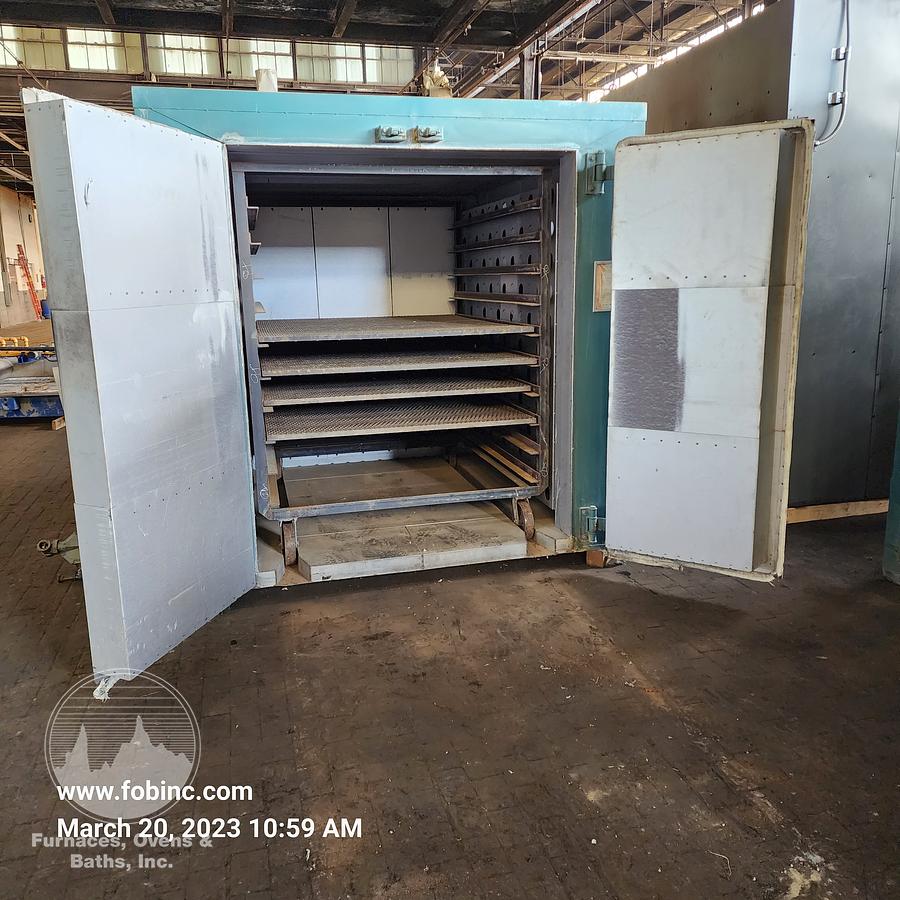

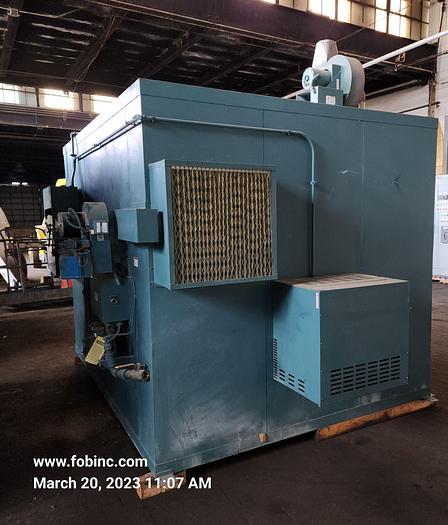

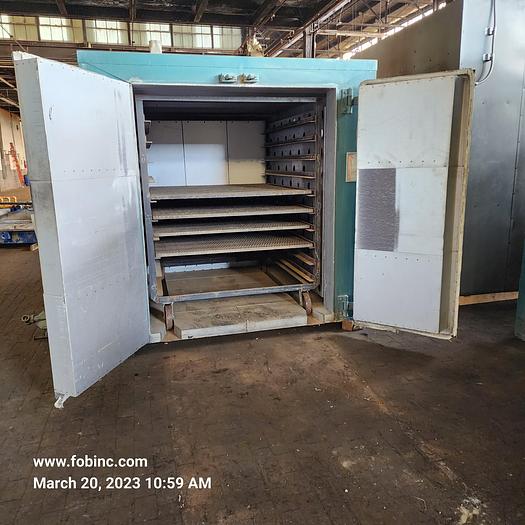

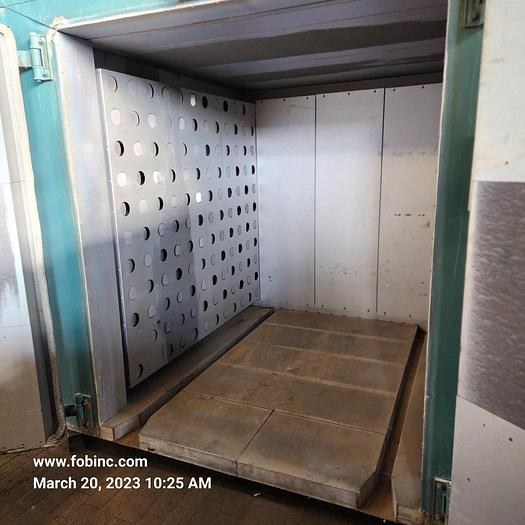

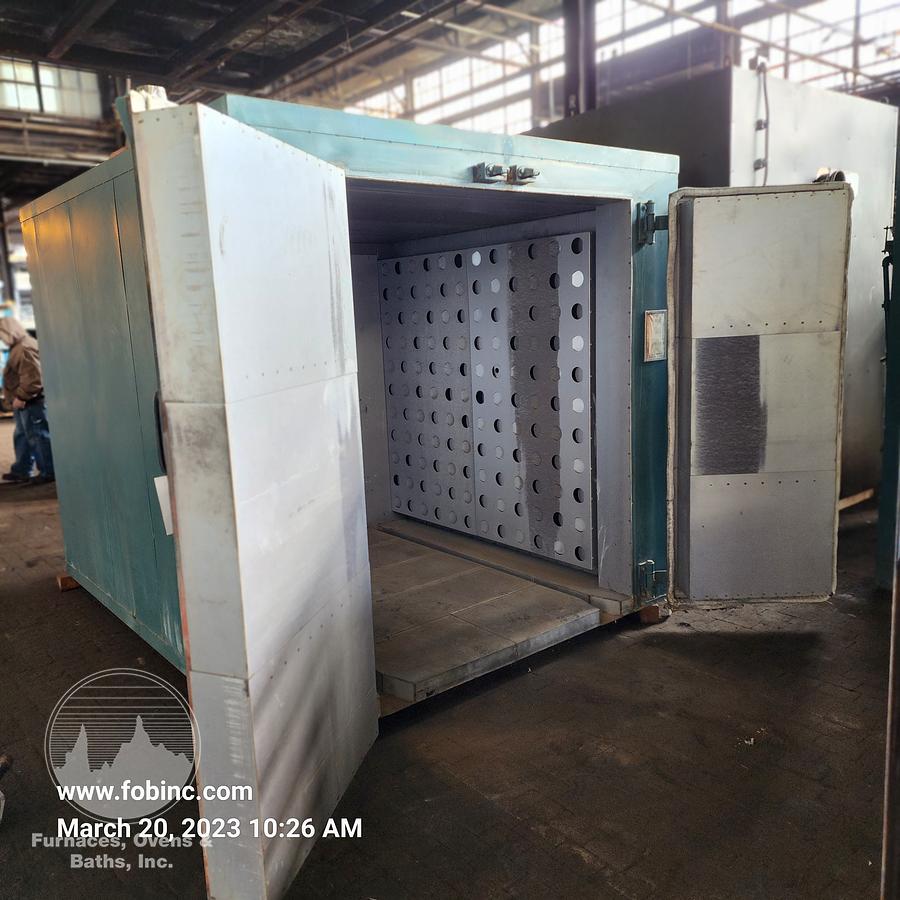

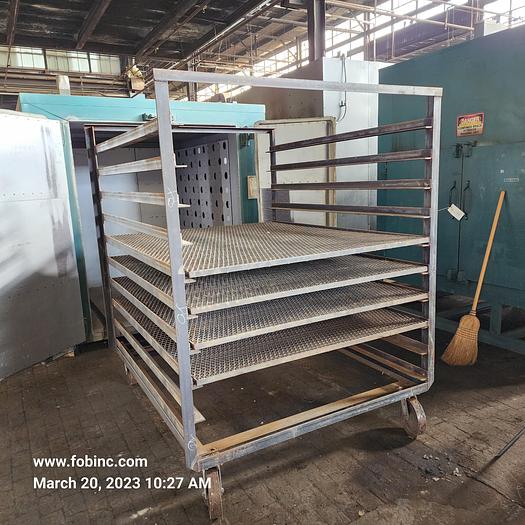

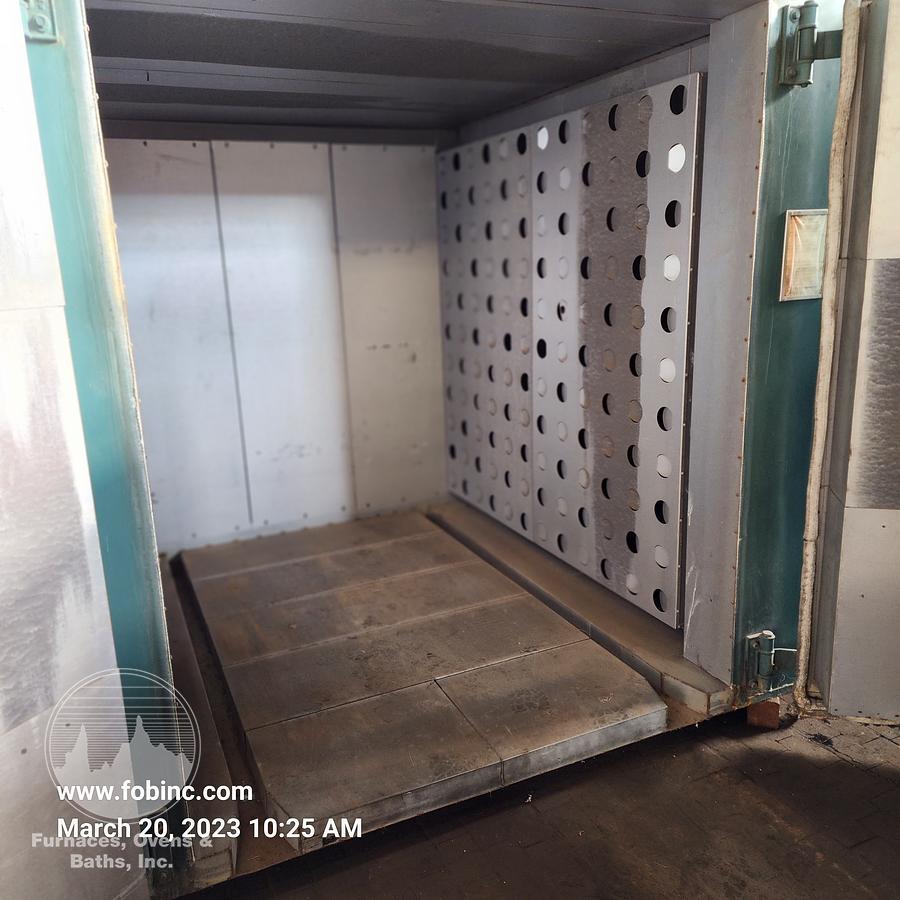

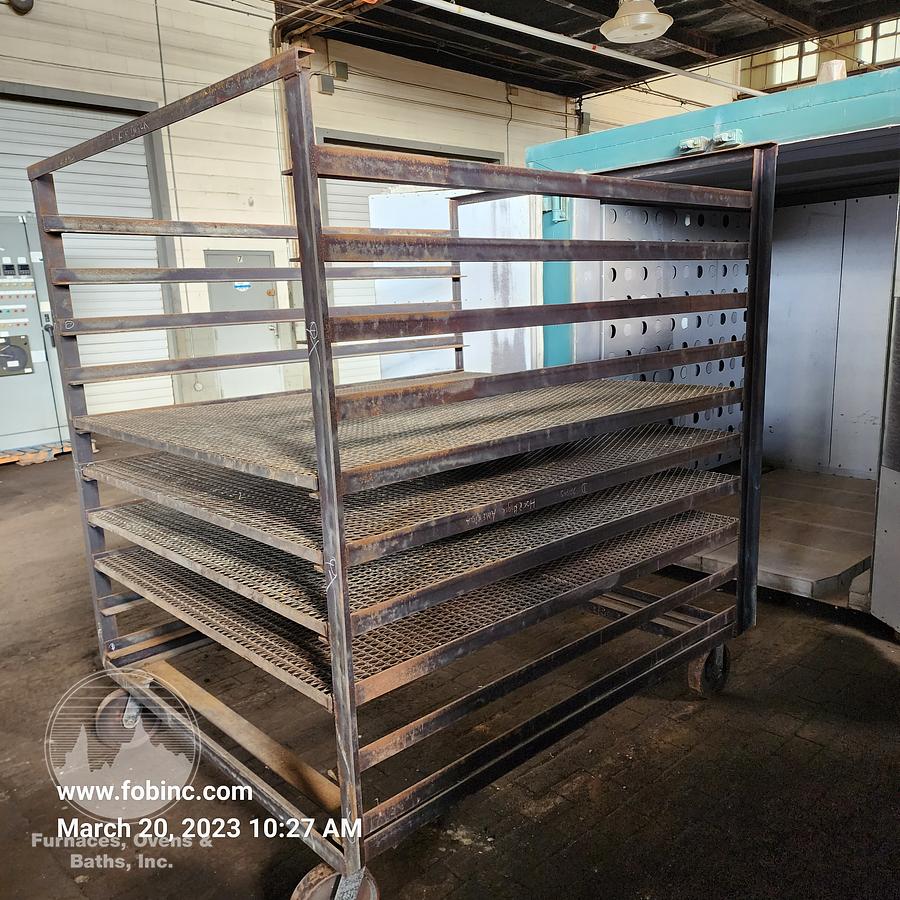

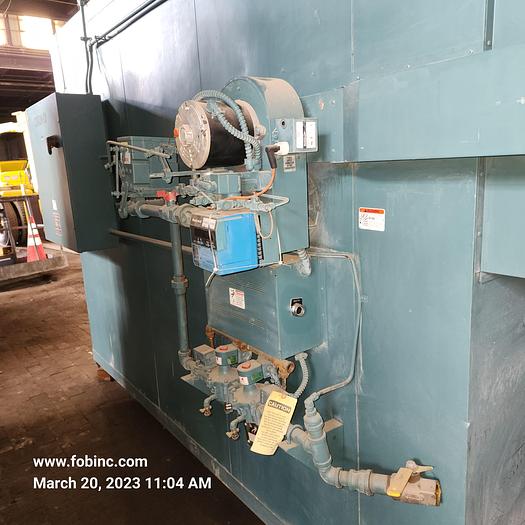

This oven has double swing doors with Brixon door latches. Aluminized steel interior with insulated floor and grooves for included cart. Cart has ten (10) shelf brackets on 6" centers, four (4) shelves are included. Side mounted "MIDCO" Incinomite package burner with Honeywell flame safety, spark ignition and combustion air filter. Rear mounted 5 HP recirculating fan distributes heat horizontally throughout the work area. A powered exhaust fan is mounted on top of the oven. Manual and drawings are included with this oven.

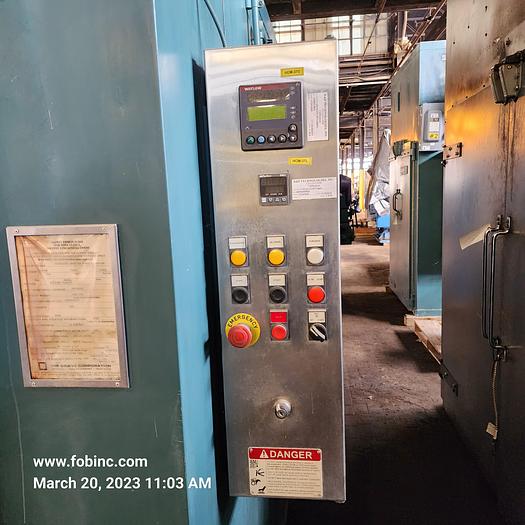

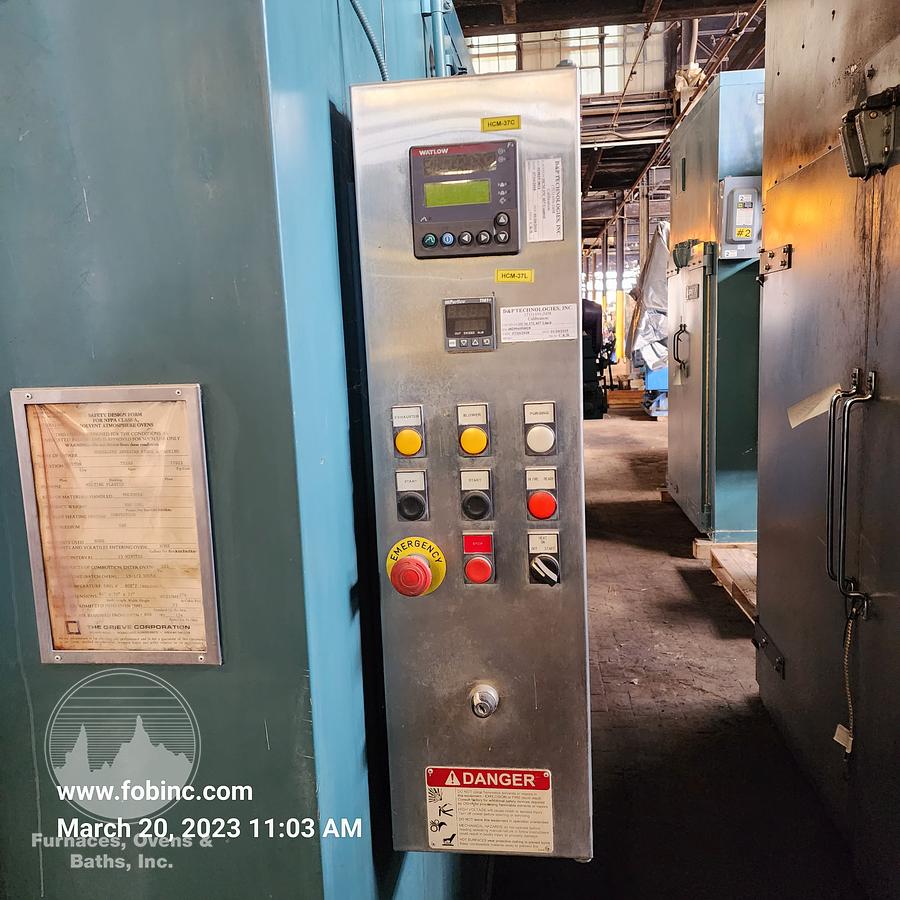

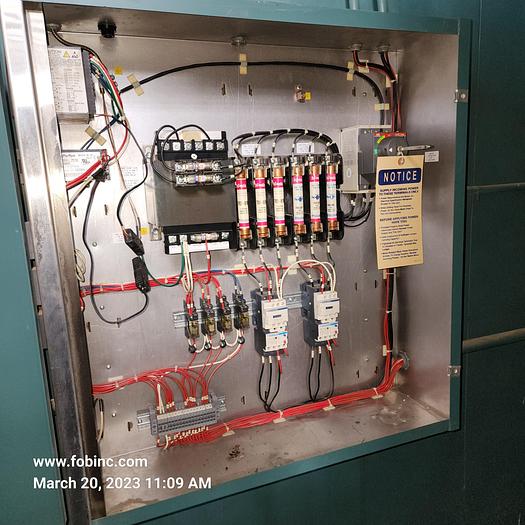

Controls are mounted and wired in an enclosure with fused disconnect attached to the right-hand side of the ovens includes the following: A Watlow F4 digital programmable controller and Partlow 1161+ digital high limit. Switches, signal lights and E-Stop button flush mounted to the face of the enclosure.


ModelWRH 566-800
Serial Number95748A1008
Stock Number7655
Model NumberWRH 566-800
Serial Number95748A1008
Work Area60"W x 72"H x 72"L
Max. Temperature800°F
Power Required460/3/60/11 Amps
FuelNatural Gas - 400,000 BTU's/Hour
Overall Dimensions106" wide x 108" high x 130" long
