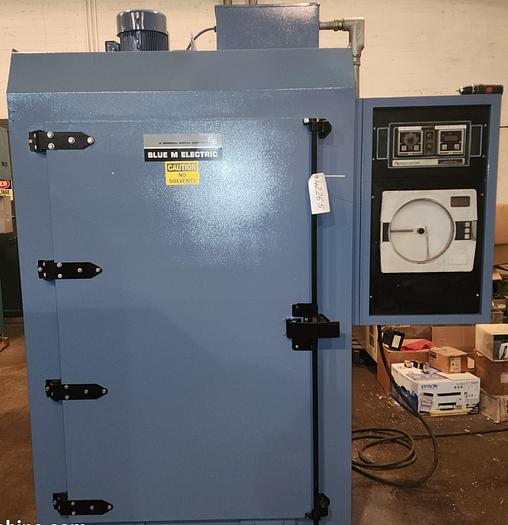

36"W x 60"H x 48"L Blue M Truck Oven Model DC606RIG, 600°F, Electric


36"W x 60"H x 48"L Blue M Truck Oven Model DC606RIG, 600°F, Electric

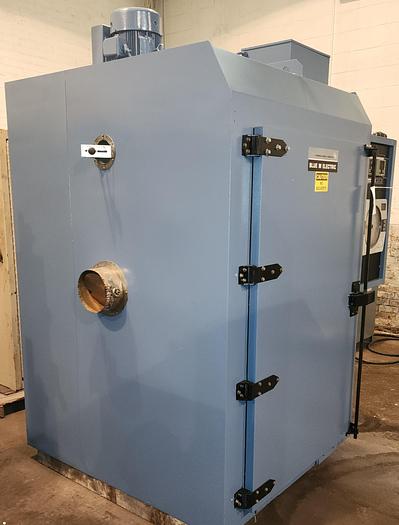

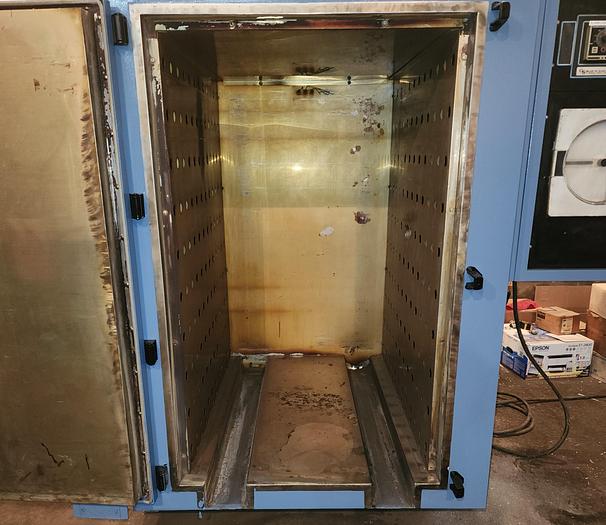

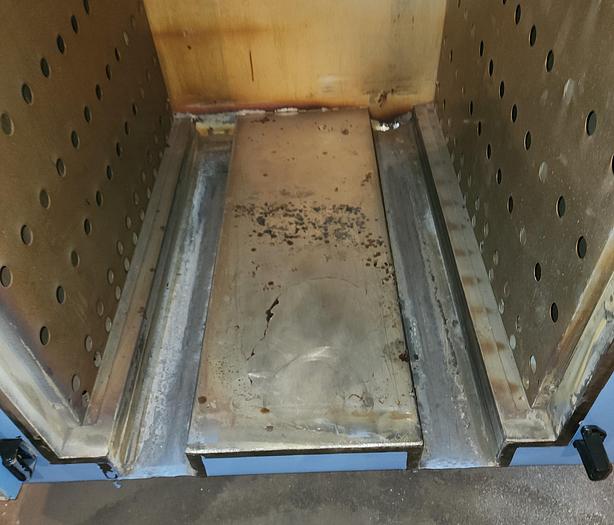

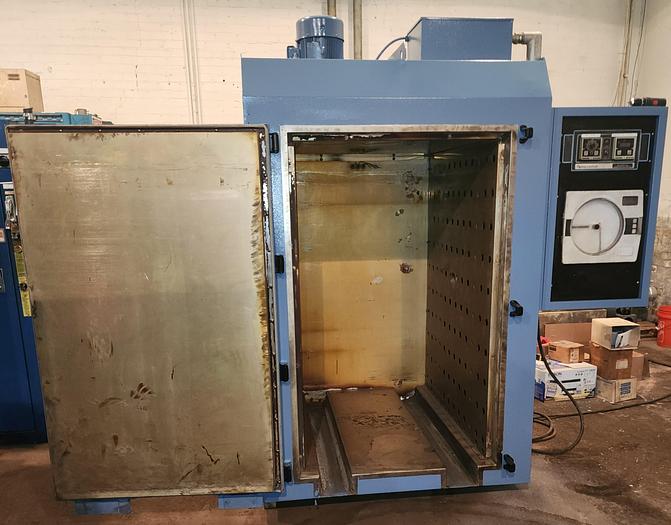

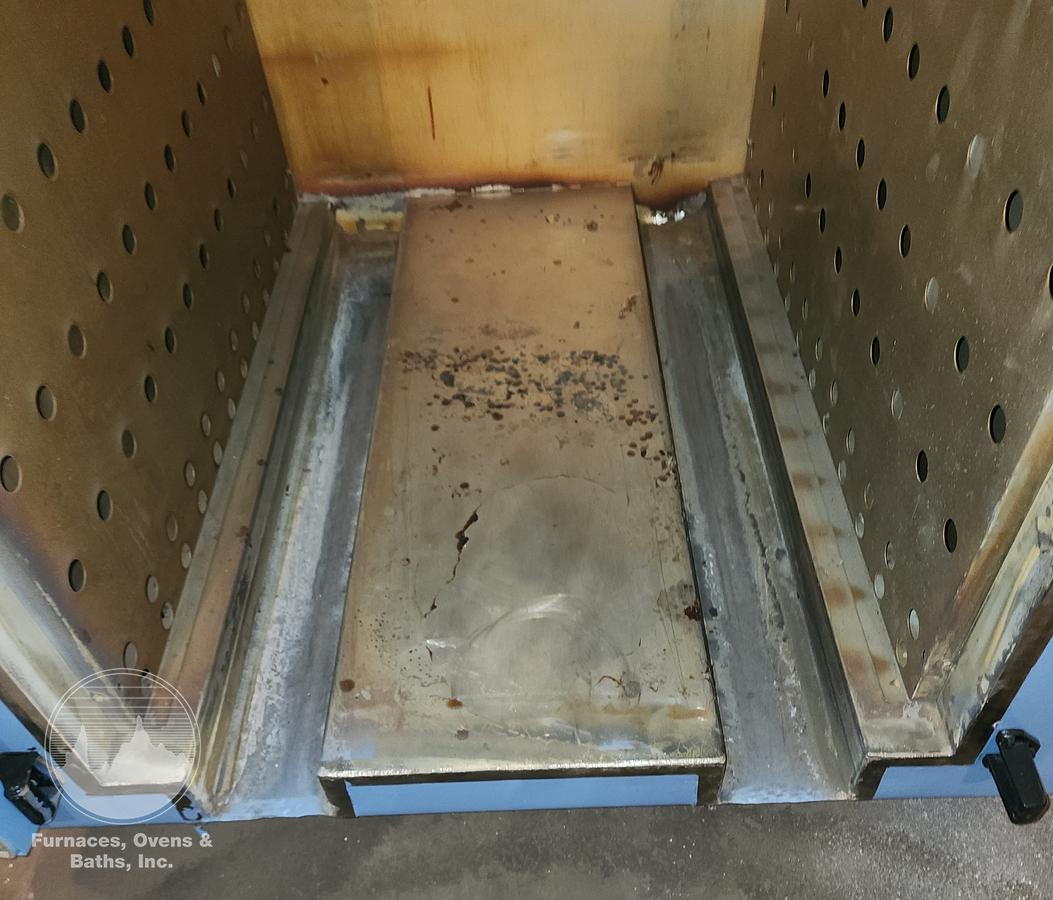

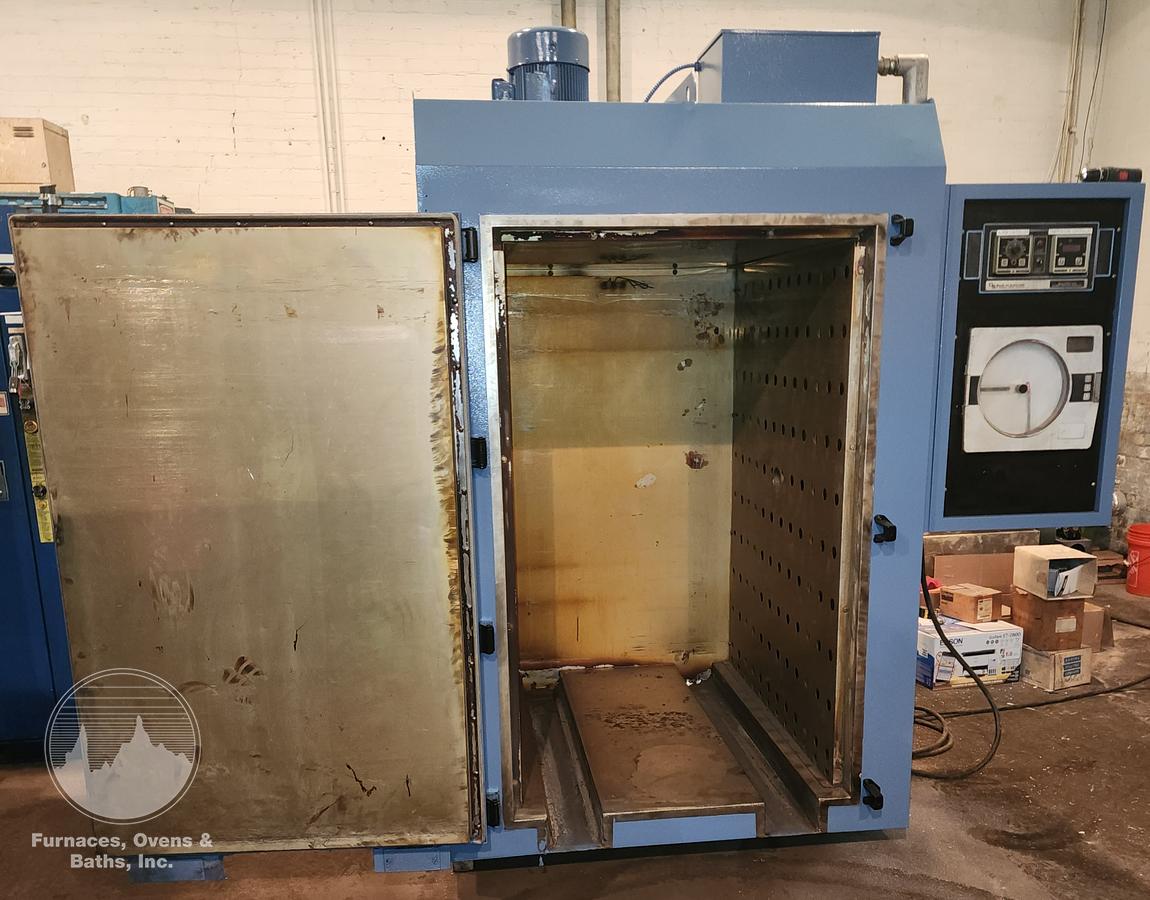

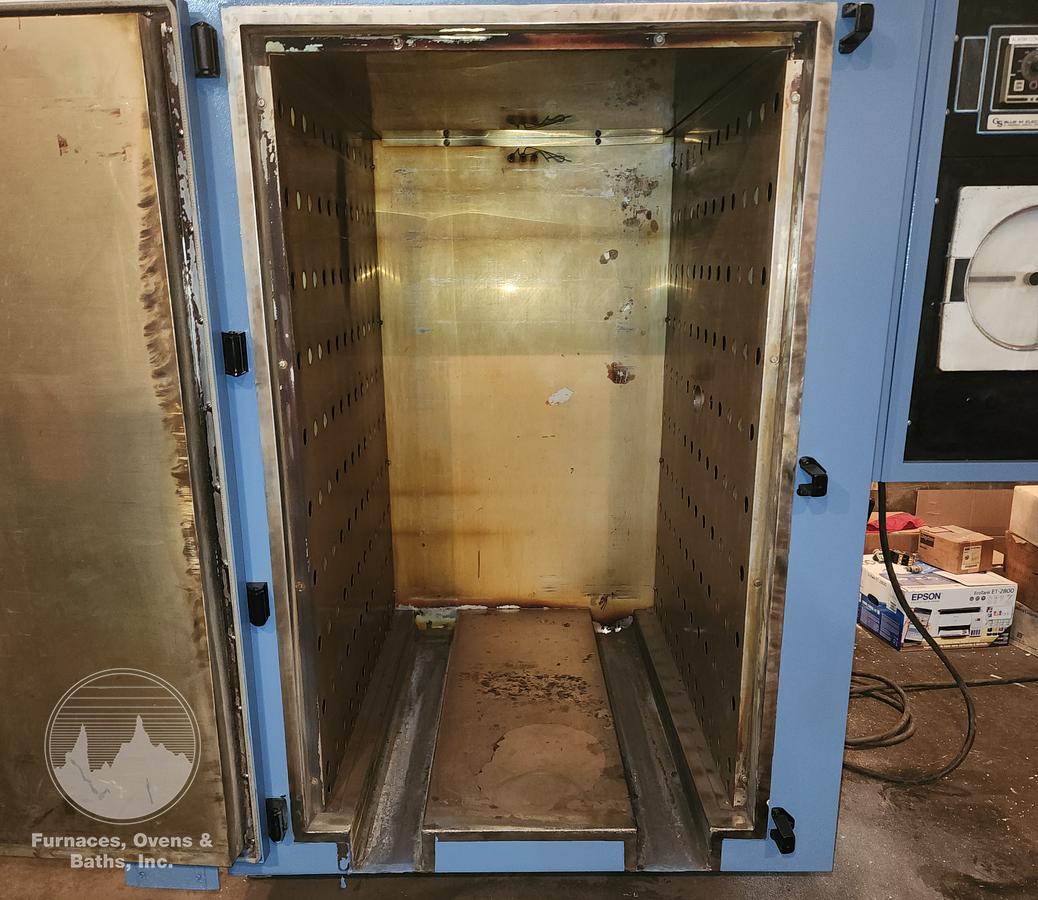

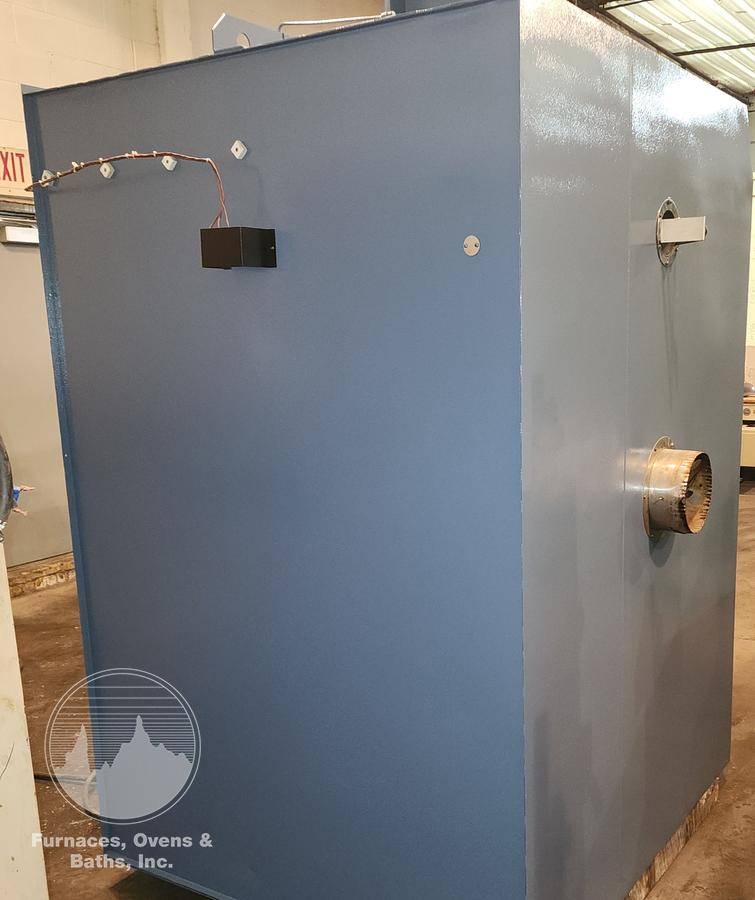

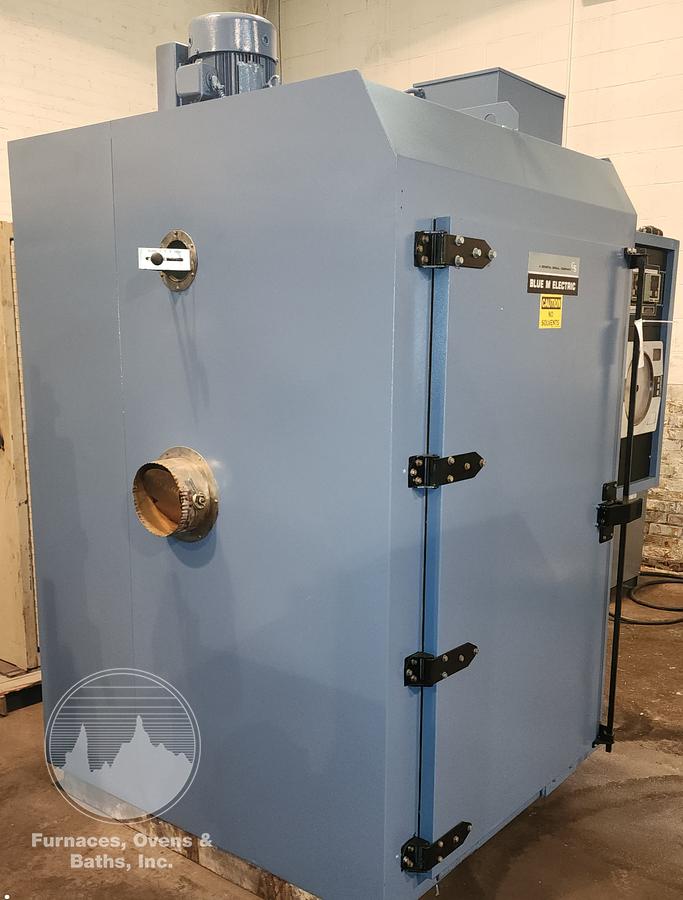

Single door with a silicon rubber gasket. Door has a positive seal 3-point cam action latch. Stainless steel interior with insulated floor with tracks. No cart is supplied with this oven. Direct driven circulating fan and coiled style heating elements are located above the work chamber. Heated air is circulated in a horizontal air flow pattern across the chamber for good uniform heating. An adjustable fresh air inlet and an exhaust vent with adjustable damper are located on the left-hand side. Oven has been tested and is ready to ship.

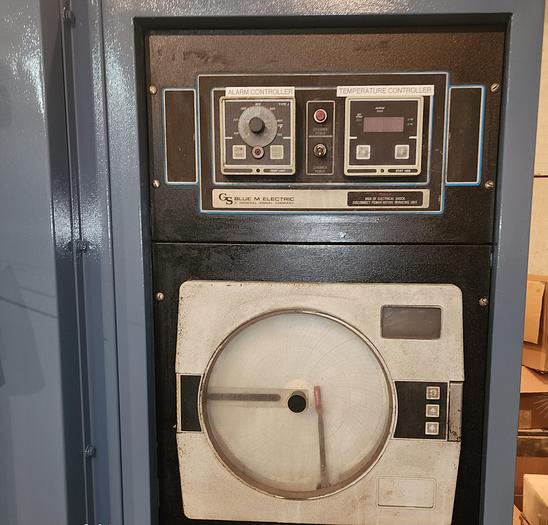

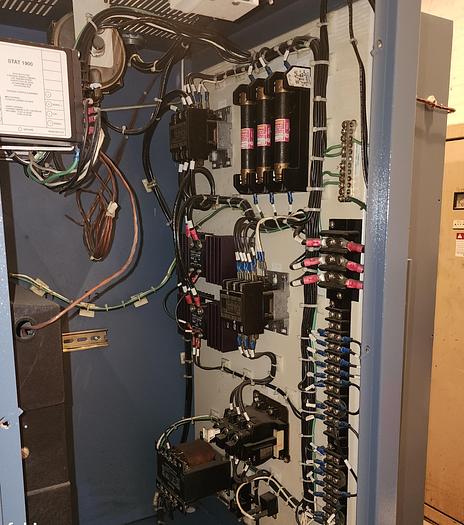

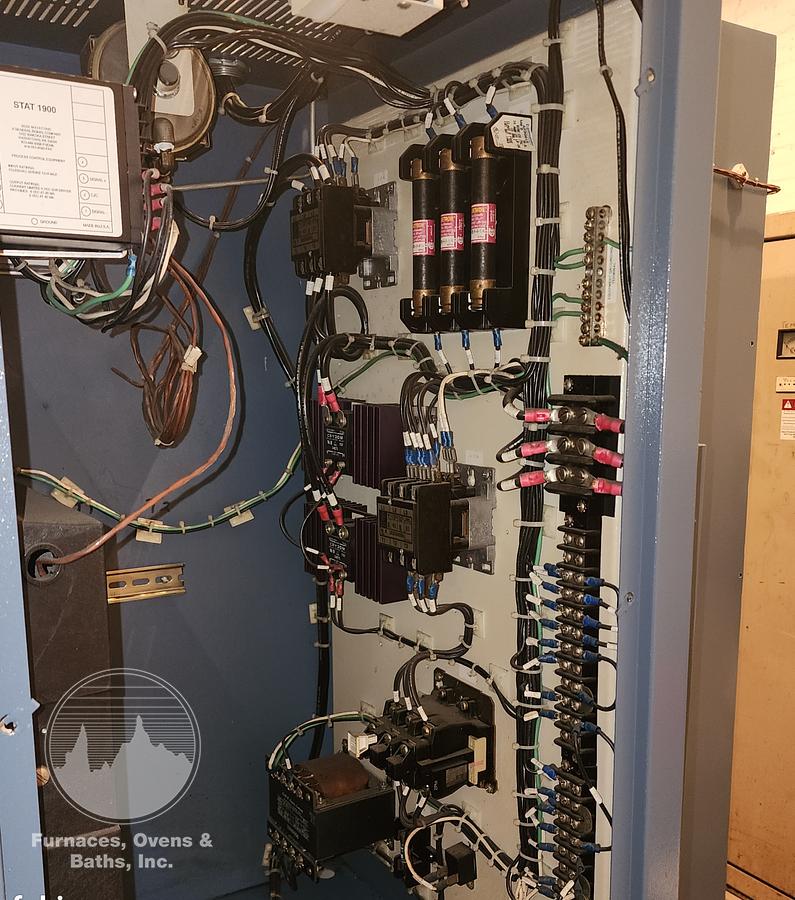

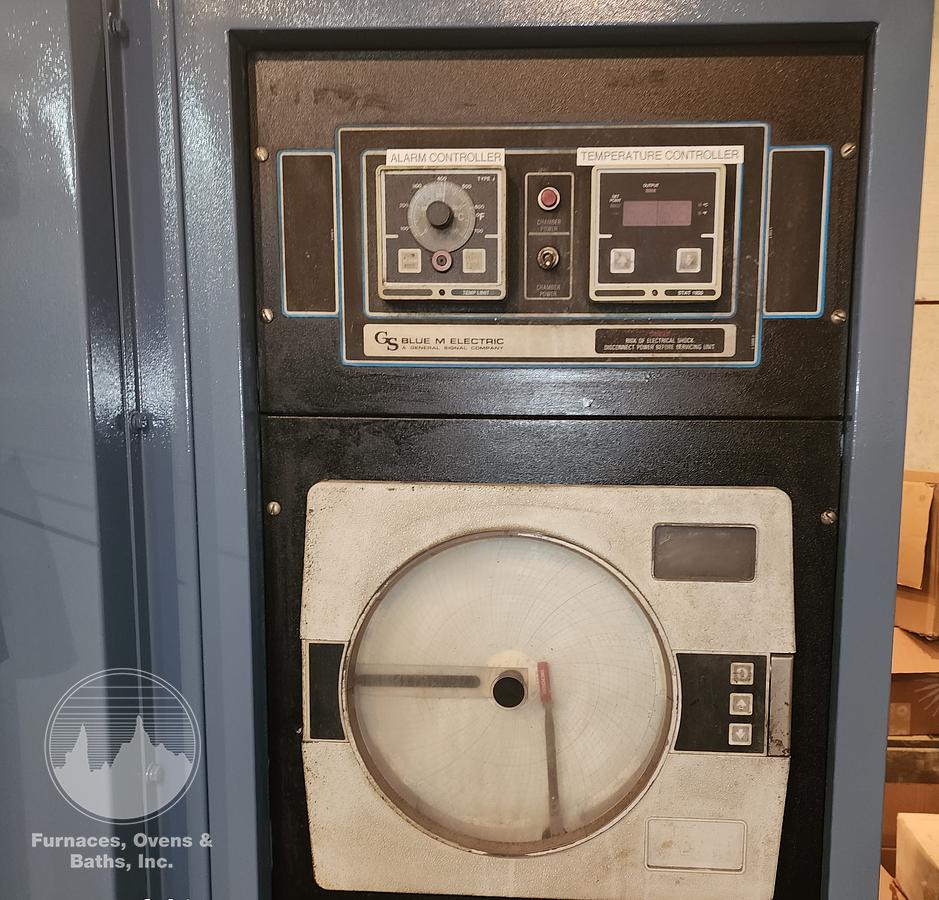

Controls are located in a small enclosure attached to the right-hand side. Partlow Stat 1900 digital temperature controller, Partlow Series 1000 high limit and a Partlow BM 7000 round chart recorder along with control switches are flush mounted in the enclosure. Solid state relays, high limit contactor, motor starter, fuses, relays etc. are mounted inside the enclosure. Fused disconnect mounted on the rear of enclosure.


ManufacturerBlue M
Serial NumberDC-7731, Shop Order #12166
Stock Number7660
Work area36"W x 60"H x 48"L
Max temperature600°F
Voltage480/3/60/38 Amps
External dimensions78"W x 64"L x 90"H
