60"W x 60"H x 60"L Lindberg Box Temper Furnace, 1250°F, Gas Fired

60"W x 60"H x 60"L Lindberg Box Temper Furnace, 1250°F, Gas Fired

Contact us for price

orCall 248-343-1421

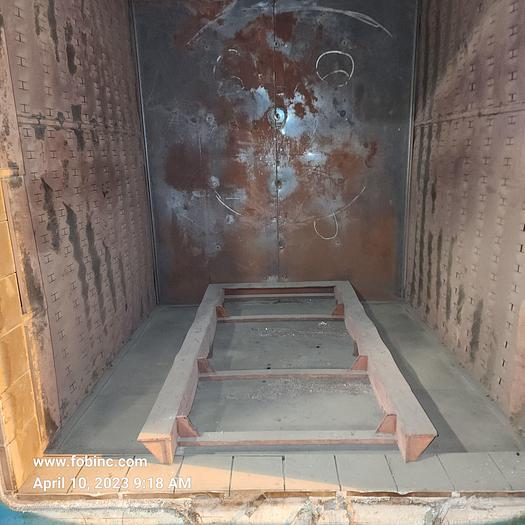

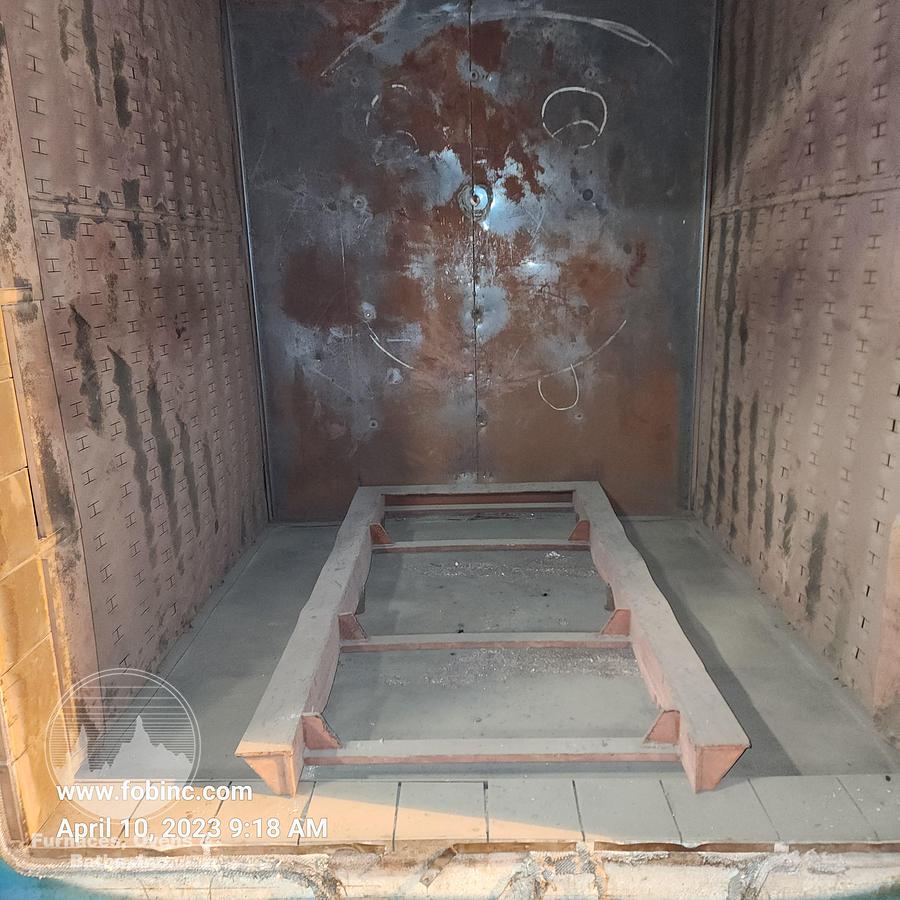

Air operated vertical lift door with door limit switch. Stainless steel interior with fully adjustable "H" style cutouts in the ductwork located on both side walls and top for good uniform heating. A 7000 CFM @ 10 H.P. recirculating fan is mounted through the roof which circulates the heated air through the chamber. Two hearth rails support the workload. An adjustable fresh air inlet and powered exhaust vent with slide plates are located in the rear wall. Eclipse JIB package burner with UV flame safety and spark ignition.

Single door enclosure with fused disconnect is attached to the right-hand side of the furnace. Control switches and signal lights are flush mounted to the door of the enclosure. Honeywell flame safety with operator interface. Temperature controller/recorder and high limit is currently missing but will be replaced prior to shipping. Door assembly is removed for shipping.


Serial Number949362
Stock Number7661
Work area60"W x 60"H x 60"L
HeatedNatural Gas - 650,000 BTUH, 1-5 PSIG
Max temperature1250°F
Voltage480/3/60/16 Amps
External dimensions110"W x 185"H (146"H shipping) x 108"L
