25"W x 20"H x 20"L Blue M Dual Chamber, 662°F, Electric

25"W x 20"H x 20"L Blue M Dual Chamber, 662°F, Electric

Contact us for price

orCall 248-343-1421

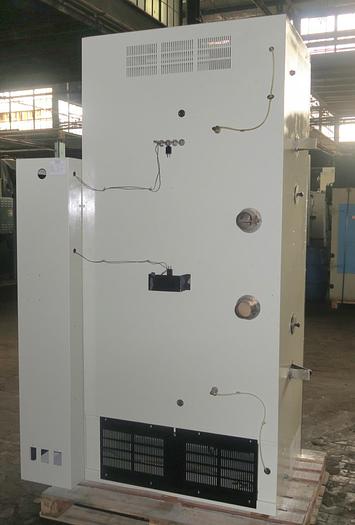

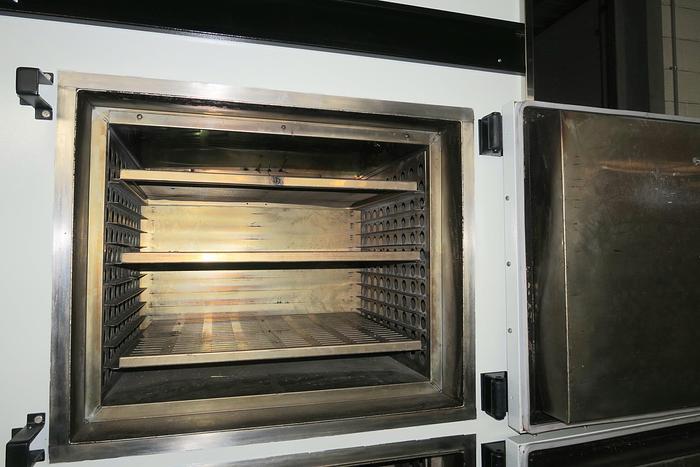

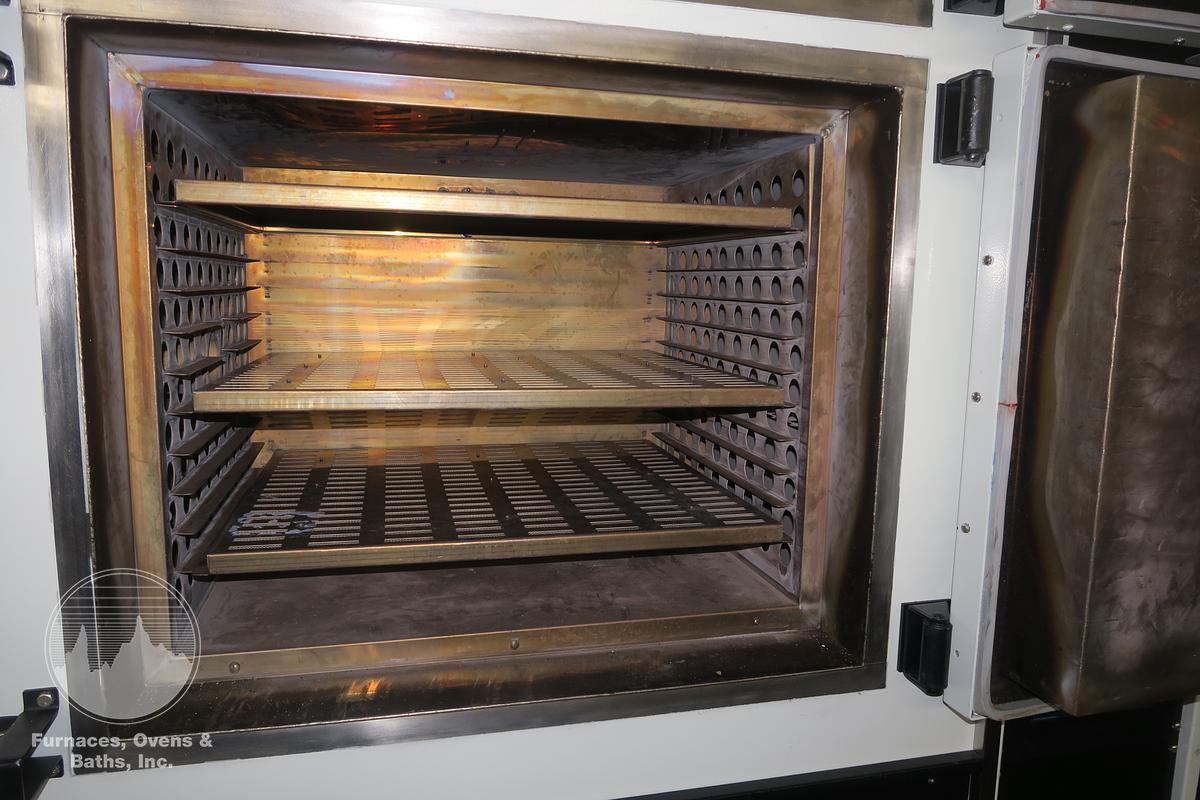

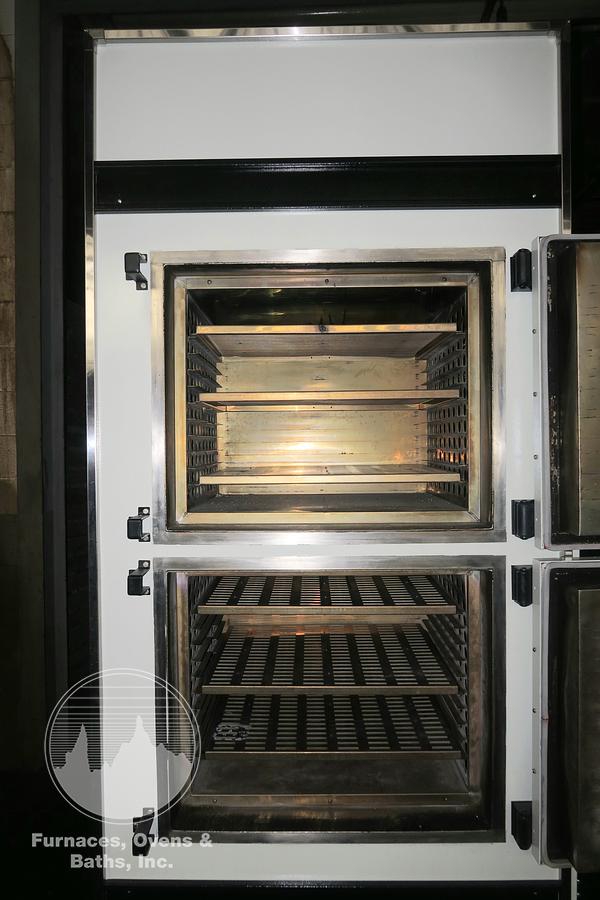

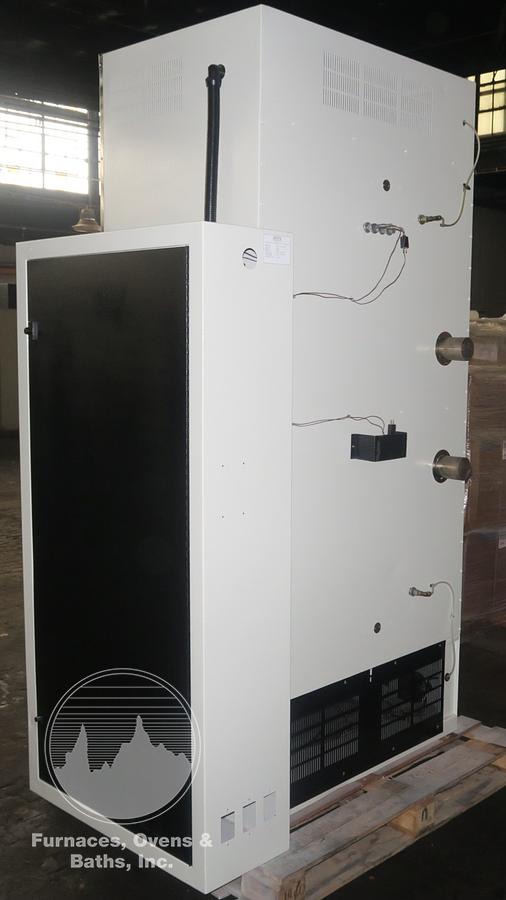

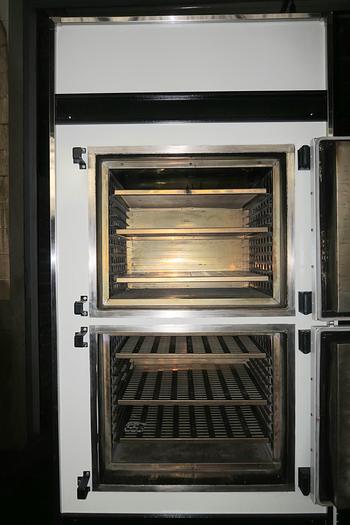

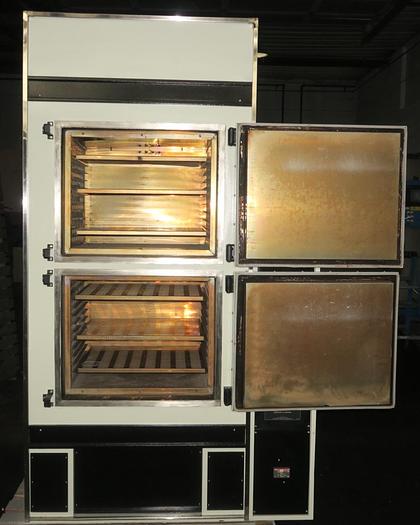

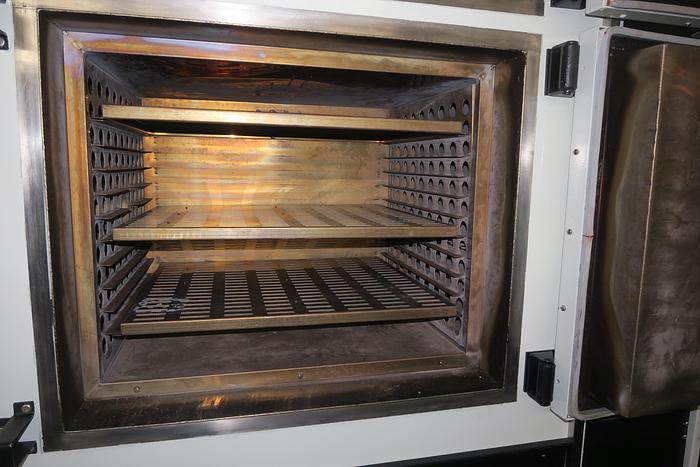

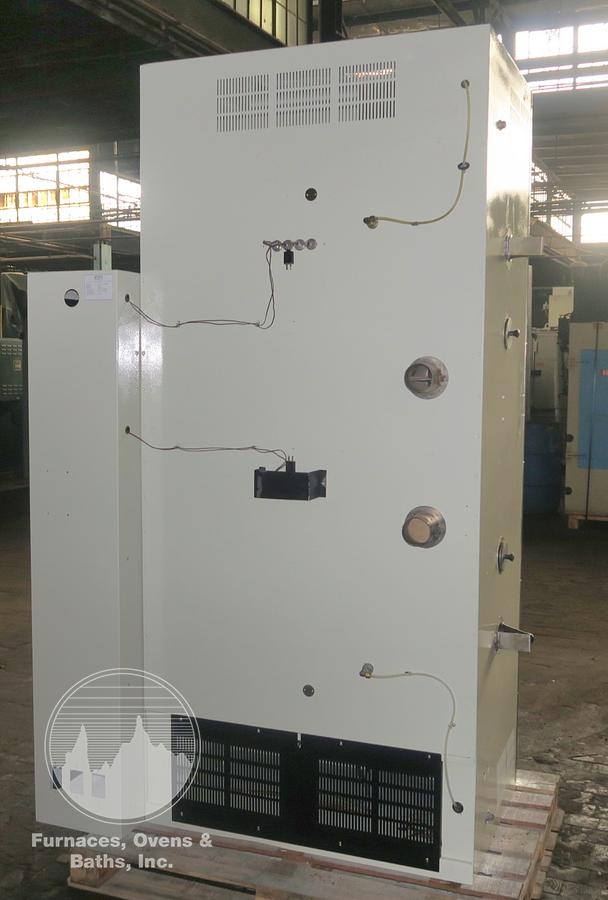

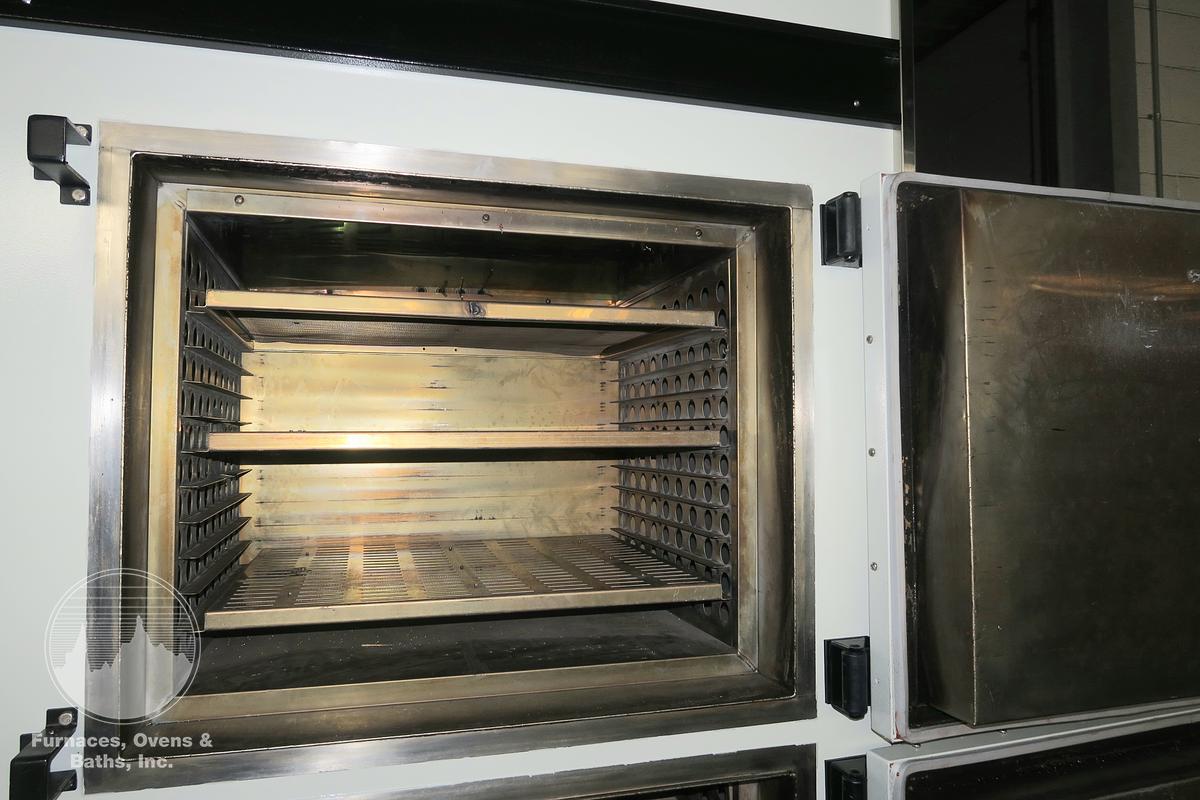

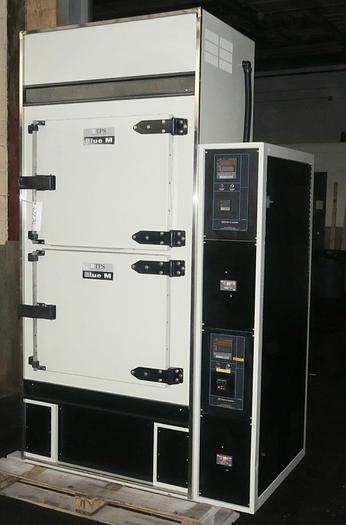

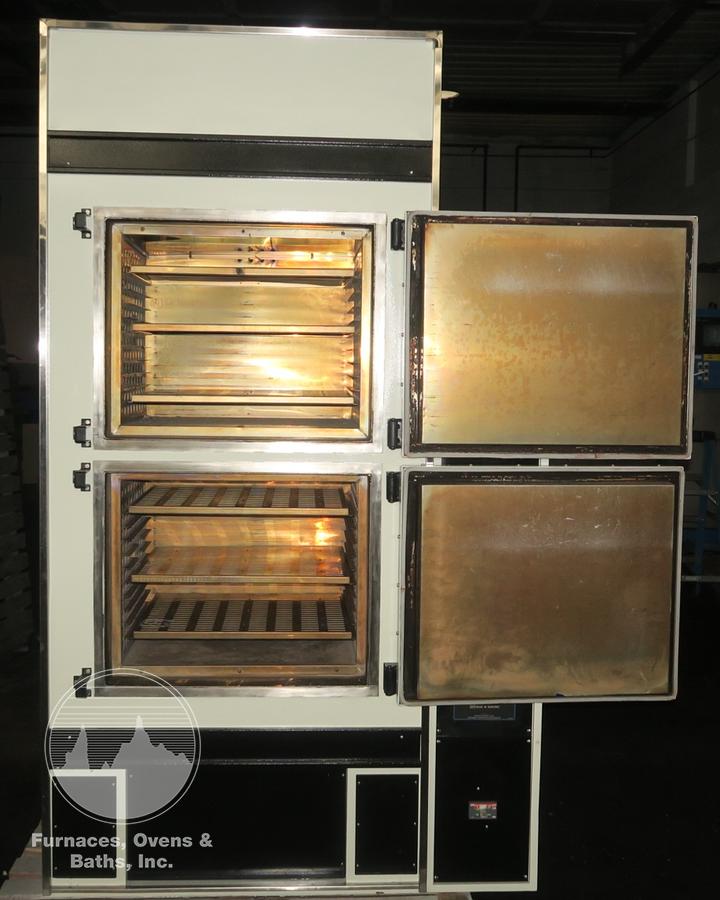

Dual chamber over/under design with a 2 point cam action door latch and silicon rubber gasket on each door which provides a good door seal. Stainless Steel interior with perforated air duct side wall panels. Ten (10) shelf brackets on 1-1/2" centers, three (3) shelves are included with each chamber. Coiled style heating elements and direct driven circulating fan are located above the work area in the top chamber and below the work area in the bottom chamber. Heated air is circulated in a horizontal pattern acrossed each chamber. Adjustable fresh air inlets are located on the left-hand side and the exhaust ports are located at the rear. Oven has been tested and is ready to ship.

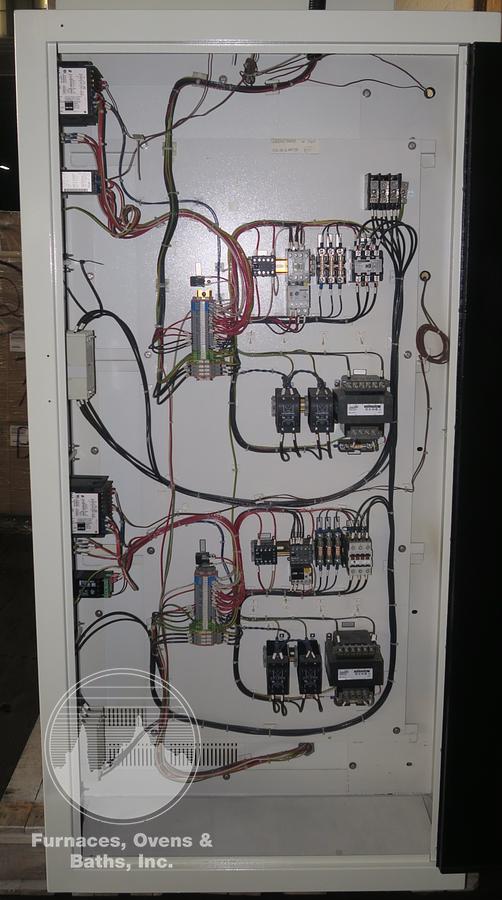

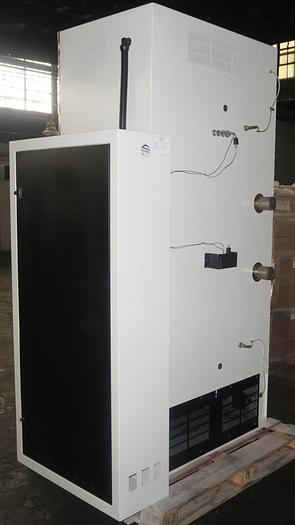

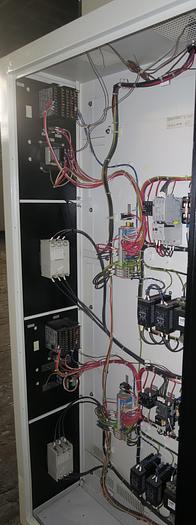

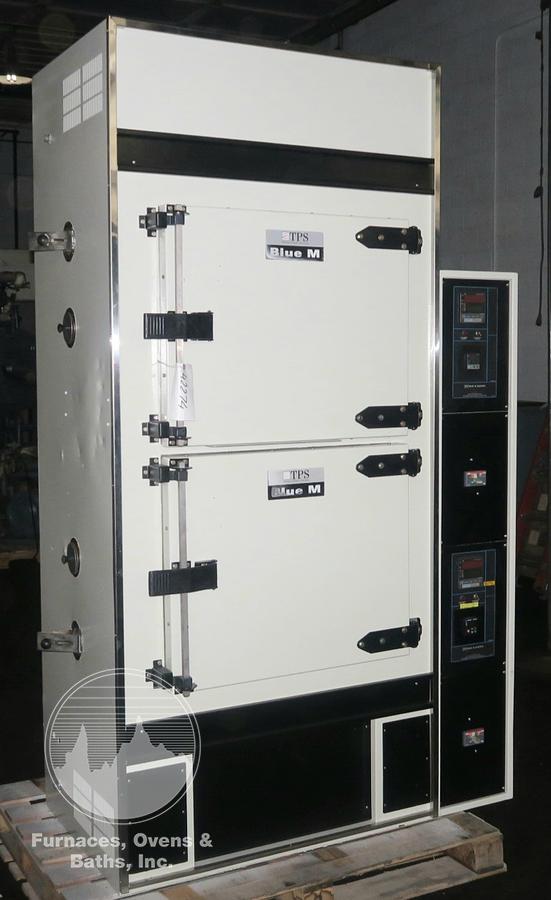

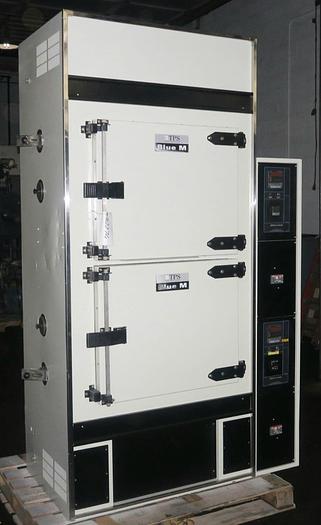

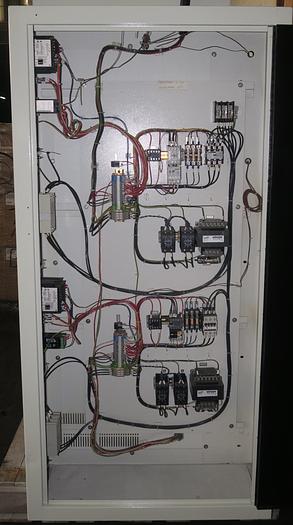

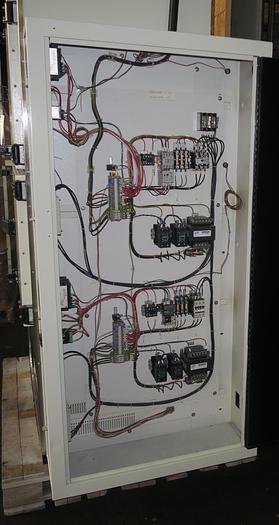

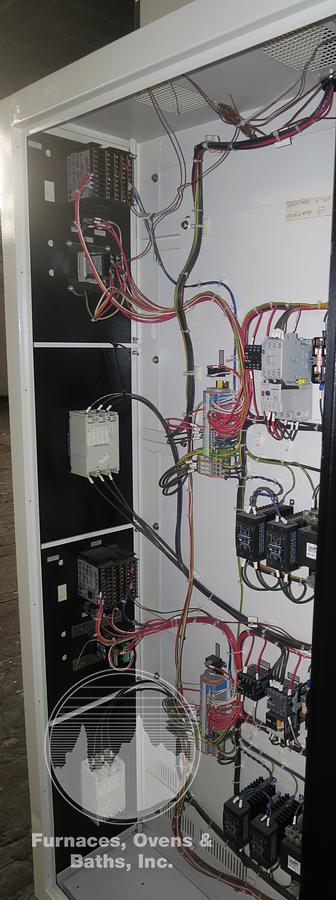

Controls are located in a side mounted control cabinet which includes a Yokogawa Pro 750 digital programmable temperature control, and Yokogawa UT160L digital high limit for each chamber. Power toggle switch with indicating lights for on/off are flush mounted to the face of the control cabinet. Solid state power relays, high limit contactor, motor starter, fuses, relays etc. are mounted inside the control cabinet. Each chamber has main disconnect switch.


ManufacturerBlue M

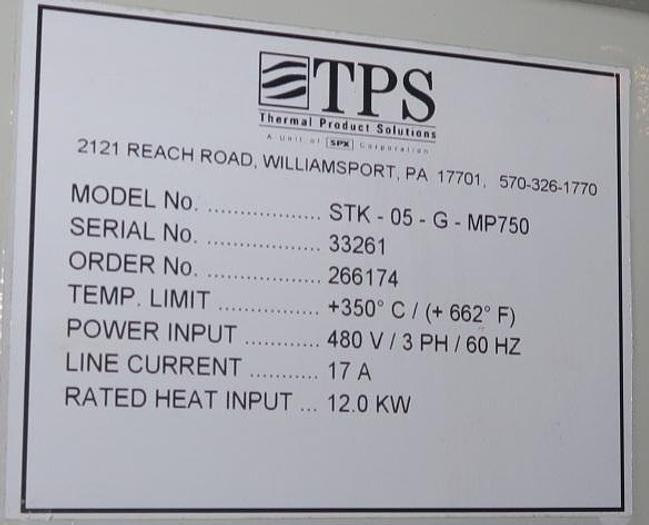

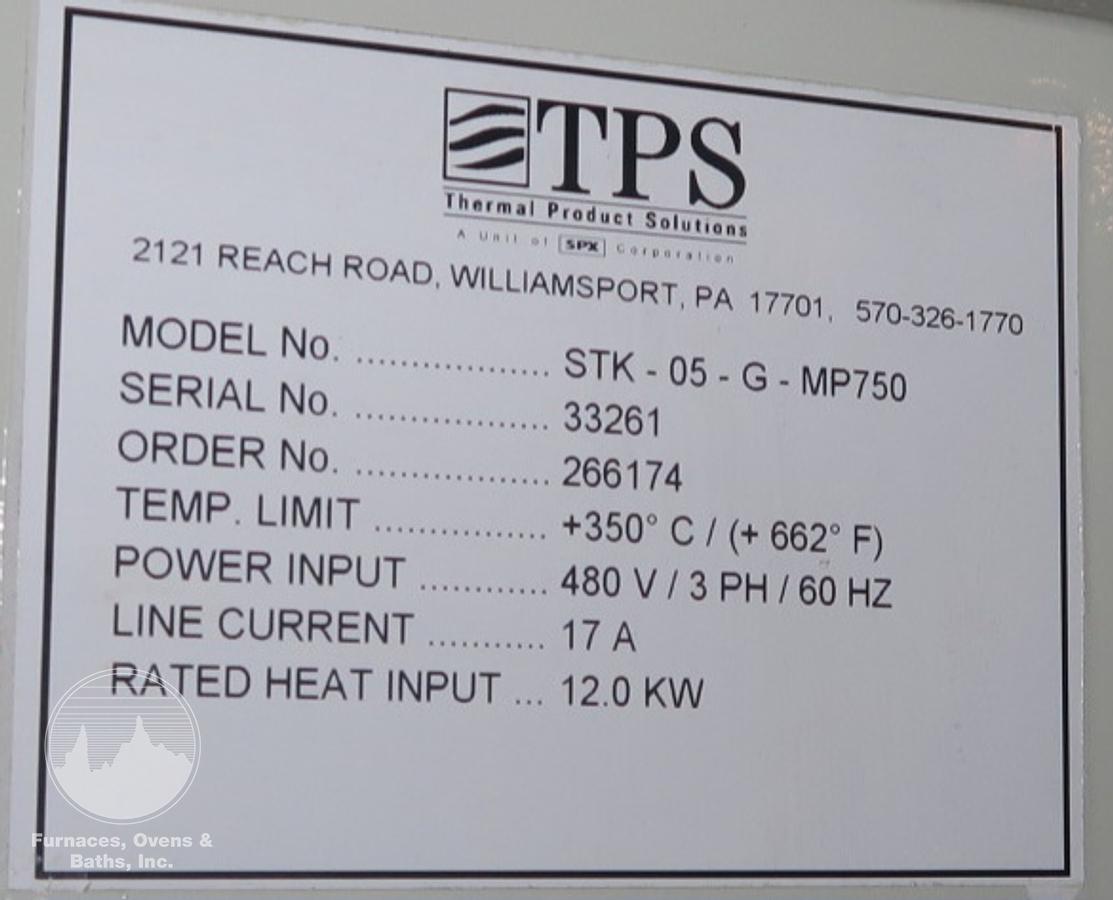

Serial Number33261, Order #266174
Stock Number7662
Work area25"W x 20"H x 20"L
Max temperature662°F
Voltage480/3/60/12 kW each chamber, 17 Amps x 2
External dimensions57" wide x 90" high x 39" long
