Seco Warwick Rotary Hearth Furnace 96" Diameter

Seco Warwick Rotary Hearth Furnace 96" Diameter

Contact us for price

orCall 248-343-1421

Description

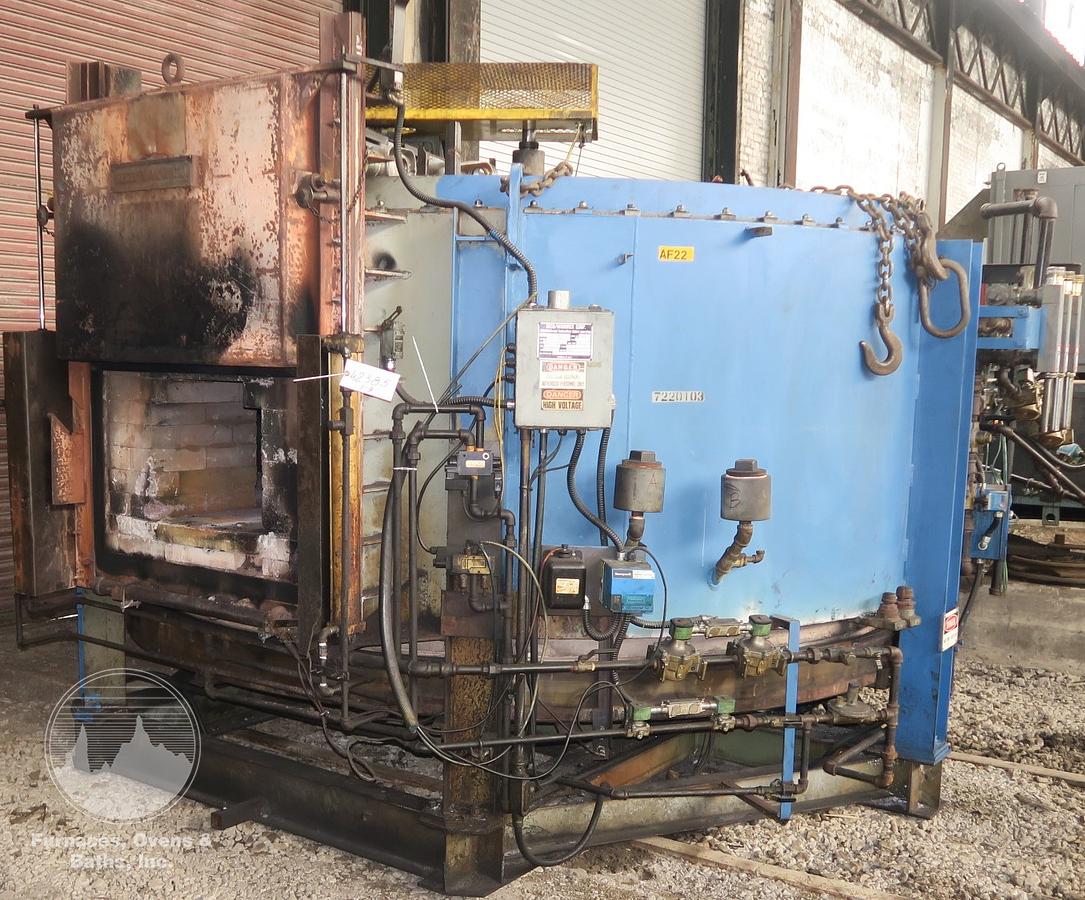

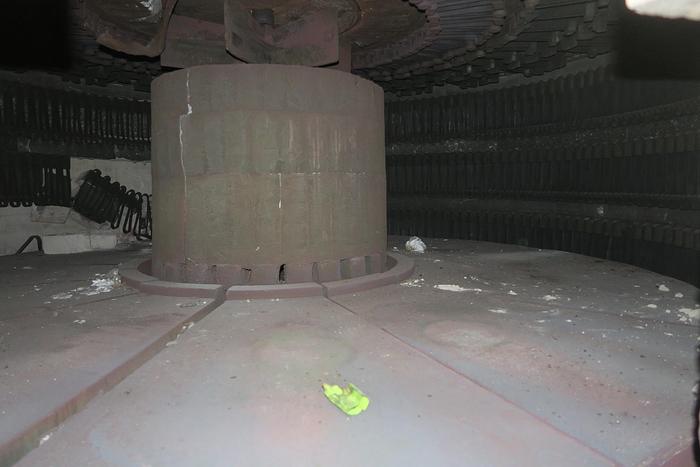

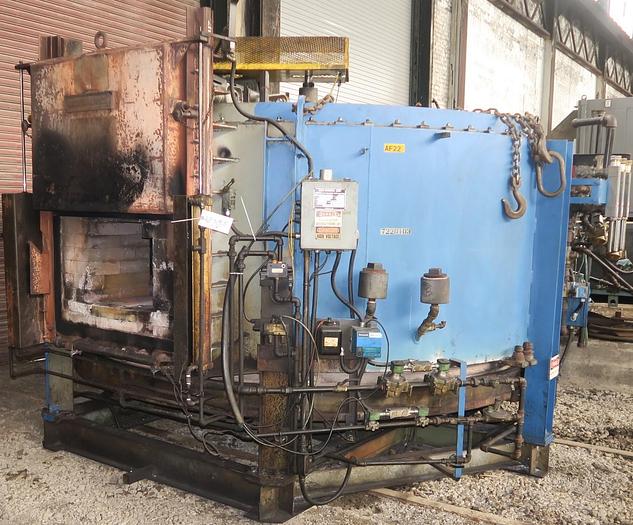

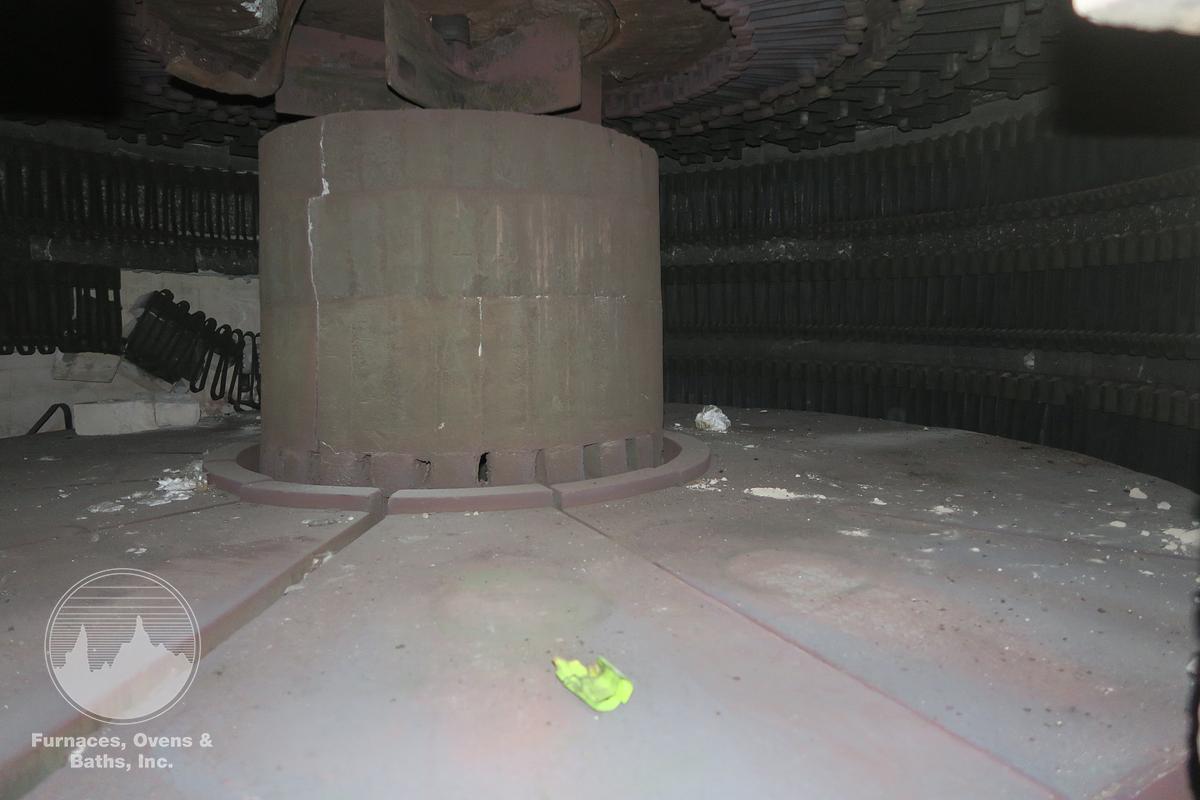

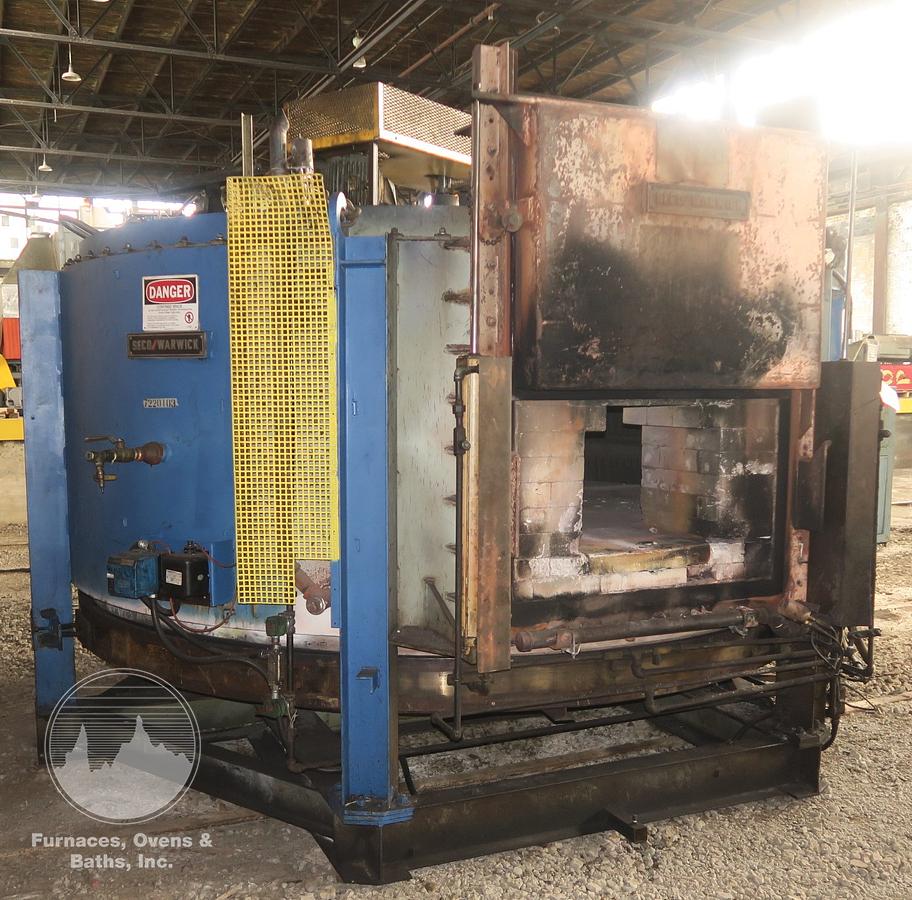

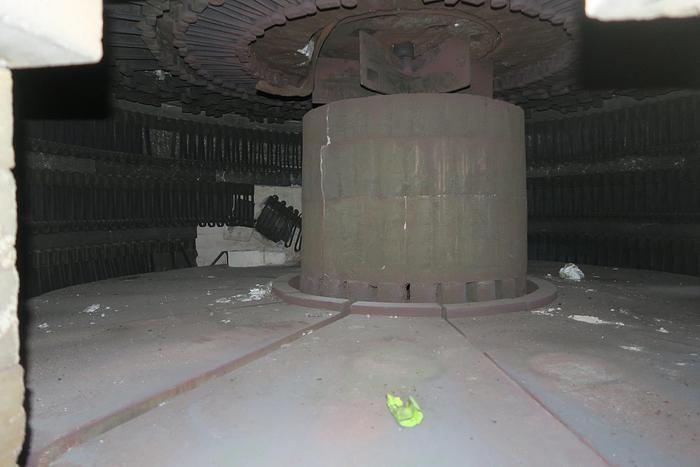

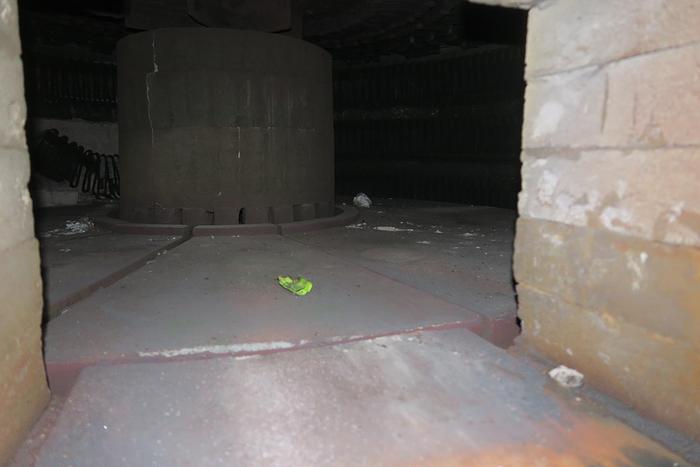

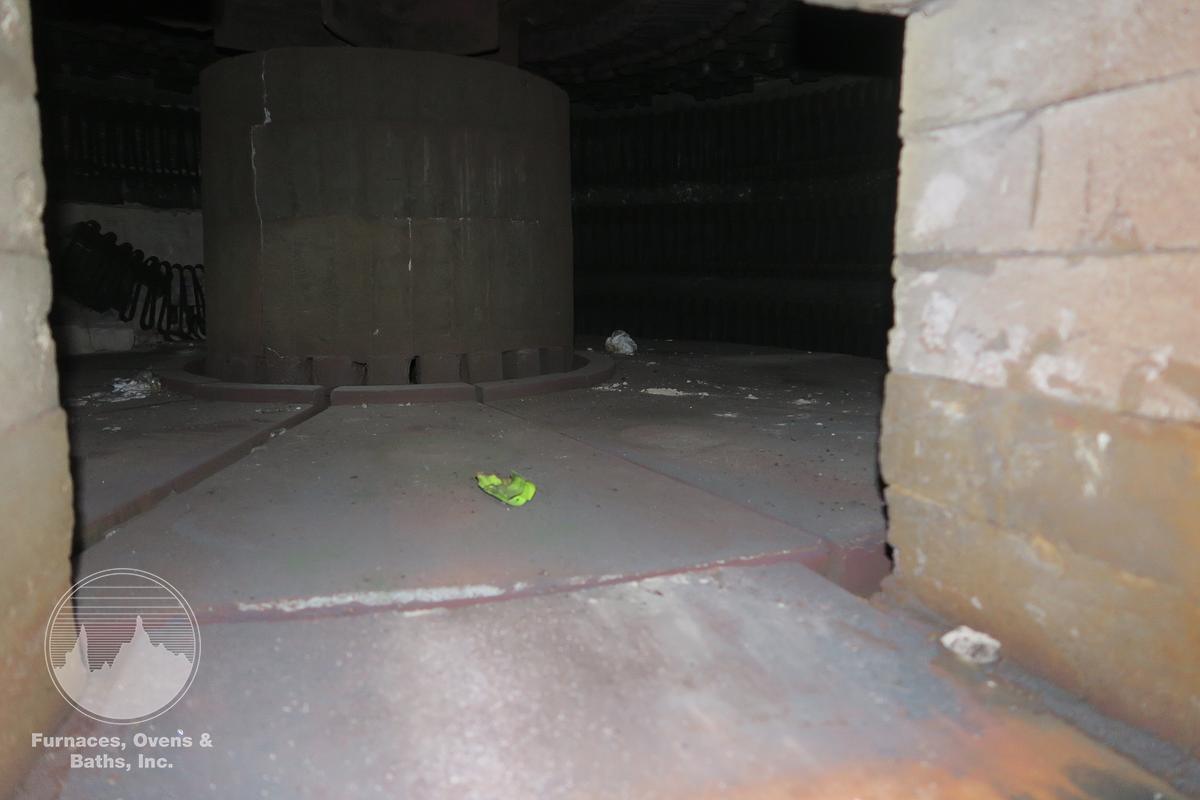

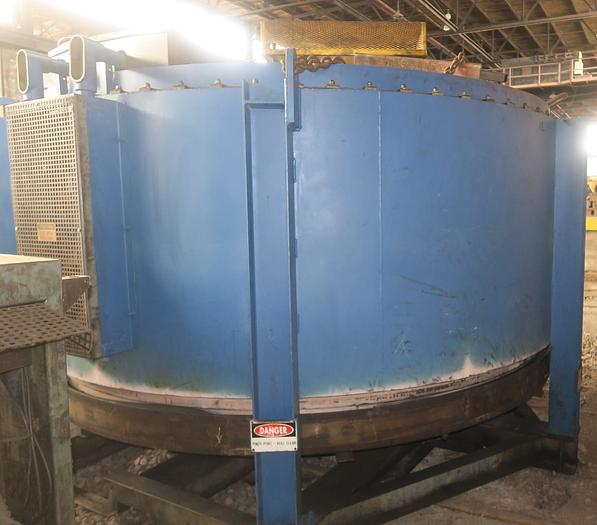

Standard "Rotary Hearth" furnace with air operated vertical lift door, fiber insulation, metallic heating elements, roof mounted circulating furnace, flame curtain and SiC hearth plates. Furnace has two (2) zones of control. Furnace is an atmosphere tight furnace with dual atmosphere seals. The outer atmosphere seal is oil, and the inner atmosphere seal is sand. Manuals and drawings are included with this furnace. Spare heating elements and SCR are included with this furnace.

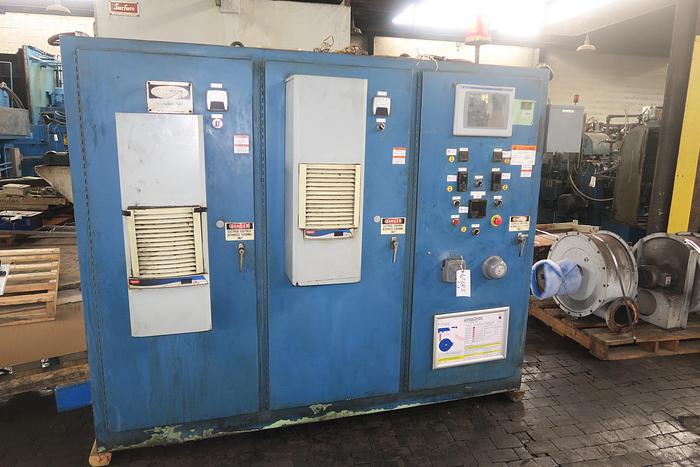

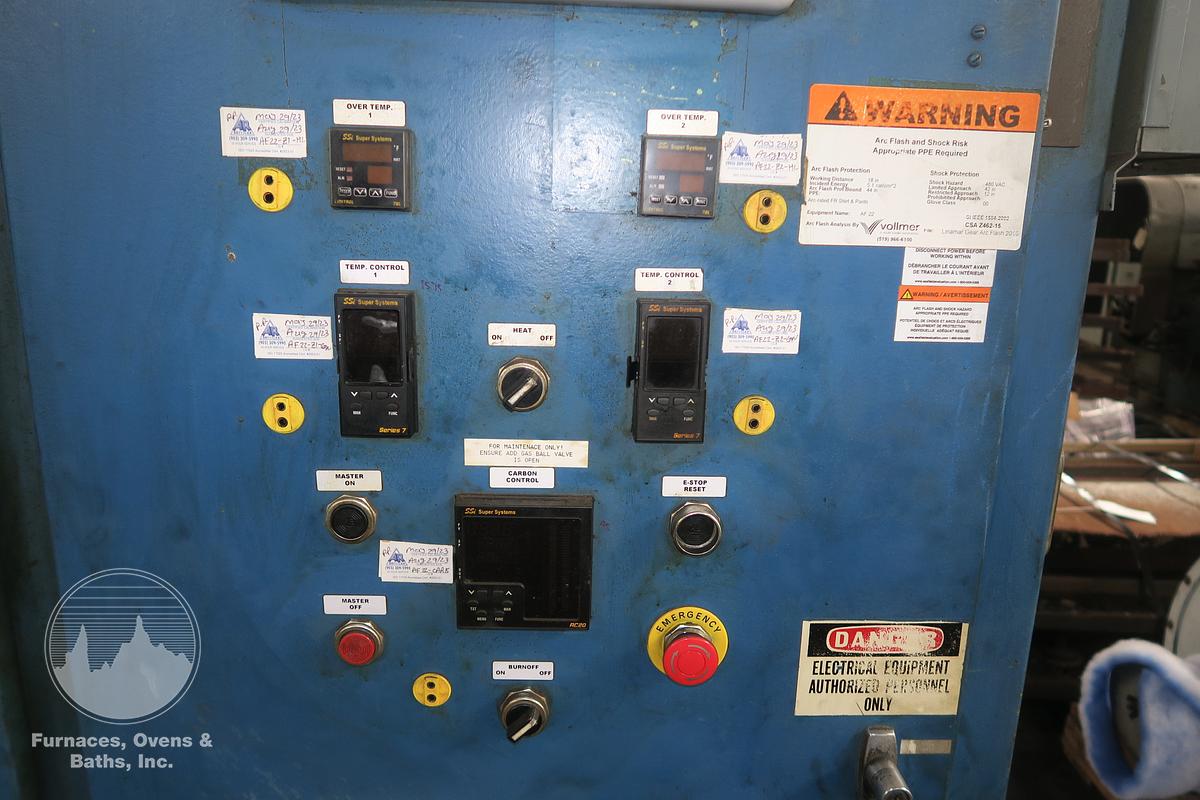

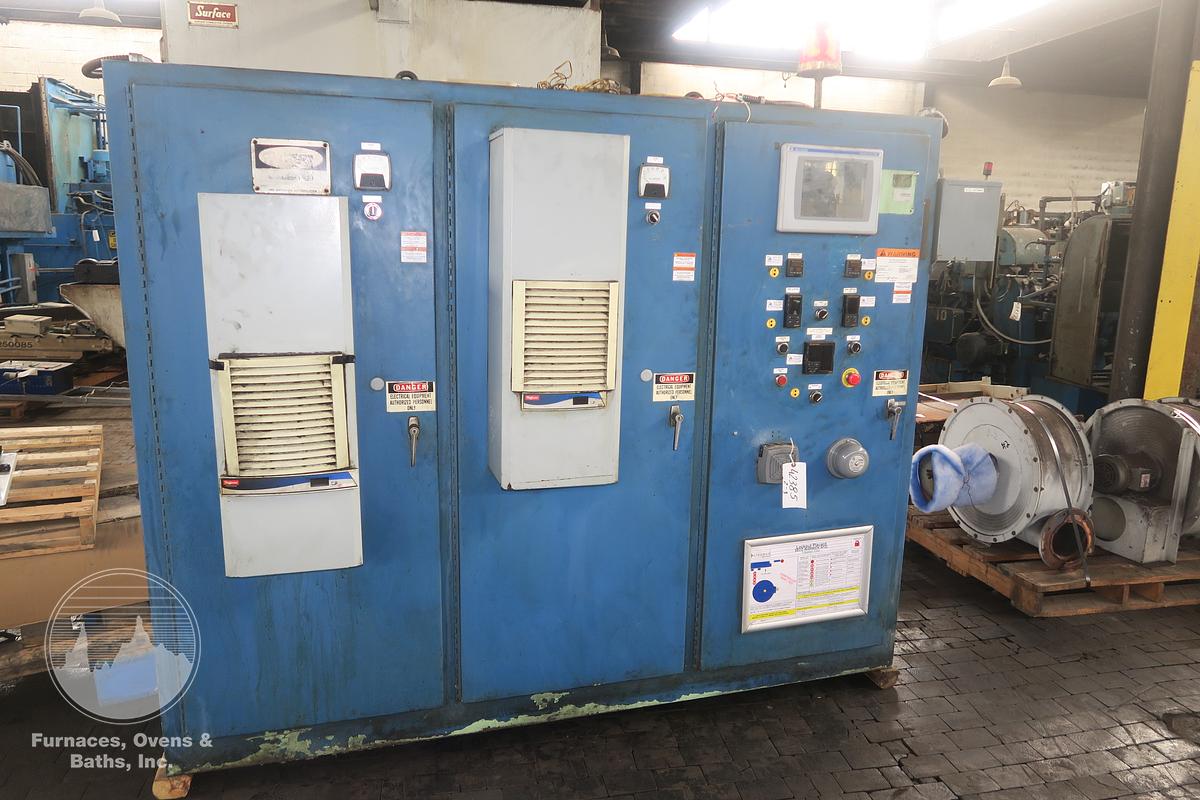

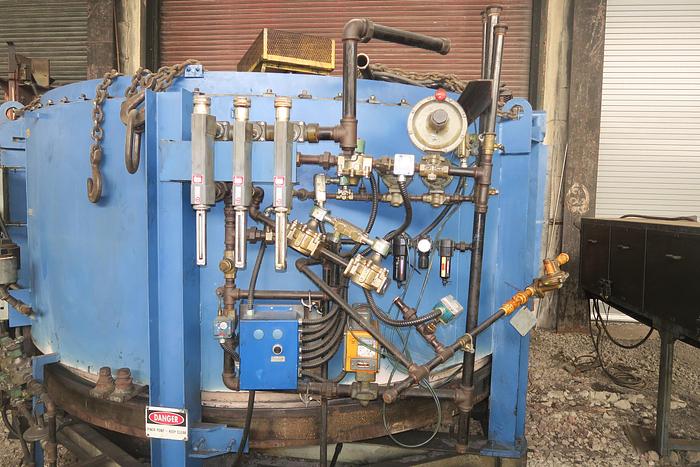

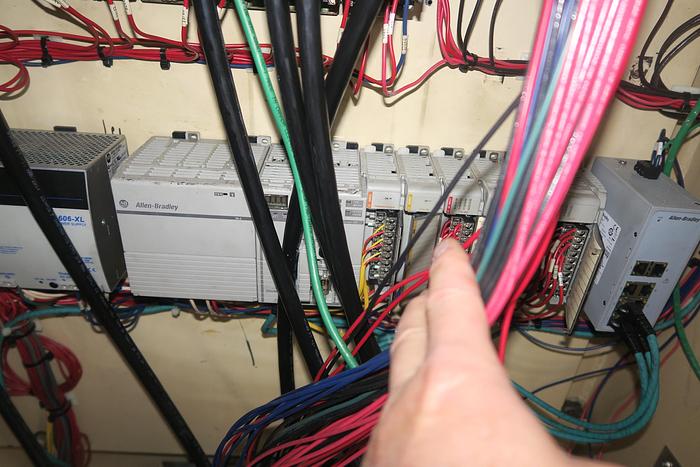

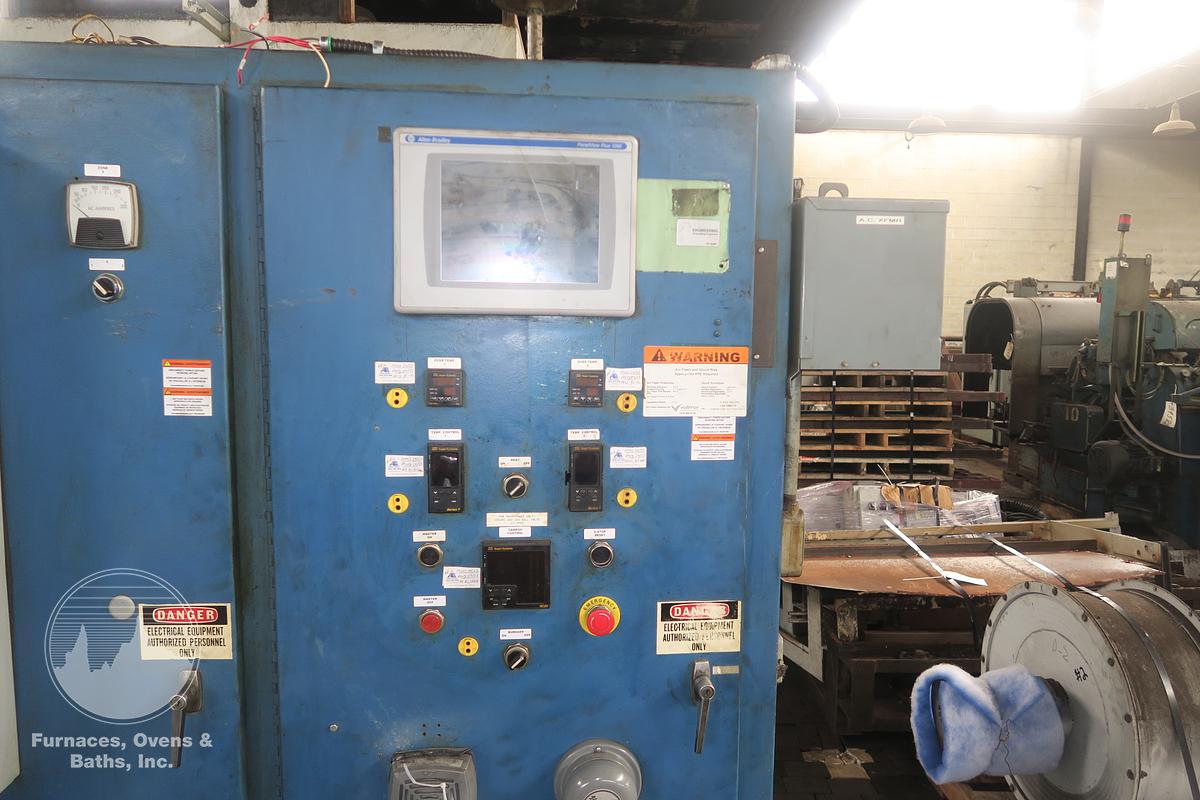

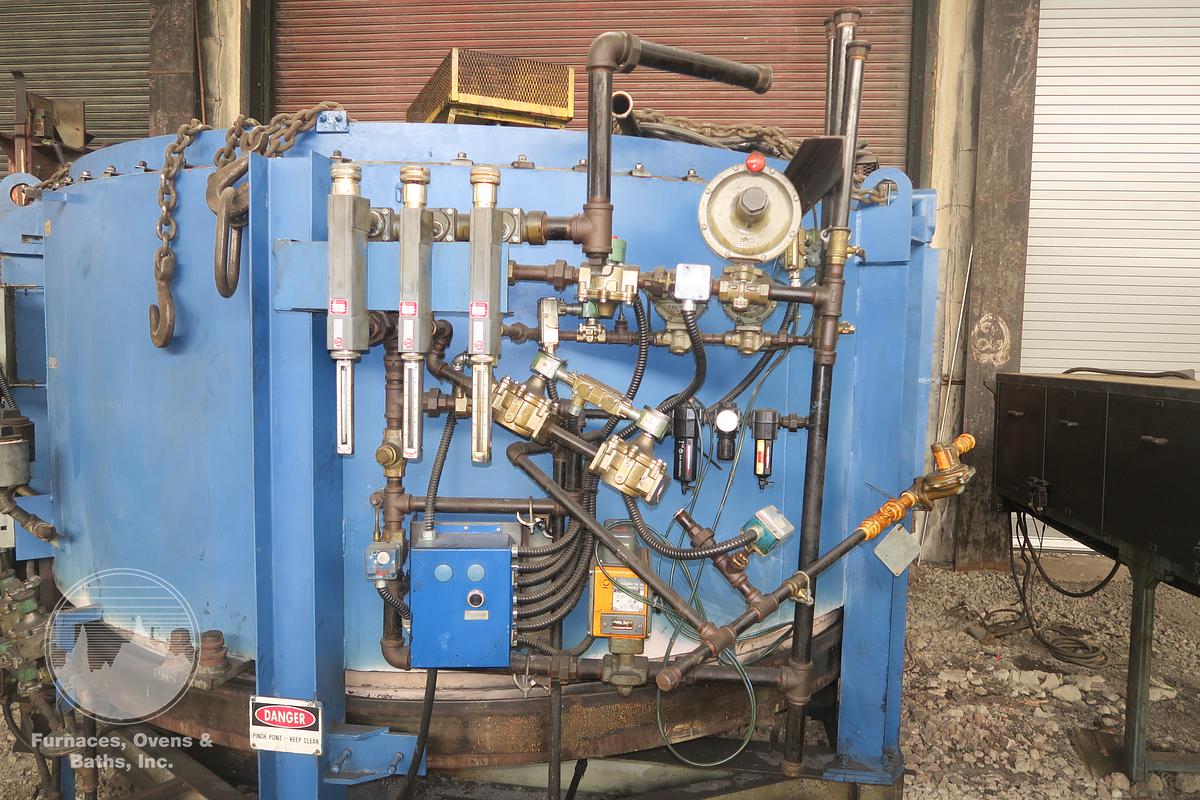

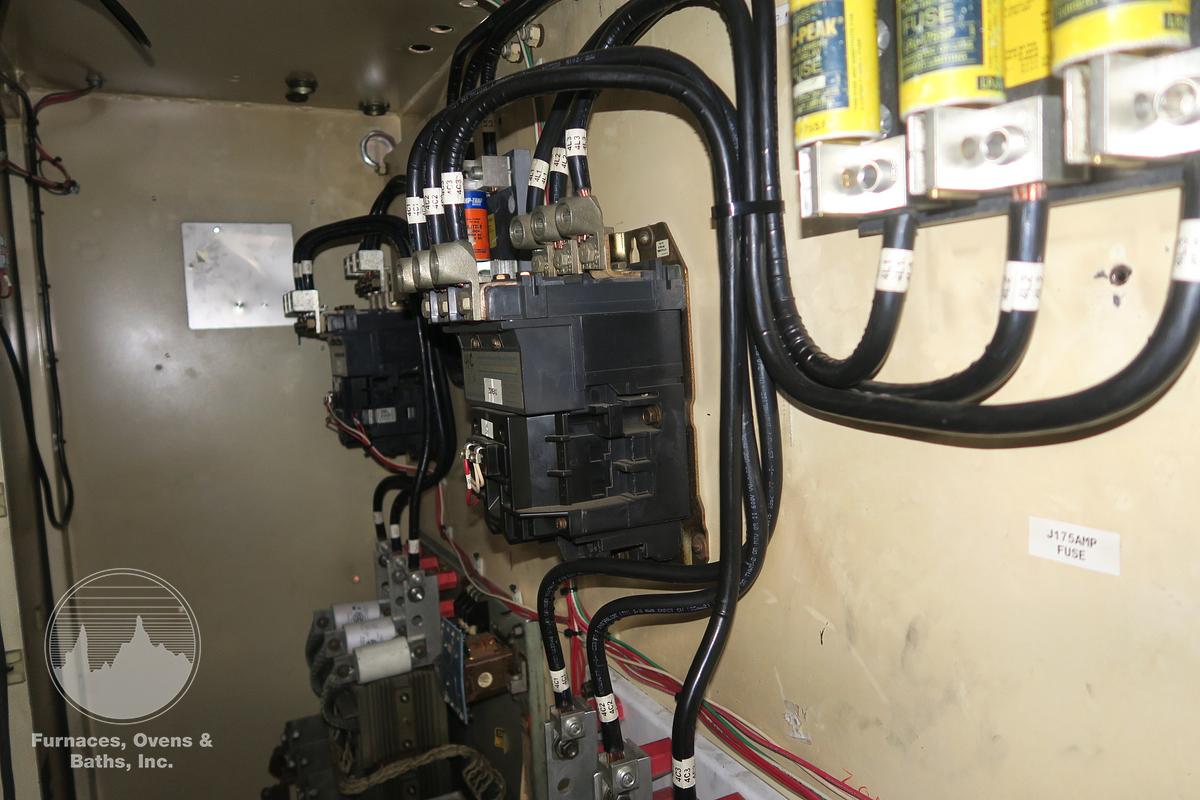

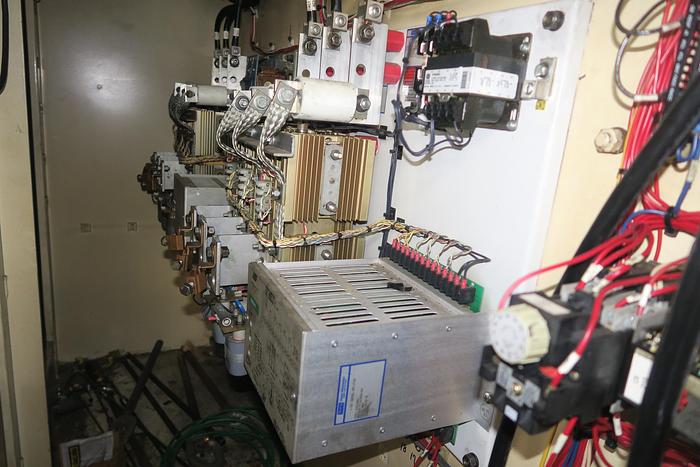

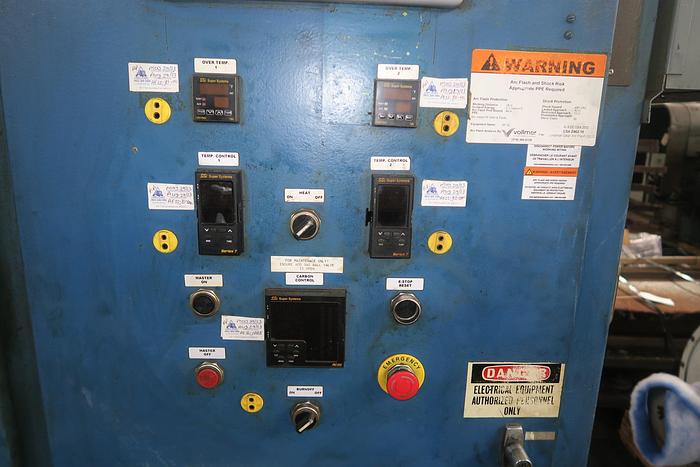

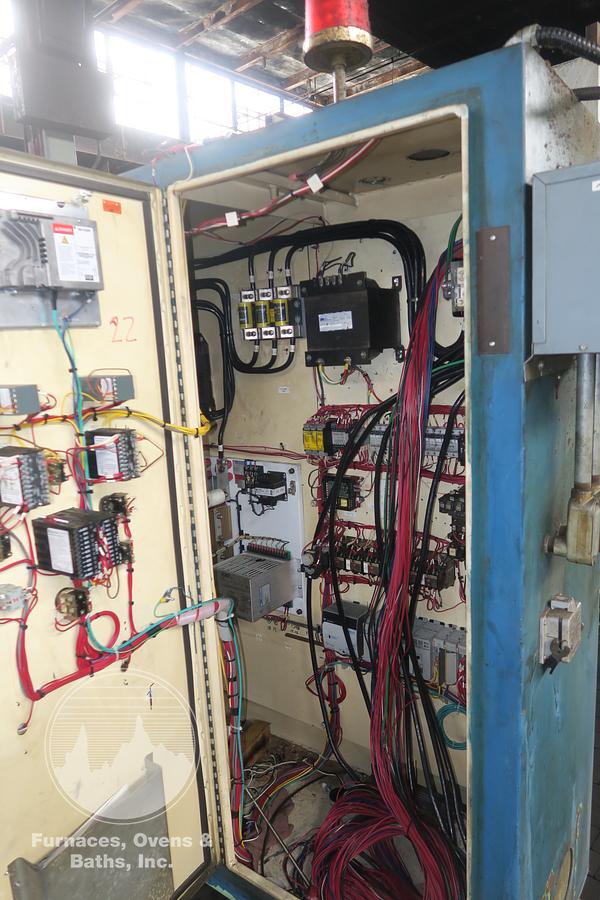

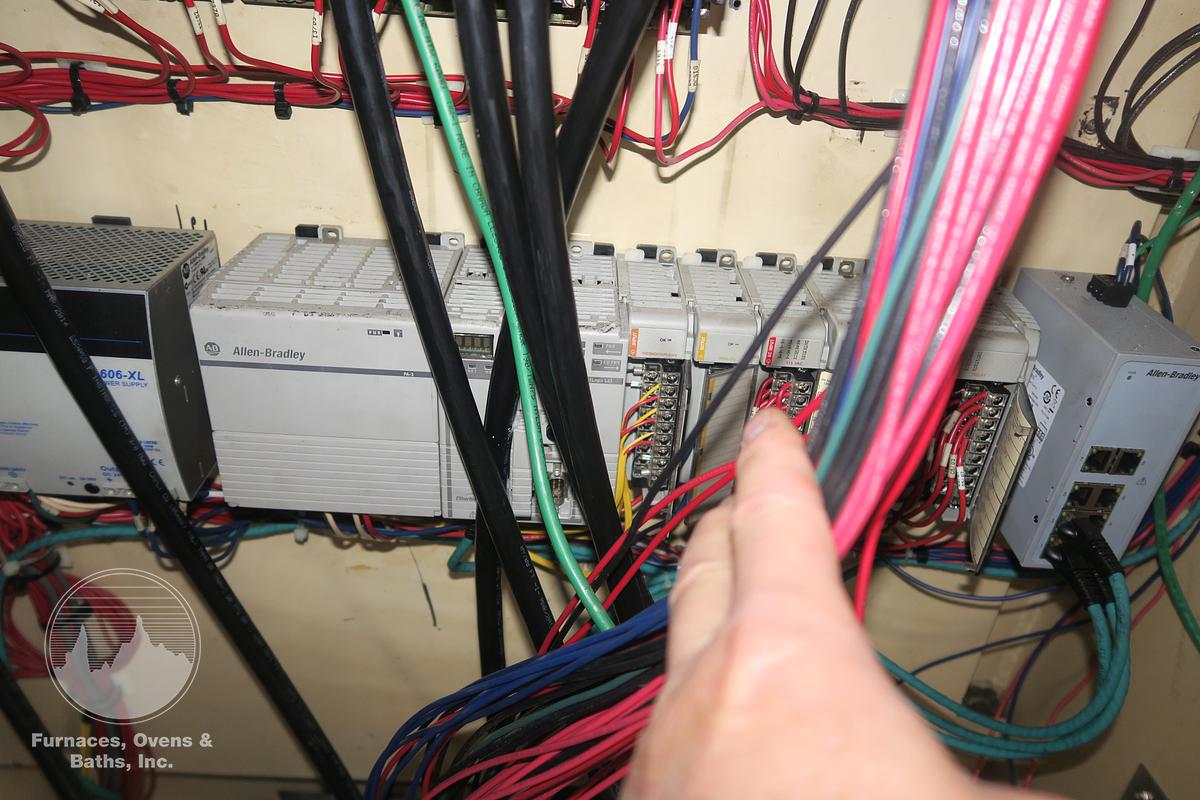

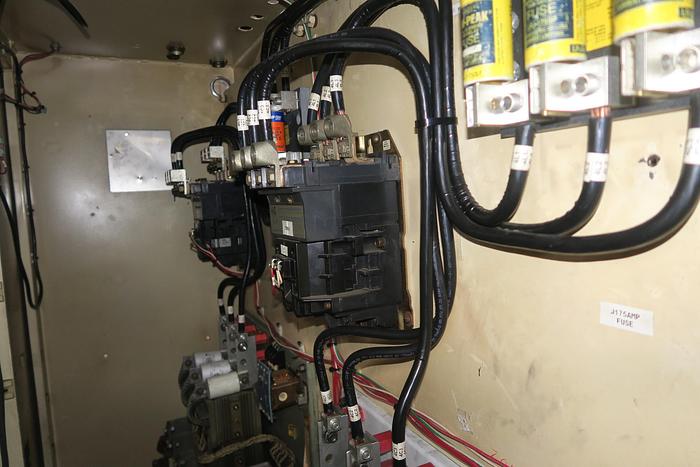

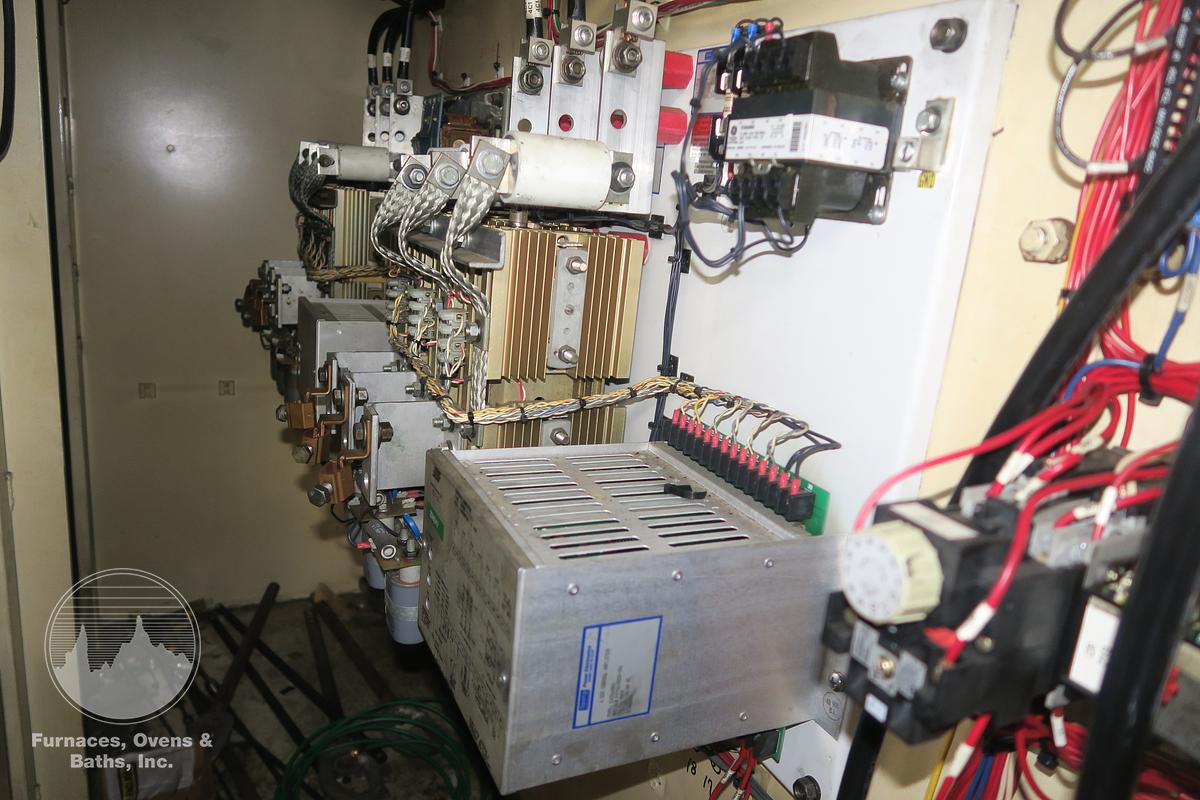

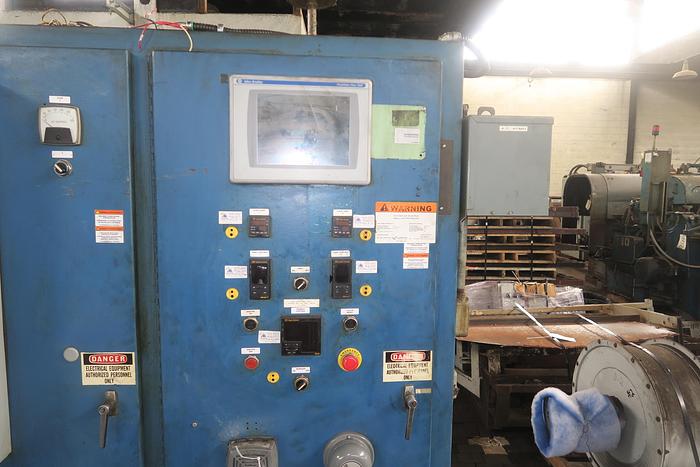

Controls are mounted an wired in a free standing panel includes an Allen Bradley PLC, SSi for temperature control and high limit control. There is SSi to control atmosphere. Power to the heating elements are controlled through Spang "SCR" power controllers. Flow meters for endo gas.

Specifications

ManufacturerSeco Warwick
ModelAtmosphere Rotary Hearth Furnace
ConditionUsed
Serial NumberF-123-86
Stock Number7664

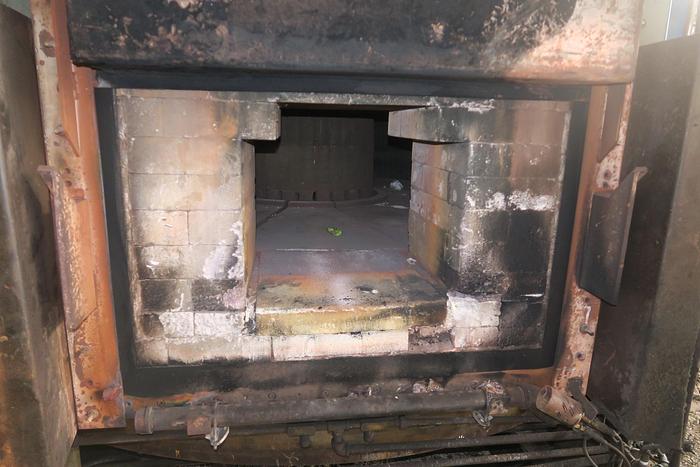

Work Area96" Diameter Hearth, 28"W x 19"H Door Opening, 32"L
Maximum Temperature1800°F
Power Requirements480/3/60/380 Amps
Overall DimensionsSee Layout Drawing
