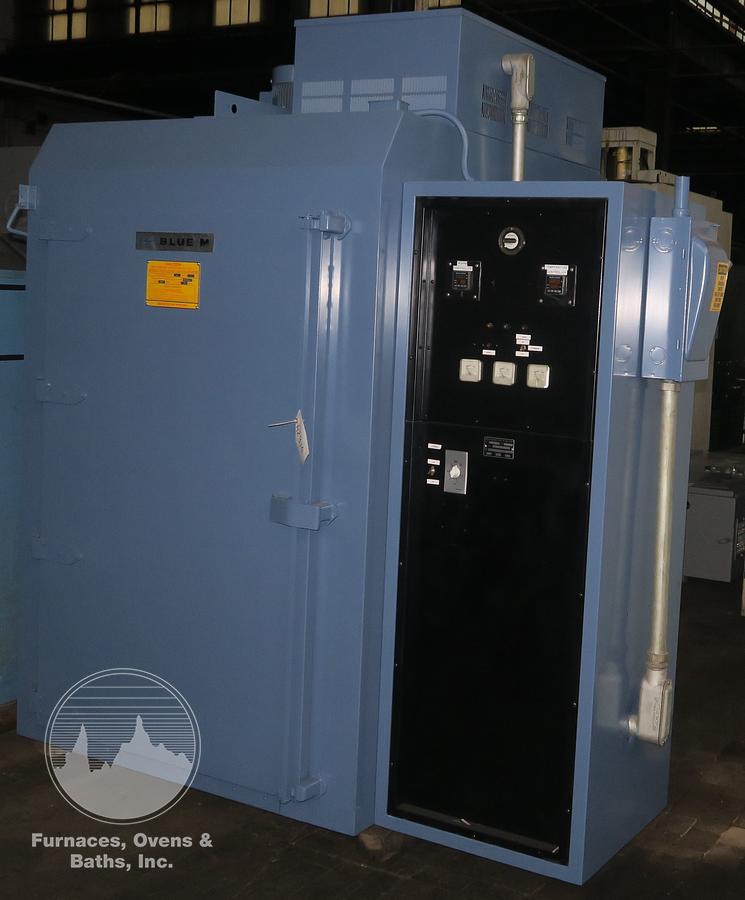

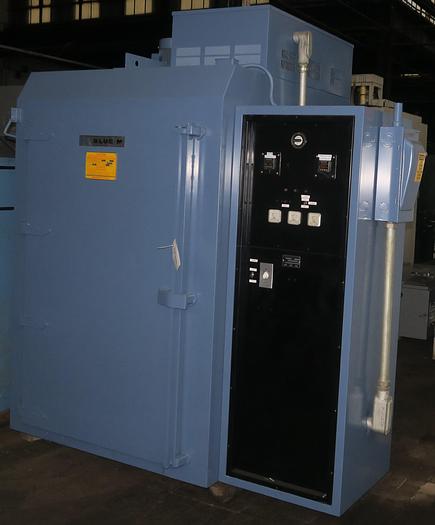

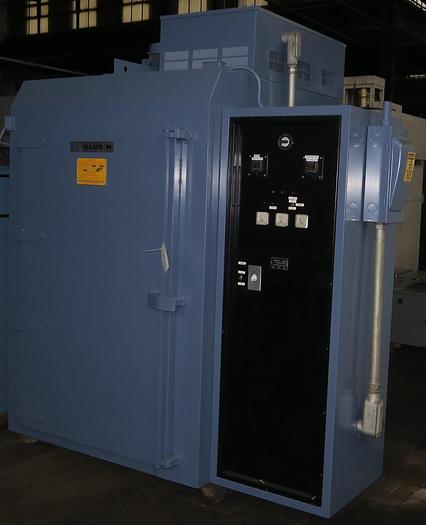

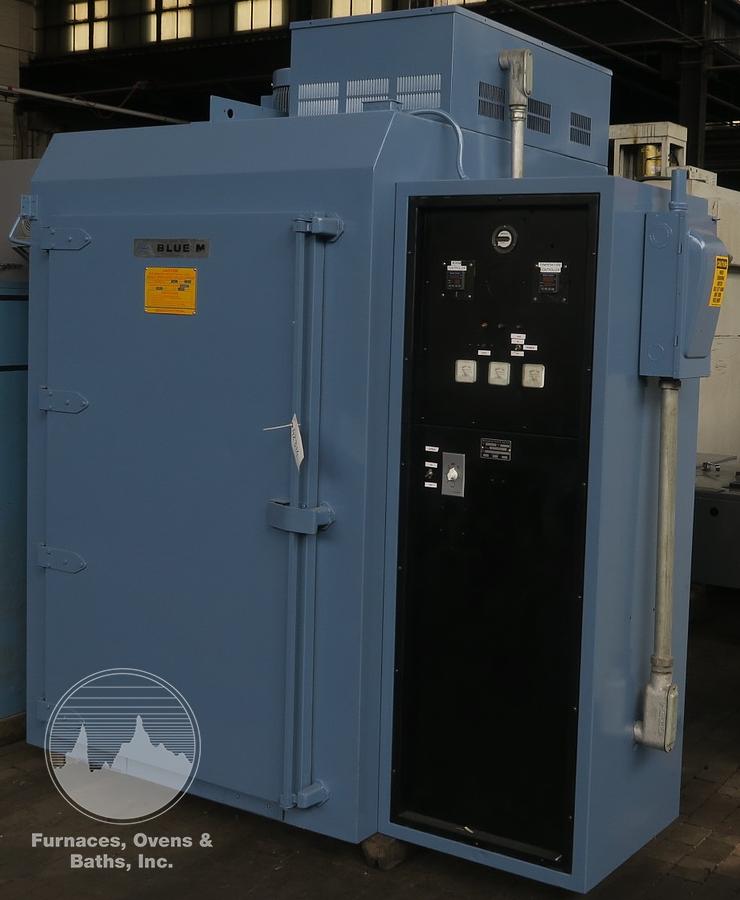

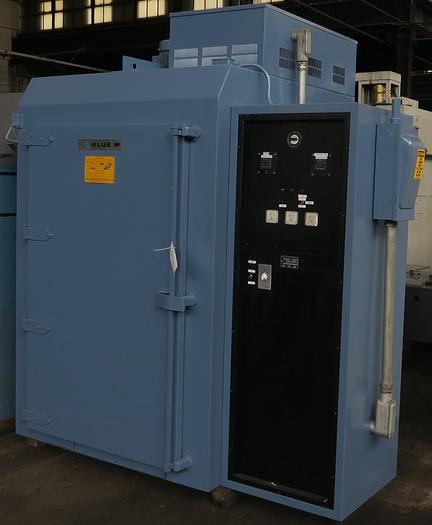

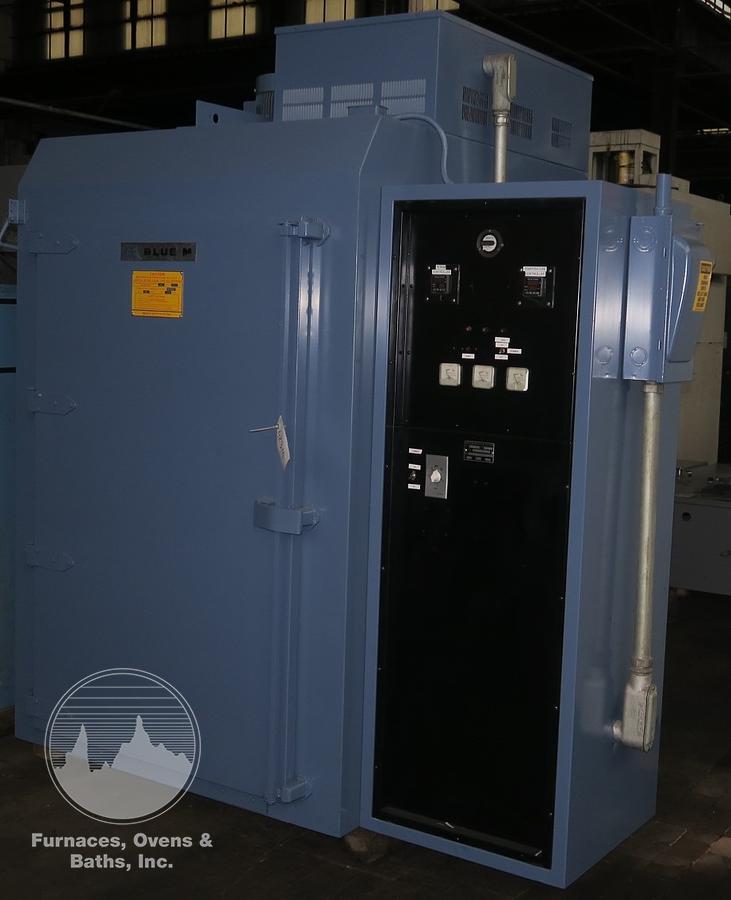

36"W x 60"H x 48"L Blue M Truck Oven Model DC606RIEX, 600°F, Electric

36"W x 60"H x 48"L Blue M Truck Oven Model DC606RIEX, 600°F, Electric
Contact us for price
Description

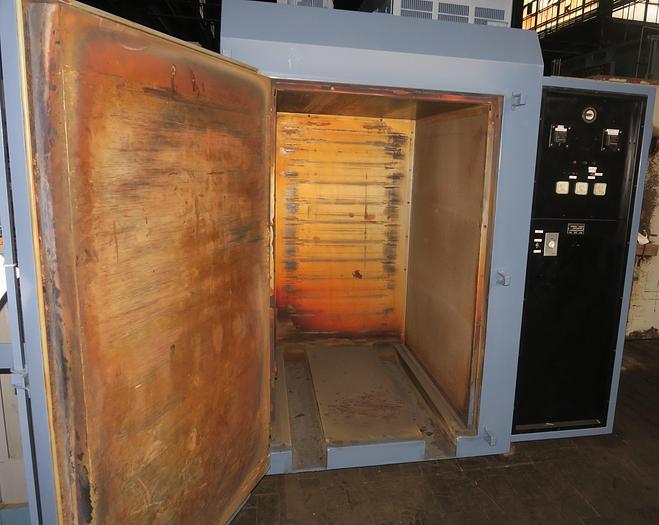

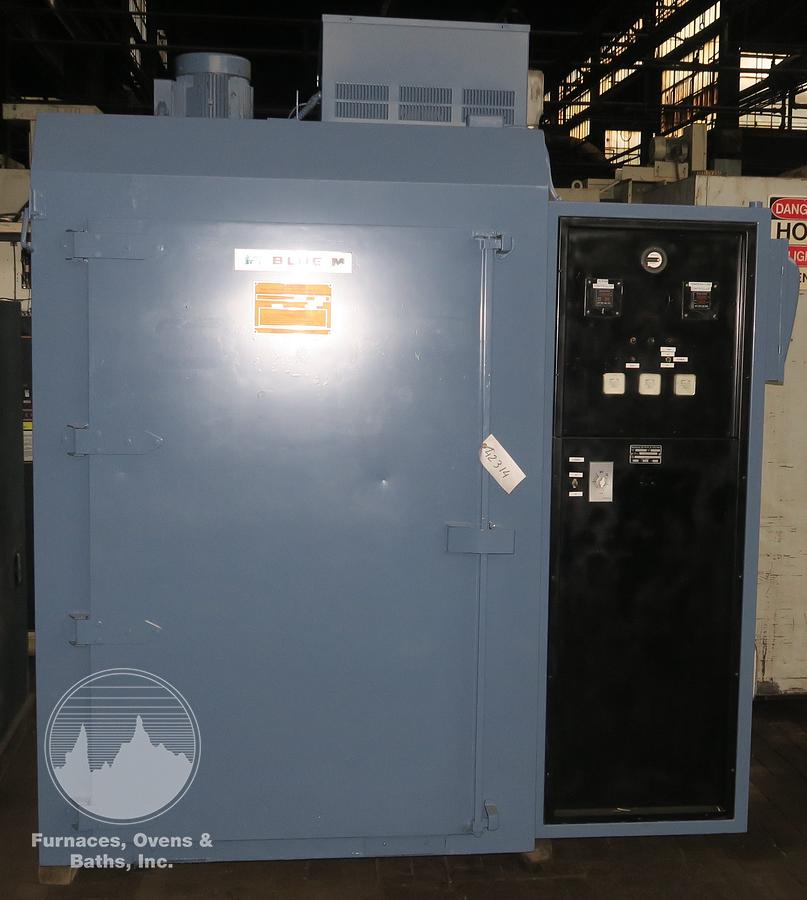

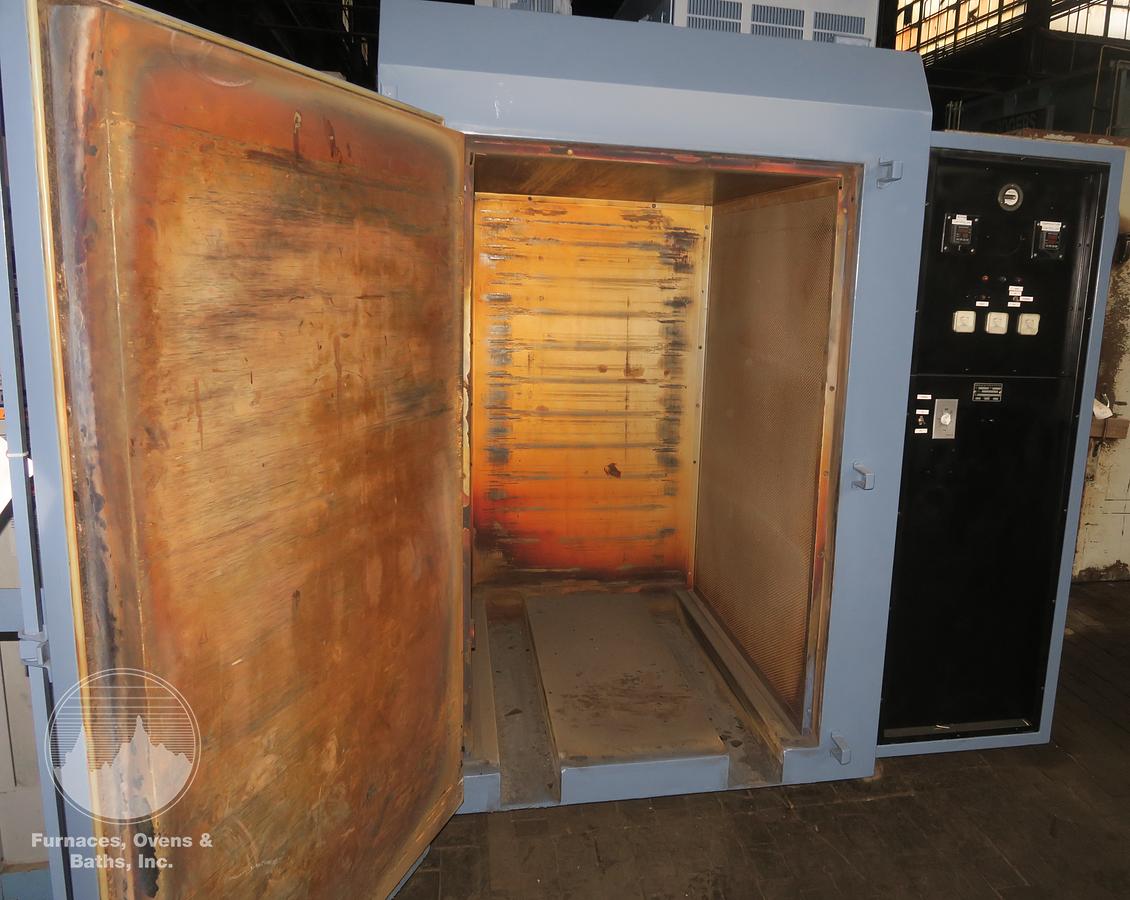

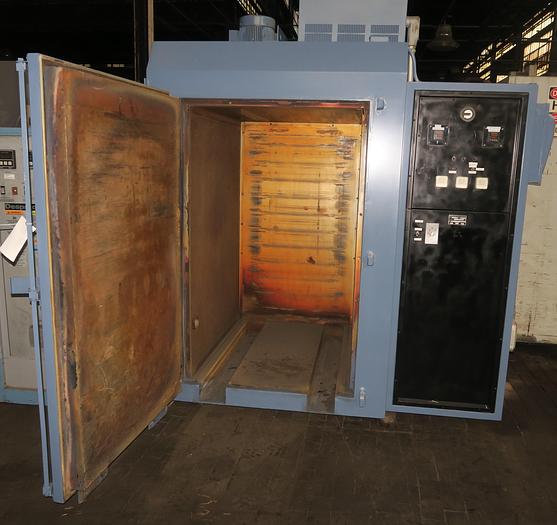

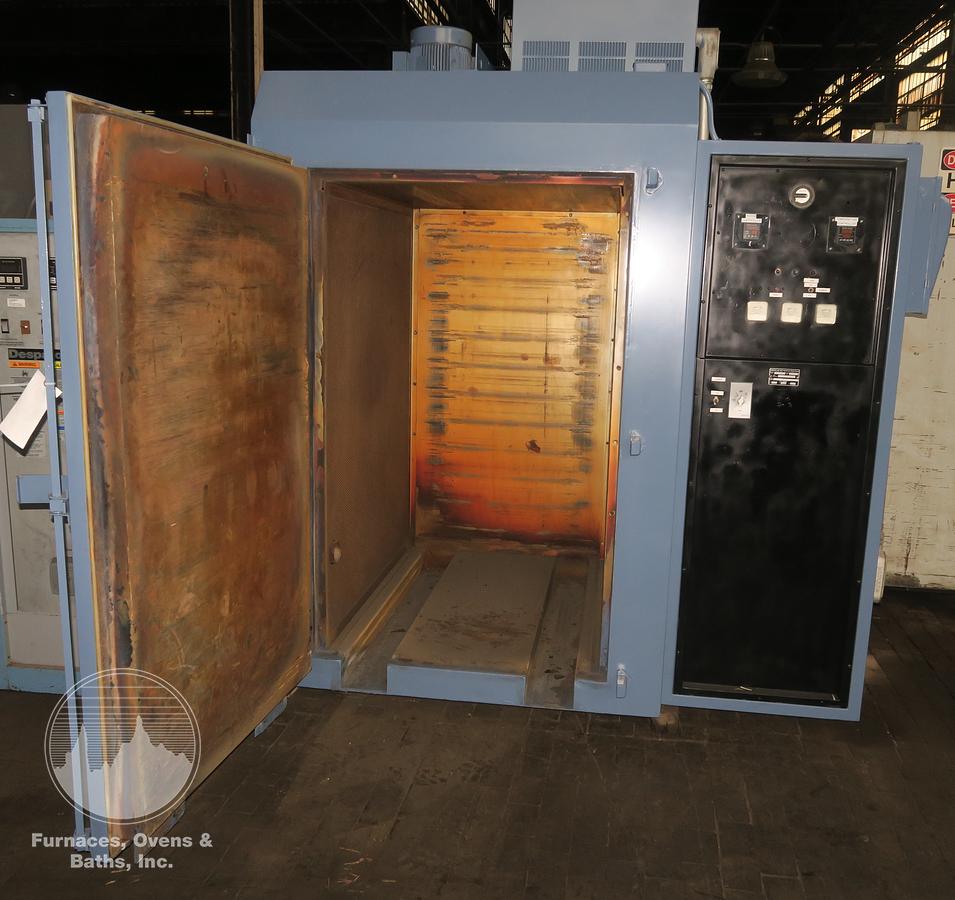

Single door with a silicon rubber gasket. Door has a positive seal 3 point cam action latch. Stainless steel interior with insulated floor with tracks. No cart is supplied with this oven. Direct driven circulating fan and coiled style heating elements are located above the work chamber. Heated air is circulated in a horizontal air flow pattern across the chamber for good uniform heating. An adjustable fresh air inlet and an exhaust vent with adjustable damper are located on the left-hand side. Oven will be tested prior to shipping.

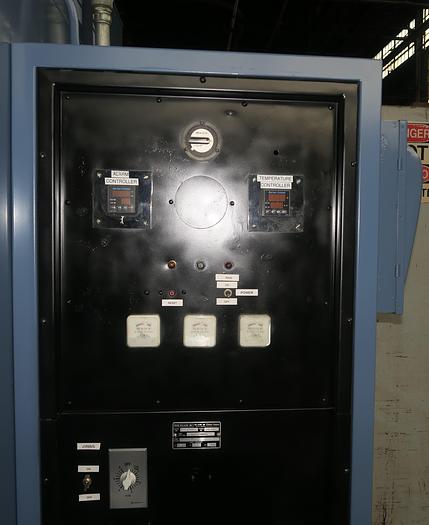

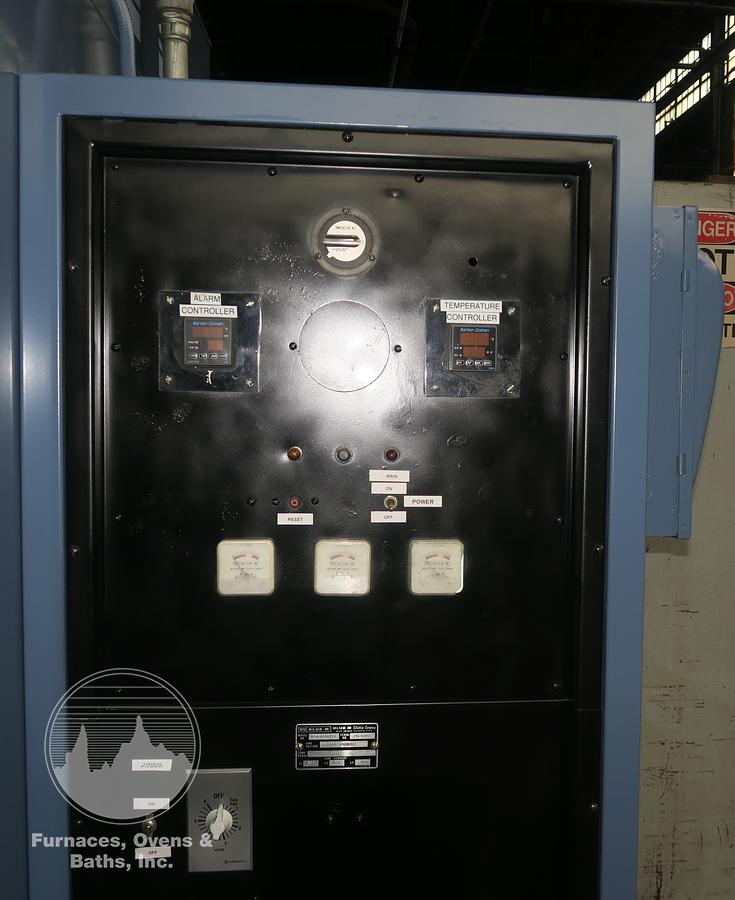

Controls are located in a small enclosure attached to the right-hand side. Barber Colman 7SM digital temperature controller and a Barber Colman 7SL digital high limit along with control switches and power meters are flush mounted in the enclosure. Mechanical contactors control power to elements. Motor starter, fuses, relays etc. are mounted inside the enclosure. Fused disconnect mounted on the right side of enclosure.
Specifications
Manufacturer | Blue M |
Model | DC606RIEX |
Condition | Used |
Serial Number | P16-1609 |
Stock Number | 7667 |
Work area | 36"W x 60"H x 48"L |
Heated | Electric |
Max temperature | 600°F |
Voltage | 208V/3/60/63 Amps |
External dimensions | 78"W x 64"L x 90"H |
Availability | Immediate |
