16"W x 16"H x 13"L, Blue M CFD-10E-7 Bench Top Style, 1200°F, Electric

16"W x 16"H x 13"L, Blue M CFD-10E-7 Bench Top Style, 1200°F, Electric

Contact us for price

orCall 248-343-1421

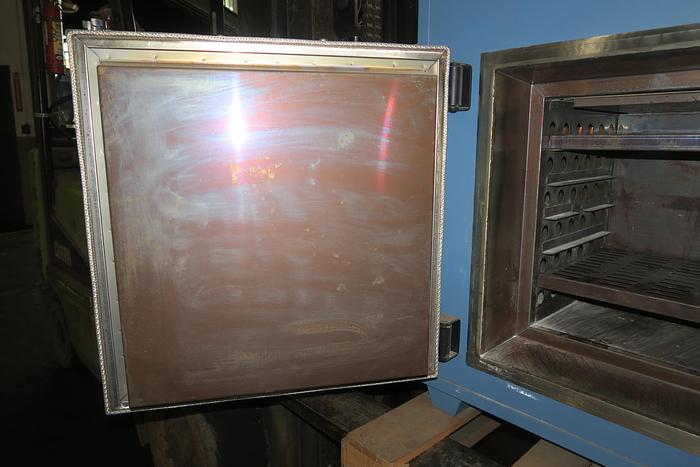

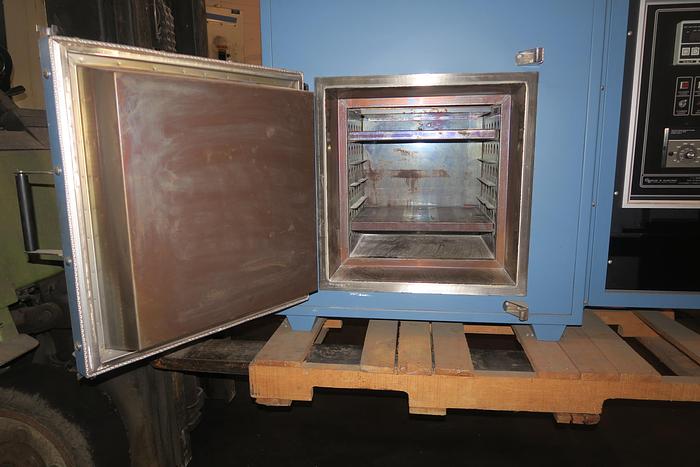

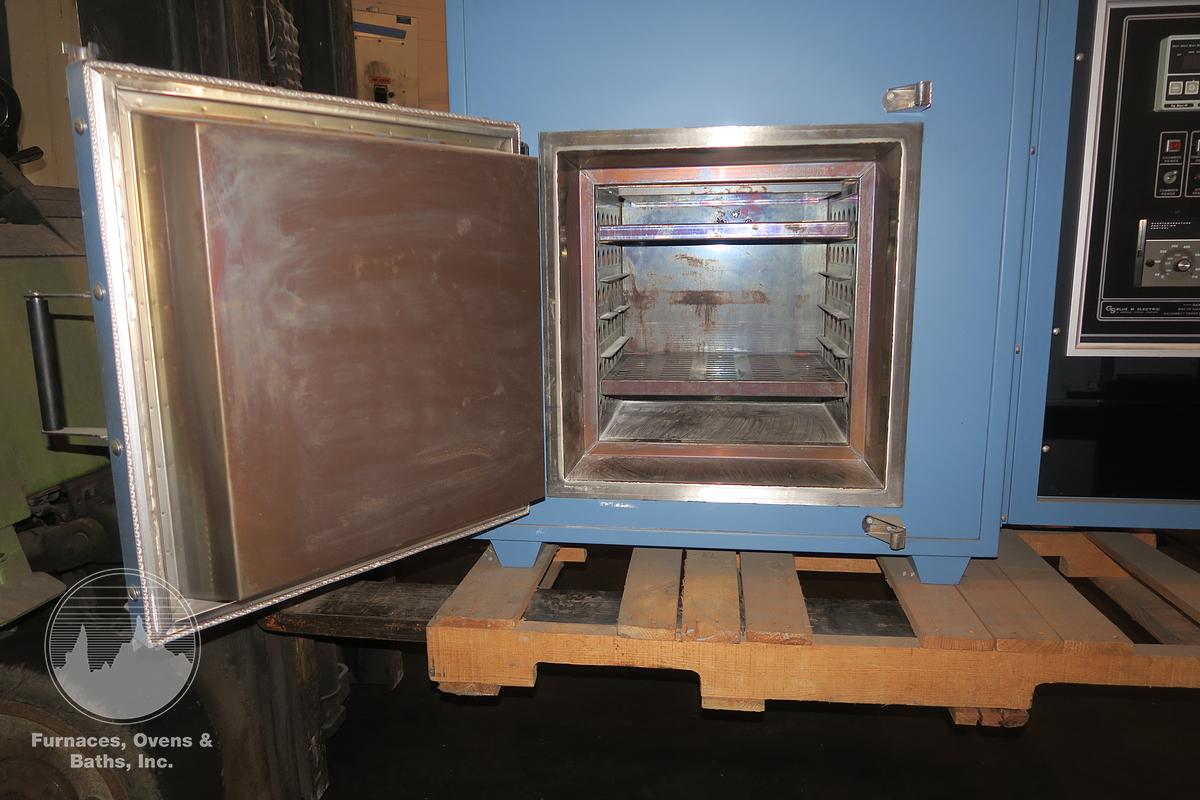

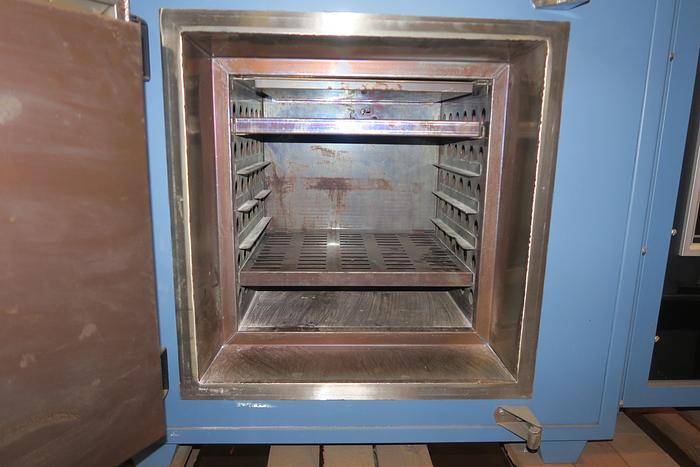

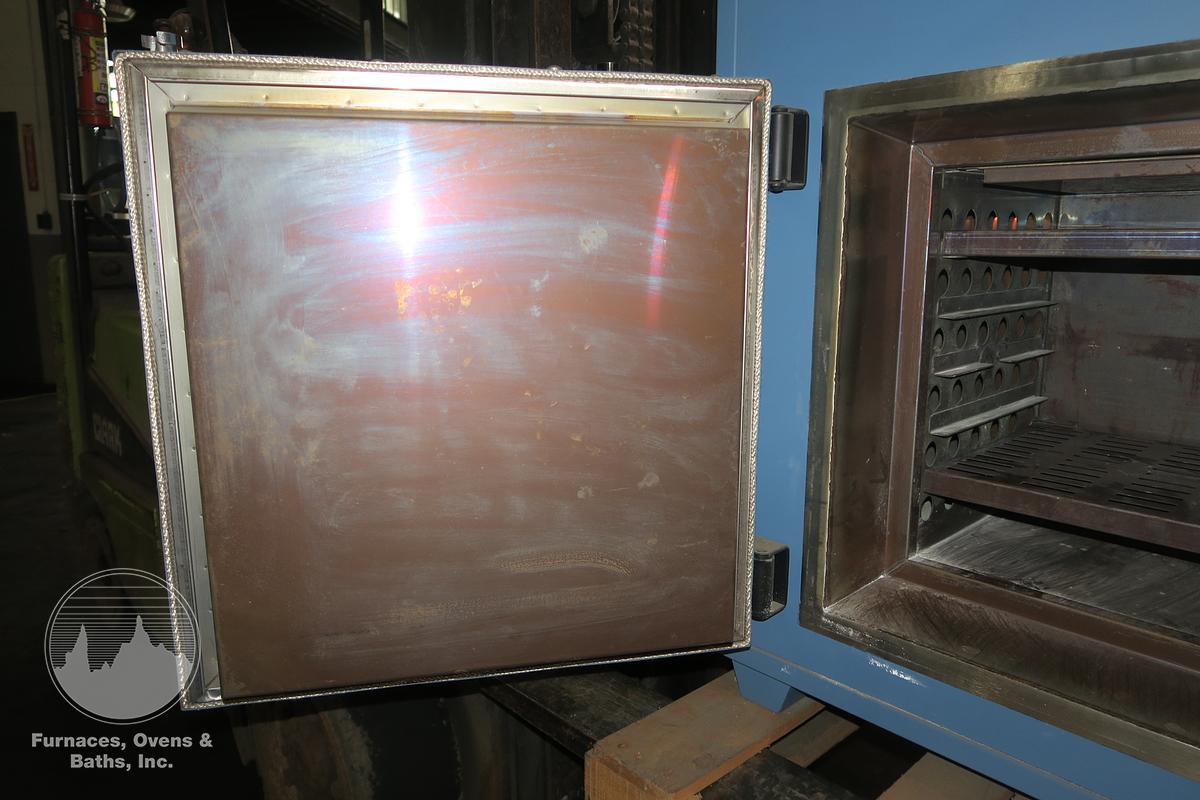

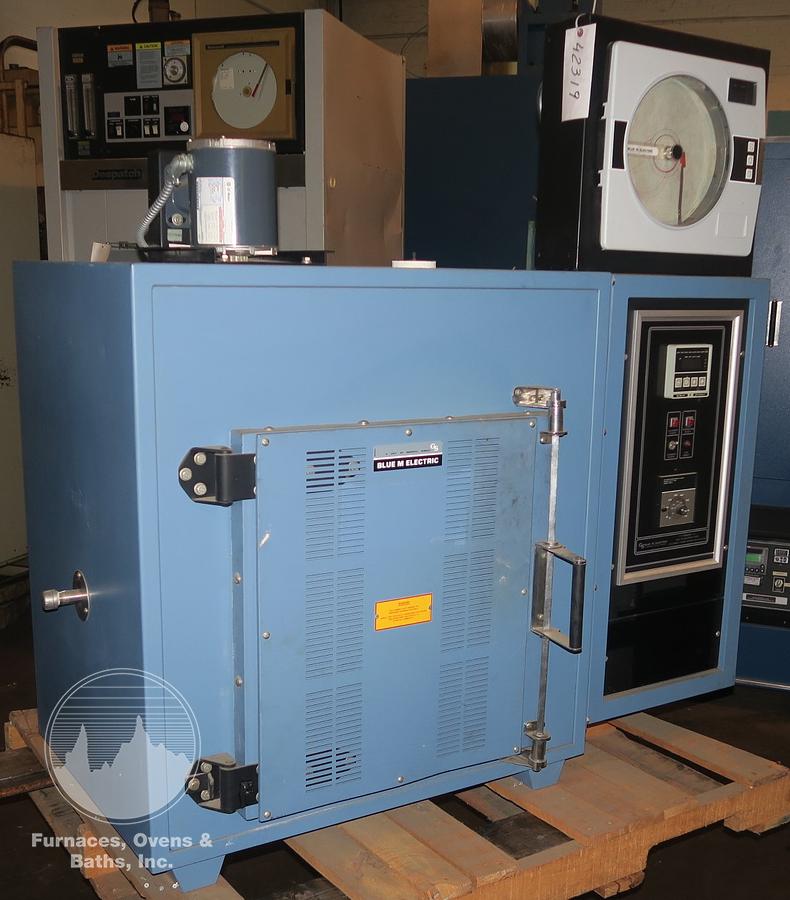

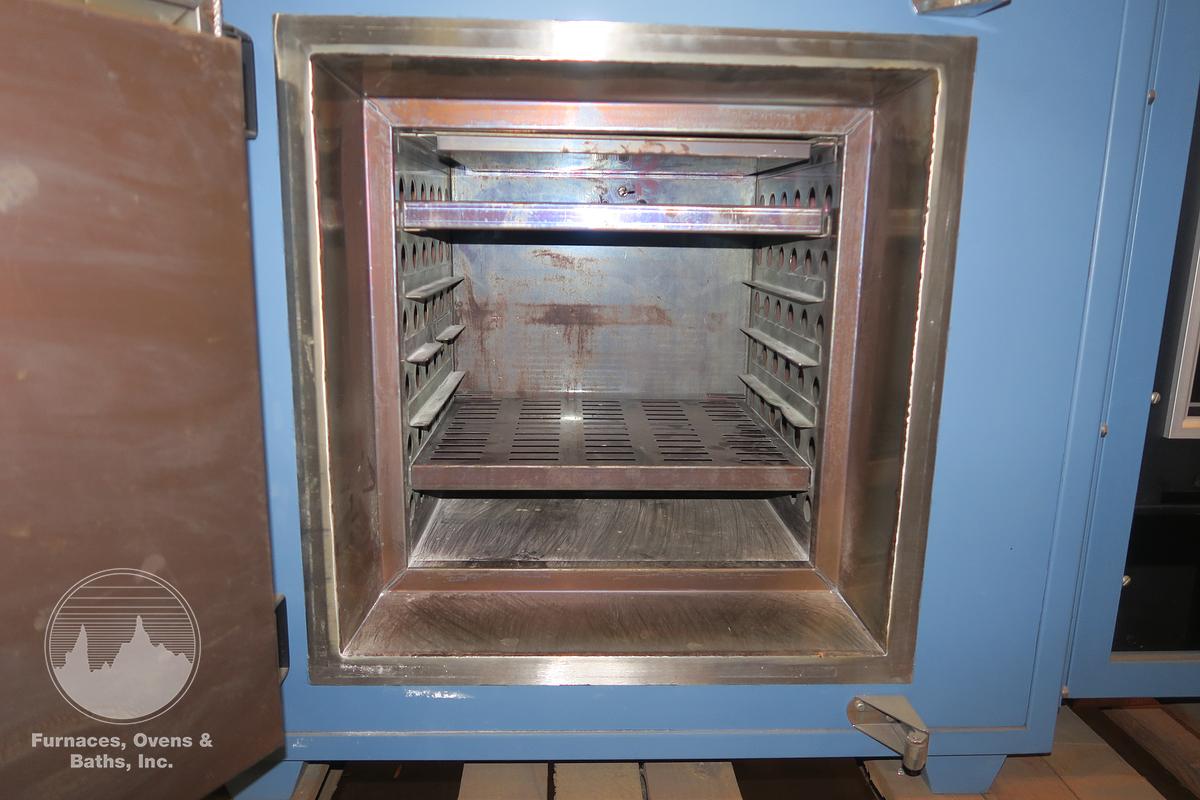

This is a bench top unit that has a single door with 2 cam action positive seal latches. Ceramic/metal door gasketing for an excellent door seal. Stainless steel interior with five (5) shelf brackets two (2) shelves are included with this oven. Coiled style heating elements and circulating fan are located above the work area. Heated air is circulated horizontally across the chamber. Unit is tested and Ready to Ship.

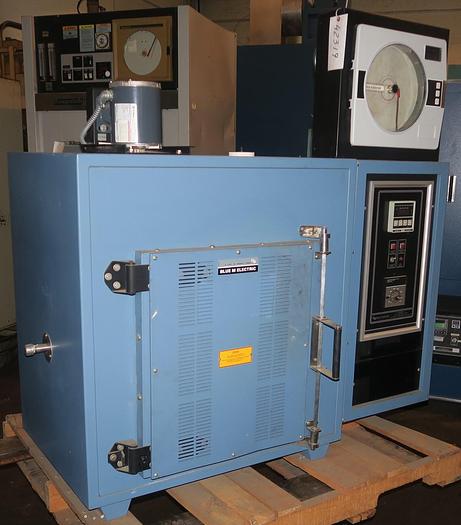

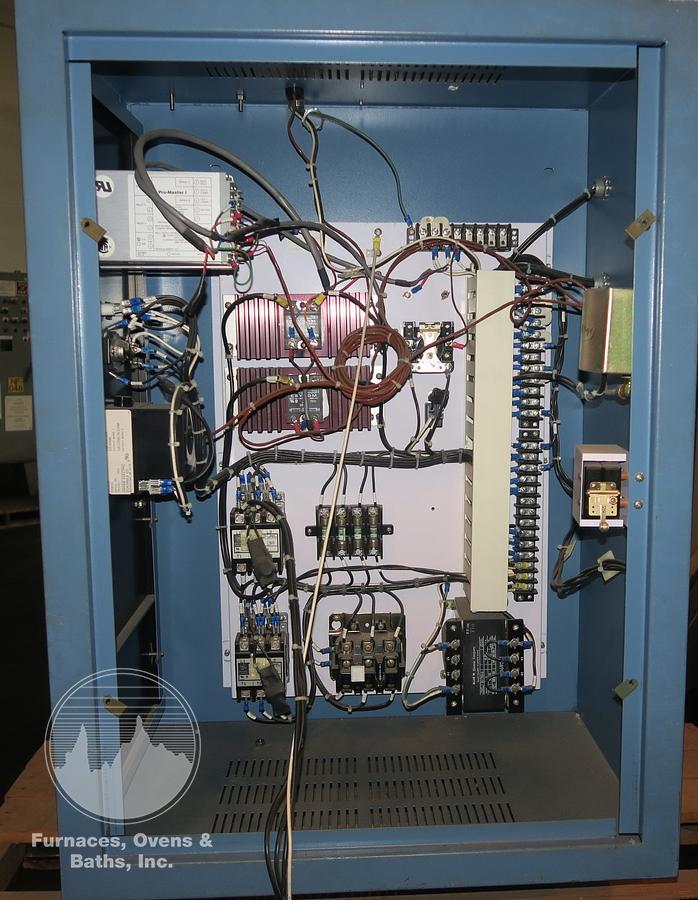

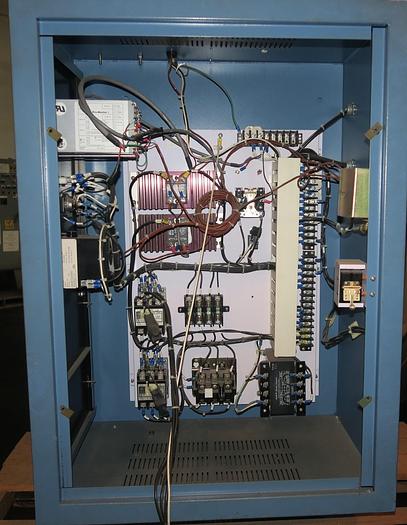

Controls are mounted and wired in an enclosure attached to the right-hand side of the oven. There is a Blue M Pro Master I (Partlow) programmable digital temperature controller, Blue M/Partlow round chart recorder and a Partlow analog high limit. Flush mounted to the front of this enclosure includes chamber power toggle switch, indicating lights for chamber power and over temp reset. "CRYDOM" Solid State Relays for heating elements and high limit contactor. Fused disconnect mounted on the right hand side of this oven.

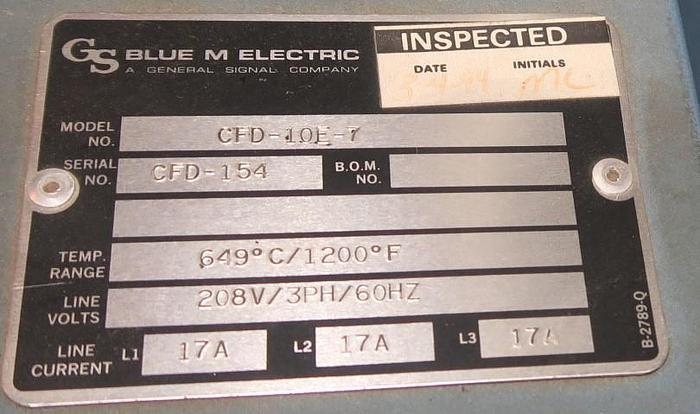

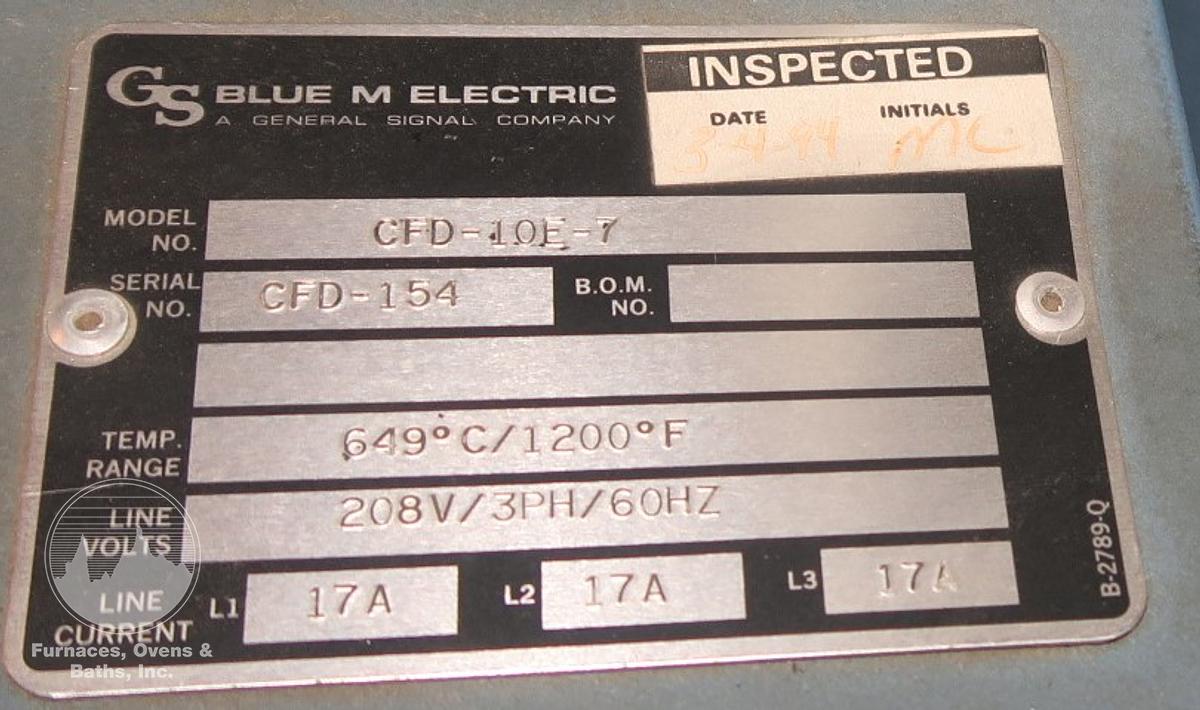

ManufacturerBlue M
Serial NumberCFD-154
Stock Number7669
Work area16"W x 16"H x 13"L
Max temperature1200°F
Voltage208/3/60/17 Amps
External dimensions56" wide x 53" high x 35" Deep
