48"W x 36"H x 24"L Blue M CW-9980G Cabinet Oven, 1300°F, Electric

48"W x 36"H x 24"L Blue M CW-9980G Cabinet Oven, 1300°F, Electric

Contact us for price

orCall 248-343-1421

Description

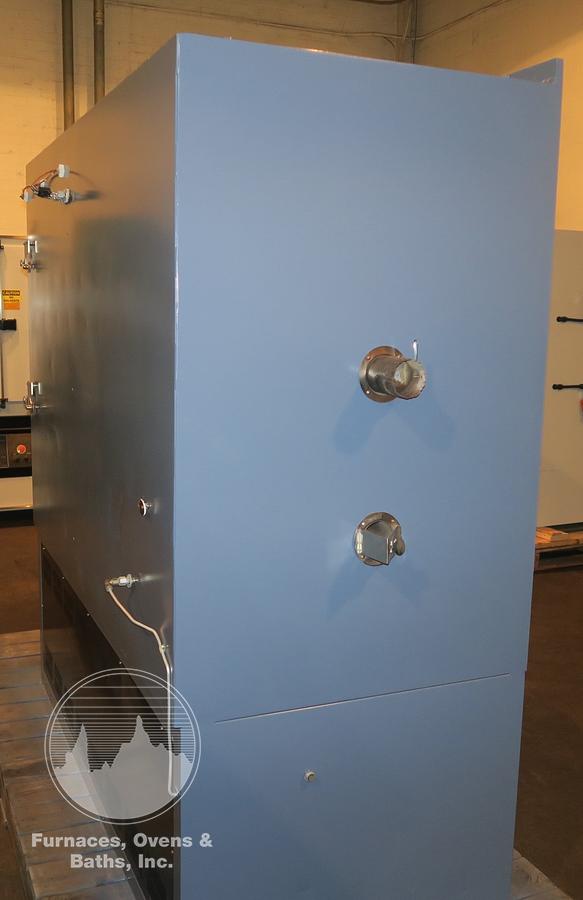

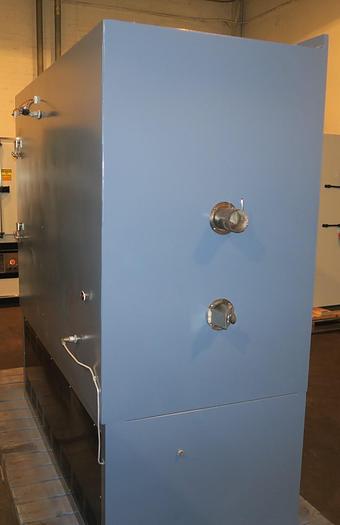

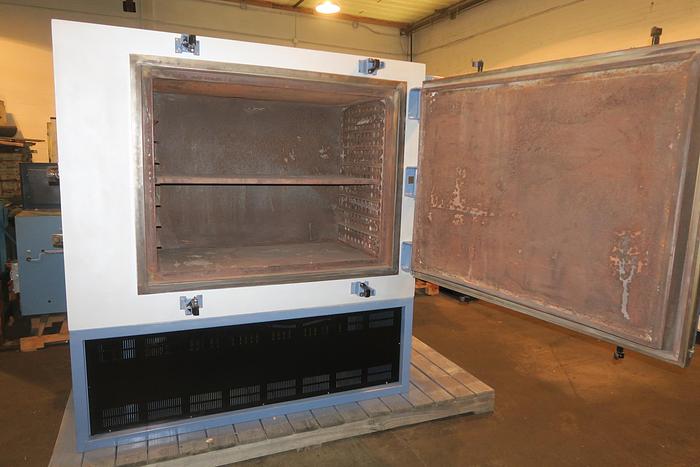

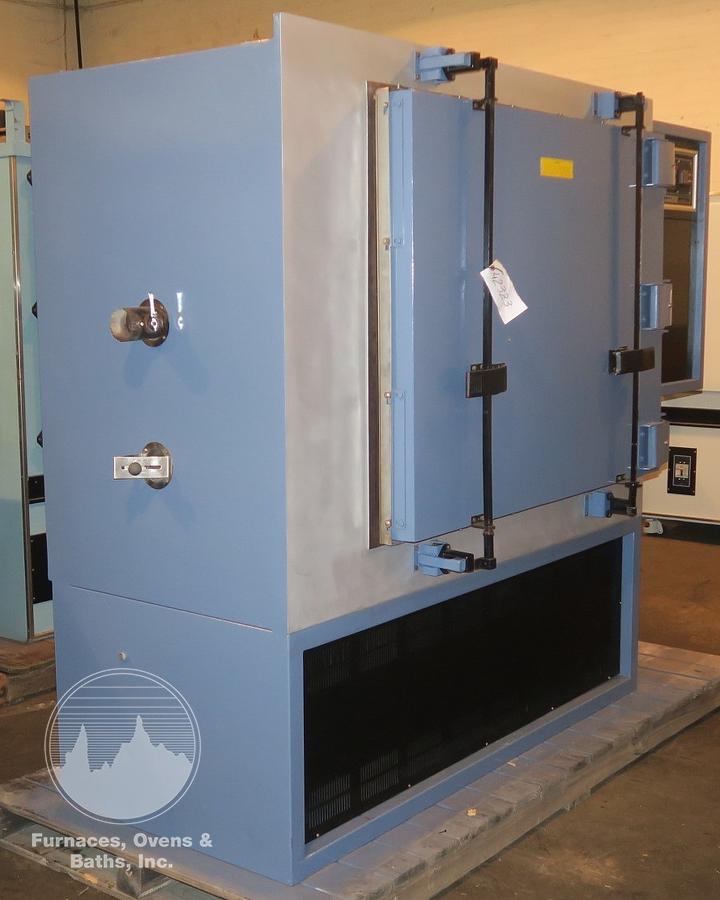

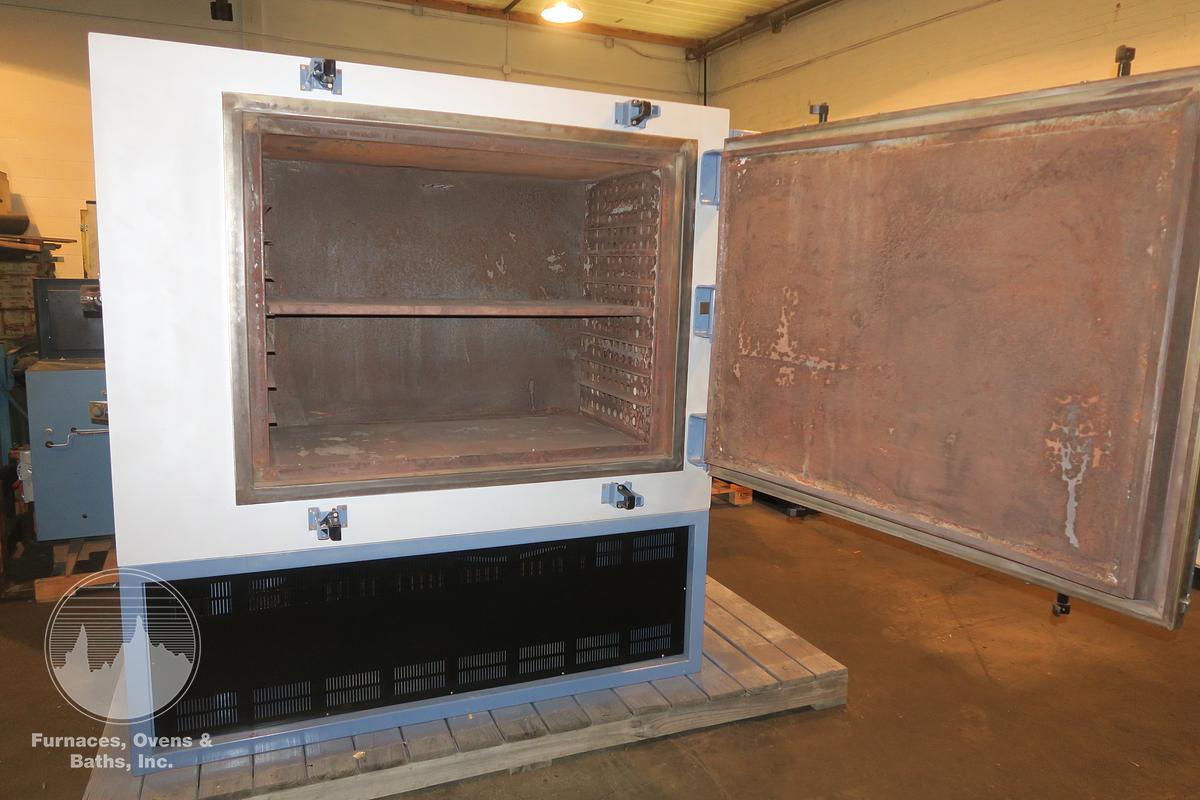

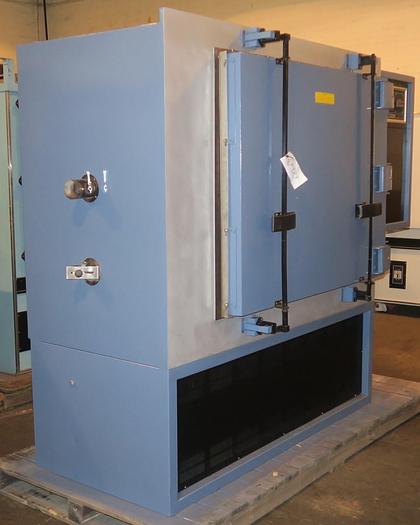

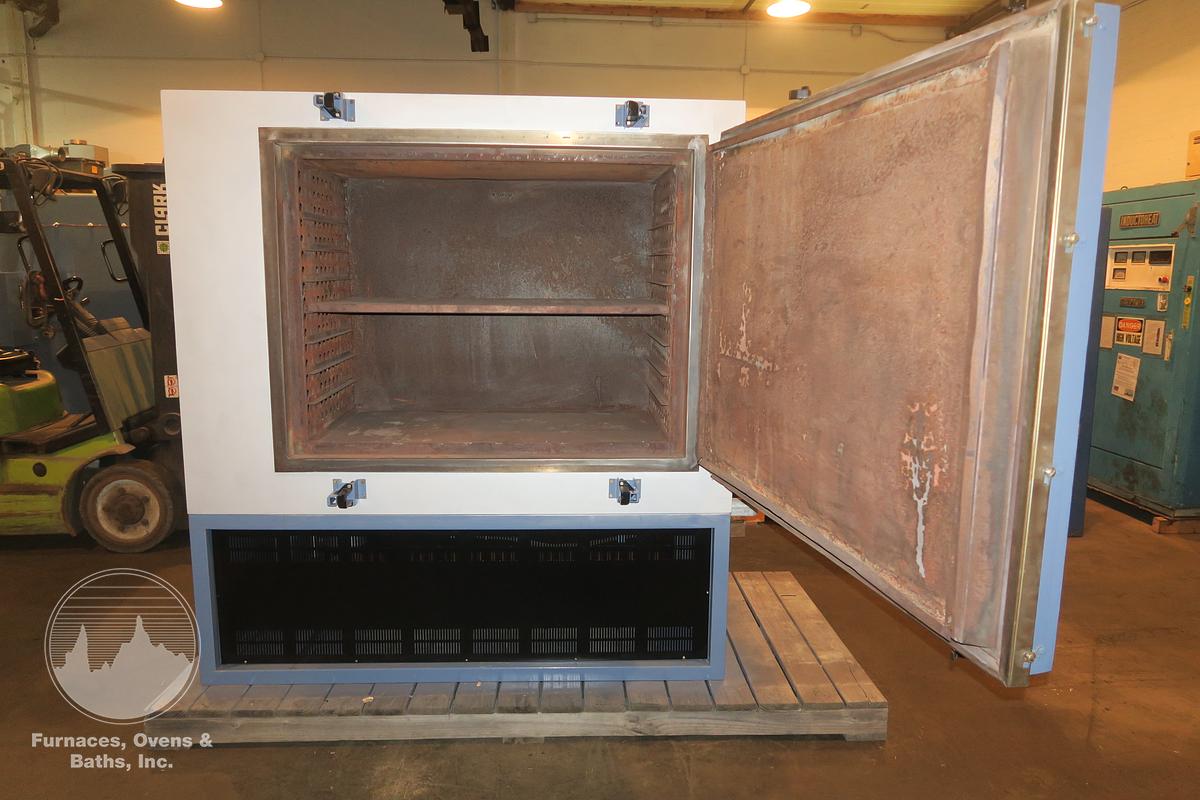

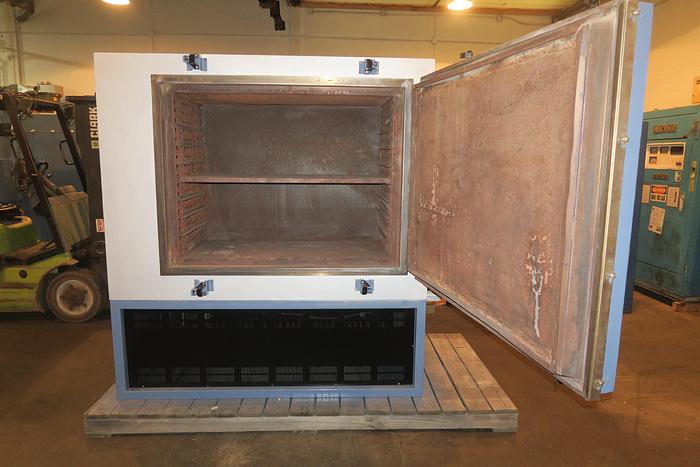

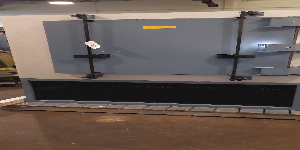

Single door with 4 cam action positive seal latches with inner/outer stainless steel door gasket for a good seal. Stainless steel interior with 7 shelf brackets on 4" centers, 1 shelf is included with this oven. Coiled style heating elements and circulating fan are located under the floor pan. Heated air is circulated horizontally across the chamber. Mounted on the rear are two (2) manually adjustable air flow controls. Exhaust port and adjustable fresh air inlet are mounted on the left-hand side. The door limit switch cuts power to fan and elements when the door is open. Oven has been tested and is ready to ship. See video.

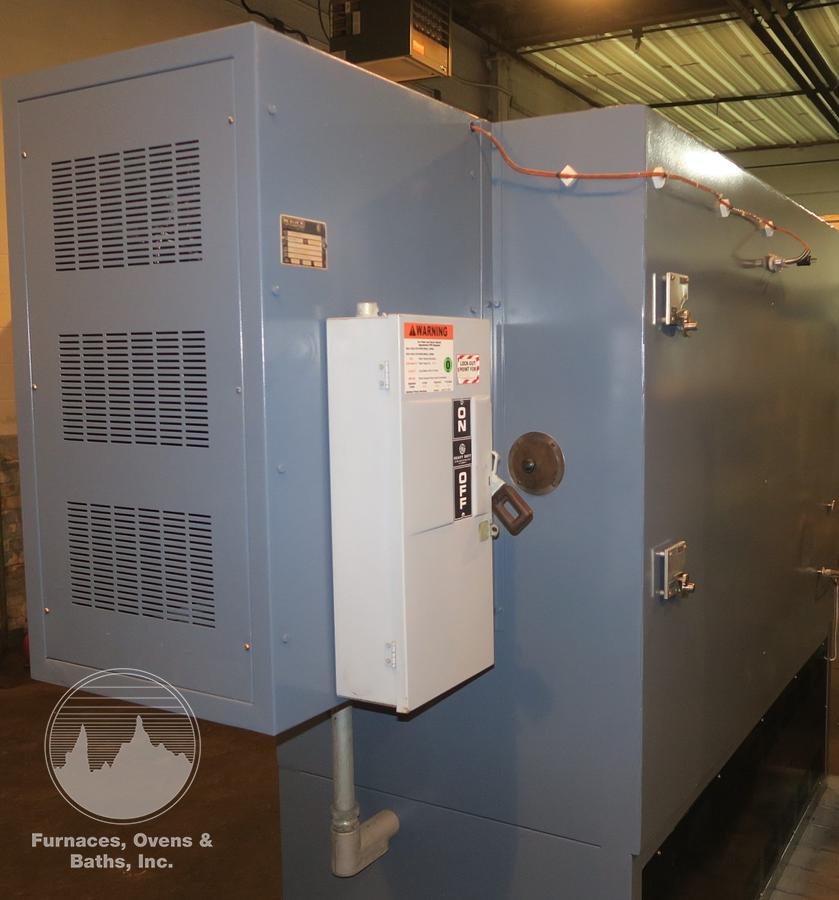

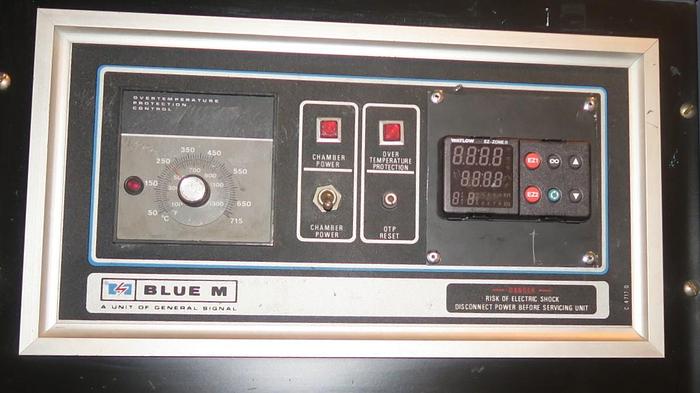

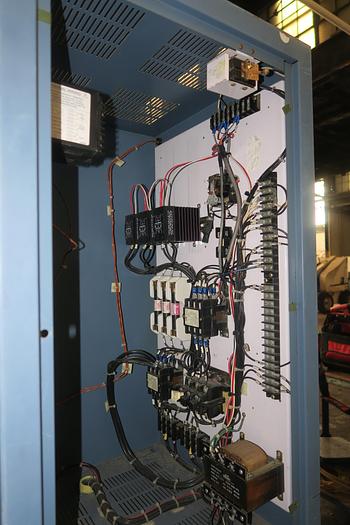

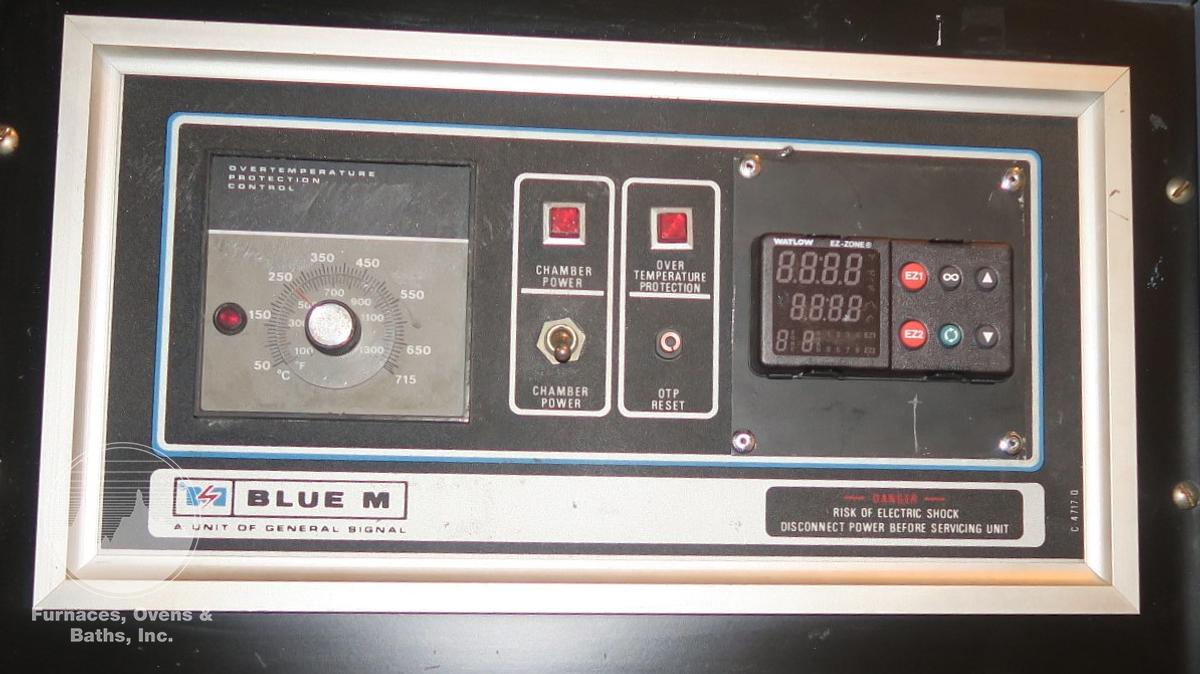

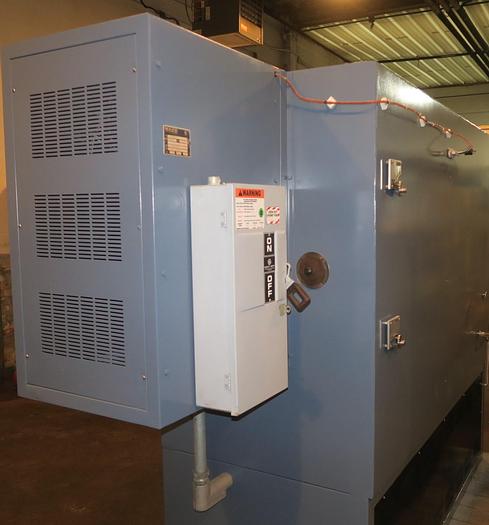

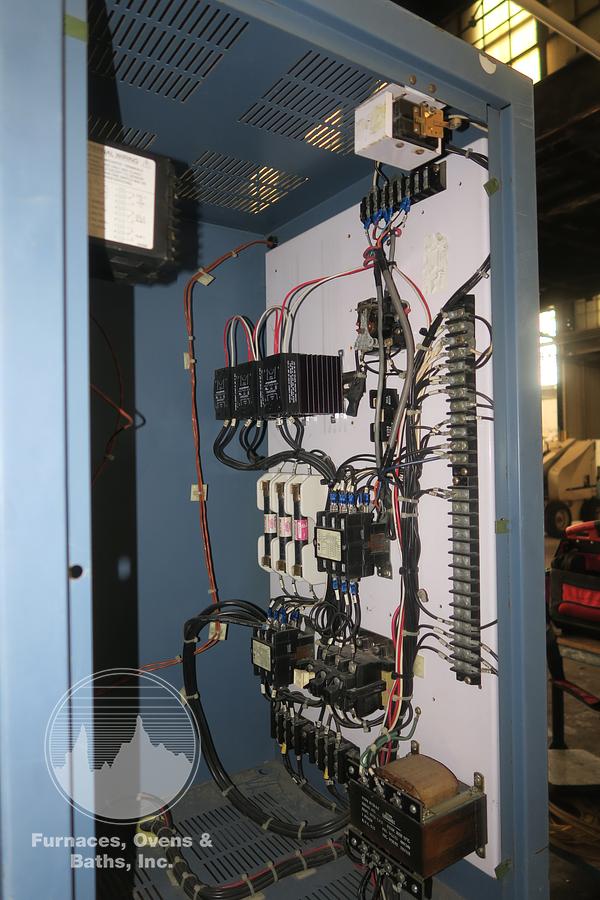

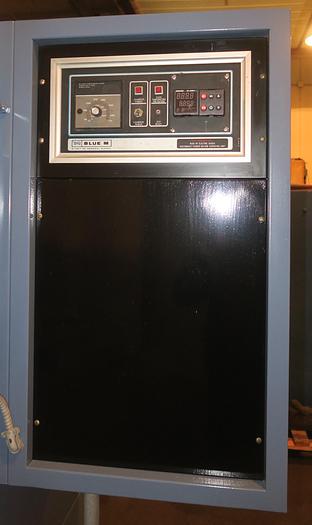

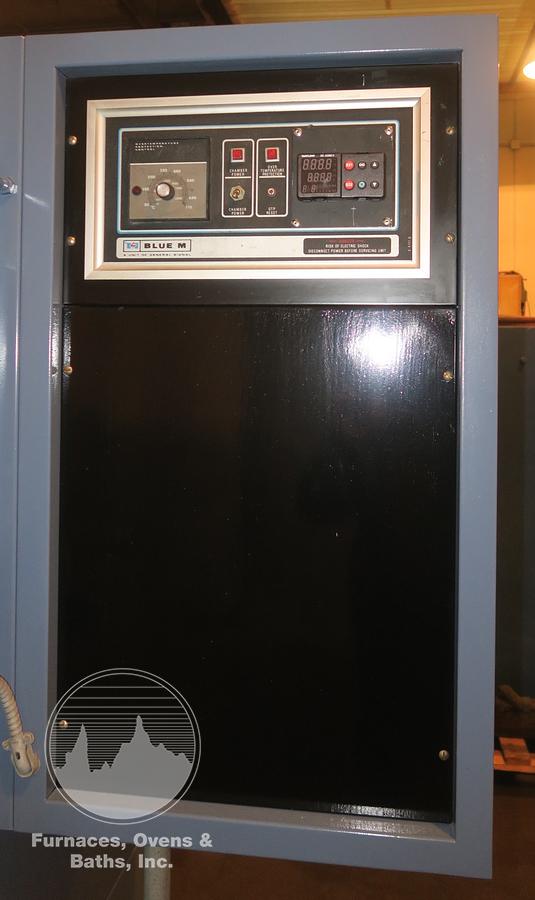

Controls are mounted and wired in a right-hand side mounted enclosure. There is a Watlow EZ-ZONE digital temperature controller and a Partlow analog high limit. "CRYDOM" solid state relays, high limit contactor, motor starter etc are mounted inside this enclosure. Flush mounted to the face of the enclosure includes a toggle switch for power on/off, OTP reset and indicating lights.

Specifications

ManufacturerBlue M
ModelCW-9980G
ConditionUsed
Serial NumberCW-440, BOM F1-00033
Stock Number7671
Work area48"W x 36"H x 24"L
HeatedElectric
Max temperature704°C / 1300°F
Voltage480/3/60/29 Amps
External dimensions100" wide x 80" high x 44" long
AvailabilityImmediate
