Surface Combustion Uni-Draw 36"W x 36"H x 48"L, Gas, 1400°F, Fiber Lined

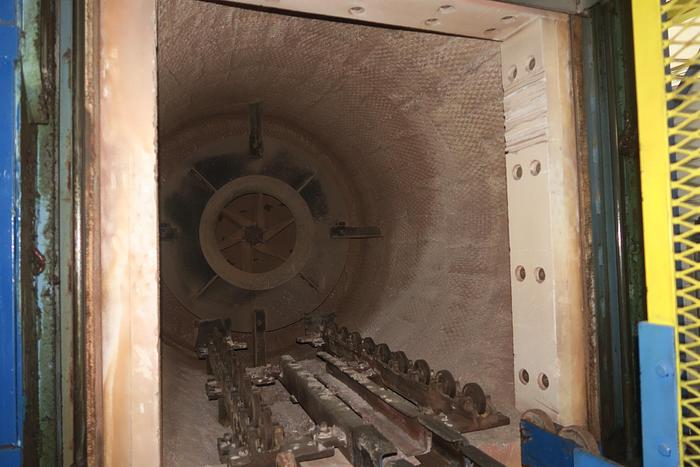

Standard Surface Combustion "Uni-Draw" Furnace designed to operate at a temperature range of 350° to 1400°F. Pneumatically operated vertical lift door with hand operator valve. The cylindrical furnace shell is lined with ceramic fiber modules. Alloy roller rails support the workload. Belt driven circulating fan is mounted through the rear wall. Maxon "Ovenpak" size 412 package burner is mounted through the side behind the work area. Heated air is circulated through the chamber for good uniform heating.

Controls are mounted in an enclosure attached to the left-hand side of the furnace with fused disconnect. Flush mounted to the face includes Honeywell UDC digital controls for temperature and high limit.
