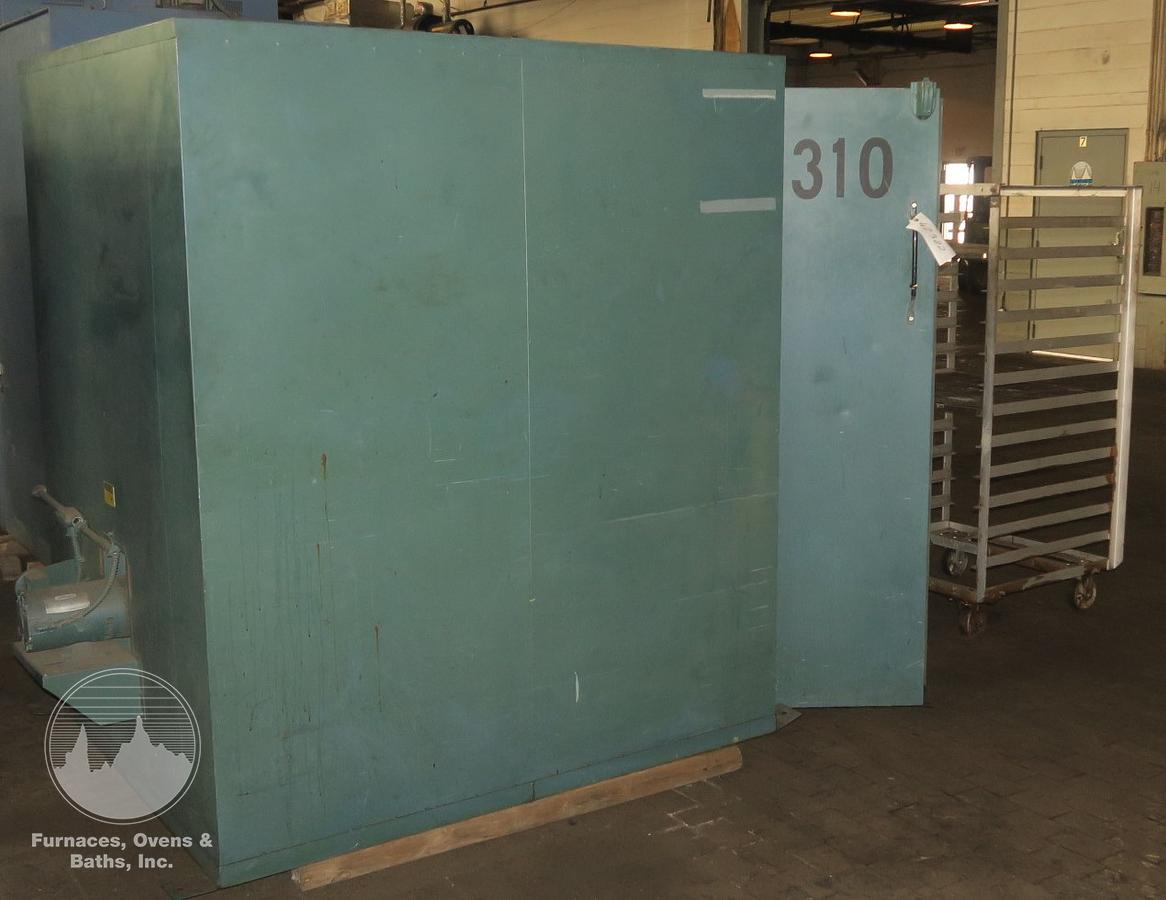

36"W x 60"H x 36"L Grieve TA-500, 500°F, Electric, Stainless Steel Interior

36"W x 60"H x 36"L Grieve TA-500, 500°F, Electric, Stainless Steel Interior

Contact us for price

orCall 248-343-1421

Description

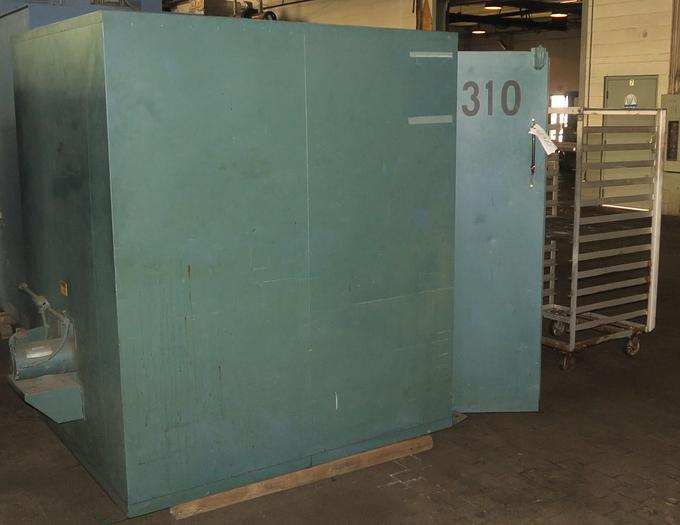

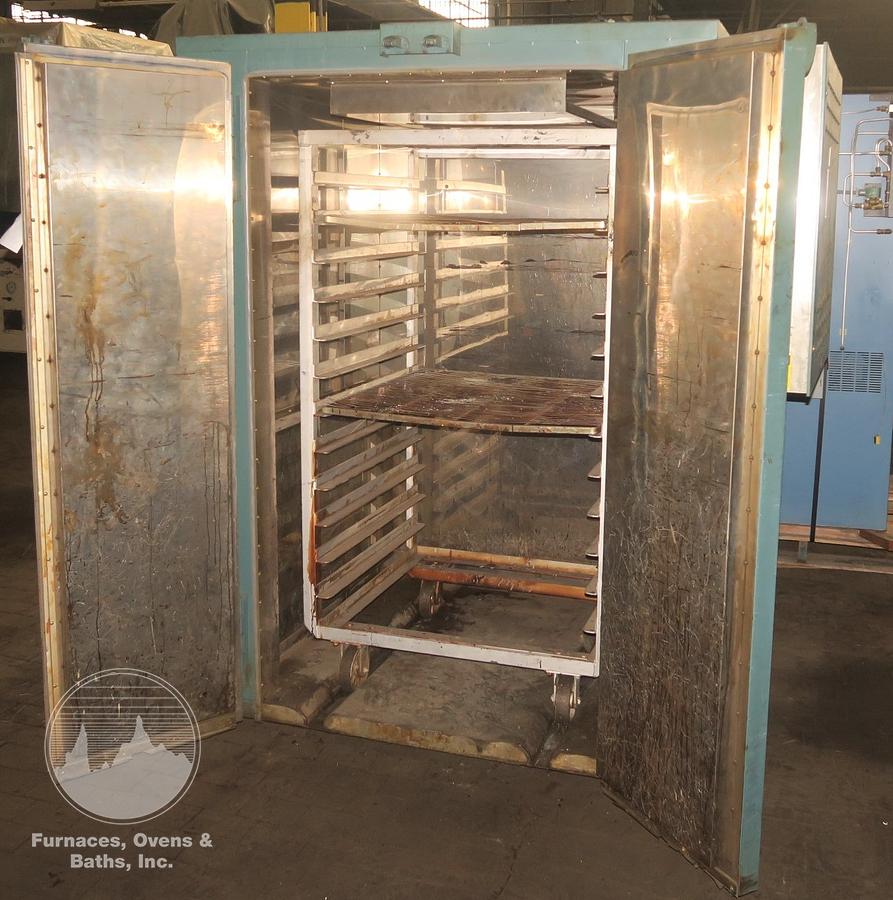

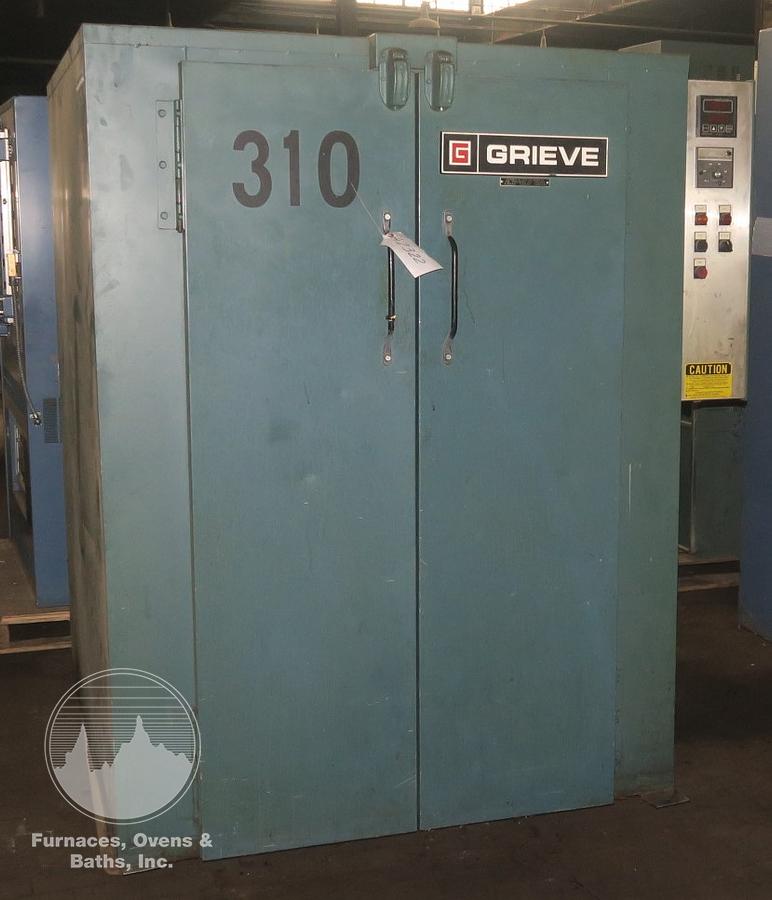

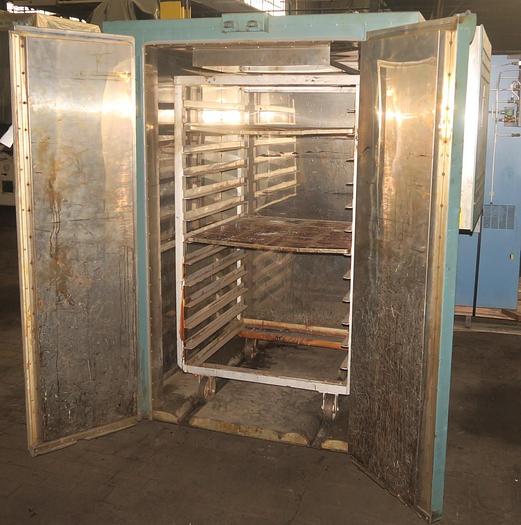

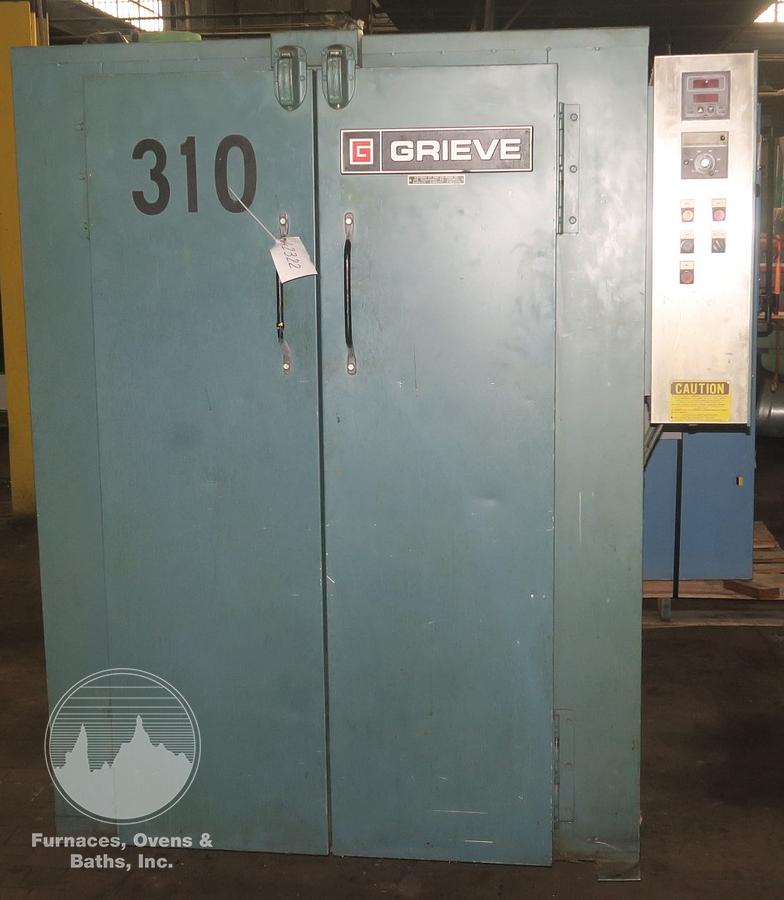

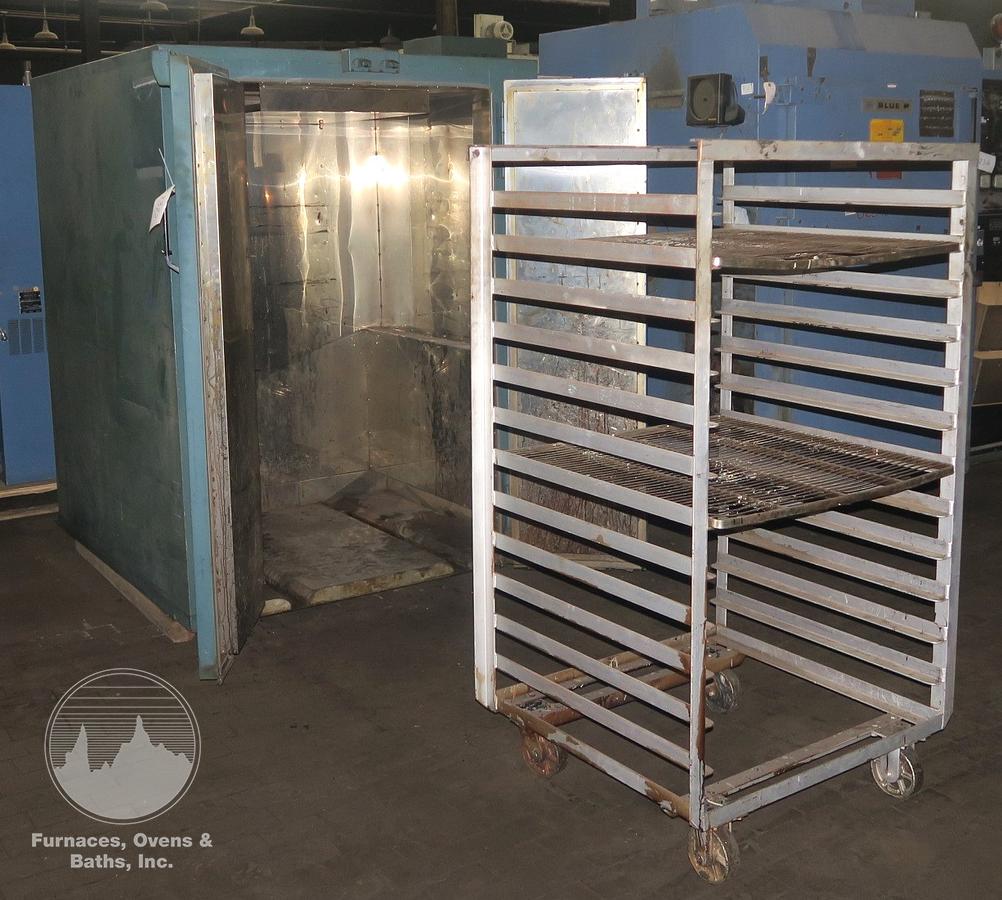

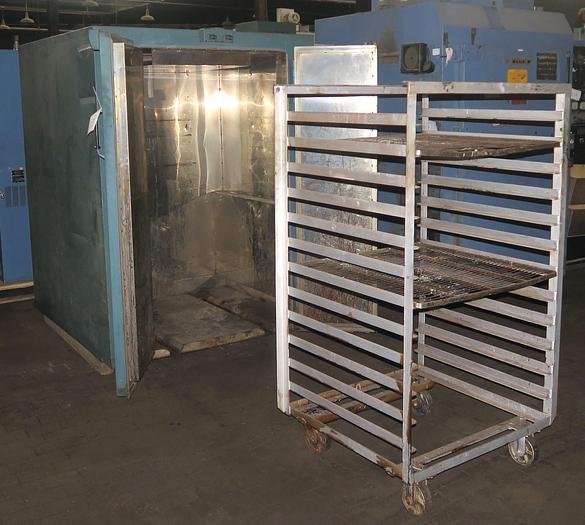

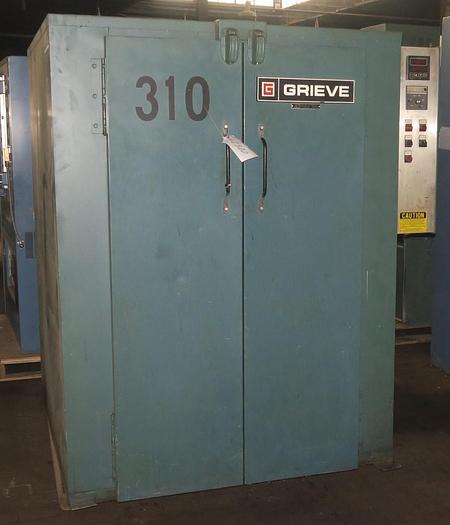

Double doors with silicone rubber gasket, "Brixon" spring tension latches with stainless steel interior and insulated floor. The floor has 2" wide cart tracks on 24" centers, a cart is supplied with this oven. Cart shelves are on 4" centers and will accept twelve, two (2) shelves are included. The heating elements are located on the right-hand side. Direct driven circulating fan is mounted through the rear wall. Heated air is circulated in a combination vertical and horizontal pattern across the chamber. Gravity exhaust vent on top of the oven. Fresh air inlet is located on the right-hand side above the element junction box. Oven will be tested prior to shipping.

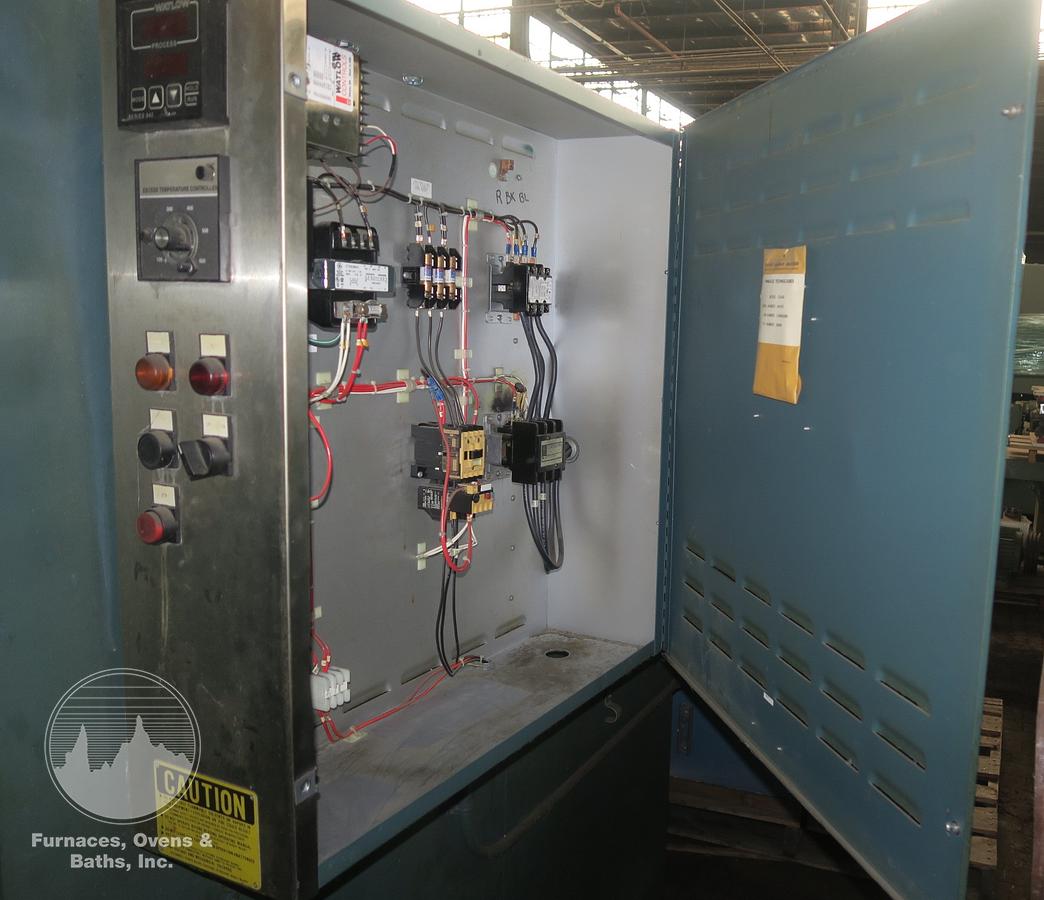

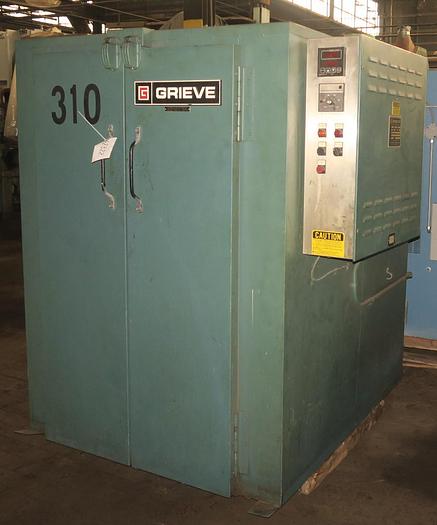

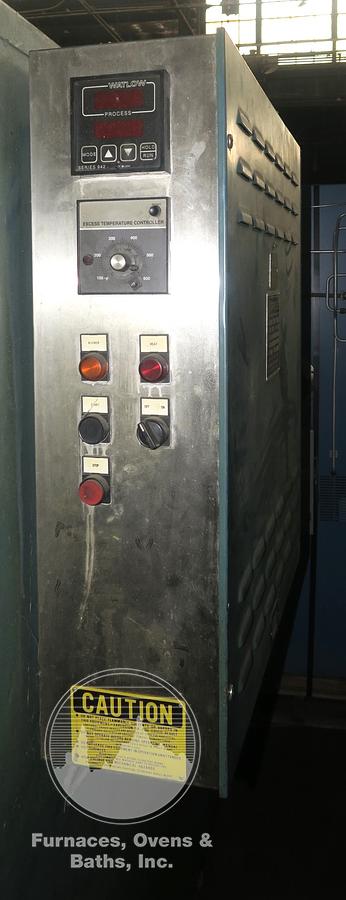

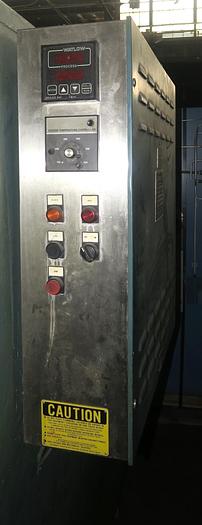

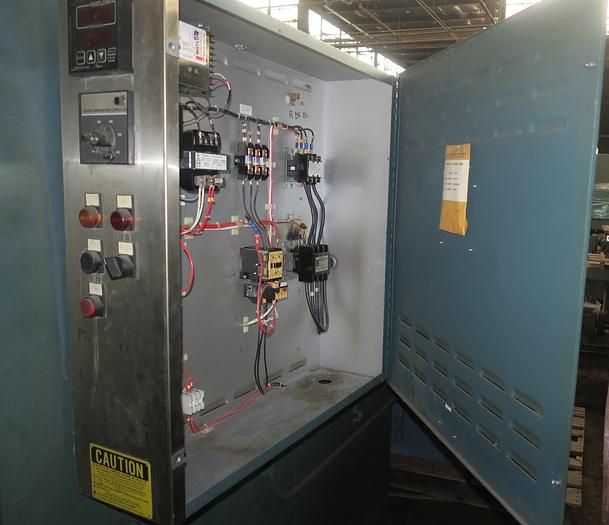

Controls are located in a "UL" rated enclosure attached to the right-hand side of the oven and includes a Watlow series 942 digital temperature controller and a Partlow analog high limit control. Push button and switches with indicating lights are flush mounted on the front of the enclosure. Motor starters, fuses, high limit contactor, etc. are mounted inside the enclosure.



Specifications

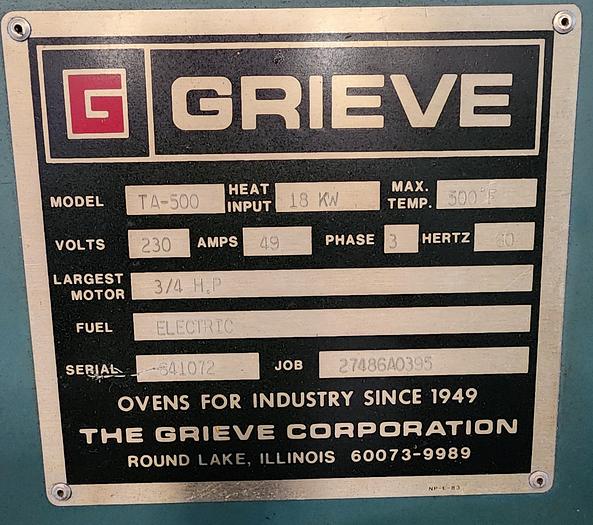

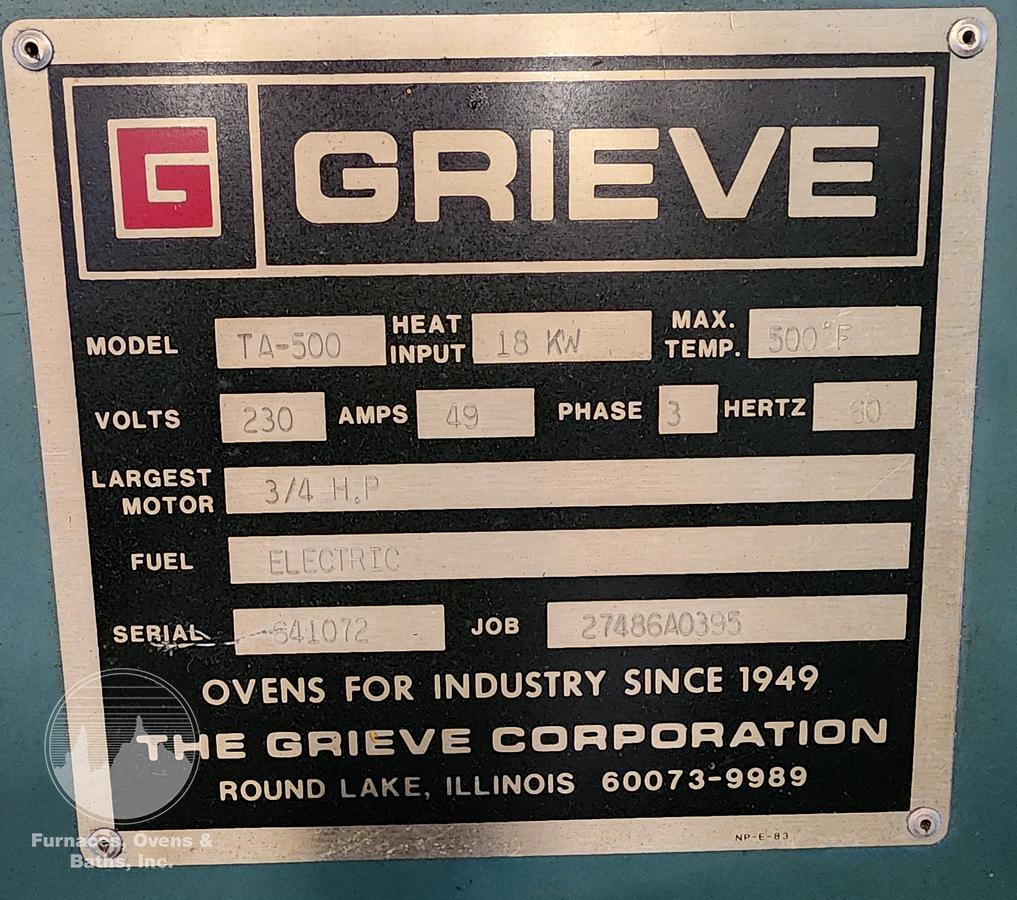

ManufacturerGrieve
ModelTA-500
ConditionUsed
Serial Number641072, JOB 27486A0395
Stock Number7678
Work area36"W x 60"H x 36"L
HeatedElectric
Max temperature500°F
Voltage230/3/60/18 kW/49 Amps
External dimensions62"W x 70"H x 73"L
