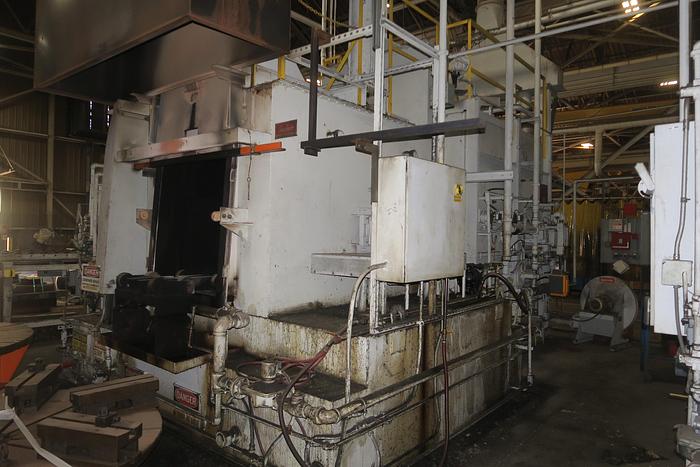

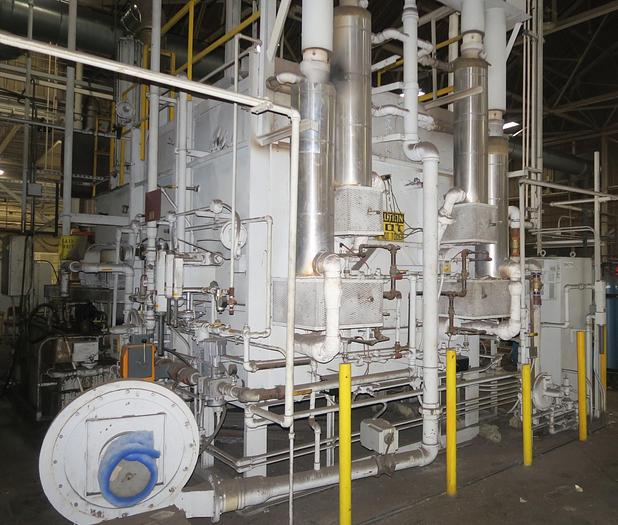

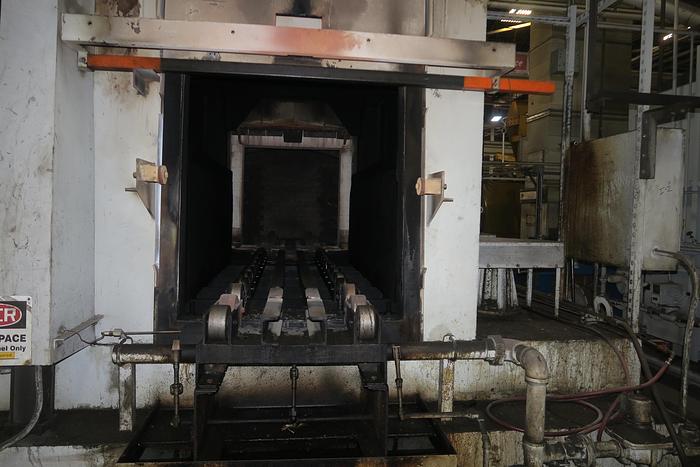

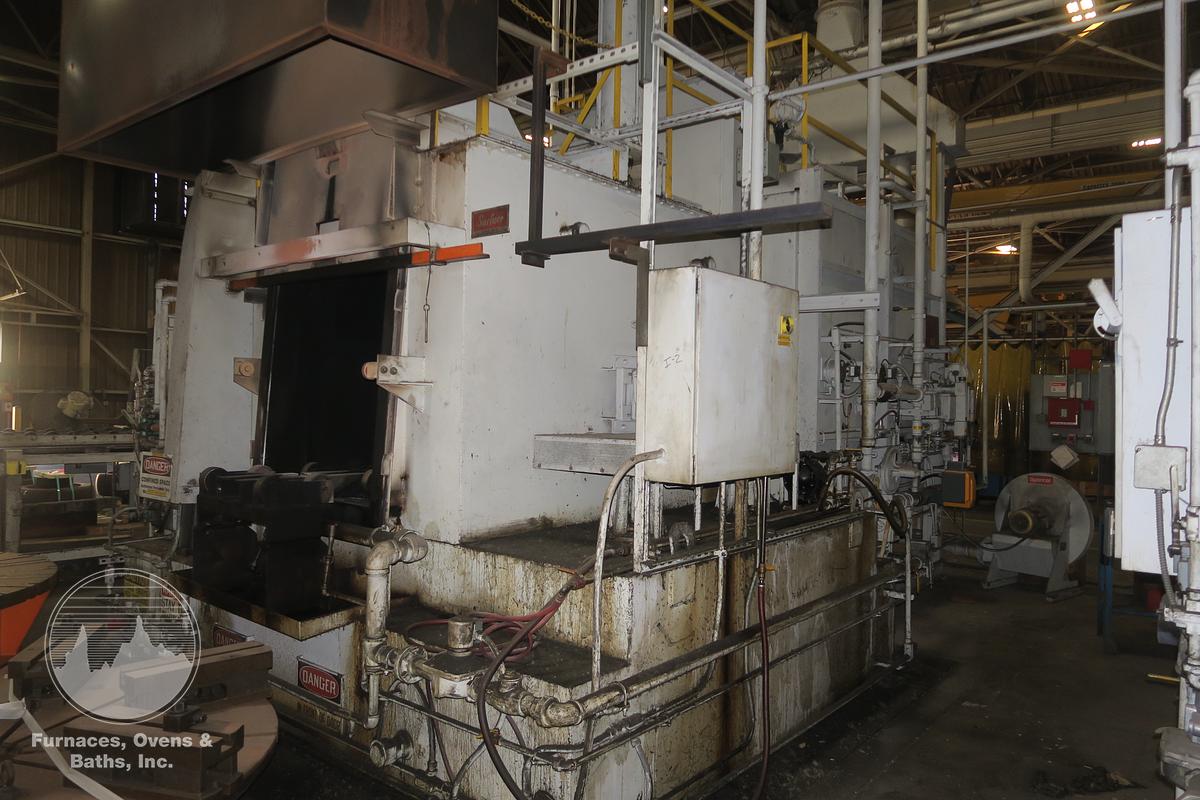

Surface Combustion Super Allcase Integral Quench Furnace, 36"W x 36"H x 72"L, Gas Fired, 1750°F

Sold

Surface Combustion Super Allcase Integral Quench Furnace, 36"W x 36"H x 72"L, Gas Fired, 1750°F

Description

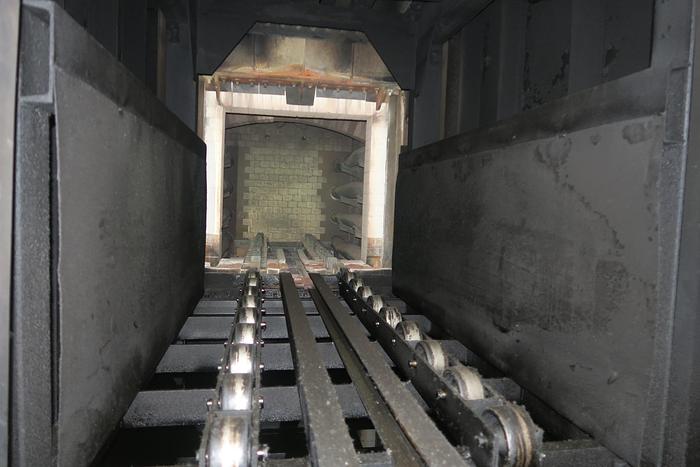

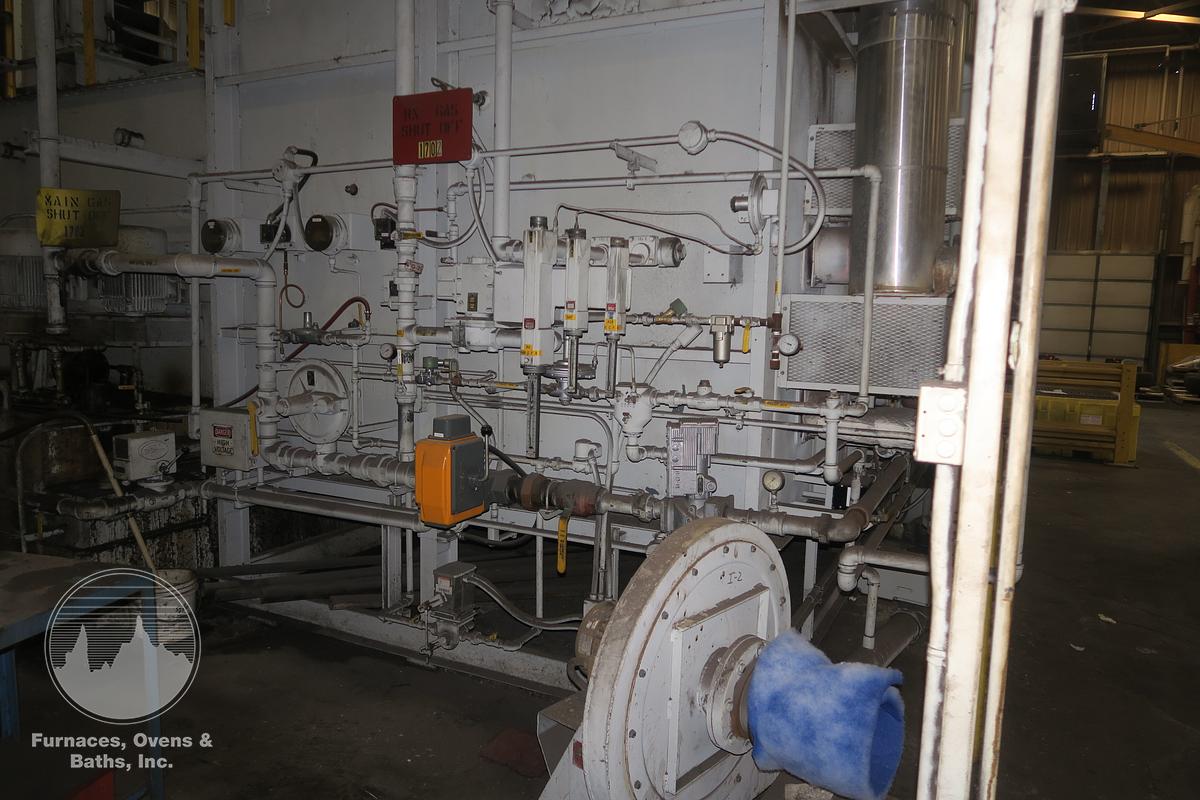

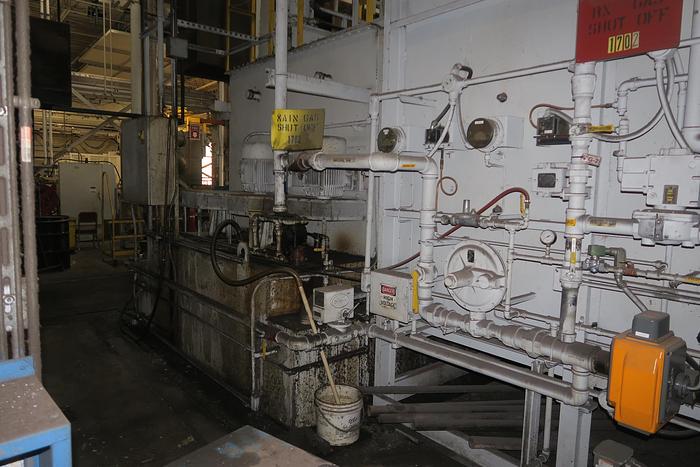

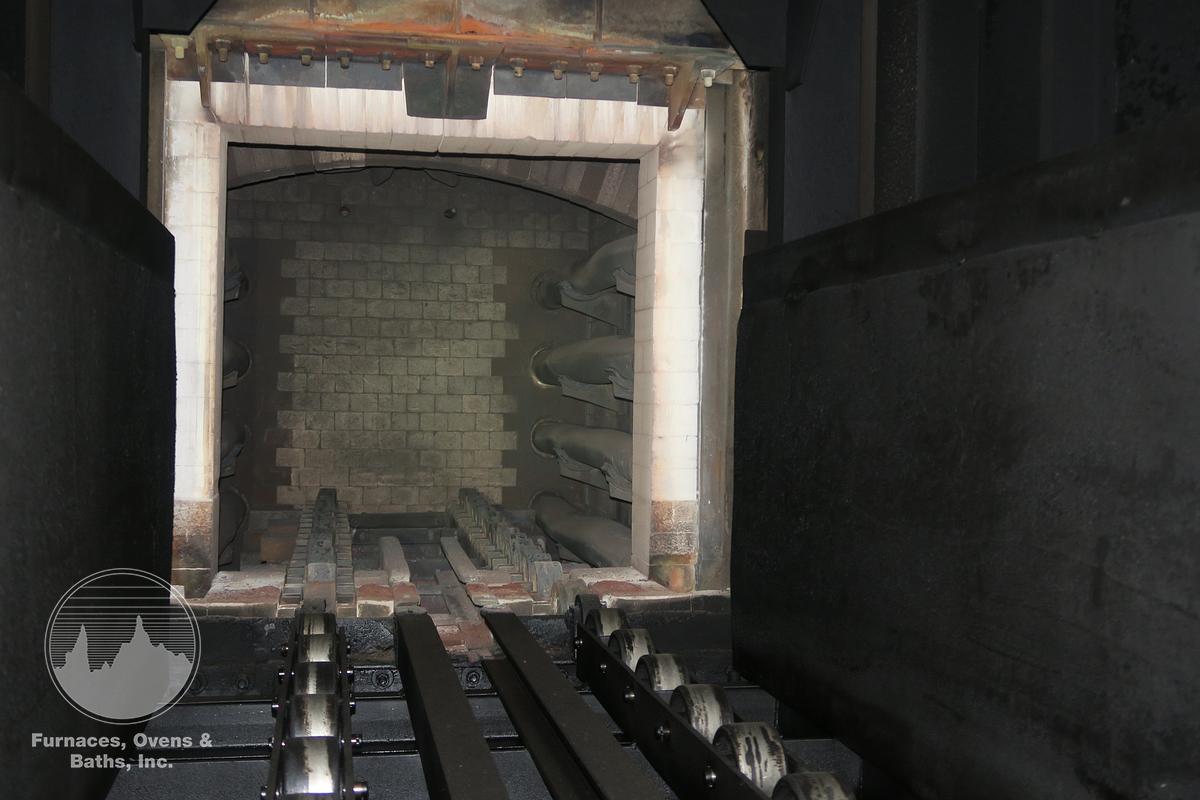

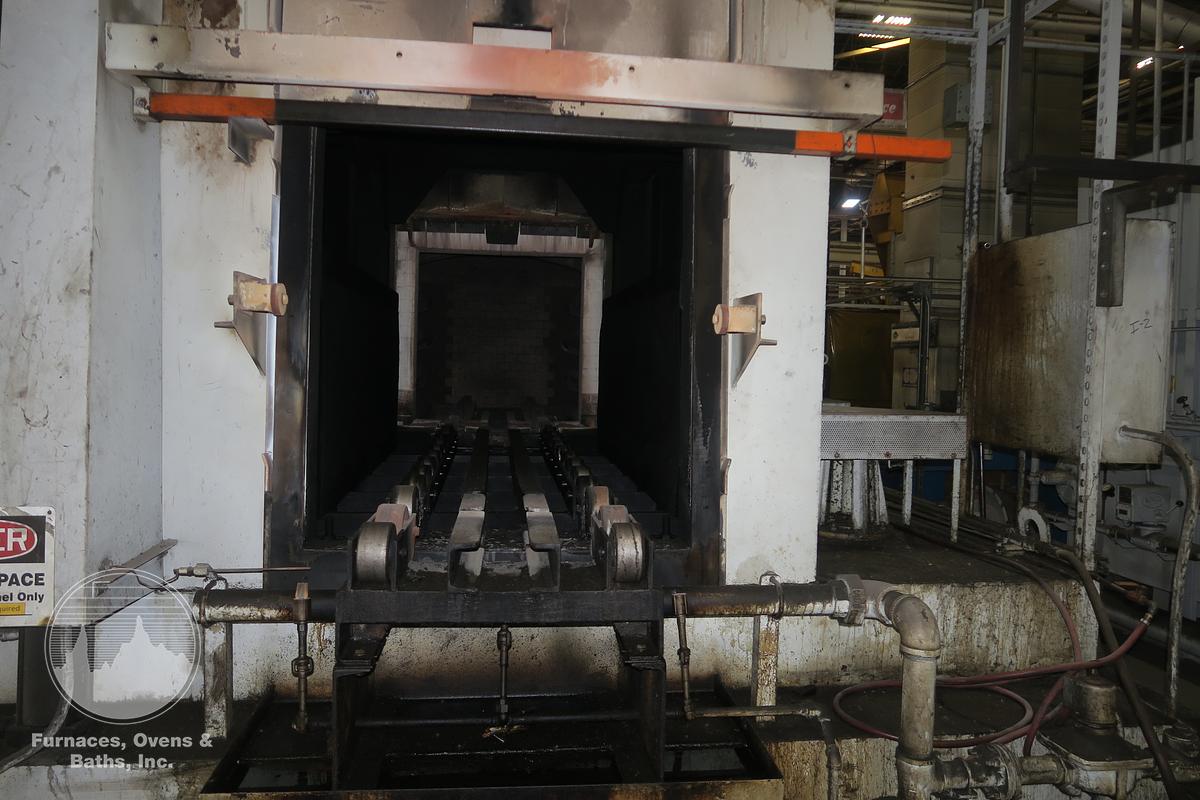

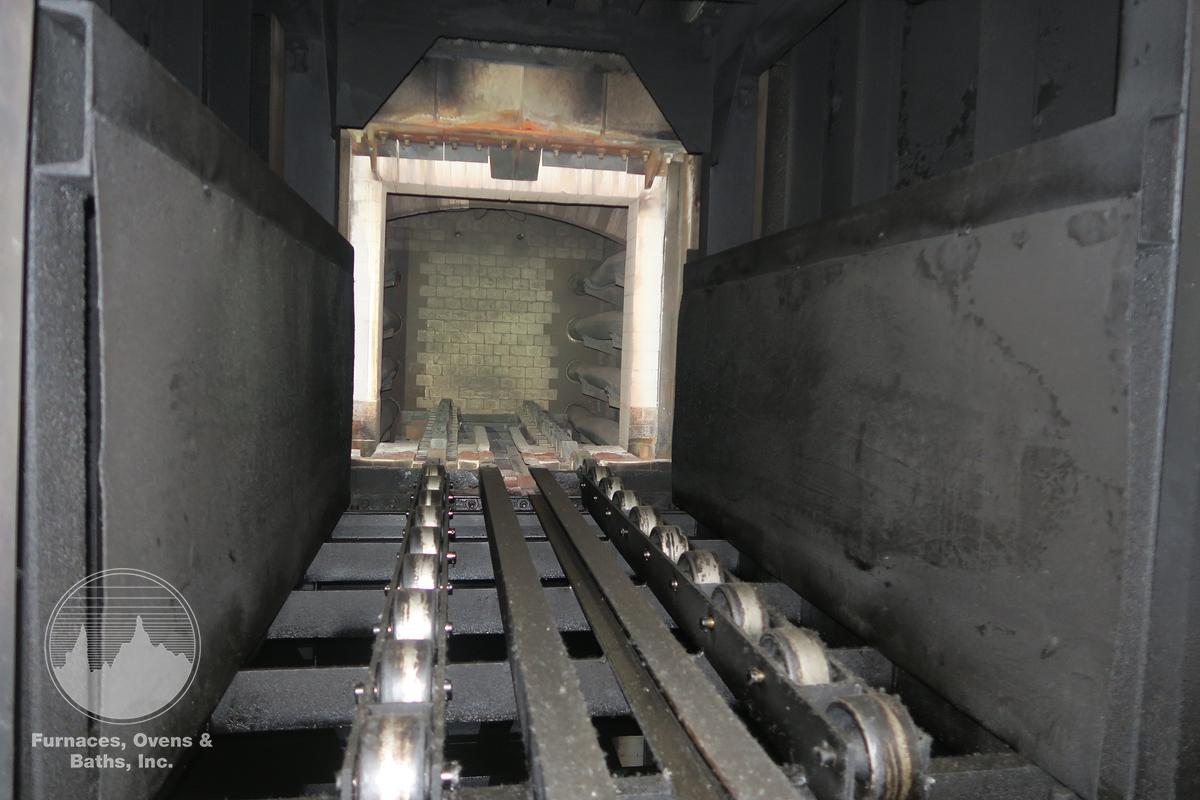

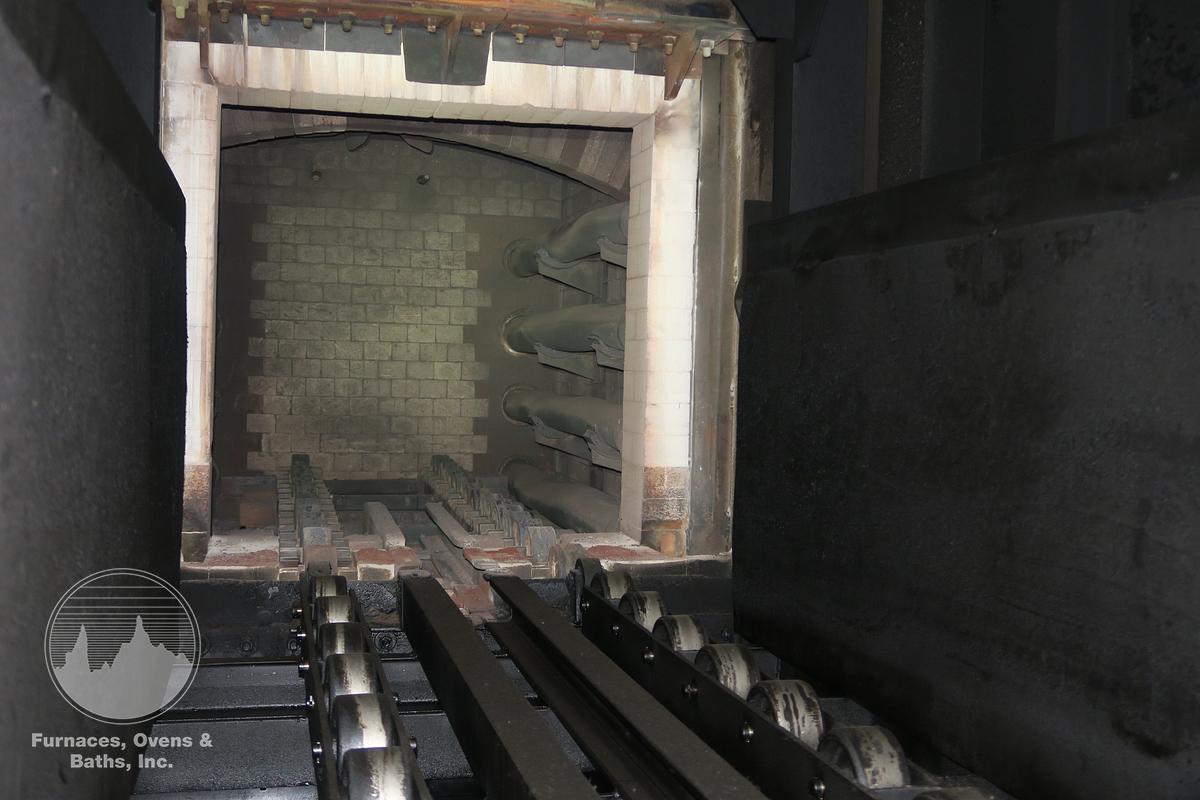

Surface Combustion Super 36 Allcase Furnace complete with Brick Lining, Alloy Roller Rail Hearth, Dual Quench Cylinders, Carbon Probe, Waukee Flowmeters.

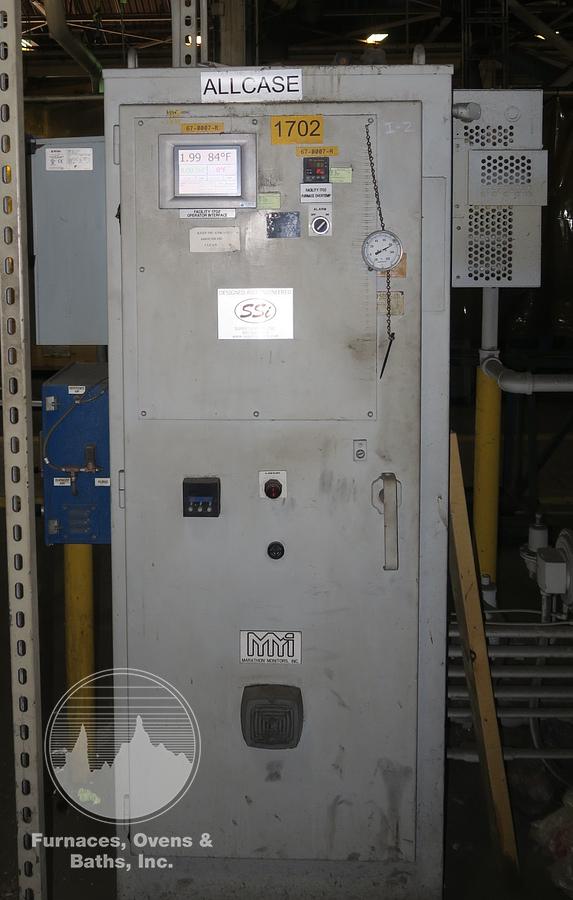

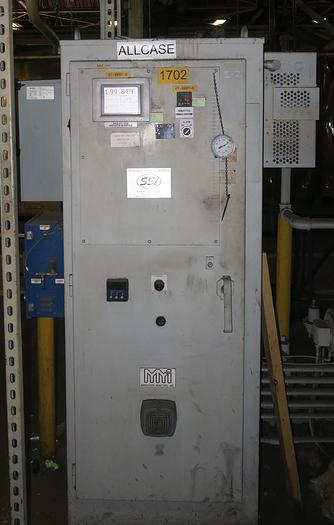

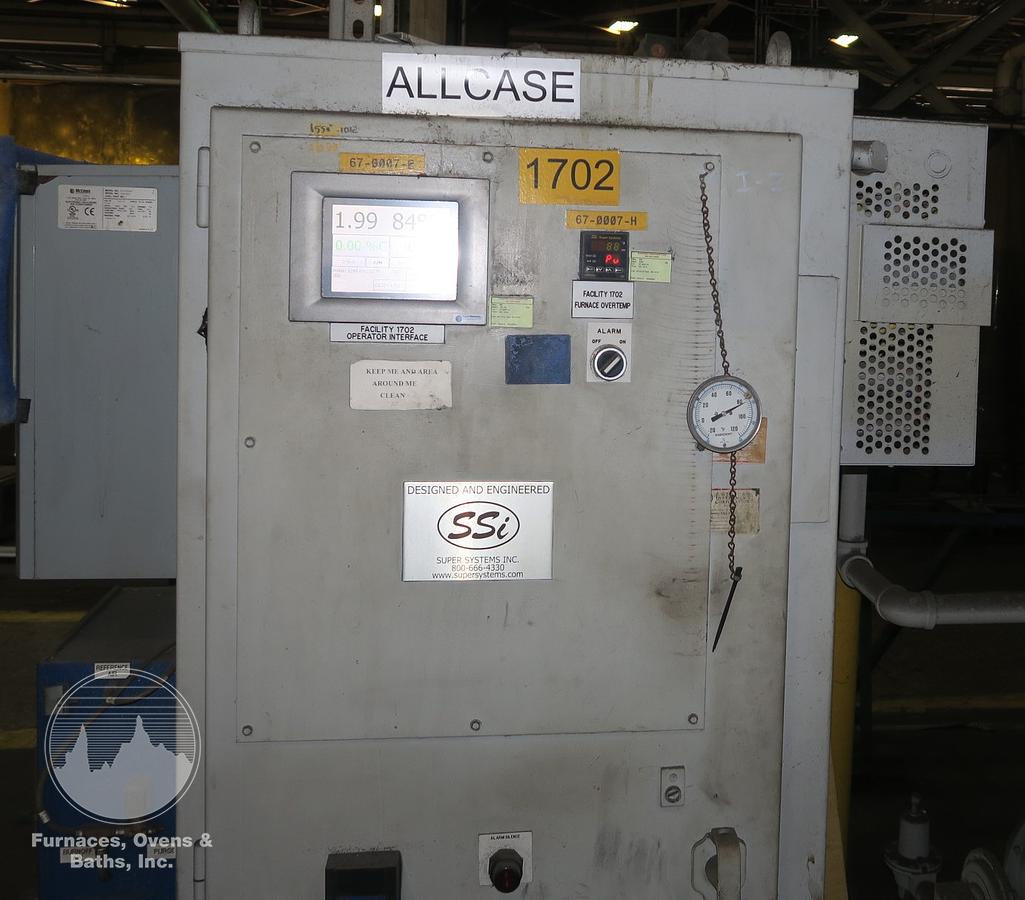

SSi controls are mounted and wired in free standing enclosure complete with digital temperature control, high limit and carbon control.

Specifications

ManufacturerSurface Combustion
Model36-72-36 Allcase Furnace
ConditionUsed

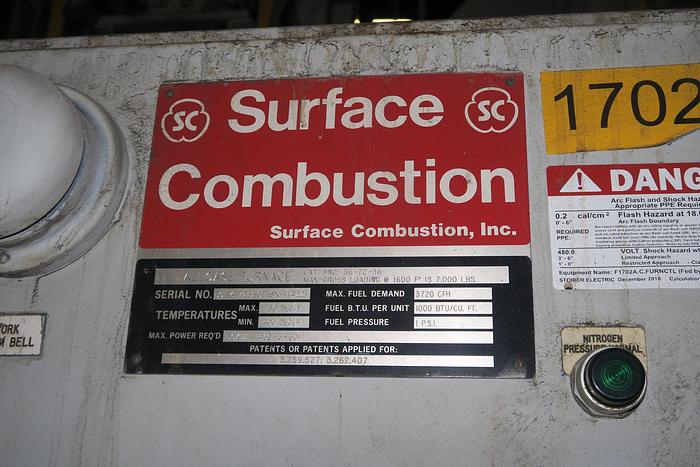

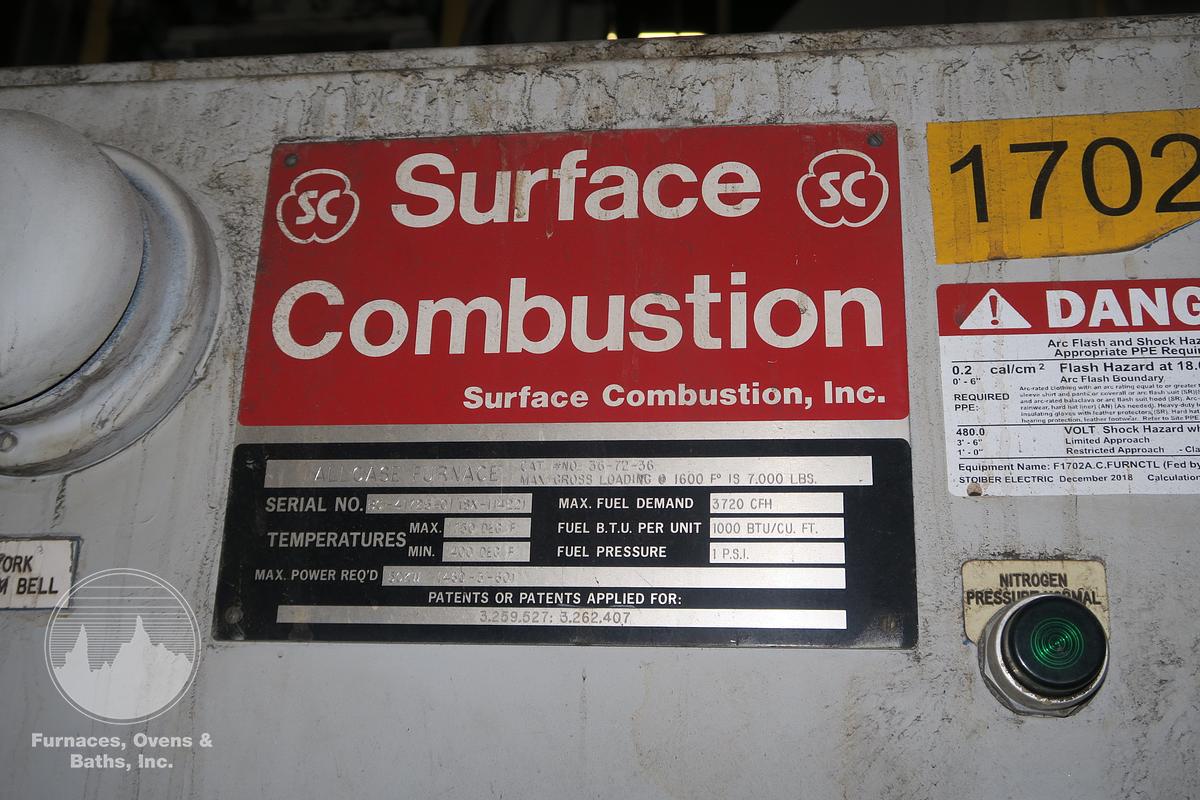

Serial NumberBC-41725-01, SX-11422
Stock Number7683
Work area36"W x 36"H x 72"L
HeatedNatural Gas - 3720 CFH
Max temperature1750°F Max./1400°F Min.
Voltage460/3/60/50 kW
External dimensions11' wide x 17' high x 20' long
AvailabilityImmediate
