Sauder Gas Fired Car Bottom Furnace, 10'W x 6'H x 22'L, 1000-F to 1800-F Gas Fired
Sauder Gas Fired Car Bottom Furnace, 10'W x 6'H x 22'L, 1000-F to 1800-F Gas Fired
Contact us for price
orCall 248-343-1421
Description

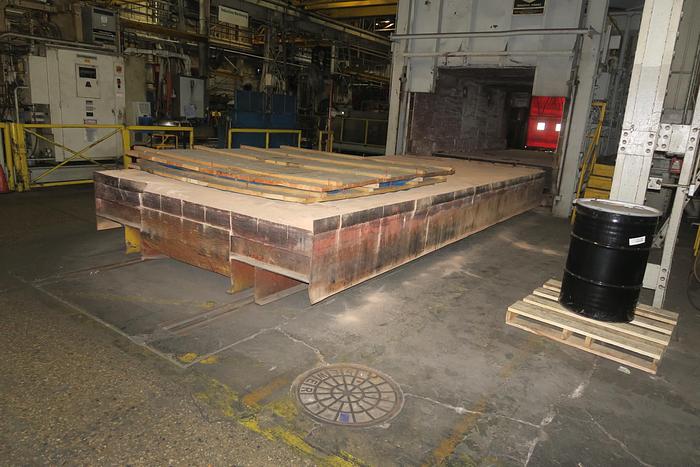

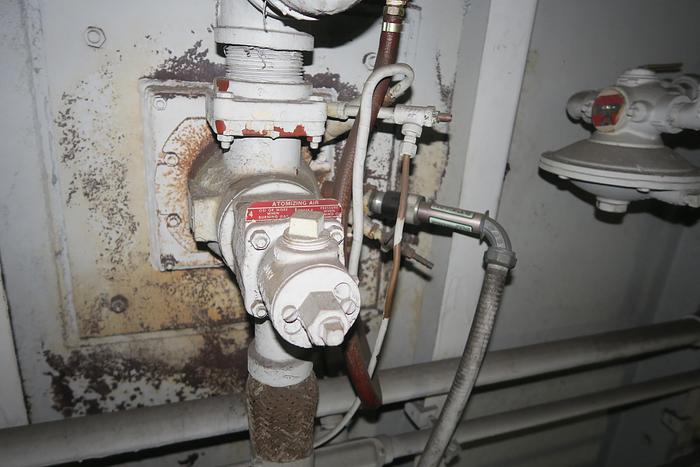

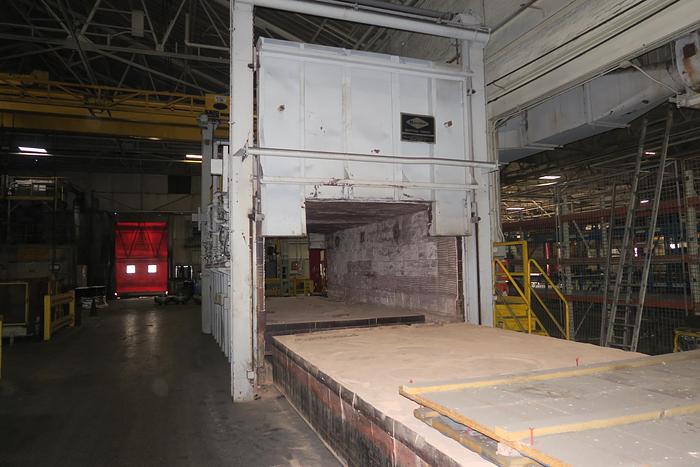

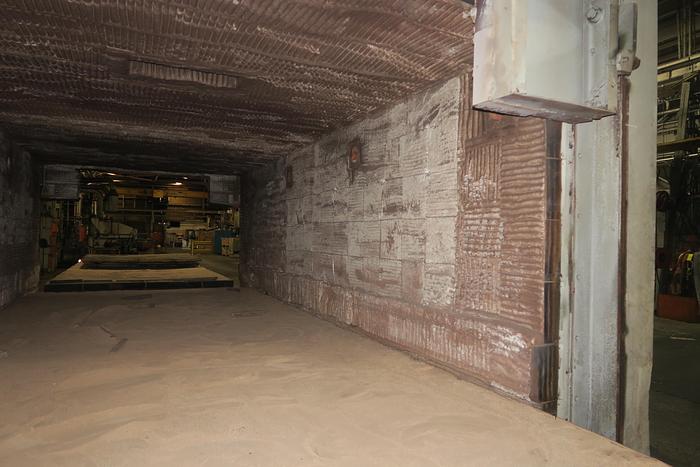

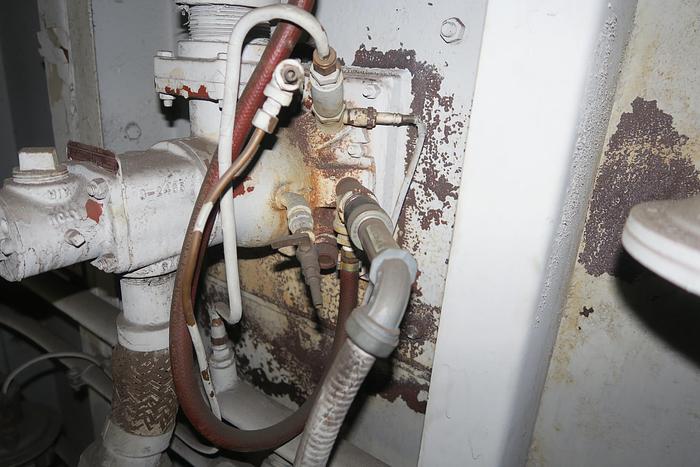

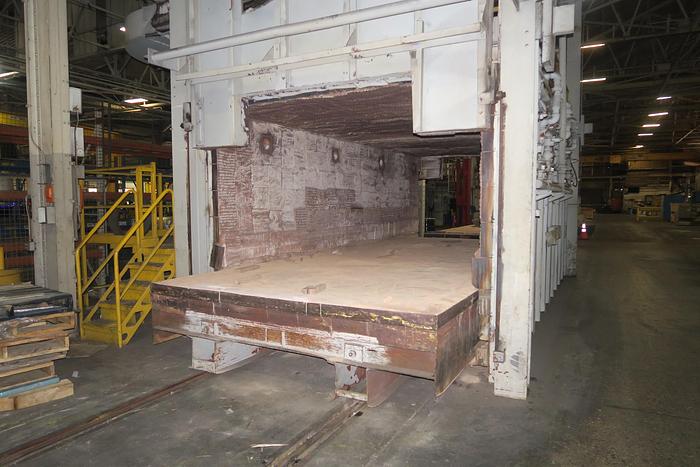

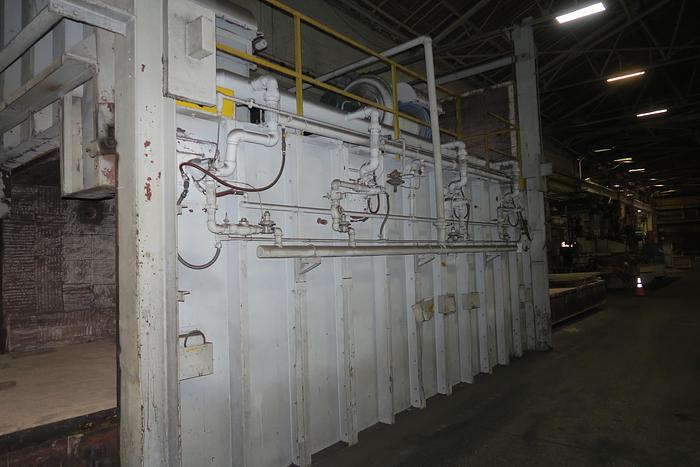

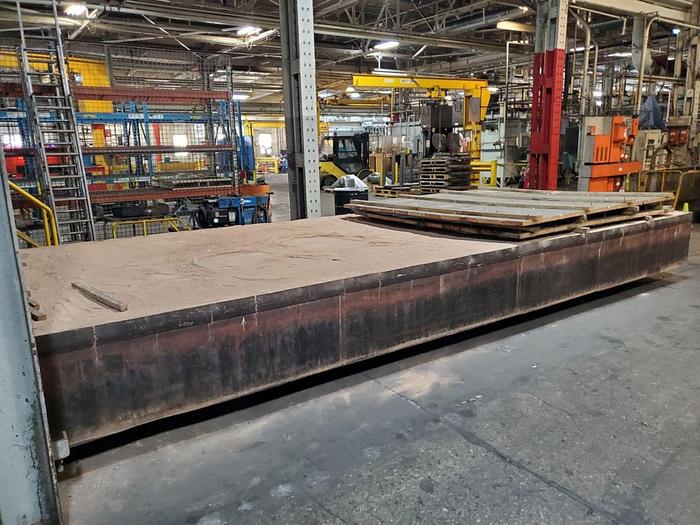

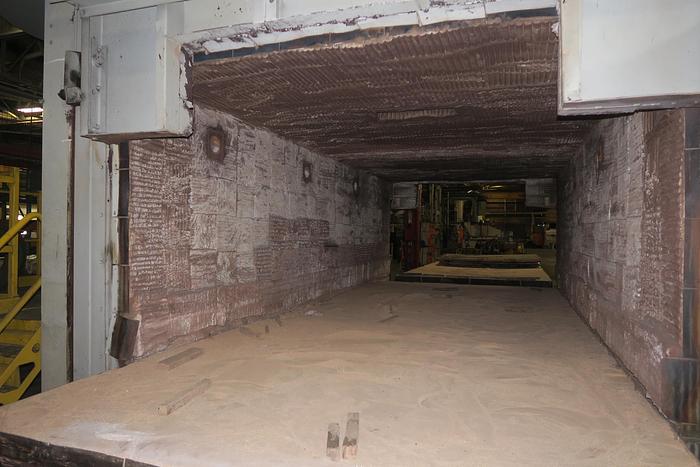

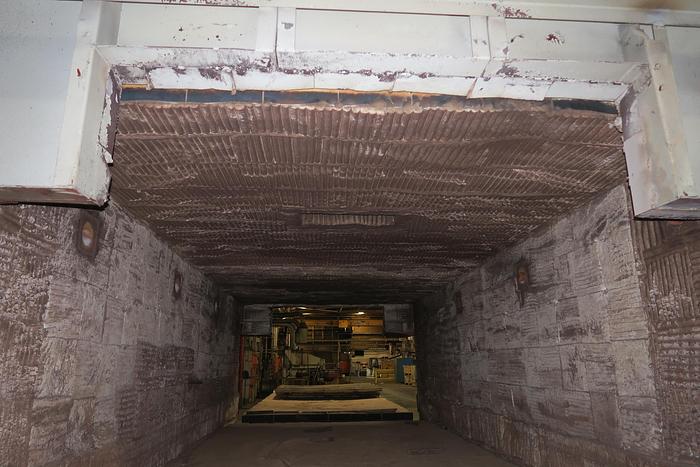

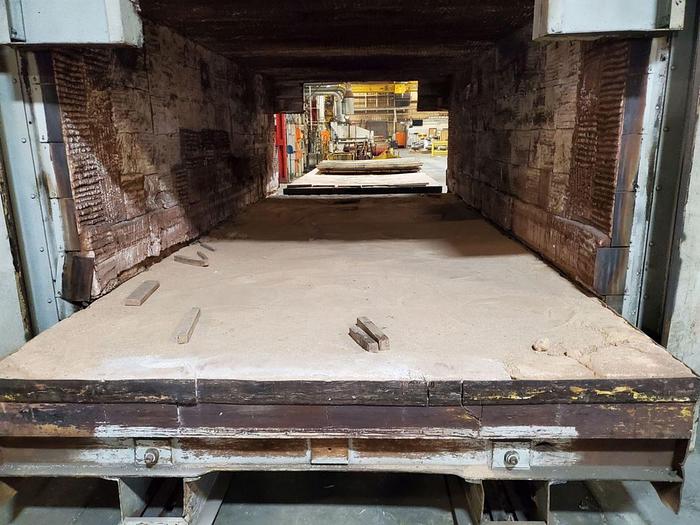

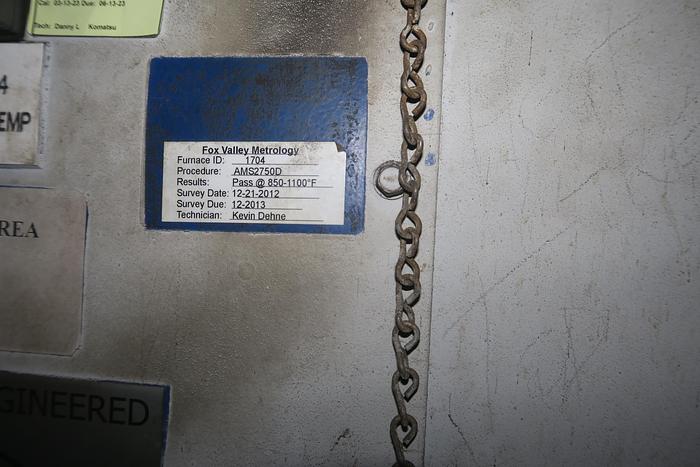

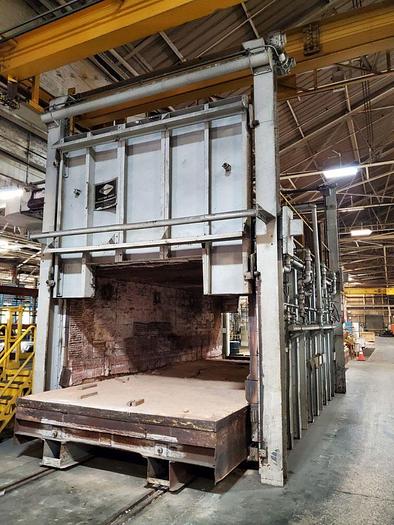

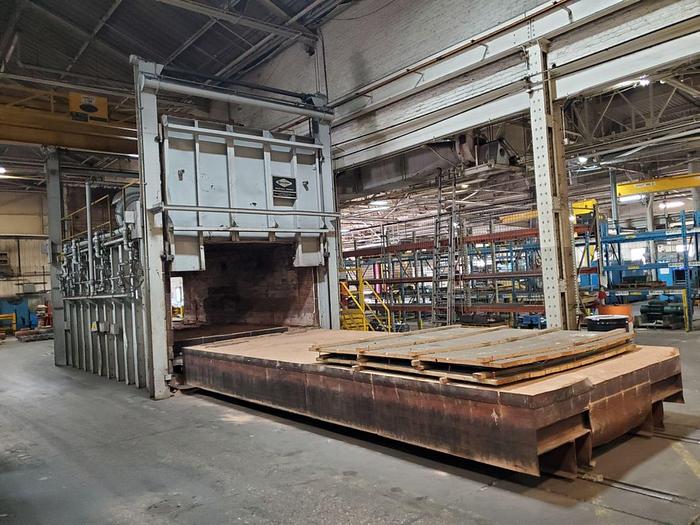

Ceramic Fiber Lined Car Bottom Furnace complete with (8) North American Burners w/spark ignition and UV Scanners, Combustion Air Blower, Gas Safety Valve Train, (2) Powered Cars each 22’ Long that Ride on “In Ground” Steel Tracks, and Motorized Vertical Rising Doors Each End. Furnace is certified to meet AMS2750D +/- 25°F uniformity

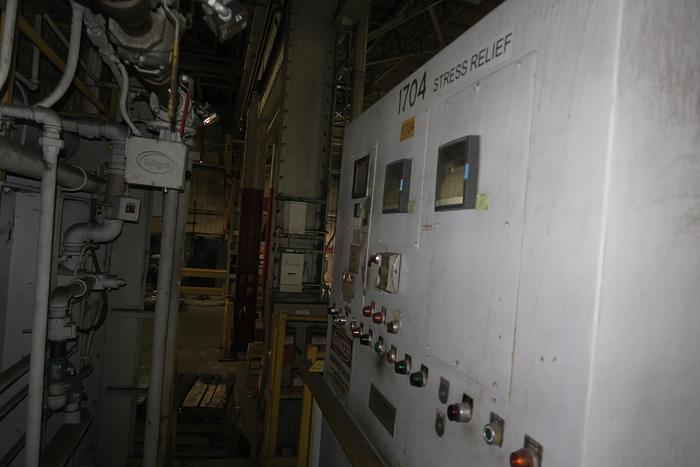

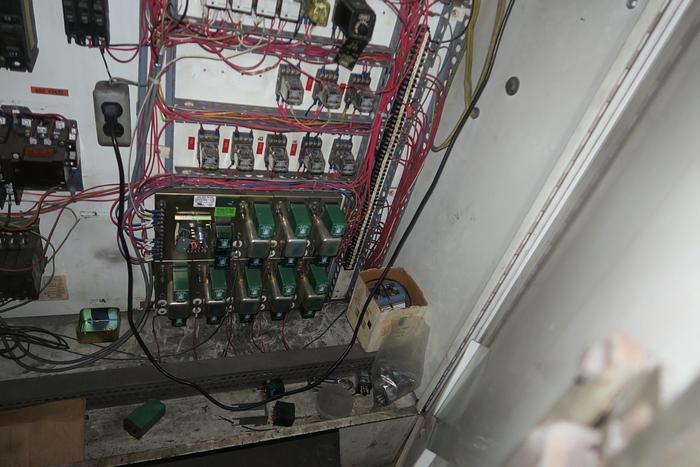

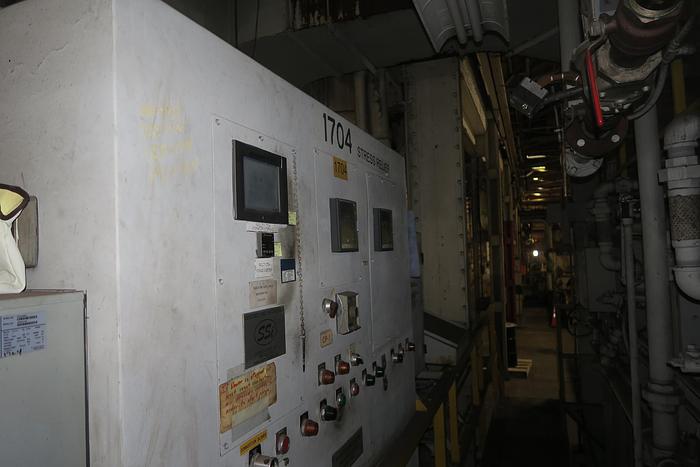

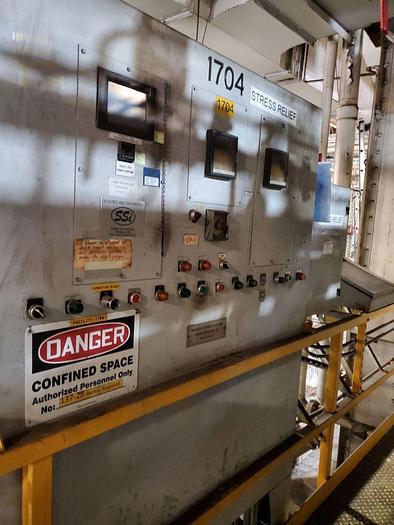

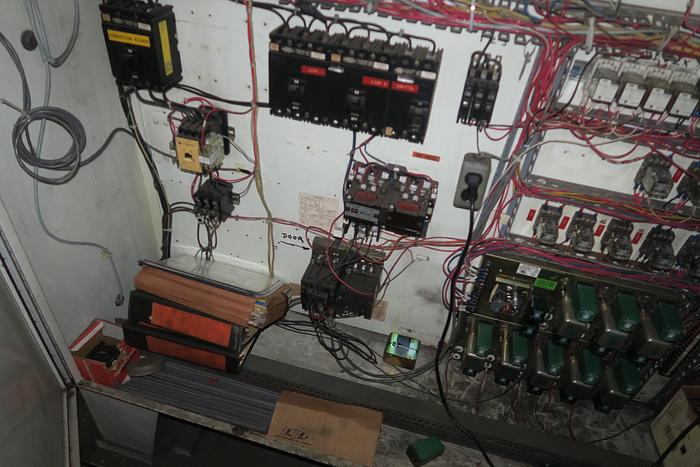

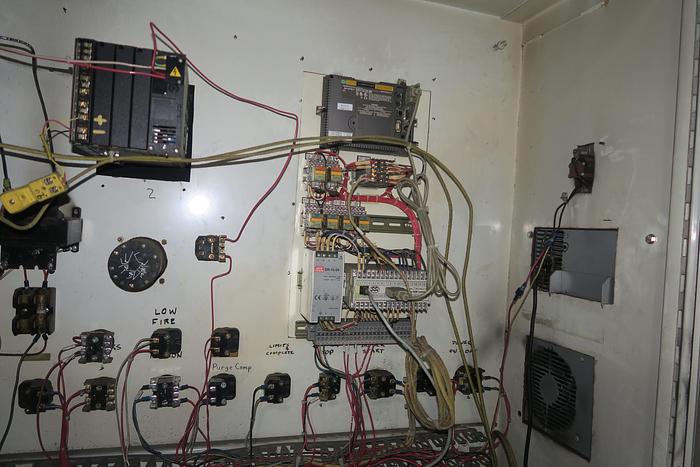

Free Standing Control Panel complete with SSi Digital Temperature Controllers, HMI touchscreen interface and SSI High Limit Controller. Protection Controls Flame Safety.
Specifications
| Manufacturer | Sauder |
| Model | Carbottom Furnace |
| Condition | Used |
| Serial Number | N/A |
| Stock Number | 7693 |
| Manufacturer | Sauder |
| Model Number | Carbottom Furnace |
| Work Area | 10' wide x 6' high x 22' long |
| Heated | Natural Gas - 7,500,000 BTU's/Hr. |
| Maximum Temperature | 1000-F to 1800-F |
| Overall Dimensions | 14'W x 18'H x 50'L |
