72"W x 54"H x 30"L Grieve Modified SA-550, Electric, Solvent Rated, Class A

72"W x 54"H x 30"L Grieve Modified SA-550, Electric, Solvent Rated, Class A

Contact us for price

orCall 248-343-1421

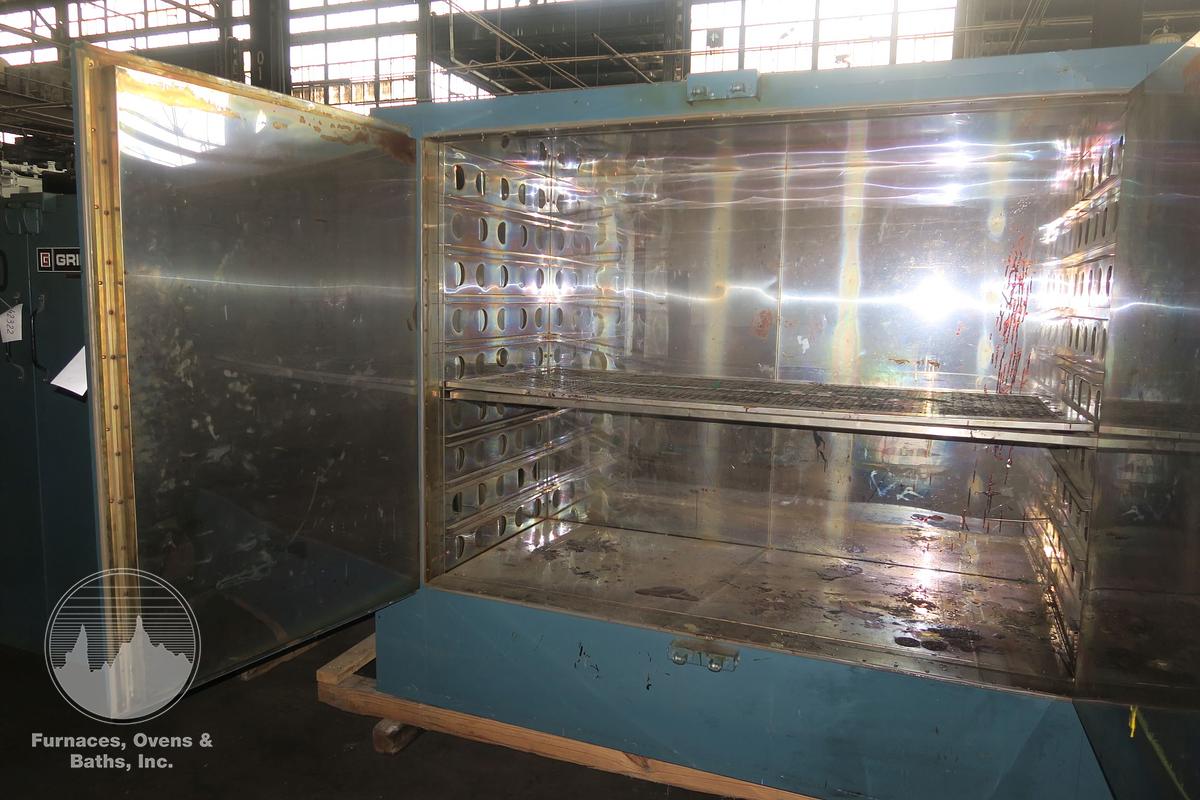

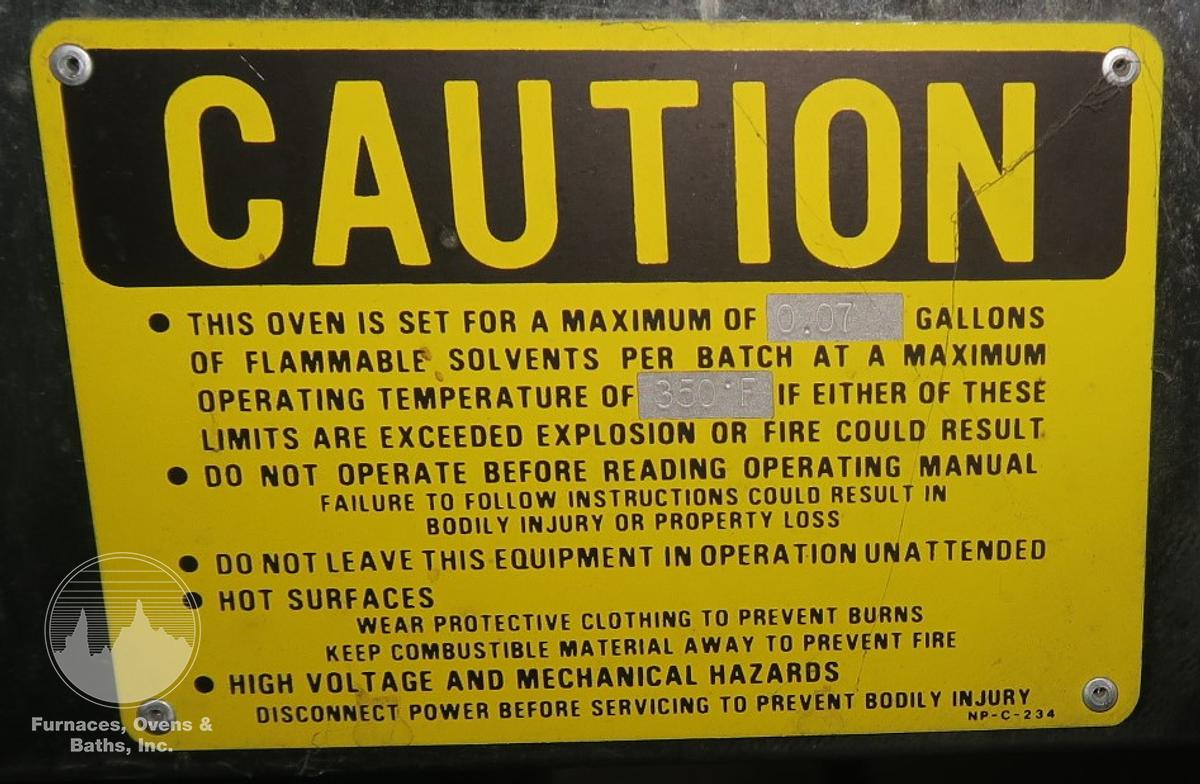

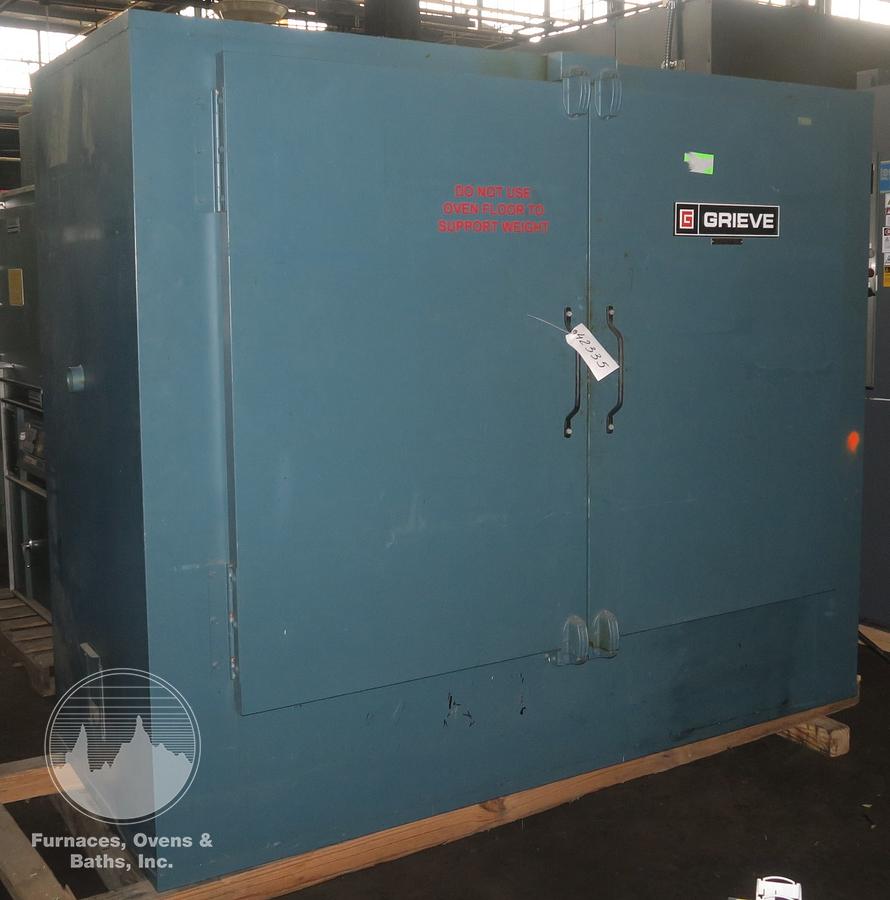

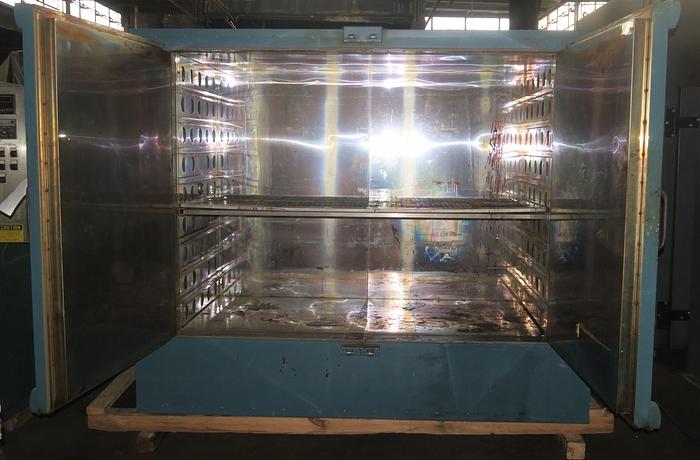

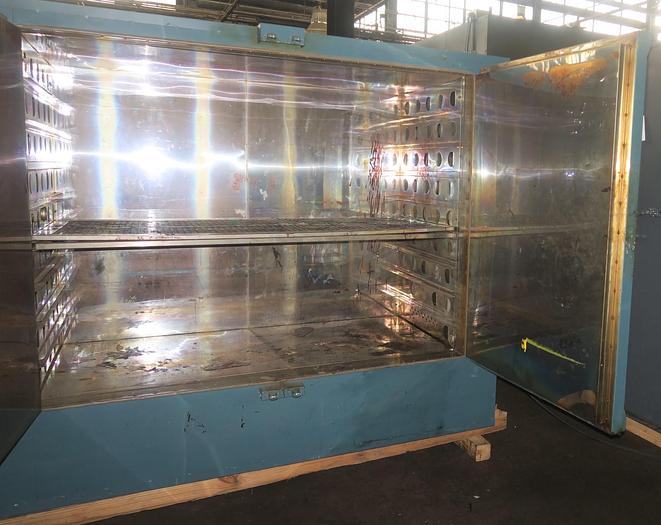

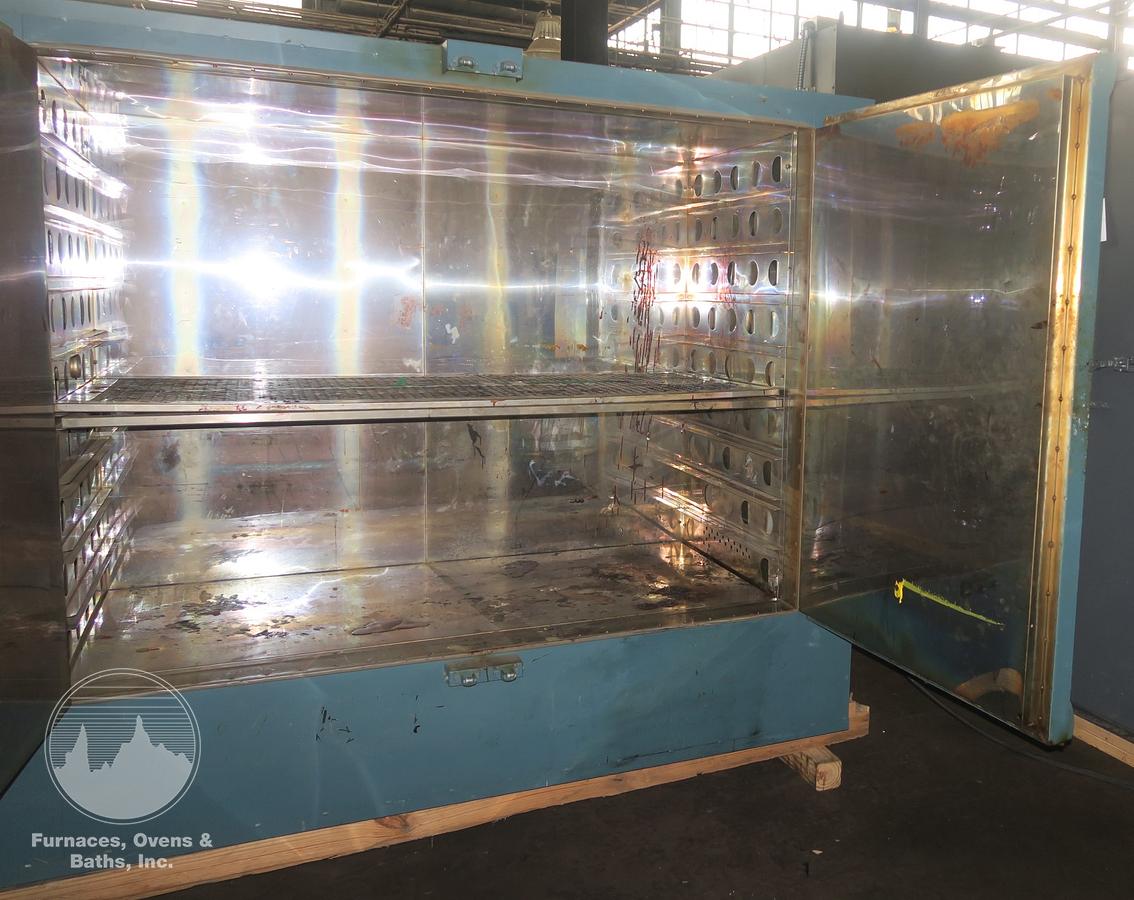

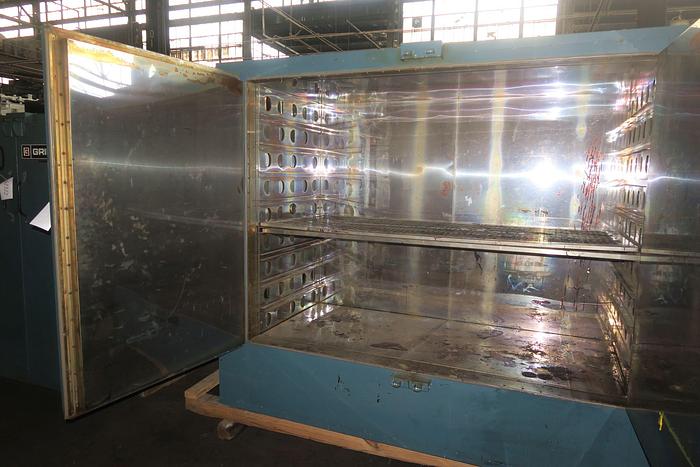

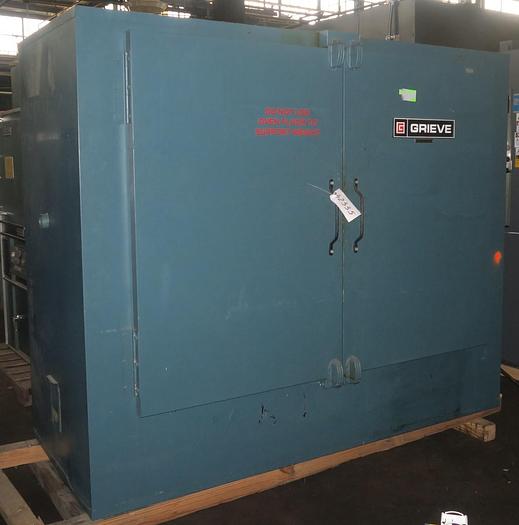

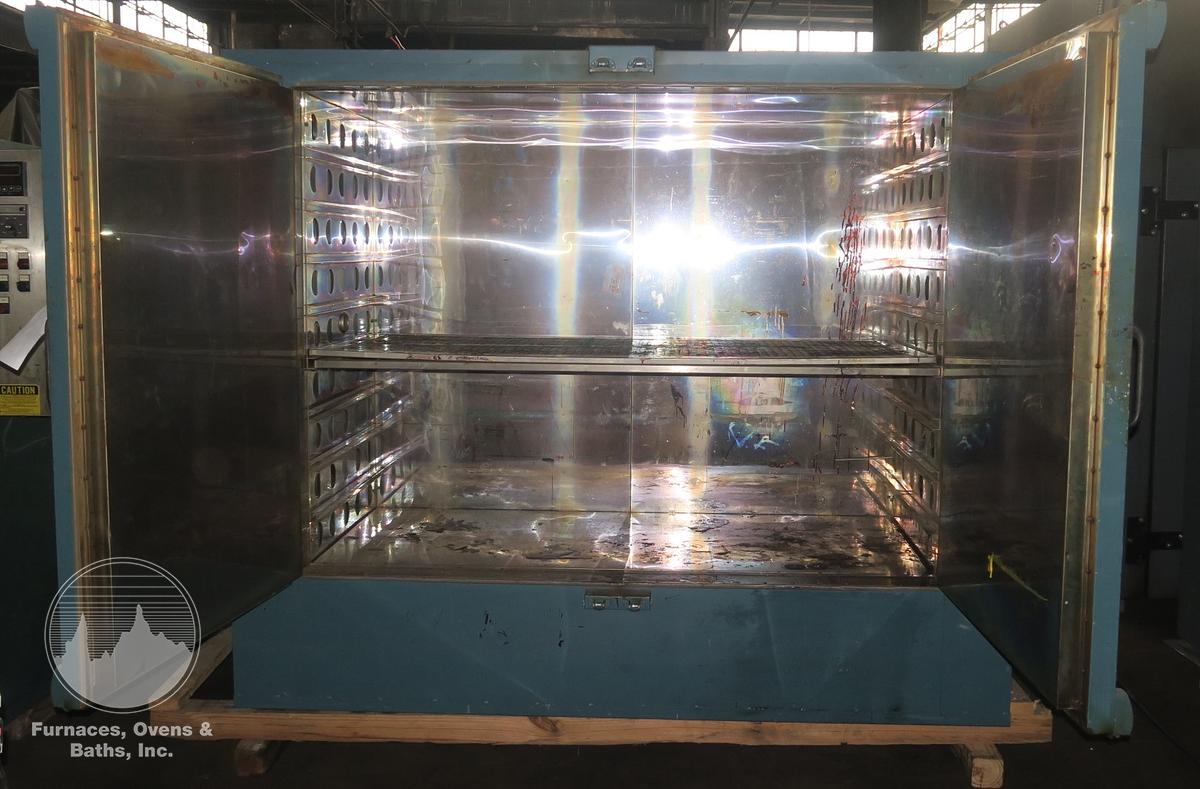

Double doors with silicone rubber gasket and Brixon spring tension latches for a good door seal. Stainless steel interior with punched louvers and 8 shelf brackets on 6" centers, 1 shelf is supplied with this oven. Direct driven 1 HP circulating fan along with heating elements are mounted through the right-side wall under the work chamber. Heated air is circulated in a horizontal pattern across the work area for good uniform heating. An adjustable fresh air inlet is located in the left side. A powered exhaust fan is mounted on top of the oven. *** Rated for use with some solvents. Exhauster is currently removed and will be reinstalled prior to shipping. Oven will be tested prior to shipping.

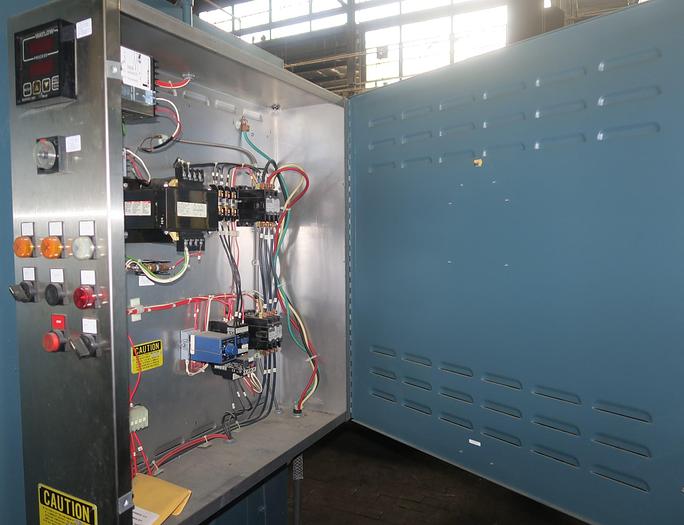

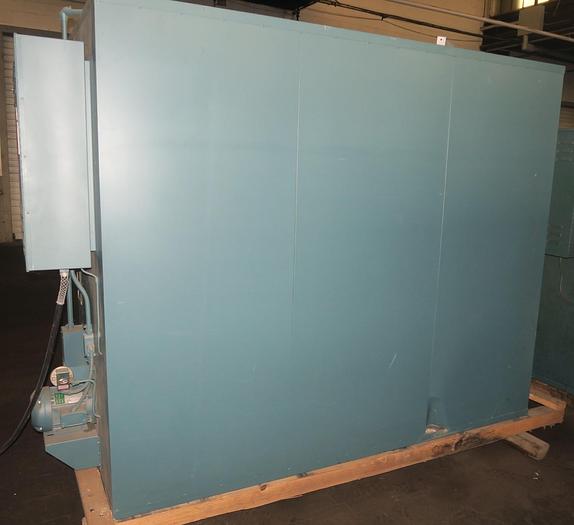

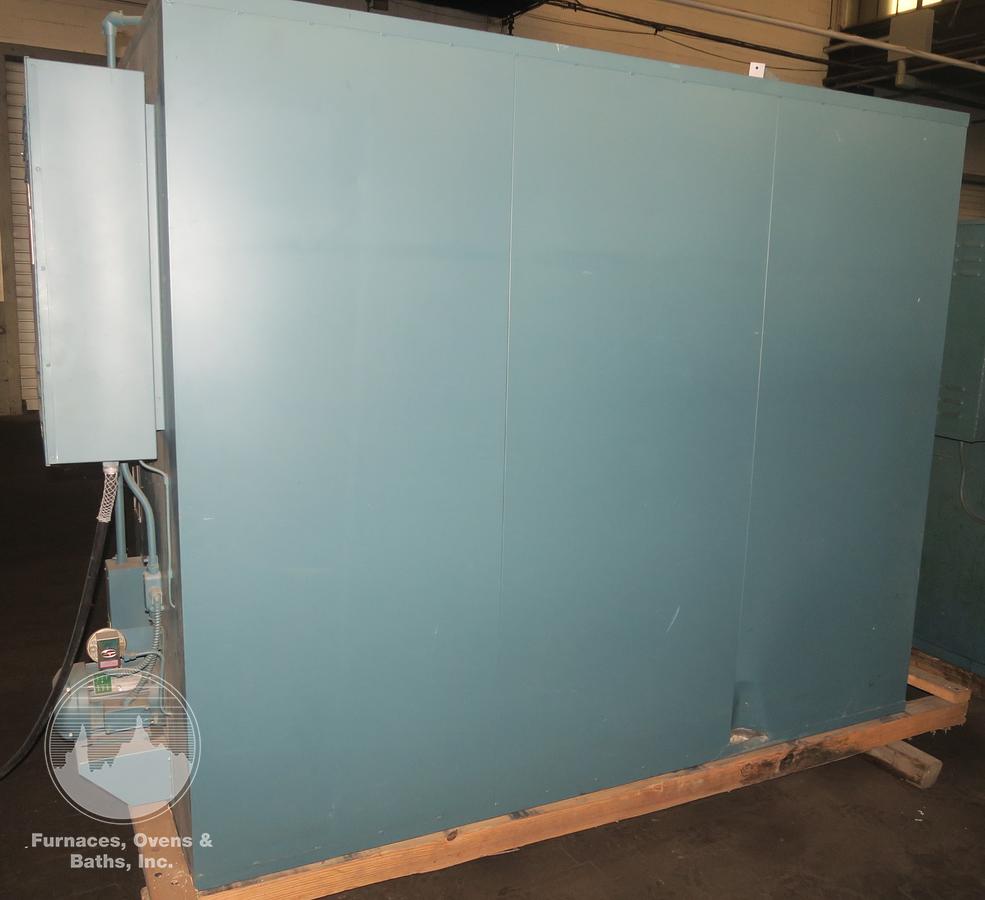

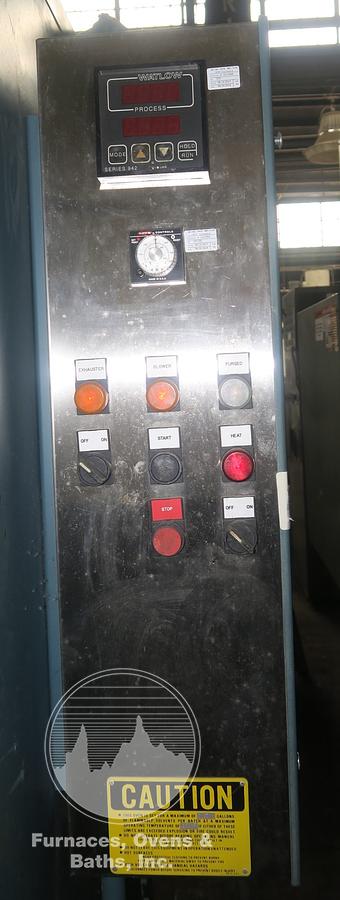

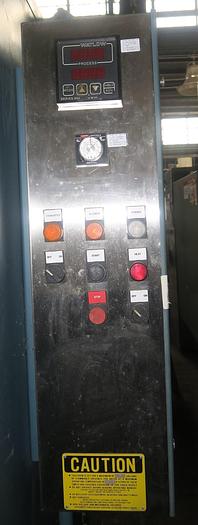

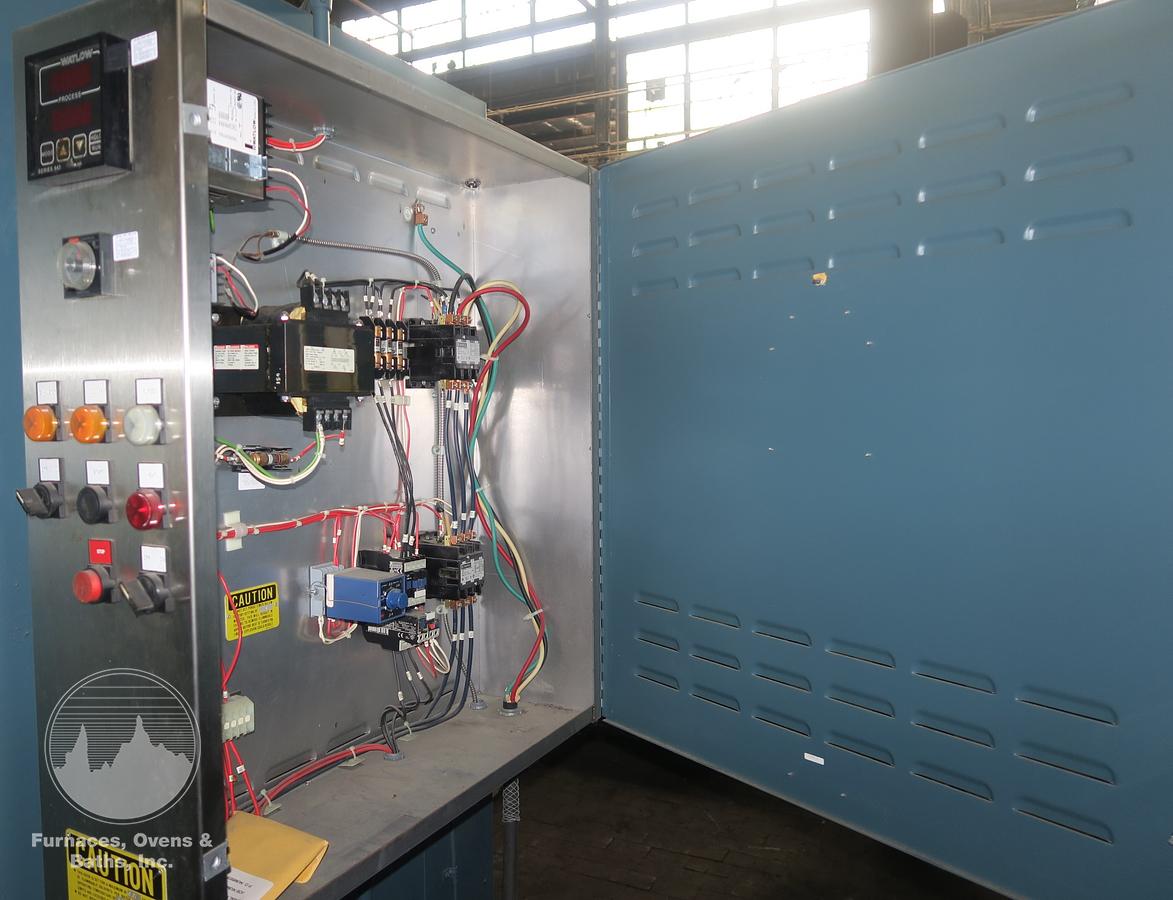

Controls are located in a small "UL" rated enclosure attached to the right-hand side. Partlow series 942 digital temperature controller, a Love analog high limit and control switches with indicating lights are flush mounted in the enclosure. Switches with indicating lights for exhauster, blower, heat on/off and purge complete. Motor starters, fuses, relays, purge timer etc. are mounted inside the enclosure. Electrical prints are included with this oven.

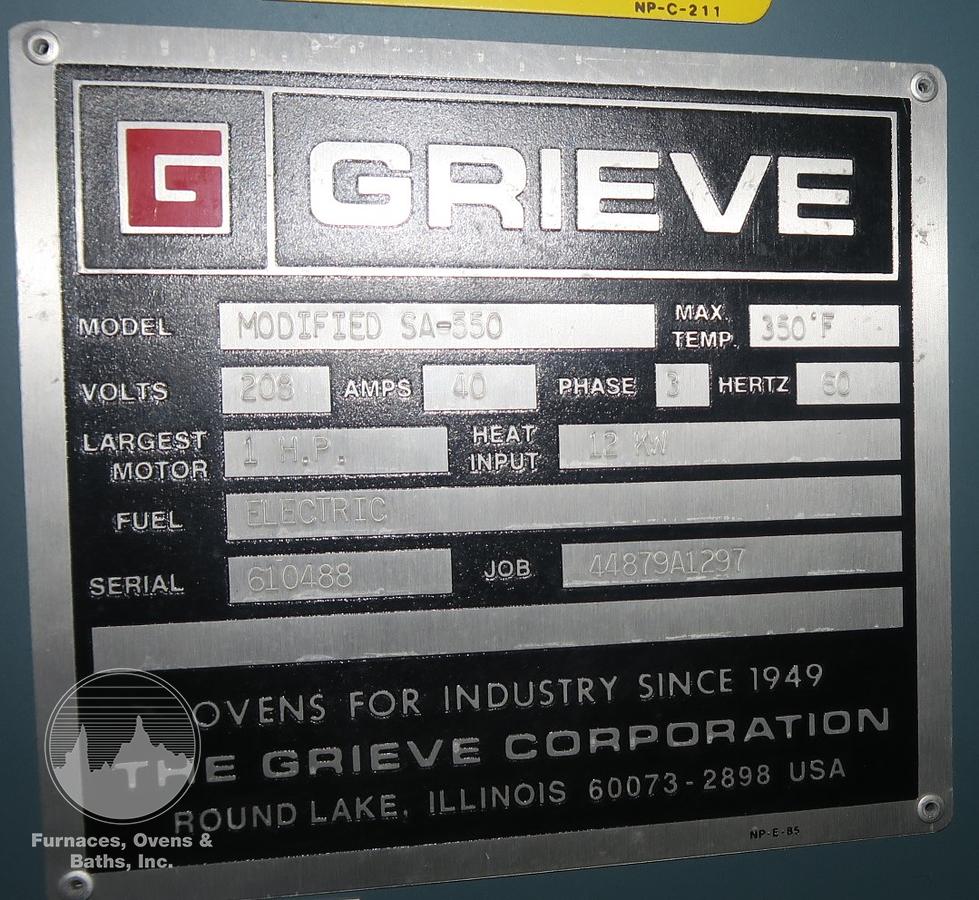

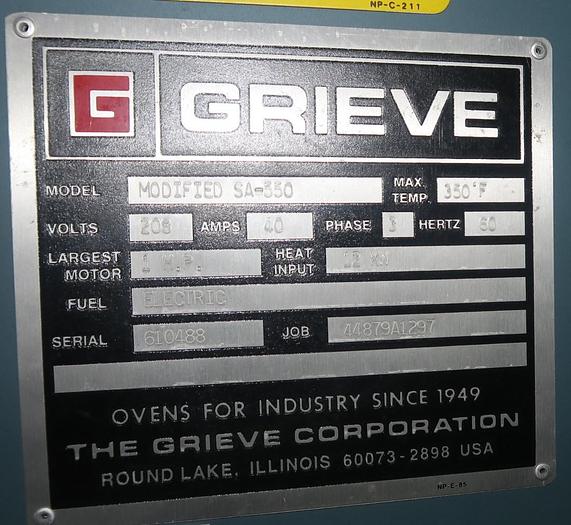

ModelModified SA-550

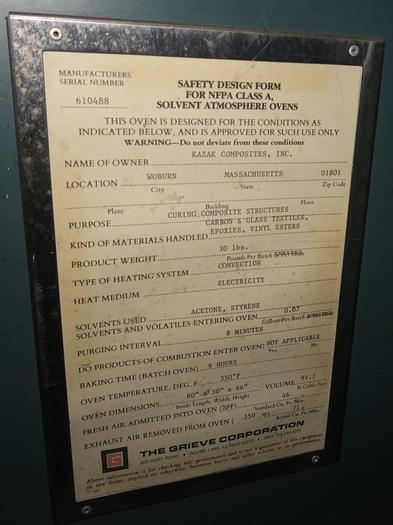

Serial Number610488, JOB #44879A1297
Stock Number7694
Work area72"W x 54"H x 30"L

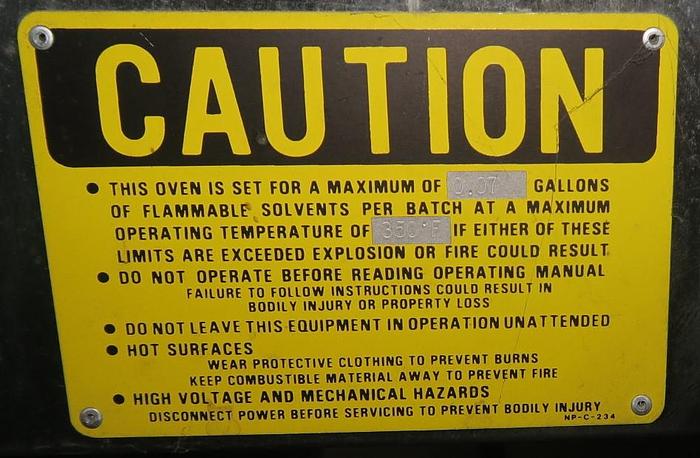

Max temperature350°F w/Solvents, 550°F w/o Solvents
Voltage208/3/60/12 kW/40 Amps
External dimensions99"W x 89"H x 42"L
