56"W x 60"H x 54"L, OSI - Oven Systems Inc., Electric, 600-F


56"W x 60"H x 54"L, OSI - Oven Systems Inc., Electric, 600-F

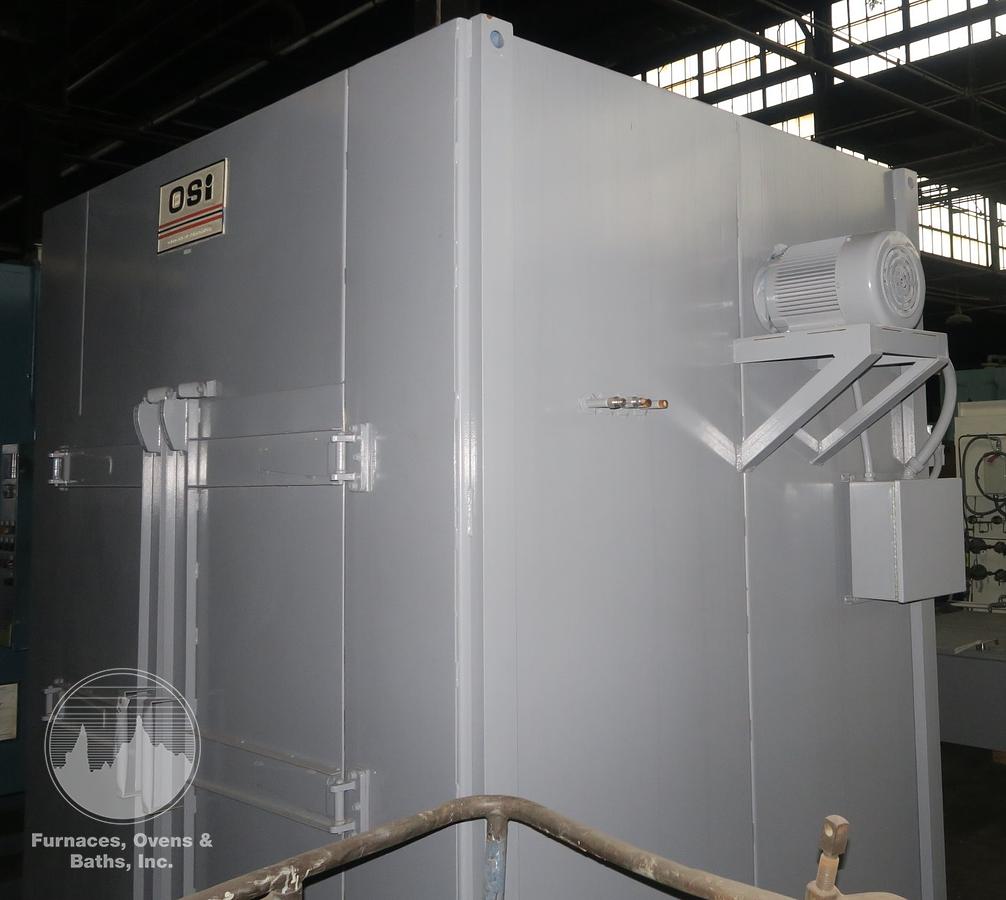

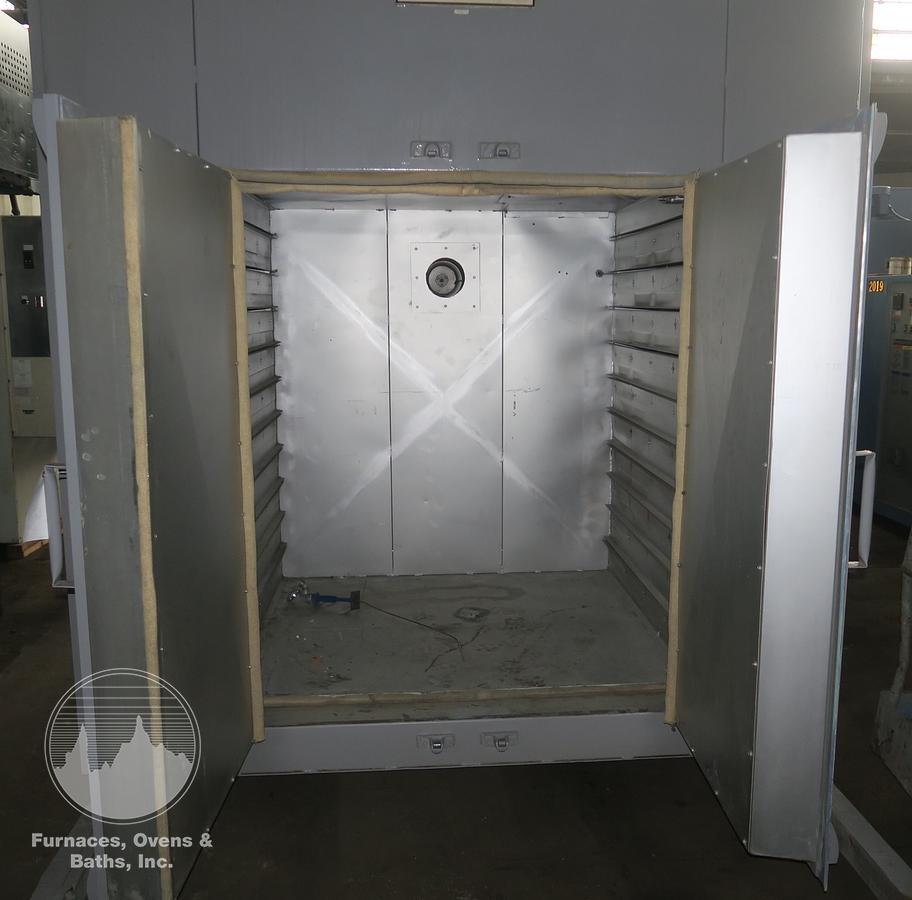

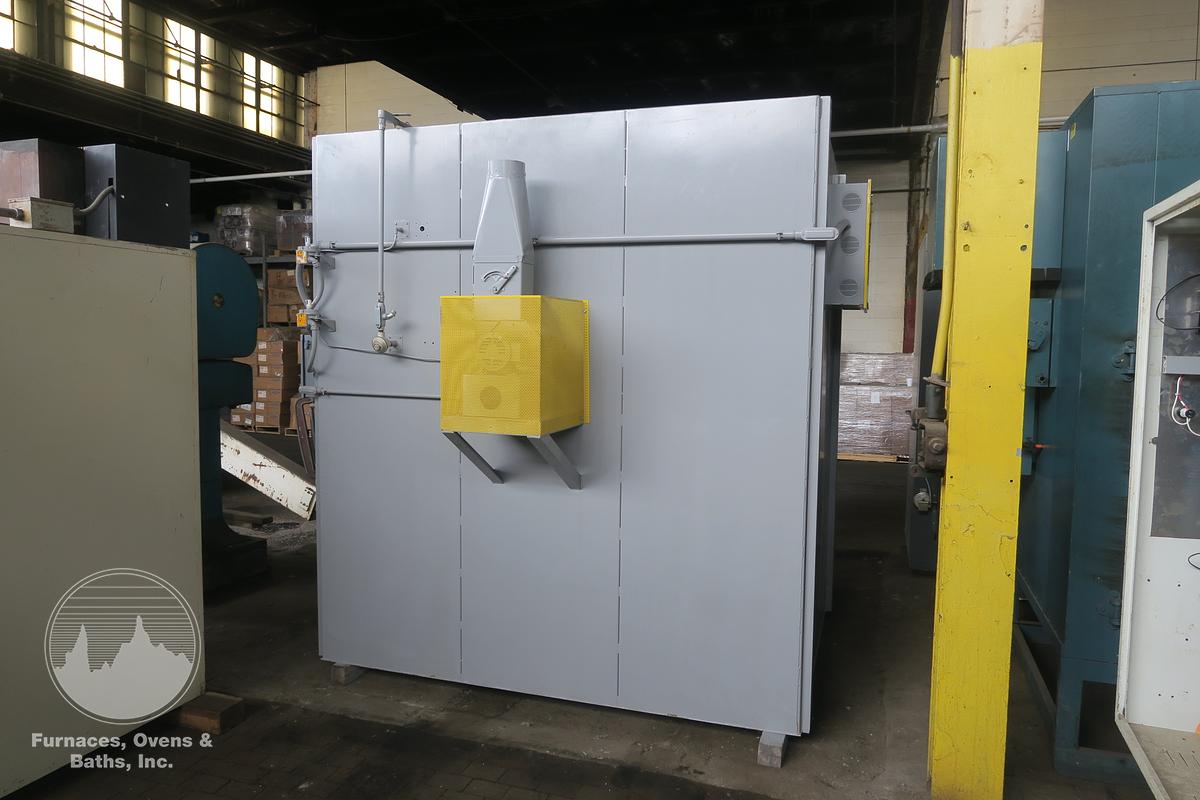

Double doors on one end. Each door has heavy gauge strap hinges and Brixon spring tension latches. High temperature double gaskets provide a good door seal. Aluminized steel interior with an insulated floor. Oven has 6" insulation. Adjustable louvered air duct panels on both side walls. The direct drive high volume circulating fan mounts through the side wall above the work area, heating elements are also located above the work area. Heated air is circulated in a full horizontal pattern across the work area for good uniform heating. A powered exhaust fan is located on the rear of the oven. Oven is in LIKE NEW condition and will be tested prior to shipping. Drawings are included with this oven.

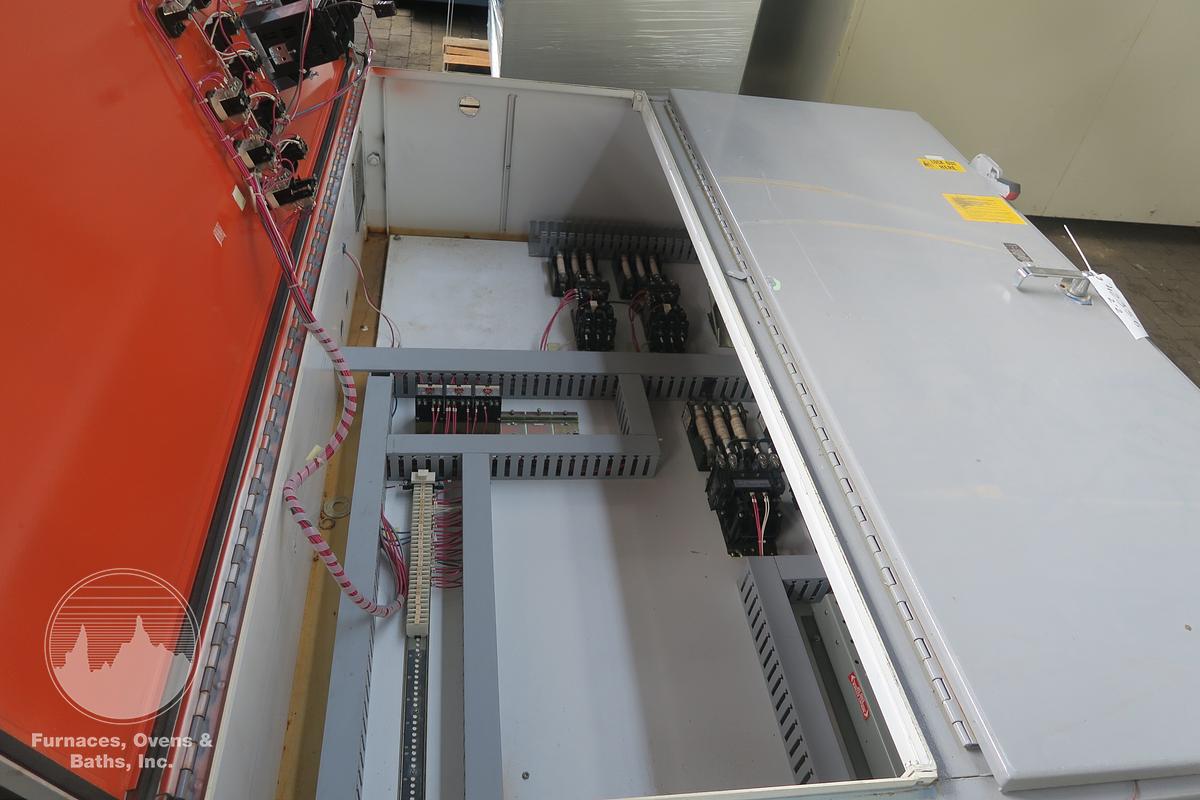

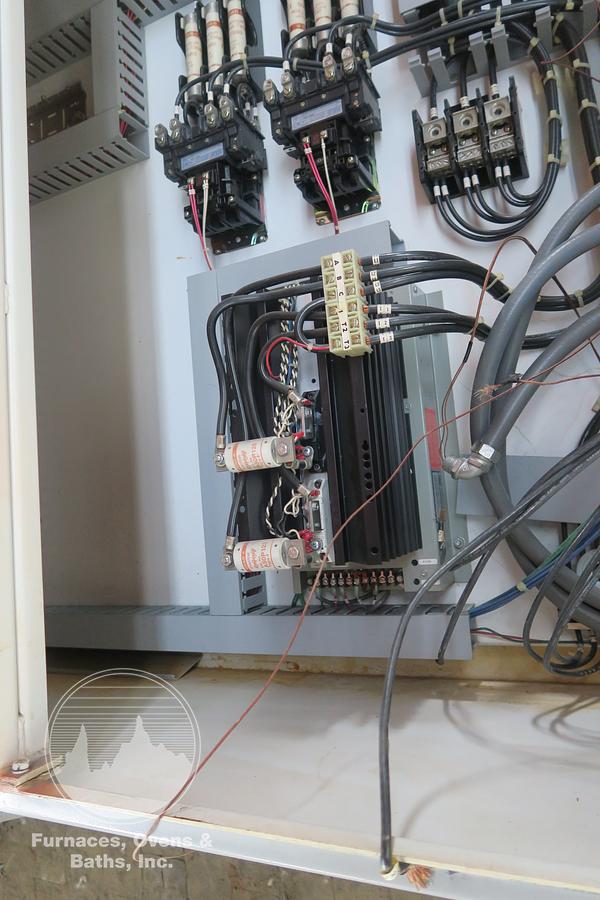

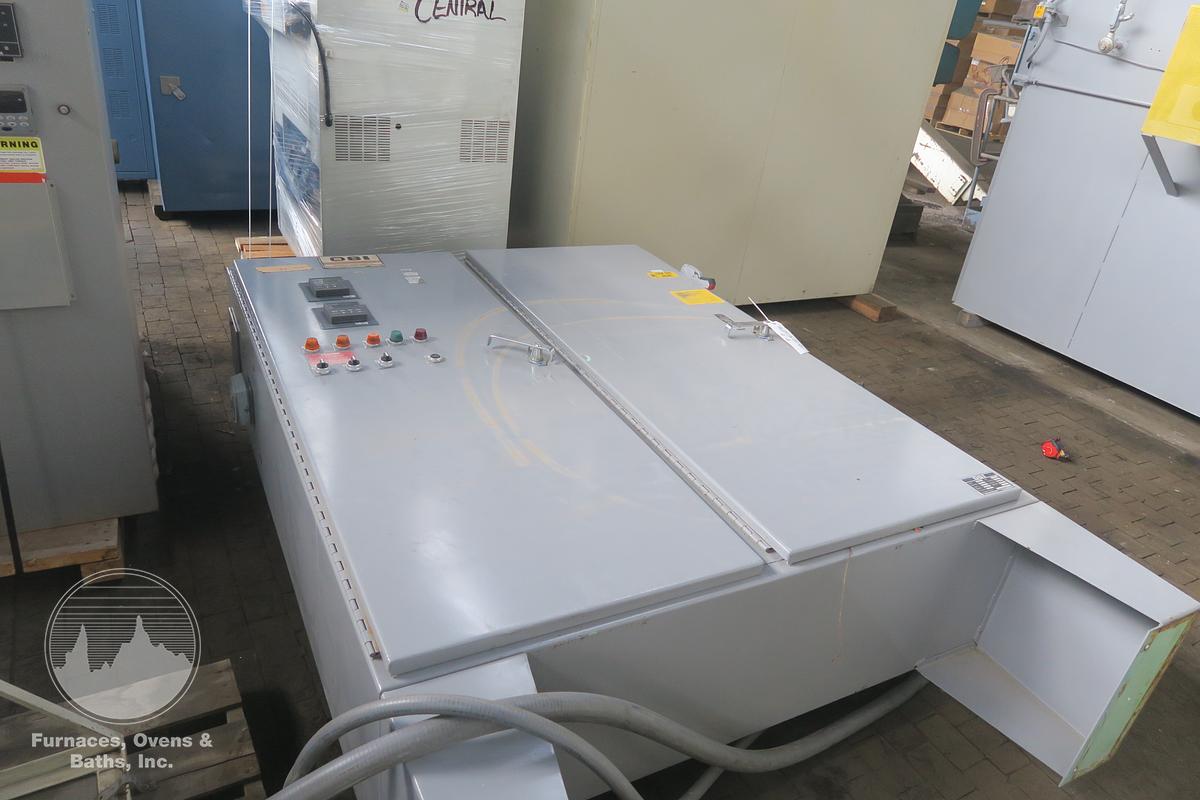

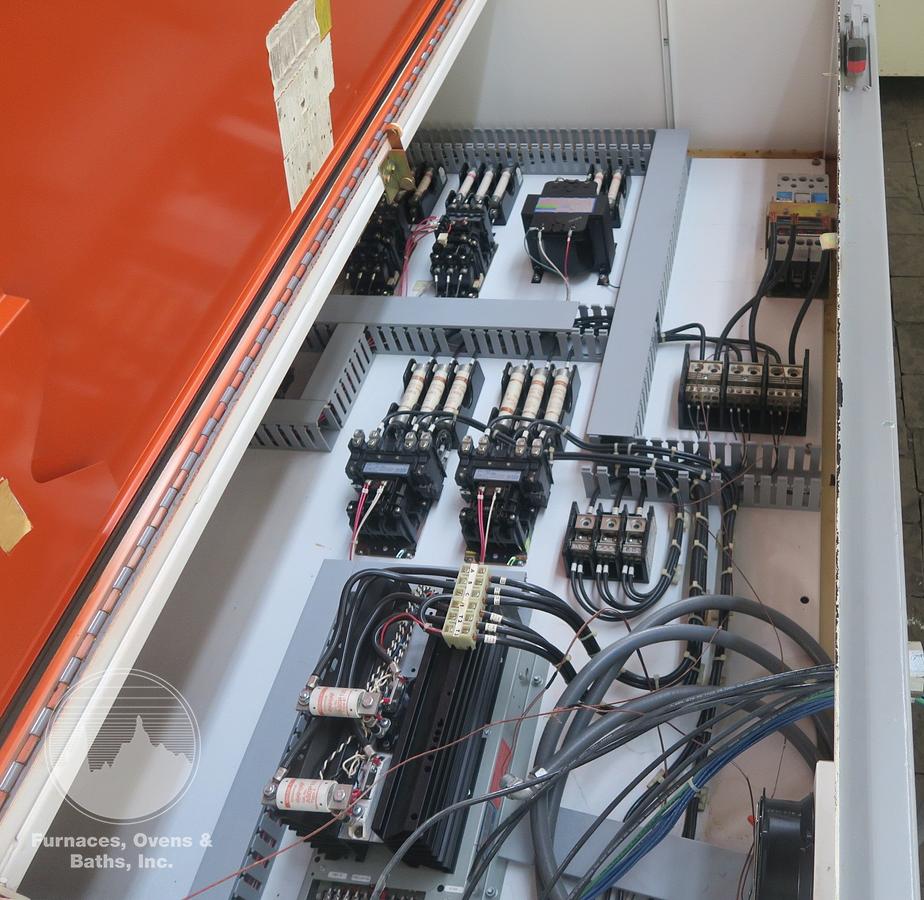

Controls are mounted and wired in a free standing double door panel with fused disconnect. Honeywell UDC digital temperature controller and a Honeywell UDC digital high limit safety control. Control switches with indicating lights are flush mounted to the front of the control panel. SCR, motor starters, fuses, relays etc. are mounted inside the control cabinet.

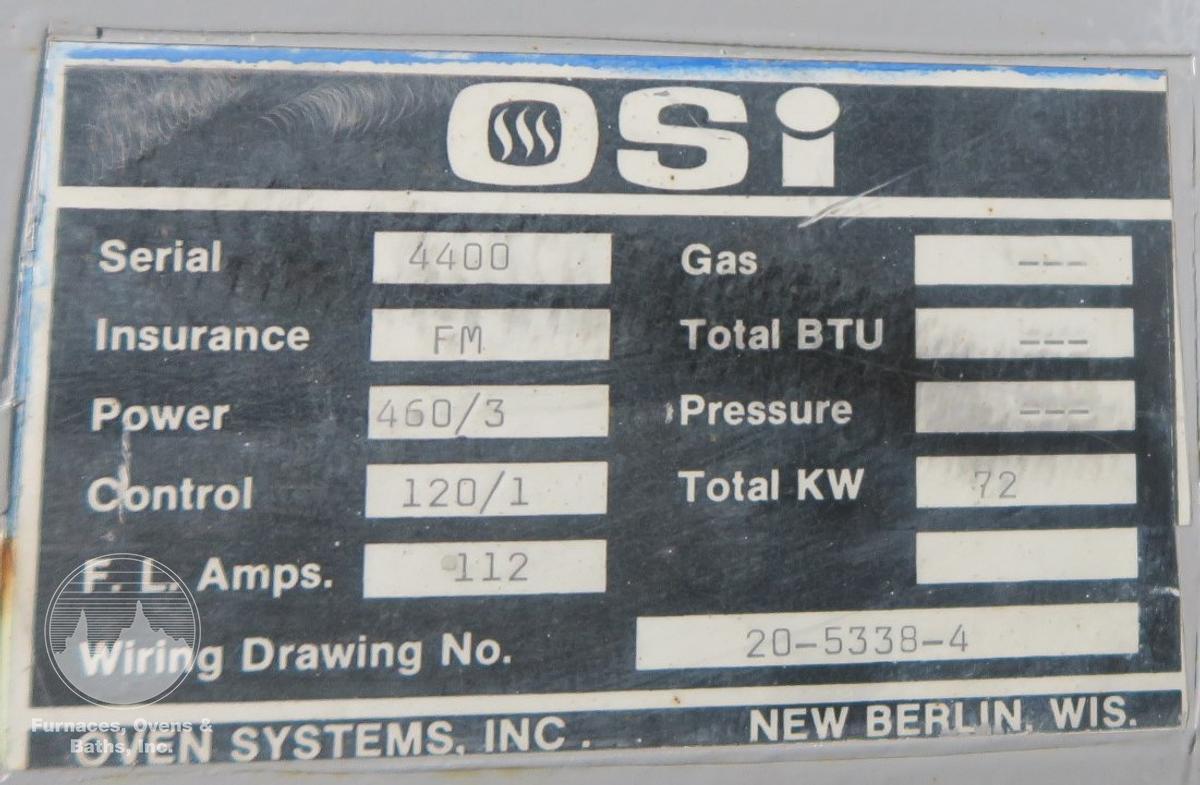

ManufacturerOSI - Oven Systems, Inc.
ModelBatch Oven
Serial Number4400
Stock Number7703
Work area56"W x 60"H x 54"L
Max temperature600-F
Voltage460/3/60/72 kW/112 Amps
External dimensionsOven: 115" wide x 99" high x 96" long, Control Panel: 60" wide x 90" high x 24" deep
