96"W x 96"H x 144"L, JPW, 500°F, Gas Fired


96"W x 96"H x 144"L, JPW, 500°F, Gas Fired

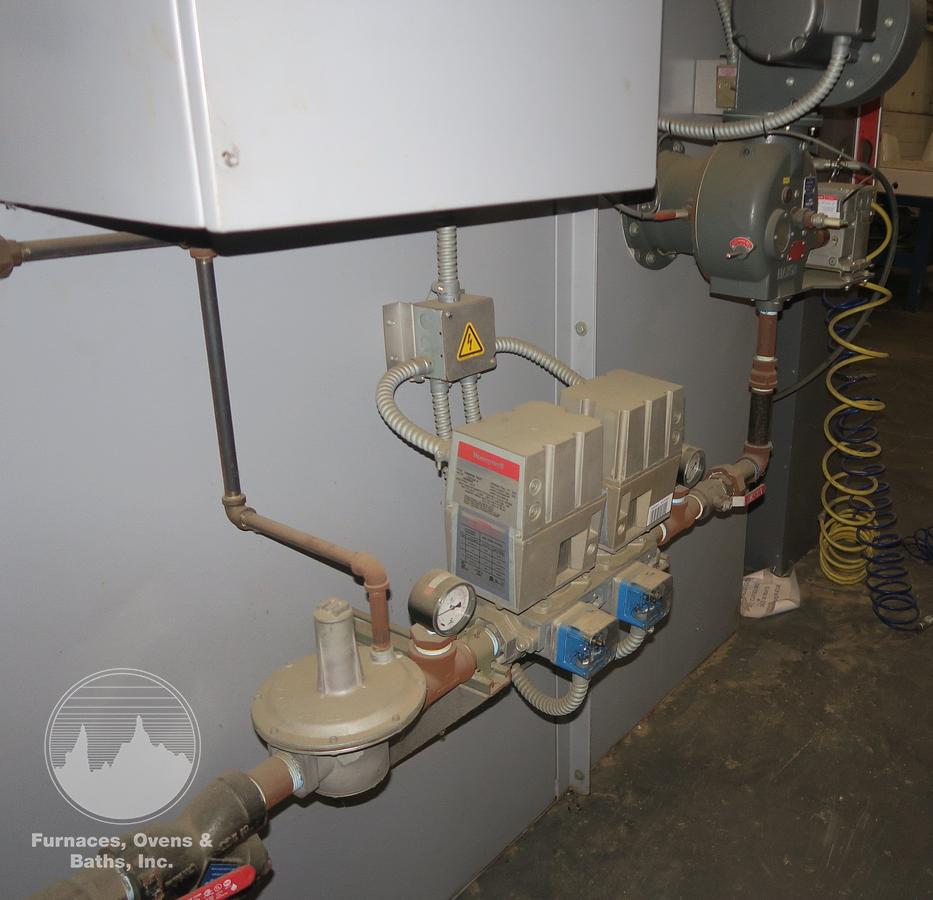

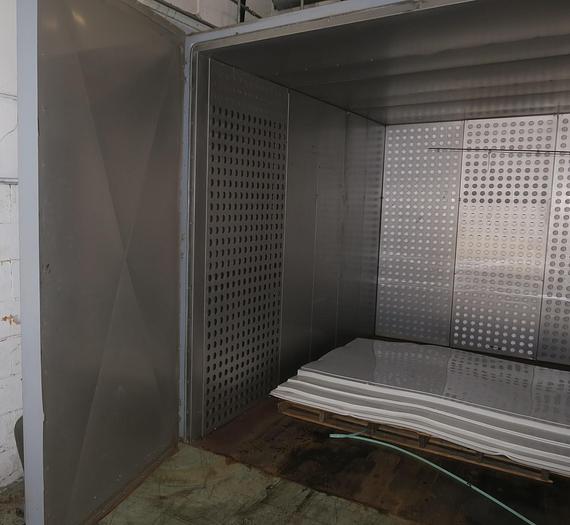

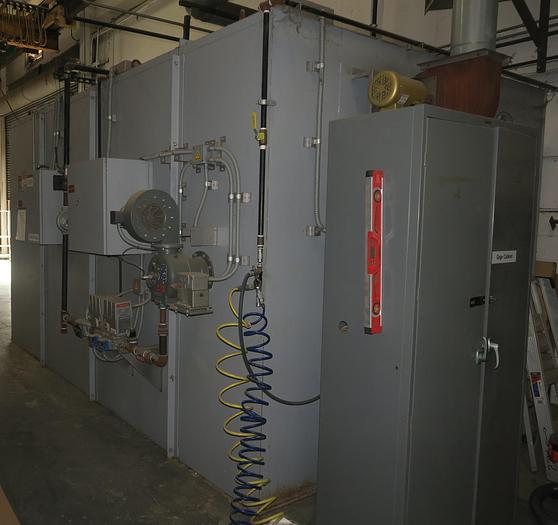

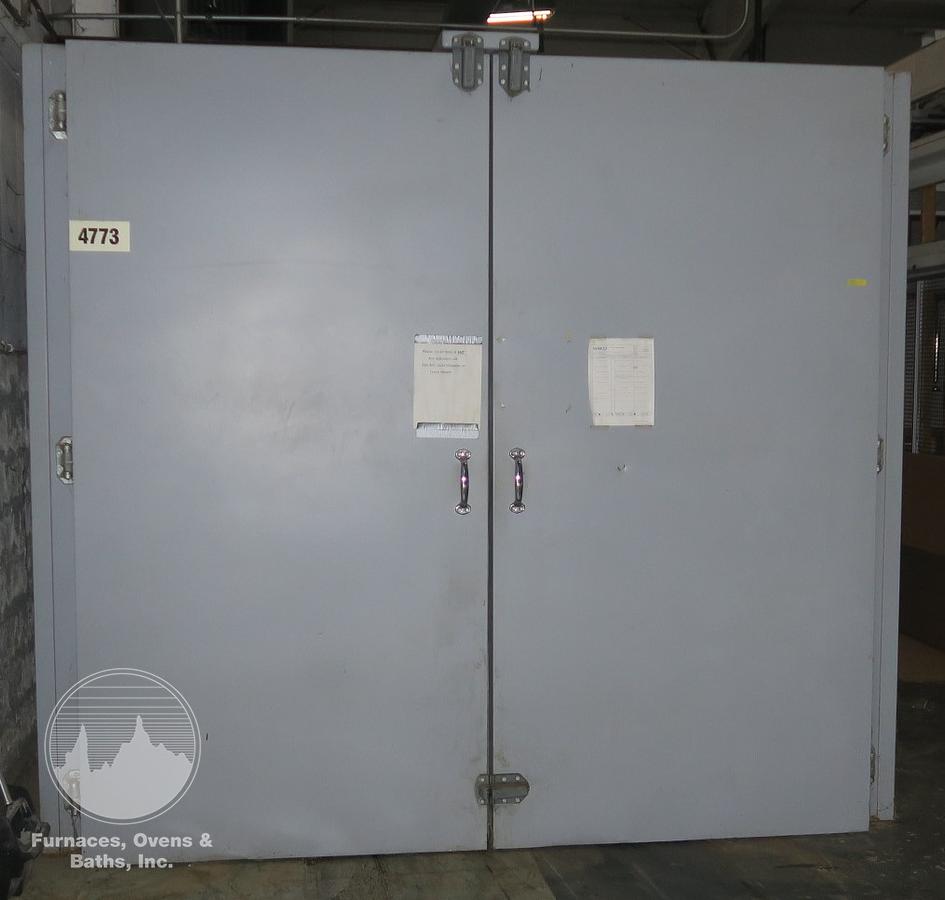

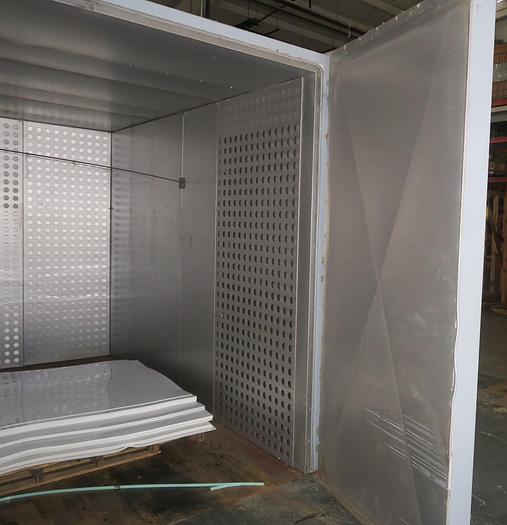

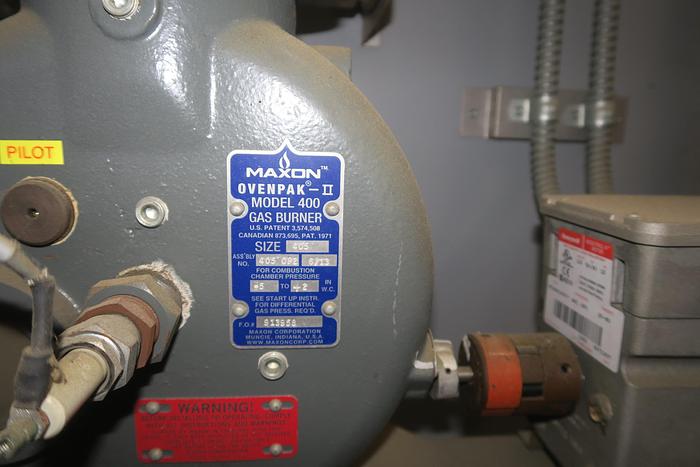

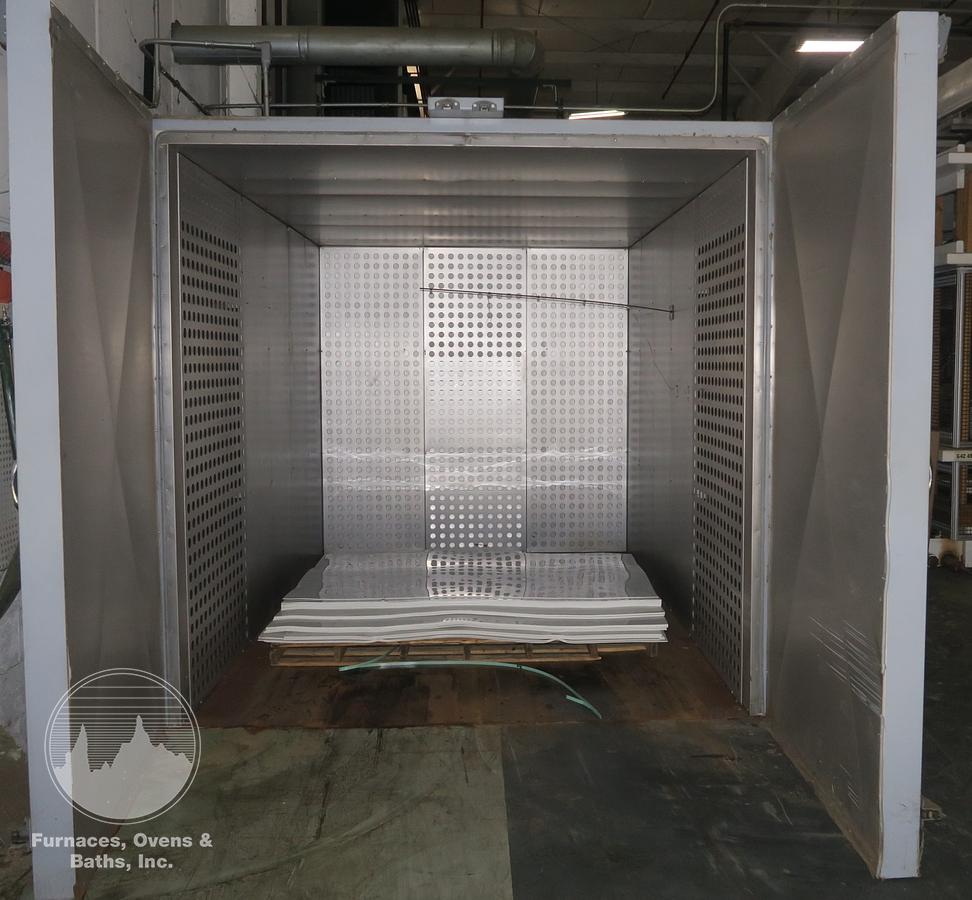

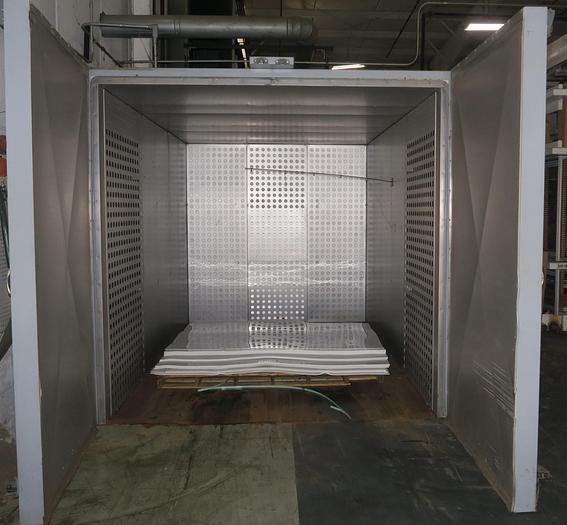

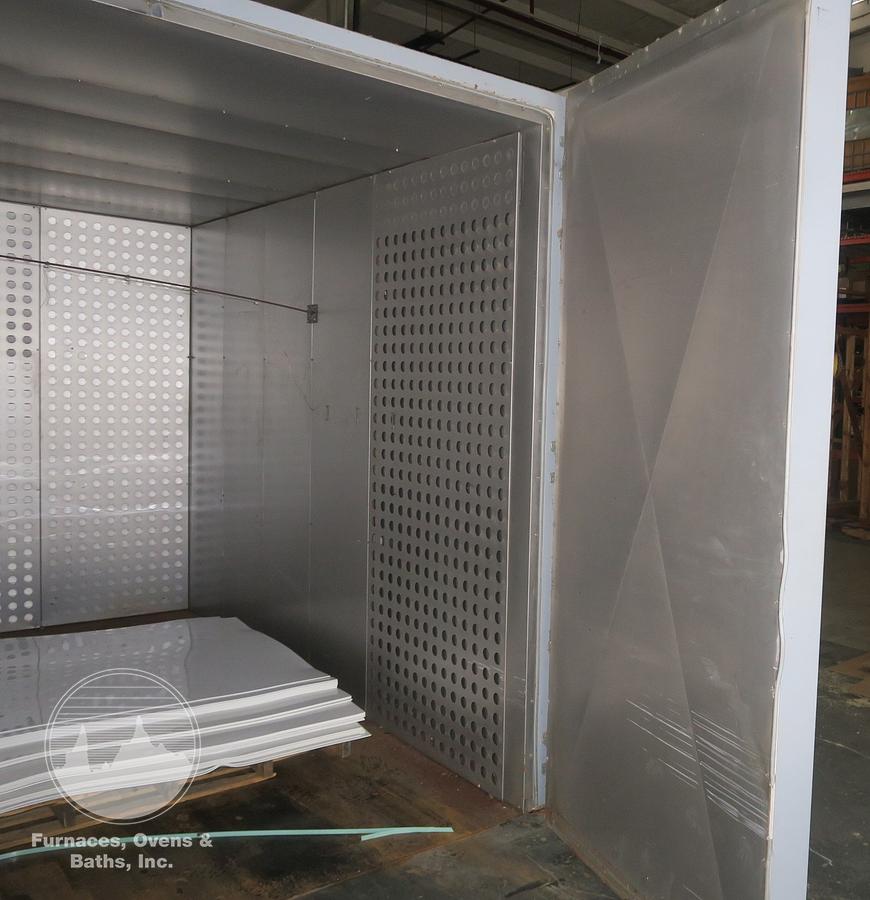

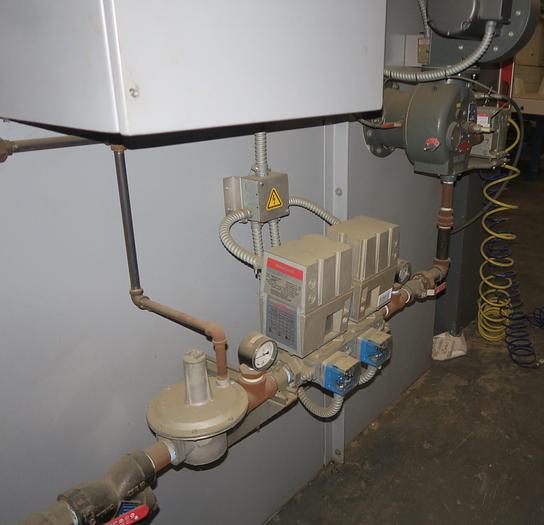

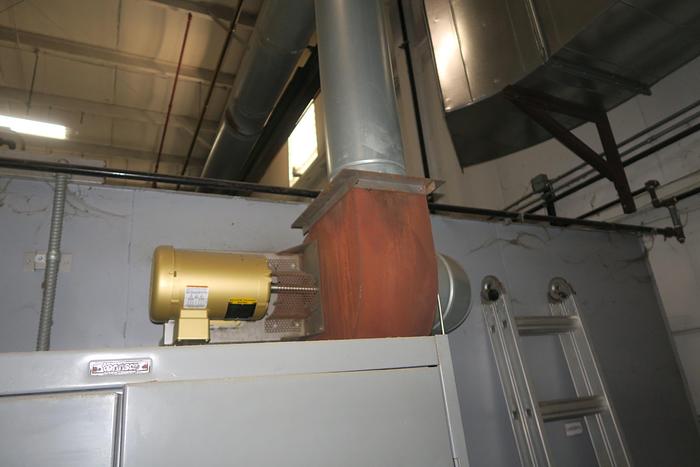

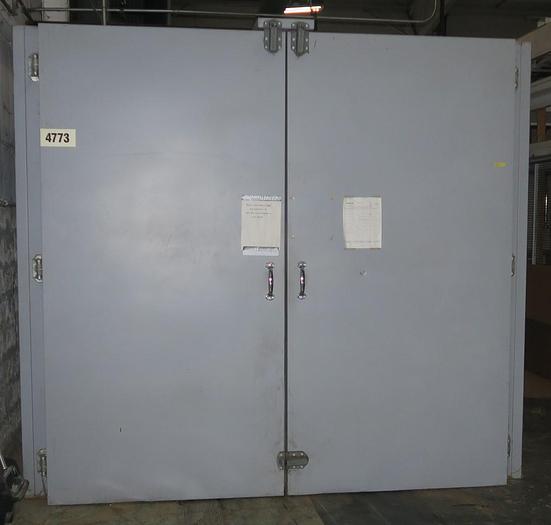

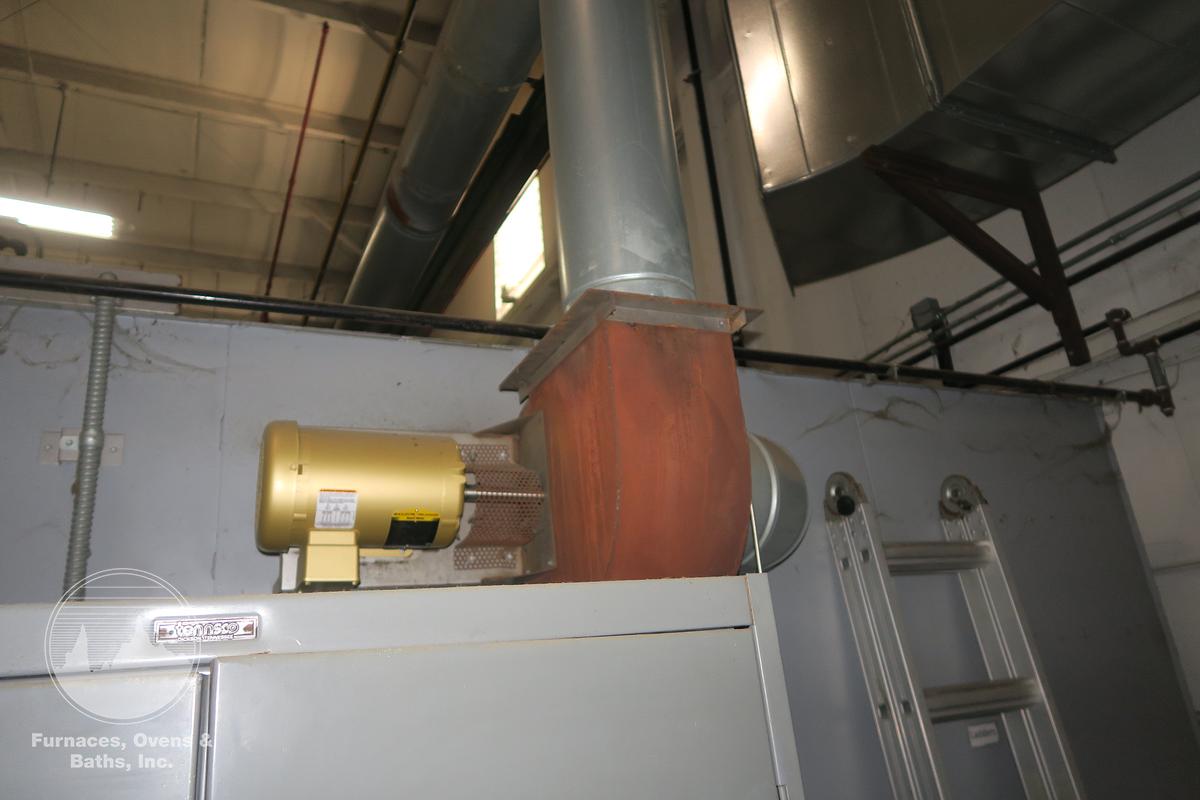

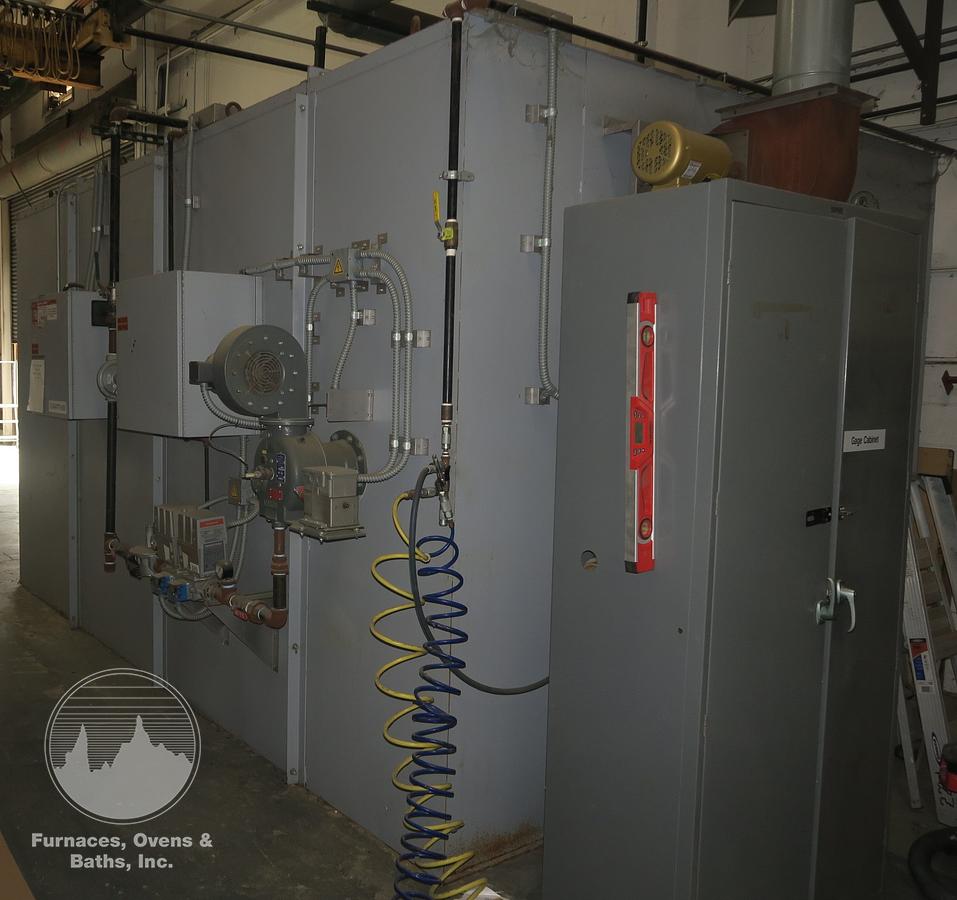

Double doors on one end. Each door has heavy gauge and Brixon spring tension latches. Silicon rubber gasketing provides a good door seal. Aluminized steel interior with a steel plate floor. Punched louvered air duct panels on both side walls and rear wall. Direct drive high volume 5 HP circulating fan is mounted through the rear wall. Side mounted package type Maxon Ovenpak II burner, model 400, size 405 with spark ignition and flame (rod) safety. Heated air is circulated in a full horizontal pattern across the work area for good uniform heating. A powered exhaust fan is located on the rear of the oven.

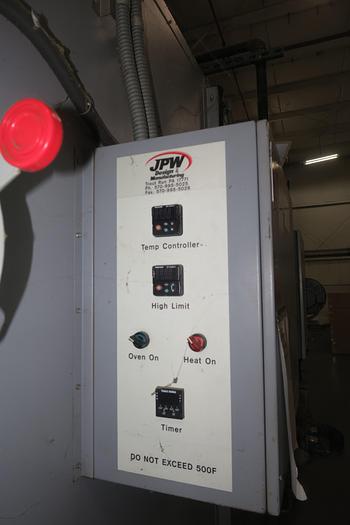

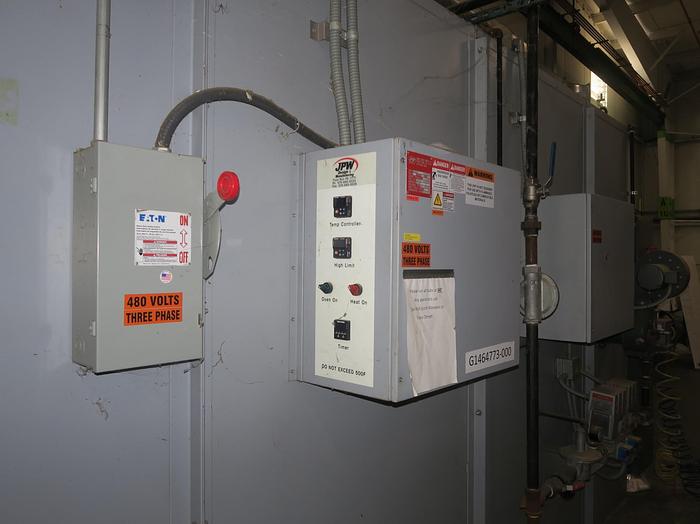

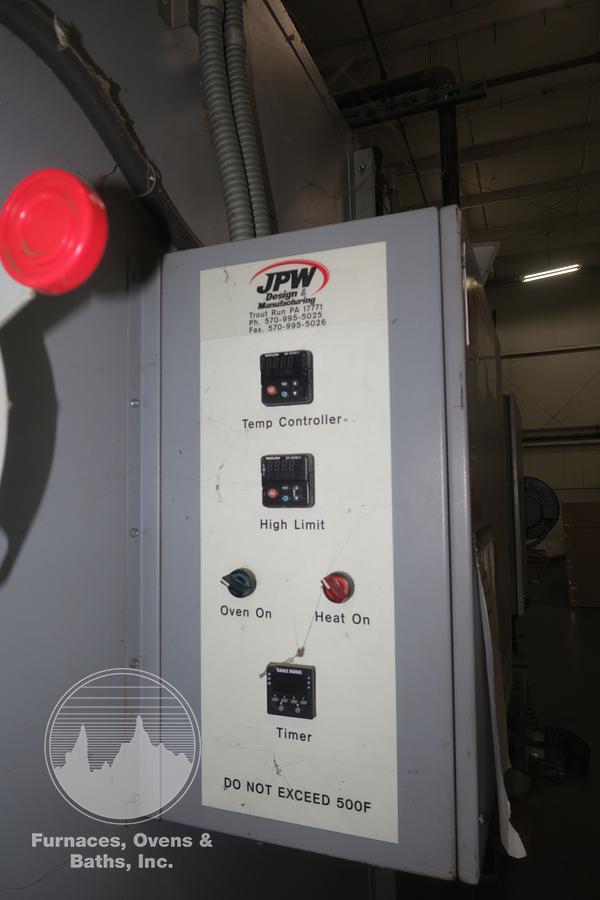

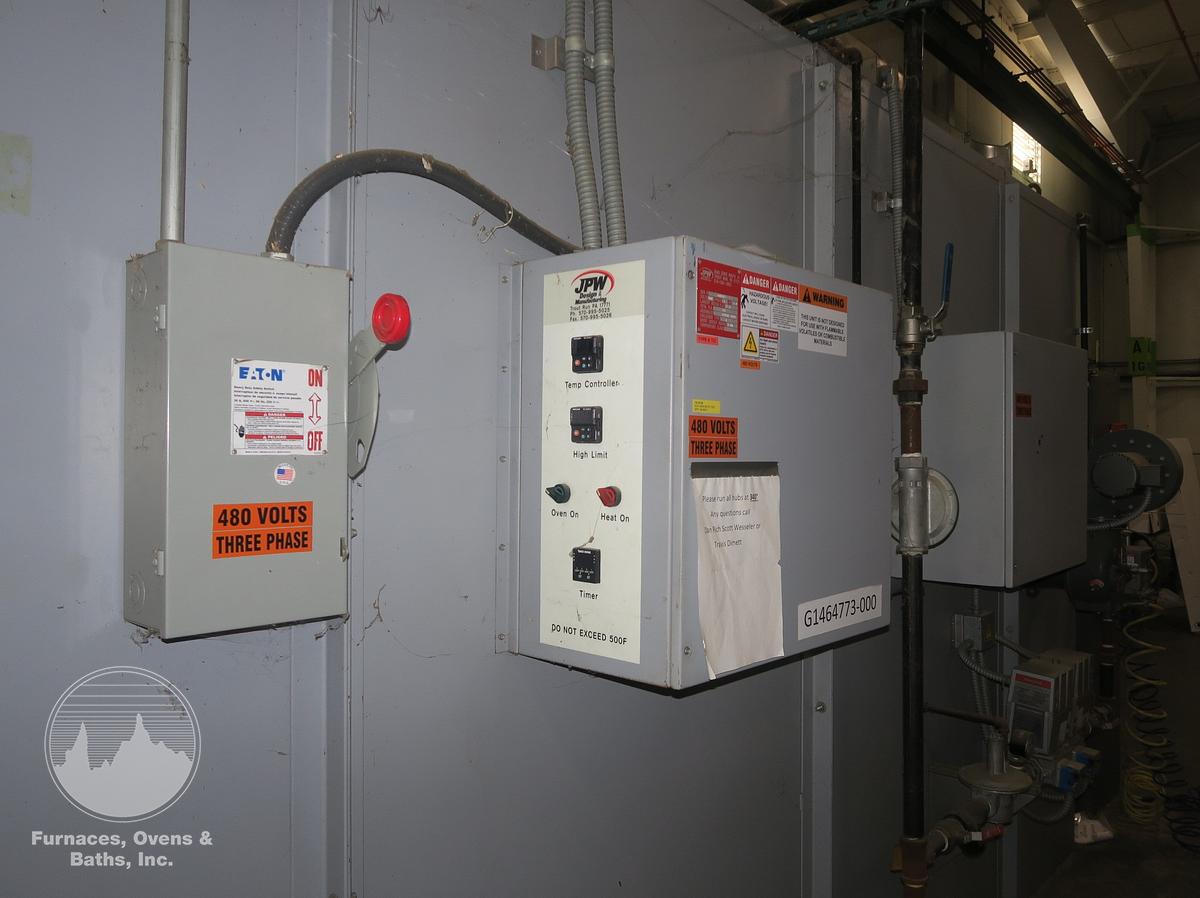

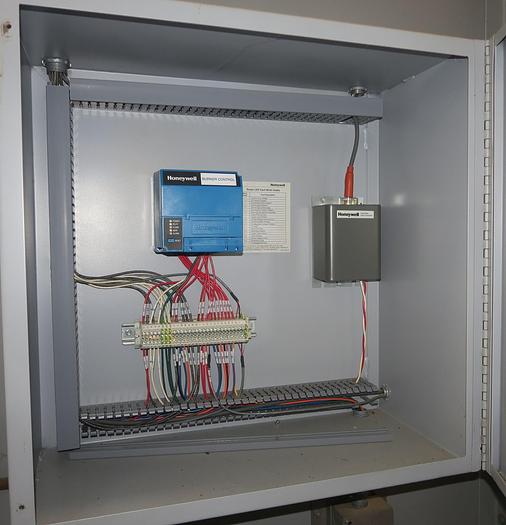

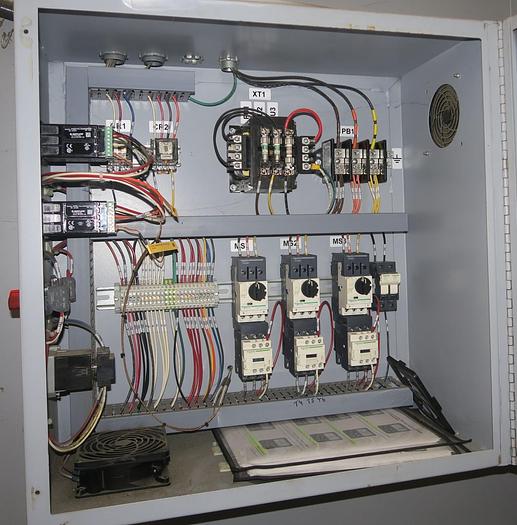

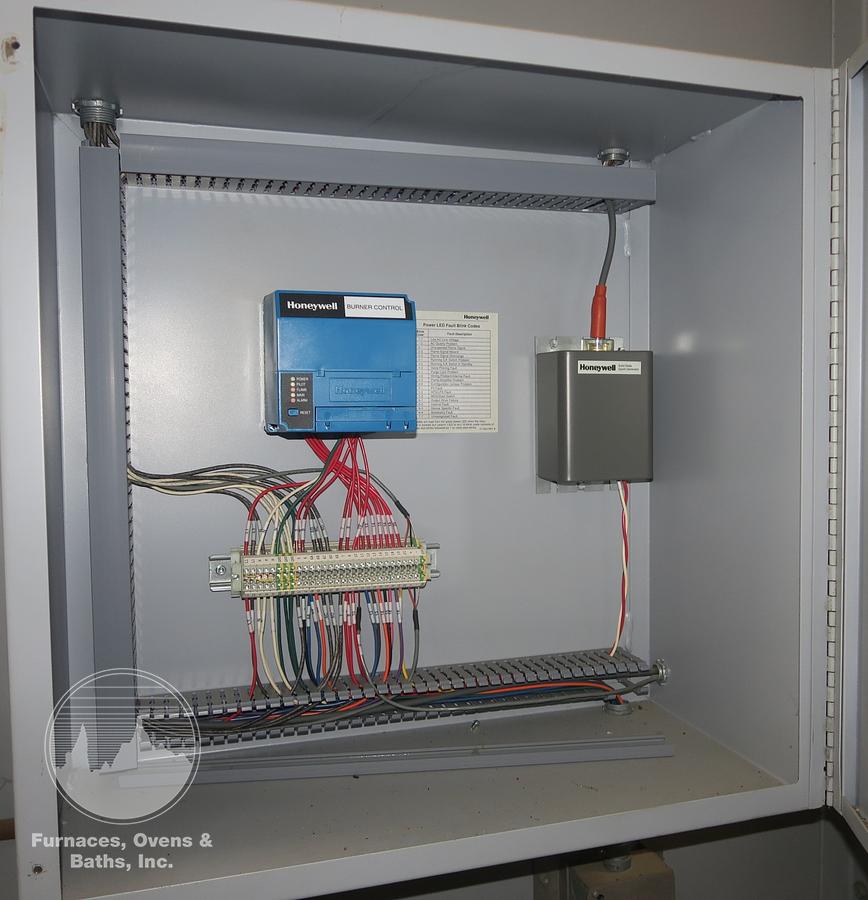

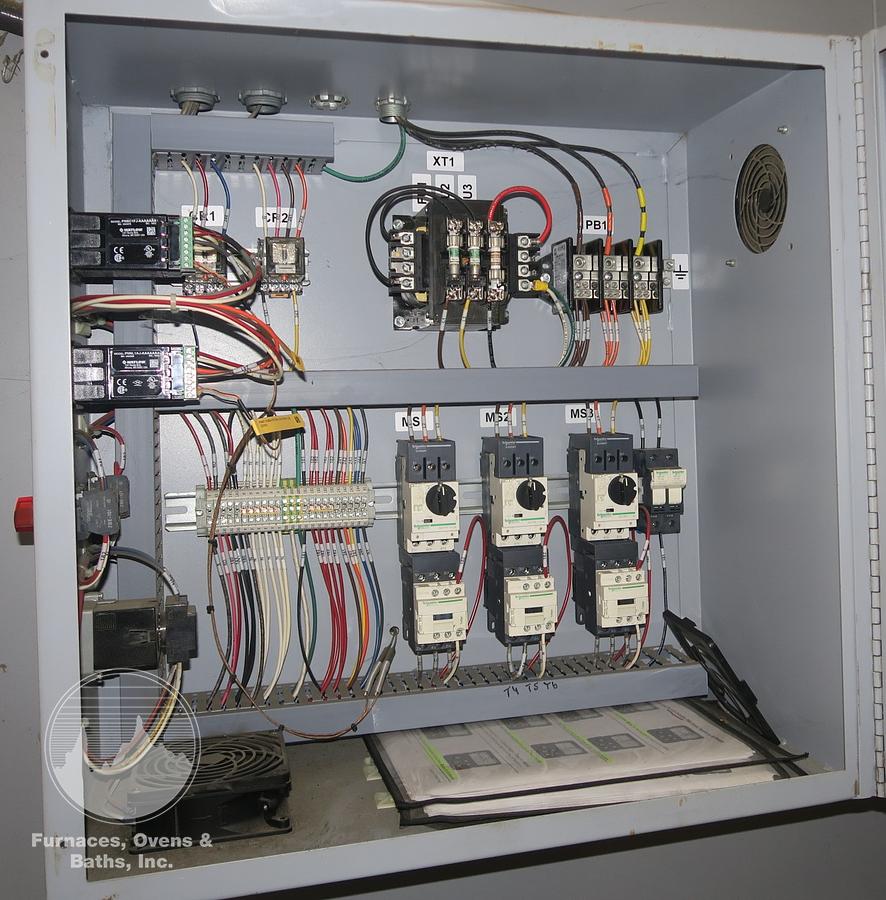

Controls are mounted and wired in a "UL" rated enclosure attached to the right-hand side of the oven. Watlow EZ-ZONE digital temperature controller and high limit with a digital Eagle Signal process timer. Control switches with indicating lights are flush mounted to the front of the enclosure. Motor starters, fuses, relays etc. are mounted inside the control cabinet. Mounted in a separate enclosure includes Honeywell flame relay and ignition transformer. A fused disconnect switch is attached to the side.

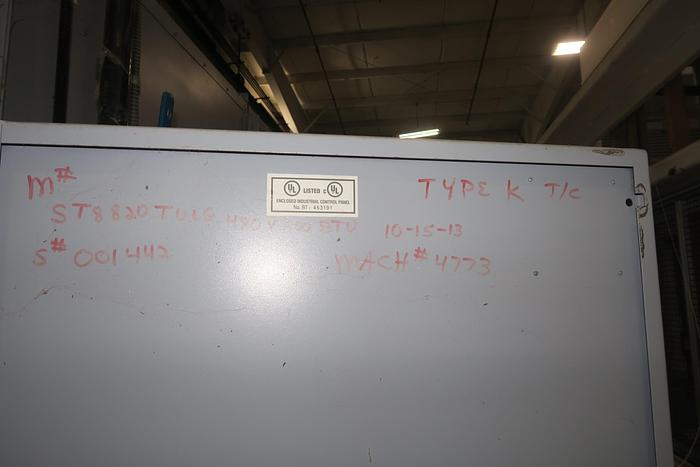

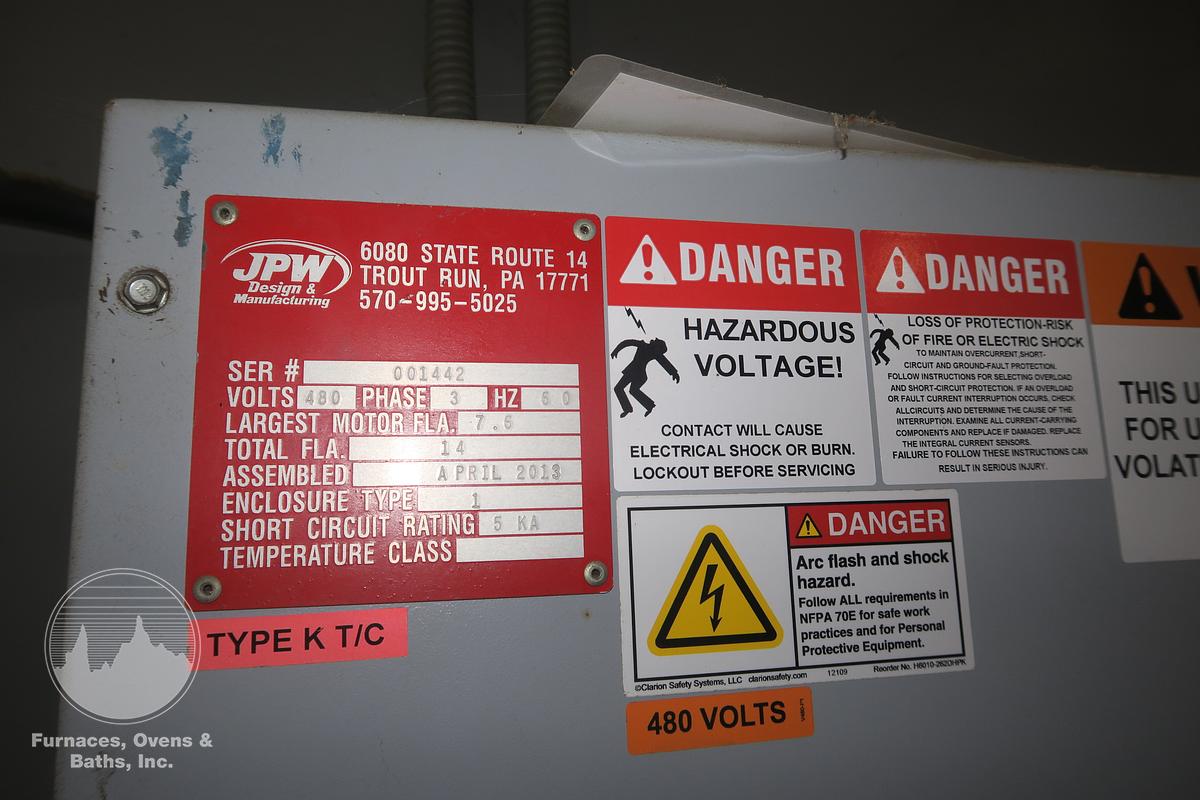

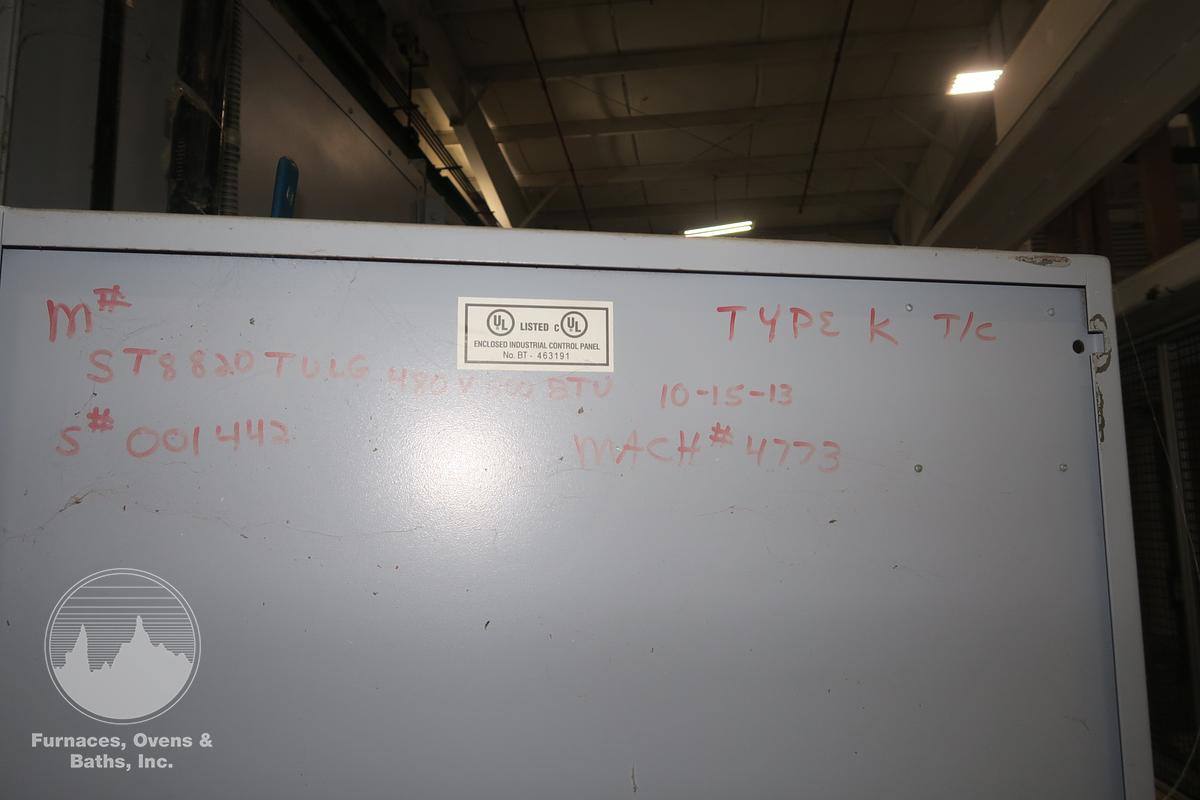

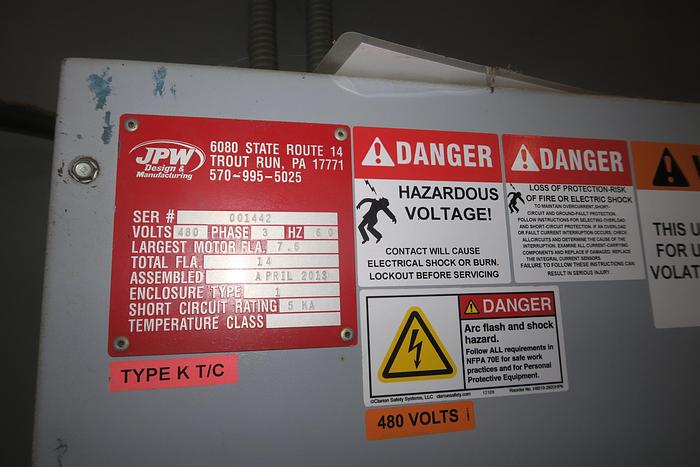

Serial Number001442
Stock Number7705
Work area96"W x 96"H x 144"L
HeatedNatural Gas - 500,000 BTU's/Hour
Max temperature500°F
Voltage480/3/60/14 FLA
External dimensions127" wide x 106" high x 194" long
