48"W x 36"H x 24"L Blue M DCW-1406-E-F4T Cabinet Oven, 350°C/662°F, Electric


48"W x 36"H x 24"L Blue M DCW-1406-E-F4T Cabinet Oven, 350°C/662°F, Electric

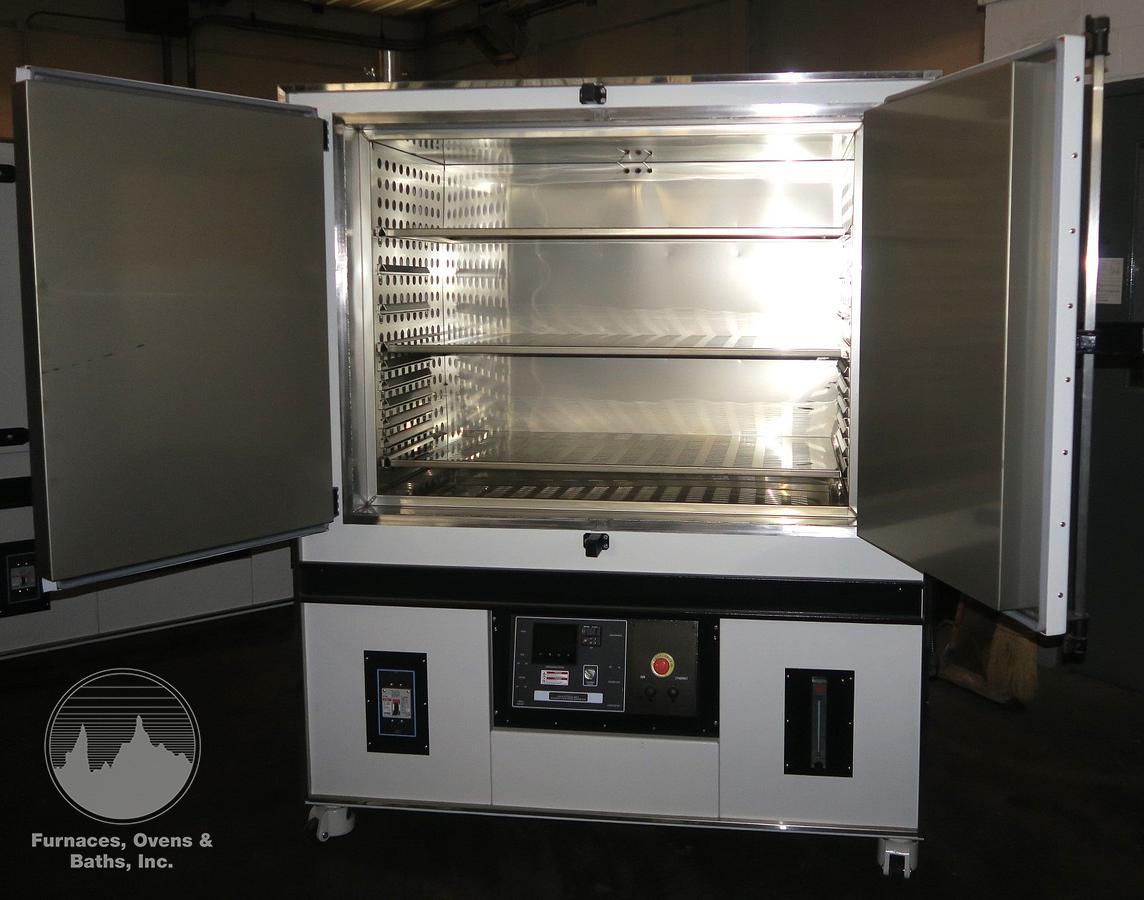

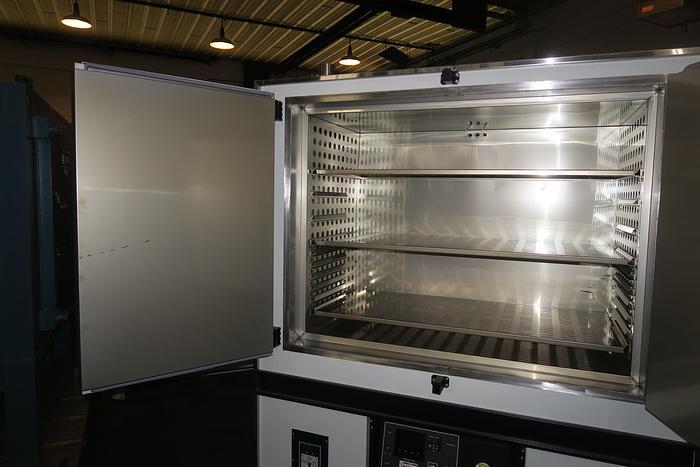

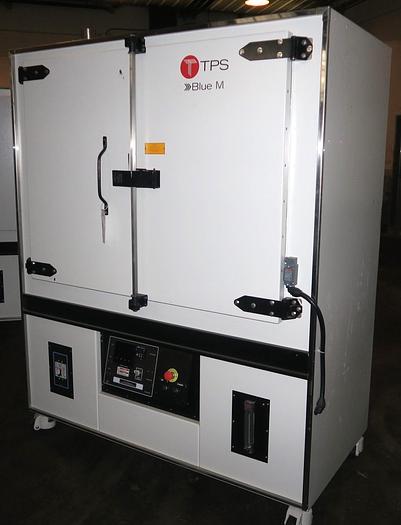

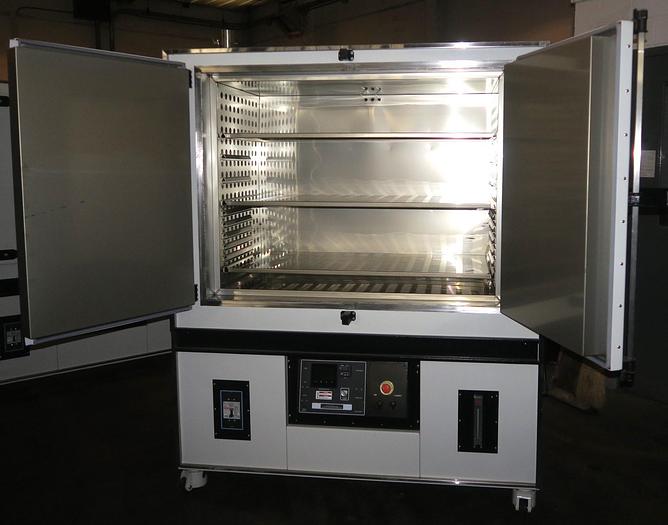

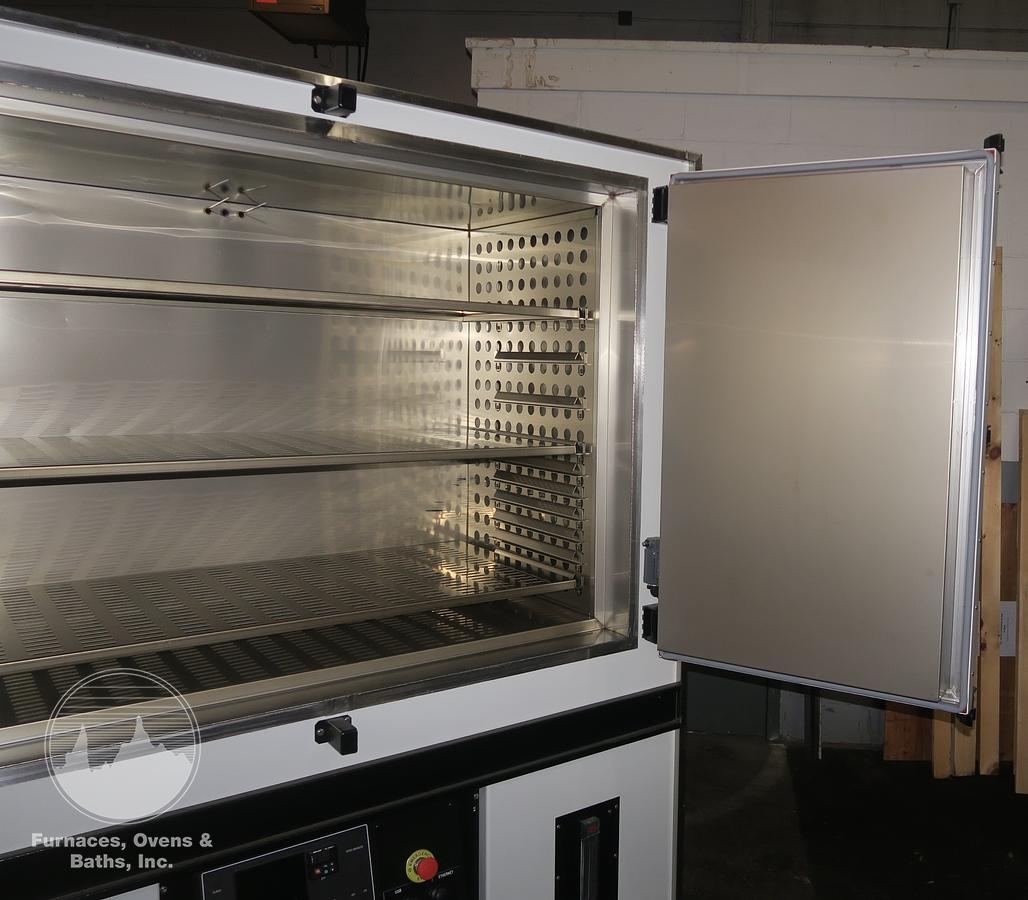

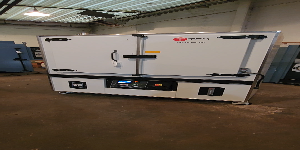

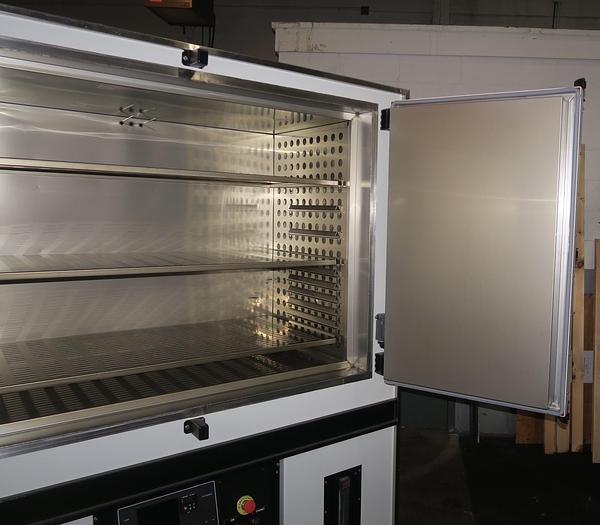

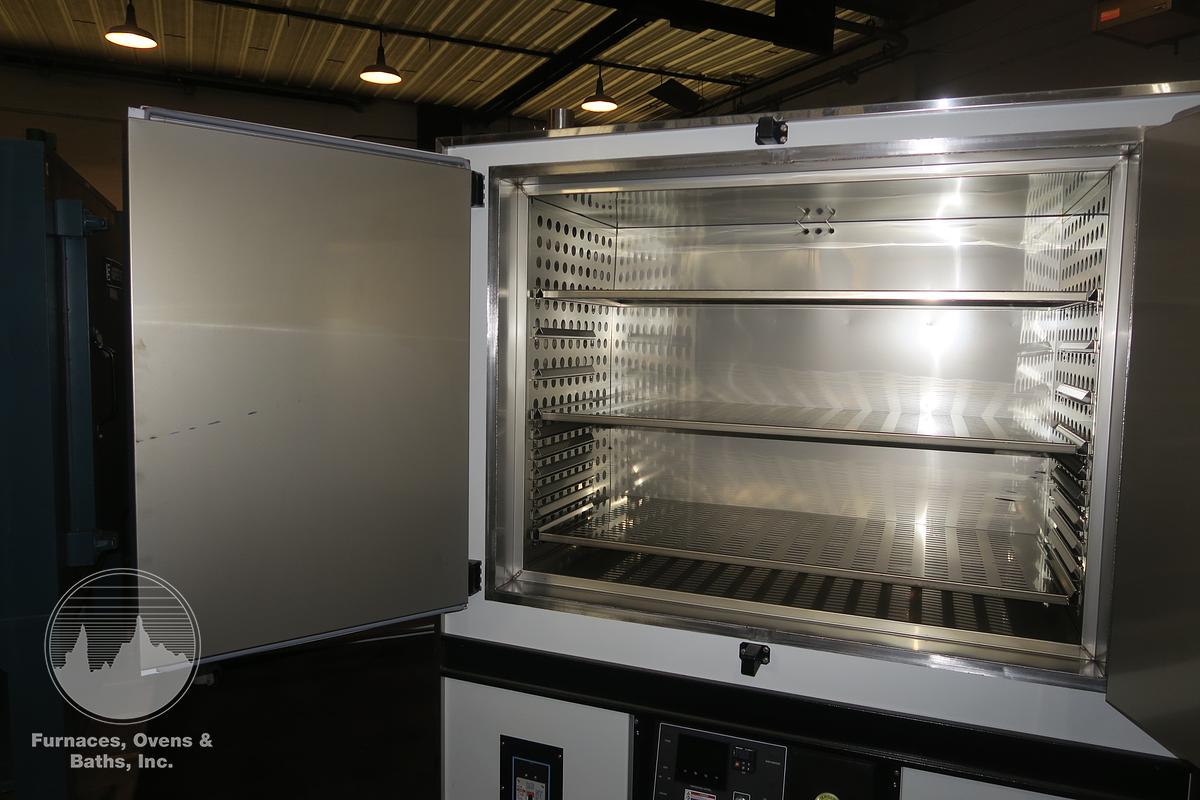

Double doors with 2-point cam action positive seal latch and silicone rubber gasket. Stainless steel interior with three (3) adjustable stainless steel shelves. Adjustable fresh air inlet is located on the left hand side of the oven. Coiled style heating elements and direct drive circulating fan are located under the floor. Heated air is circulated in a horizontal pattern across the chamber. Exhaust port is located on to top of the oven. Door limit switch cuts power to the heating elements when the door is open. Oven is mounted on casters with adjustable legs to make stationary. LIKE NEW condition. Oven is tested and ready to ship. See video. Manuals & Drawings are included with this oven.

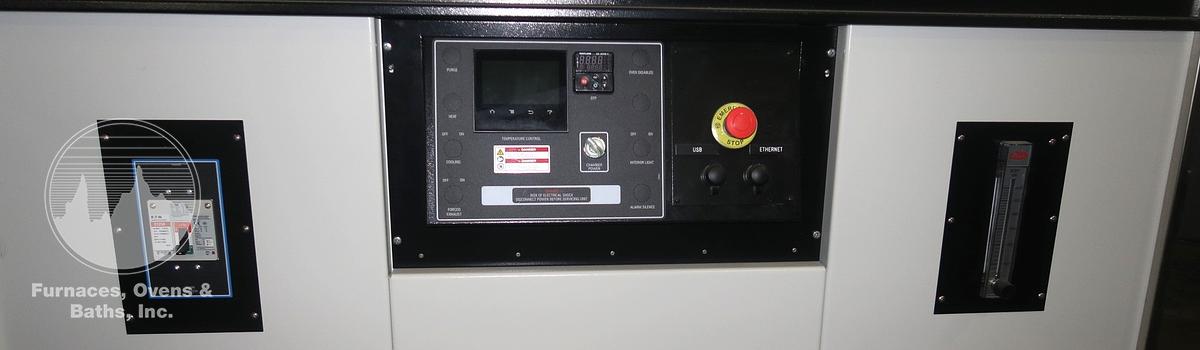

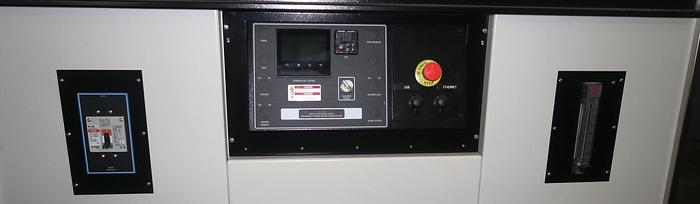

Controls are located in a "UL" rated slide out console located directly under the work chamber. A Watlow F4T (Touchscreen) digital programmable temperature controller, a Partlow EZ Zone digital high limit control and chamber power control switch with indicating light is flush mounted in the face of the console. Solid State Relays and high limit contactor. A circuit breaker disconnect switch is mounted on the front left side. Oven also includes an E-Stop switch, USB port and Ethernet port. Flowmeter for Air/N2 mounted on the front right side.


ManufacturerBlue M

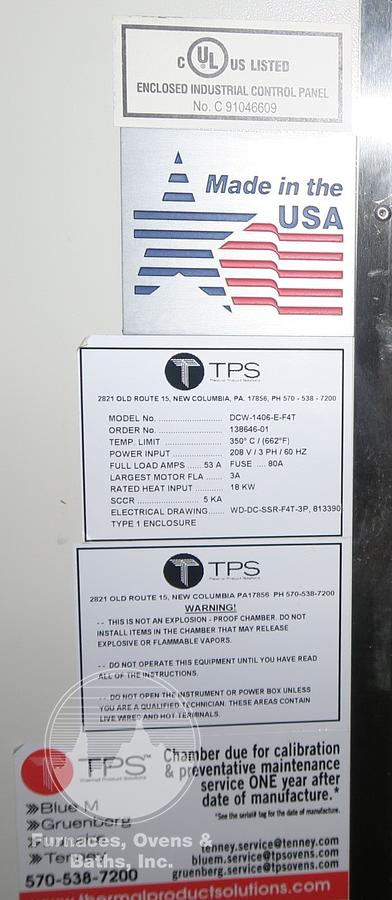

Serial Number138646-01
Stock Number7710
Work area48"W x 36"H x 24"L
Max temperature350°C / 662°F

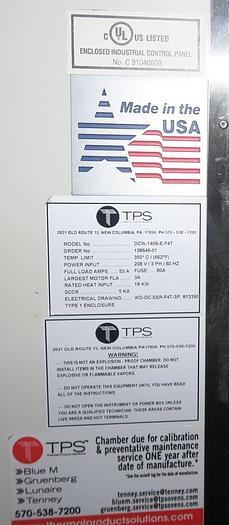

Voltage208/3/60/18 kW/53 FLA
External dimensions68" wide x 82" high x 40" long
