Midbrook Products 18"W Four Stage Stainless Steel Belt Washer
Sold
Midbrook Products 18"W Four Stage Stainless Steel Belt Washer
Description

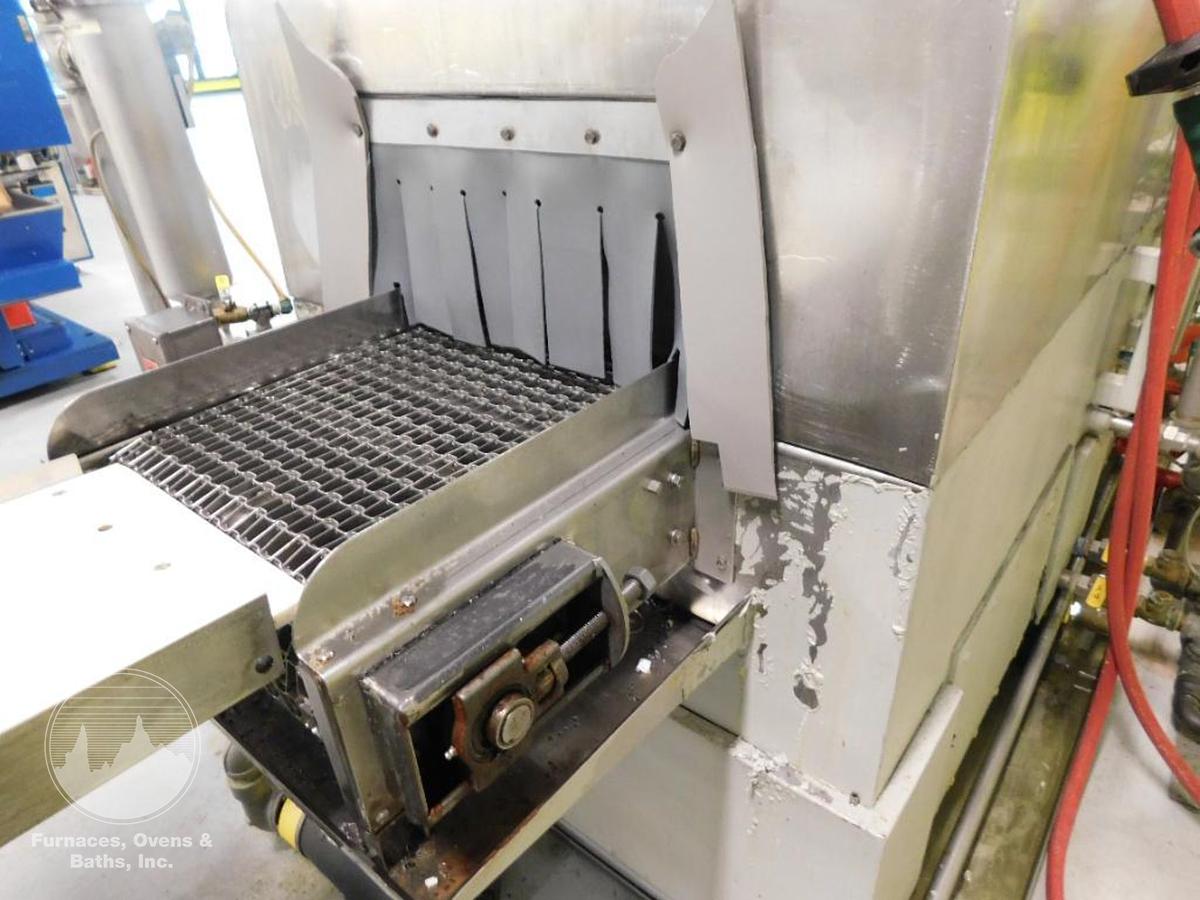

Midbrook Products electrically heated four (4) stage stainless steel belt washer. Part envelope is 18" wide x 12" high. Conveyor belt consists of a flat wire mesh which has 1/2" x 1" openings. Conveyor belt is driven by a 1/2 HP variable speed drive. Washer sequence is as follows: 18" long load end x 48" long heated wash section x 48" long heated rinse section x 24" long blow-off x 72" long dry off. See included drawings below for additional specifications.

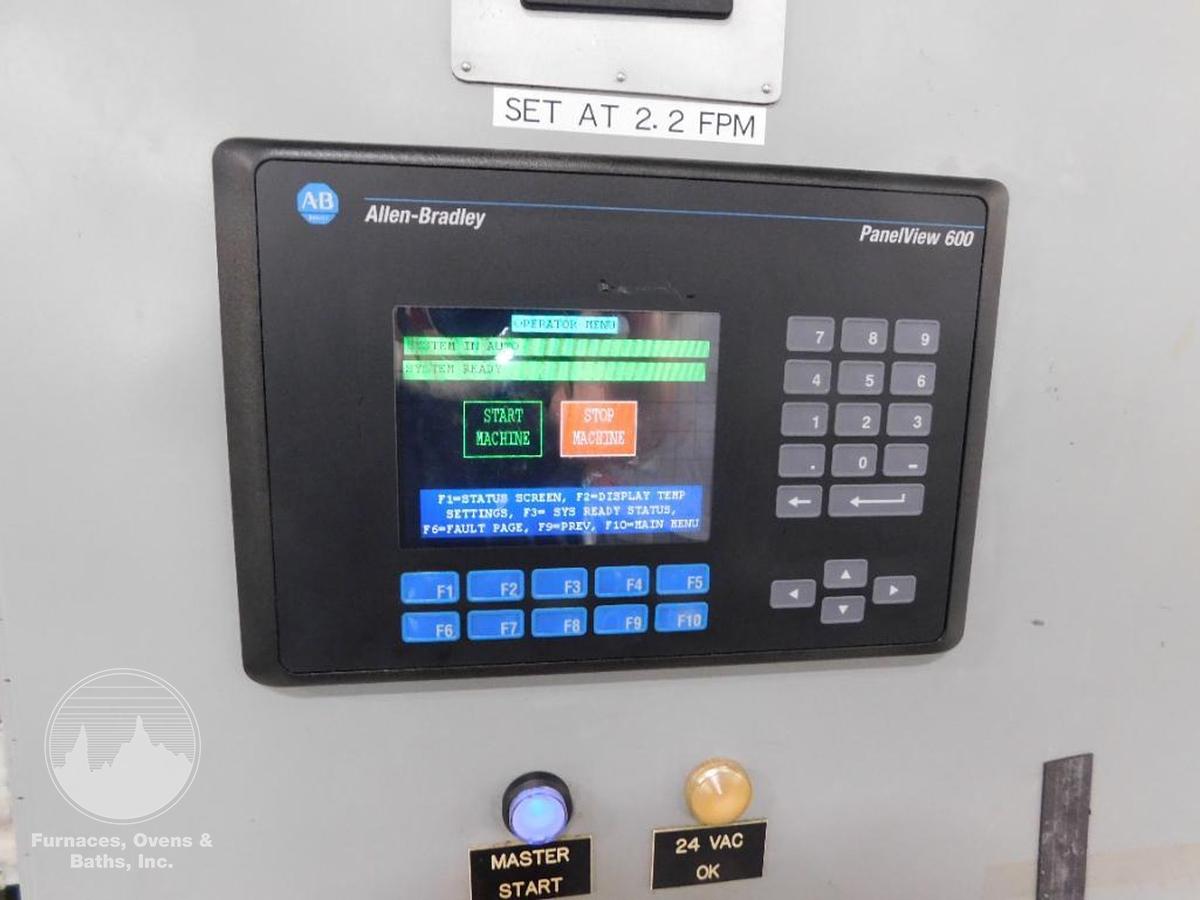

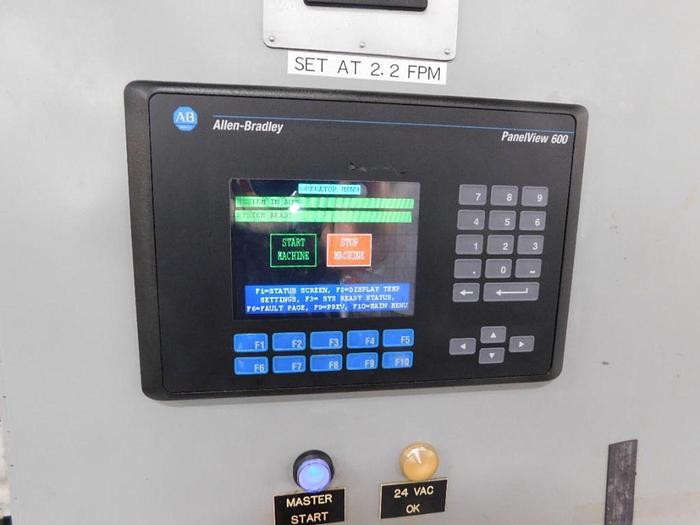

NEMA 12 enclosure with fused disconnect attached to the side of the washer. Controls consists of an Allen Bradley PLC w/HMI touchscreen interface.
Specifications
| Manufacturer | Midbrook Products |
| Model | 5018B - Wash/Rinse/Blow-Off/Dry |
| Condition | Used |
| Serial Number | BM-18-0043 (Drawing Number) |
| Stock Number | 7711 |
| Work area | 18"W x 12"H Opening |
| Heated | Electric |
| Max temperature | 180°F |
| Voltage | 480/3/60 |
| External dimensions | 72" wide x 96" high x 228" long (19') |
| Availability | Immediate |
