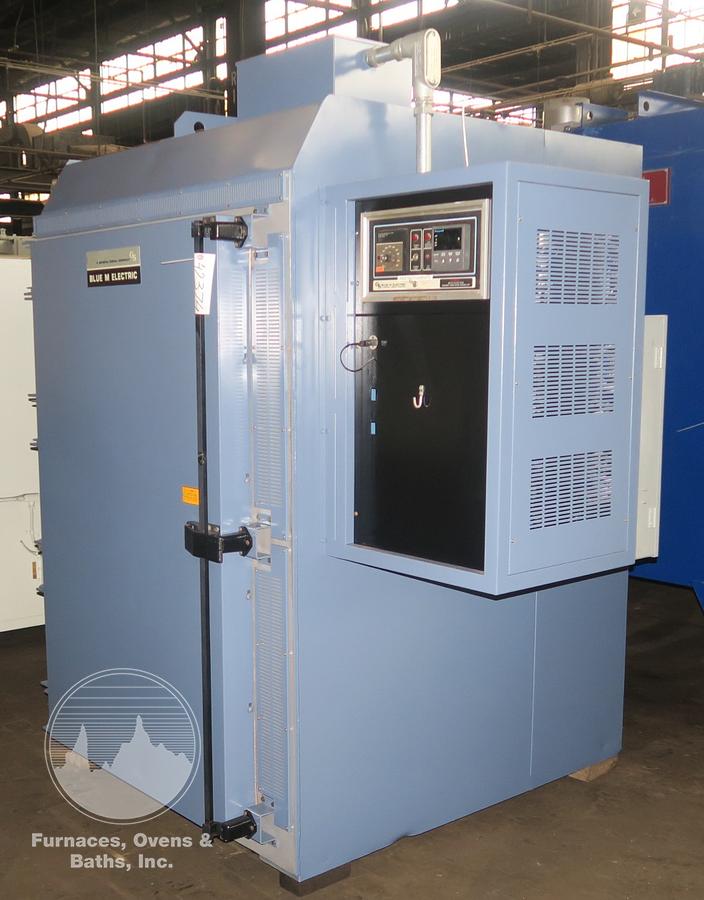

36"W x 60"H x 48"L Blue M Batch/Cabinet Oven, 750°F, Electric


36"W x 60"H x 48"L Blue M Batch/Cabinet Oven, 750°F, Electric

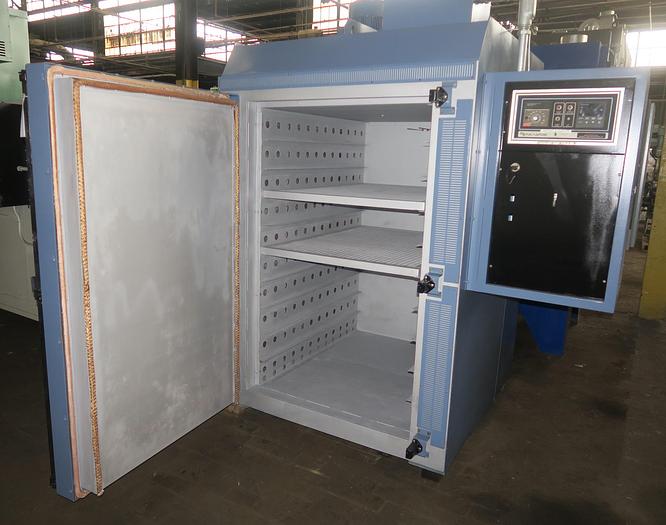

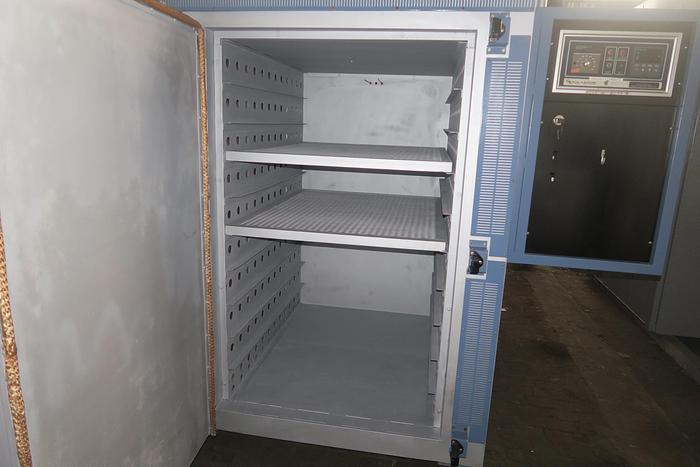

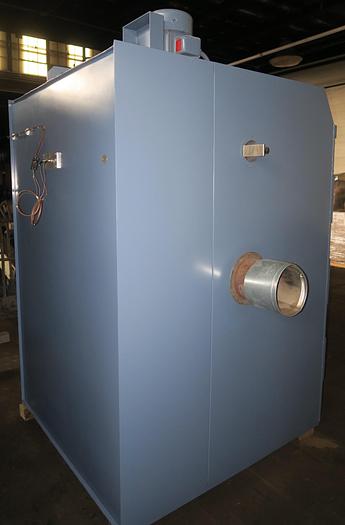

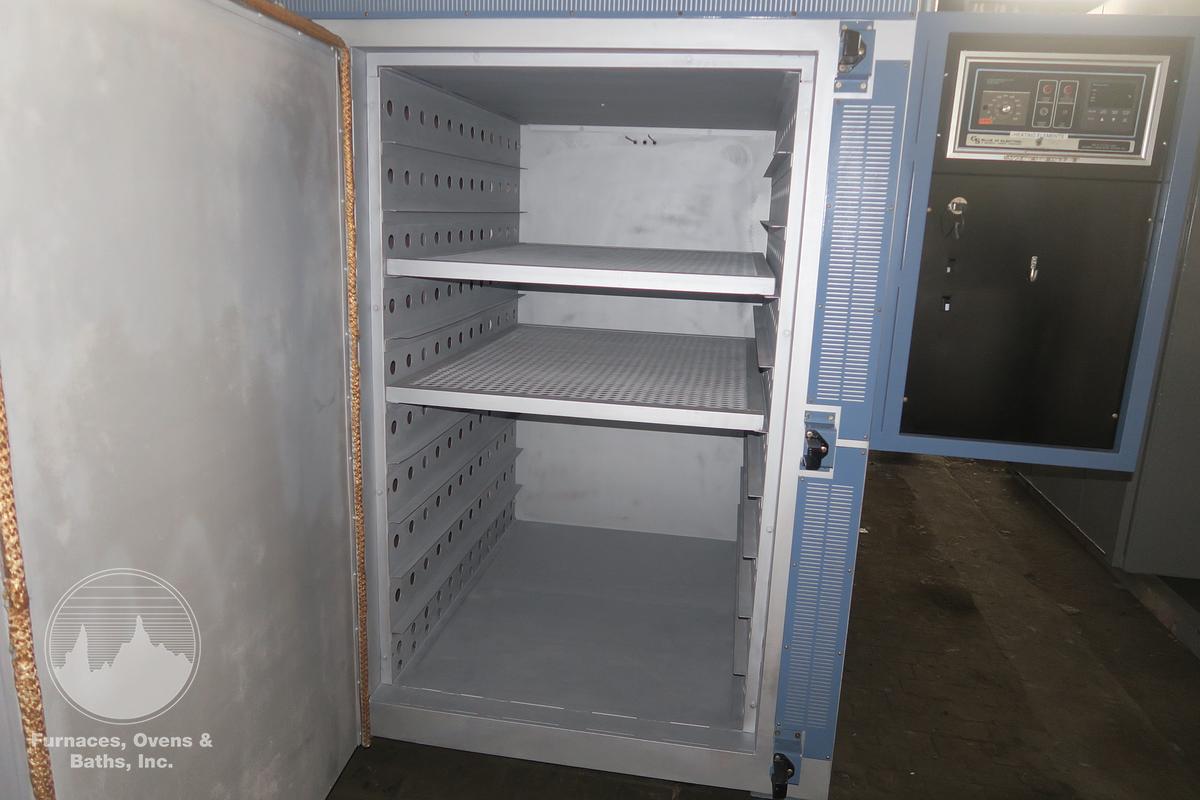

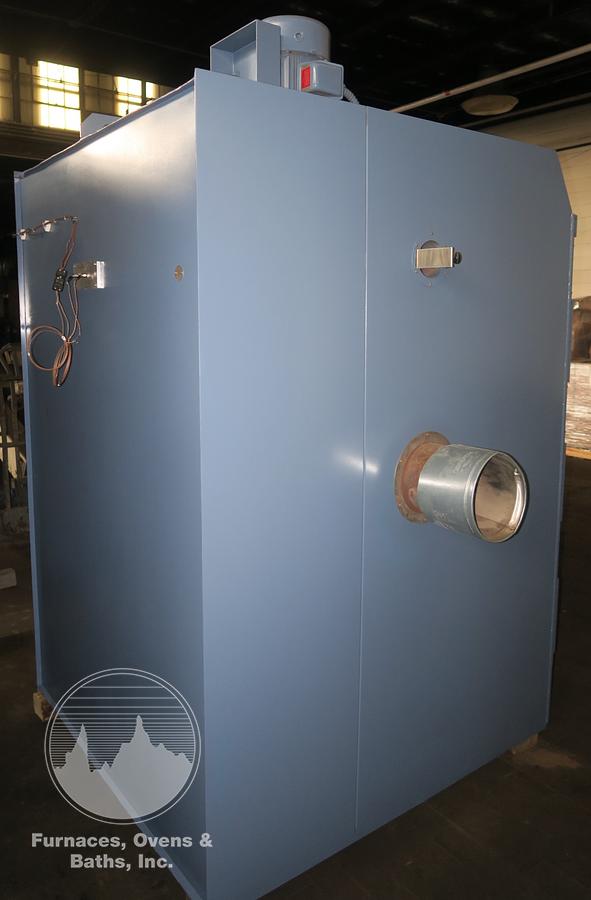

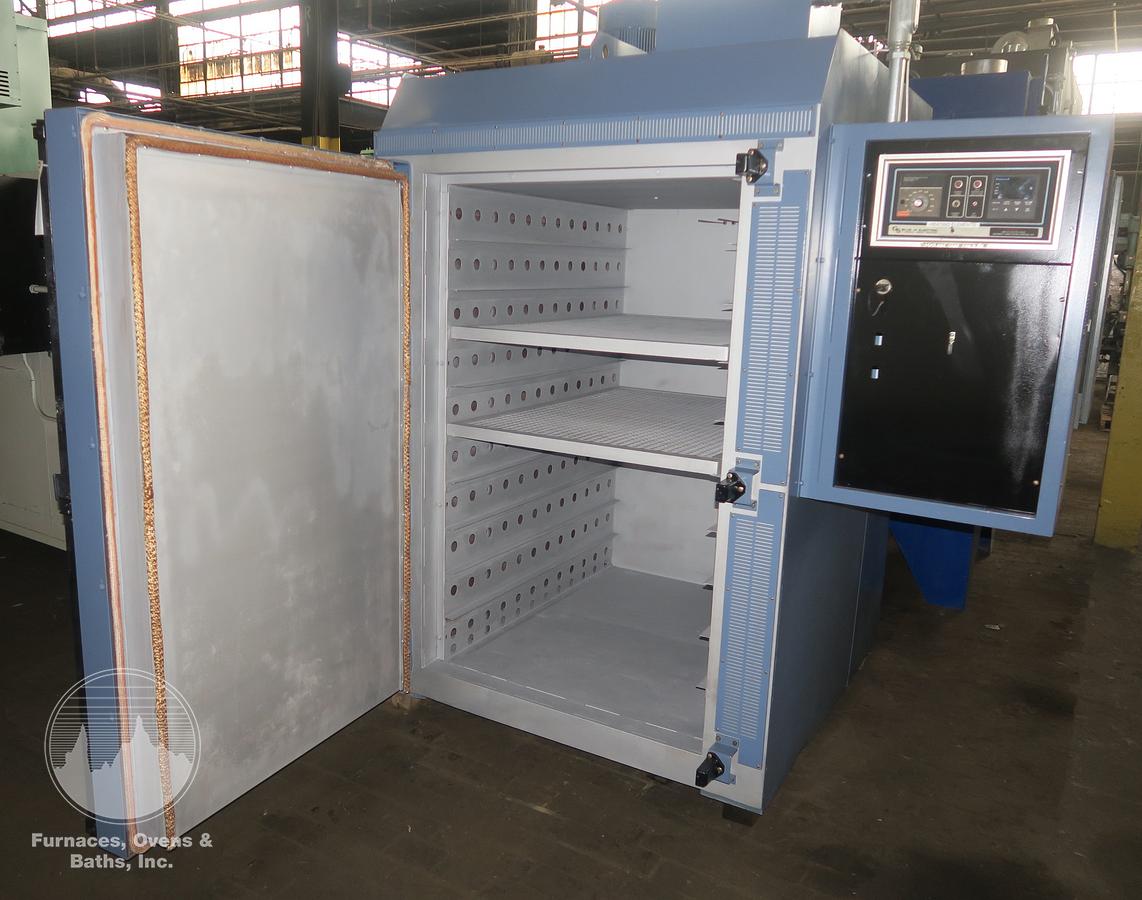

Single door with a high temperature ceramic fiber gasketing. Door has a positive seal 3-point cam action latch. Aluminized steel interior with two (2) shelves, this oven will accept nine (9) shelves. Shelves are on 6" centers. Direct driven circulating fan and coiled style heating elements are located above the work chamber. Heated air is circulated in a horizontal air flow pattern across the chamber for good uniform heating. An adjustable fresh air inlet and an exhaust vent with adjustable damper are located on the left-hand side. Oven will be tested prior to shipping.

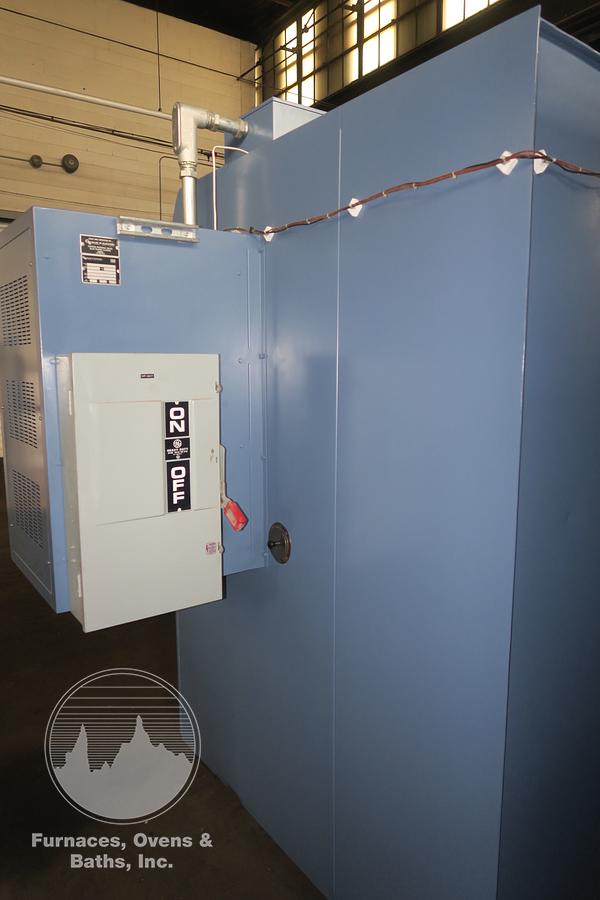

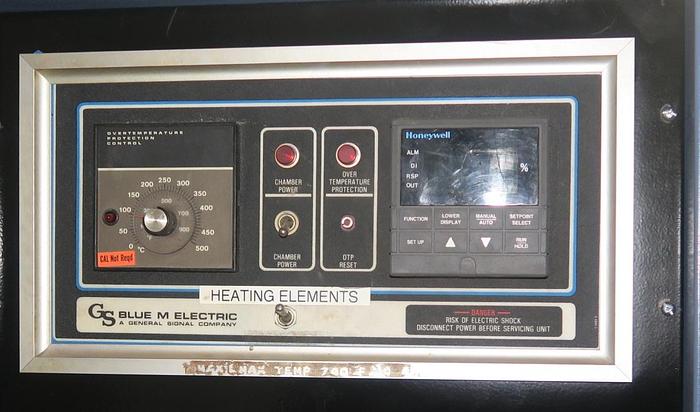

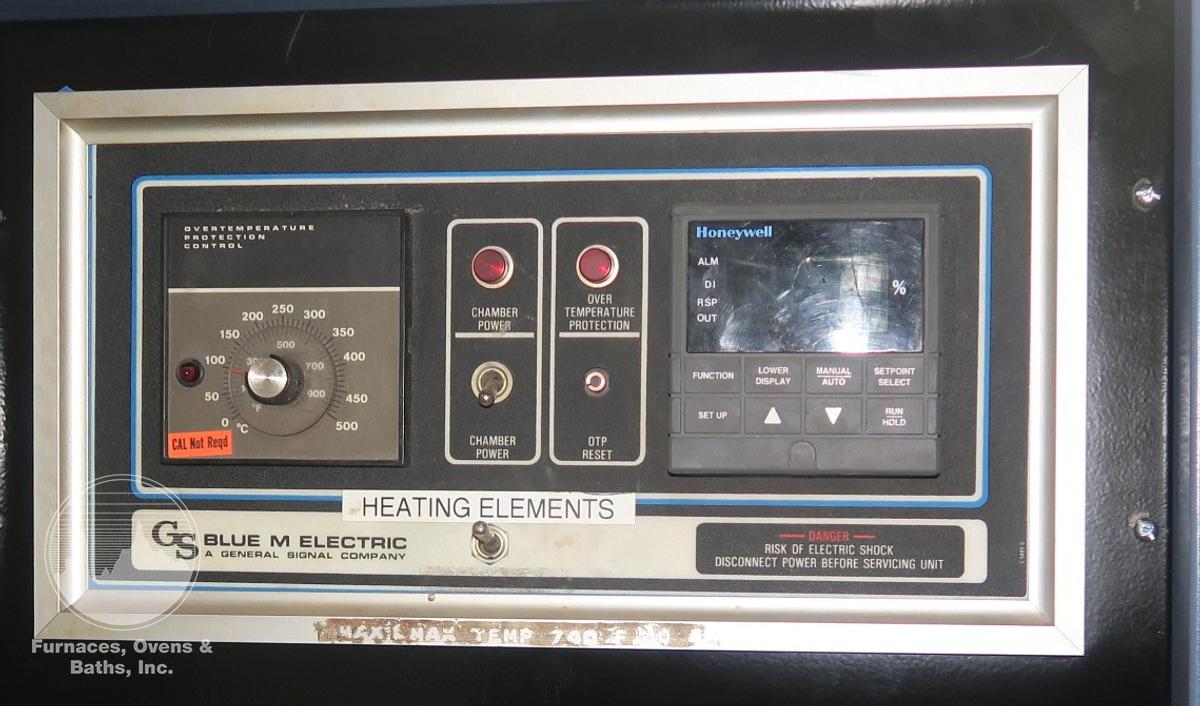

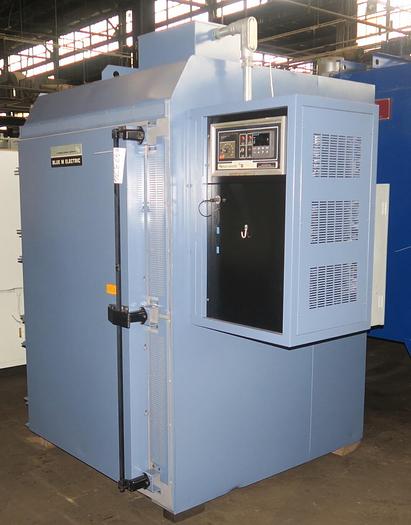

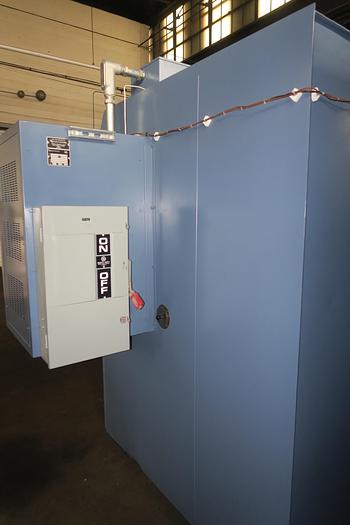

Controls are located in a small enclosure attached to the right-hand side. Digital temperature controller and Partlow Series 1000 analog high limit along with control switches are flush mounted in the enclosure. Solid state relays, high limit contactor, motor starter, fuses, relays etc. are mounted inside the enclosure. Fused disconnect mounted on the rear of enclosure.


ManufacturerBlue M

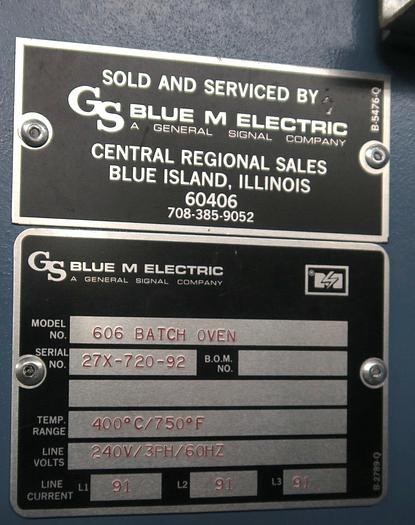

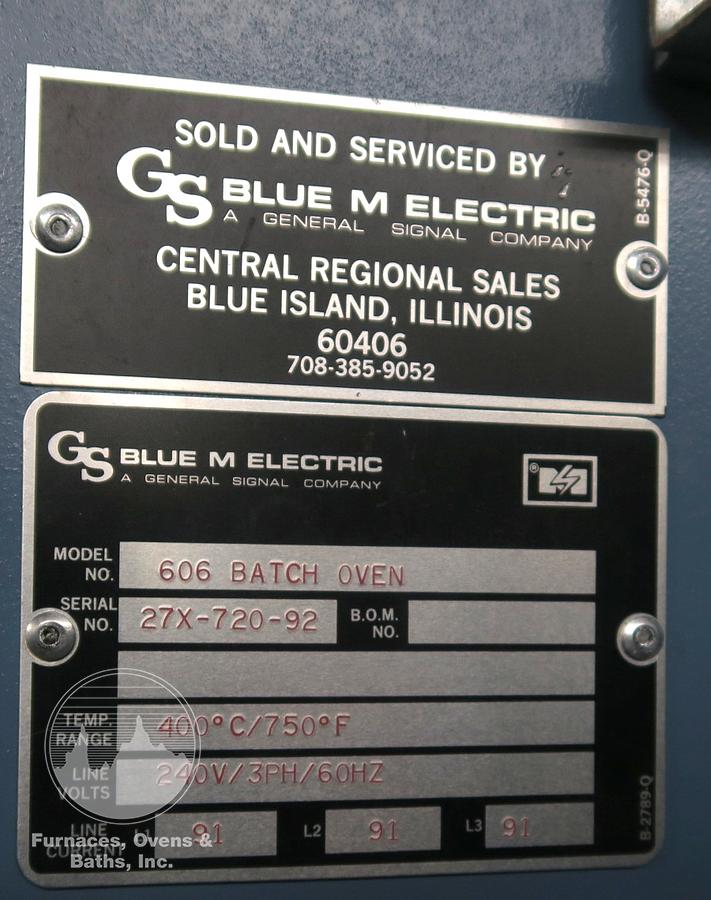

Serial Number27X-720-92
Stock Number7715
Work area36"W x 60"H x 48"L
Max temperature750°F
Voltage240/3/60/91 Amps
External dimensions78"W x 64"L x 90"H
