50"W x 54"H x 30"L Grieve SA-400, Electric, 400-F

50"W x 54"H x 30"L Grieve SA-400, Electric, 400-F

Contact us for price

orCall 248-343-1421

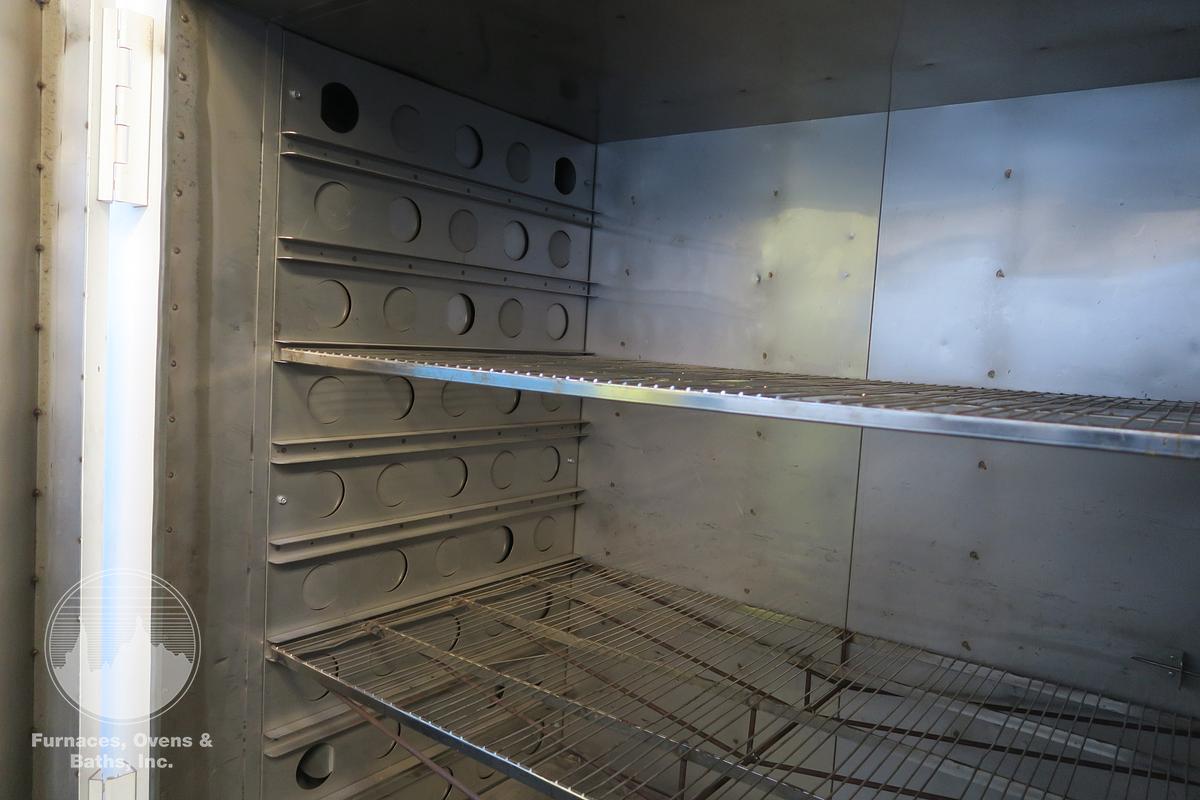

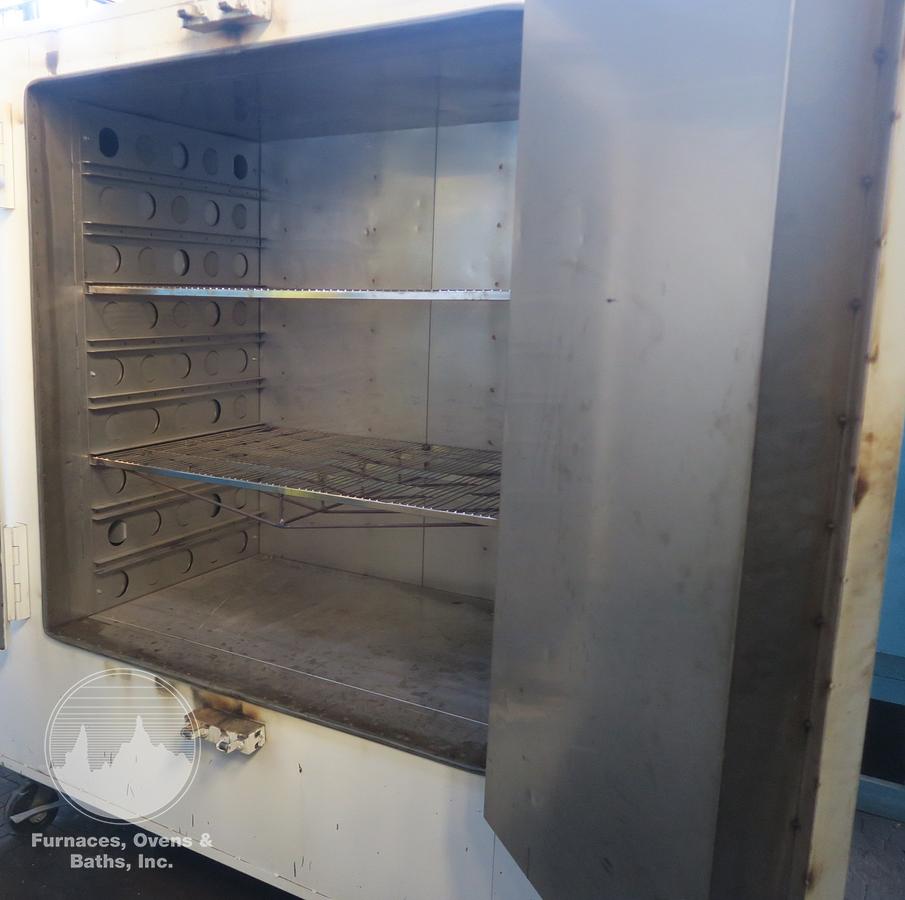

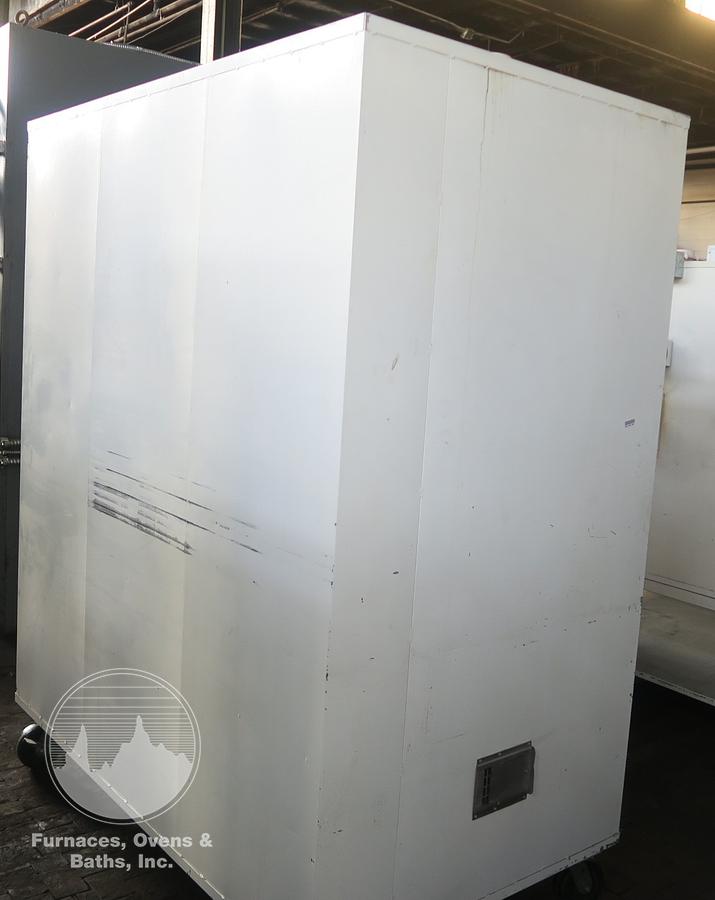

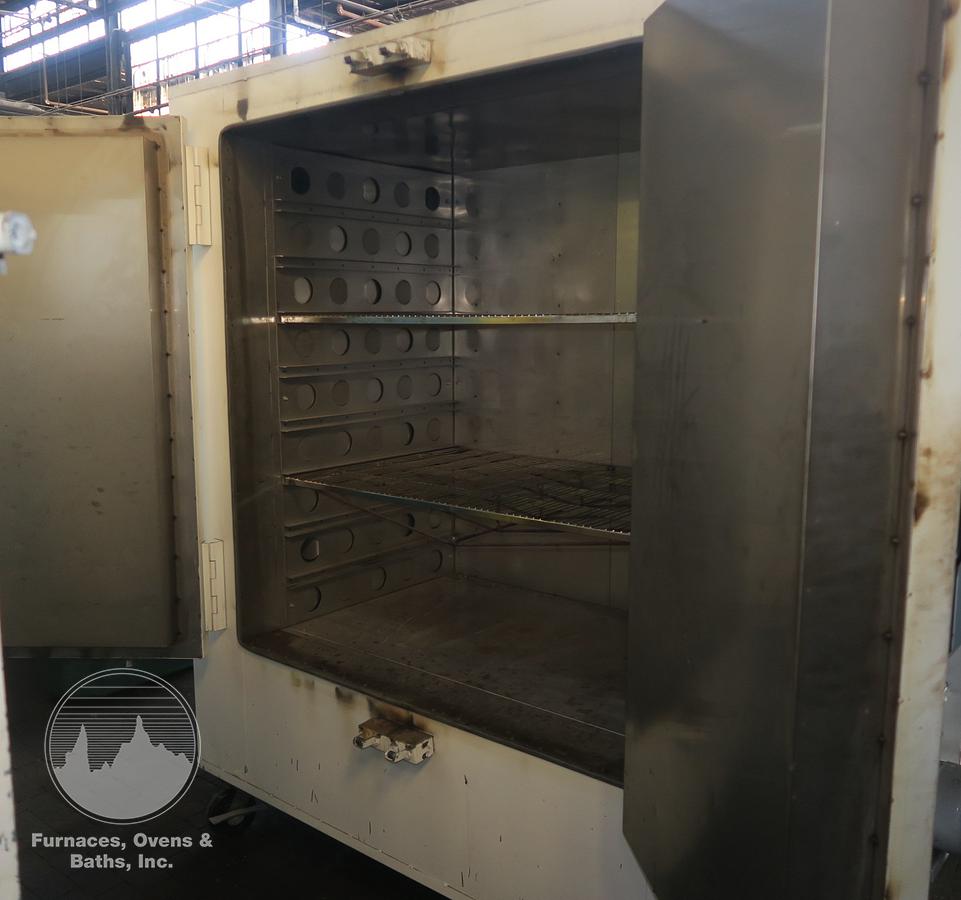

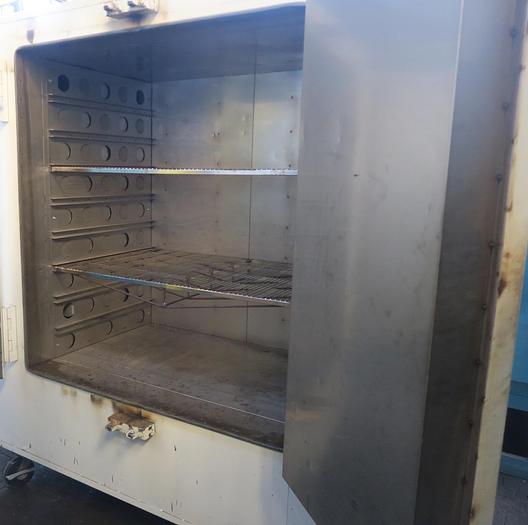

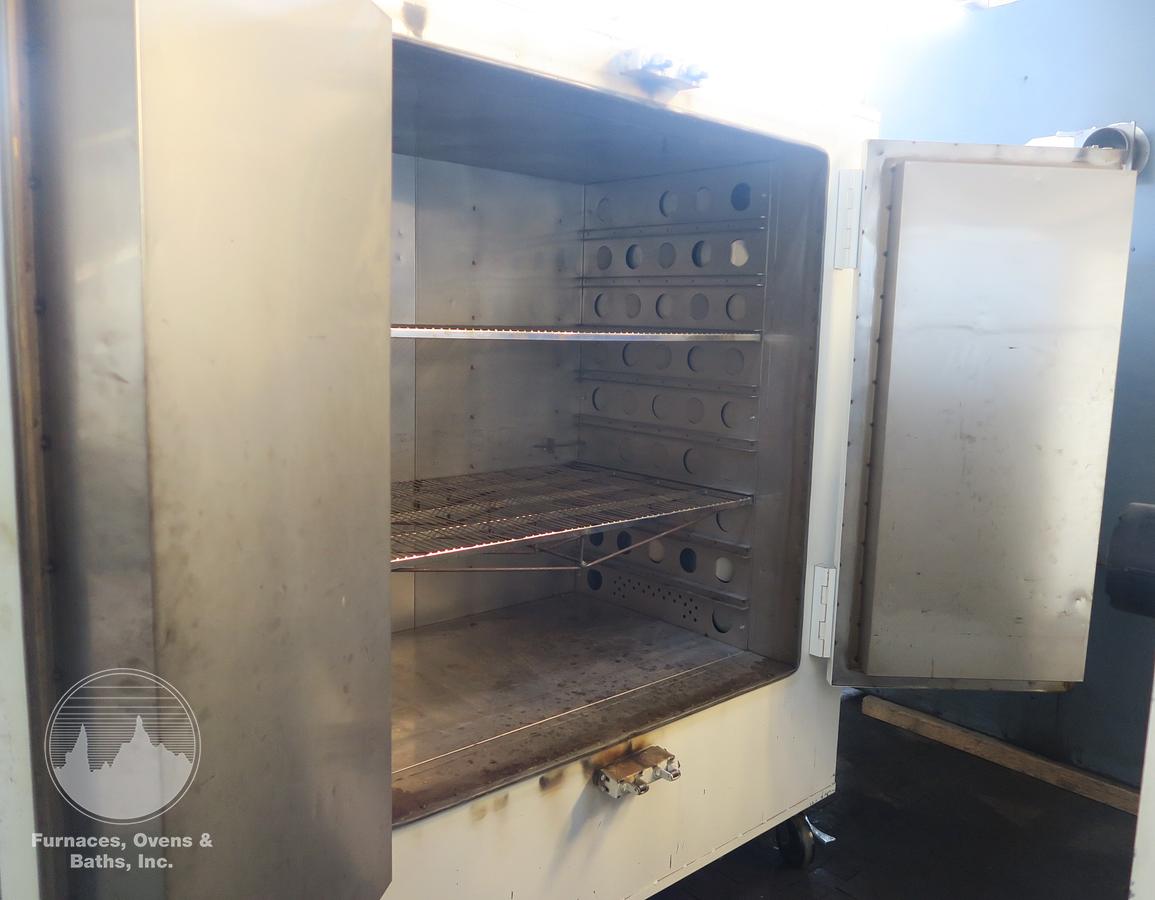

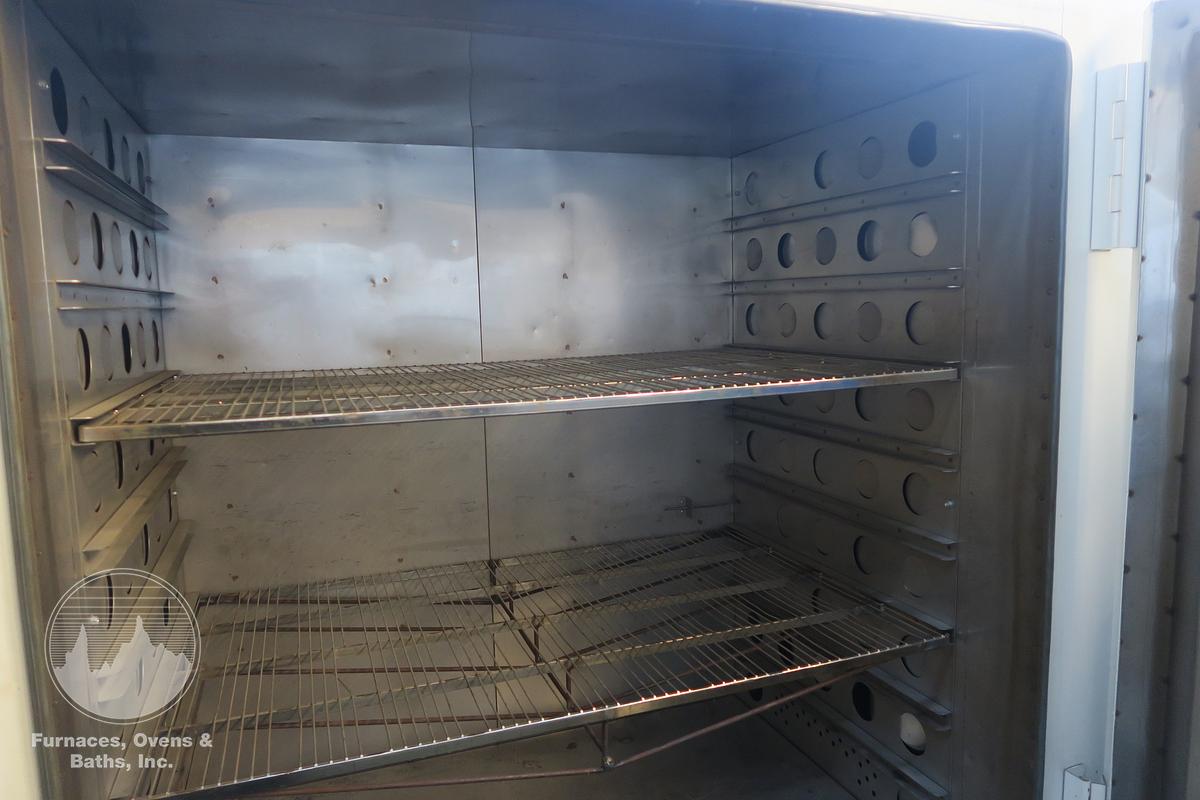

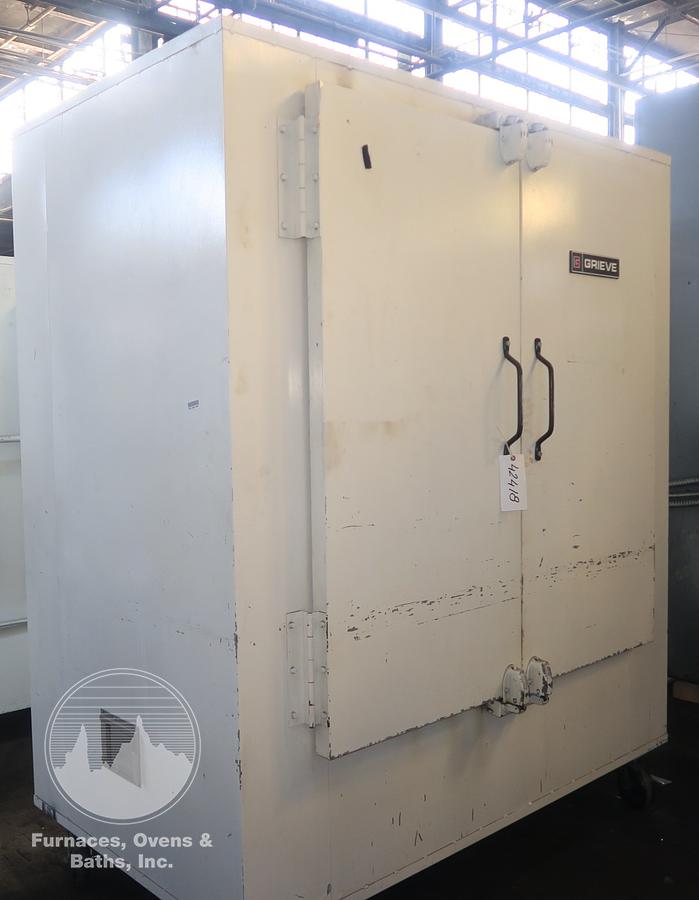

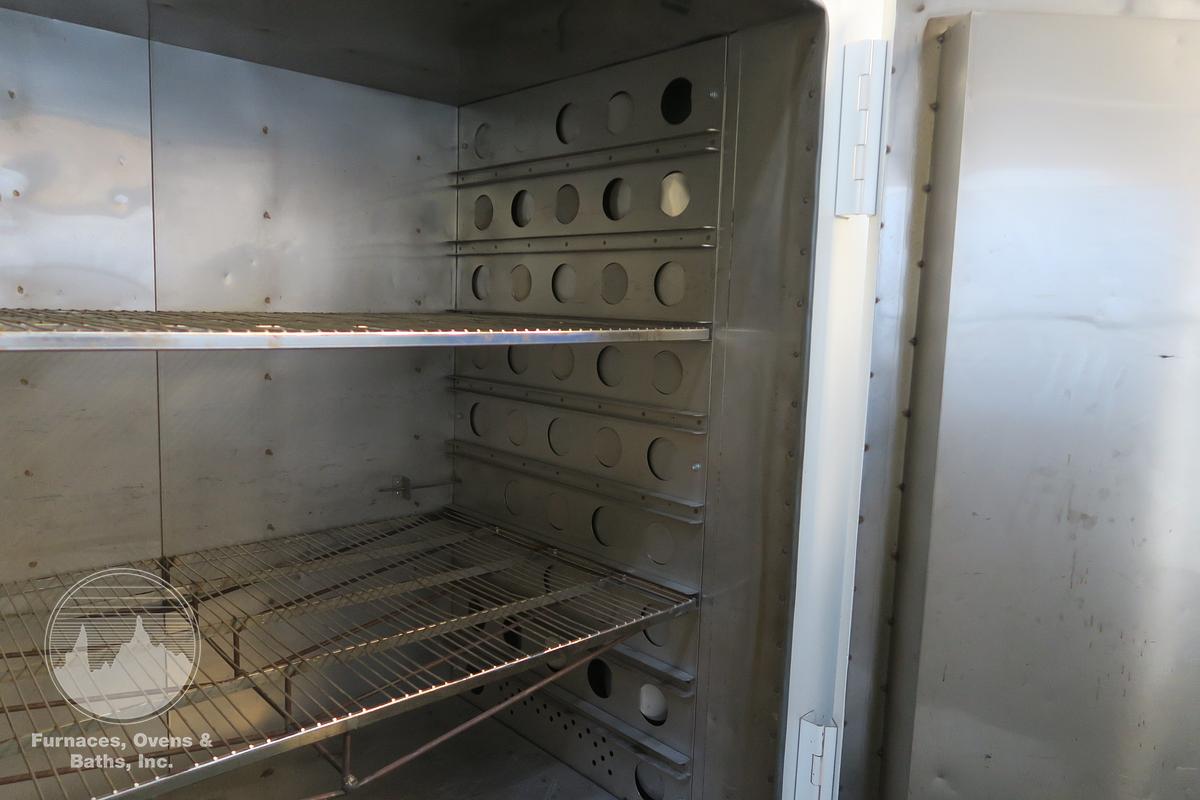

Double doors with silicone rubber gasket and Brixon spring tension latches for a good door seal. Stainless steel interior with punched louvers and 8 shelf brackets on 6" centers, 2 shelves are supplied with this oven. Direct driven 1 HP circulating fan along with heating elements are mounted through the right-hand side wall under the work area. Heated air is circulated in a horizontal pattern across the work load for good uniform heating. An adjustable fresh air inlet is located on the left-hand side. Exhaust port mounted on top. This oven is mounted on casters. Oven is tested and ready to ship.

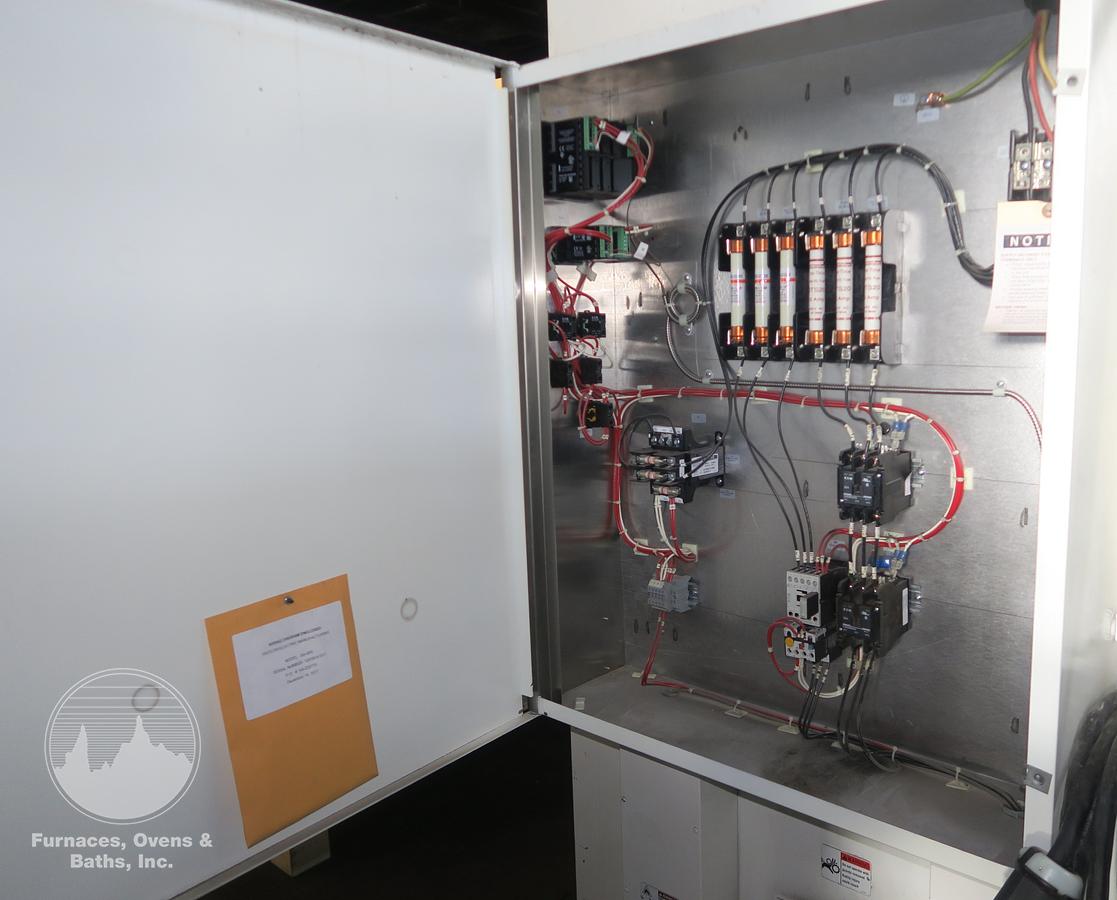

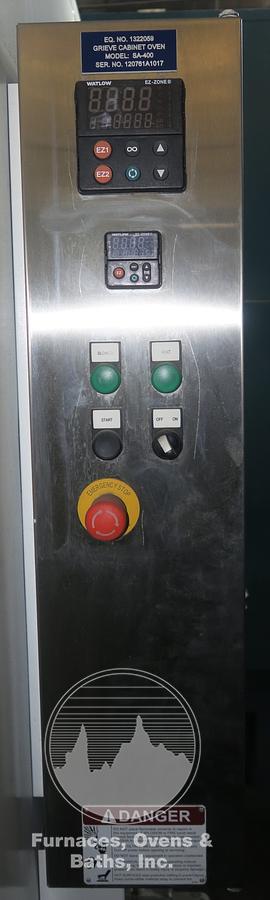

Controls are located in a "UL" rated enclosure attached to the right-hand side. Watlow EZ-ZONE digital temperature controller and Watlow EZ-ZONE digital high limit. Control switches, indicating lights and E-Stop are flush mounted to the face of the enclosure. Motor starters, contactors, fuses, relays, etc. are mounted inside the enclosure.

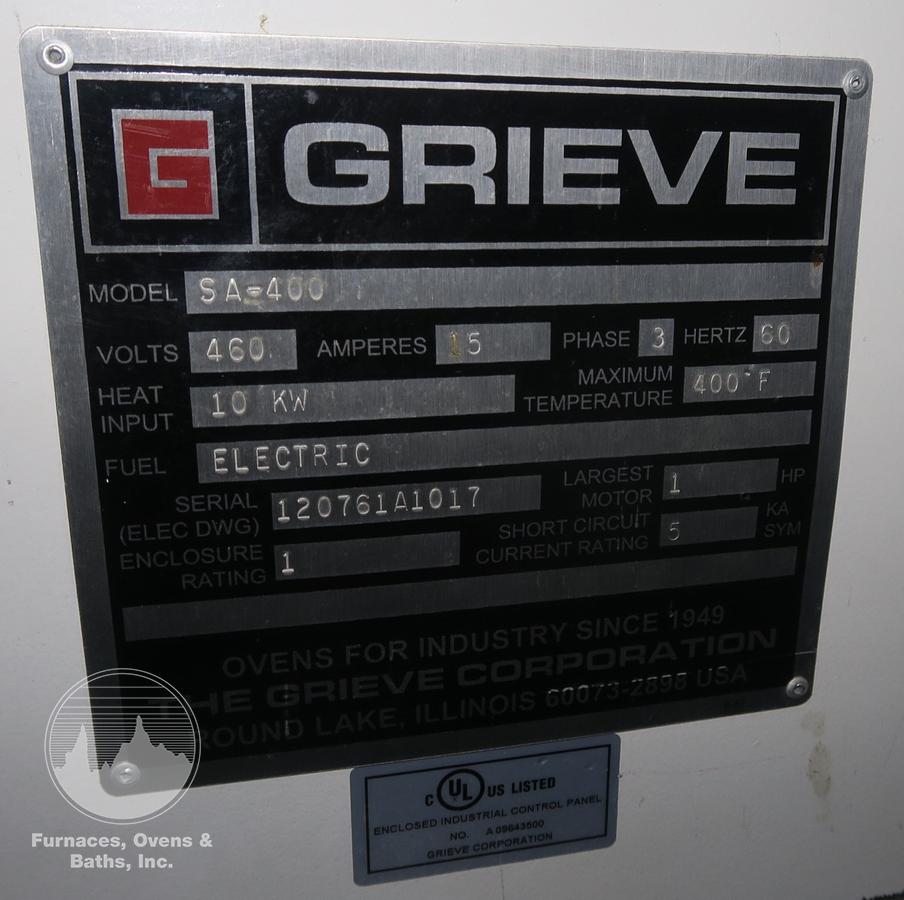

Serial Number120761A1017
Stock Number7729
Work area50"W x 54"H x 30"L
Max temperature400°F
Voltage460/3/60/15 Amps/10 kW
External dimensions80" wide x 90" high x 47" long
