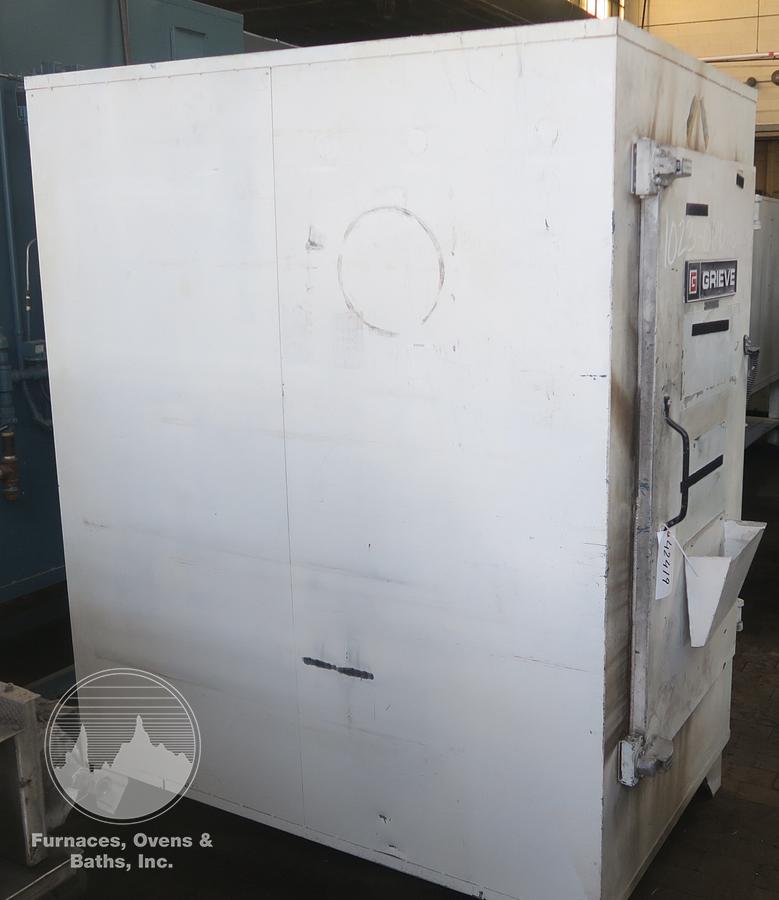

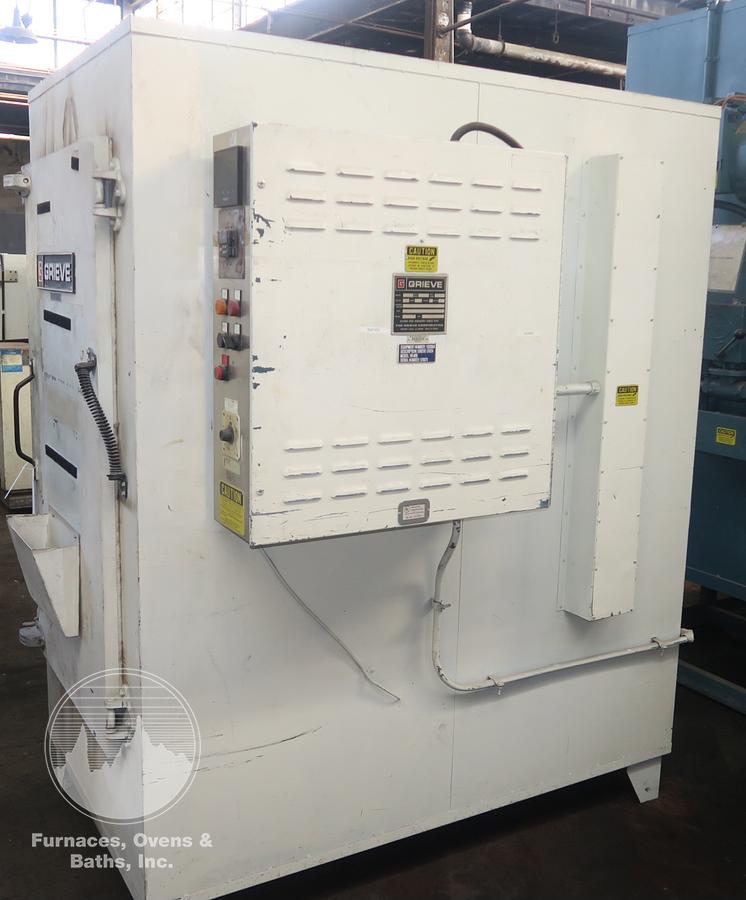

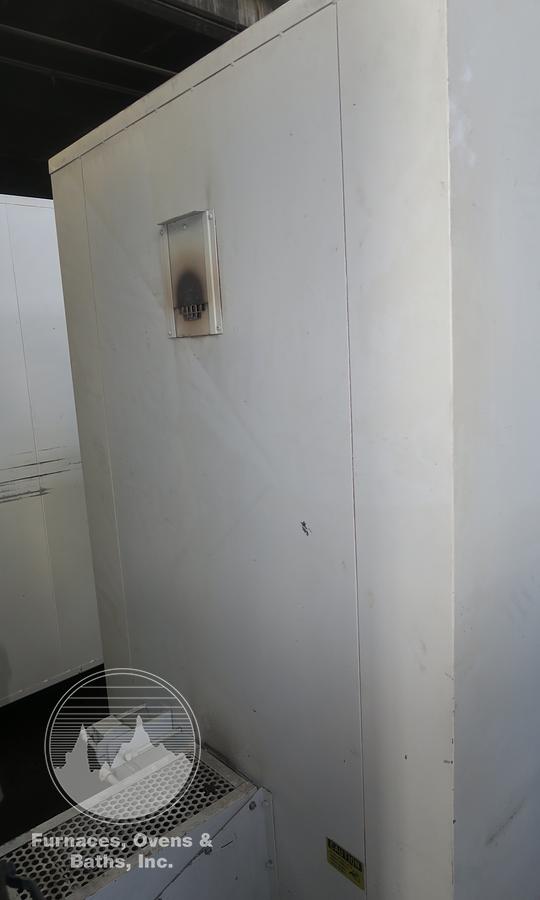

26"W x 50"H x 38"L Grieve VB-850, Electric, 850-F

26"W x 50"H x 38"L Grieve VB-850, Electric, 850-F

Contact us for price

orCall 248-343-1421

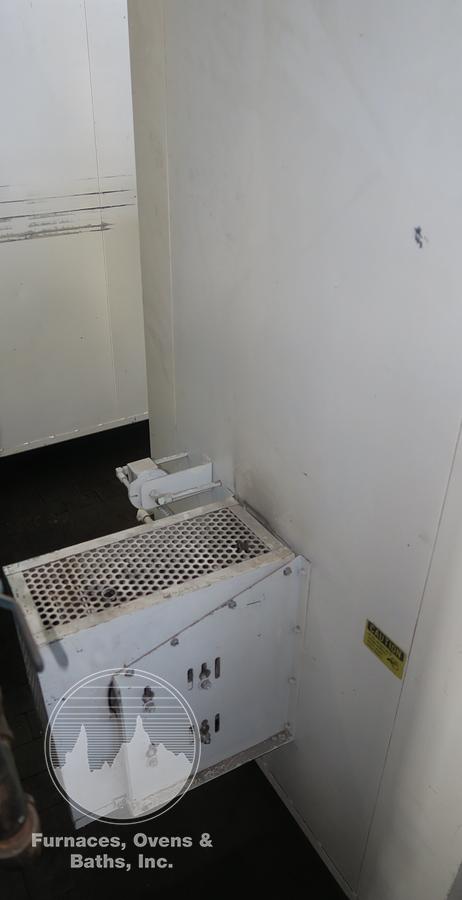

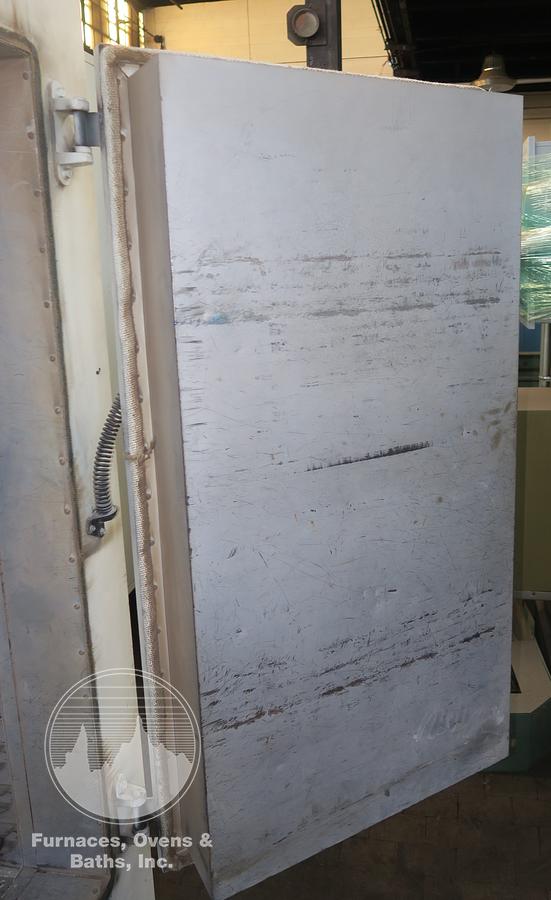

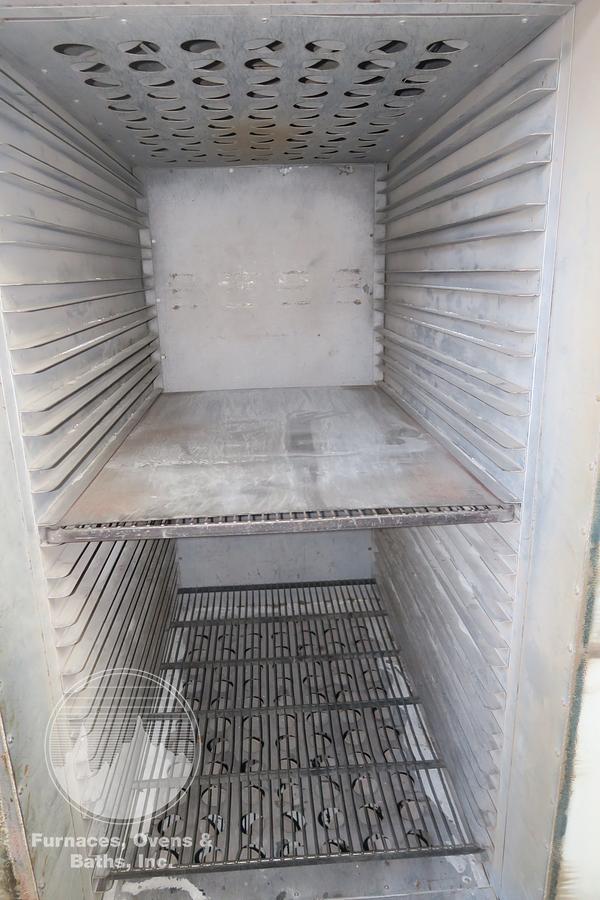

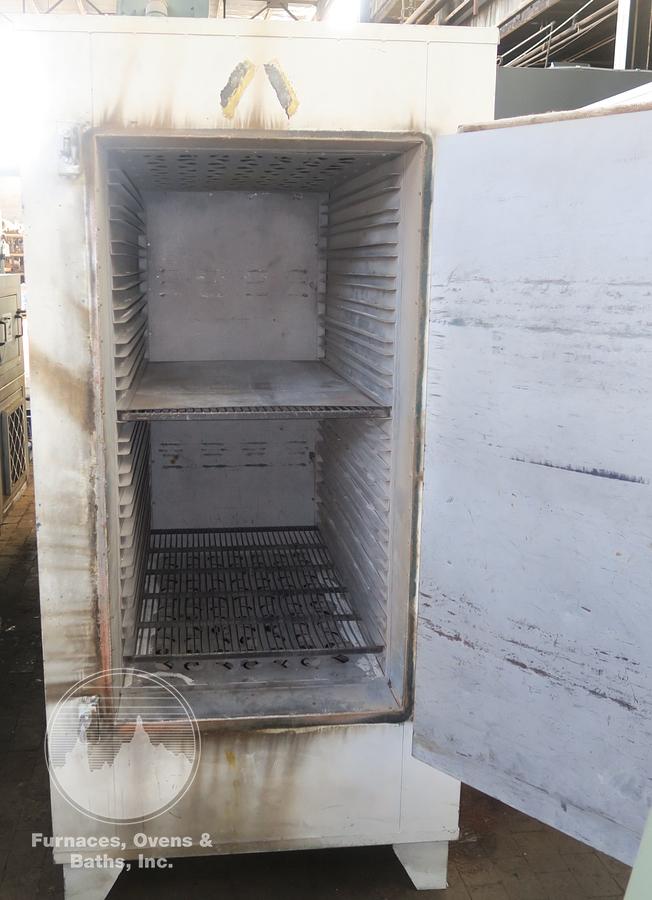

Single door with ceramic fiber/SS mesh gasket and Brixon spring tension latches for a good door seal. Aluminized steel interior with punched louvers on the roof and floor. Oven has 16 shelf brackets on 3" centers, 2 shelves are supplied with this oven. Heating elements and 1 HP direct drive circulating fan is mounted in separate plenum behind the interior rear wall. Heated air is circulated in a vertical pattern (Bottom/Top) throughout the work area for good uniform heating. An adjustable fresh air inlet is located on the rear wall, exhaust port is on top. Oven will be tested prior to shipping.

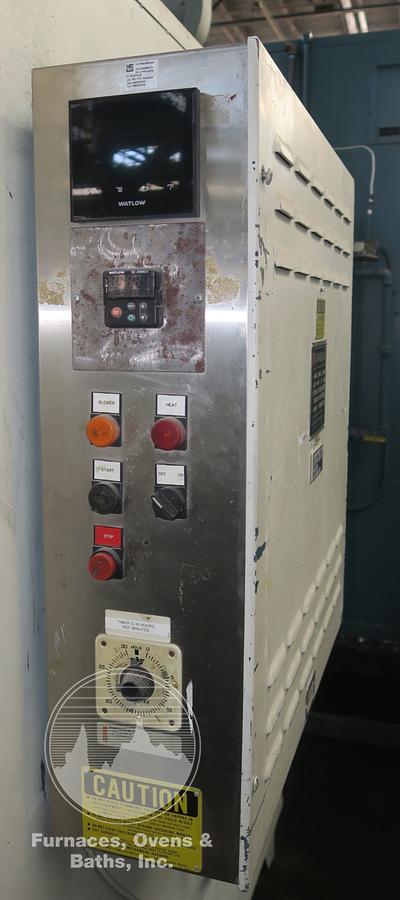

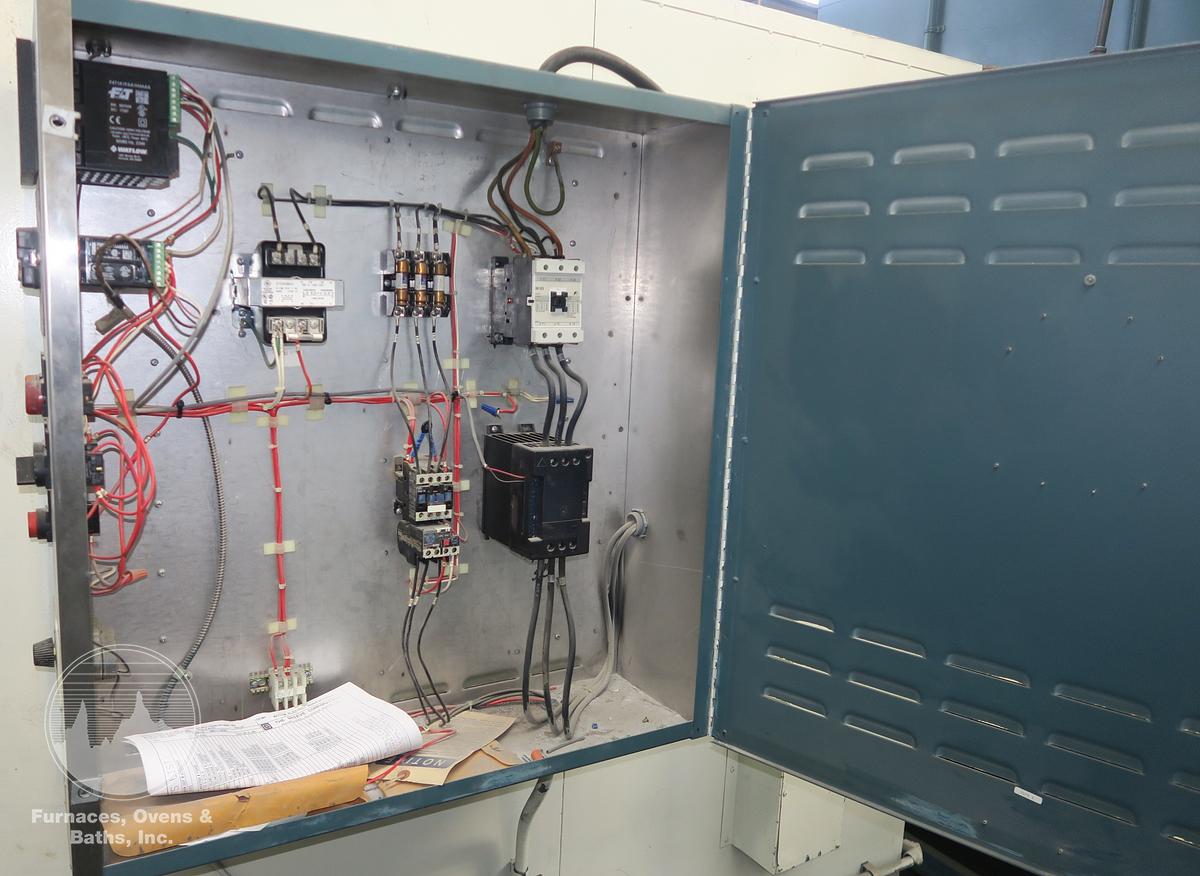

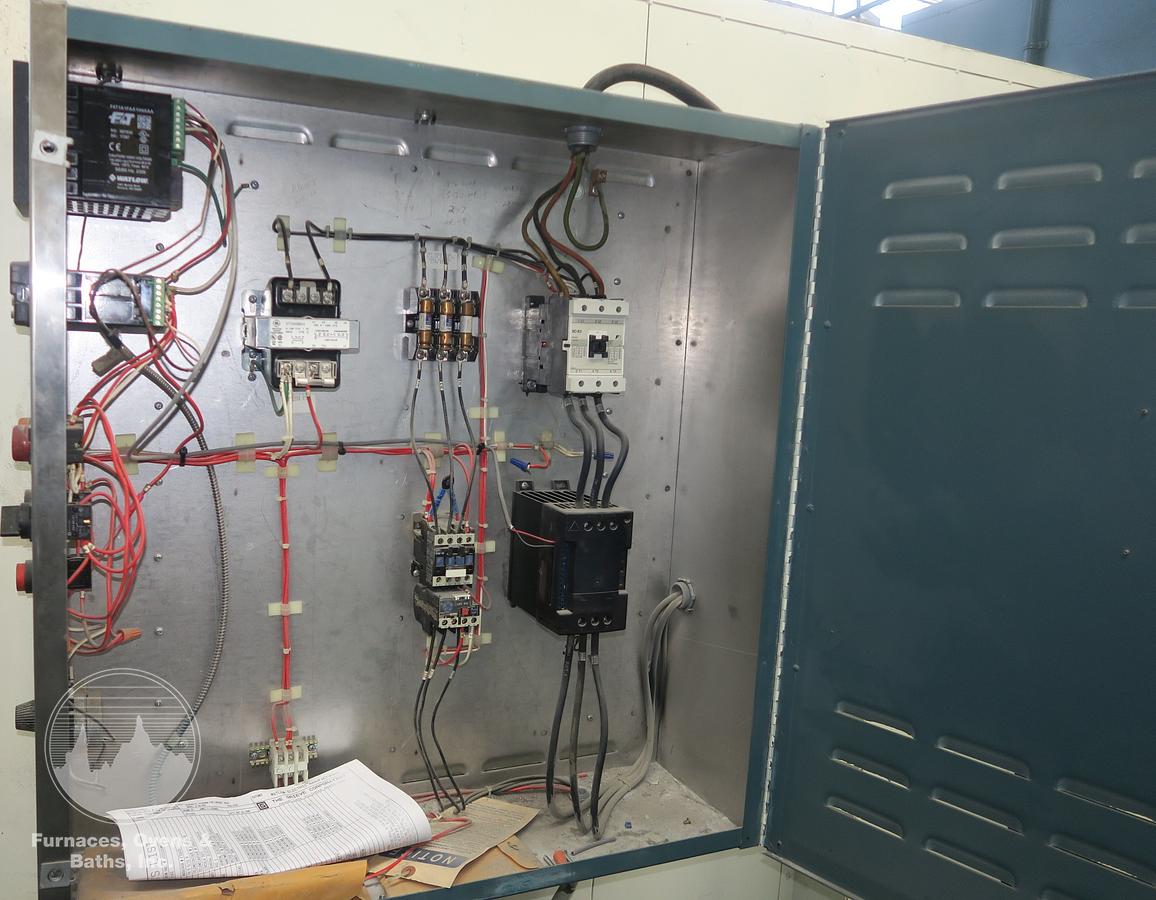

Controls are located in a "UL" rated enclosure attached to the right-hand side. Watlow F4T digital touchscreen temperature controller and EZ-ZONE high limit. Control switches with indicating lights and mechanical timer are flush mounted to the face of the enclosure. Motor starter, Watlow Din-a-mite SSR, fuses, relays, etc. are mounted inside the enclosure.

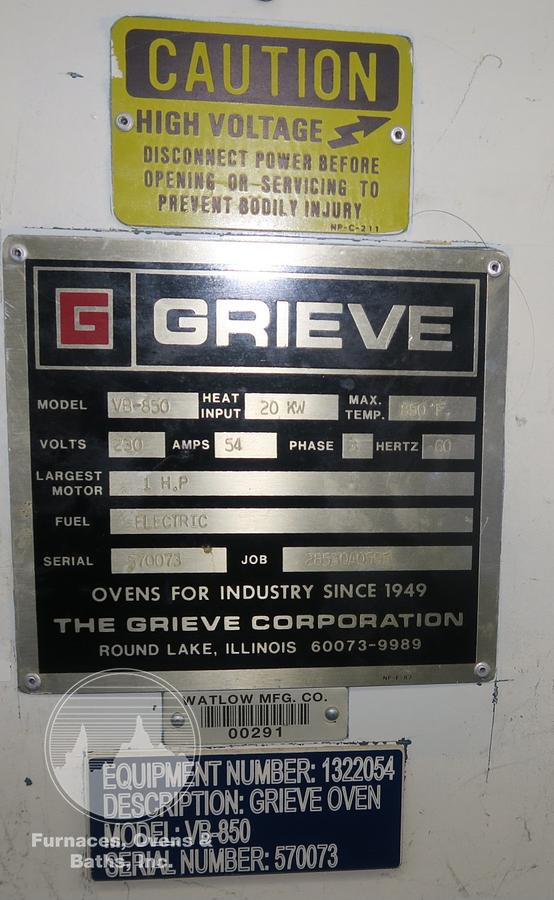

Serial Number570073, JOB #28530A0595
Stock Number7730
Work area26"W x 50"H x 38"L
Max temperature850°F
Voltage230/3/60/54 Amps/20 kW
External dimensions48" wide x 83" high x 85" long
