36"W x 60"H x 36"L Grieve TA-500, Electric, 500-F

Sold

36"W x 60"H x 36"L Grieve TA-500, Electric, 500-F

Description

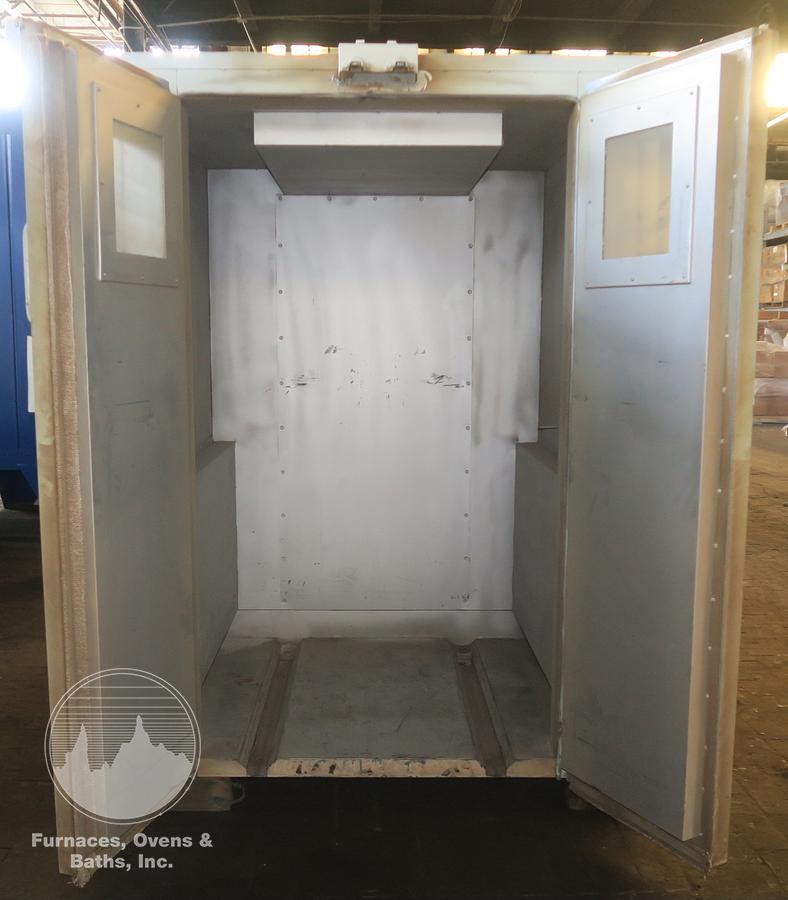

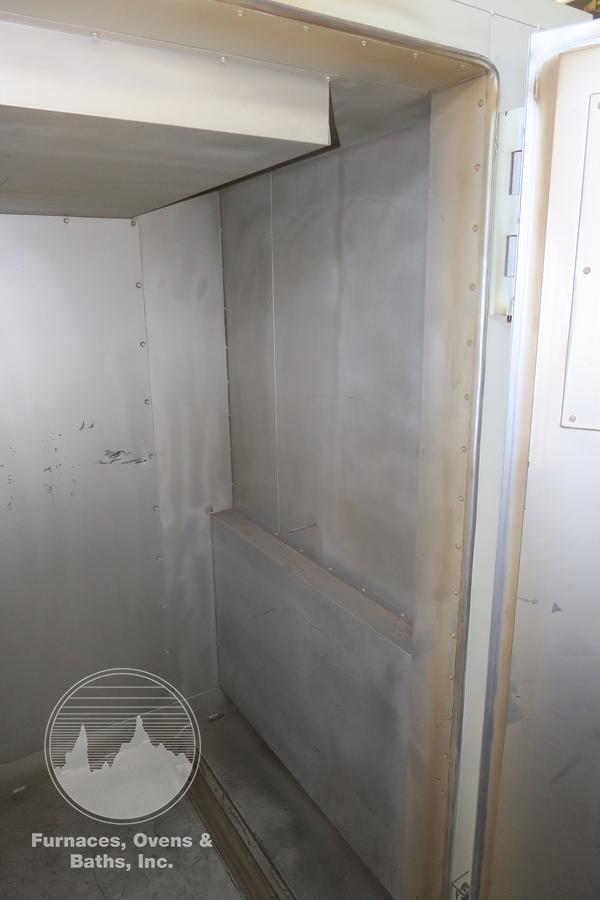

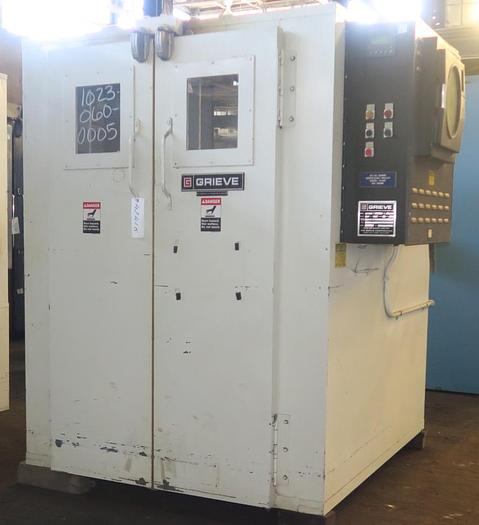

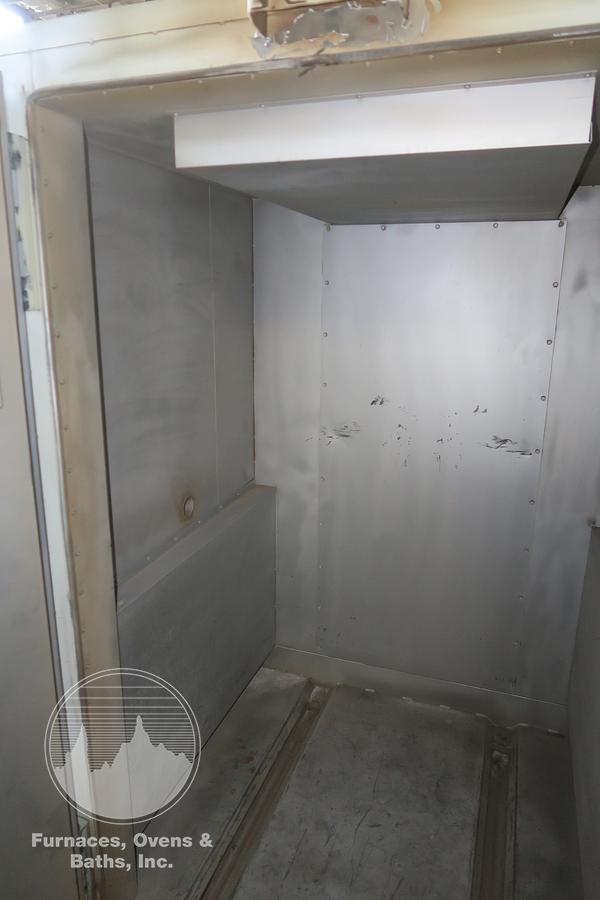

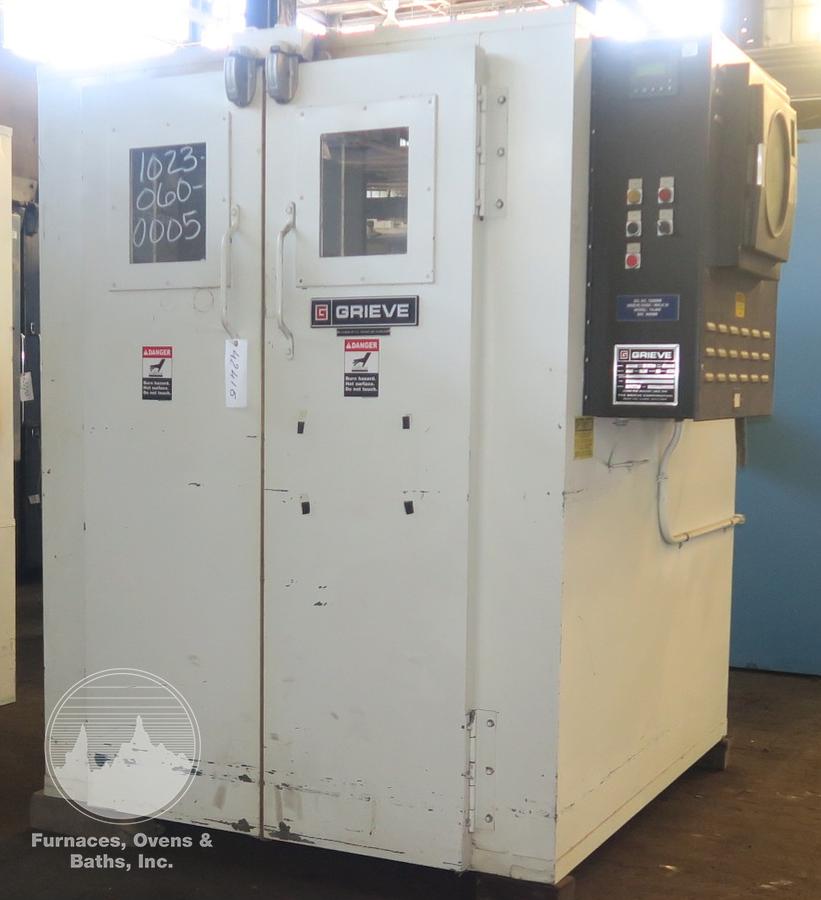

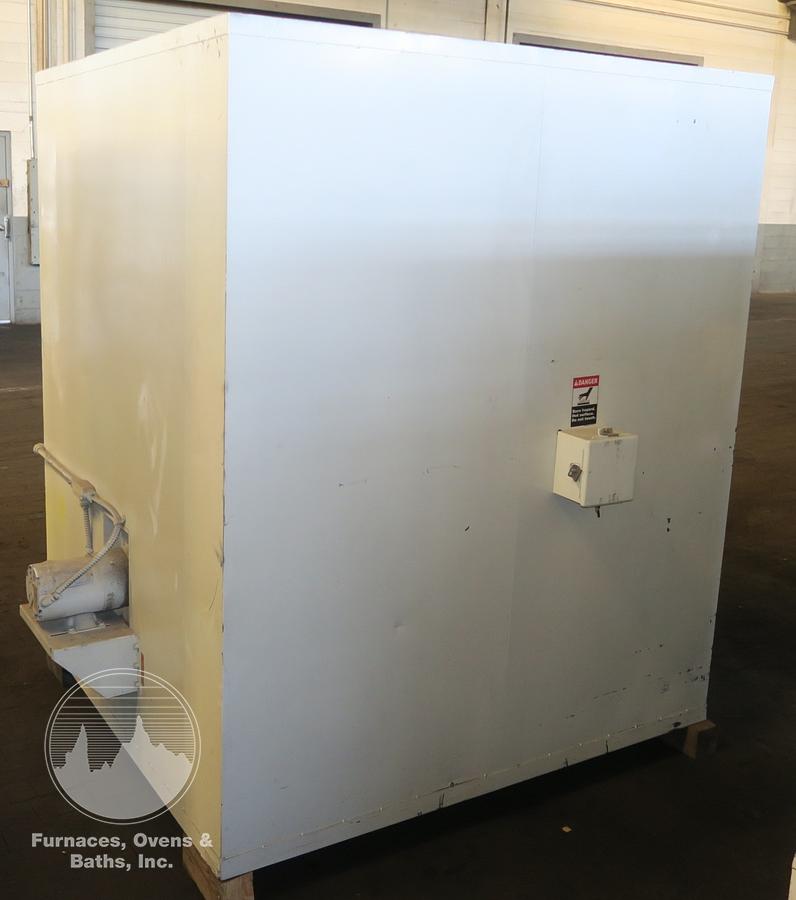

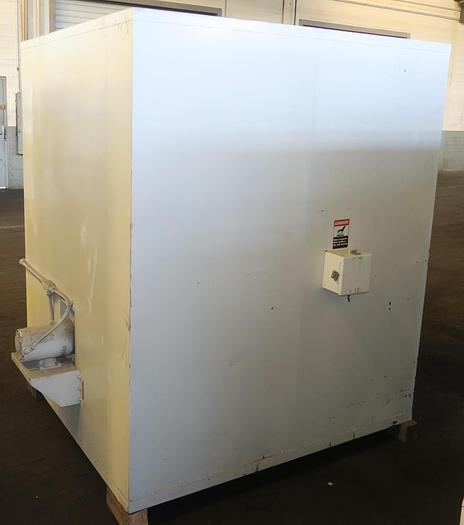

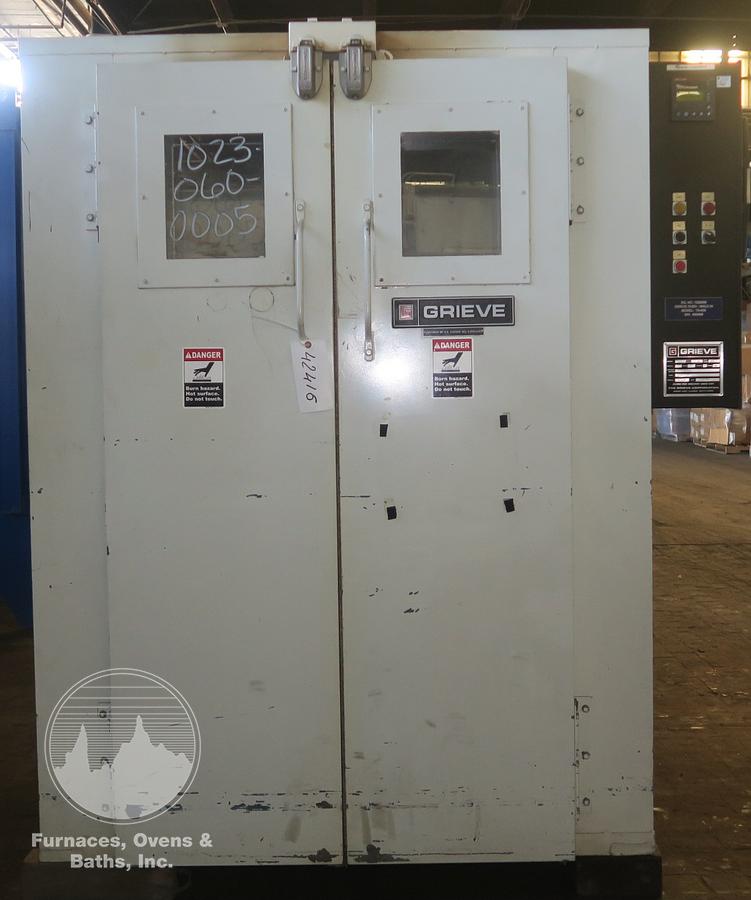

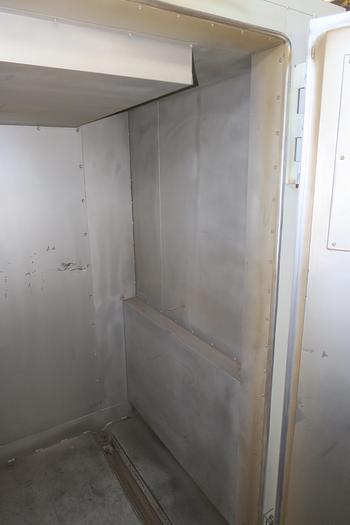

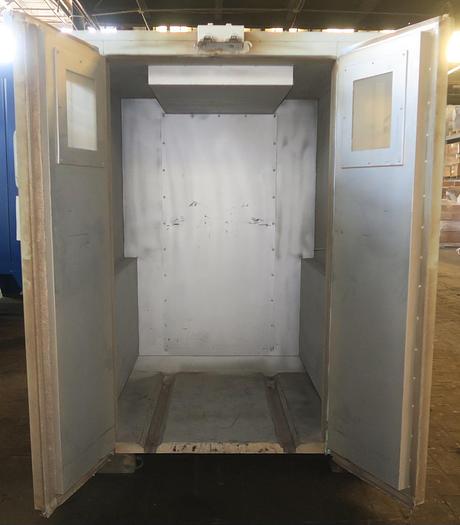

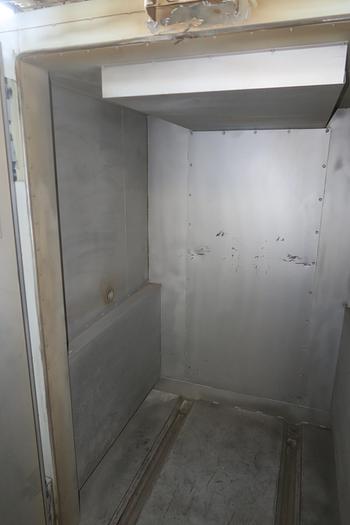

Double doors with ceramic fiber gasket, "Brixon" spring tension latches with aluminized steel interior and insulated floor. The floor has 2" wide cart tracks on 24" centers, no cart is supplied with this oven. Each door has a viewing window. The heating elements and fresh air inlet are located on the right-hand side behind the heated area. A 3/4 H.P. direct driven circulating fan is mounted through the rear wall. Heated air is circulated in a combination vertical and horizontal pattern across the chamber. Exhaust port is mounted on top of the oven. Chamber port is mounted on the left-hand side of the oven. Oven will be tested prior to shipping.

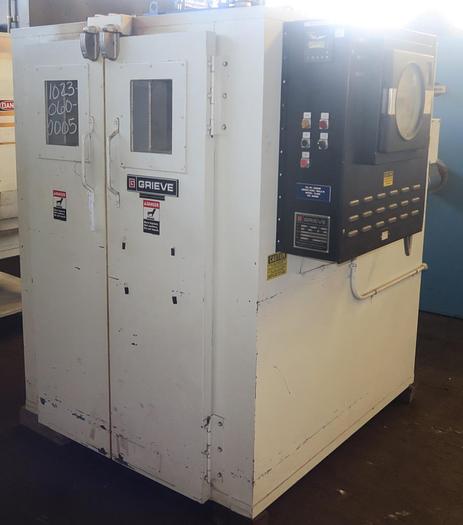

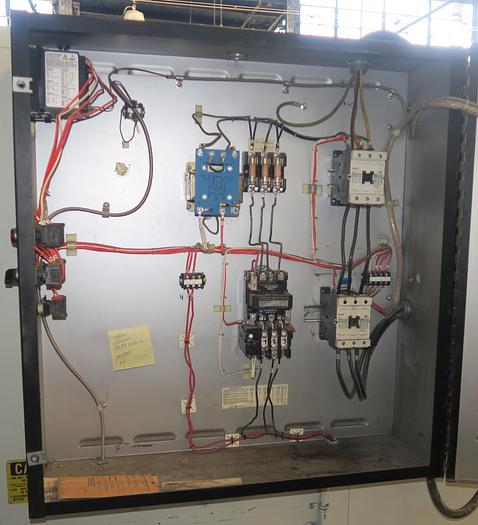

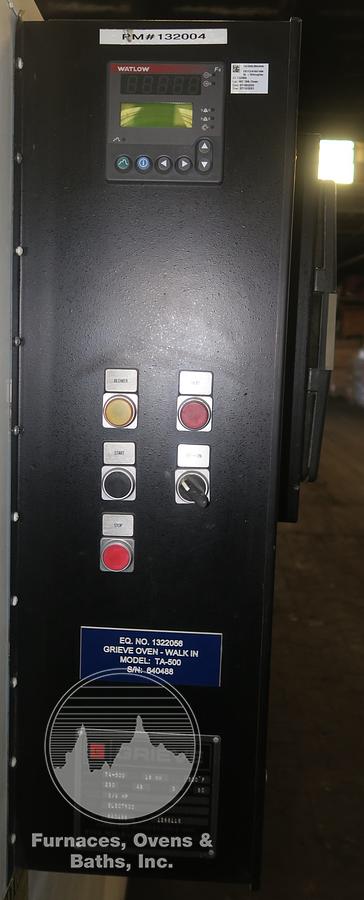

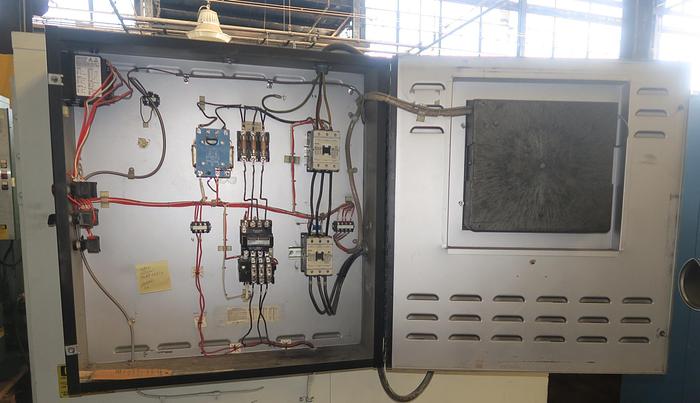

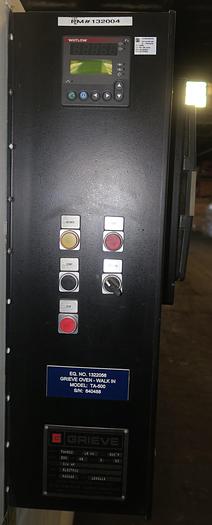

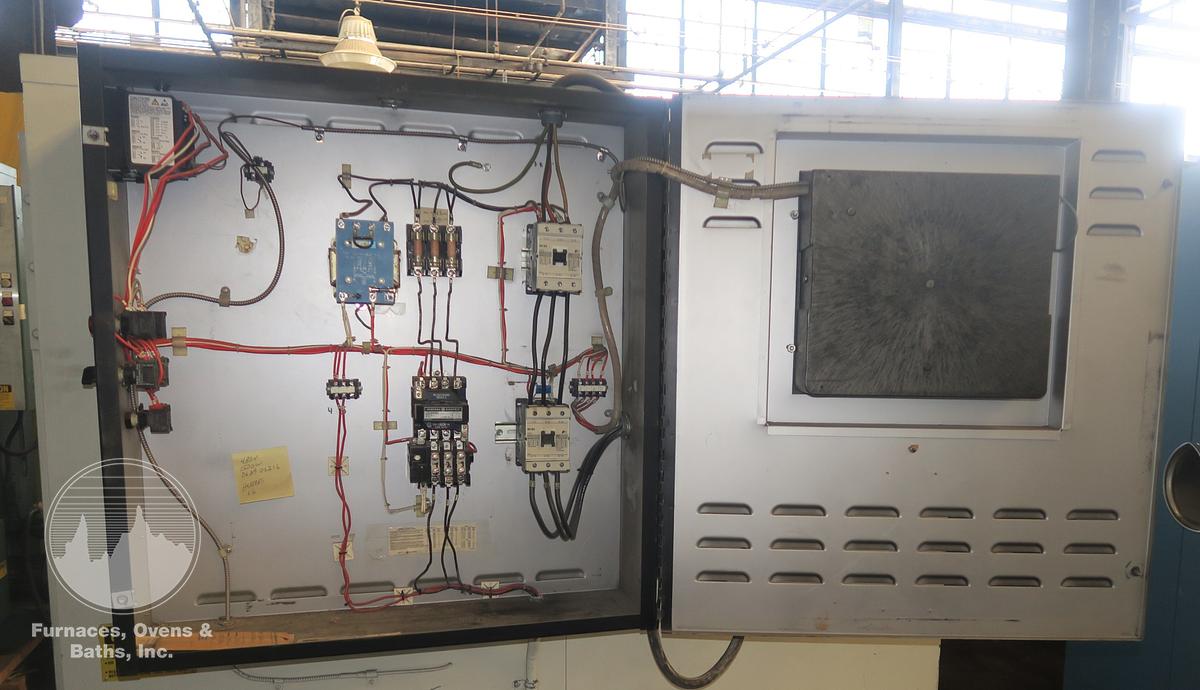

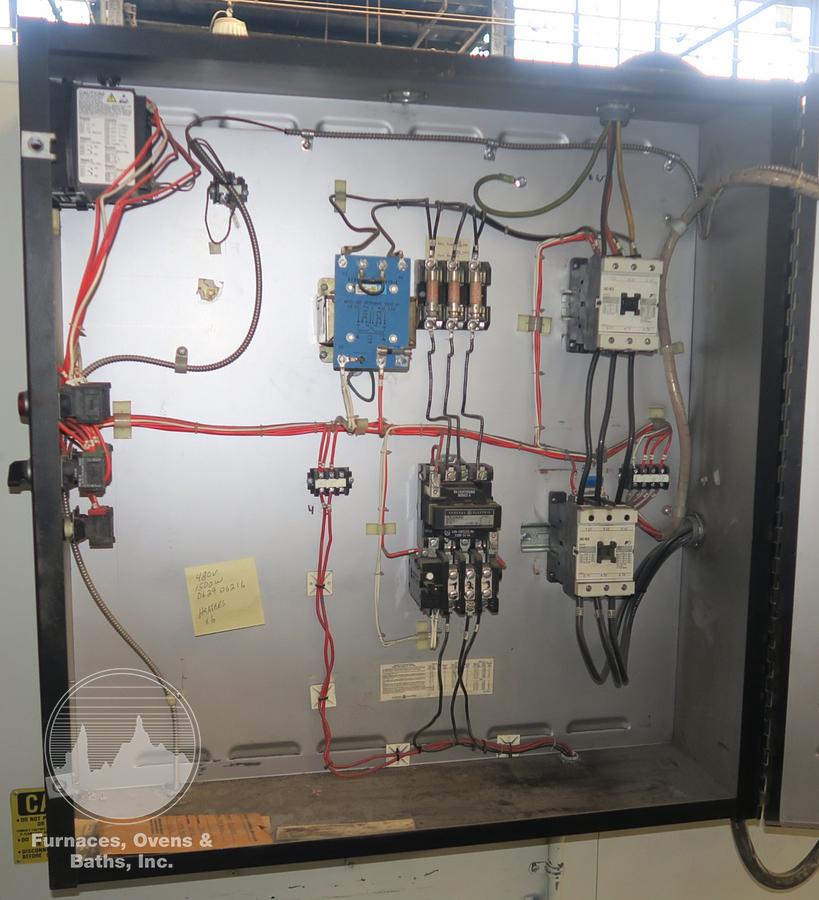

Controls are located in a "UL" rated enclosure attached to the right-hand side of the oven and includes a Watlow F4 digital temperature controller and a Partlow round chart recorder with high limit. Push button and switches with indicating lights are flush mounted on the front of the enclosure. Motor starters, fuses, contactor, high limit contactor, etc. are mounted inside the enclosure.



Specifications

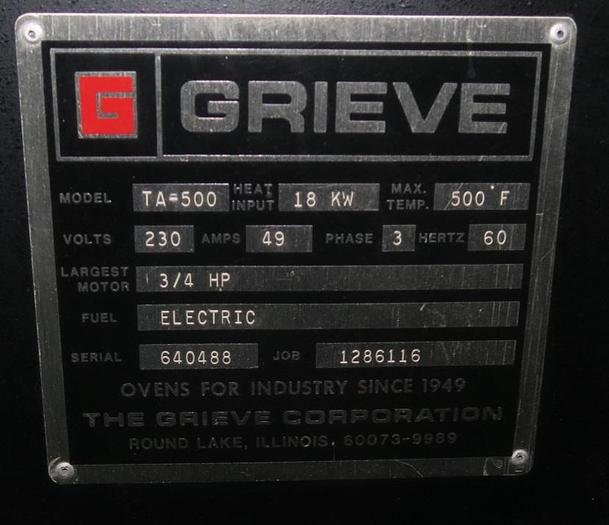

ManufacturerGrieve
ModelTA-500
ConditionUsed

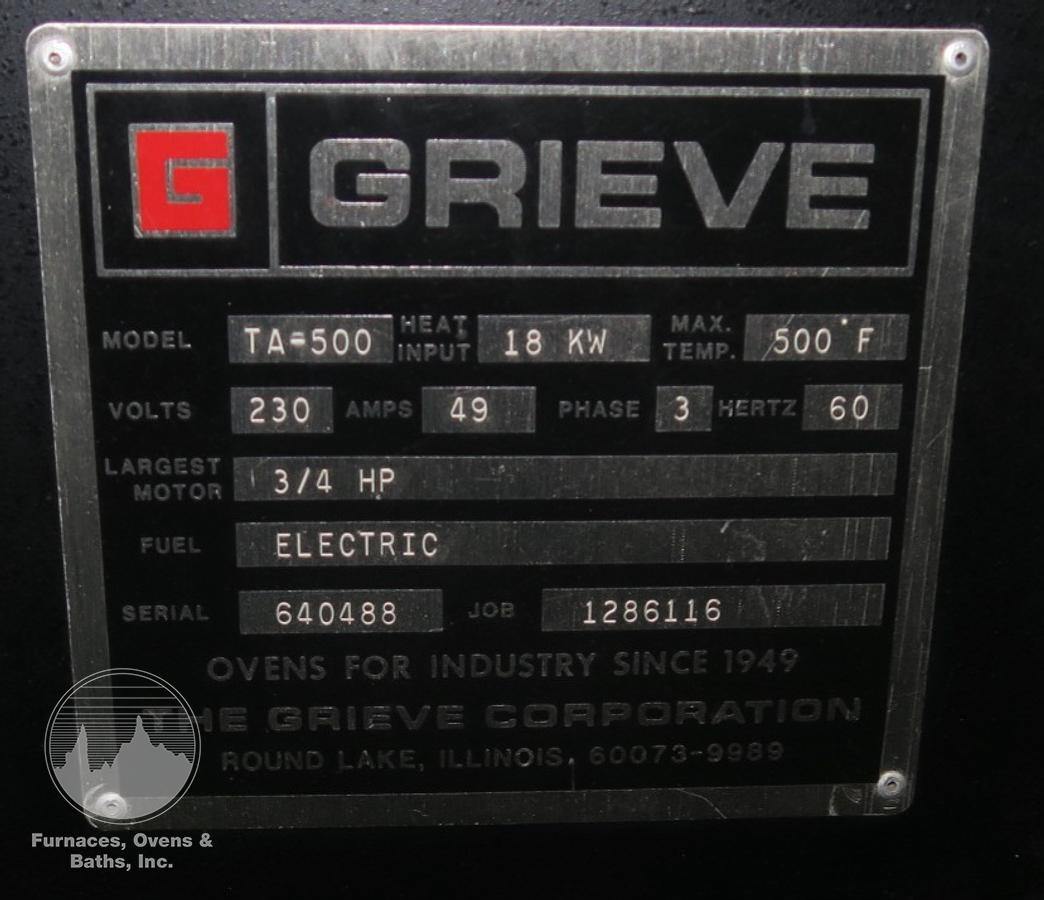

Serial Number640488, JOB #1286116
Stock Number7731
Work area36"W x 60"H x 36"L
HeatedElectric
Max temperature500°F
Voltage230/3/60/18 kW/49 Amps
External dimensions71" wide x 72" high x 73" long
