36"W x 36"H x 48"L Grieve AG-850, Electric, 850-F

36"W x 36"H x 48"L Grieve AG-850, Electric, 850-F

Contact us for price

orCall 248-343-1421

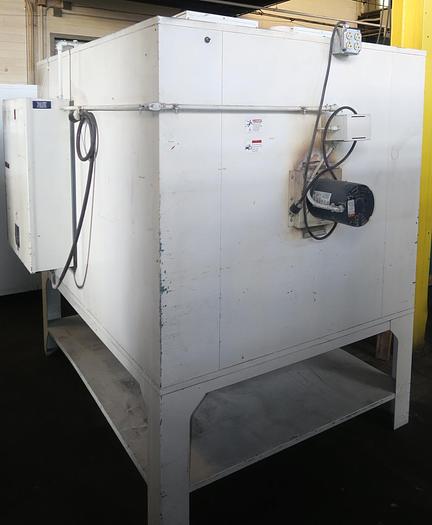

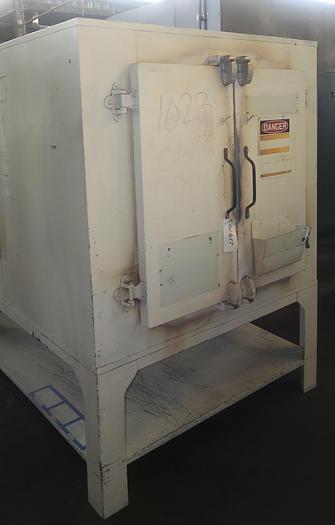

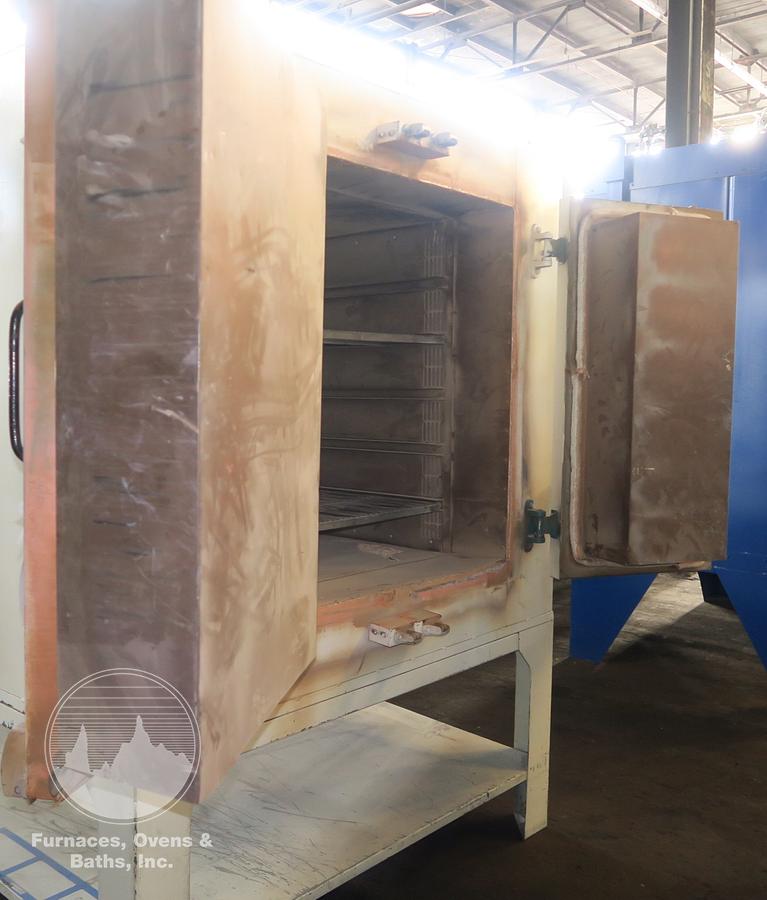

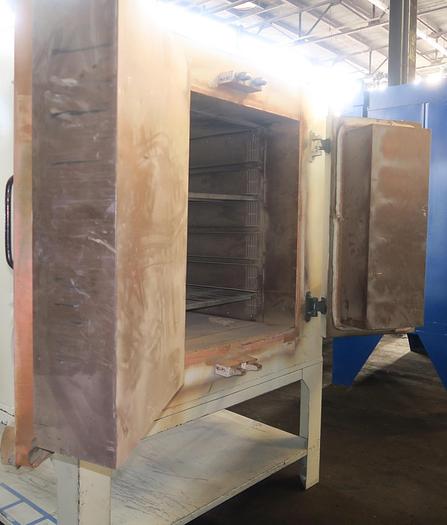

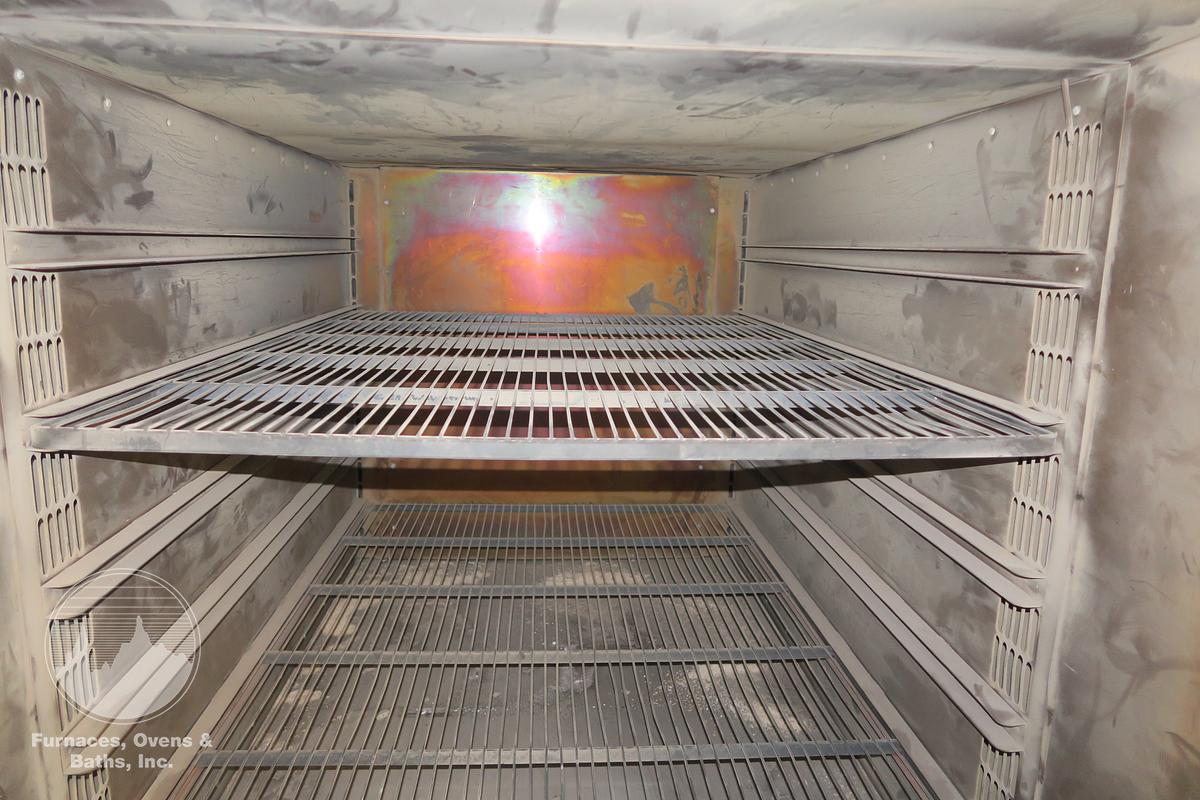

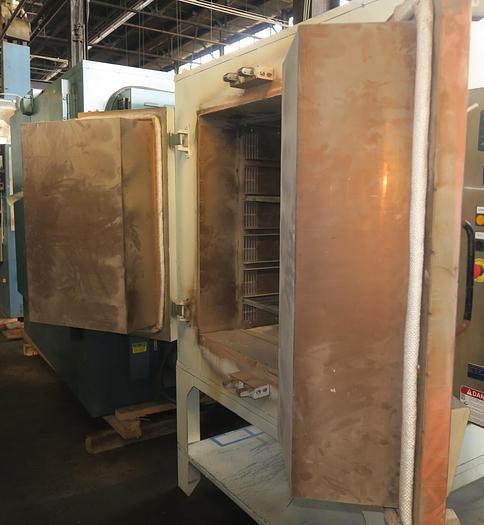

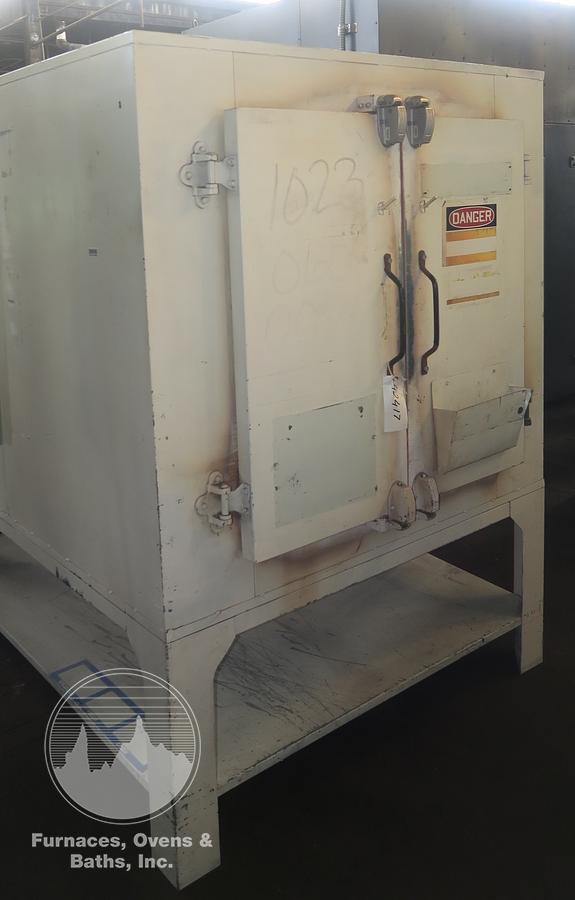

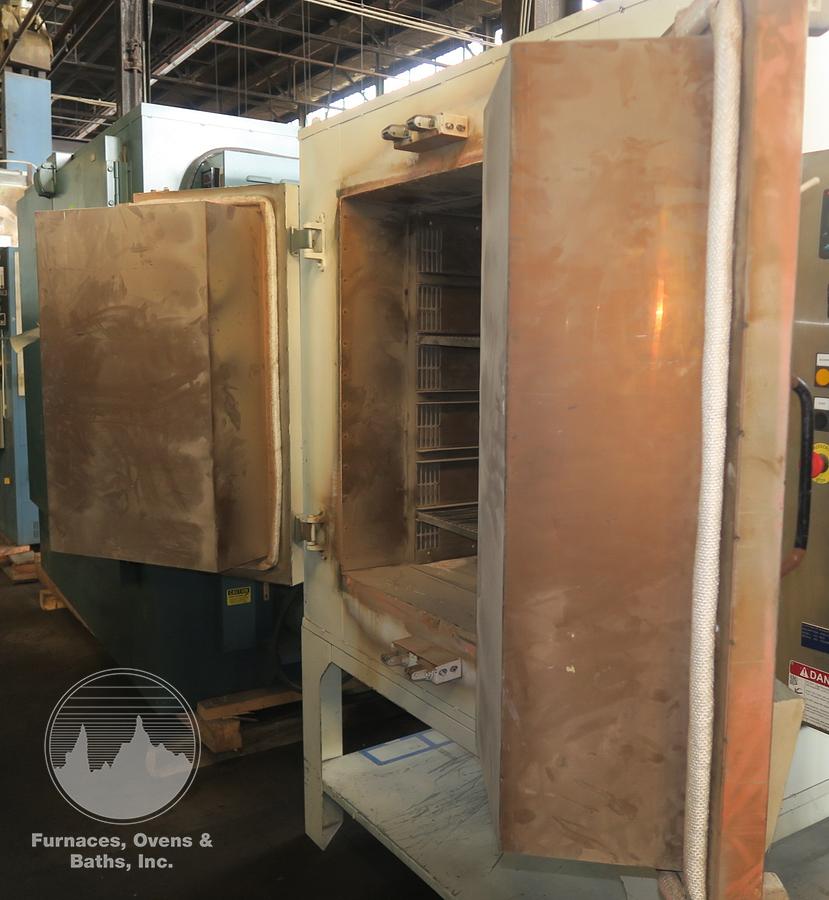

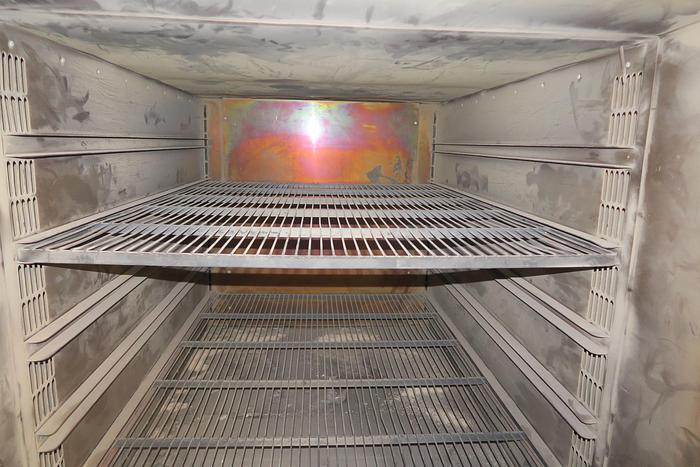

Double doors with Brixon spring tension latches and ceramic fiber/SS mesh tadpole style gasket for a good door seal. Stainless steel interior with 5 shelf brackets on 6" centers, 2 shelves are supplied with this oven. Heating elements and 1/2 HP direct drive circulating are located in a plenum behind the rear interior wall. Fresh air inlet is located at the circulating fan motor. Exhaust port is located on top of the oven. Heated air is circulated in a horizontal front to back airflow pattern through the chamber for good uniform heating. Oven is tested and ready to ship.

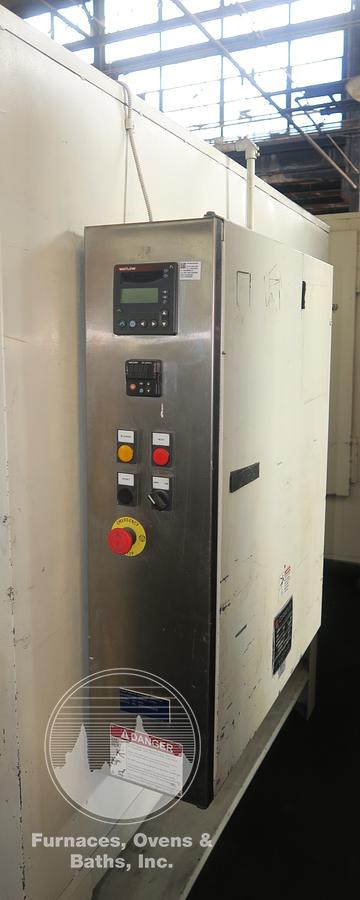

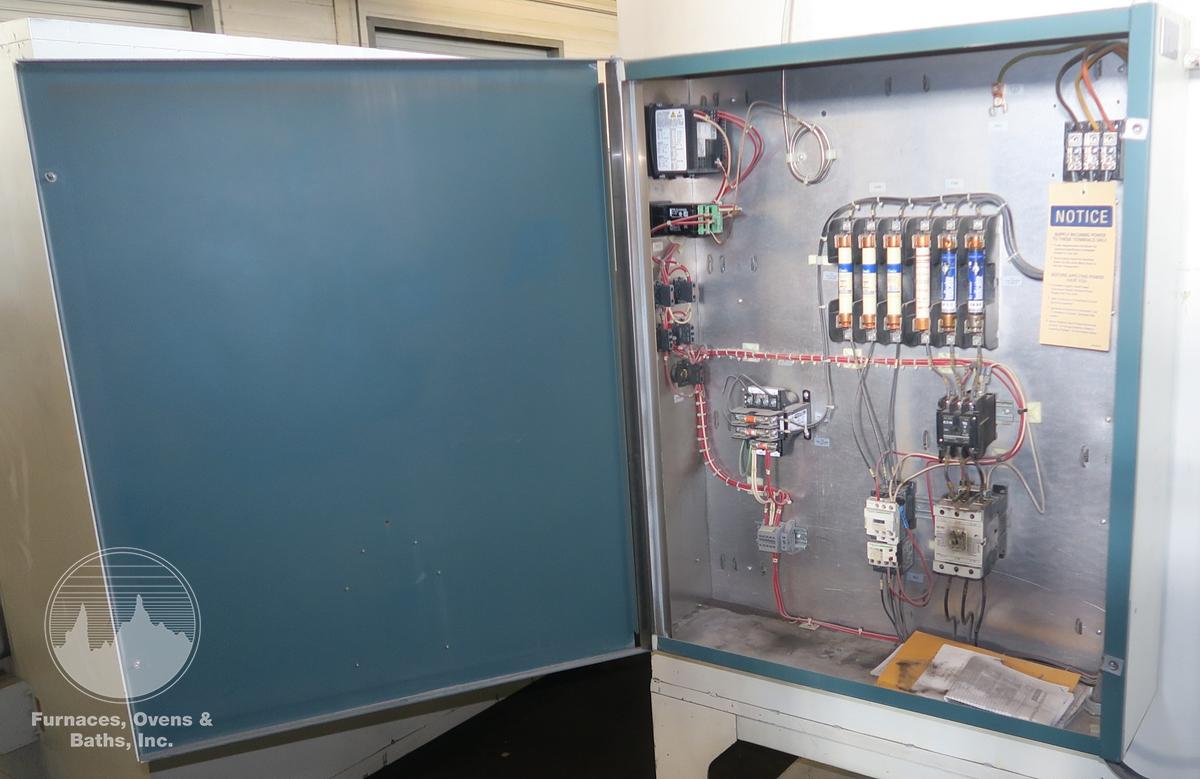

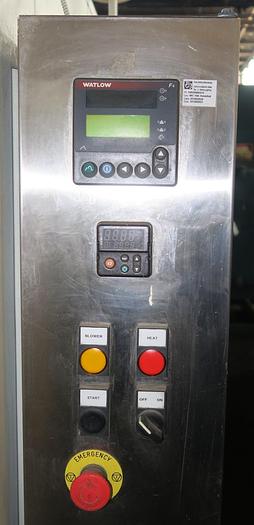

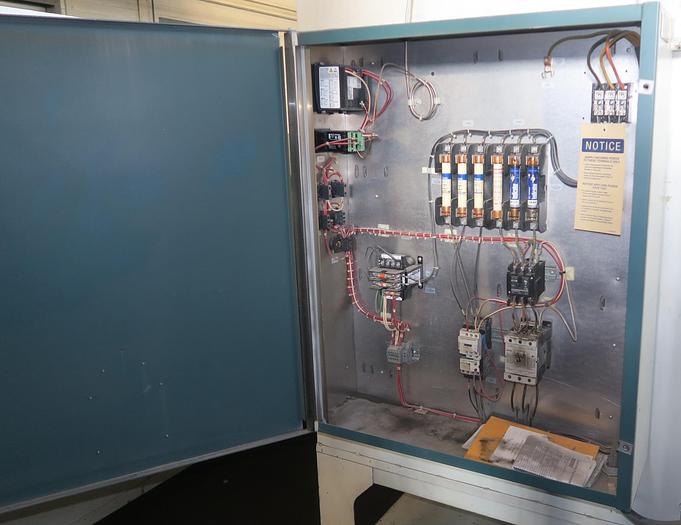

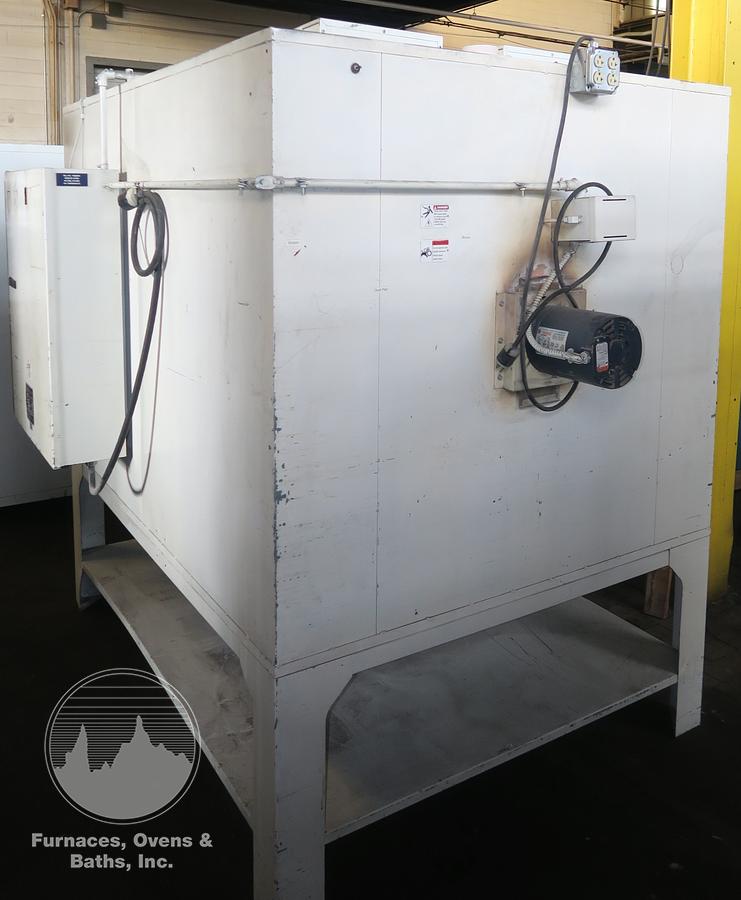

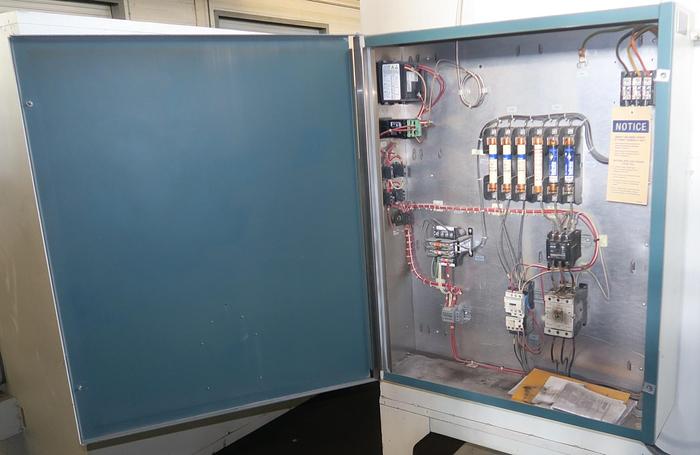

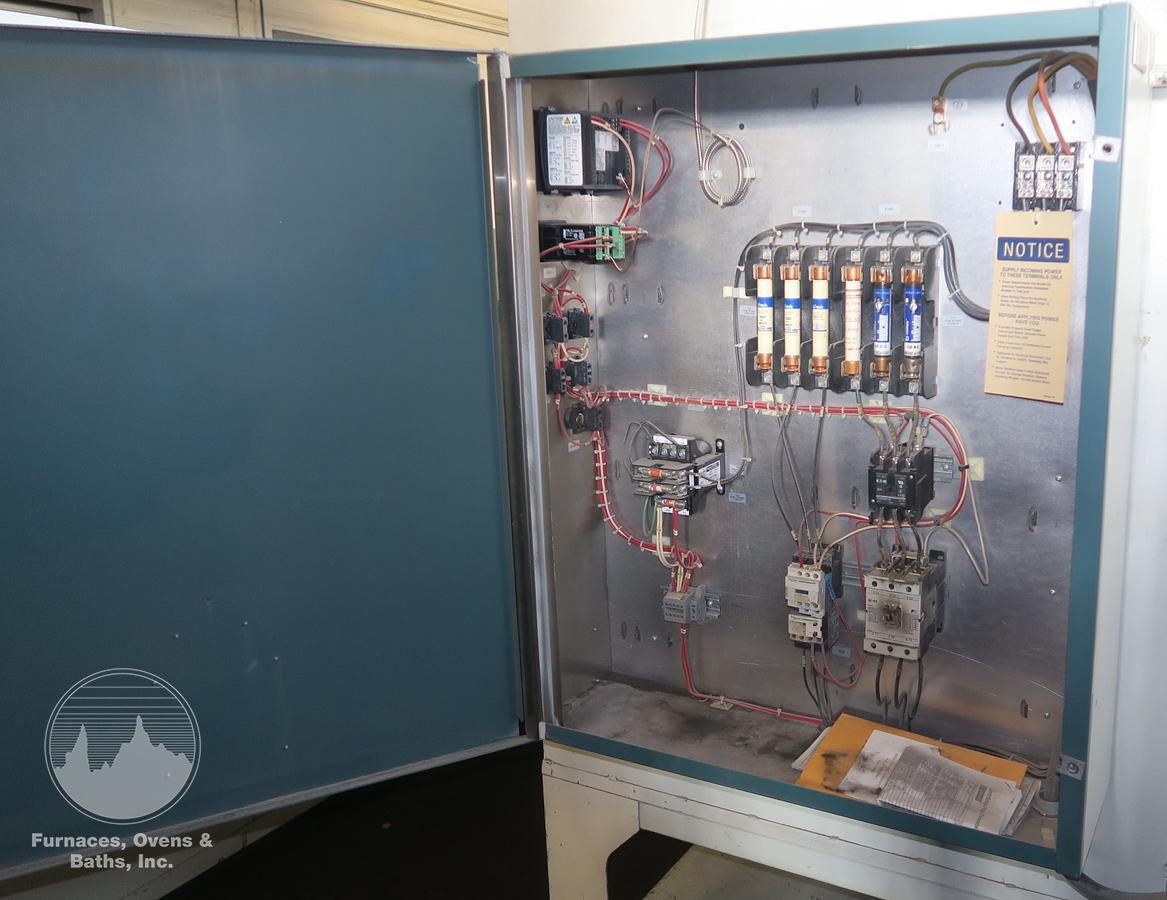

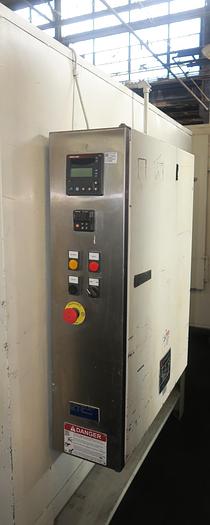

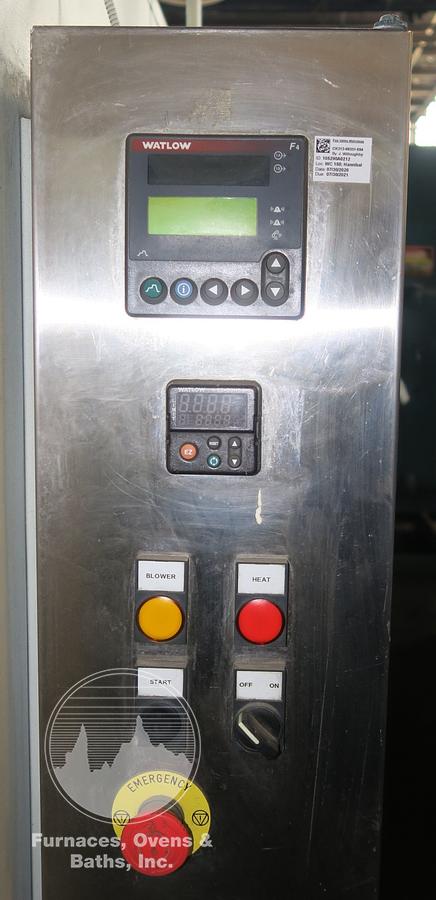

Controls are located in a "UL" rated enclosure attached to the right hand side of the oven. Watlow F4 digital /programmable digital temperature controller, Watlow EZ-ZONE digital high limit control switches with indicating lights and E-Stop button are flush mounted to the face of enclosure. Control and high limit contactors, motor starter, fuses, relays, etc. are mounted inside the enclosure.

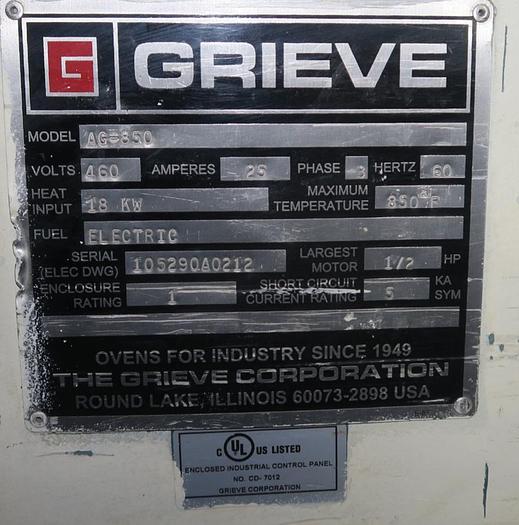

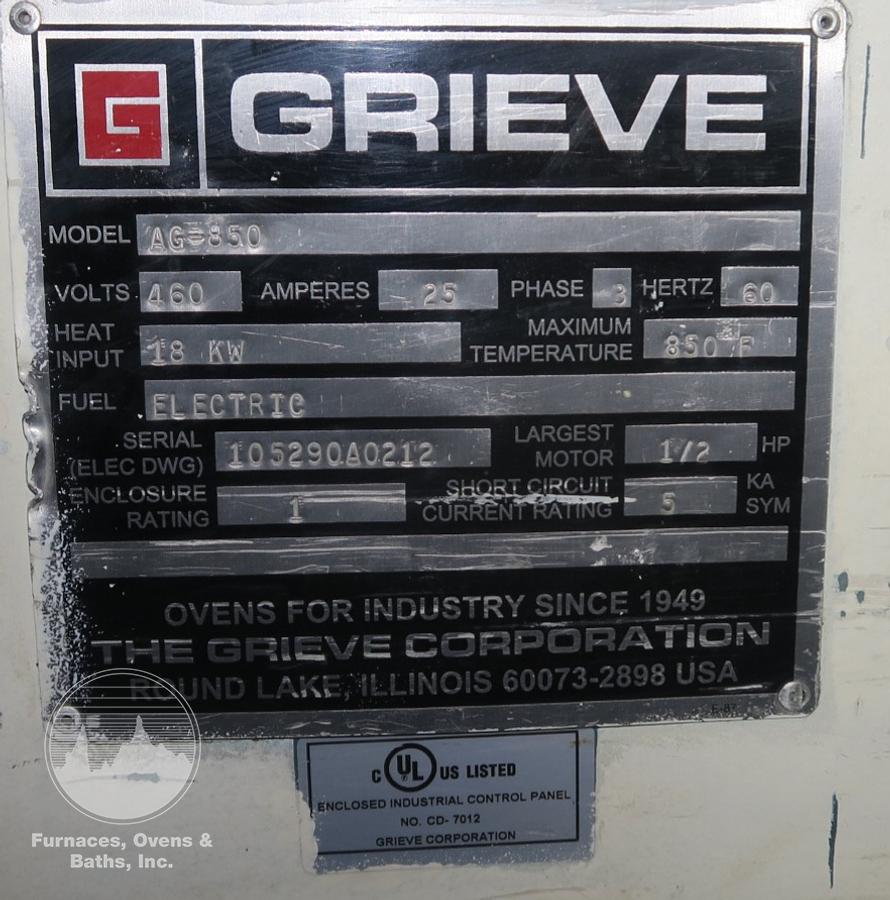

Serial Number105290A0212
Stock Number7732
Work area36"W x 36"H x 48"L
Max temperature850°F
Voltage460/3/60/25 Amps/18 kW
External dimensions67" wide x 81" high x 90" long
