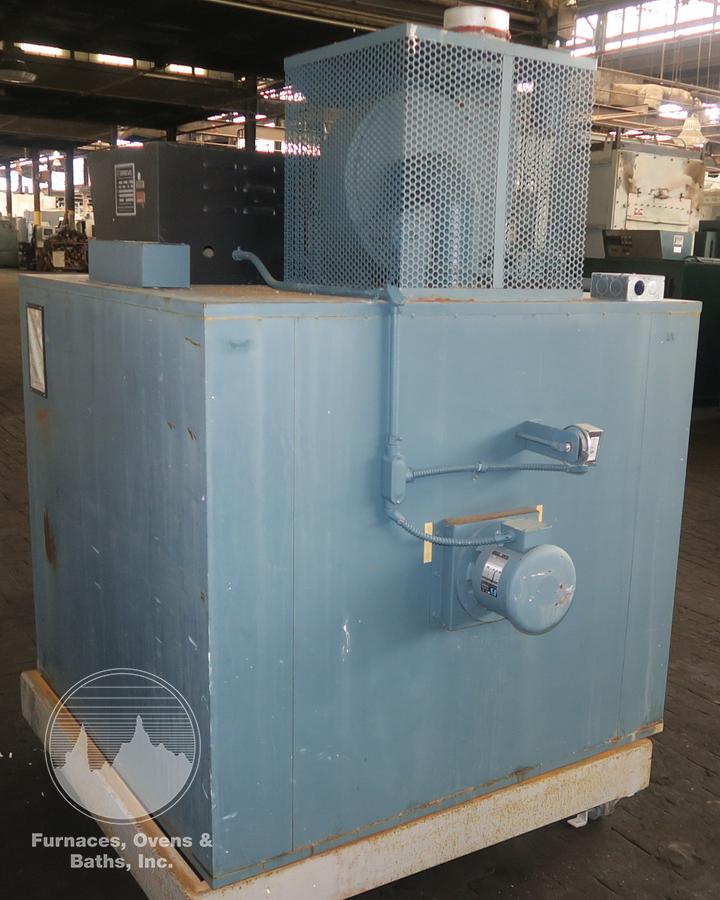

36"W x 36"H x 36"L, Grieve AB-500, Electric, 500-F/400-F w/Solvents

36"W x 36"H x 36"L, Grieve AB-500, Electric, 500-F/400-F w/Solvents

Contact us for price

orCall 248-343-1421

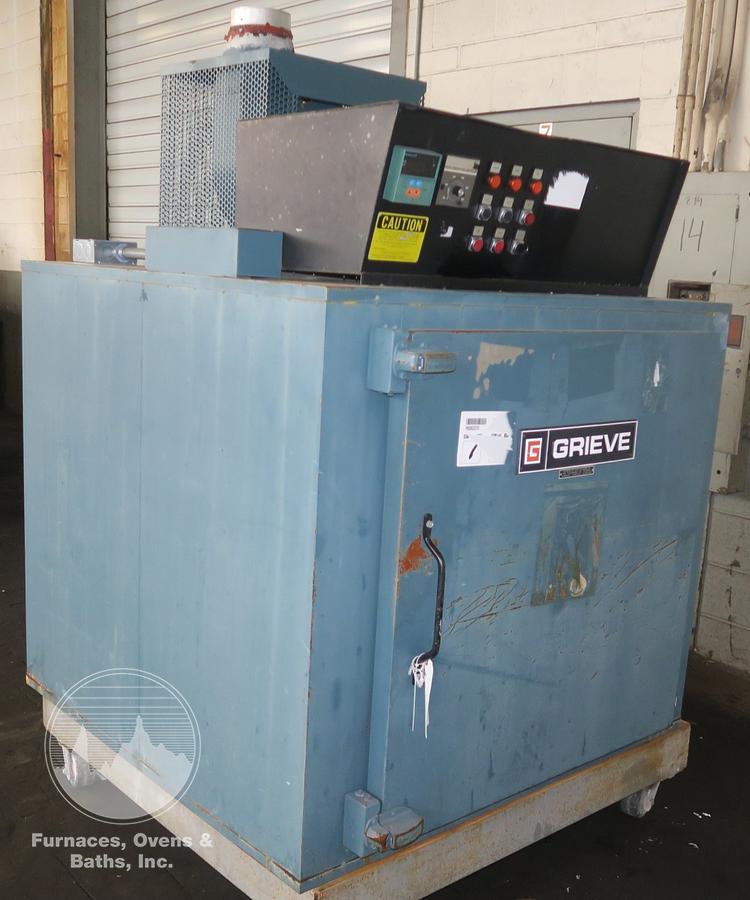

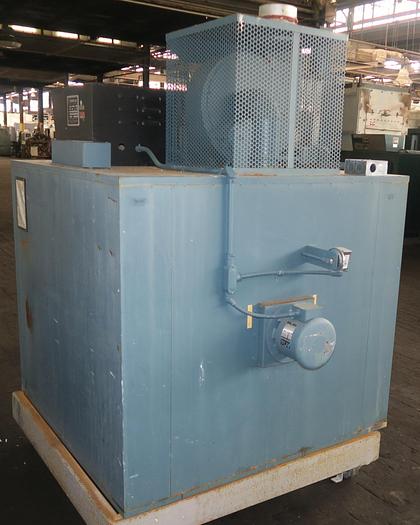

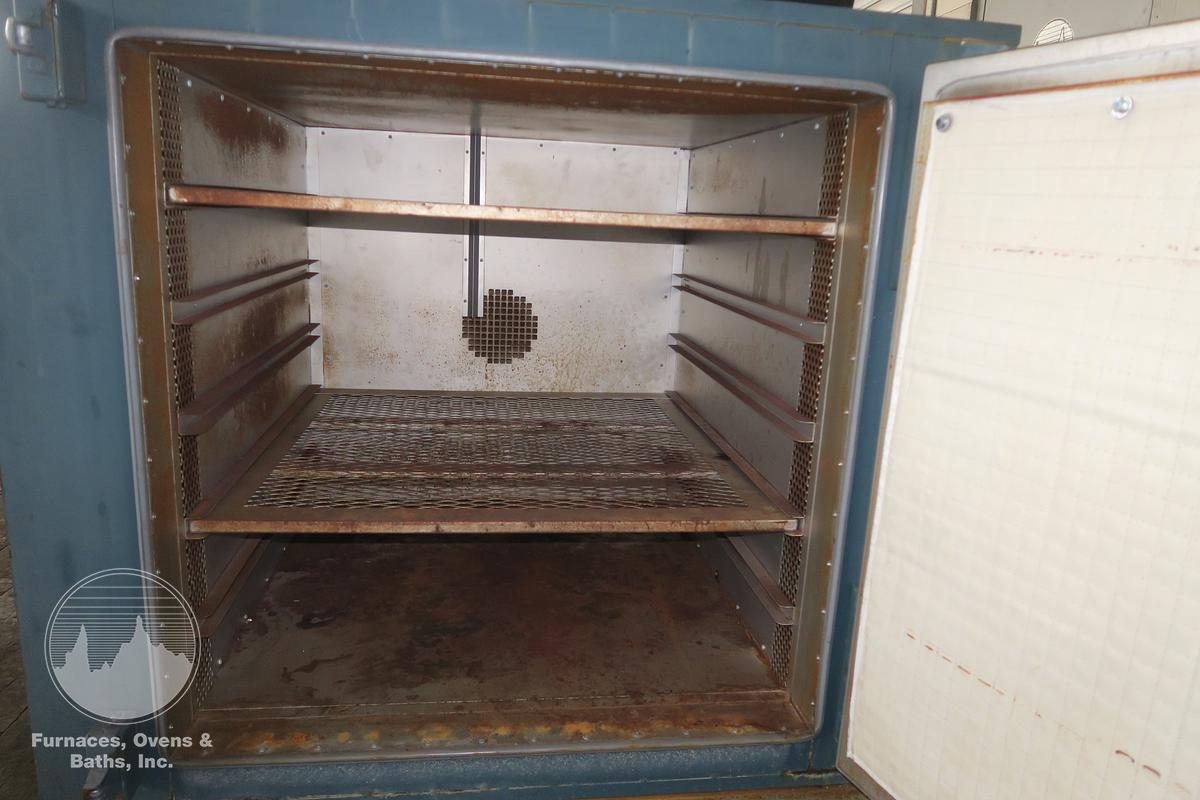

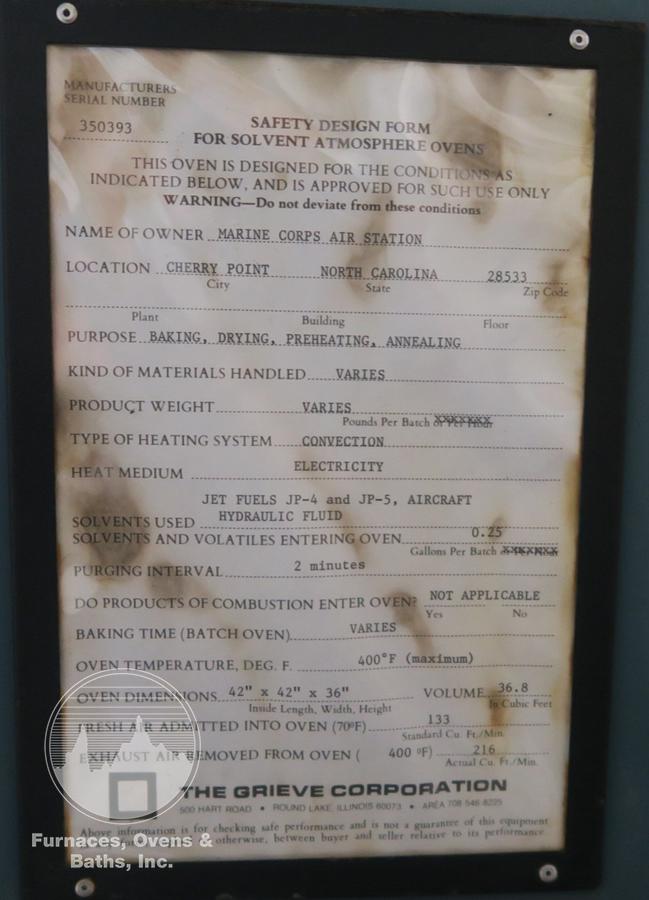

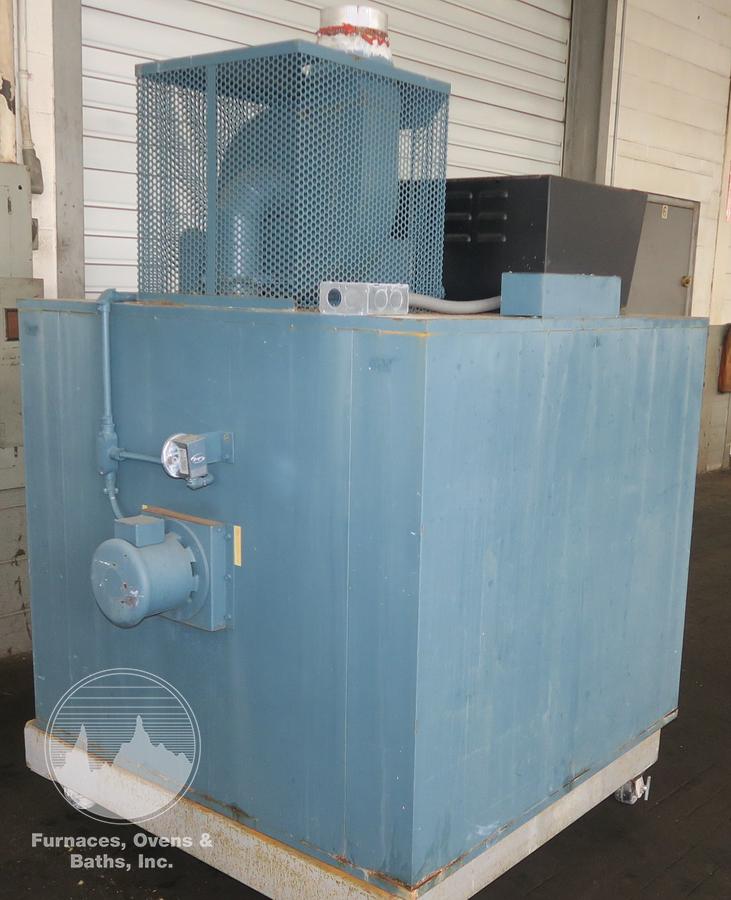

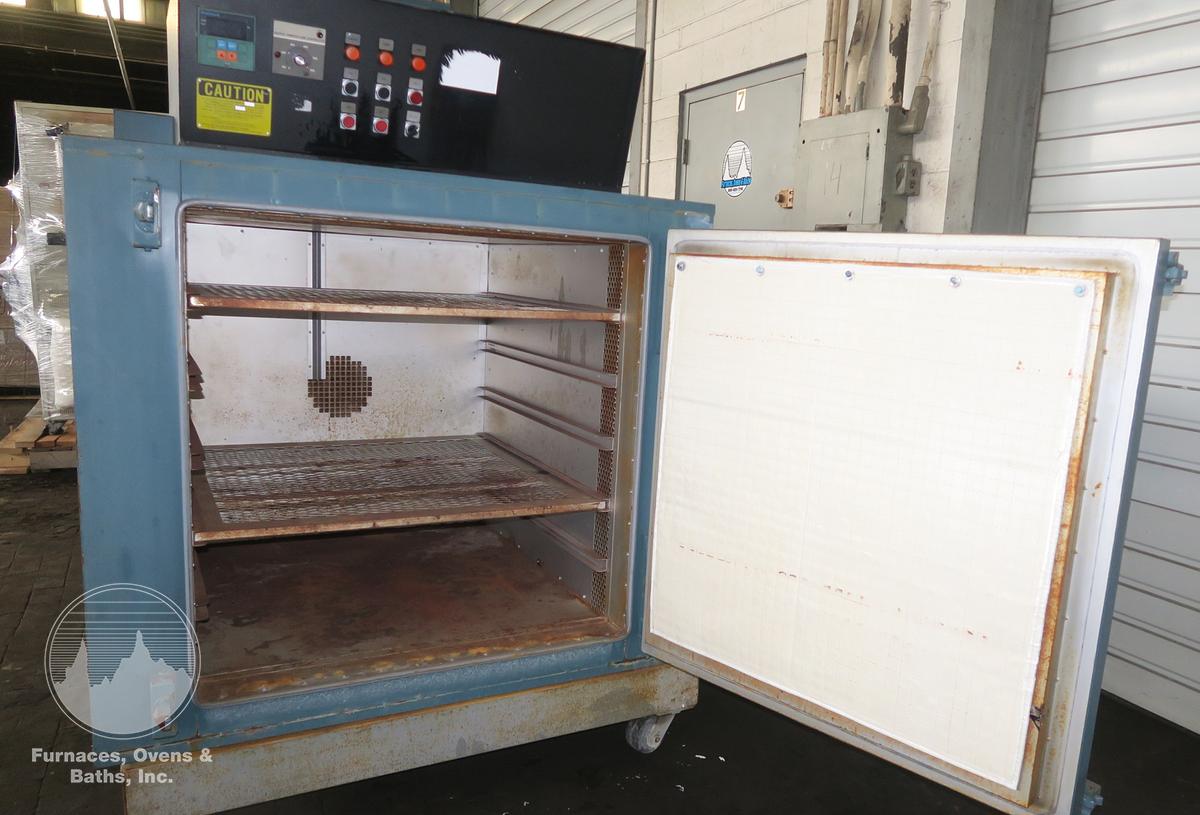

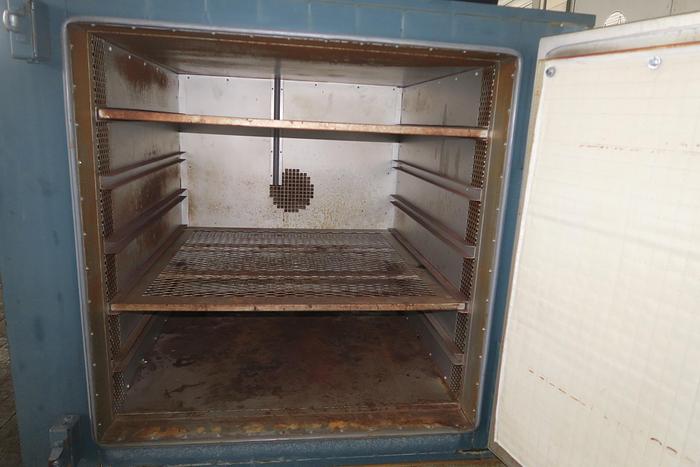

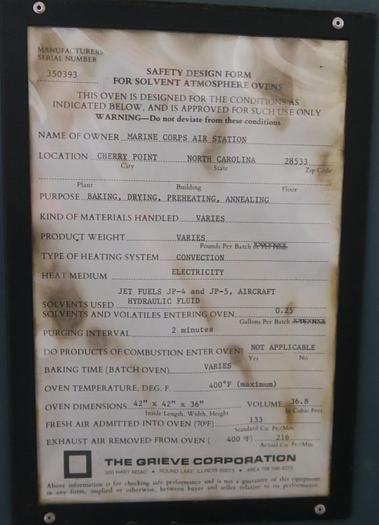

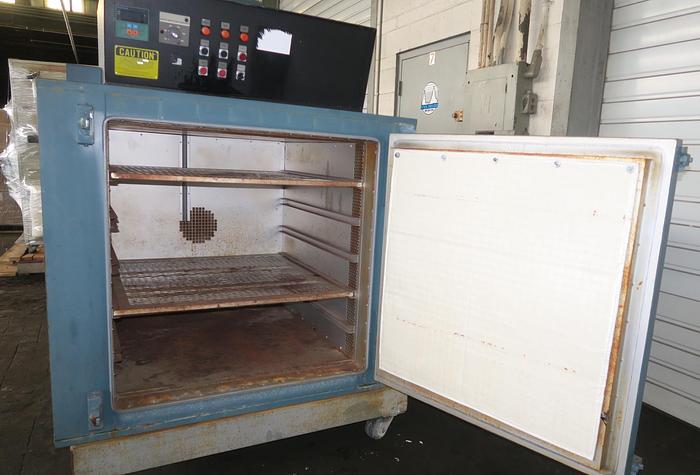

Single door with high temperature silicone rubber gasket and Brixon spring tension latches for a good door seal. Aluminized steel interior with 5 shelf brackets, 2 shelves are included with this oven. Incoloy sheath tubular heating elements are located on each sidewall. Direct driven circulating fan is located behind the work chamber. Heated air is circulated across the heating elements and distributed through the chamber in a horizontal front to back pattern for good uniform heating. An air flow safety switch cuts power to the heating elements if the blower is not operating. An adjustable fresh air inlet is located at the fan shaft. There is a powered exhaust fan mounted on top of this oven. Oven is rated for use with some solvents. Oven is mounted on a heavy duty steel cart with locking casters.

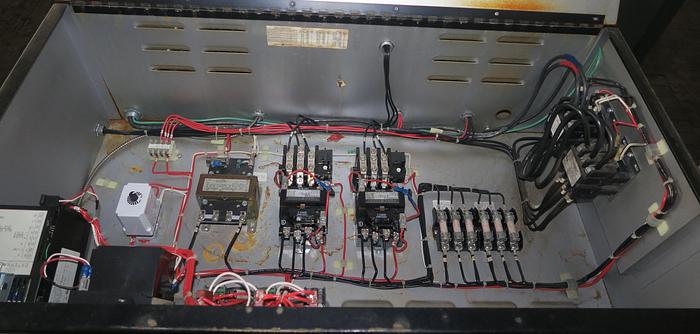

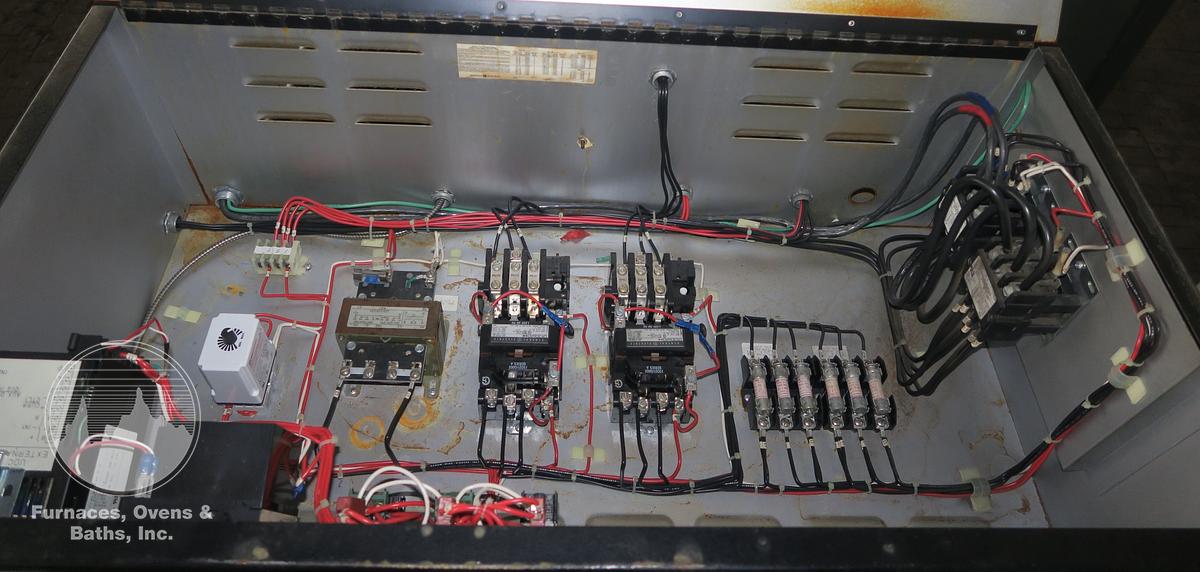

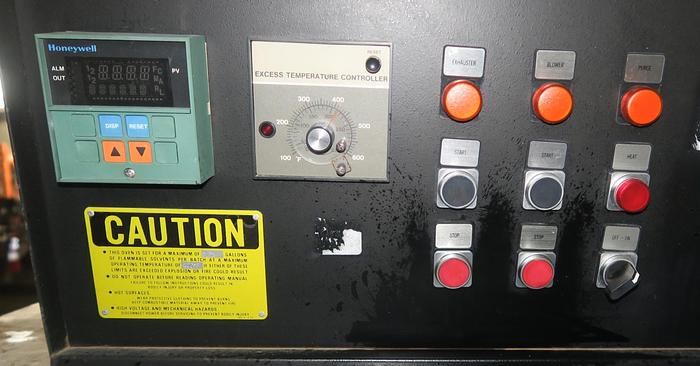

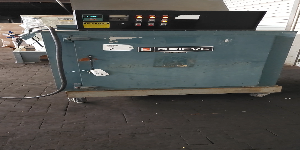

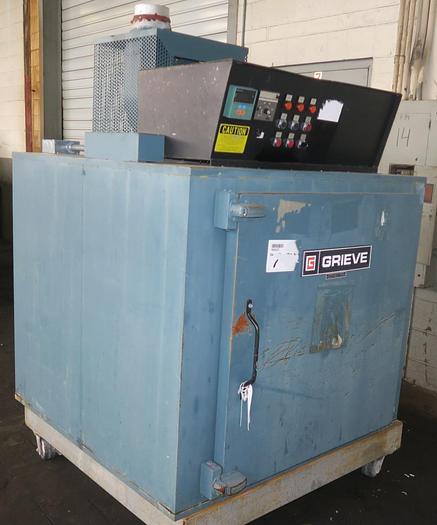

Controls are located in a top mounted "UL" rated control cabinet which houses a Honeywell UDC digital temperature controller and a Partlow analog high limit. Control switches with indicating lights for the exhauster, circulating fan, purge complete and heat are flush mounted in the face of the control cabinet. Contactors, motor starters, purge timer, fuses, relays etc. are mounted inside the control cabinet. Electrical drawings are included with this oven. Oven has been tested and is ready to ship. See video.

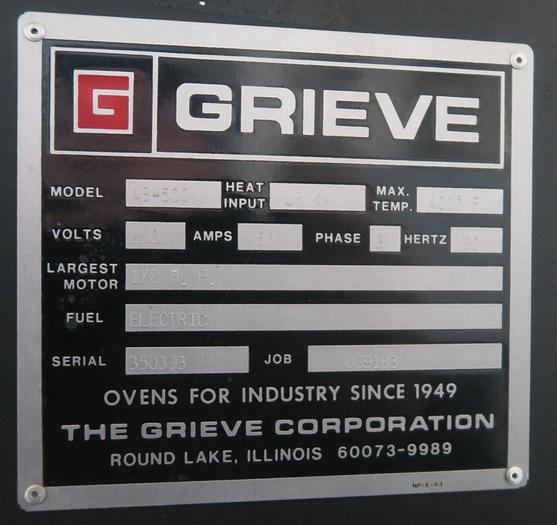

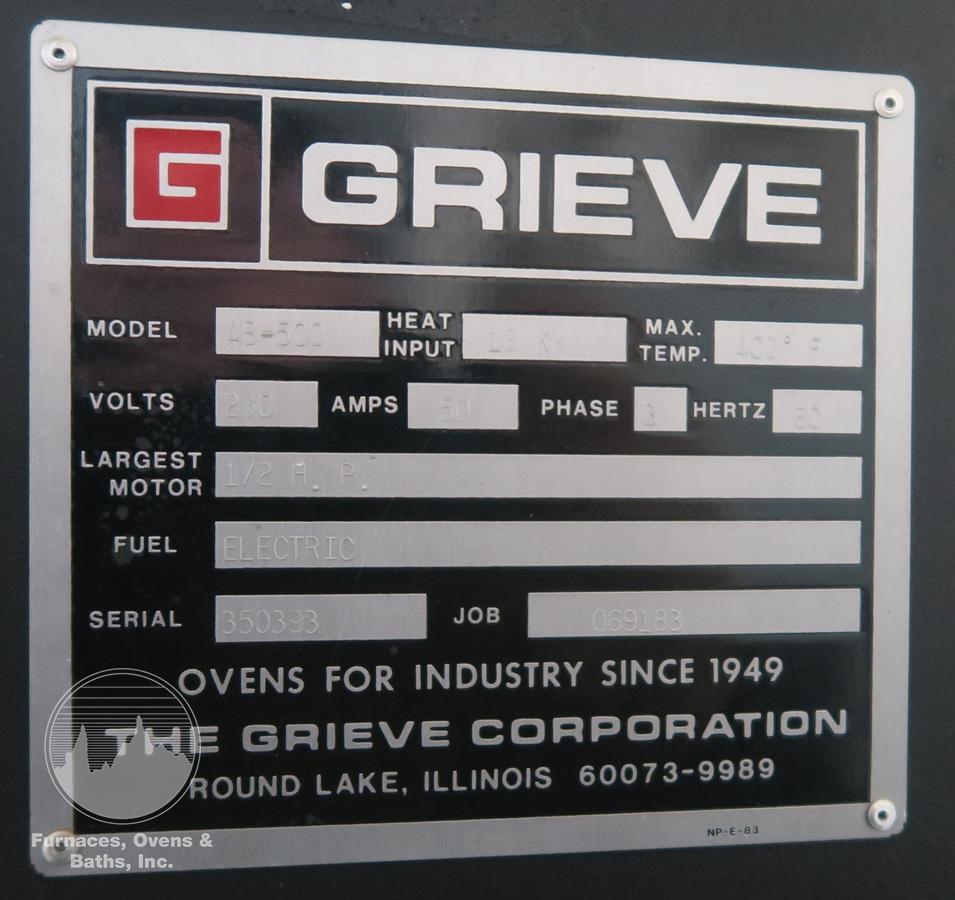

Serial Number350393, JOB #069183
Stock Number7733
Model NumberAB-500
Work Area36"W x 36"H x 36"L
Maximum Temperature500-F
Power Required230/3/60/50 Amps/18 kW
Overall Dimensions50" wide x 82" high x 60" long
