25"W x 20"H x 20"L Blue M DC-256A-FHP-1 Class A Cabinet Oven, 600°F, Electric

25"W x 20"H x 20"L Blue M DC-256A-FHP-1 Class A Cabinet Oven, 600°F, Electric

Contact us for price

orCall 248-343-1421

Description

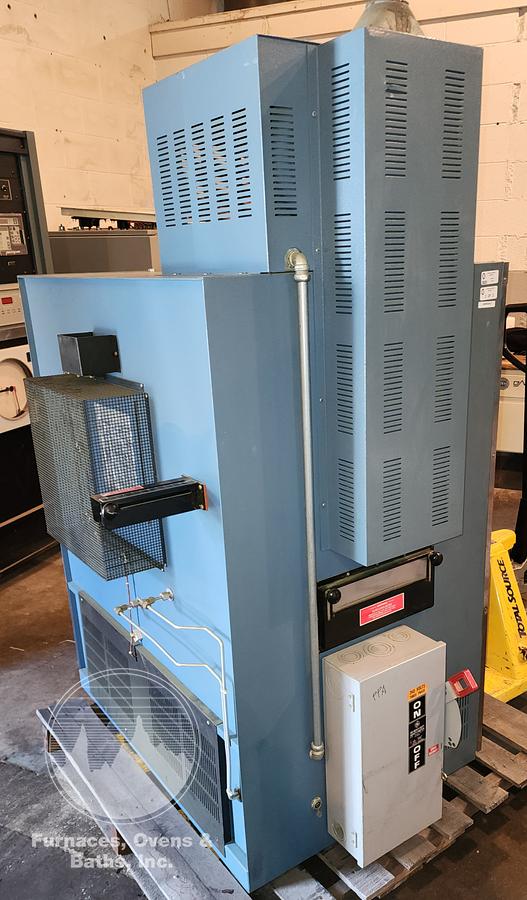

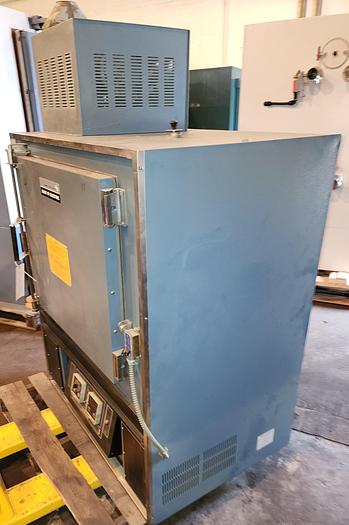

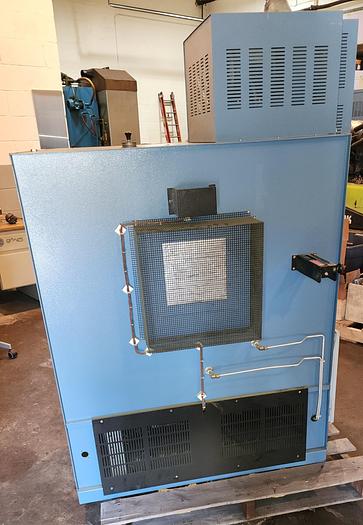

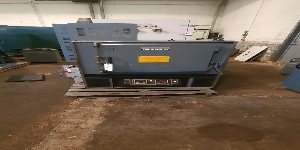

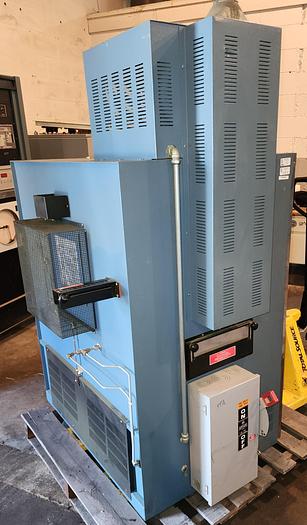

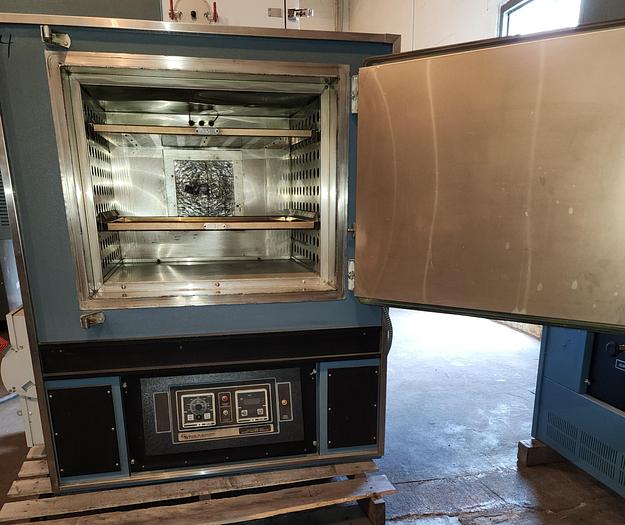

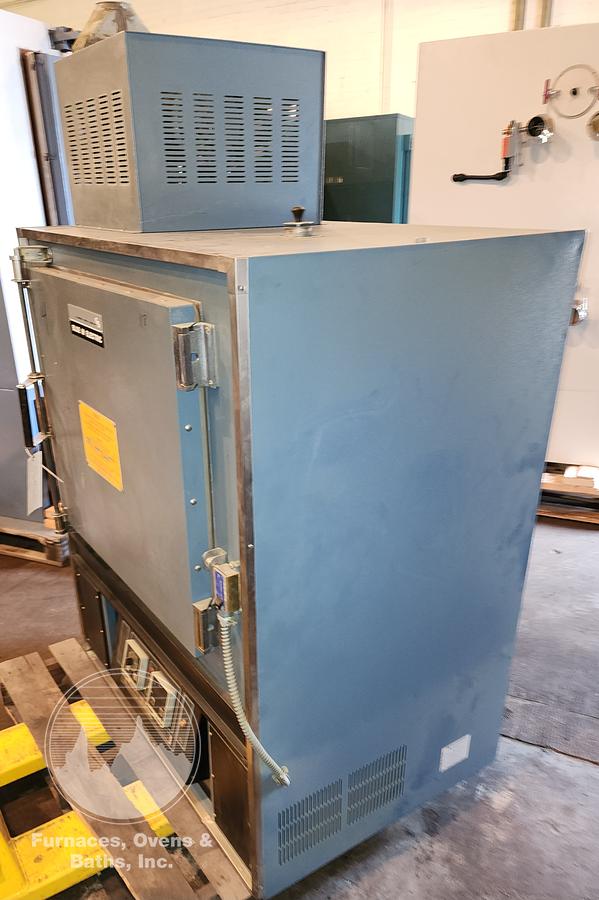

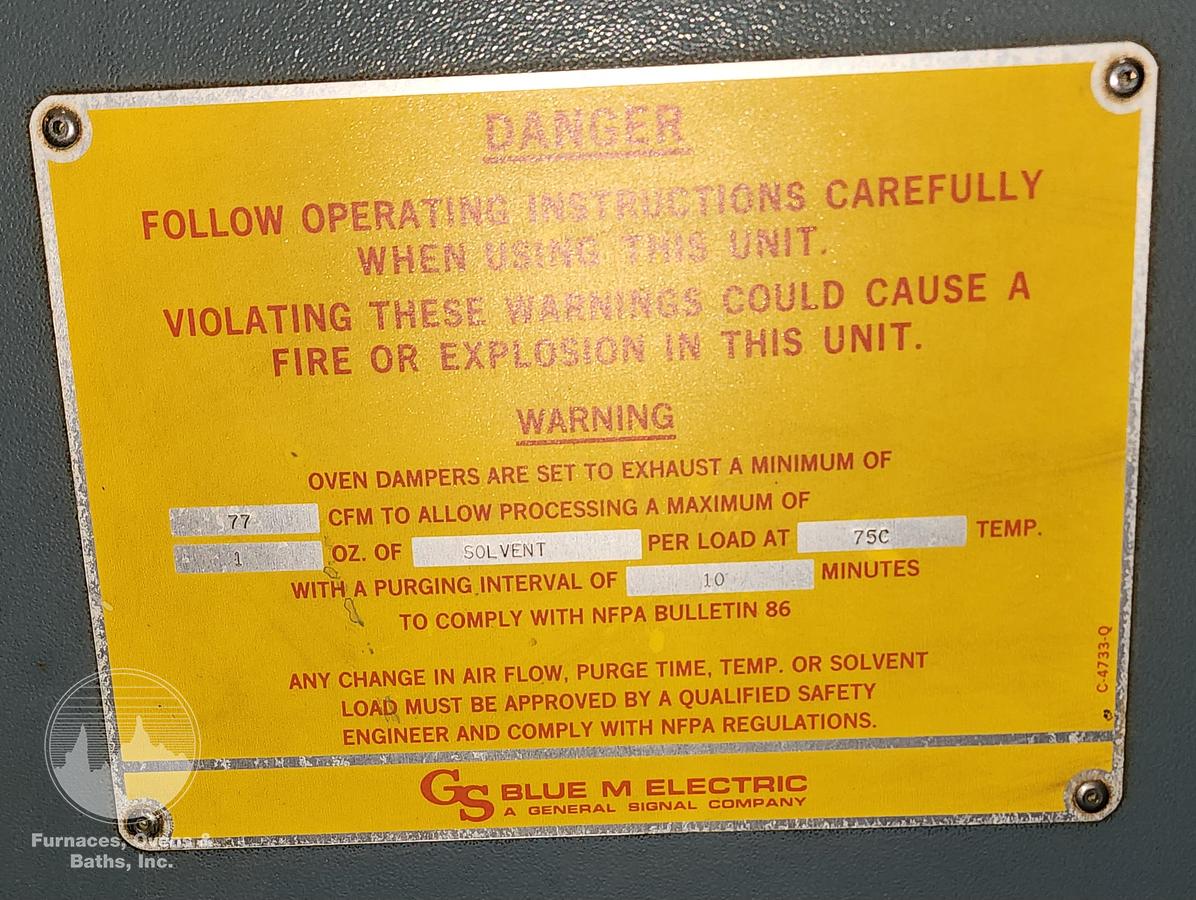

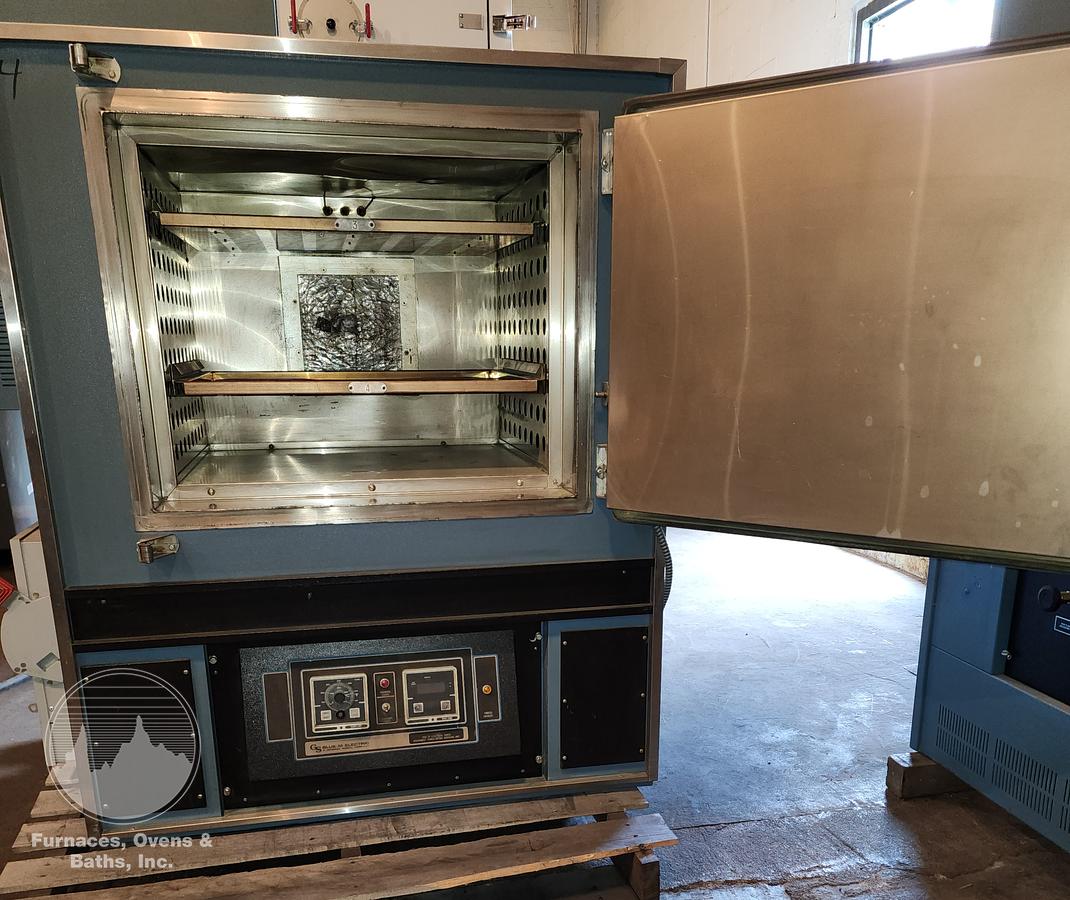

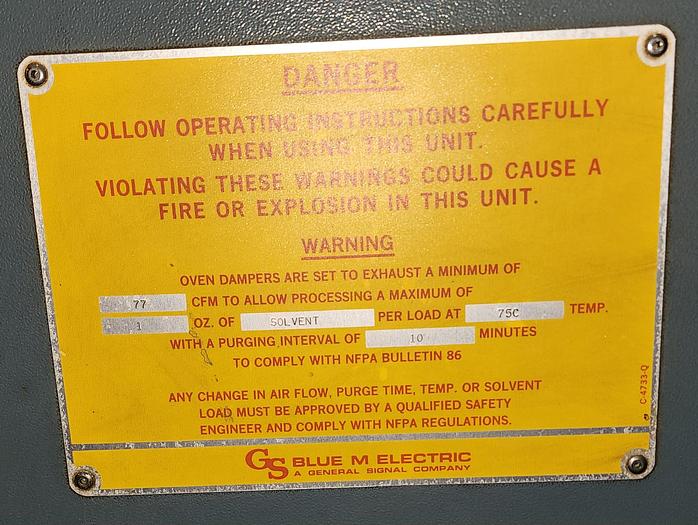

Class A oven rated for use with some solvents. Single door with 2-point cam action latch and silicon rubber gasket for a good door seal. Stainless Steel interior with perforated air duct side wall panels. 2 shelves are included. Coiled style heating elements and direct driven circulating fan are below the work area. Heated air is circulated in a horizontal pattern across the chamber. Adjustable fresh air inlet is located on the left-hand side. A powered exhaust fan is mounted on side of the oven. Pressure relief panel in rear wall. Fire extinguisher port on top of the oven. Metal stand is included with this oven 40" x 30" x 22" high. Oven is tested and ready to ship. See video


Controls are mounted and wired in a convenient slide out console located directly under the work chamber. There is a Partlow/Blue M 1900 digital temperature controller and a Partlow/Blue M analog high limit. A control power switch and indicating lights are flush mounted to the front panel. A fused disconnect switch is mounted on the left-hand side. Solid state power relays, high limit contactor, motor starer, purge timer, fuses, relays etc. are mounted to the console base.

Specifications

ManufacturerBlue M
ModelDC-256A-FHP-1
ConditionUsed

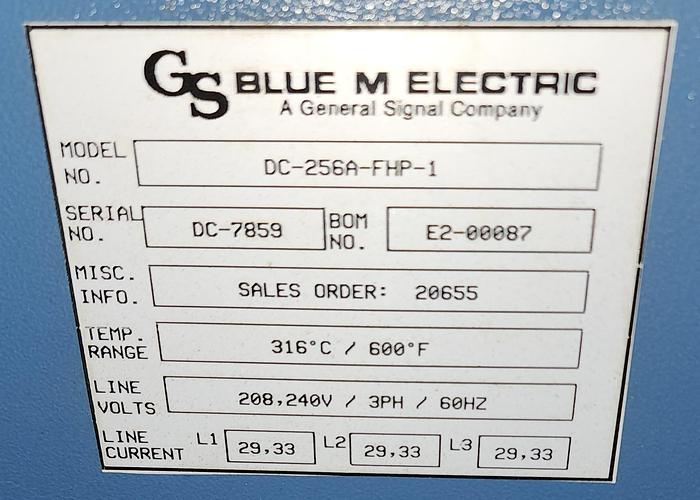

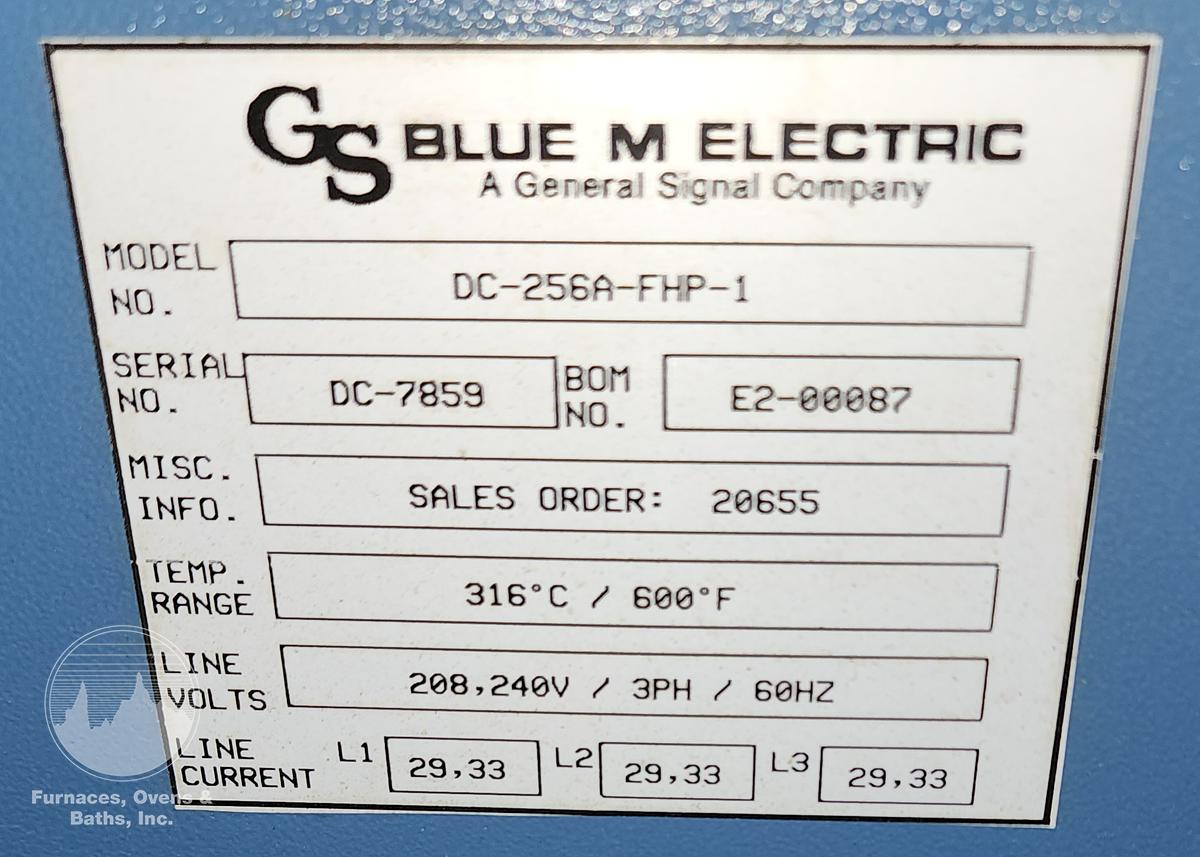

Serial NumberDC-7859, BOM E2-00087
Stock Number7734
Work area25"W x 20"H x 20"L
HeatedElectric
Max temperature600°F
Voltage208/240/3/60/29/33 Amps
External dimensions50" wide x 67" high x 42" long
AvailabilityImmediate
