72"W x 72"H x 84"L, Wisconsin, 500°F, Gas Fired

72"W x 72"H x 84"L, Wisconsin, 500°F, Gas Fired

Contact us for price

orCall 248-343-1421

Description

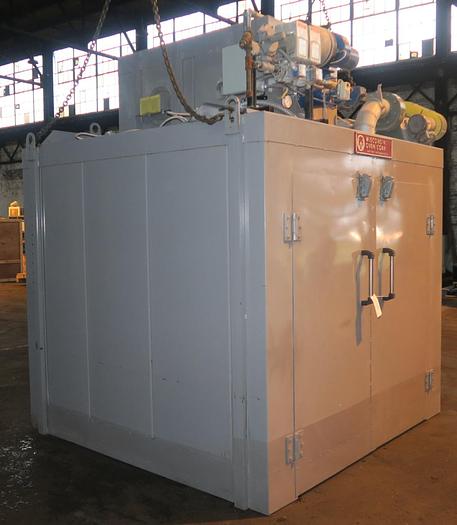

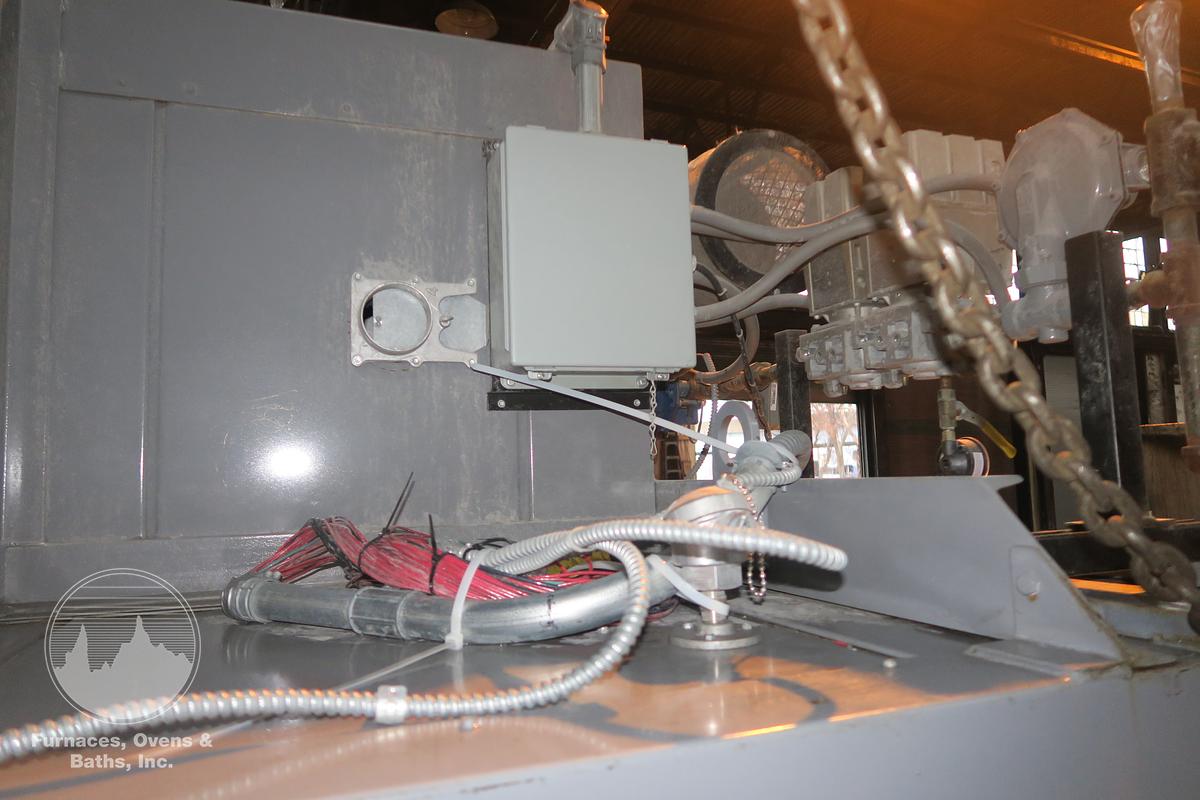

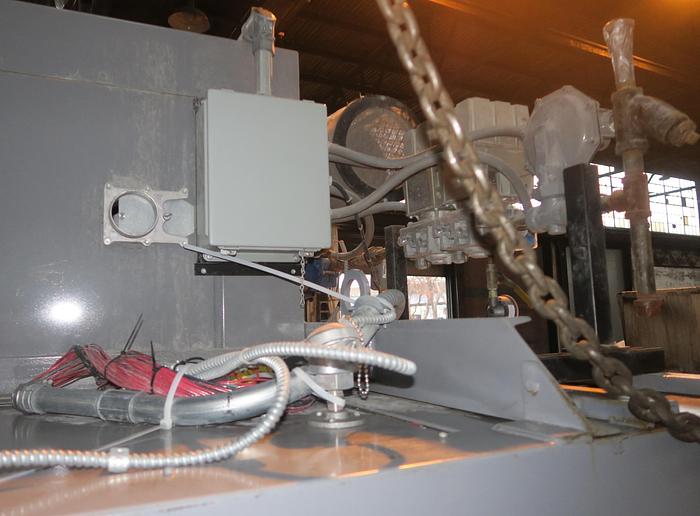

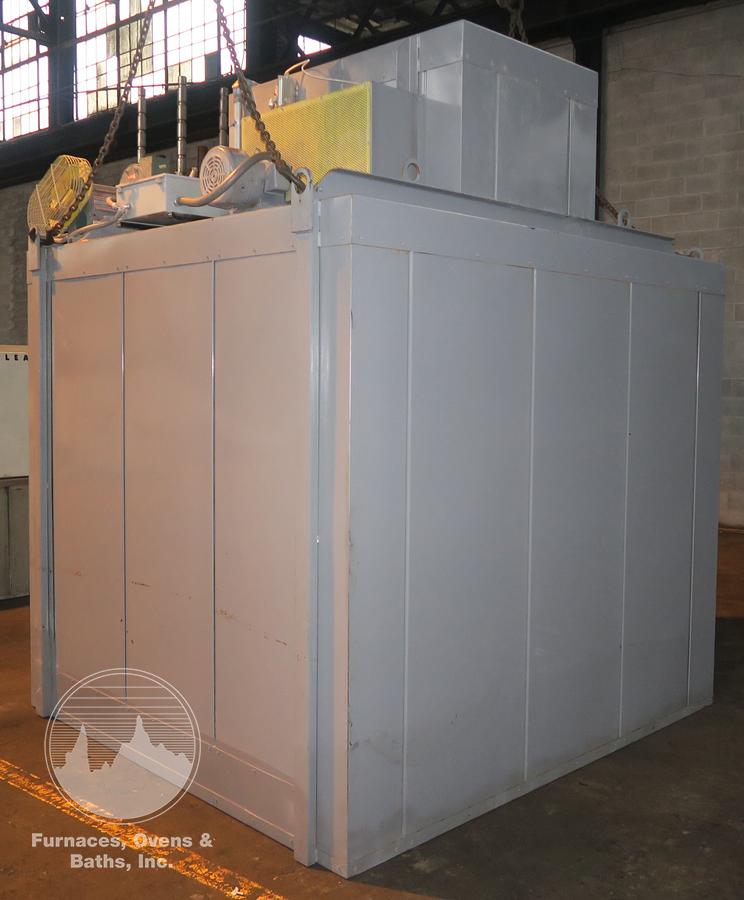

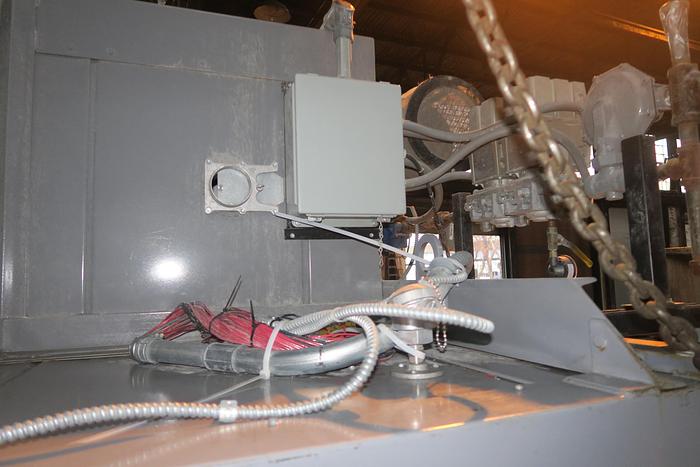

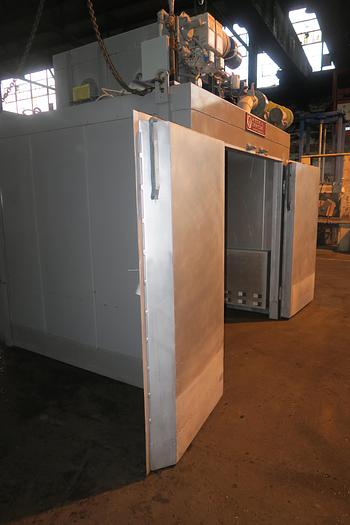

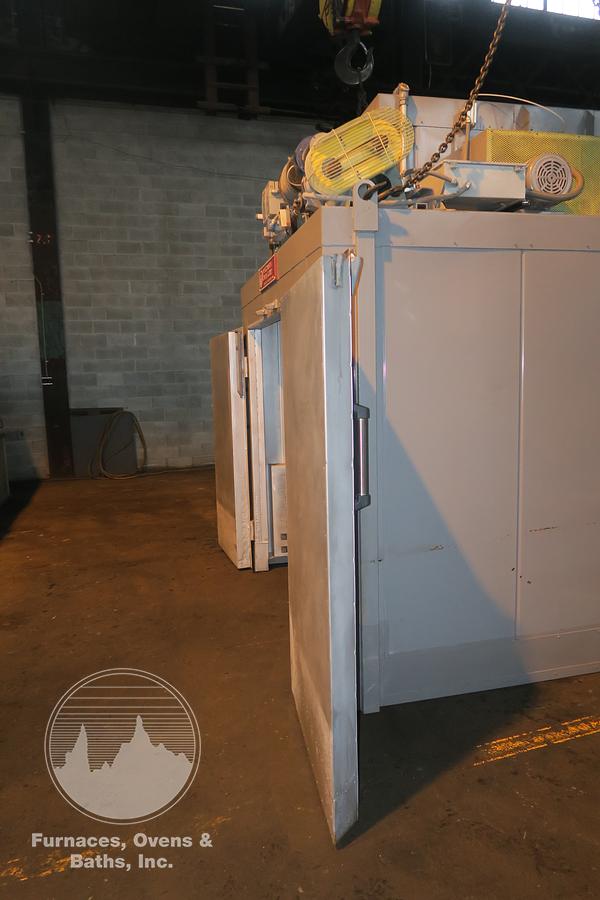

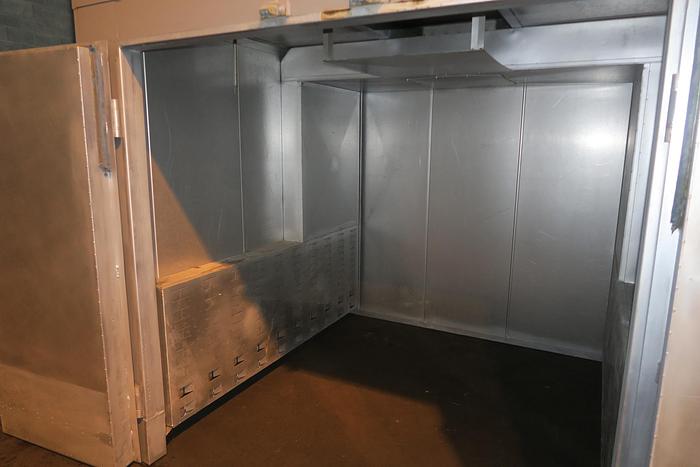

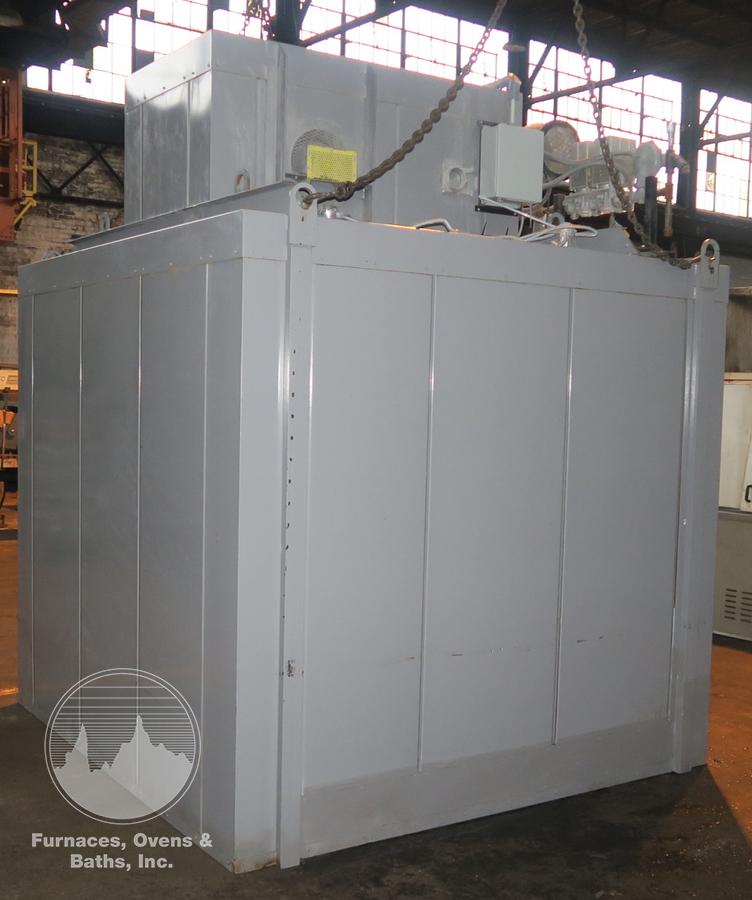

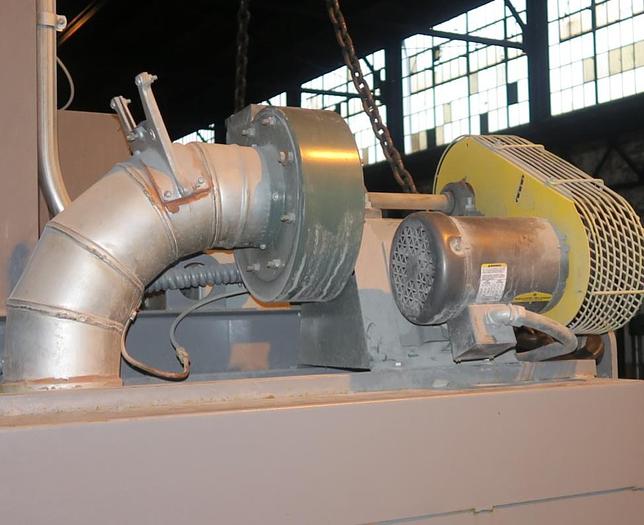

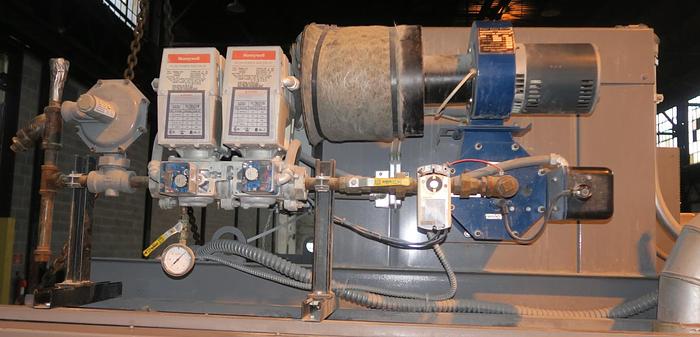

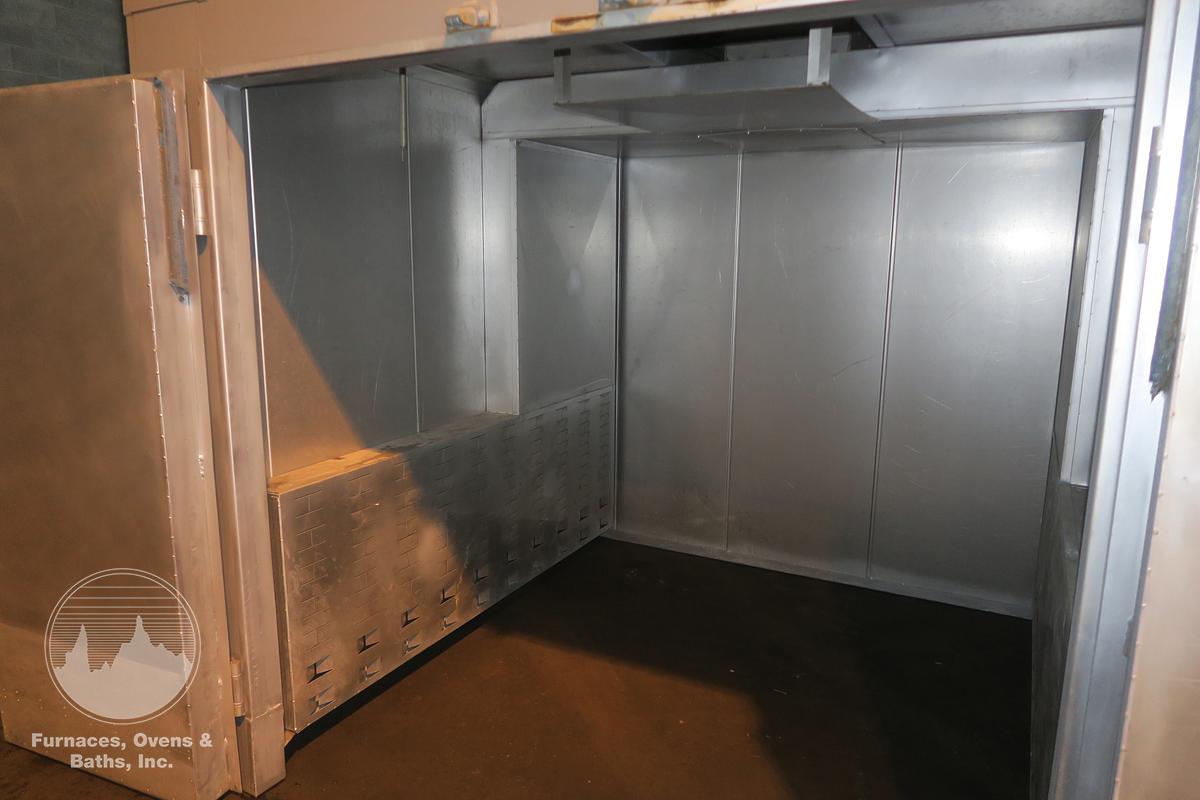

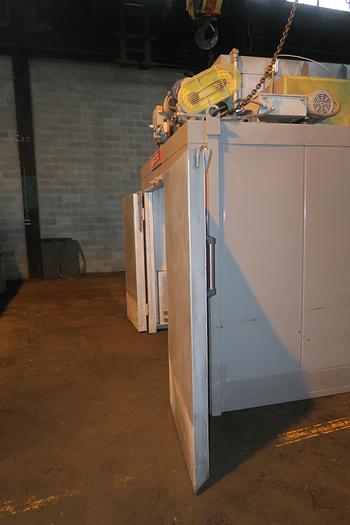

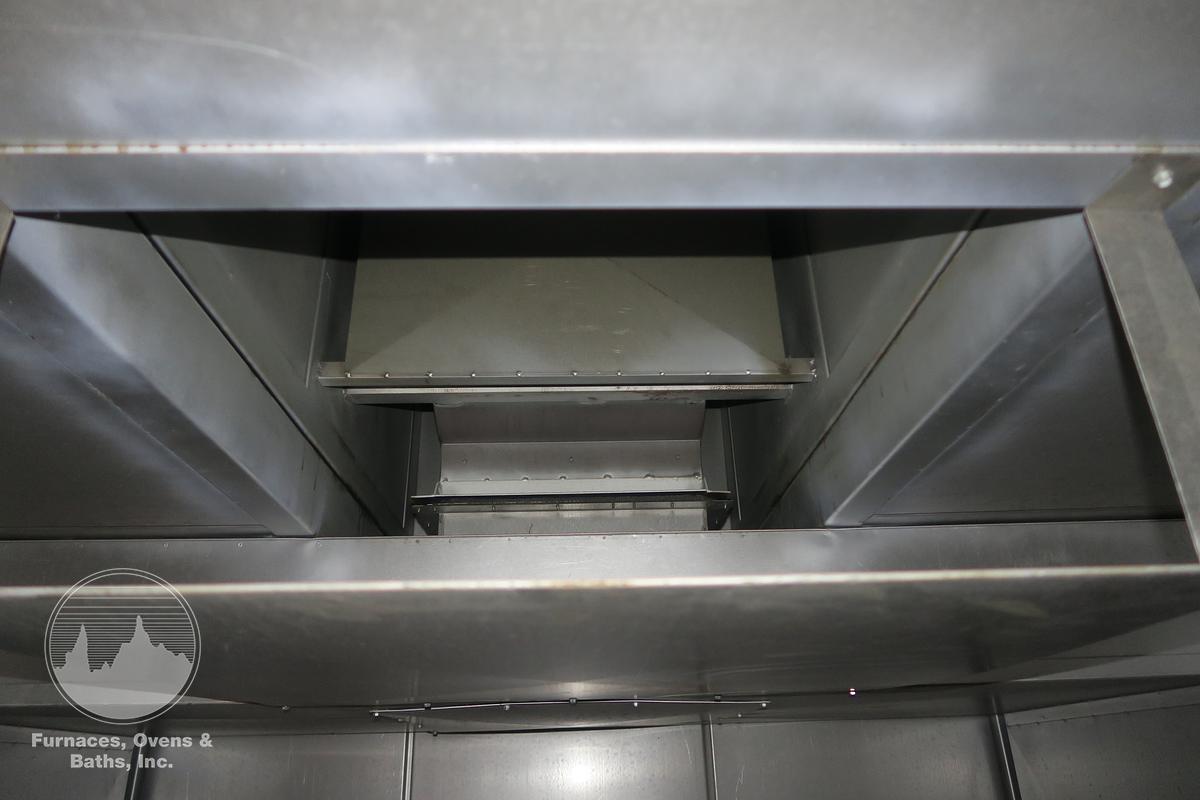

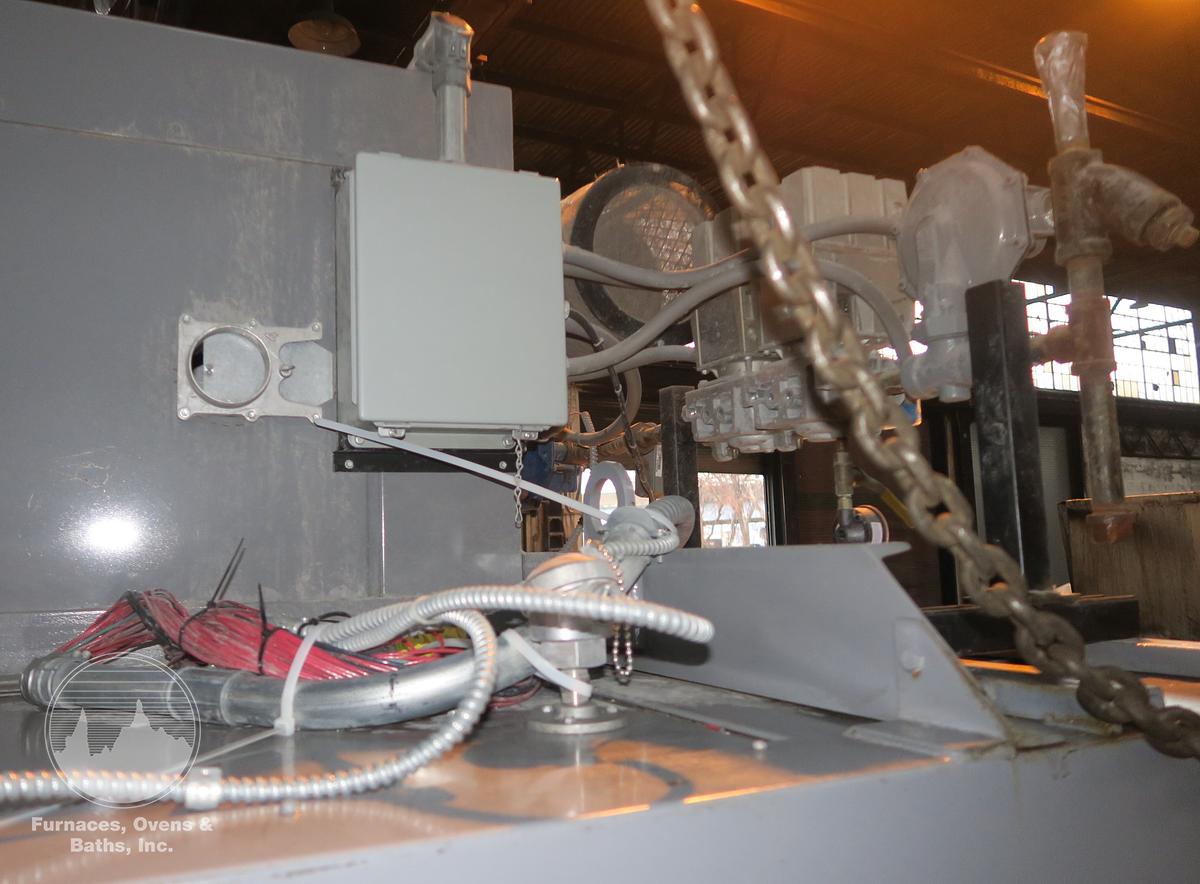

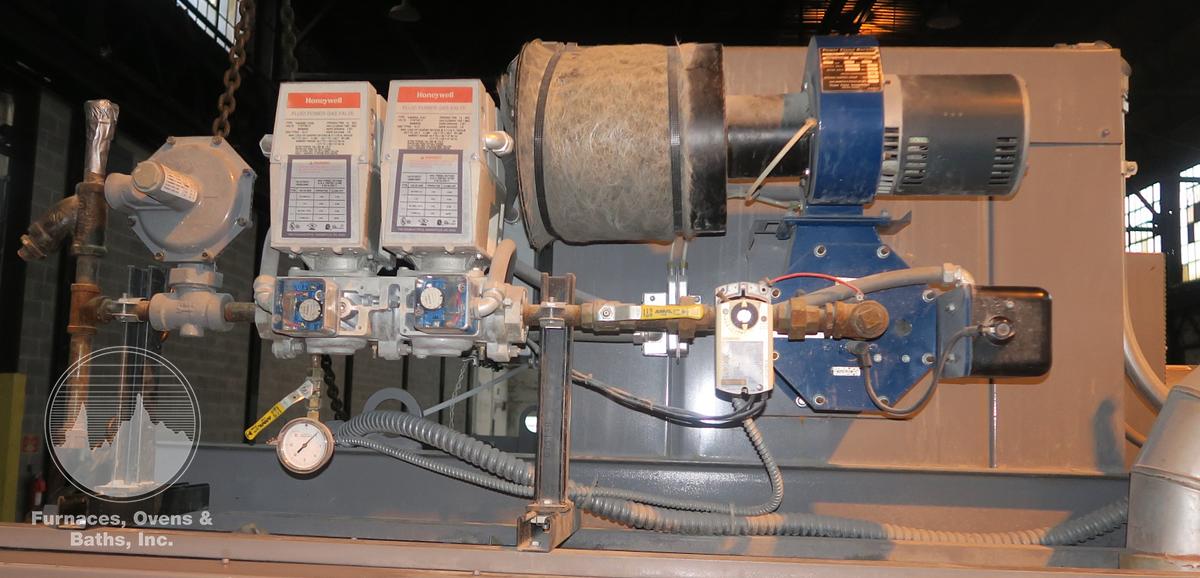

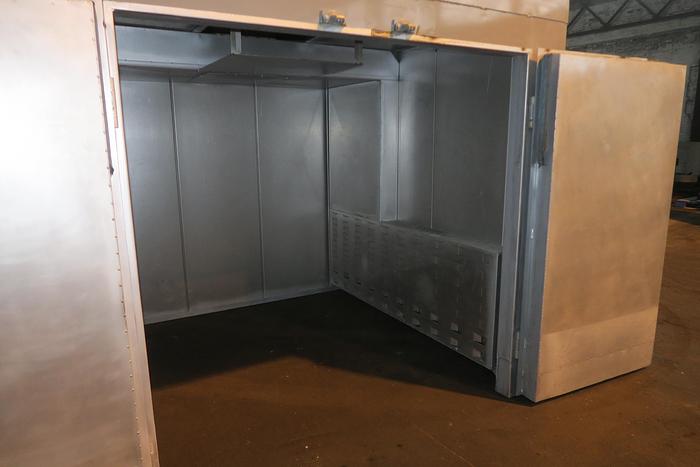

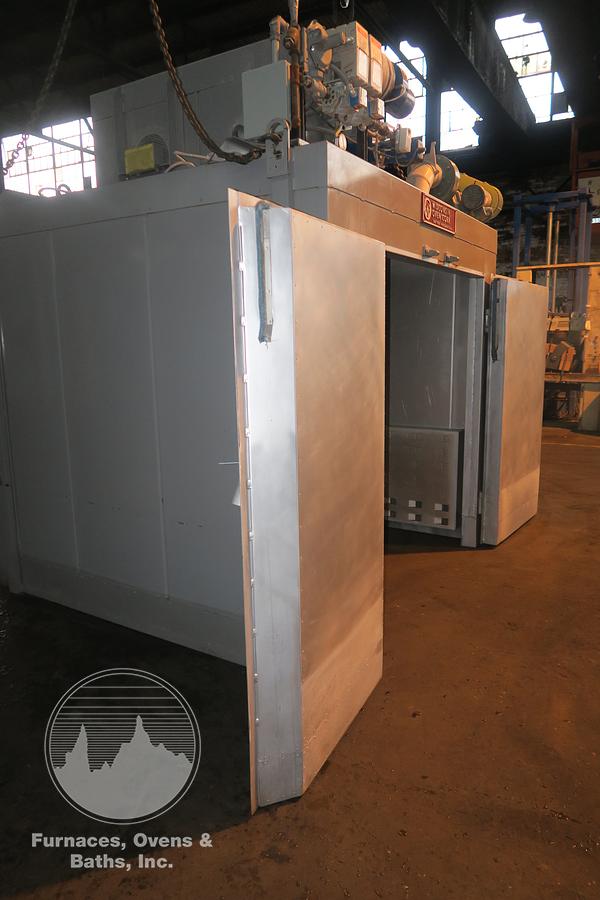

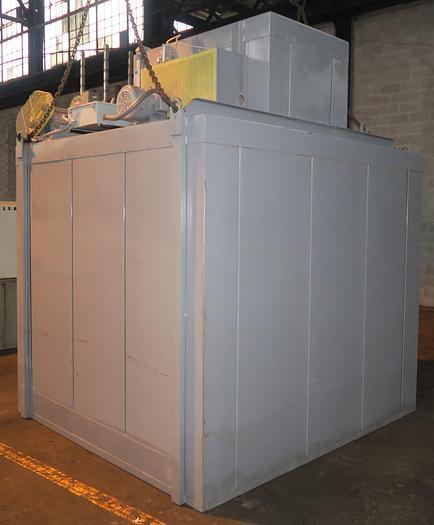

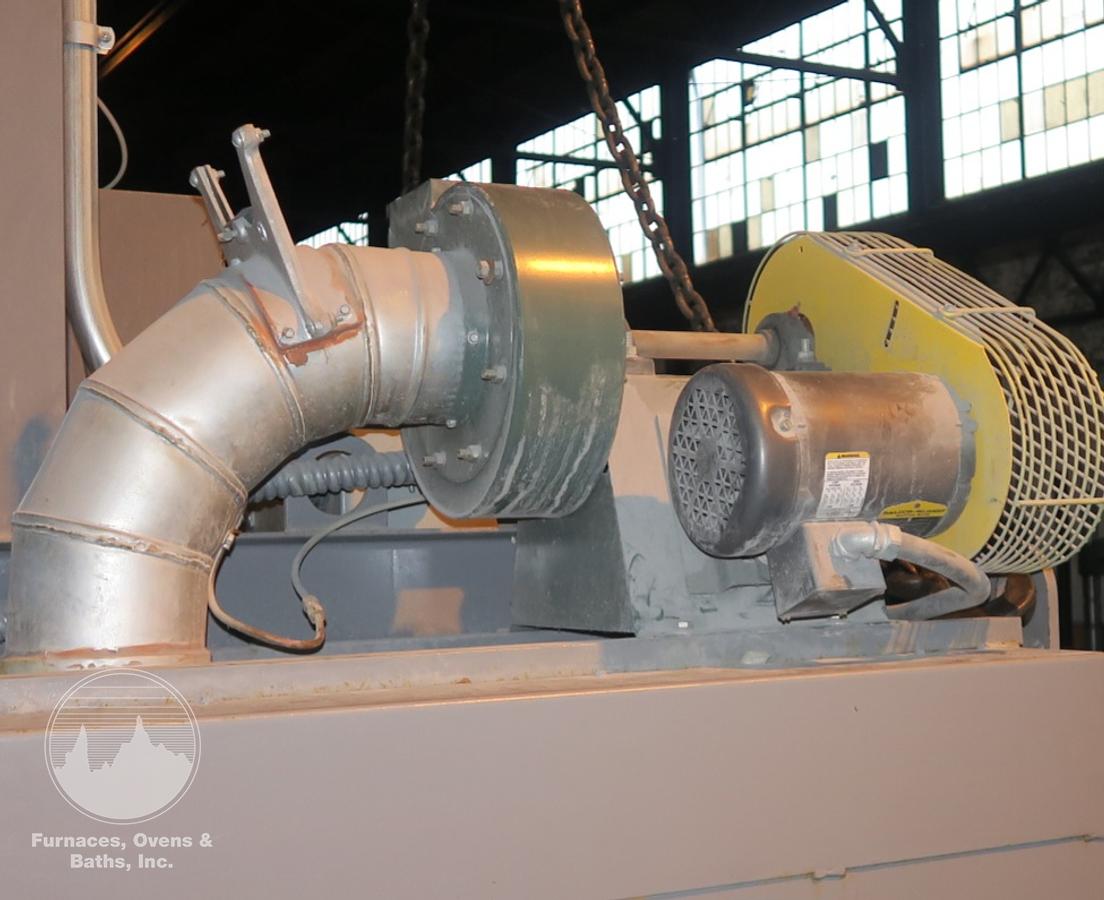

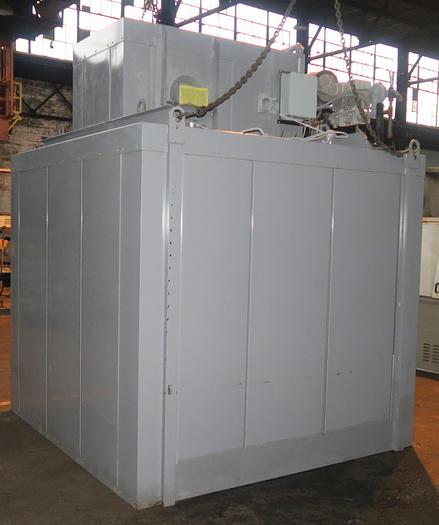

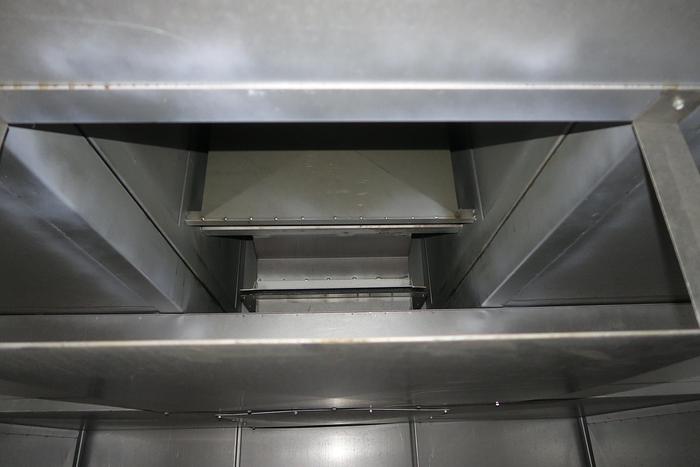

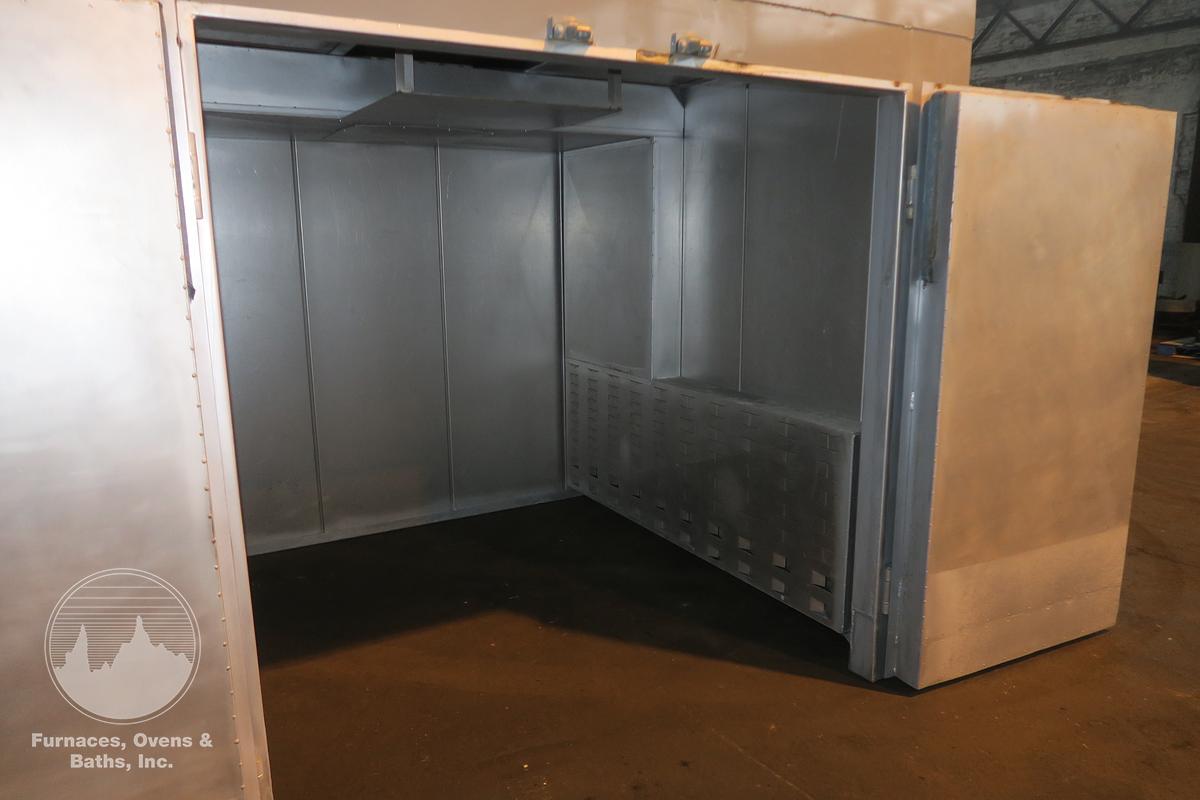

Double door batch oven with ceramic fiber door gasketing and aluminized steel interior. "H" style slots on air duct panels located on both side walls. 5 HP, 4500 CFM circulating fan and 400,000 BTU Power Flame package burner is mounted in a top mounted heater box. Heated air is circulated in a combination horizontal/vertical pattern across the work area for good uniform heating. A 1/2 HP, 400 CFM powered exhaust fan is located on top of the oven. Lifting eyelets for rigging are located on top. Oven is in excellent condition. Complete set of manuals and drawings are included with this oven.

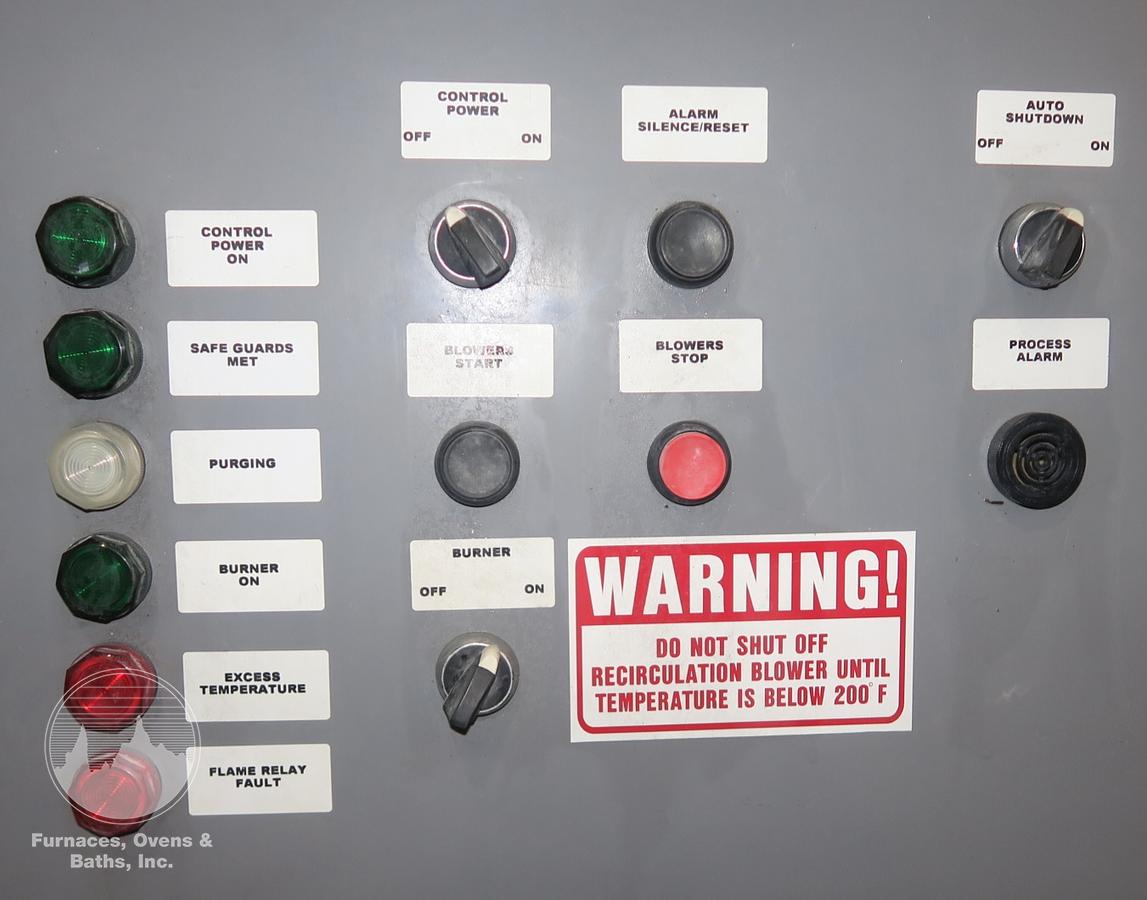

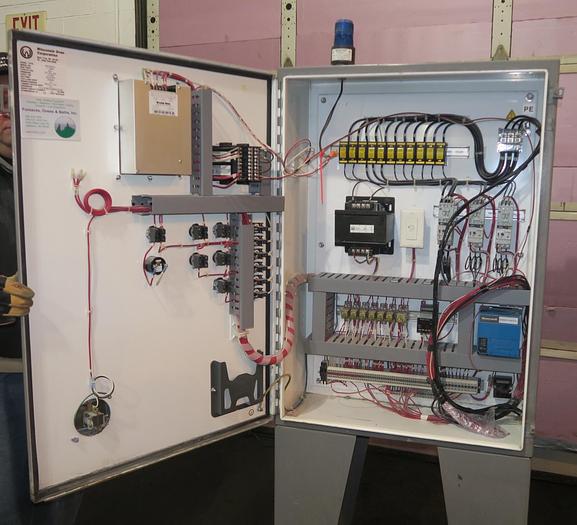

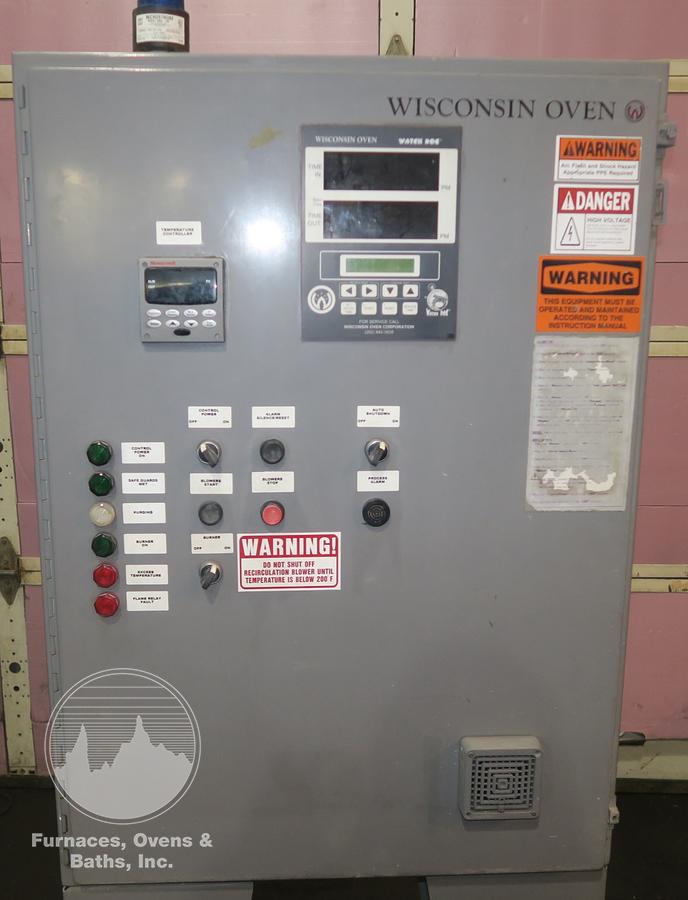

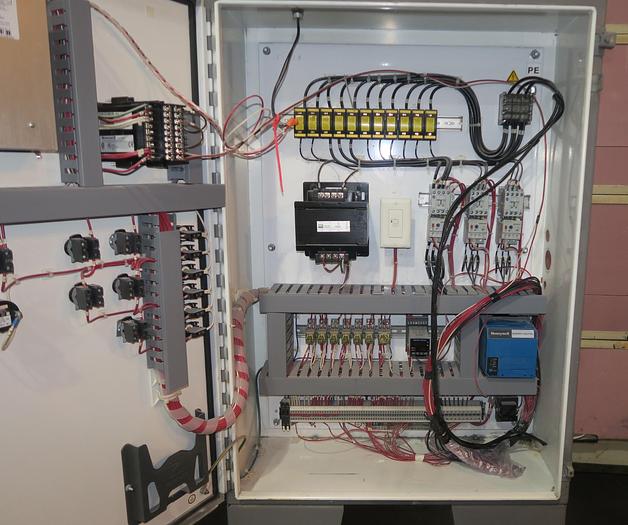

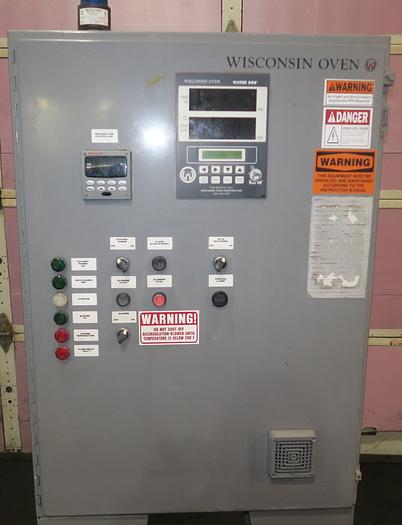

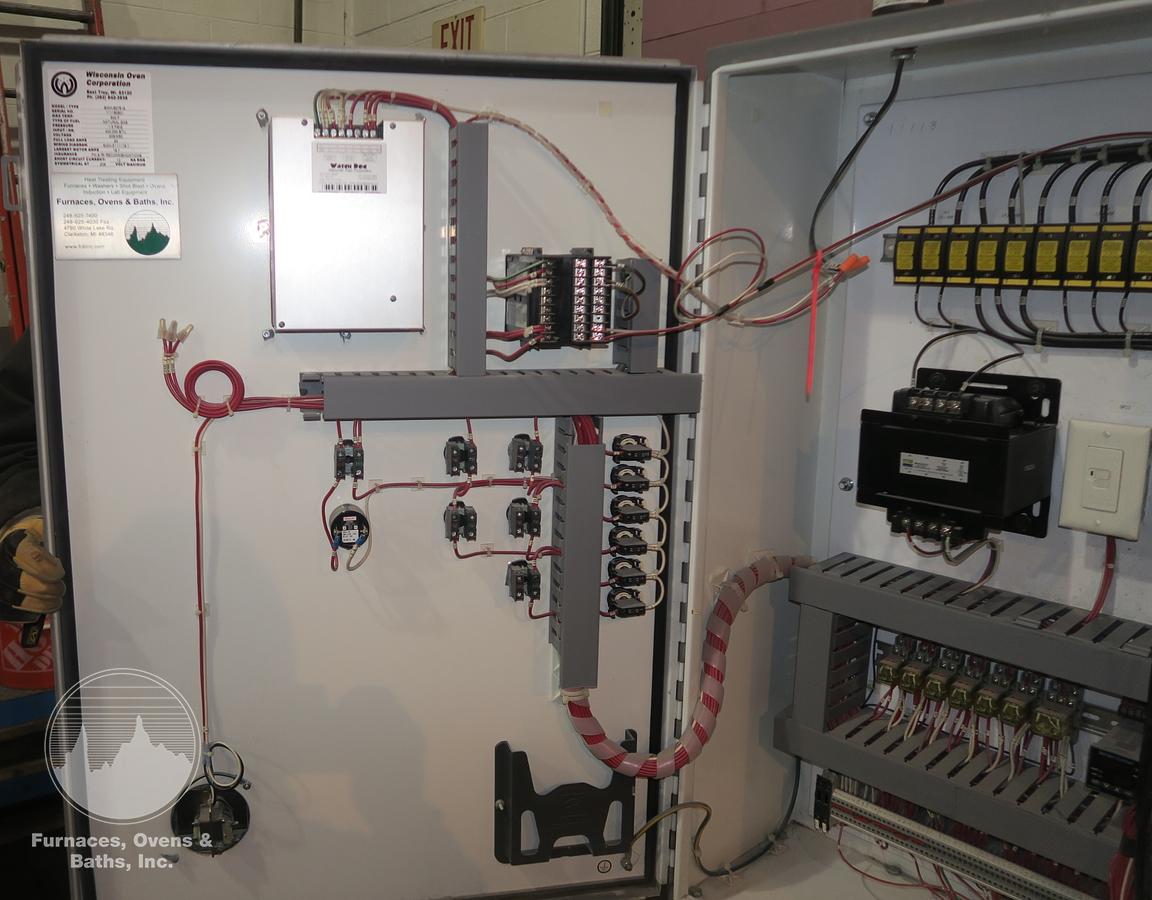

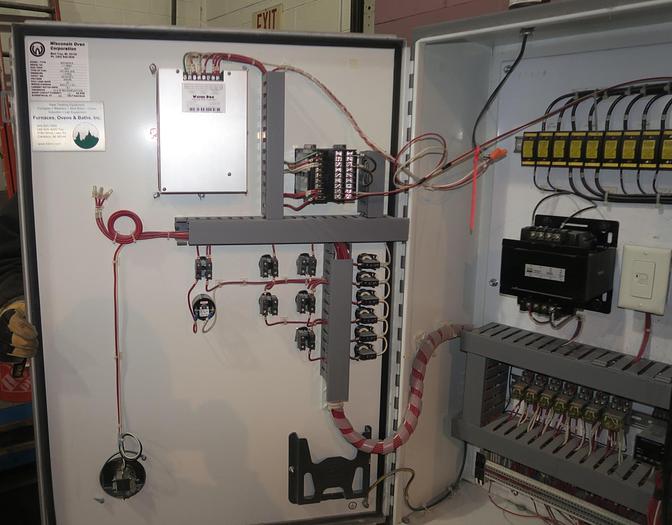

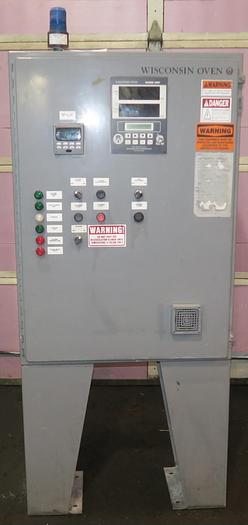

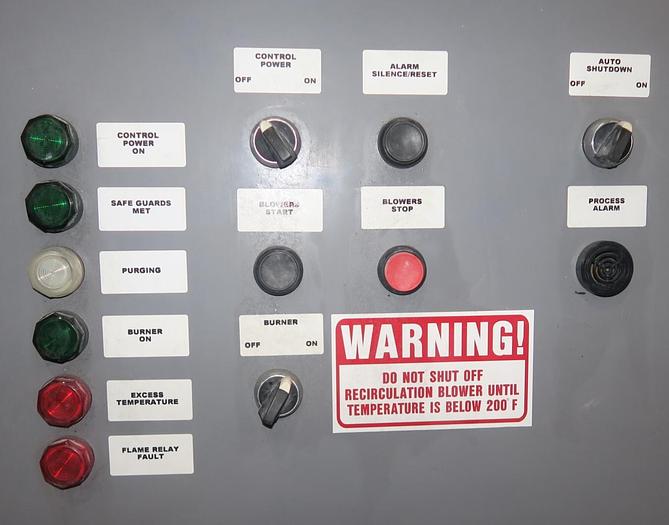

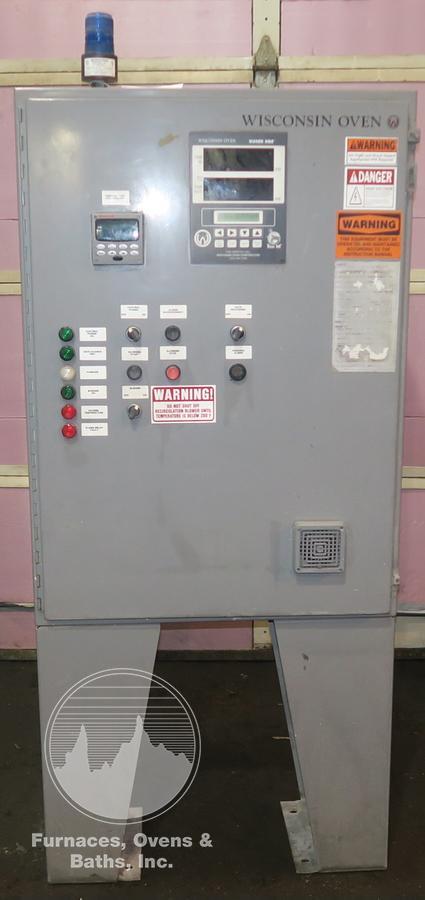

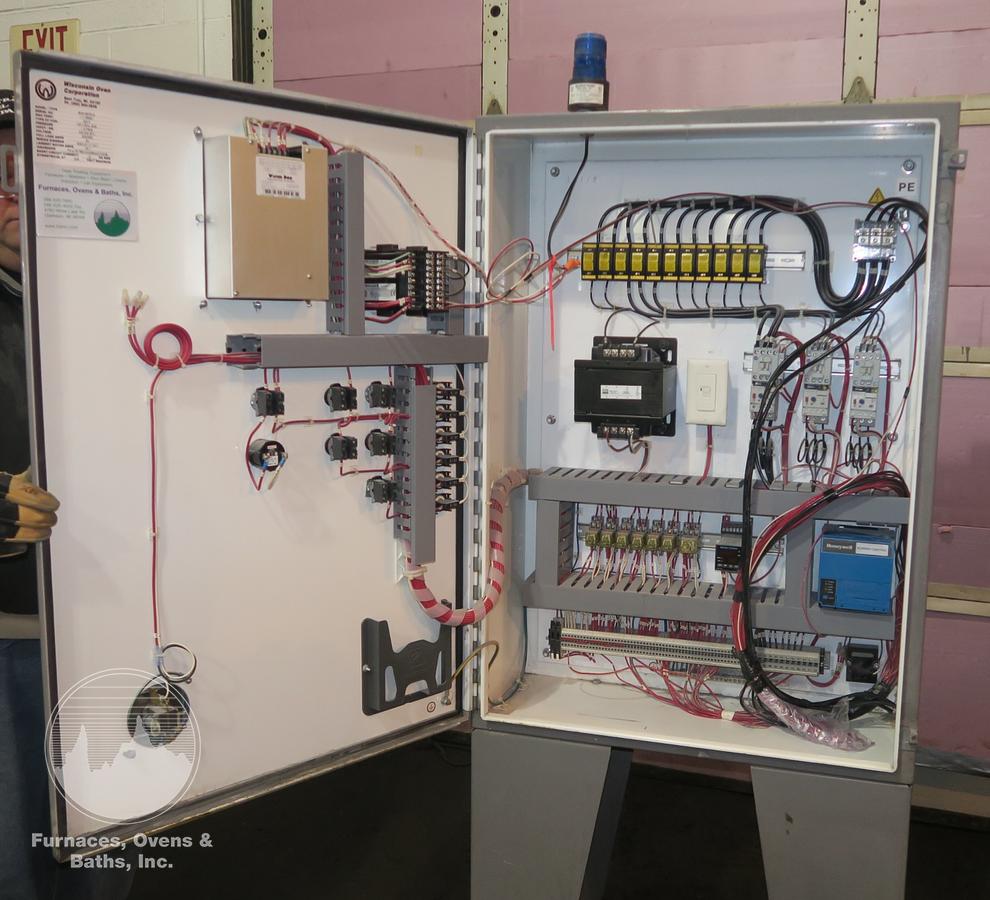

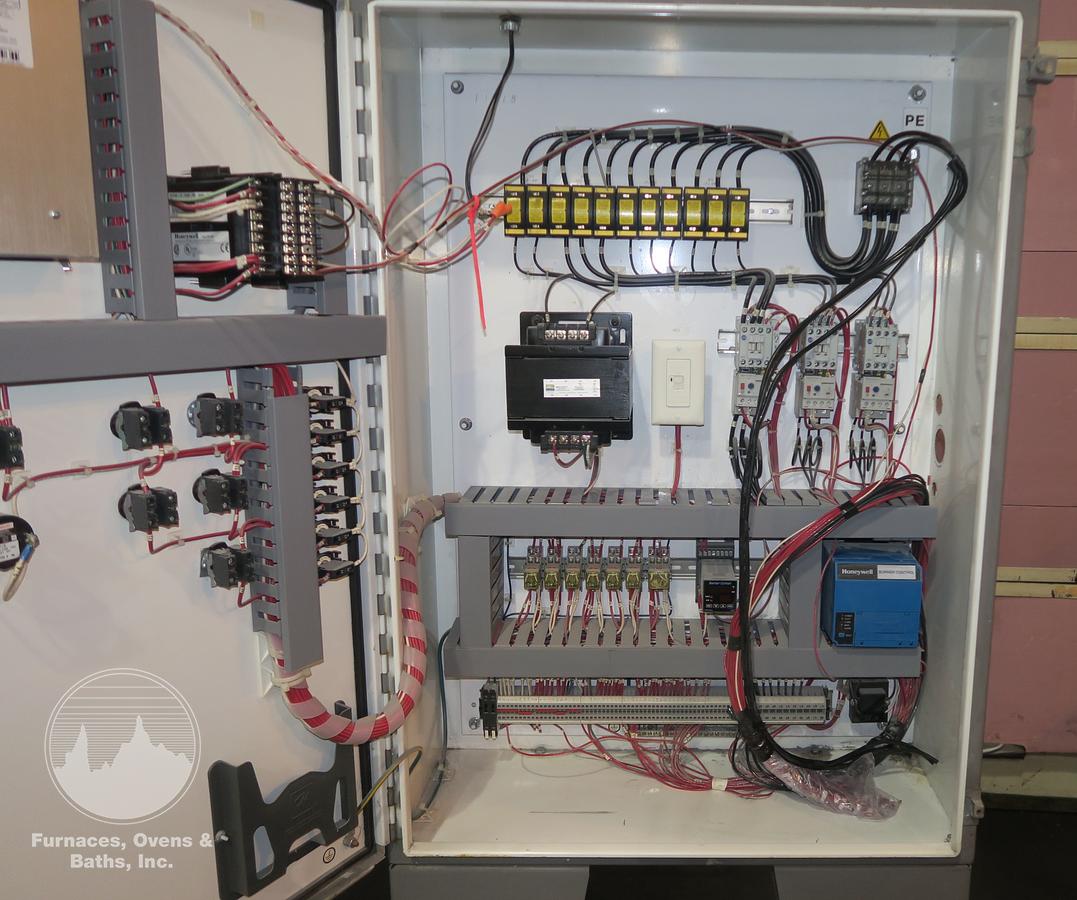

Controls are mounted and wired in a free standing NEMA 12 enclosure which includes a Honeywell UDC 2500 digital temperature controller flush mounted to the front of the enclosure door. There is a Barber Colman Limitrol 7SL digital high limit mounted inside the enclosure. There is a Wisconsin "WATCH DOG" oven management system with digital timer and auto shutdown. Control switches with indicating lights are flush mounted to the front of the enclosure door. Motor starters, fuses, Honeywell Model 7800 flame relay etc. are mounted inside the control cabinet.

Specifications

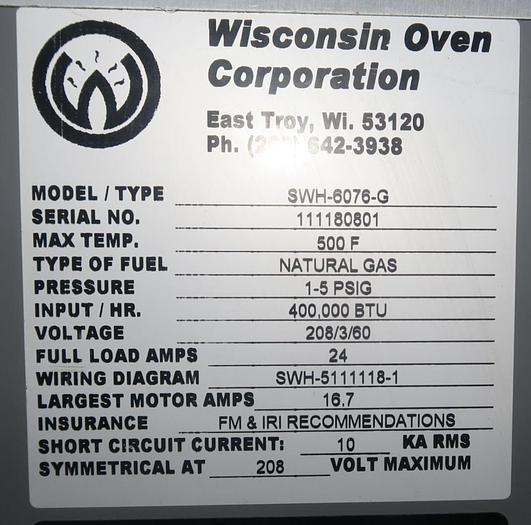

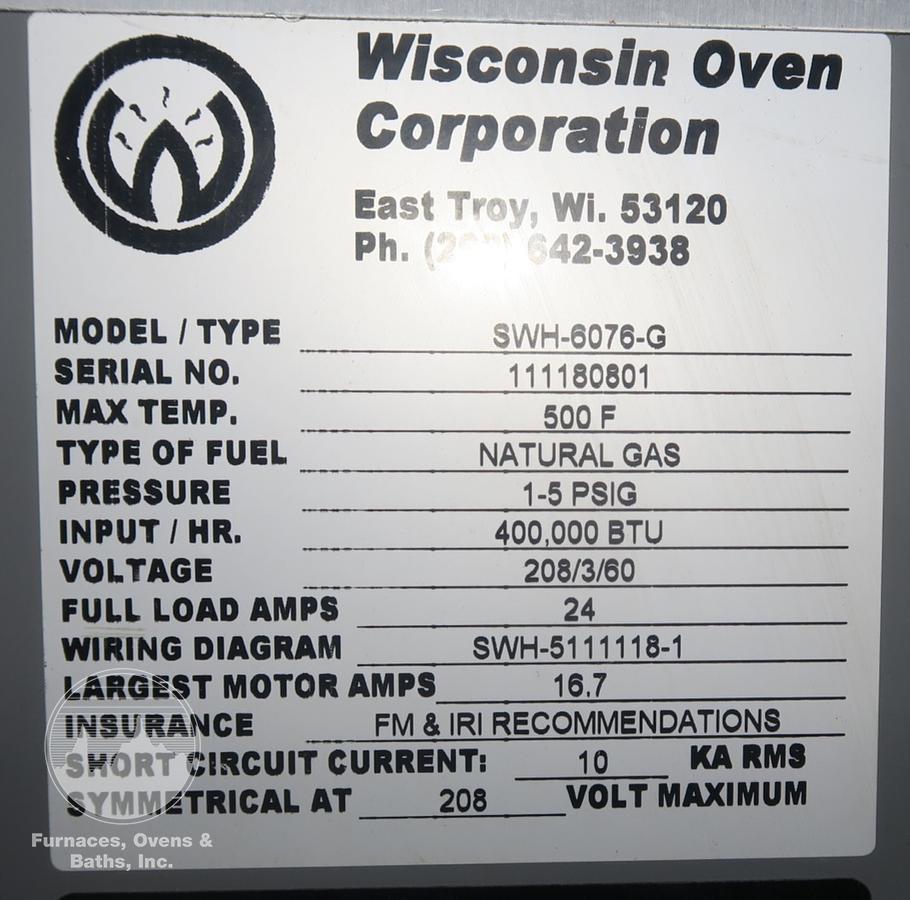

ManufacturerWisconsin Oven Corporation
ModelSWH-6076-G
Year2007
ConditionUsed
Serial Number111180801
Stock Number7752
Work area72"W x 72"H x 84"L
HeatedNatural Gas - 400,000 BTU's/Hour, 1000 BTU per cubic foot @ 1-5 PSIG
Max temperature500°F
Voltage208/3/60/24 FLA
External dimensions96" wide x 120" high x 96" long - 5000 pounds
AvailabilityImmediate
