12"W x 6"H x 120"L, Thermal Basic, 900-F, Electric

12"W x 6"H x 120"L, Thermal Basic, 900-F, Electric

Contact us for price

orCall 248-343-1421

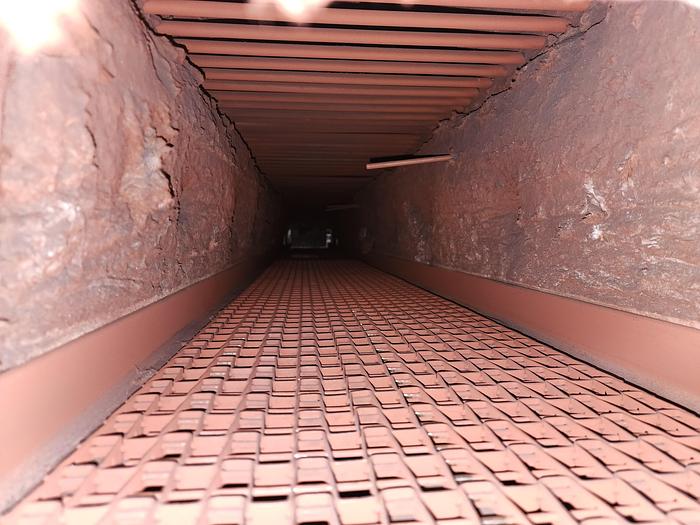

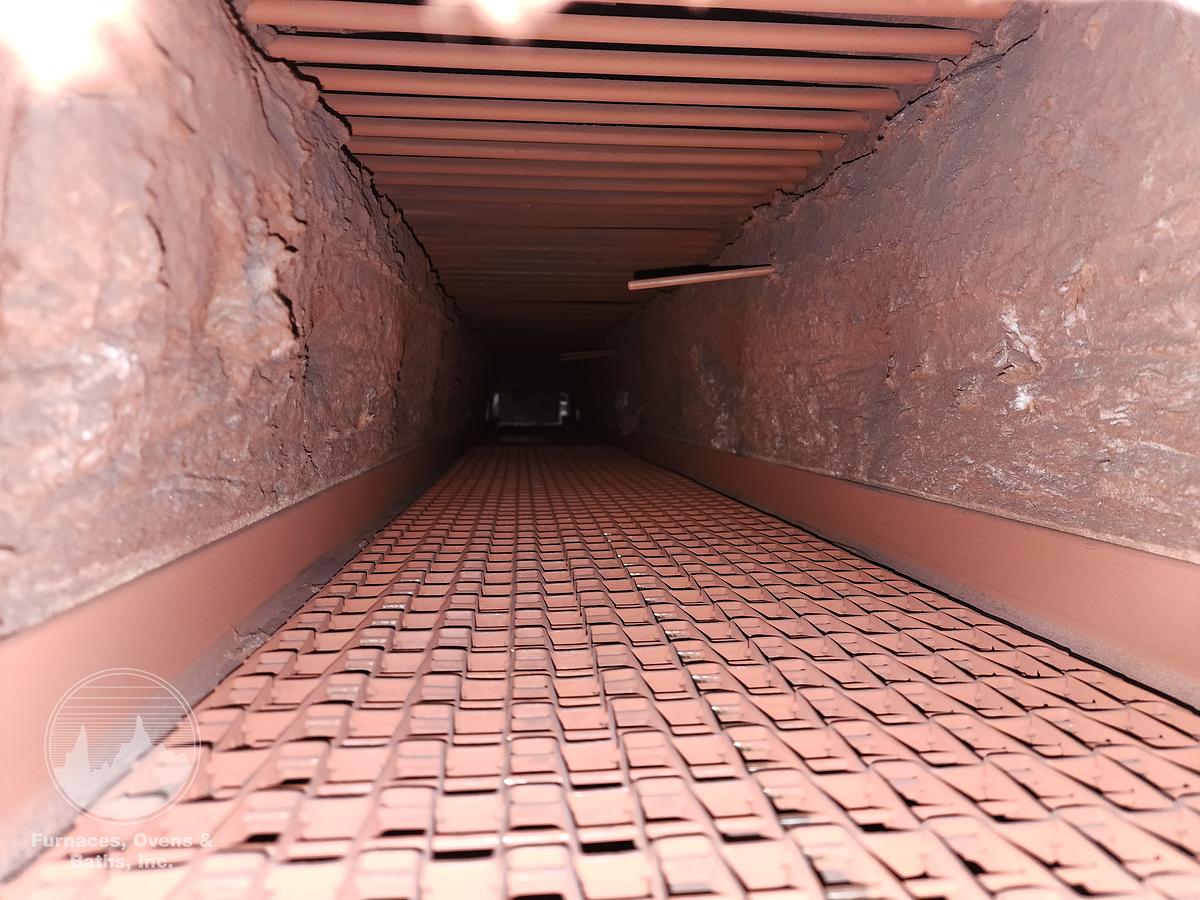

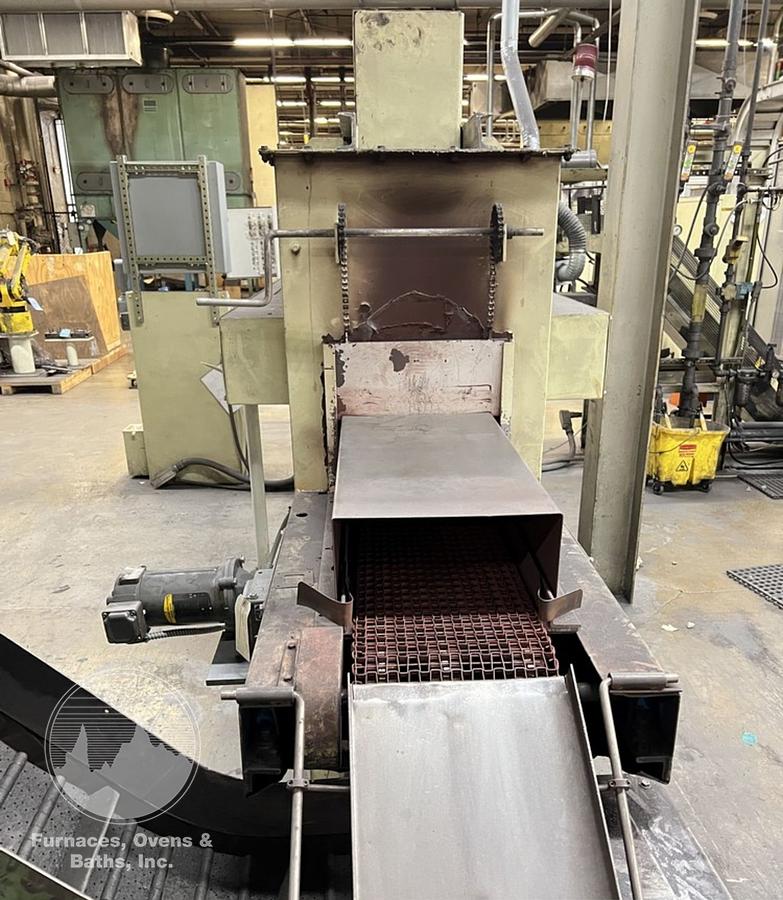

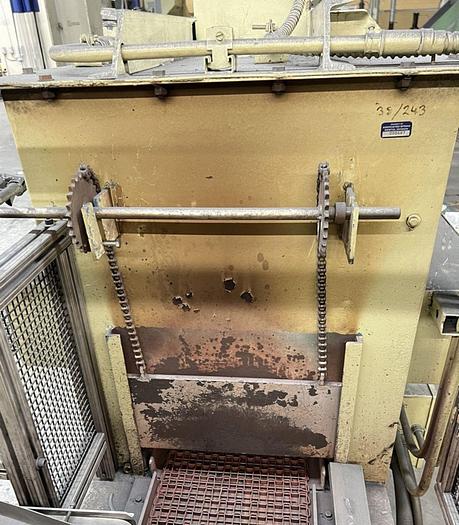

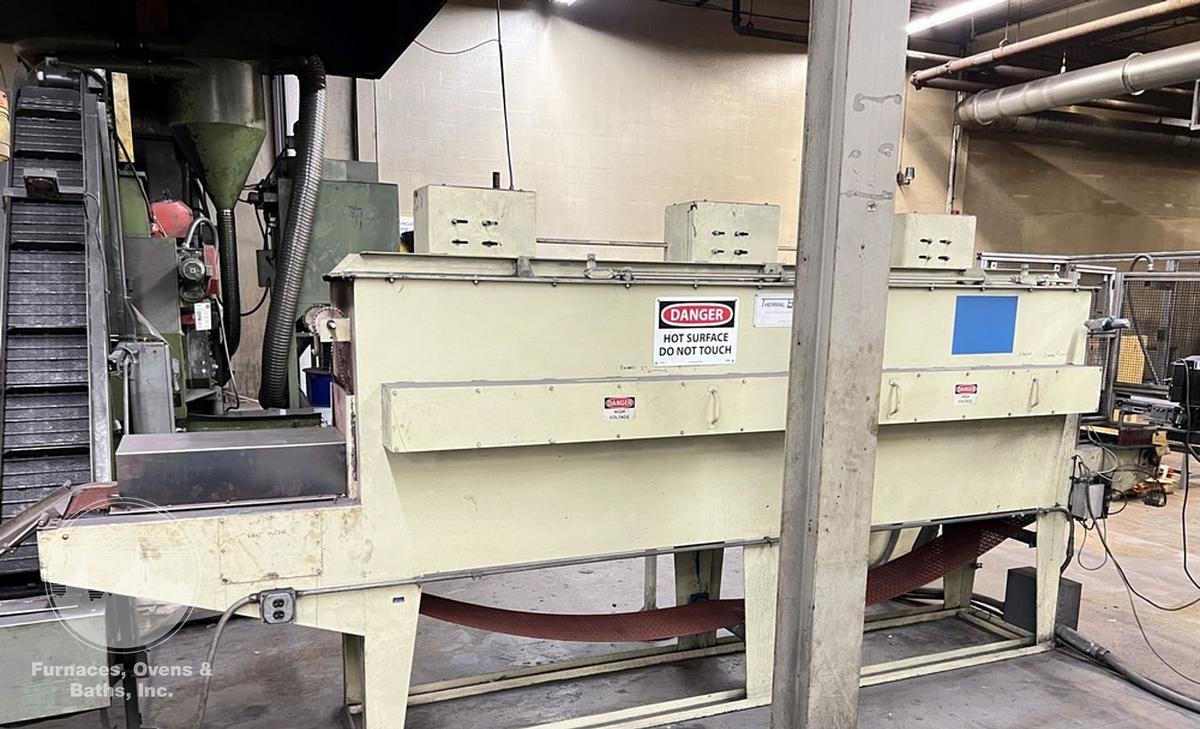

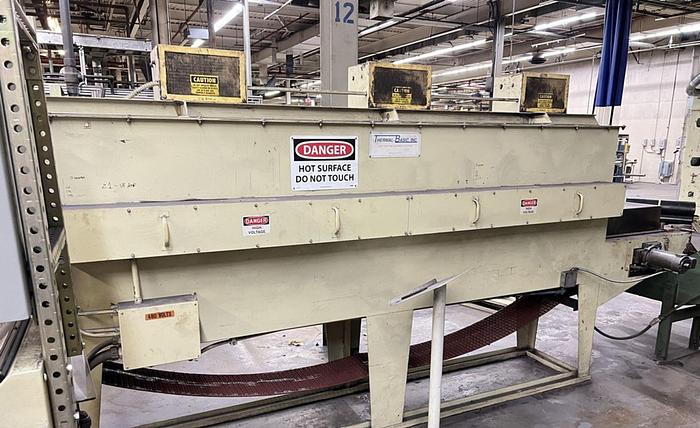

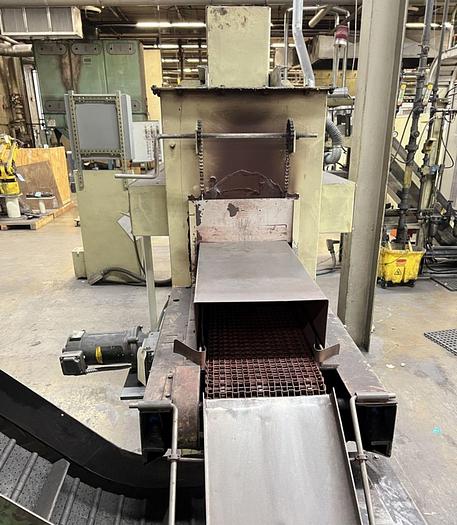

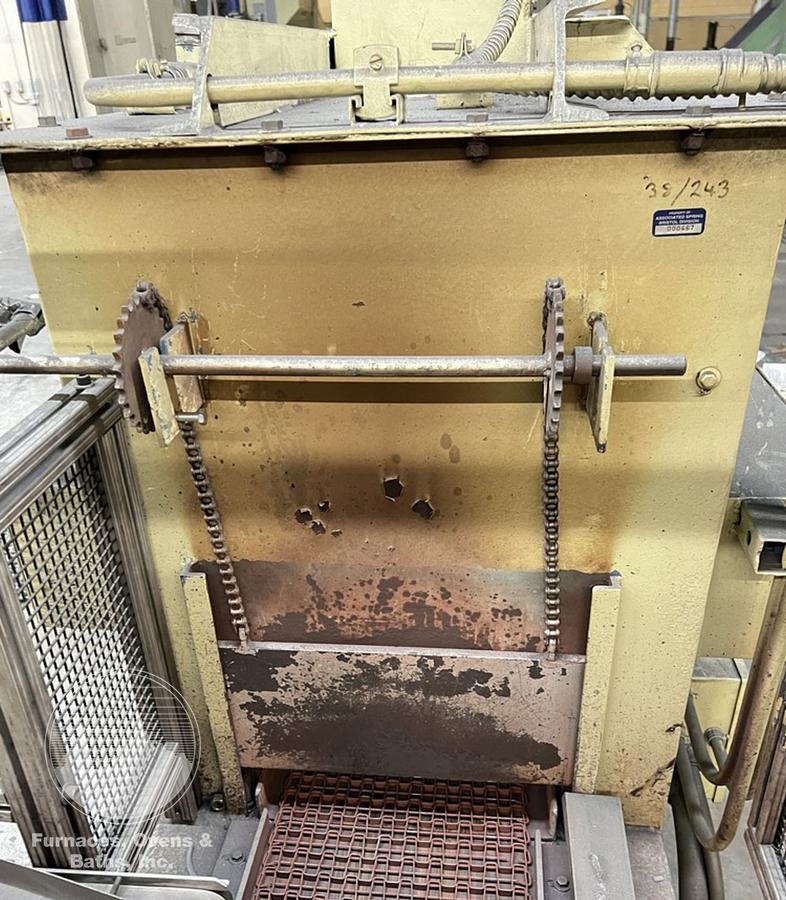

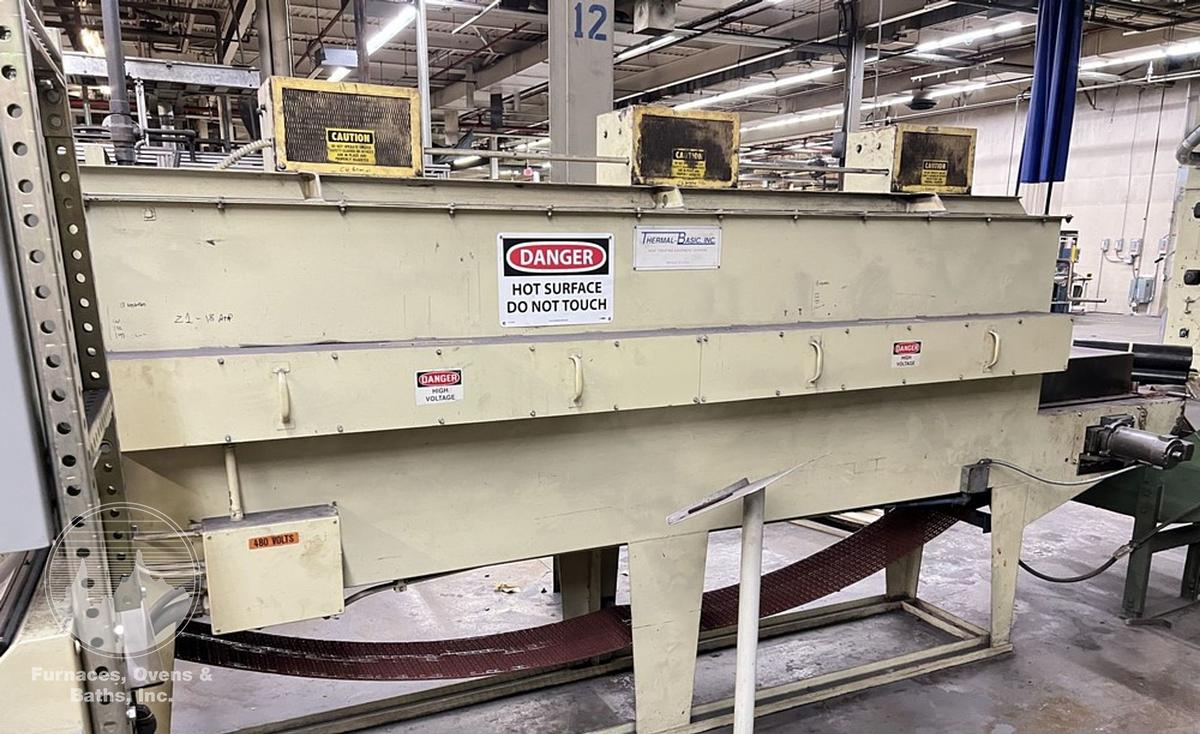

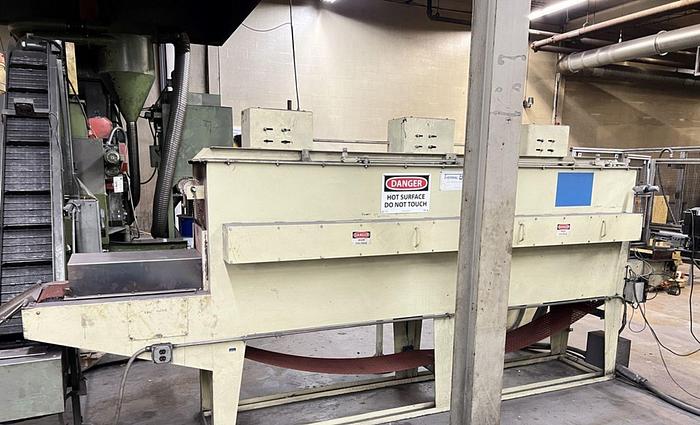

Continuous variable speed conveyor oven with a SS 1/2" x 1" flat wire belt. Oven has a 24" long load and a 36" long unload section. Three (3) top mounted circulating fans (3 Zones of Control) and heating elements are located above the work area. Heated air is circulated in a top - down pattern over the conveyor belt.

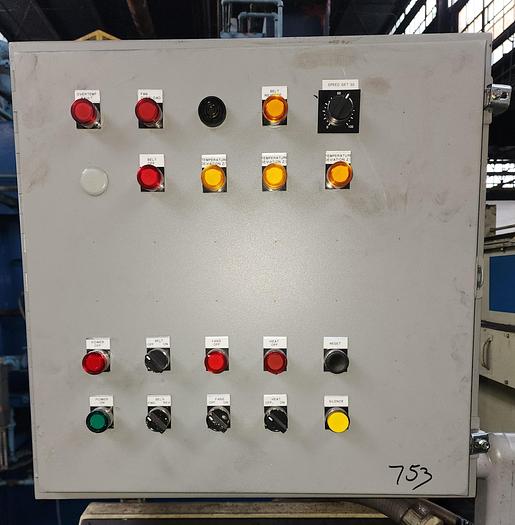

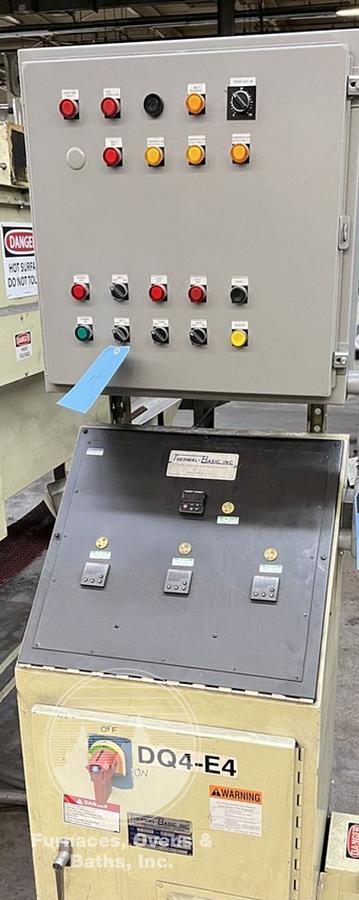

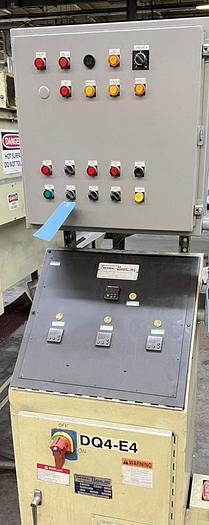

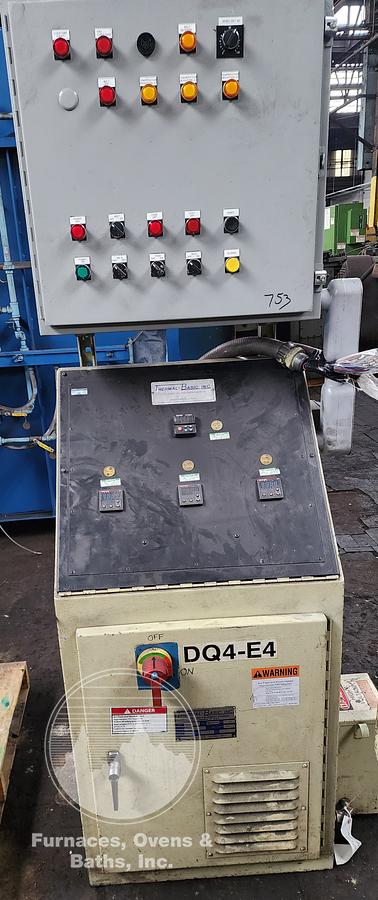

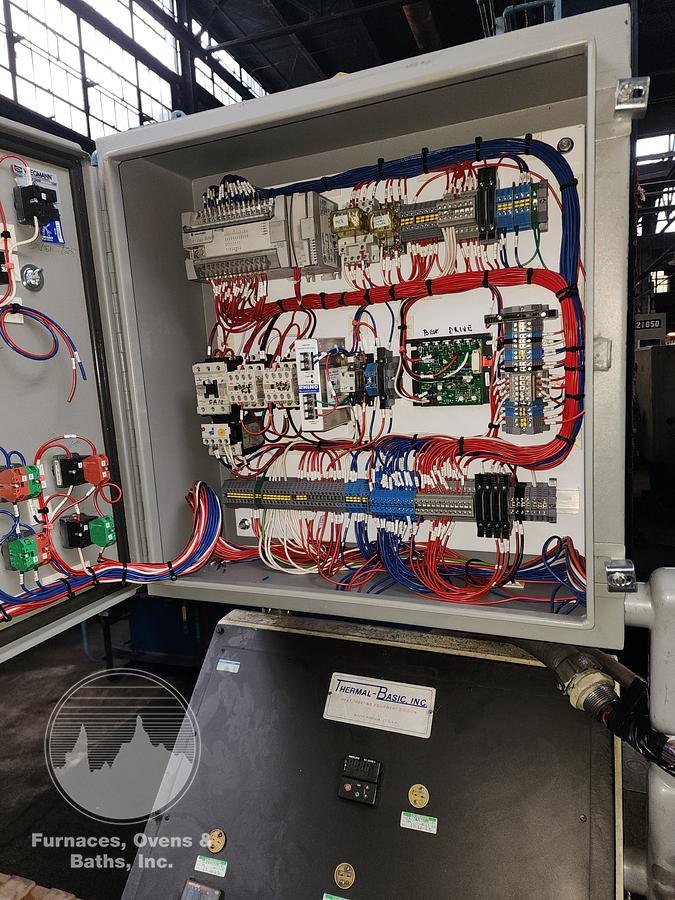

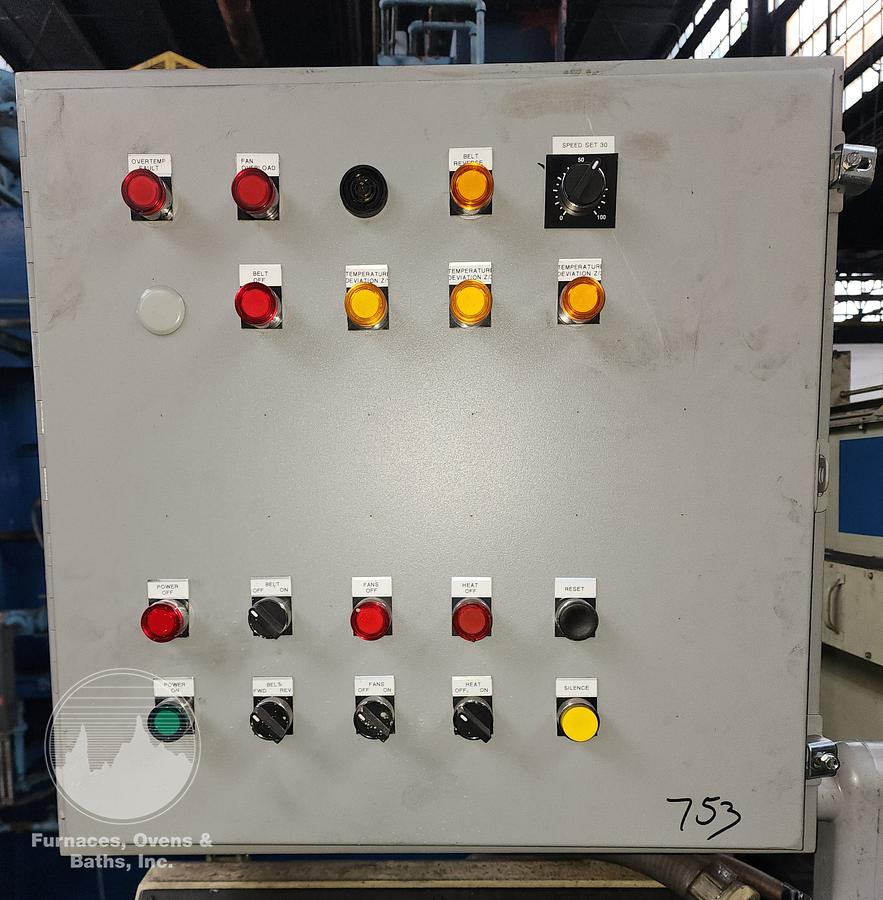

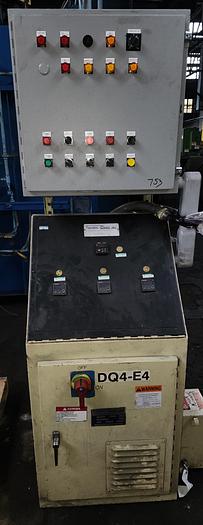

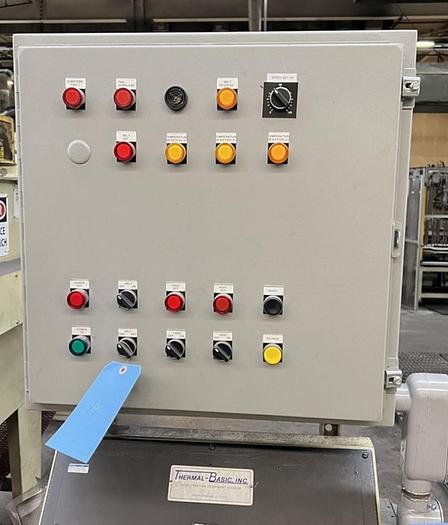

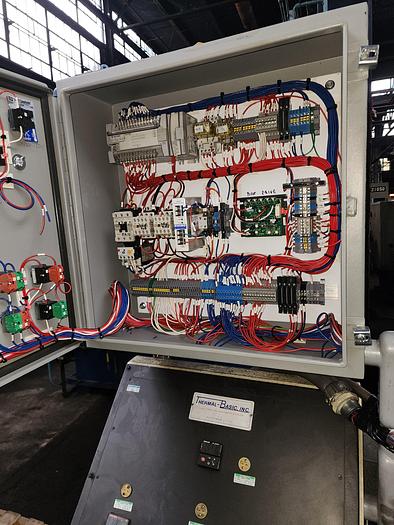

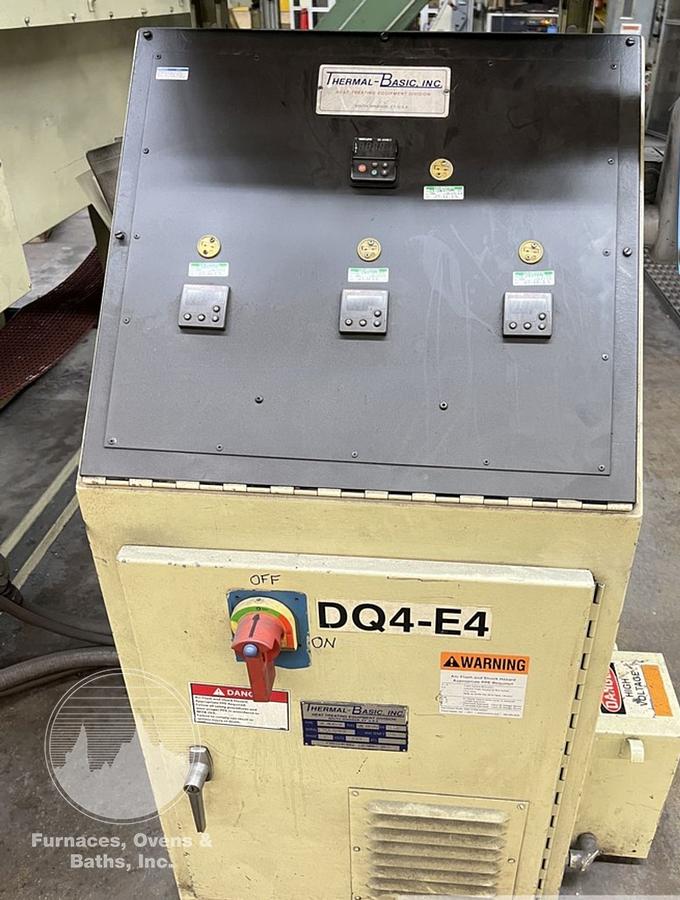

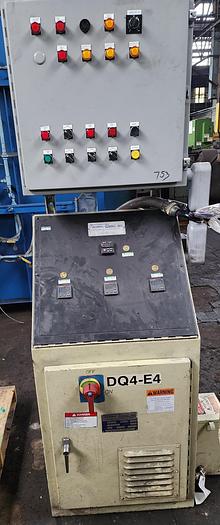

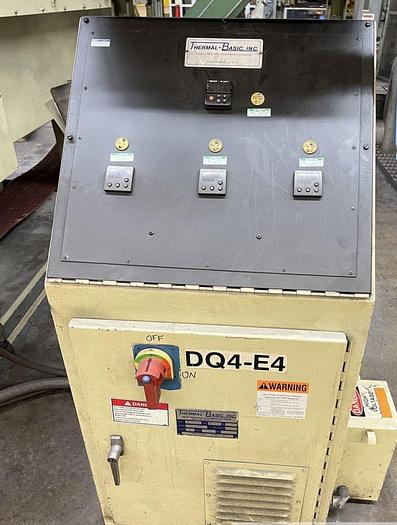

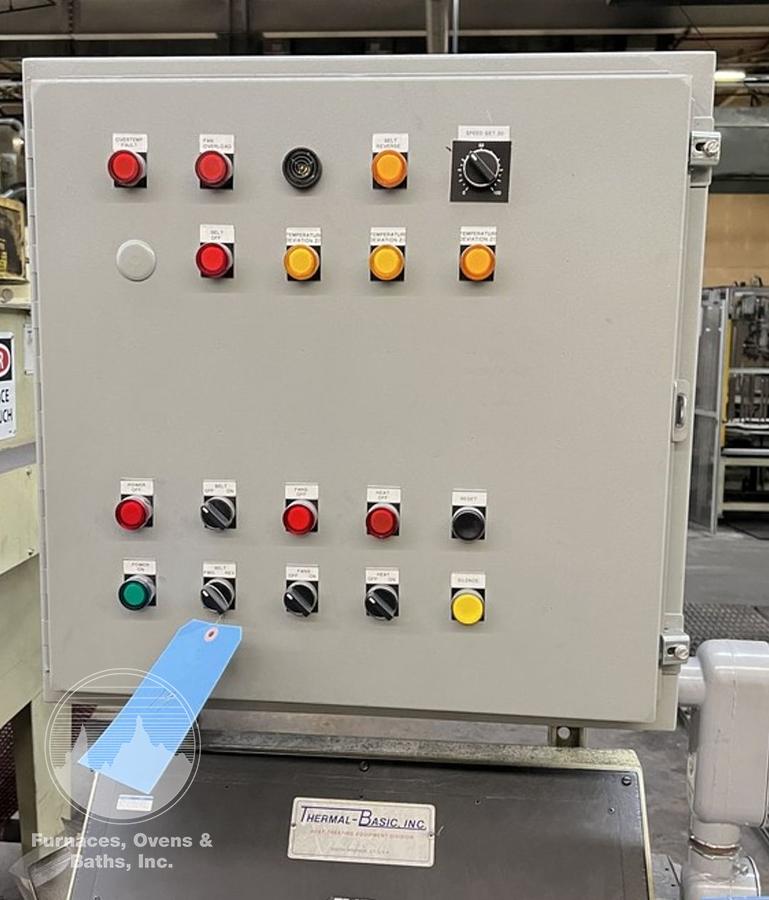

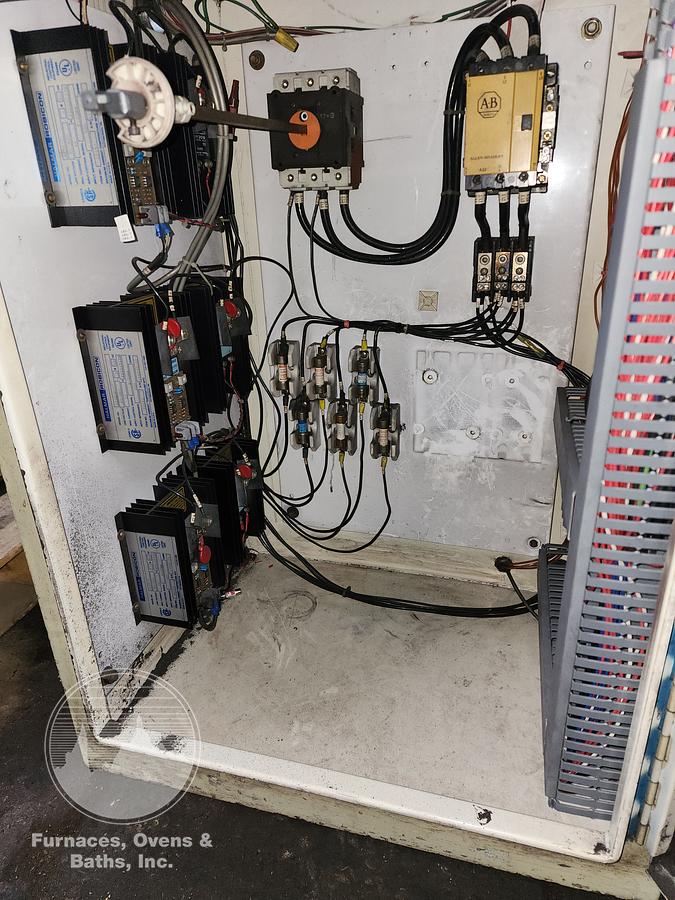

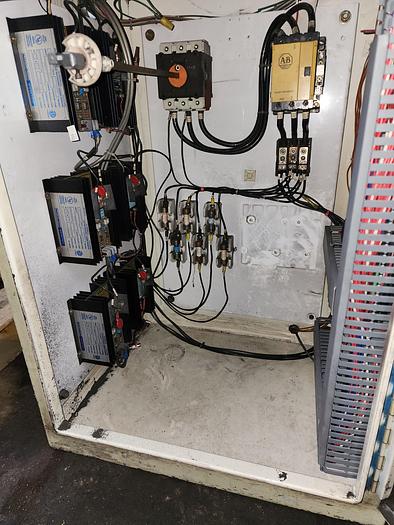

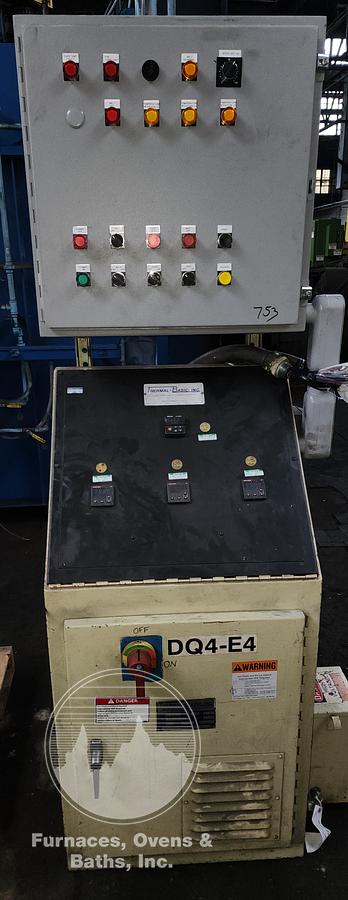

Controls are located in a free standing enclosure with fused disconnect. Three (3) Watlow "SD" digital temperature controllers (1 for each zone) and a Watlow "EZ-ZONE" digital high limit. Control switches with indicating lights for the circulating fan, conveyor belt, etc. are flush mounted to the enclosure door. Motor starters, fuses, relays, Halmar SCR's, Allen Bradley MicroLogix 1200 PLC and DC conveyor drive control are mounted inside the enclosure. PLC logic is included with this oven.

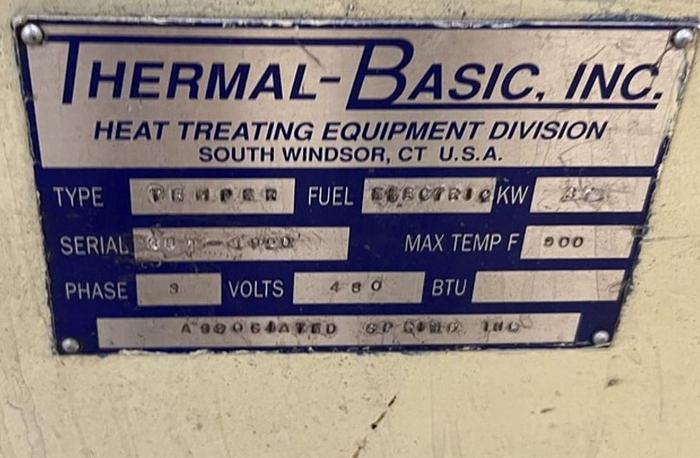

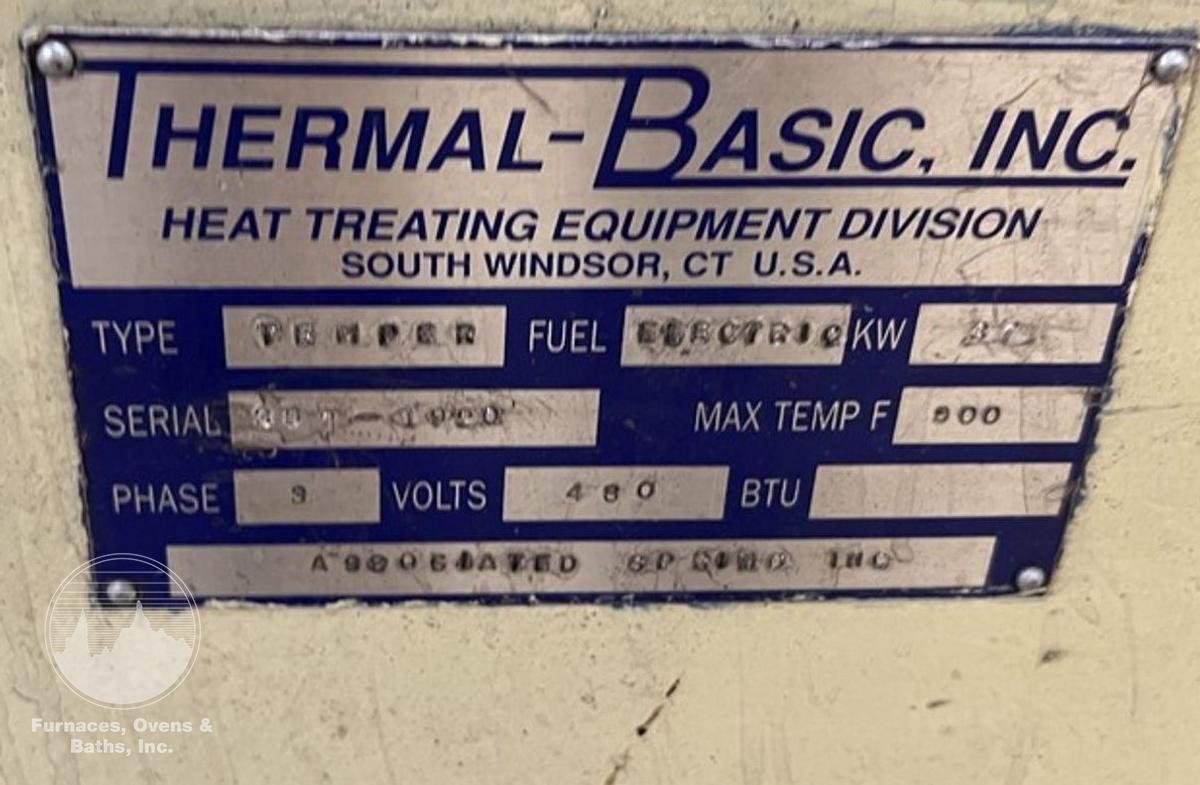

ManufacturerThermal Basic
ModelBelt Temper
Serial Number393-1920
Stock Number7748
Work Area12"W x 6"H x 120"L Heated
HeatedElectric - 72 kW
Max. Temperature900°F
Voltage480/3/60/72 kW
External Dimensions48" wide x 84" high x 192" long (16')
