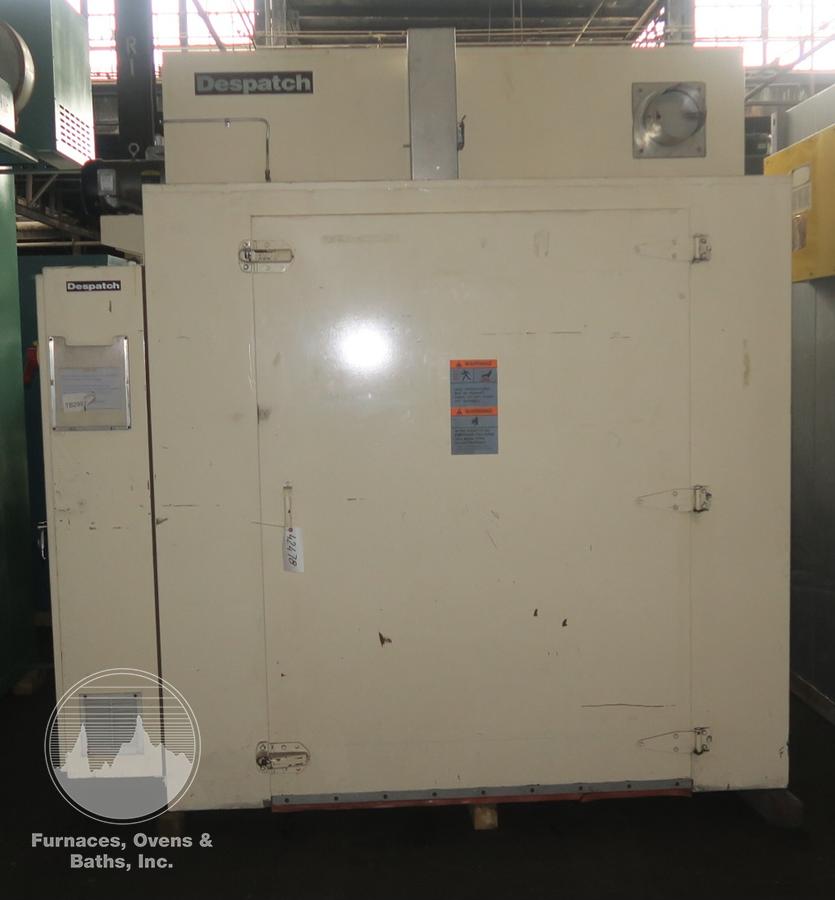

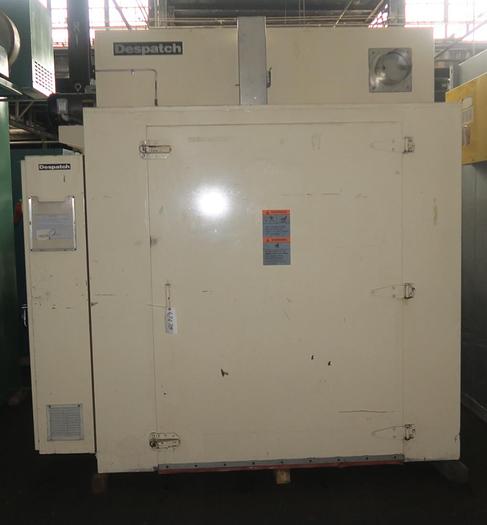

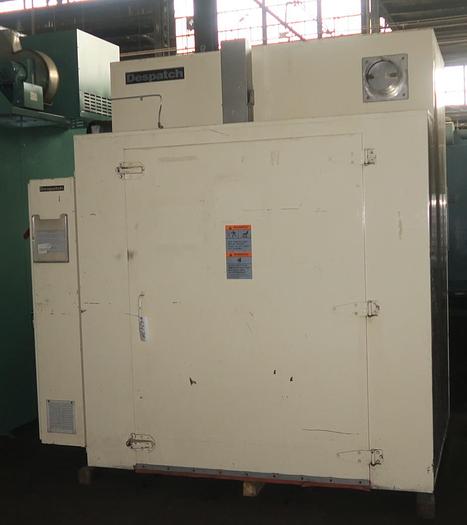

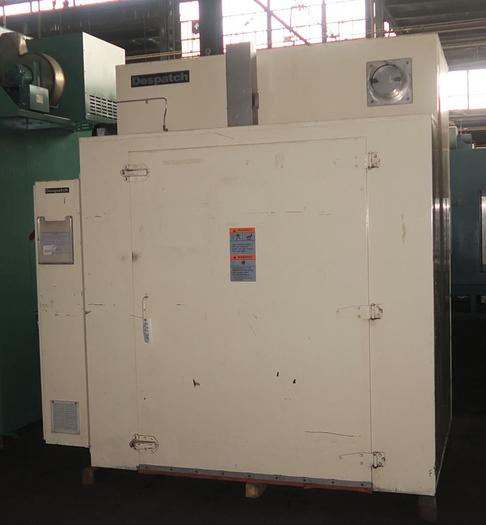

48"W x 72"H x 52"L, Despatch Industries, 500-F, Electric, Double Ended, Stainless Steel Interior

48"W x 72"H x 52"L, Despatch Industries, 500-F, Electric, Double Ended, Stainless Steel Interior

Contact us for price

orCall 248-343-1421

Description

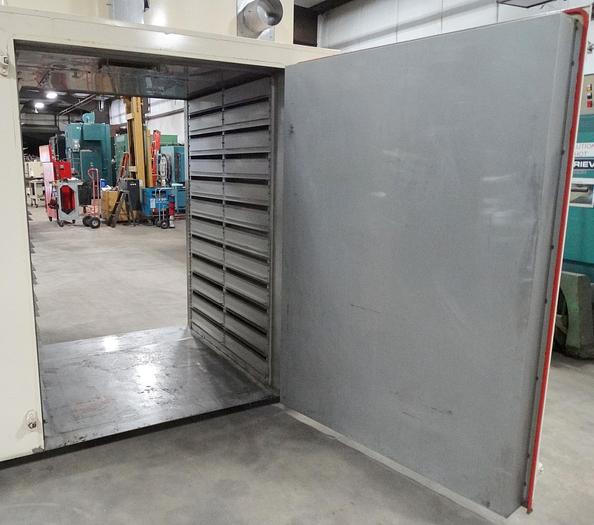

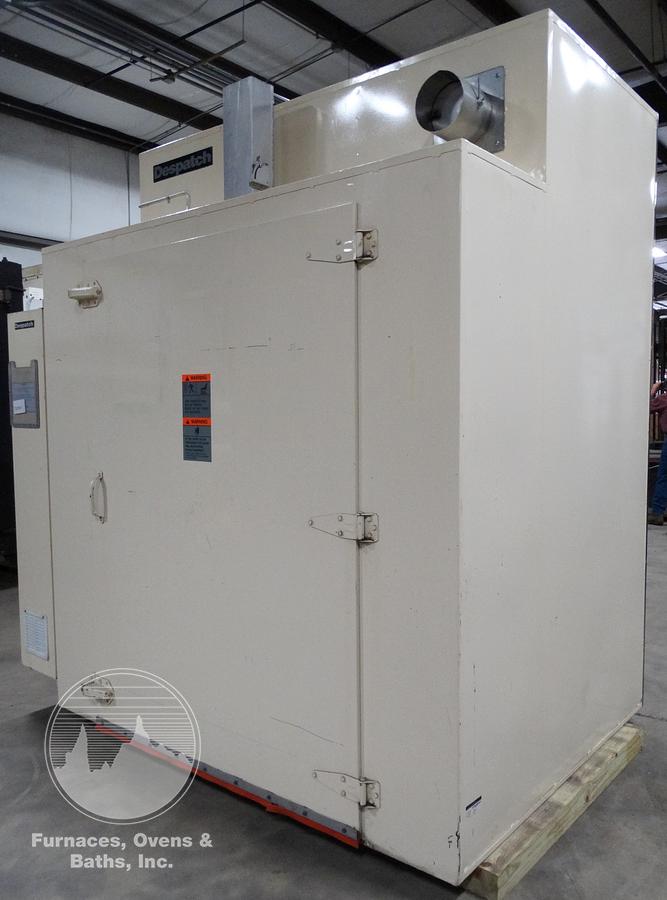

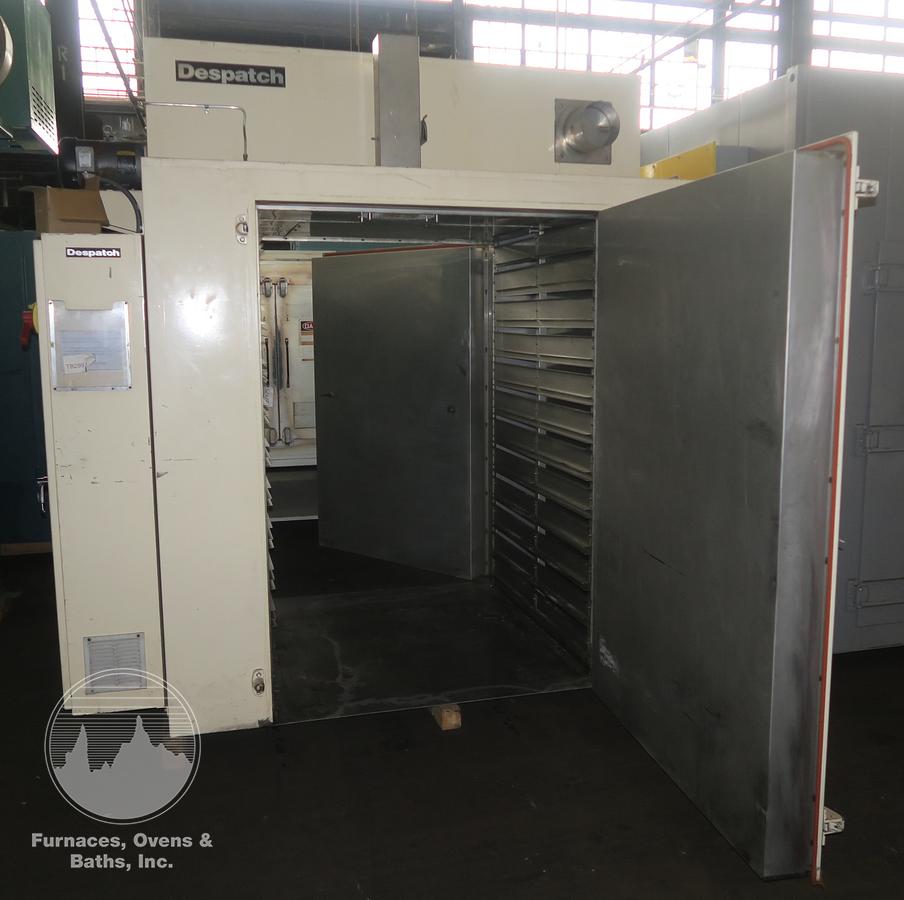

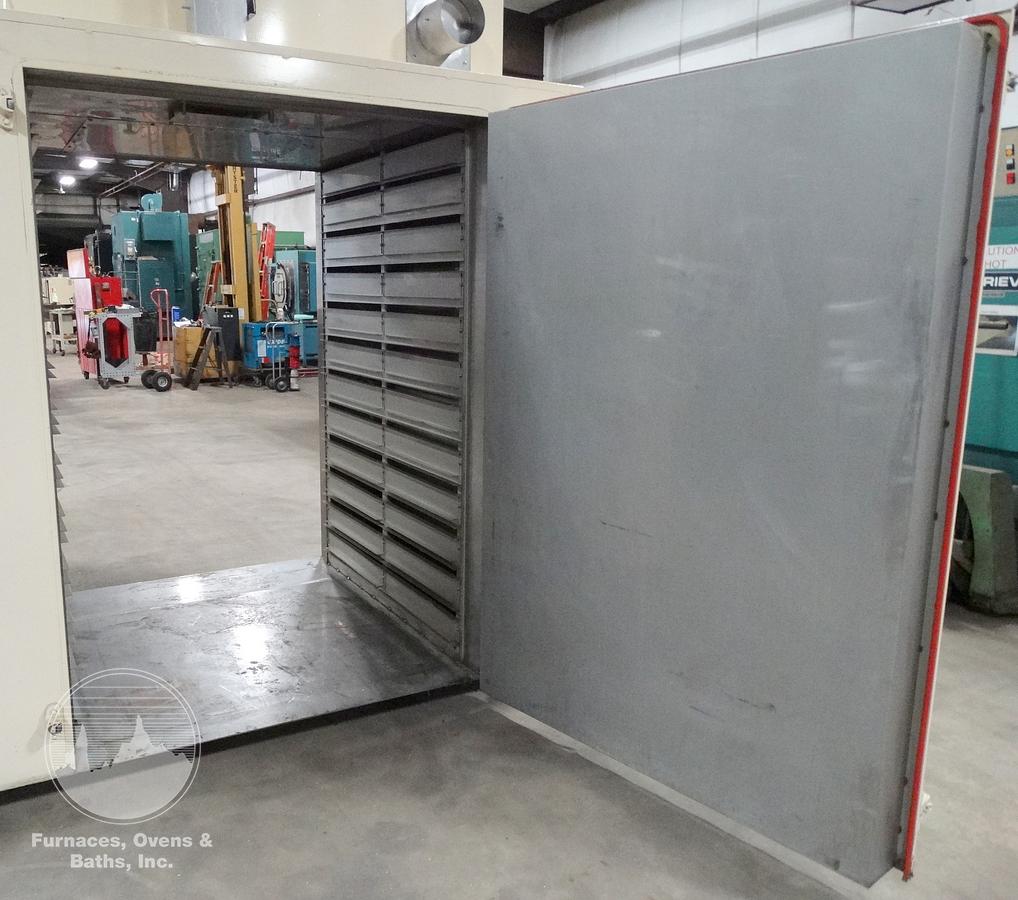

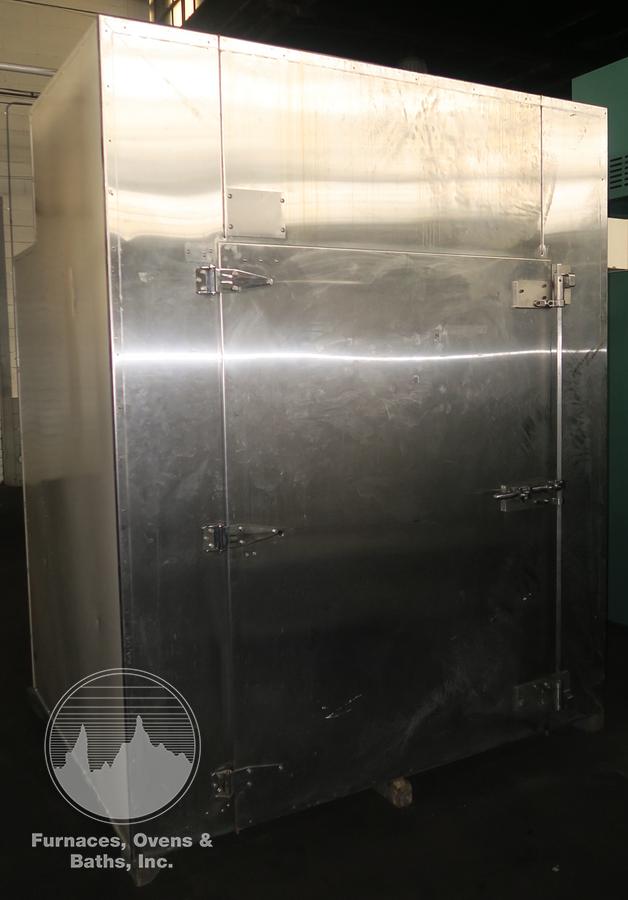

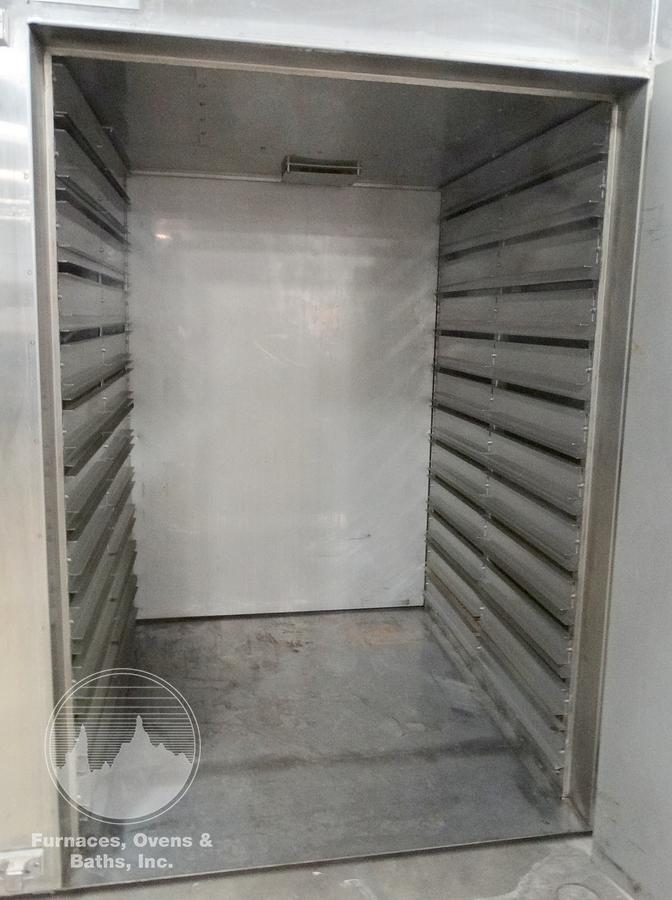

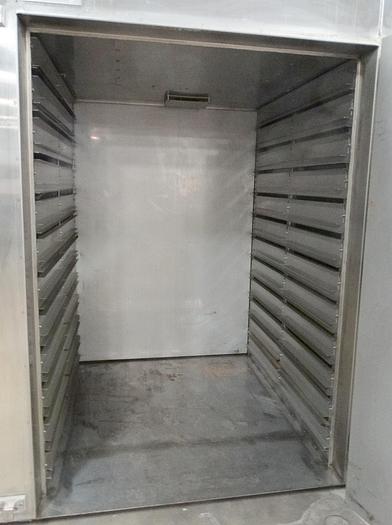

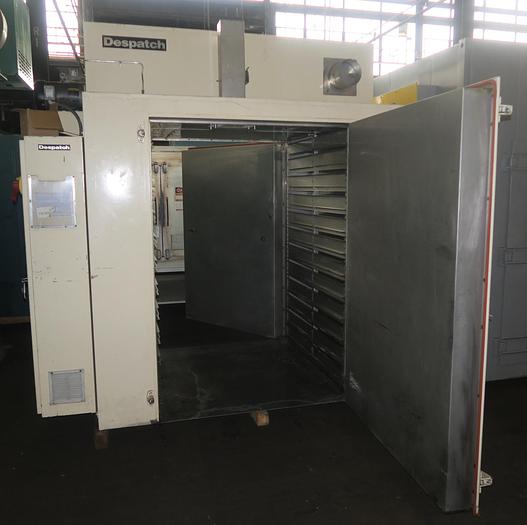

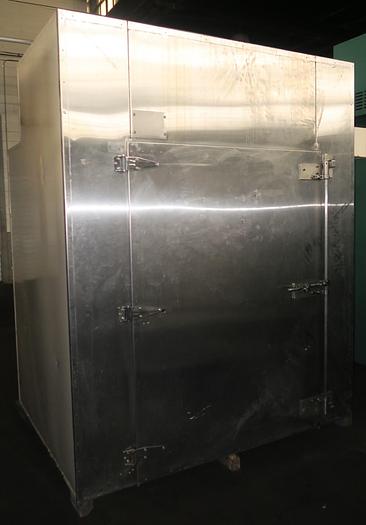

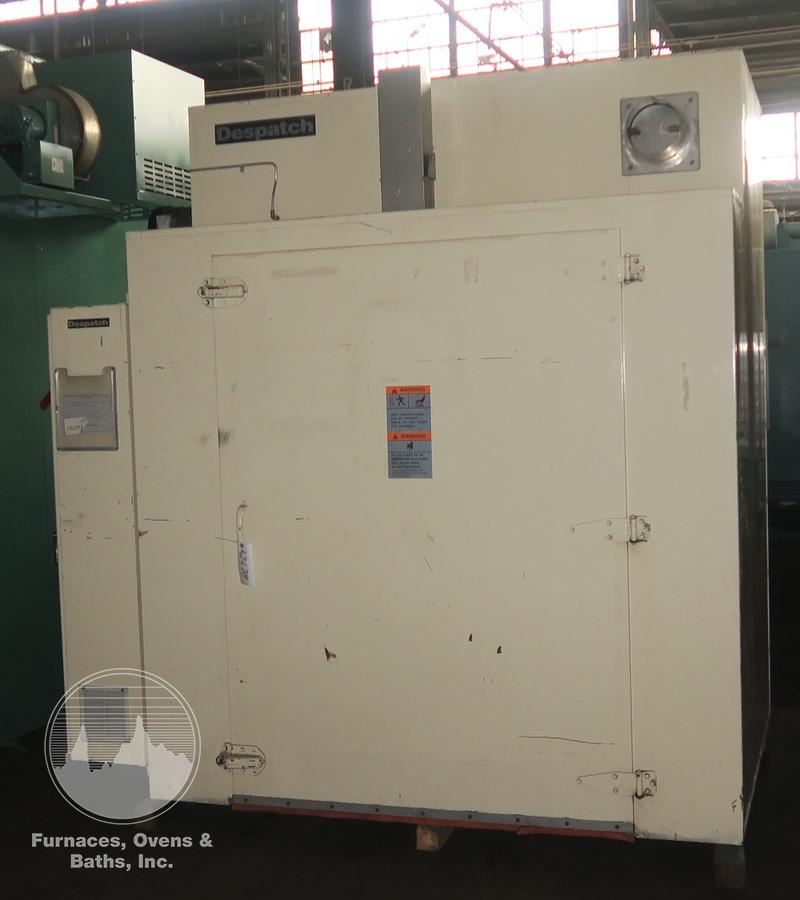

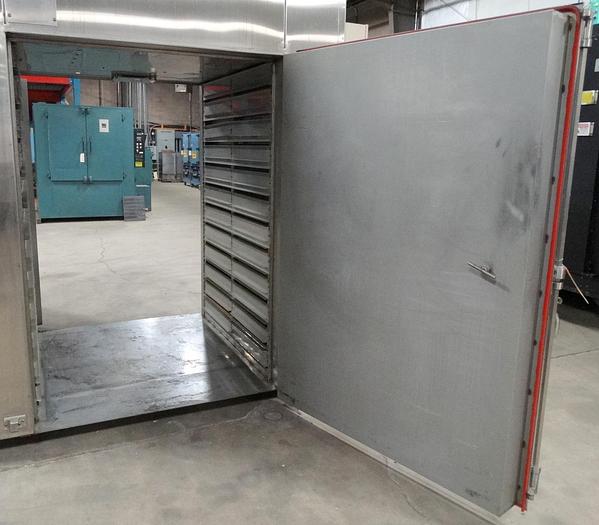

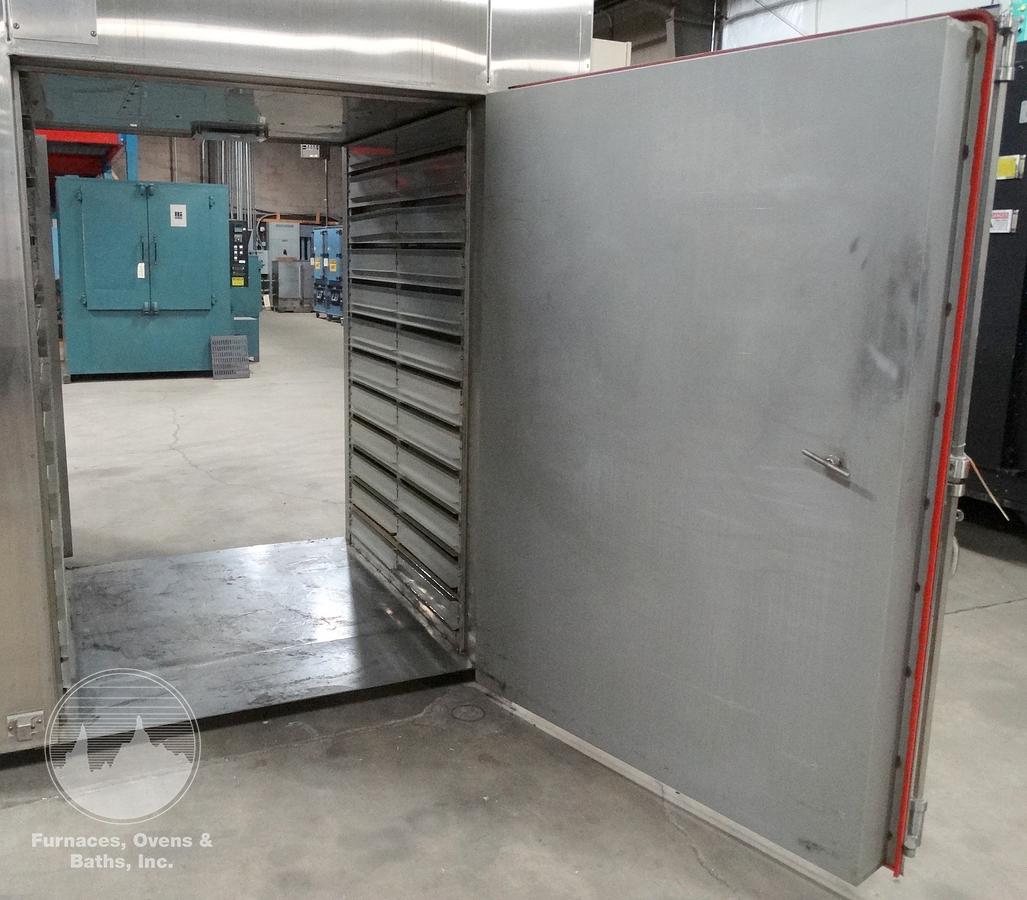

Single door on each end of the oven for use as a pass through oven. One side has a cam action positive seal latch and the other has Brixon spring tension latches. Silicon rubber gaskets provide good door seals. Stainless steel interior with a stainless steel plate floor. Interior side walls have adjustable louvers for good air flow control and temperature uniformity. The heating elements and direct driven circulating fan are located above the work chamber. Heated air is circulated in a horizontal pattern across the work area. An adjustable fresh air inlet and exhaust vent with damper.

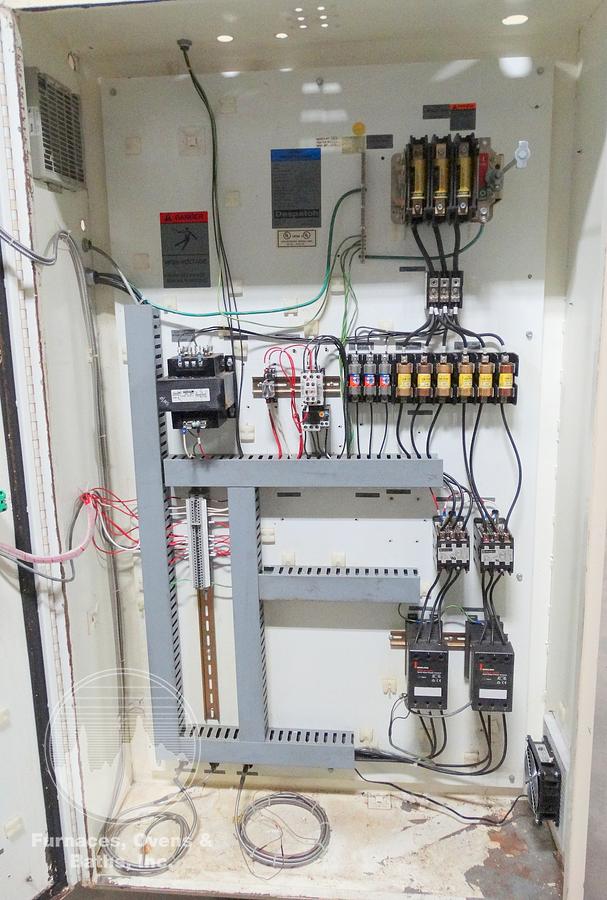

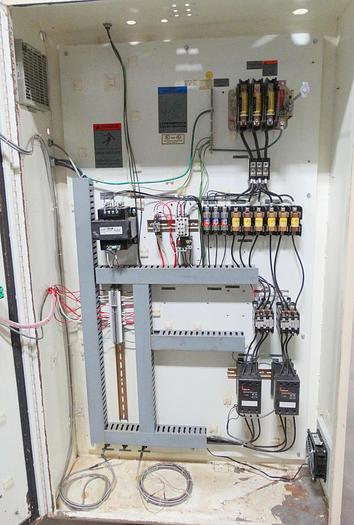

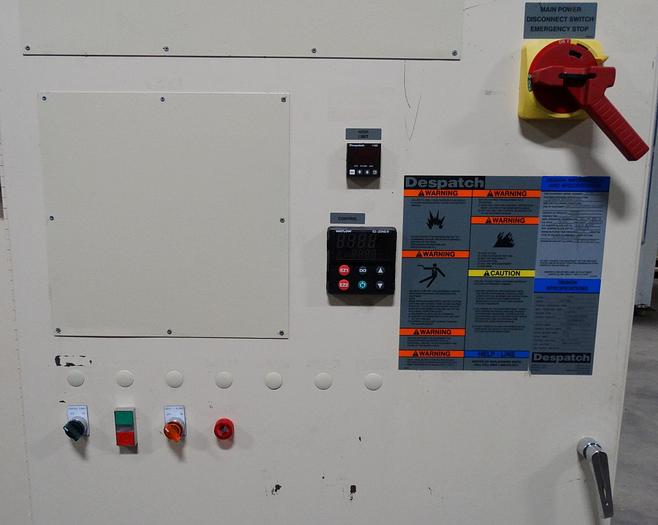

Controls are located in a separate enclosure attached to the side of the oven. A new Watlow PM series digital temperature controller and Partlow model 1162 digital high limit are flush mounted in the door of the enclosure along with illuminated control switches. A through door disconnect handle operates the fused disconnect switch. Fuses, motor starter, 2 high limit contactors, 2 solid state power relays, relay etc. are mounted inside the enclosure.

Specifications

ManufacturerDespatch Industries
ModelHAF-1000
ConditionUsed
Serial Number173763
Stock Number7755
Work area48"W x 72"H x 52"L
HeatedElectric
Max temperature500°F
Voltage480/3/60/51 kW
External dimensions 96" wide x 99" high x 67" long
