1990 Advanced Vacuum Systems (AVS) HMF-24-24-48-1100

1990 Advanced Vacuum Systems (AVS) HMF-24-24-48-1100

Contact us for price

orCall 248-343-1421


Chamber: Cylindrical, Horizontal, Stainless Steel with front & rear access doors for ease of maintenance

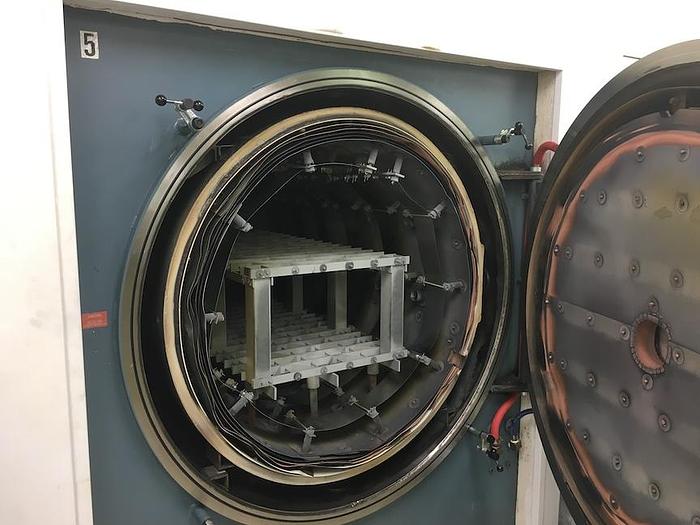

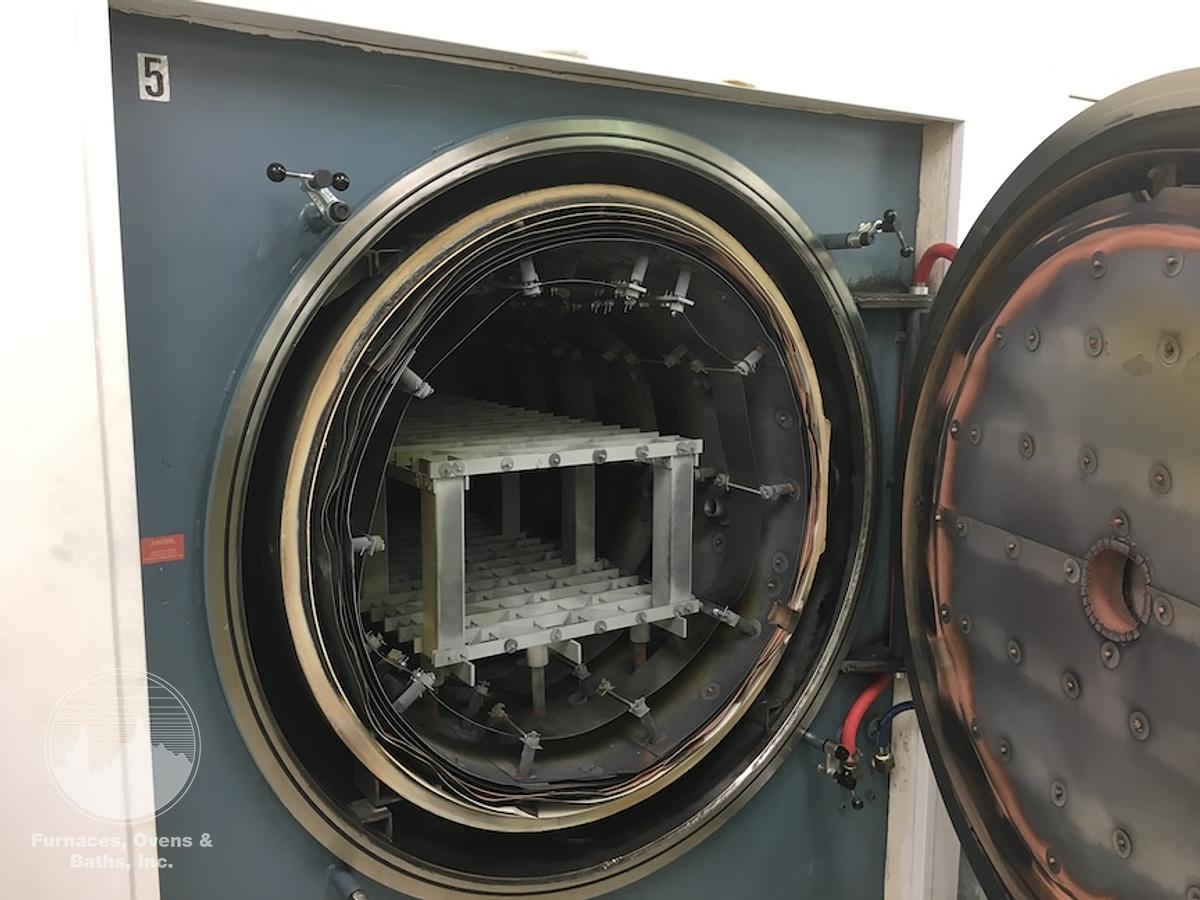

Hot Zone: Used, All-Metal Moly/SS Shielded Hot Zone with Moly Elements and Moly Hearth Assembly

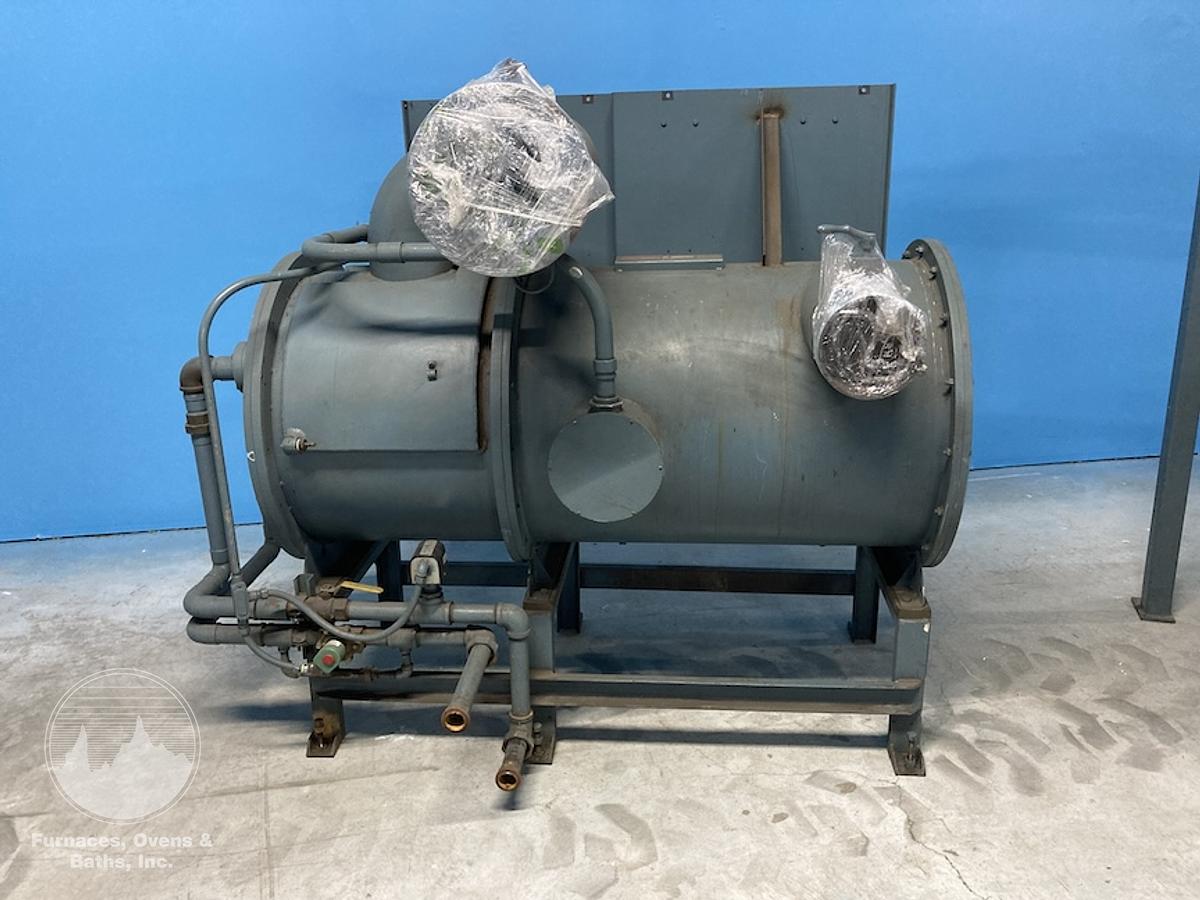

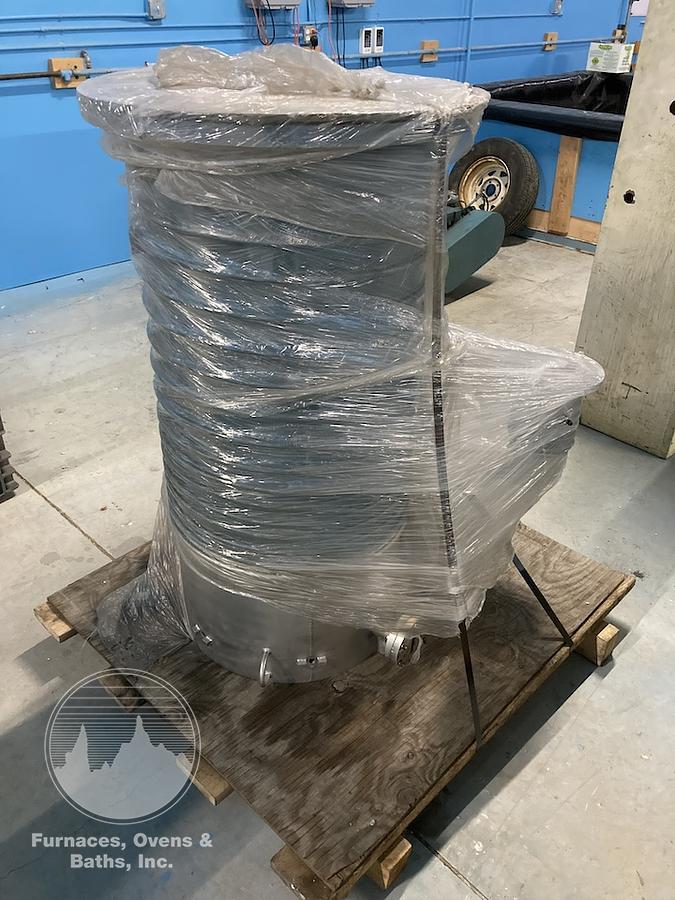

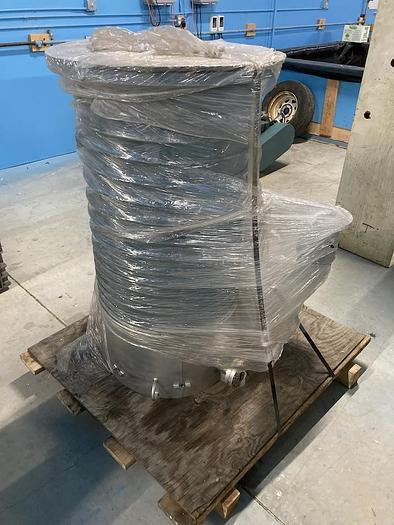

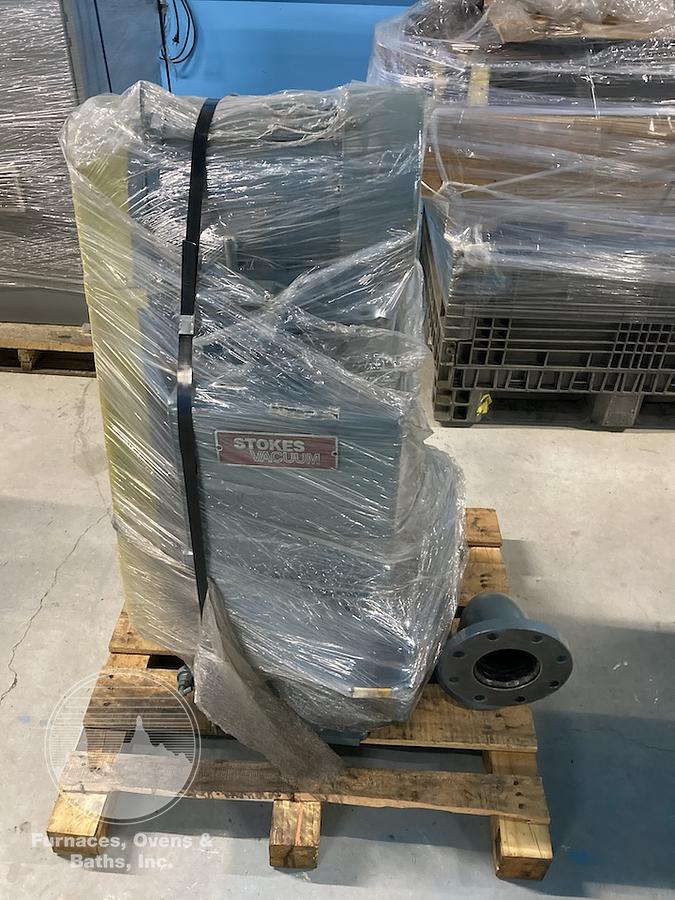

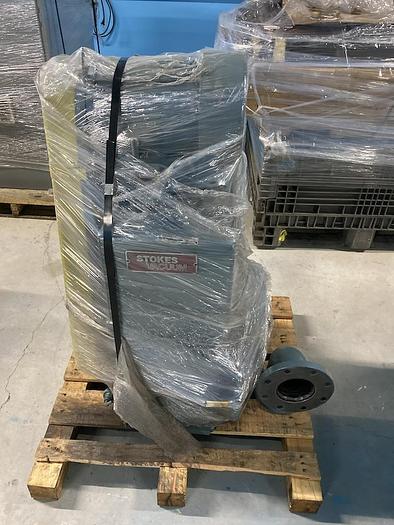

Vacuum System: Stokes Mechanical Pumps and Varian Diffusion Pump (Typ. 10-4 to 10-6 Torr ultimate) Pumps: (Can repaint all to match furnace at additional cost.) Varian HS-20 warranty rebuilt Diffusion Pump Stokes 310 warranty rebuilt mechanical blower pump (booster) Stokes 212 warranty rebuilt Mechanical Roughing Pump Holding Pump for diffusion pump (Model T.B.D.)

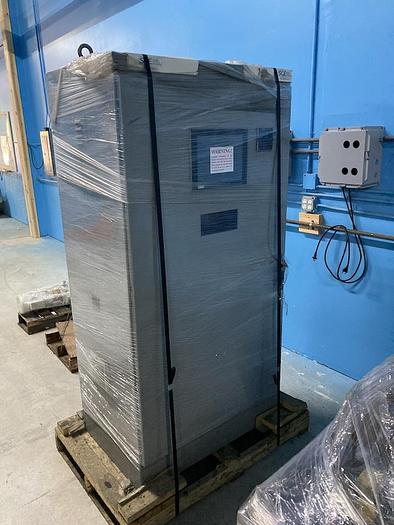

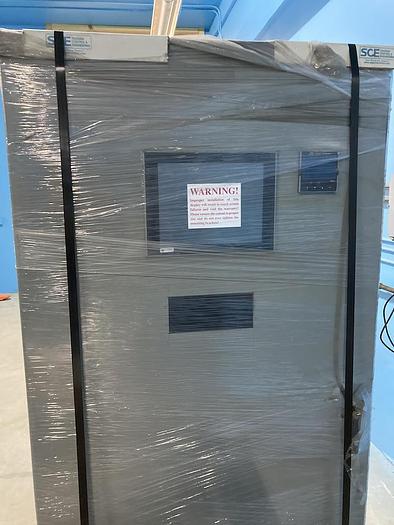

New Controls: New Panel with SSI 9220 Controller with 12.1” Advantech Touch Screen HMI and built in digital data acquisition, SSI Series 804L Hi-Limit, SR12 Remote Input Satellite Recorder, New Allen-Bradley Micrologix 1400 PLC, Televac vacuum instrument & gauges. Gas Cooling: External VFD Drive Blower and Heat Exchanger, 1 Atmosphere Pressure Other: Included - 24” x 48” used 2-Tier Molybdenum Grid Fixture Both front and rear doors have ports for adding end heating elements, if desired (not included). Rear door also has a port for a circulation fan, if desired (not included).

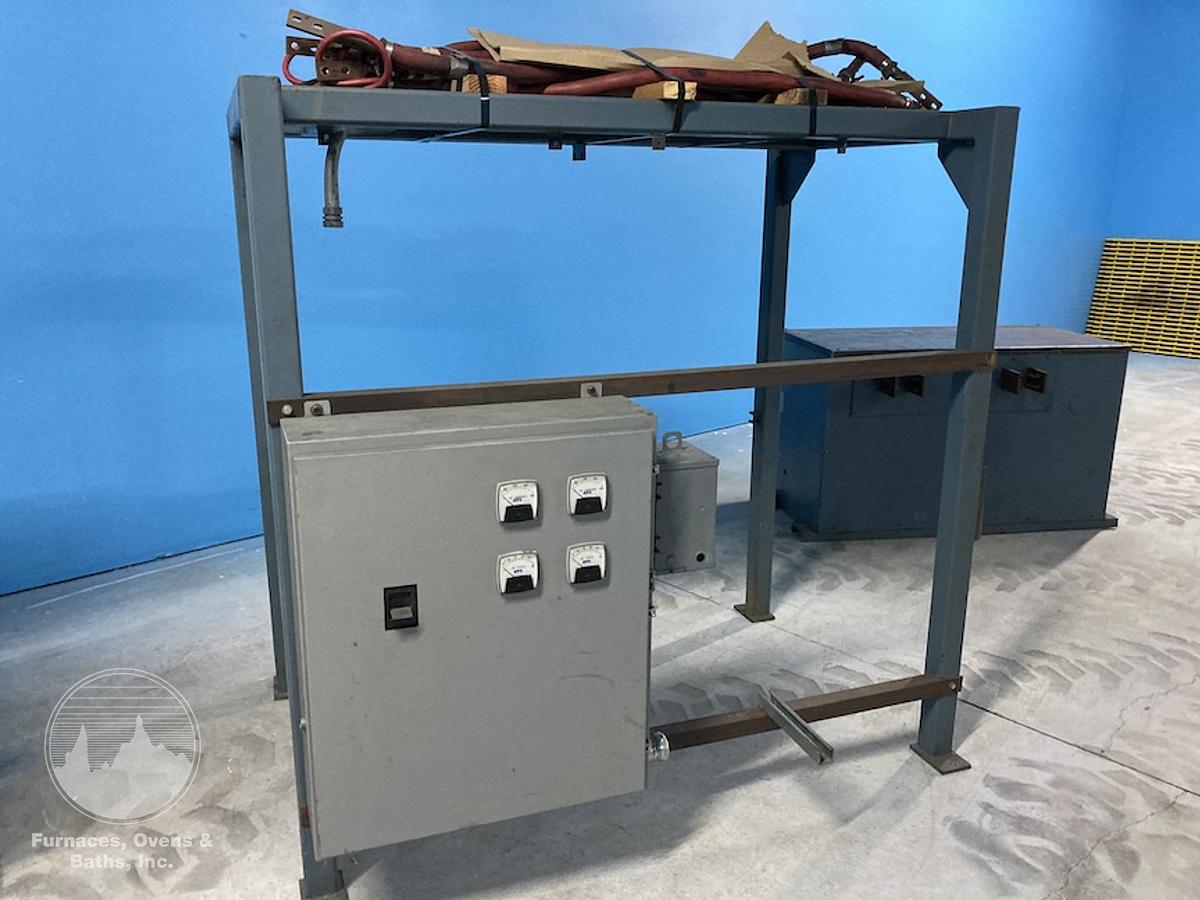

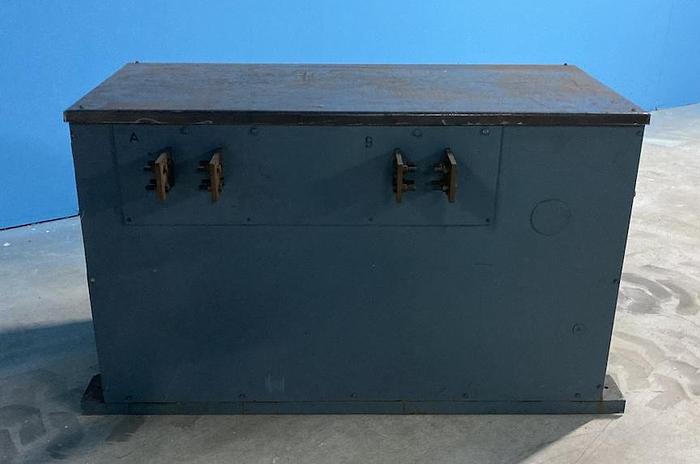

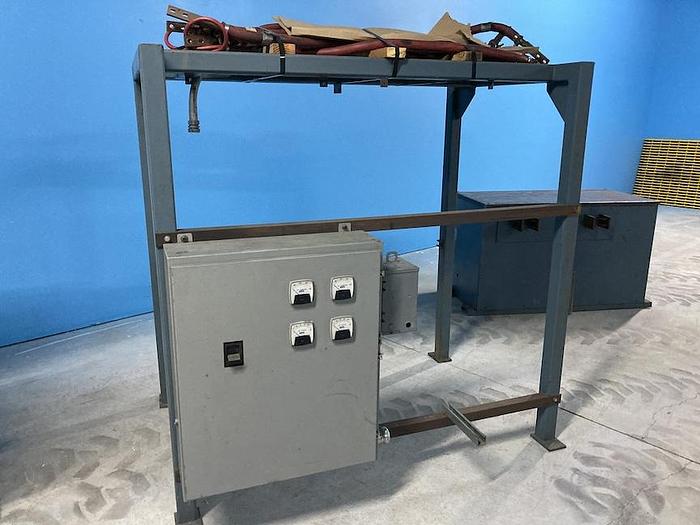

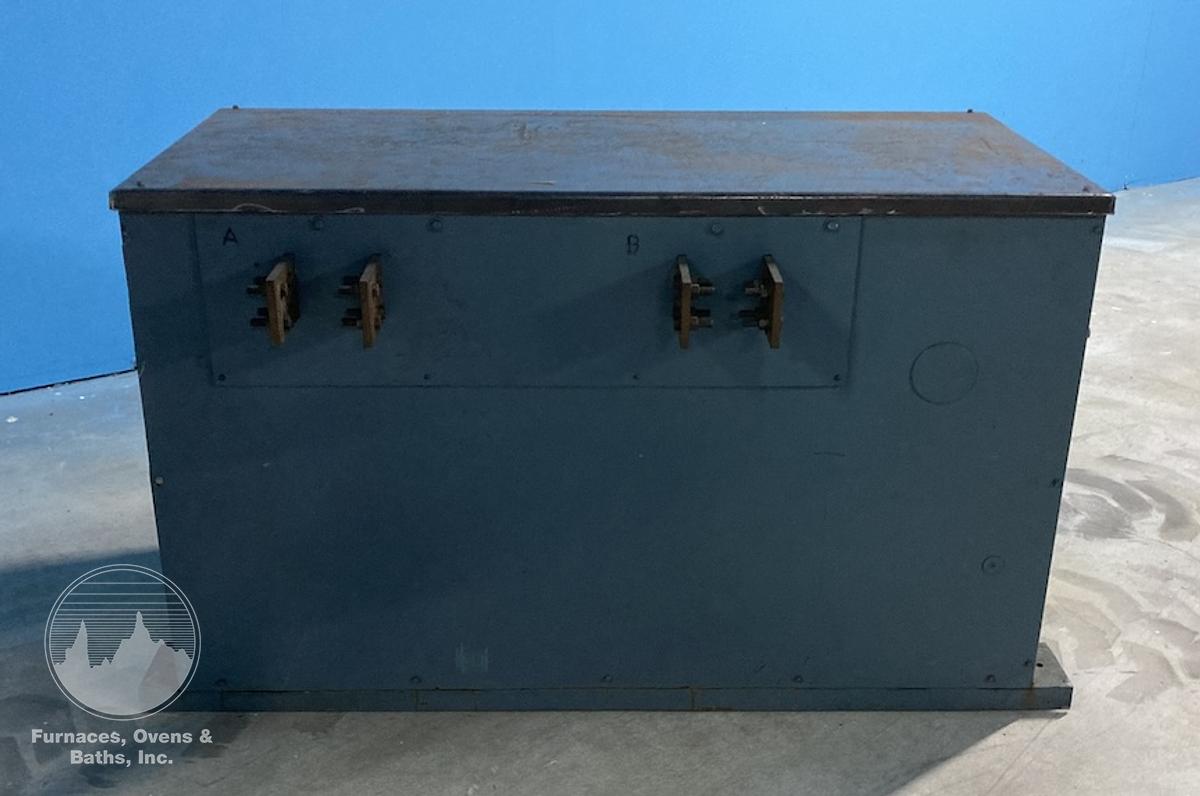

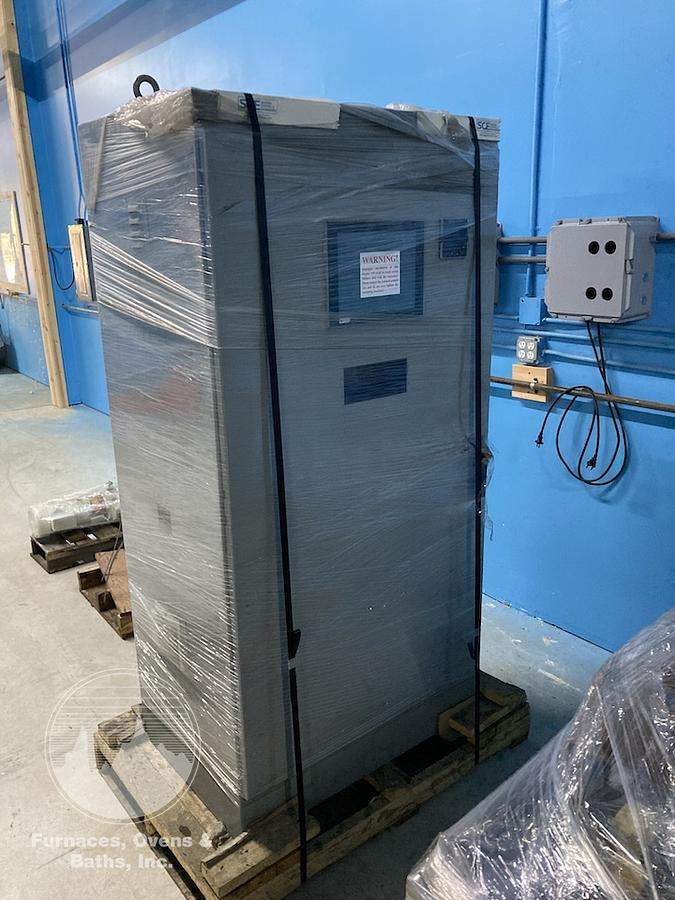

Includes: 1 Ea. Main Chamber 81"W x 79"L x 95"H 1 Ea. All-Metal Molybdenum/Stainless Steel Shielded Hot Zone (Used) 1 Ea. 180 kVA Power Supply 1 Ea. 30 H.P. VFD Drive Gas Cooling Blower 1 Ea. Newly Rebuilt 20” Right Angle Vacuum Isolation Valve 1 Ea. Newly Rebuilt Varian HS-20 Diffusion Pump 1 Ea. Newly Rebuilt Stokes 212-11 Mechanical Vacuum Roughing Pump 1 Ea. Newly Rebuilt Stokes 310 Vacuum Blower 1 Ea. Holding Pump (for DP) 1 Ea. Control Panel 42"W x 30"D x 82"H with New Upgraded Super Systems, Inc. Controller, Hi-Limit, PLC and Televac Vacuum Instrument & Gage 1 Pc Moly Furnace Grid Fixture Total Shipping Weight is approximately 30,000 lbs


ManufacturerAdvanced Vacuum Systems (AVS)
Serial Number4-1284-0683
Stock Number7762
Serial Number4-1284-0683
Work Area24"W x 24"H x 48"L
Max. Temperature2012-F/1100-C
Power Requirements 480V/3Ph/60Hz, 300 Amp, 180 KVA Heating
Required Floor Space15’ x 15’ x 11’H - Approx.
