72"W x 120"H x 72"L, Davron Technologies, 350-F, Electric

72"W x 120"H x 72"L, Davron Technologies, 350-F, Electric

Contact us for price

orCall 248-343-1421

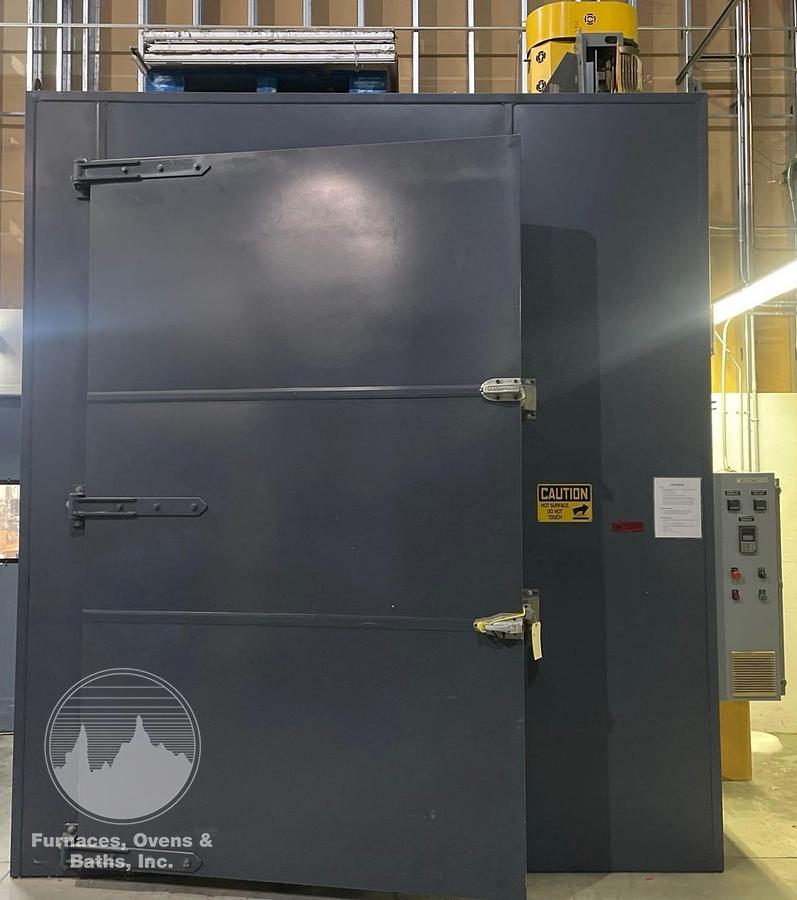

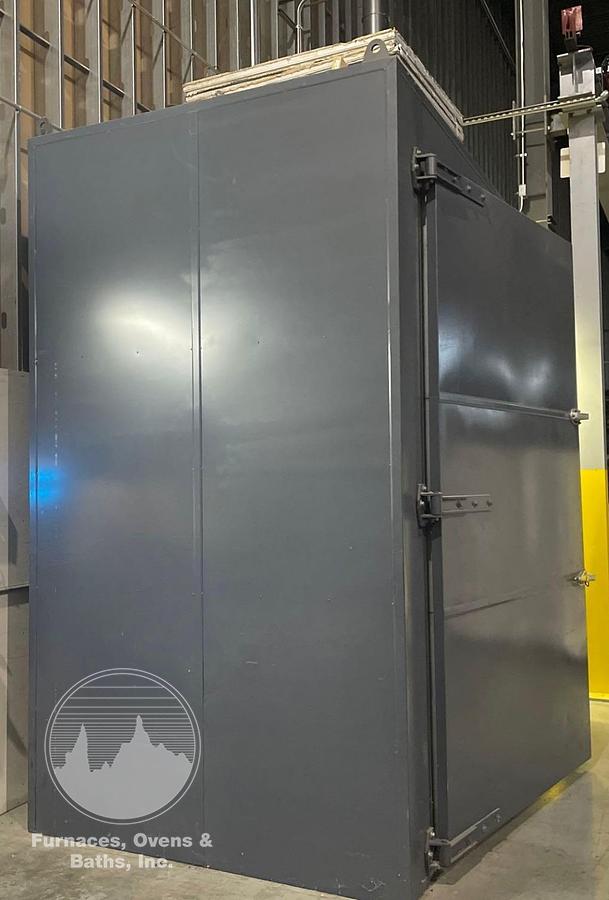

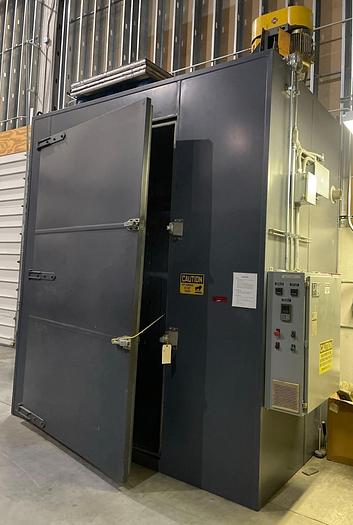

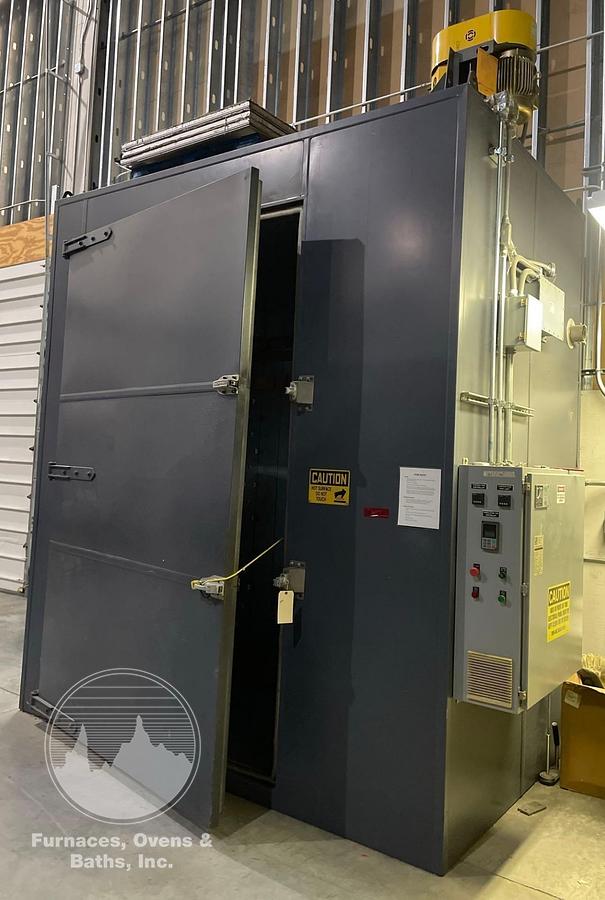

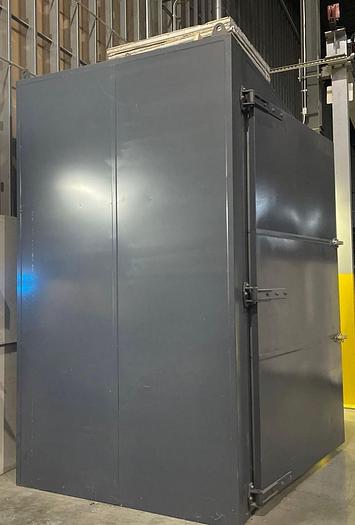

This oven has a single door with "Brixon" spring tension style door latches. The heating elements and recirculating fan are located above the work area. Fresh air inlet is located on the right hand side of the oven. Heated air is circulated horizontally across the work area through circular punched air ducts. Top mounted circulating fan is removed for shipping. Excellent/LIKE NEW CONDITION

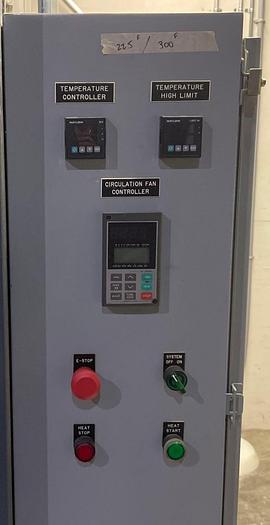

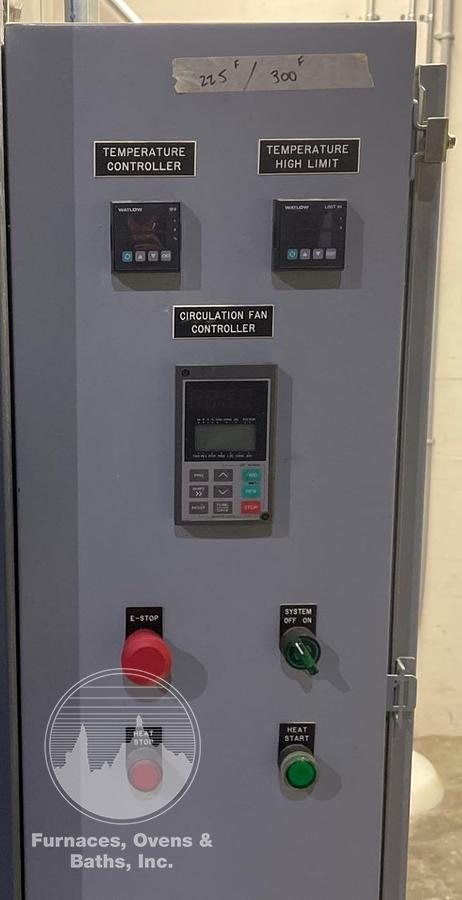

Controls are mounted in a panel attached to the right-hand side of the oven. There are Watlow digital controls for temperature/high limit, on/off switches, E-Stop, signal lights and Fuji circulating fan speed controller flush mounted to the face of the enclosure. Watlow SCR's and Allen Bradley high-limit contactor along motor starter, fuses etc. mounted and wired inside the enclosure.


ManufacturerDavron Technologies
Serial Number583-1102
Stock Number7780
Work area72"W x 120"H x 72"L
Max temperature500°F
Voltage480/3/60/125 Amps
External dimensions8' wide x 15' high (147" high shipping) x 8' long
