20"W x 20"H x 18"L Blue M DCW-206-F-ST350 Cabinet Oven, 662°F, Electric

20"W x 20"H x 18"L Blue M DCW-206-F-ST350 Cabinet Oven, 662°F, Electric

Contact us for price

orCall 248-343-1421

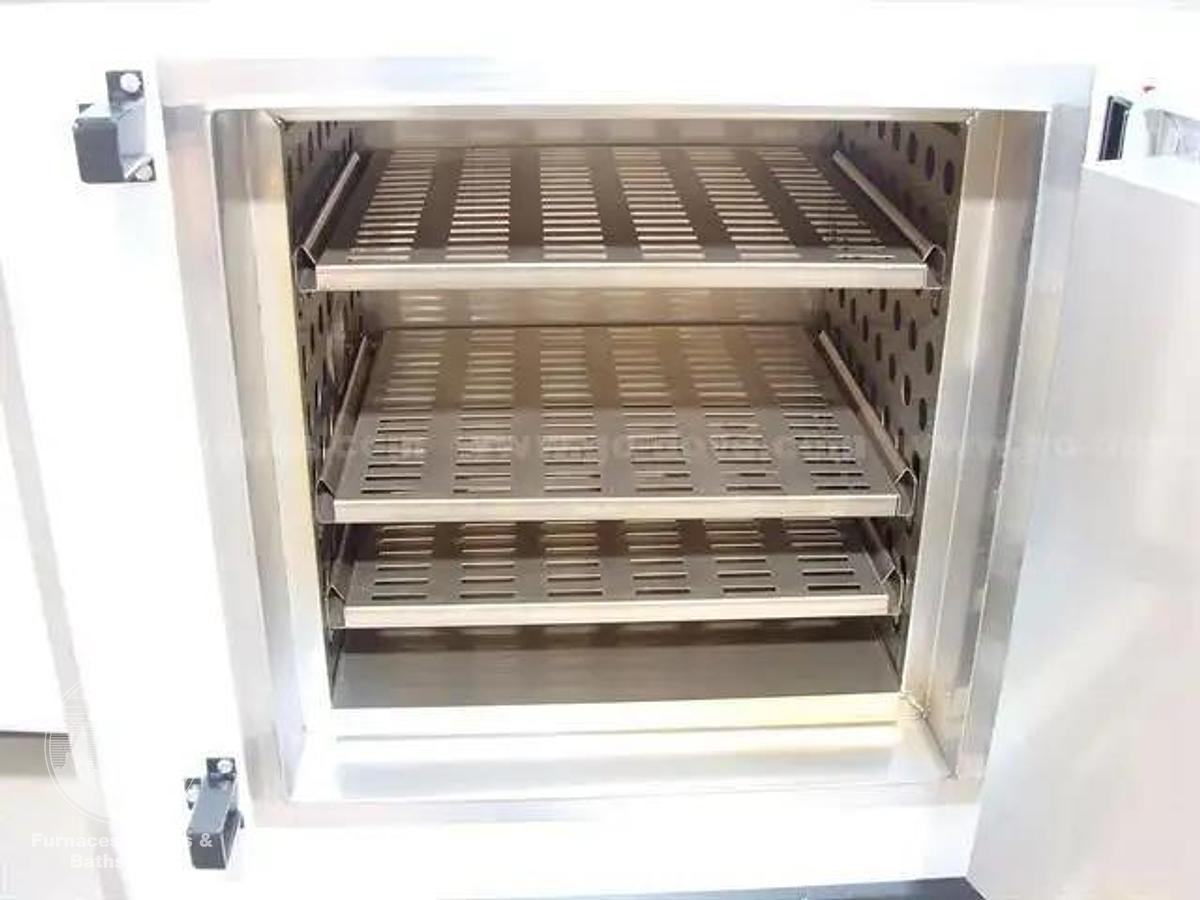

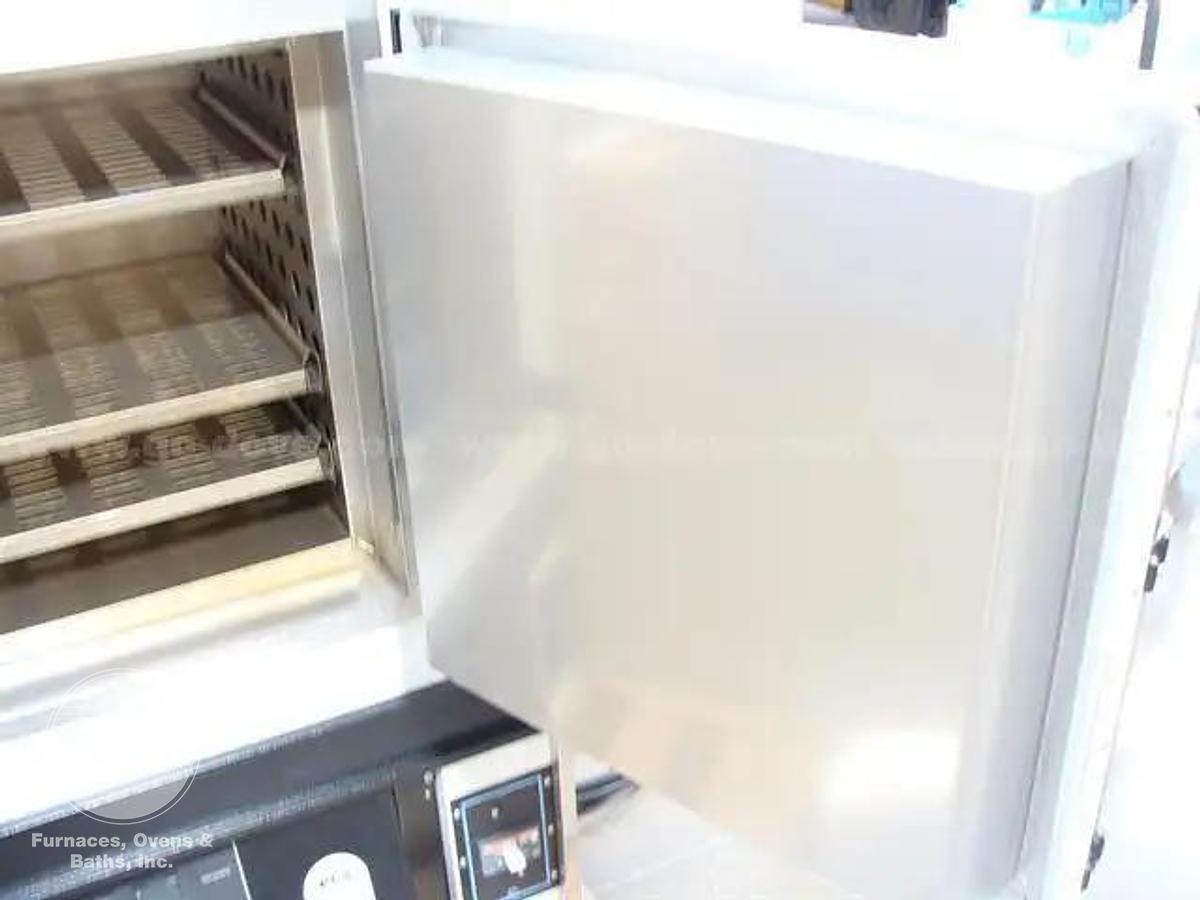

Single door with 2-point cam action positive seal latch and silicone rubber gasket. Stainless steel interior with three(3) adjustable stainless steel shelves. Coiled style heating elements and direct drive circulating fan are located under the floor. Heated air is circulated in a horizontal pattern across the chamber. Door limit switch cuts power to the heating elements and circulating blower when door is open. Oven is in LIKE NEW condition and will be tested prior to shipping.

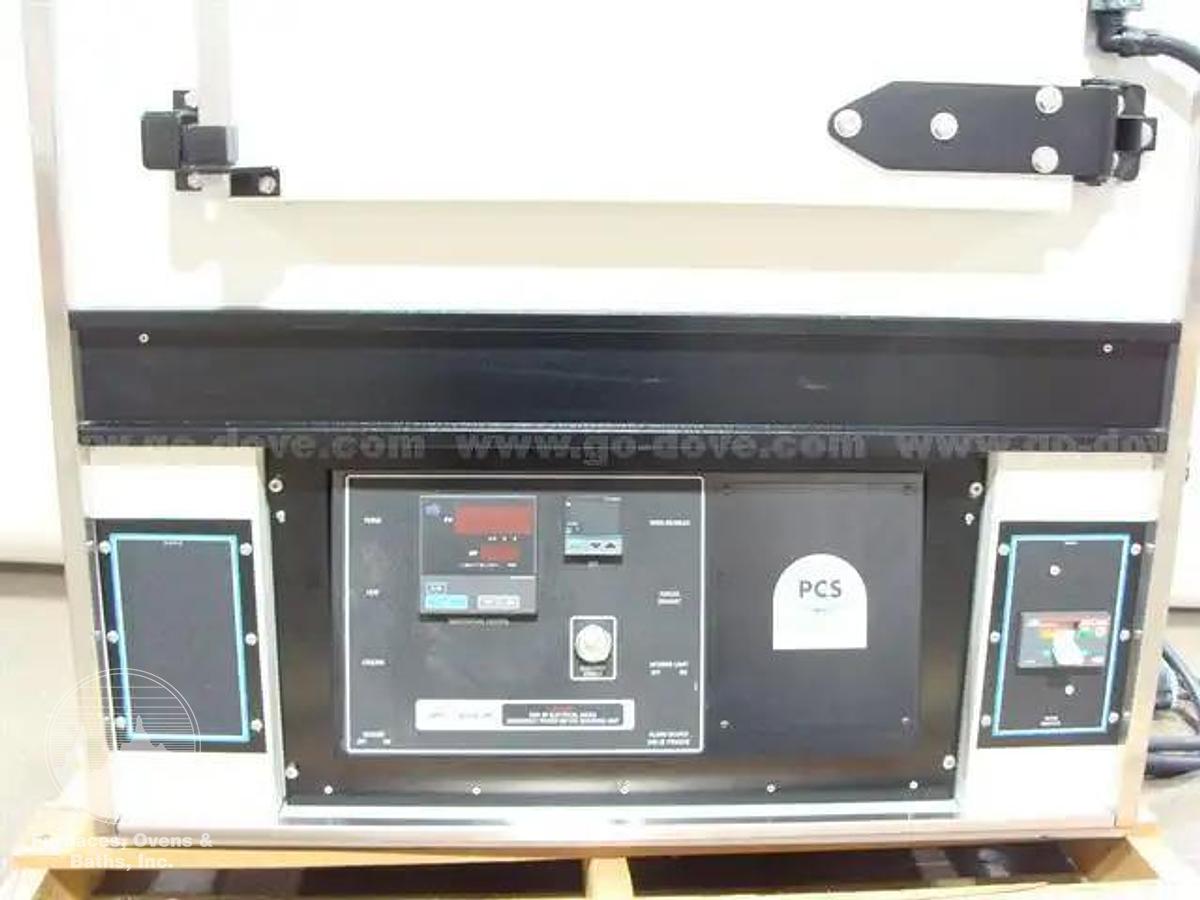

Controls are located in a slide out console located directly under the work chamber. Console includes a Yokogawa digital programmable temperature controller, a Yokogawa digital high limit control, Partlow MRC 5000 circular chart recorder and chamber power control switch with indicating light. Solid State Relays and high limit contactor are located inside the pull out console. A circuit breaker disconnect switch is mounted on the front panel - right side.

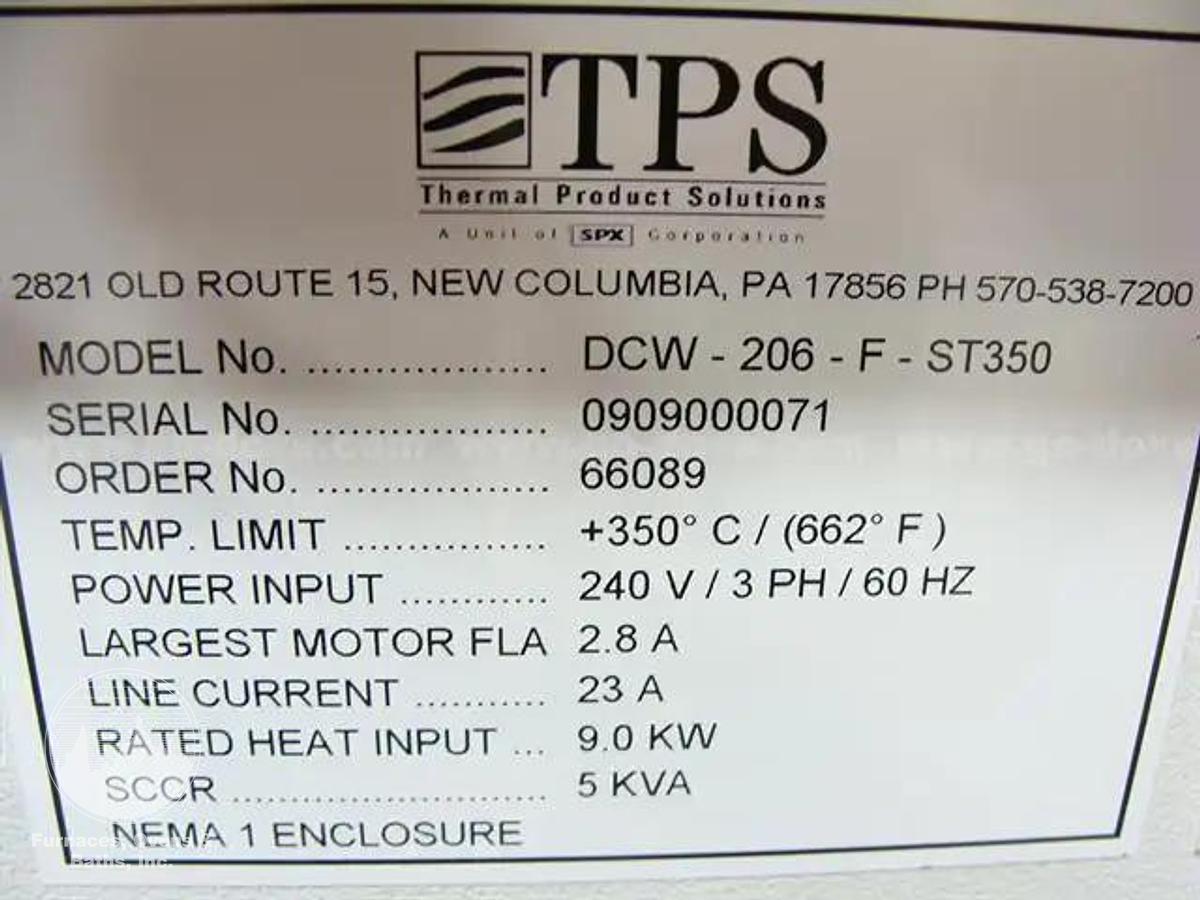

ManufacturerBlue M
Serial Number0909000071
Stock Number7782
Work area20"W x 20"H x 18"L
Max temperature350°C / 662°F
Voltage240/3/60/9 kW/23 FLA
External dimensions36" wide x 48" high x 36" long
