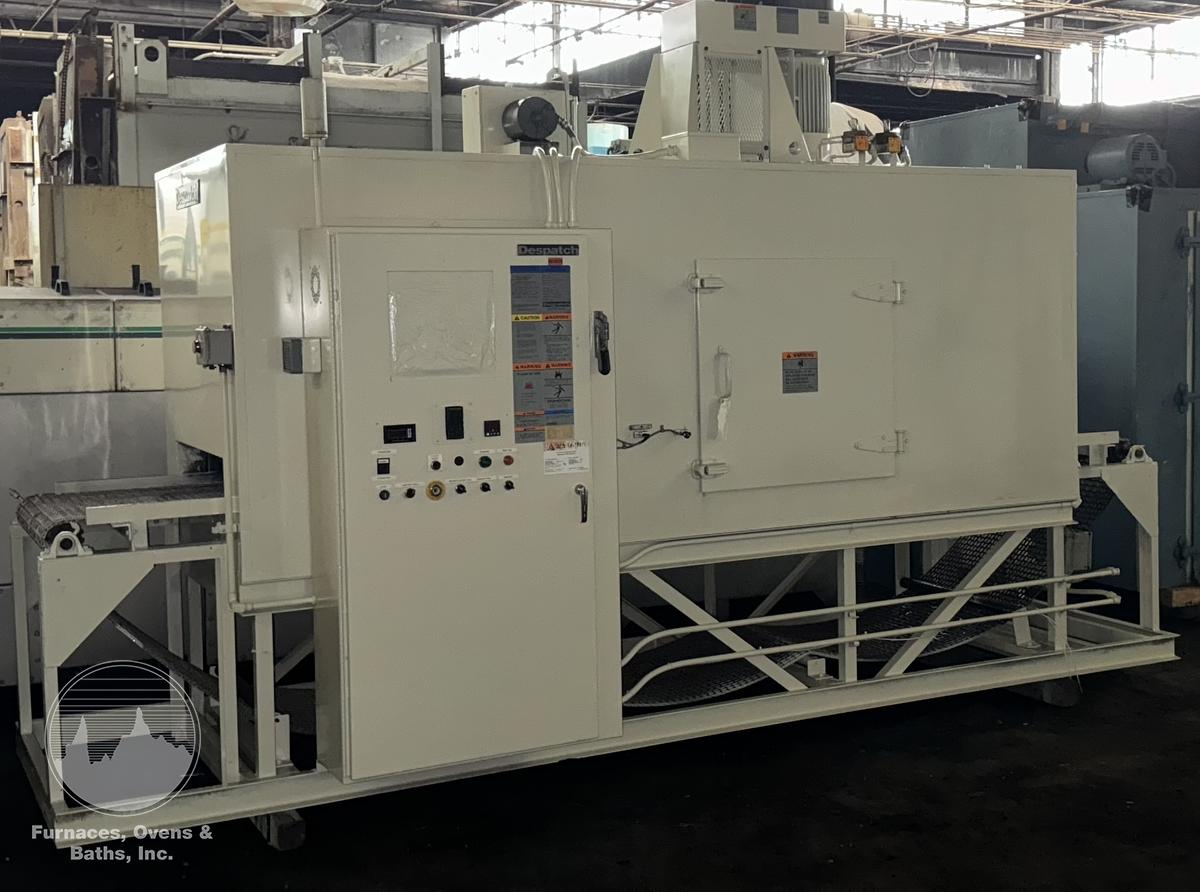

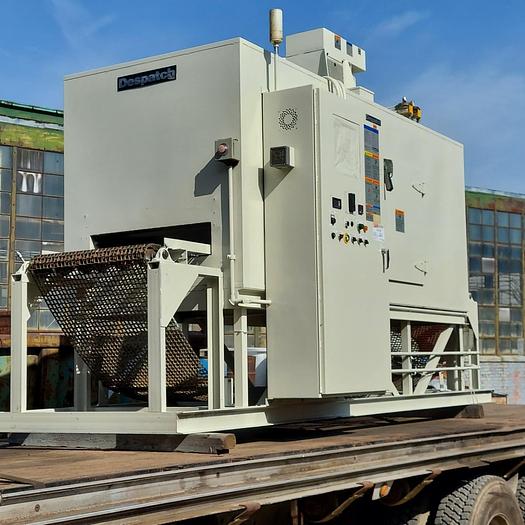

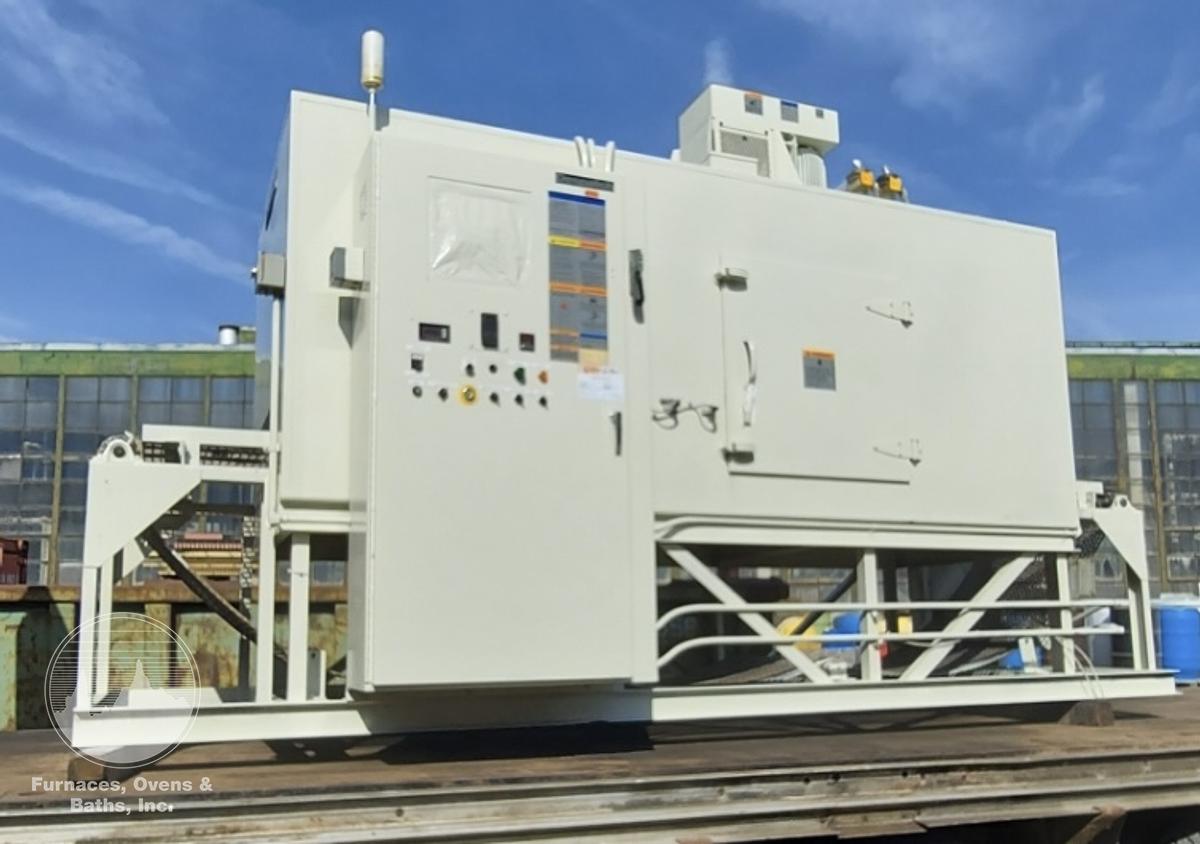

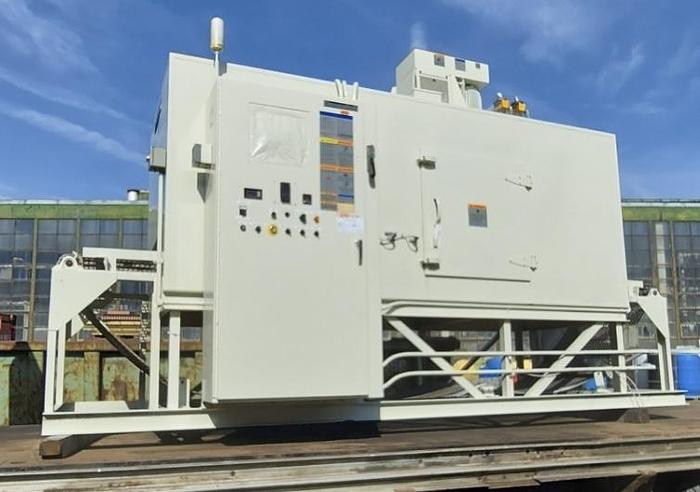

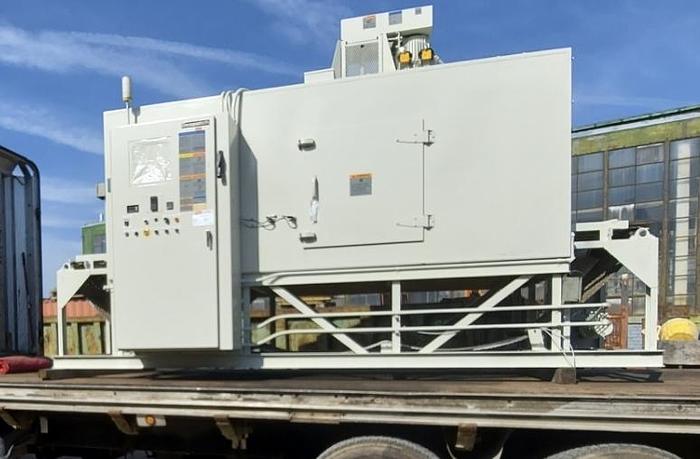

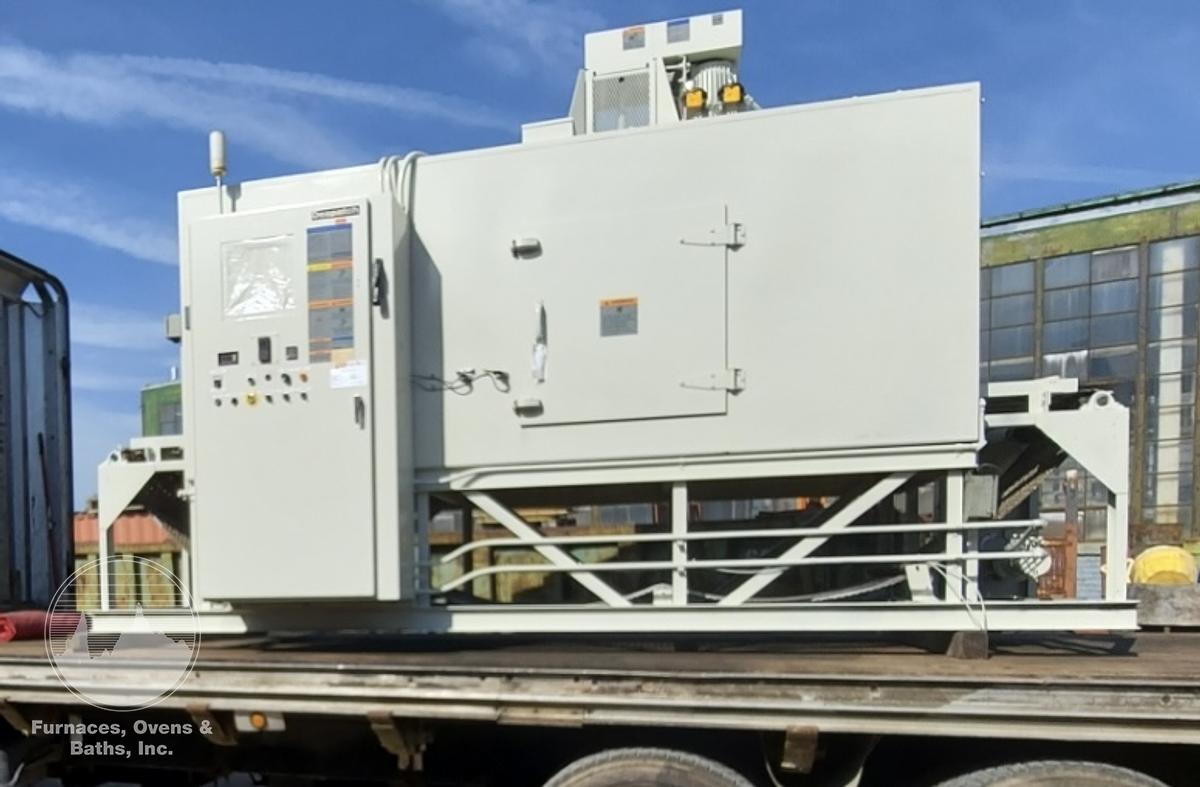

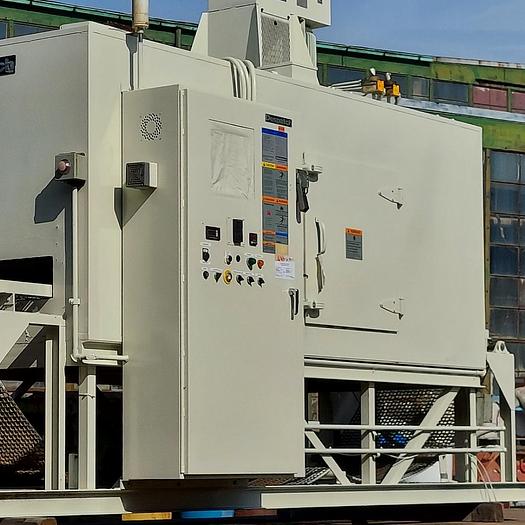

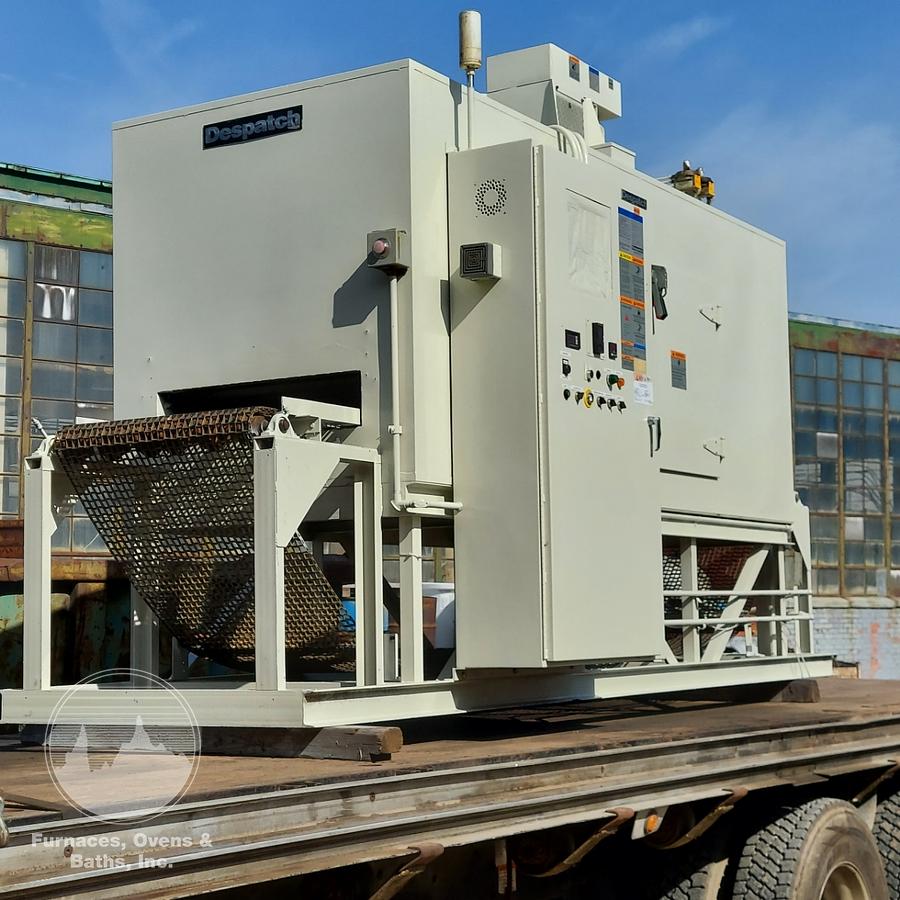

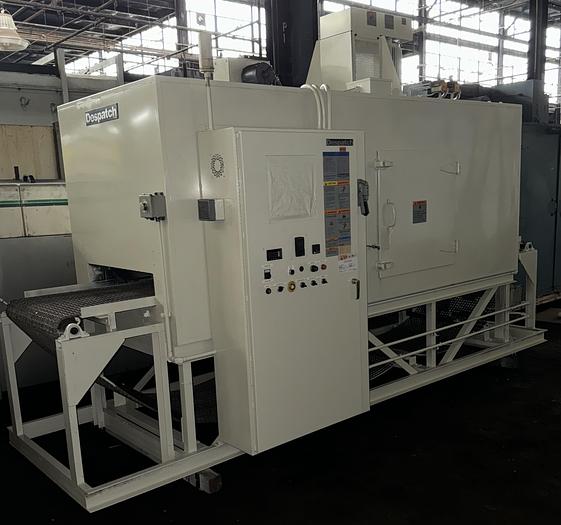

30"W x 6"H x 10'L Despatch Conveyor Oven, Electric, 500°F

Contact us for price

orCall 248-343-1421

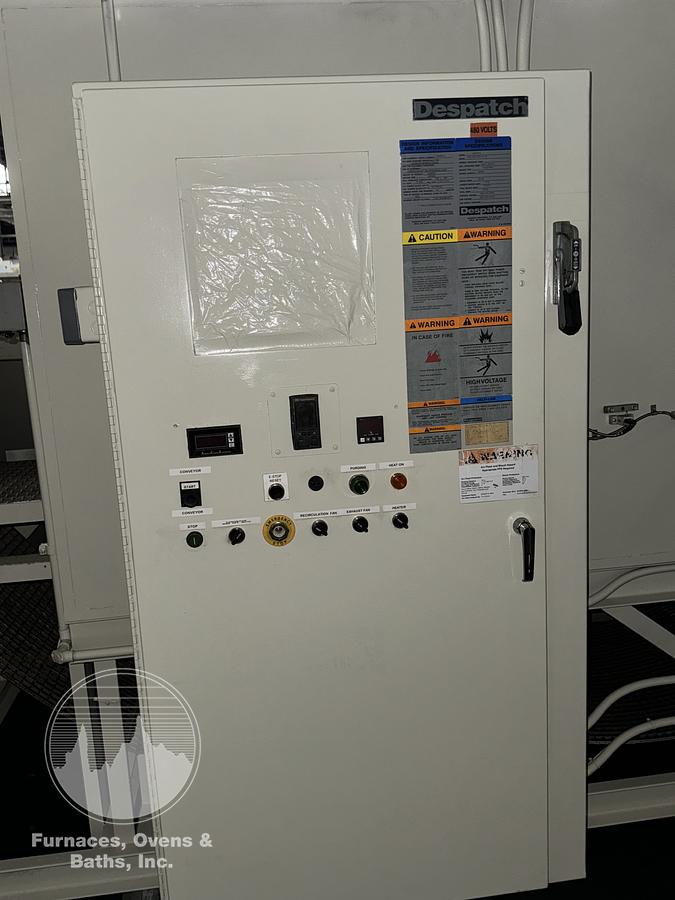

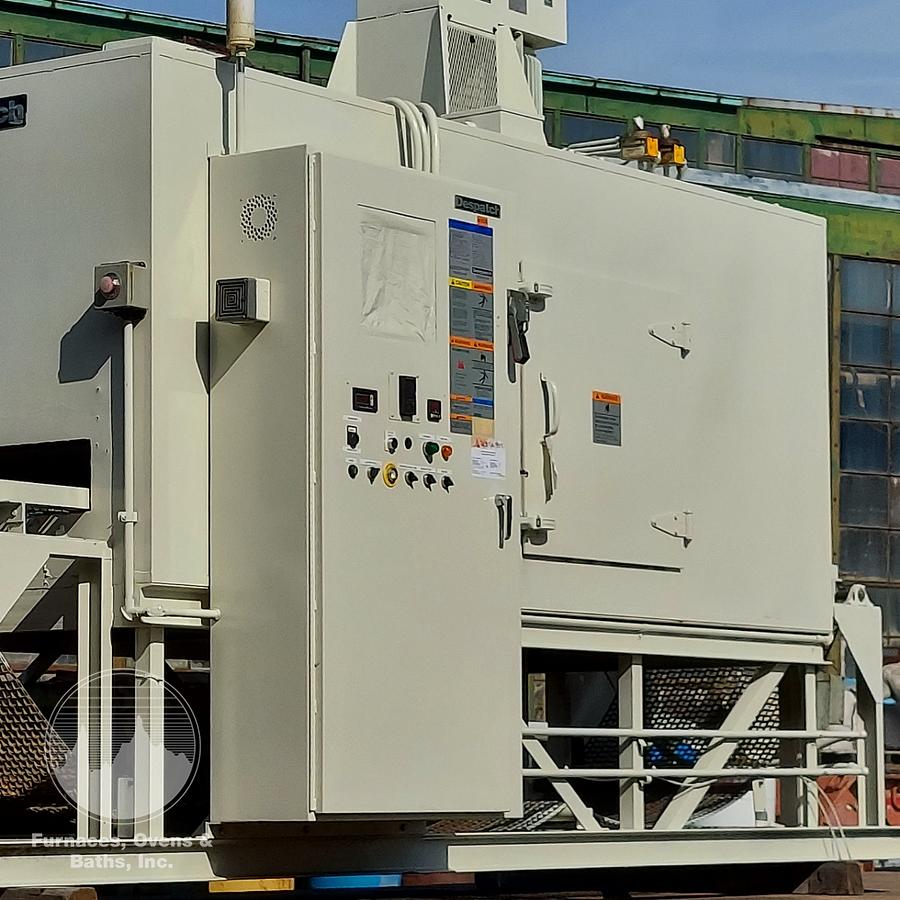

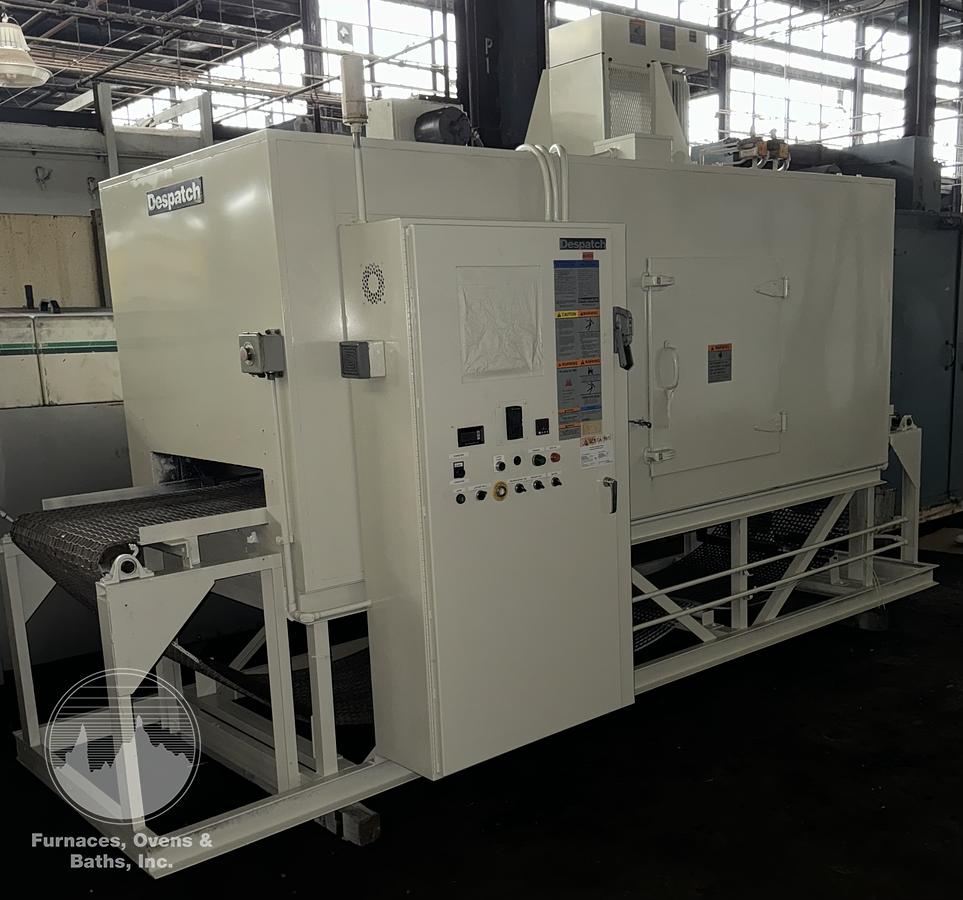

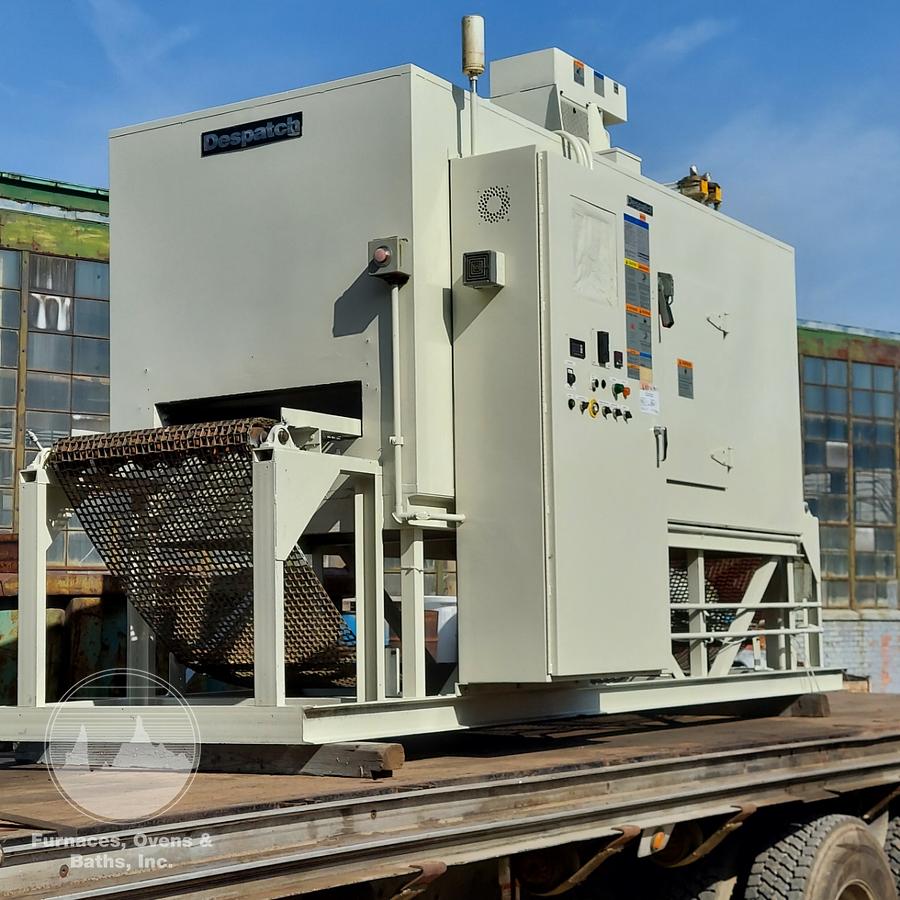

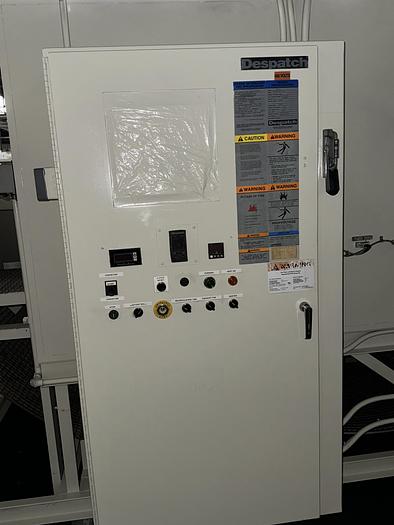

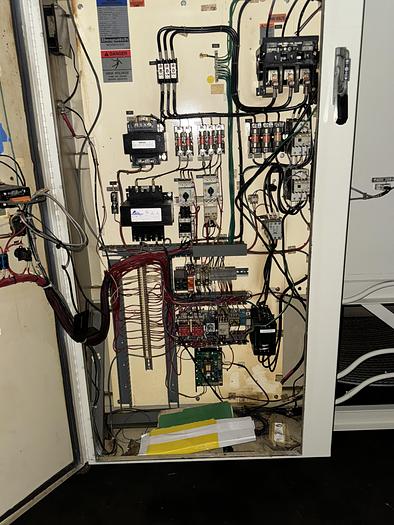

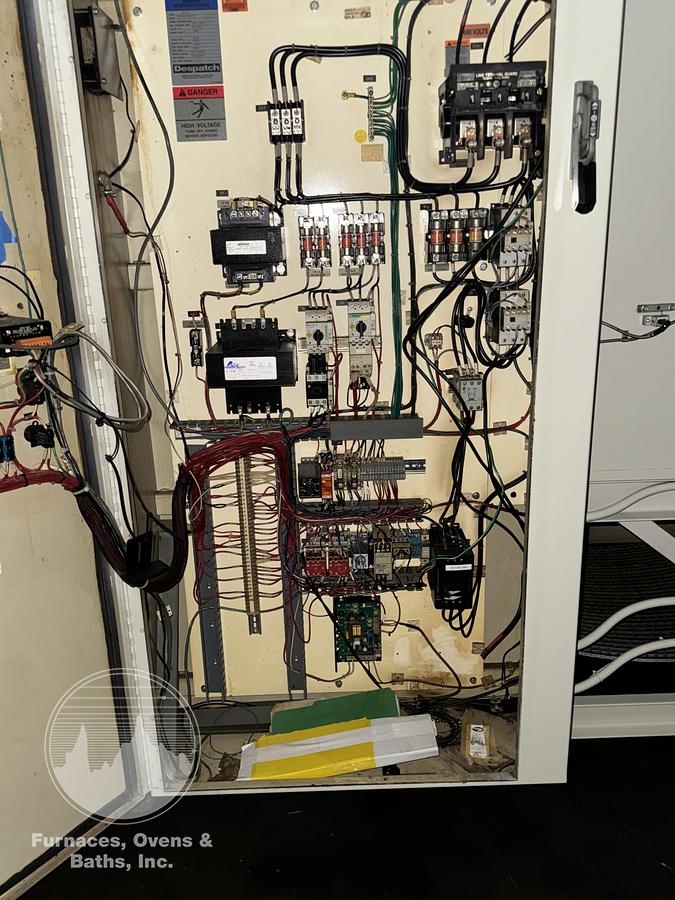

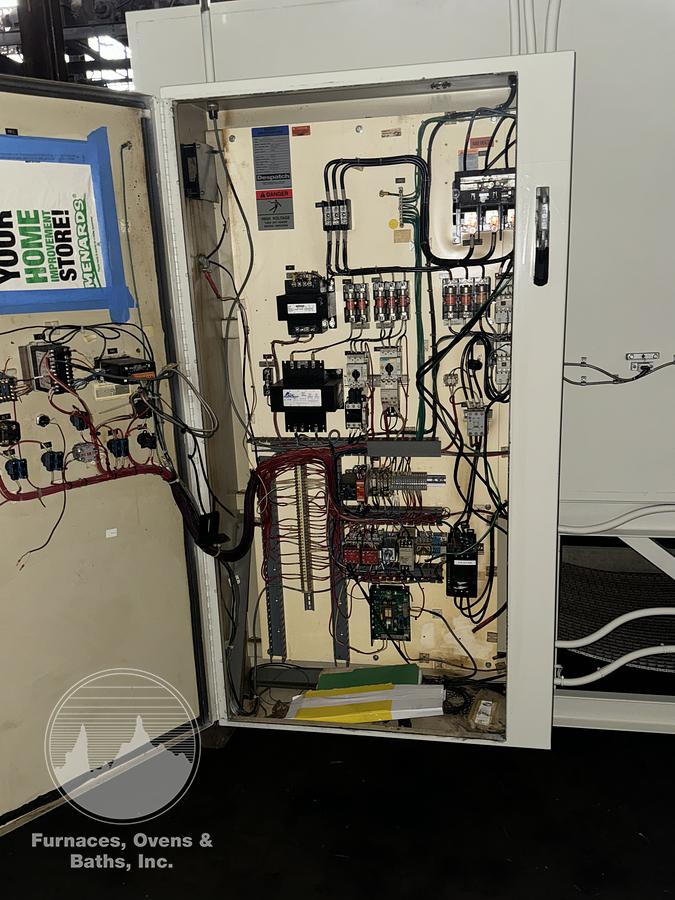

Controls are located in an enclosure attached to the side of the oven. There is a West model 1422 digital temperature controller, a West model 1162 high limit and a Partlow MRC 7000 round chart temperature recorder are flush mounted in the door of the enclosure. Control switches with indicating lights are also flush mounted in the enclosure door. The enclosure also has a flange mounted fused disconnect handle. Solid state relays, high limit contactor, motor starters, fuses etc. are mounted inside the enclosure.

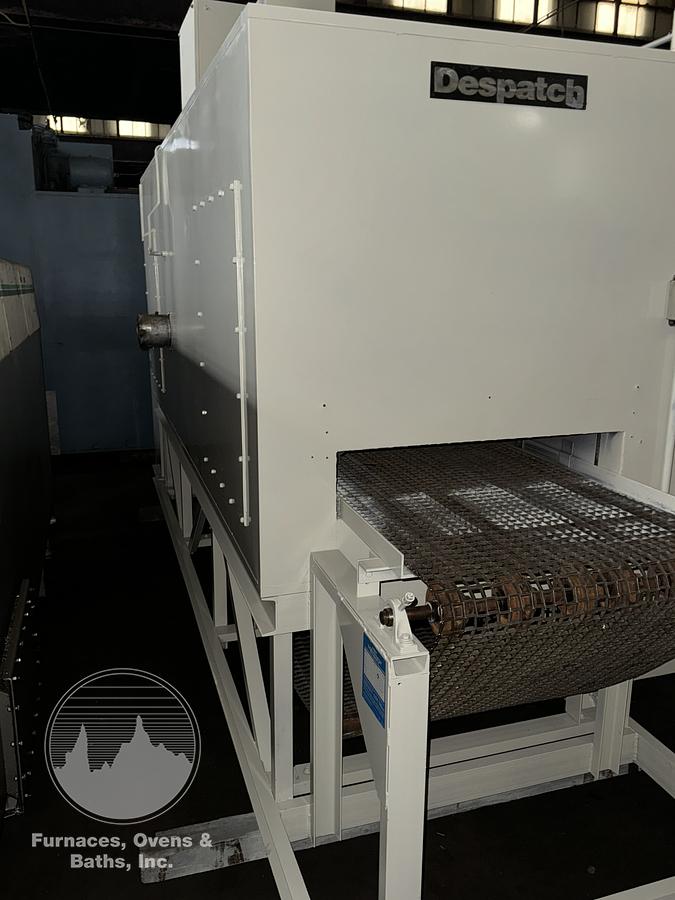

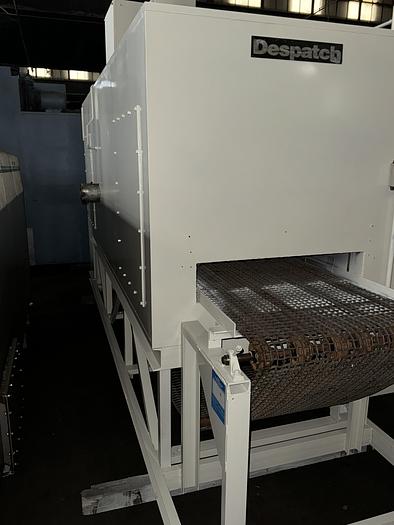

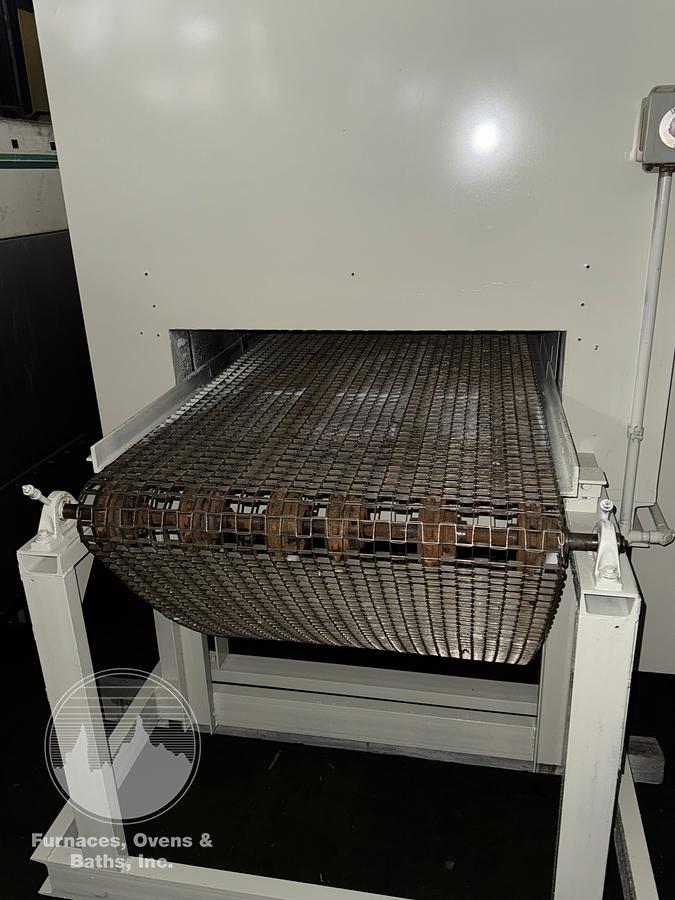

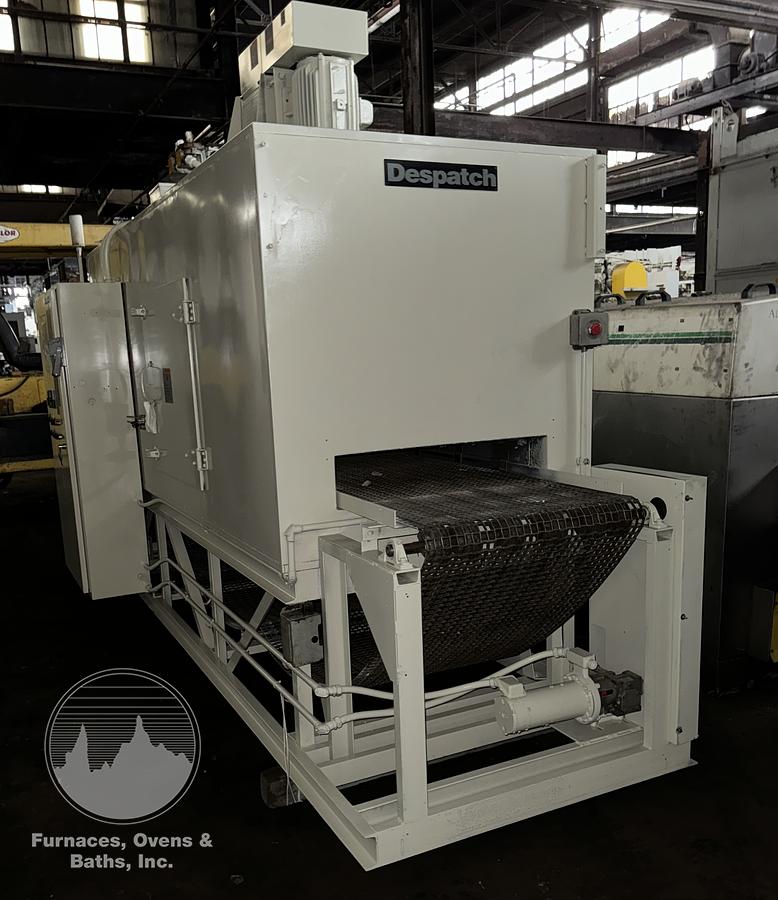

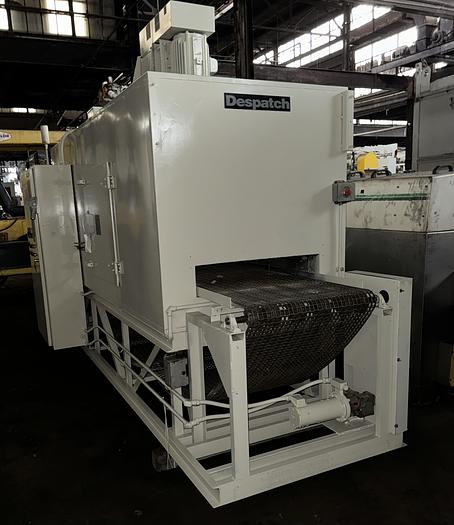

Variable speed flat wire conveyor belt with 1" x 1" openings. The belt drive has a DC motor / speed reducer combination with speed control potentiometer and digital speed readout. There is a 24" long load table at the entrance and a 24" long unload table. Aluminized steel interior with an access door on the side. Coiled style heating elements are located above the work chamber. Circulating fan is mounted through the roof. Heated air is circulated in a "top - down" airflow pattern through adjustable louvered air ducts and down through the belt for good uniform heating. A powered exhaust fan is mounted on top of the oven. ** Rated for use with some solvents (.041 GPH of MEK @230 F.)

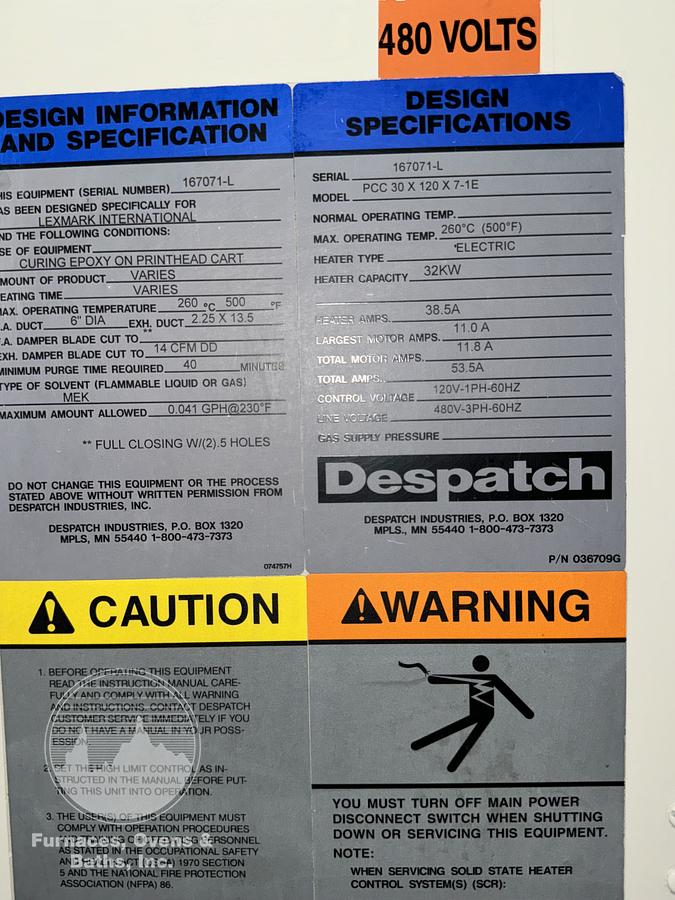

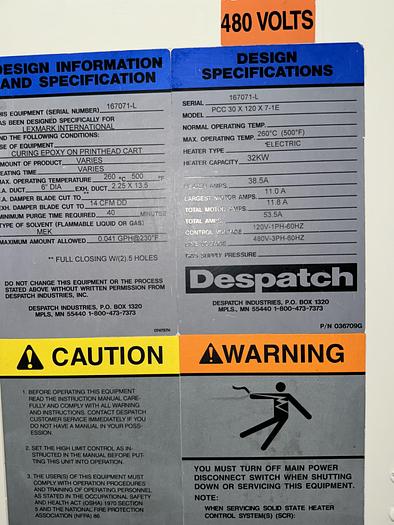

ModelPCC 30 x 120 x 7-1E
Serial Number167071-L
Stock Number7784
Work area30"W x 6"H x 10'L
Max temperature500°F
Voltage480V/3 Phase/60 Cycles/32 kW/53 FLA
External dimensions64"W x 8'8"H x 14'2"L
