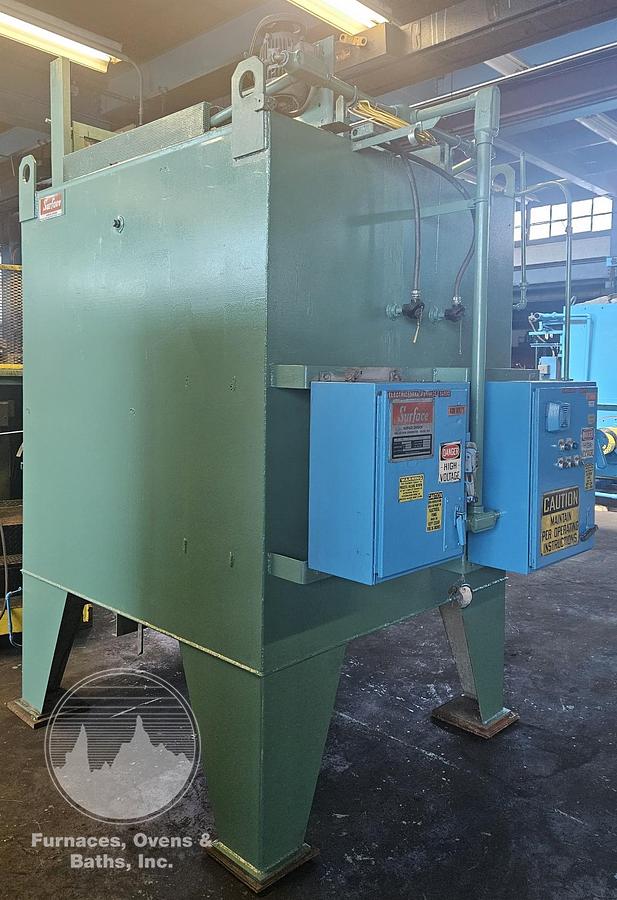

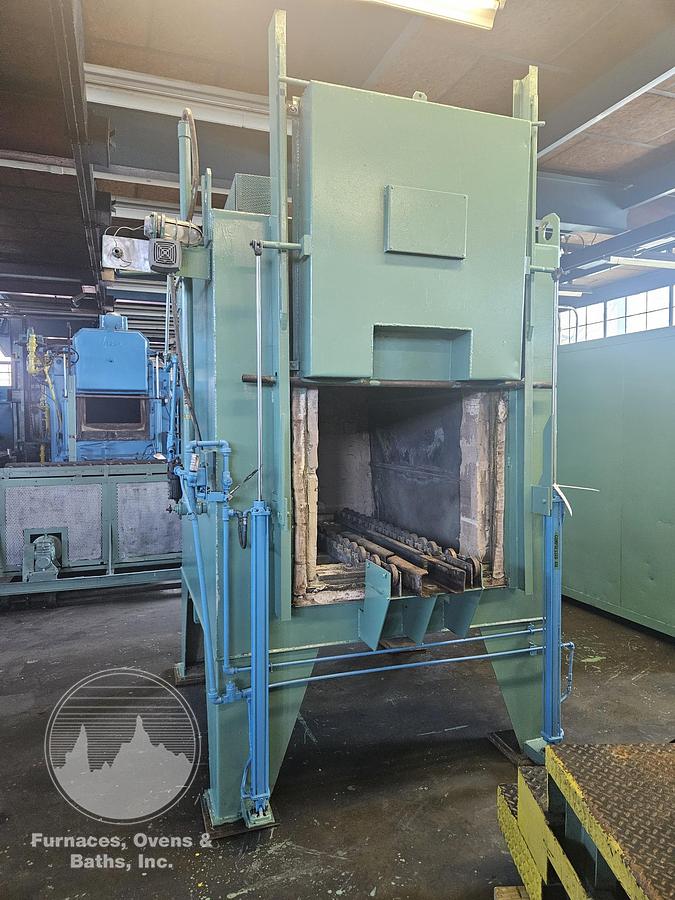

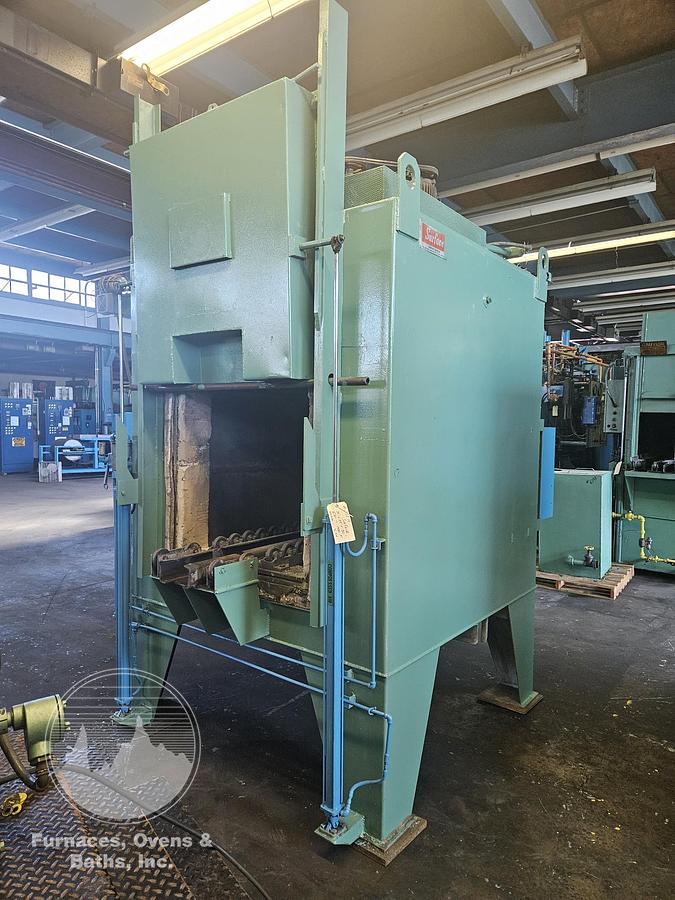

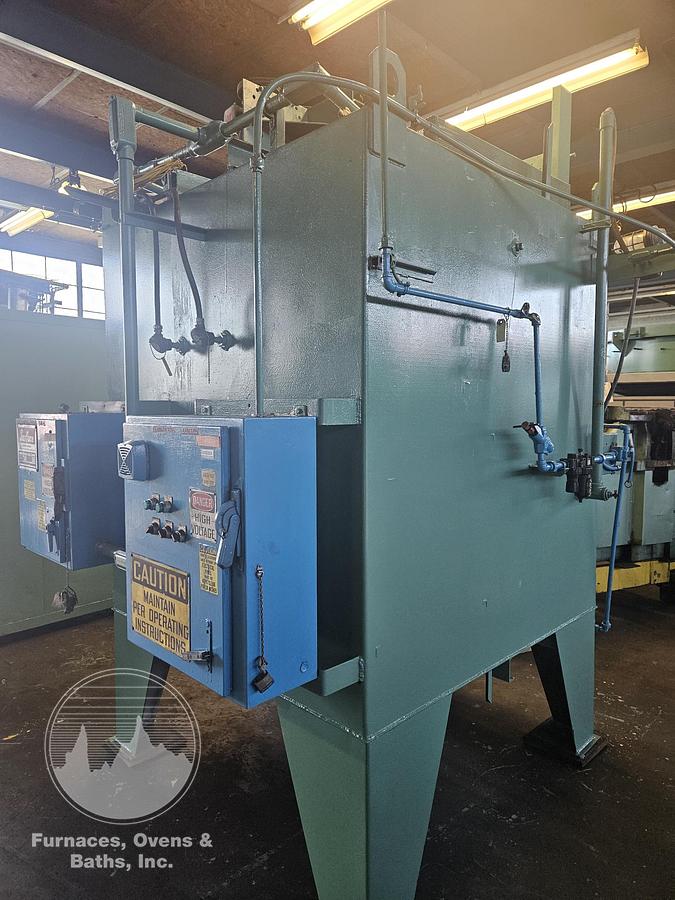

Surface Combustion Box Temper 30"W x 30"H x 48"L, Electric, 1400°F
Surface Combustion Box Temper 30"W x 30"H x 48"L, Electric, 1400°F
Contact us for price
orCall 248-343-1421
Description

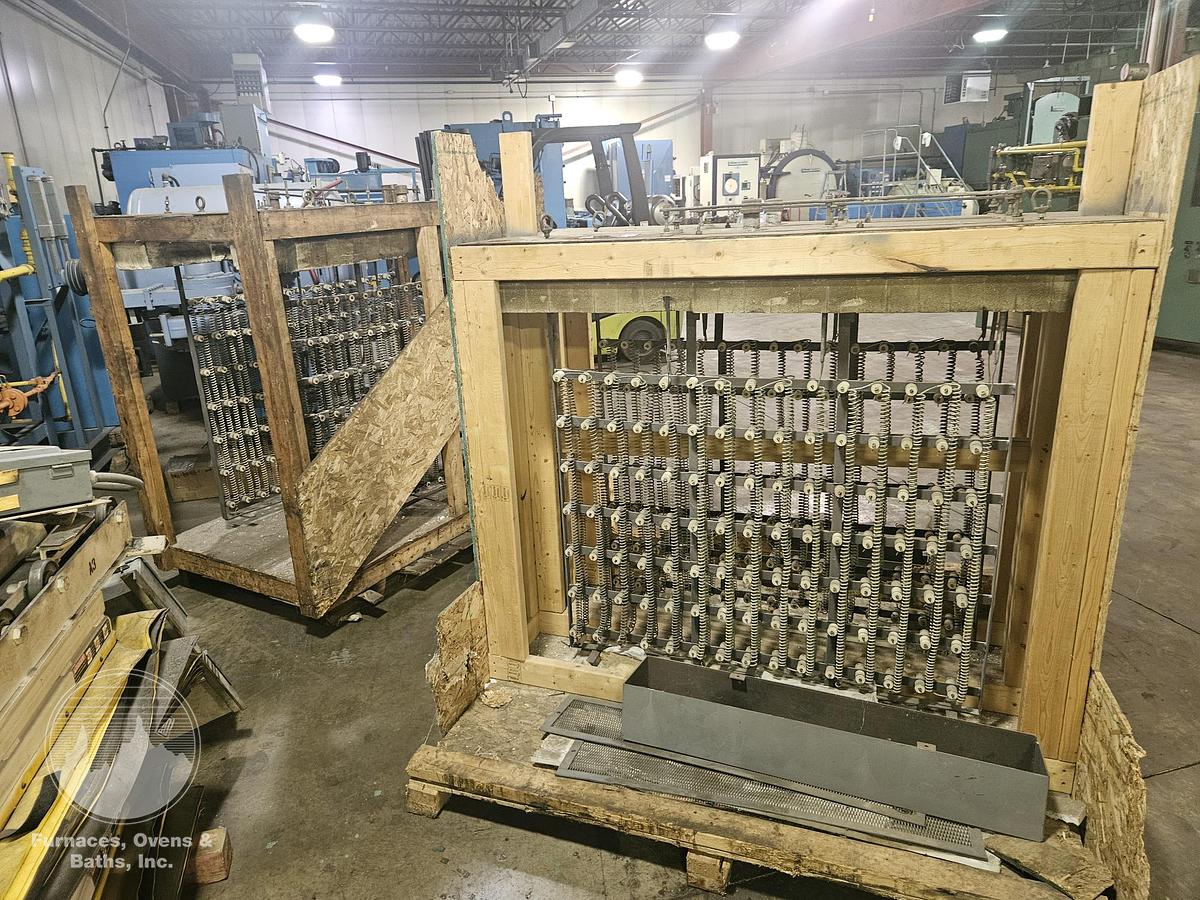

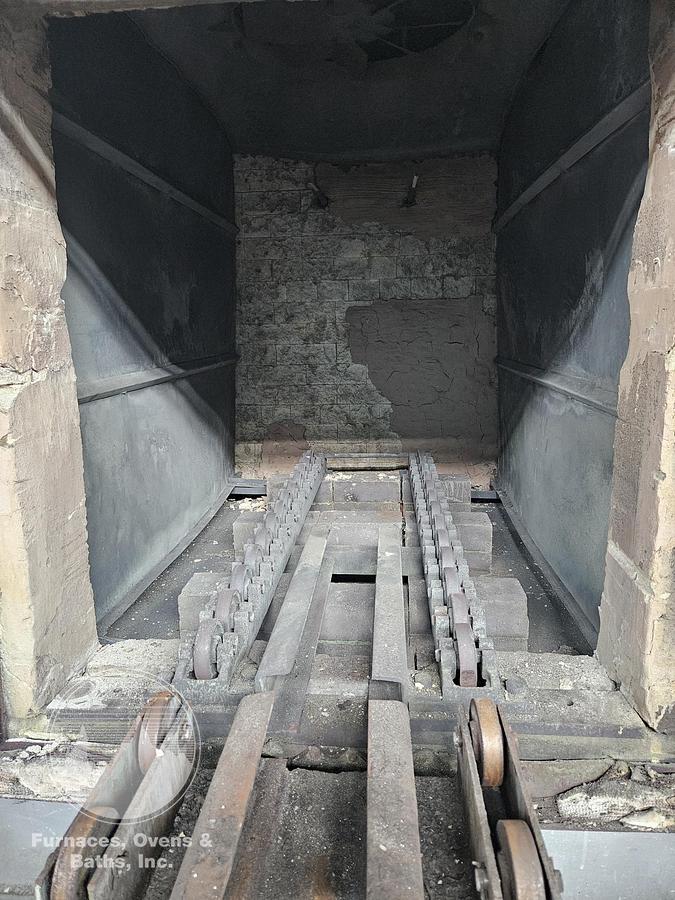

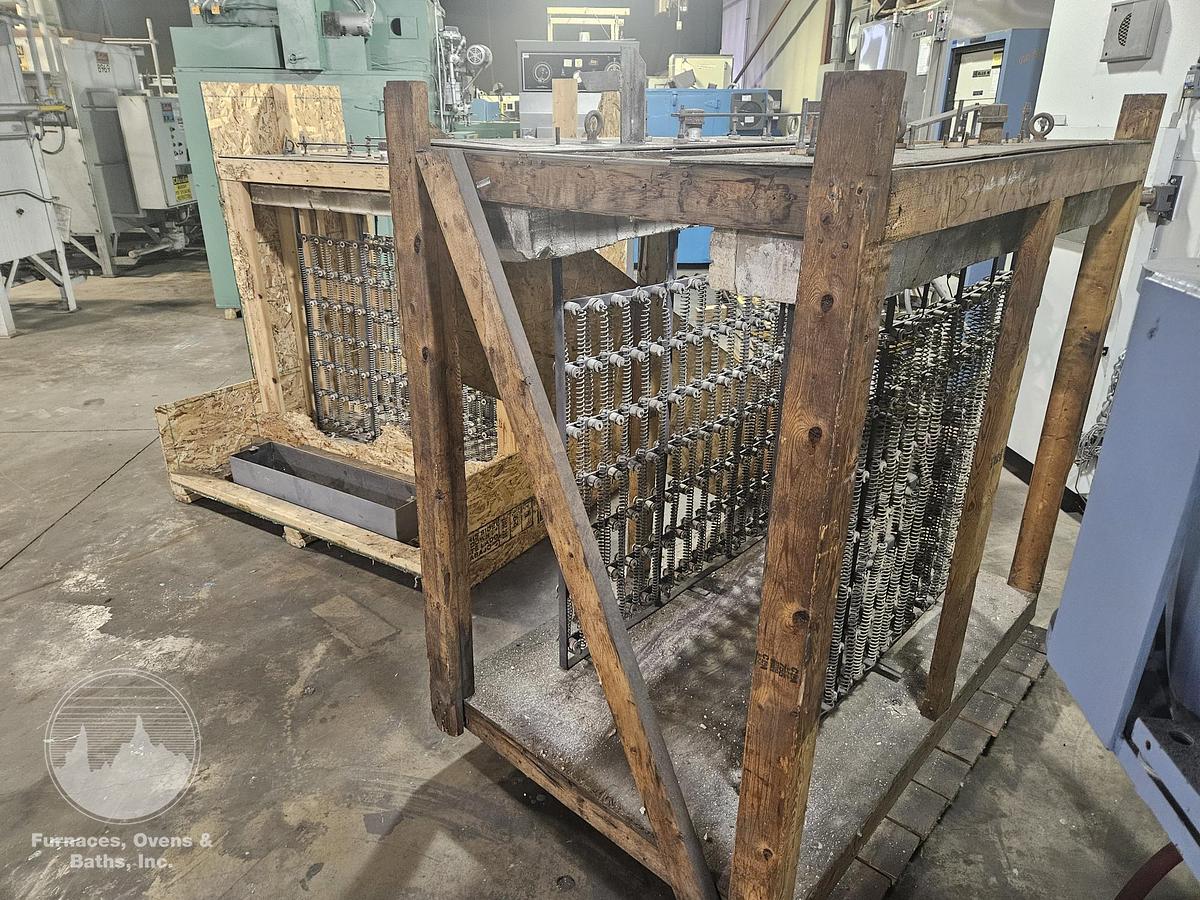

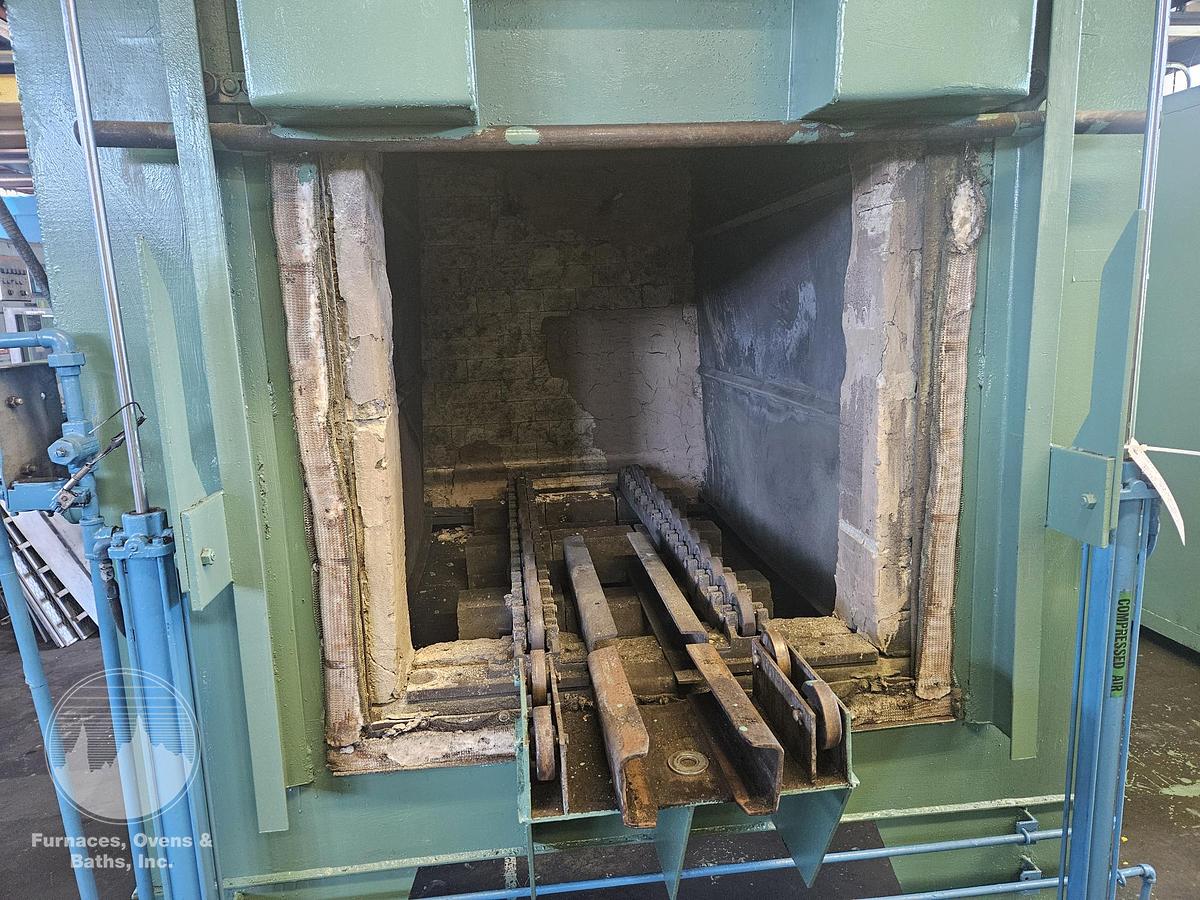

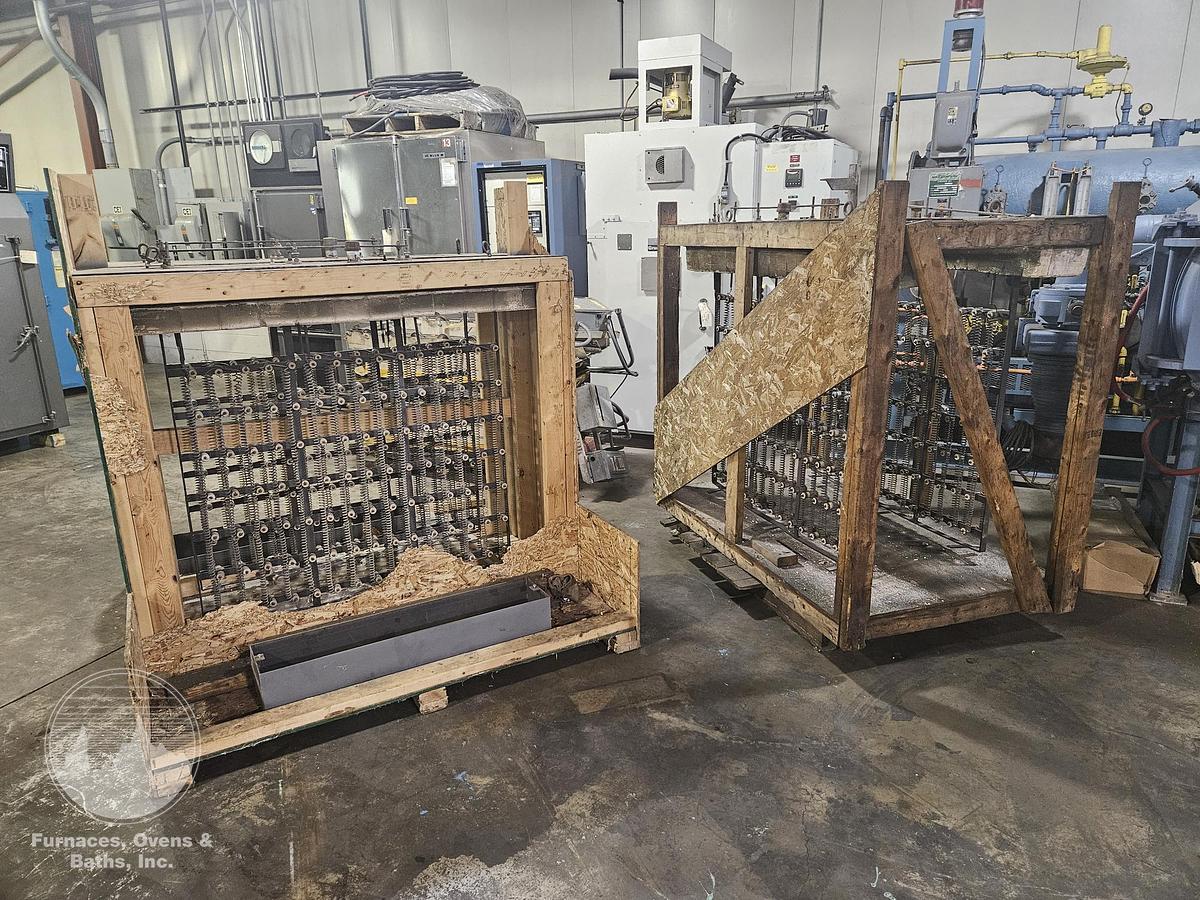

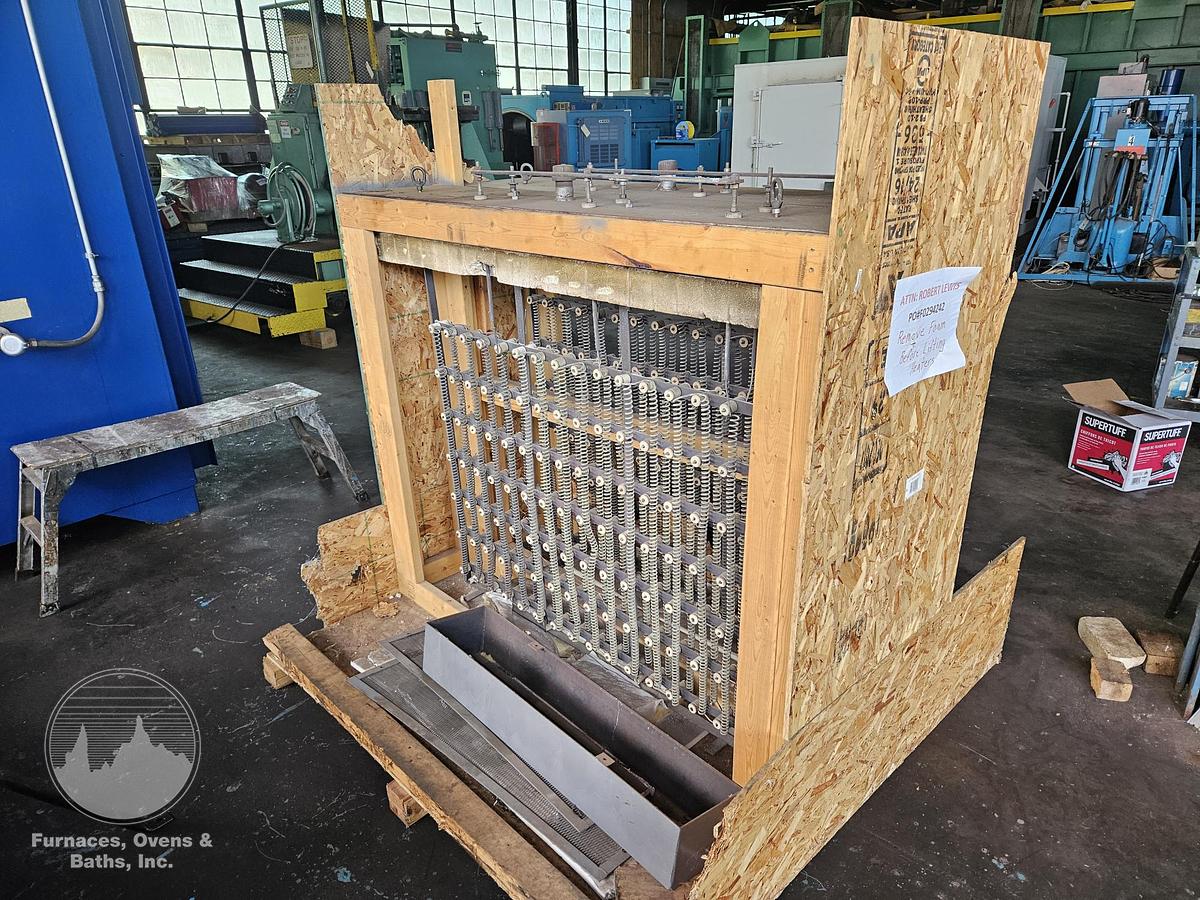

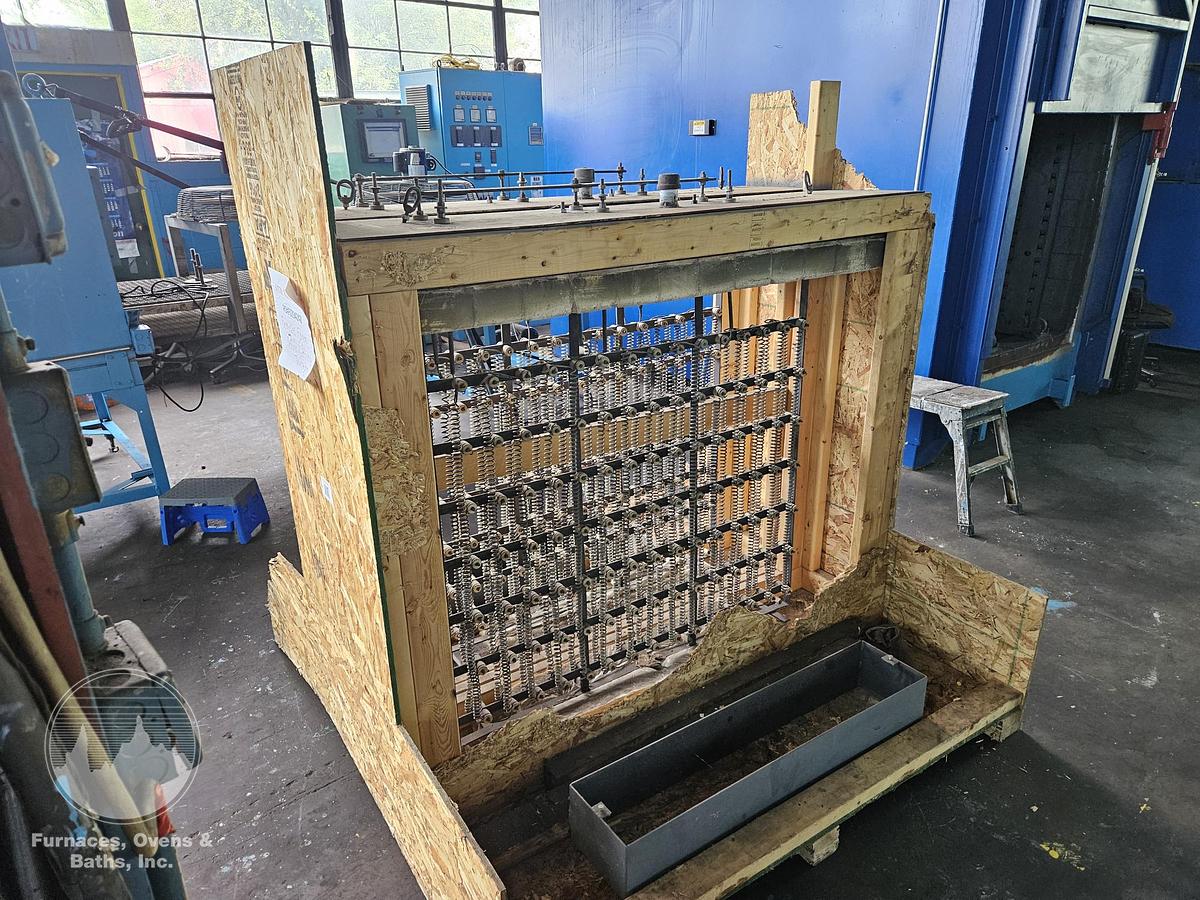

DESCRIPTION: Brick Lined Recirculating Box Tempering Furnace complete with Top-Mounted Alloy Recirculating Fan (5 H.P.), Inner Stainless Steel Air Shrouds, Alloy Roller Rail Hearth, and Vertical Rising Pneumatic Front Door. Also included are (2) New Heating Elements Assemblies with Insulated Plug.

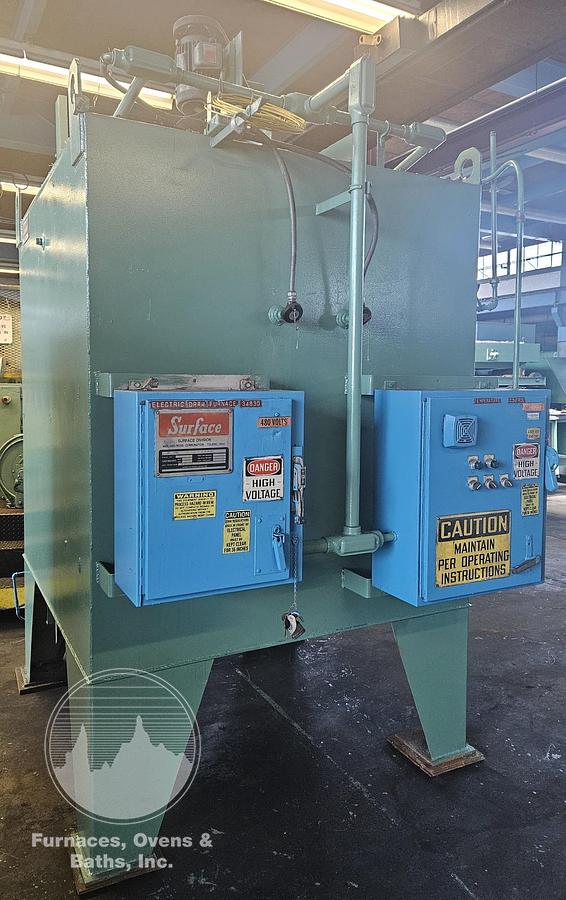

INSTRUMENTATION: Free-Standing Control Panel with Partlow Mic 2000 Digital Temperature Controller, Partlow High Limit ATC Timer, and L&N Strip Chart Recorder (10”).
Specifications
| Manufacturer | Surface Combustion |
| Model | Convection Tempering Furnace |
| Condition | Used |
| Serial Number | BX-41404-1 |
| Stock Number | 7786 |
| Work area | 30"W x 30"H x 48"L |
| Heated | Electric - 76 kW |
| Max temperature | Min: 350°F, Max: 1400°F |
| Voltage | 460/3/60/76 kW |
| Overall Dimensions | 80” Wide x 102” Deep x 132” High |
| Availability | Immediate |
