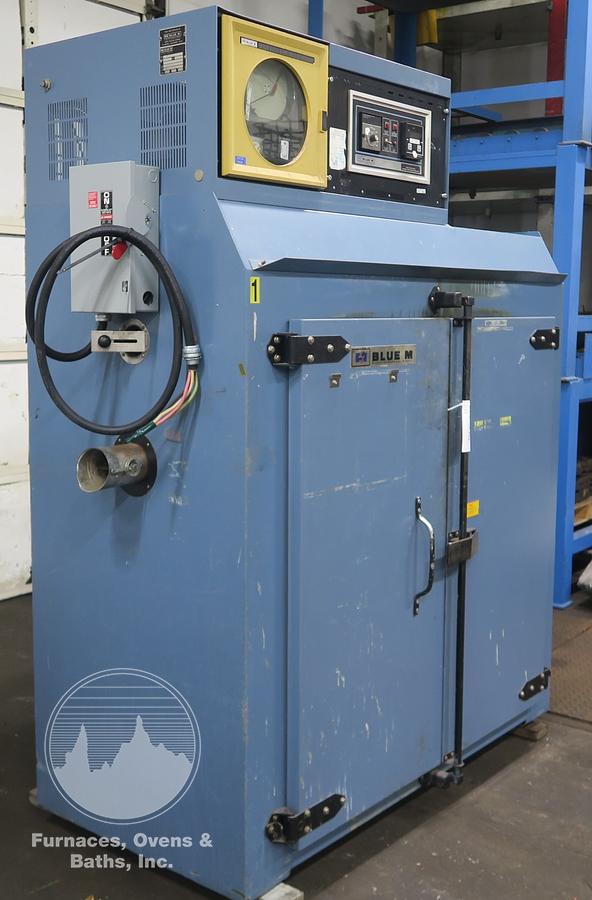

48"W x 48"H x 24"L, Blue M DC-326F Cabinet Oven, 600°F

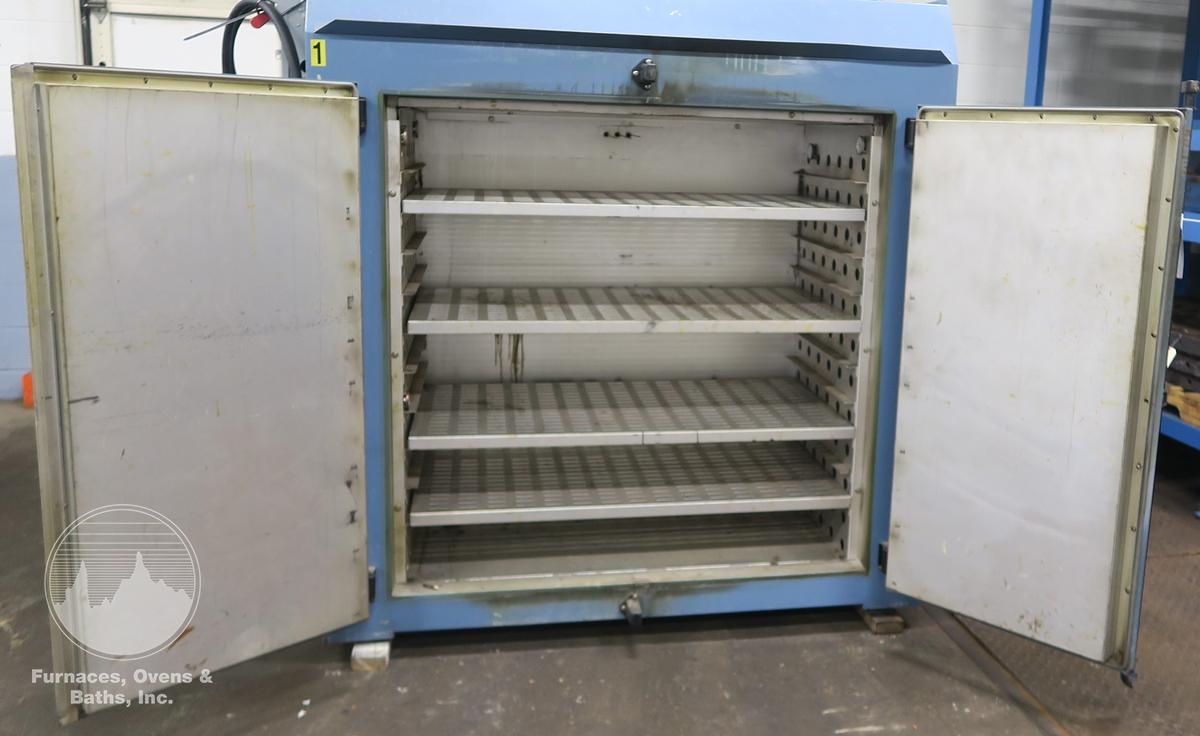

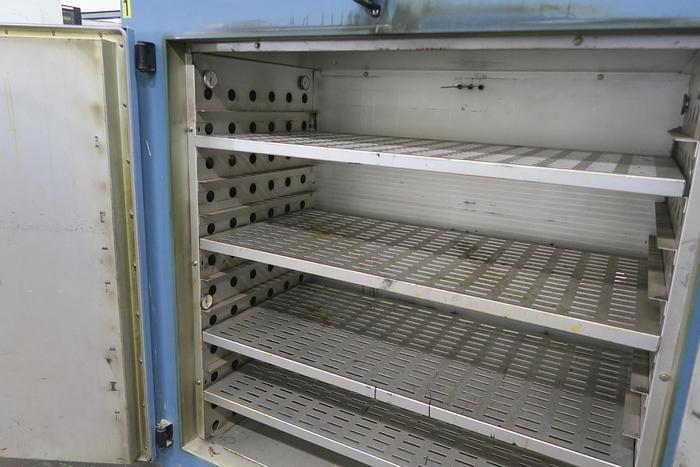

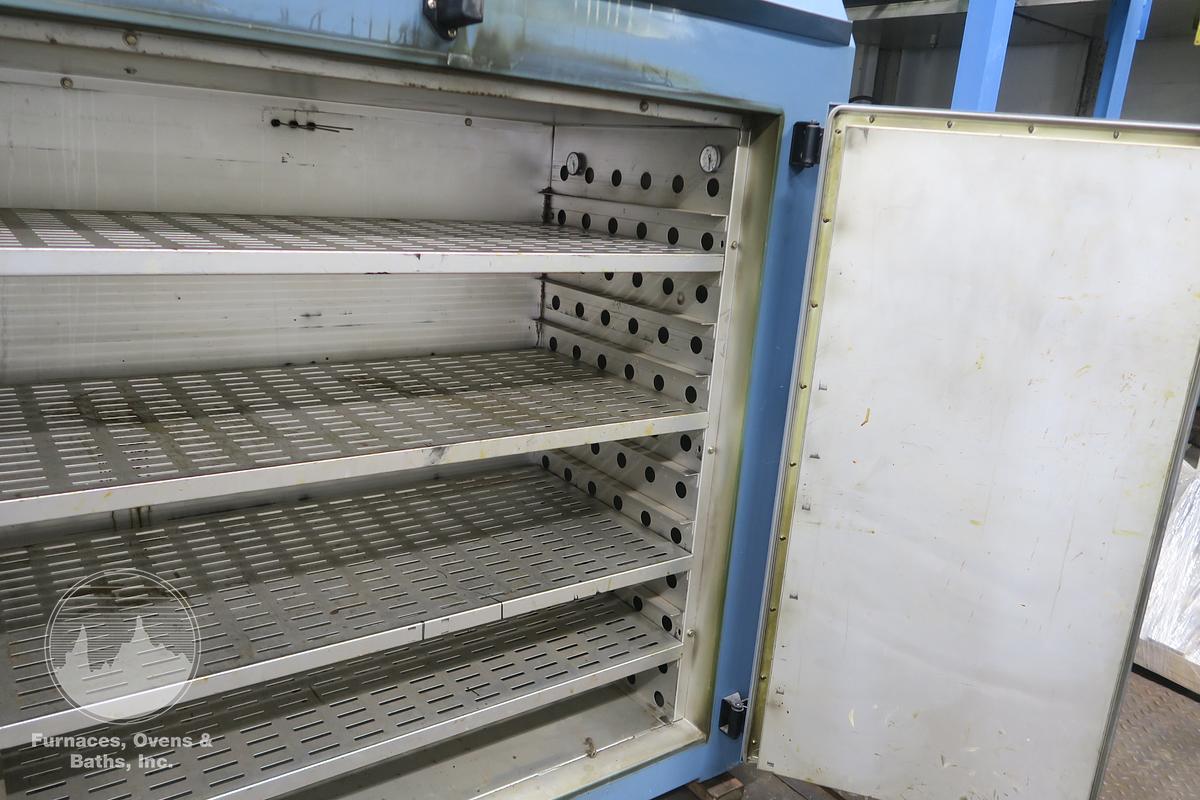

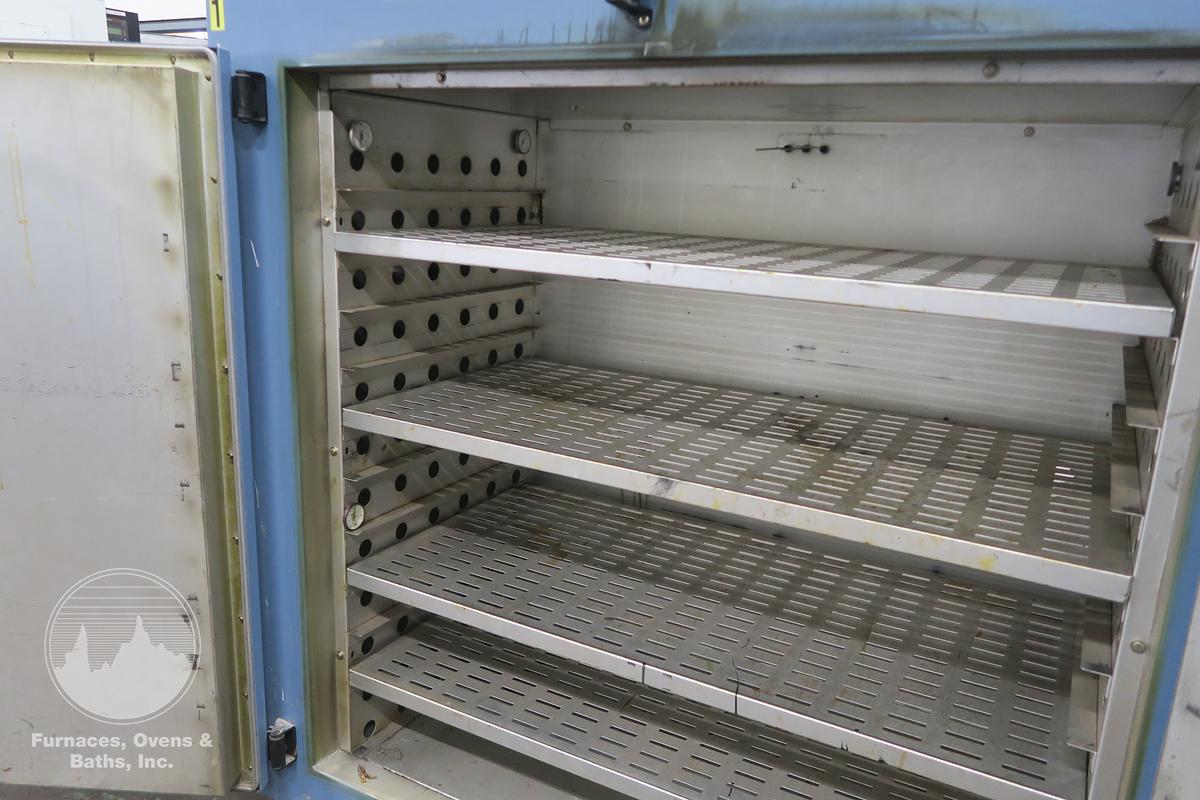

Double doors with 2-point cam action latch and silicon rubber gasket for a good door seal. Aluminized steel interior with perforated air duct side wall panels. Coiled style heating elements and direct driven circulating fan are above the work area. Heated air is circulated in a horizontal pattern across the chamber. Adjustable fresh air inlet and exhaust port is located on the left-hand side. Chamber port located on the rear. Four (4) shelves are included with this oven. Oven will accept ten (10) shelves. Shelves are on 4" centers. Oven will be tested prior to shipping

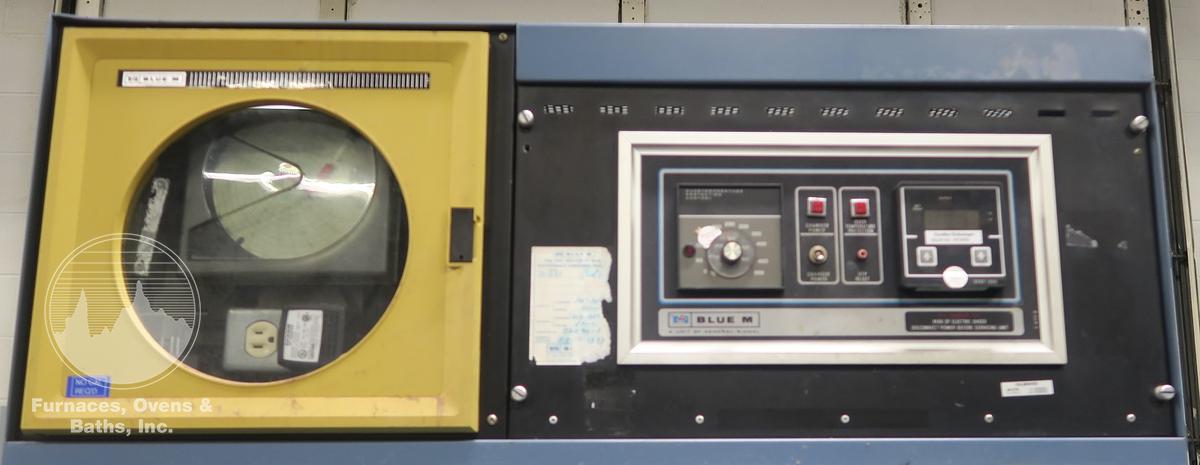

Controls are located in a convenient slide out console located above the work area. A Partlow Stat 1900 digital temperature control, Partlow analog high limit and circular chart recorder. A power toggle switch with indicating lights for on/off, over-temp are flush mounted in the face of the console. Solid state power relays, high limit contactor, motor starer, fuses, relays etc. are mounted to the console base. Fused disconnect is mounted on the right-hand side of this oven.
