43"W x 36"H x 24"L Blue M DCC-1406F, Inert Gas Clean Room Cabinet Oven, 662°F

43"W x 36"H x 24"L Blue M DCC-1406F, Inert Gas Clean Room Cabinet Oven, 662°F

Contact us for price

orCall 248-343-1421

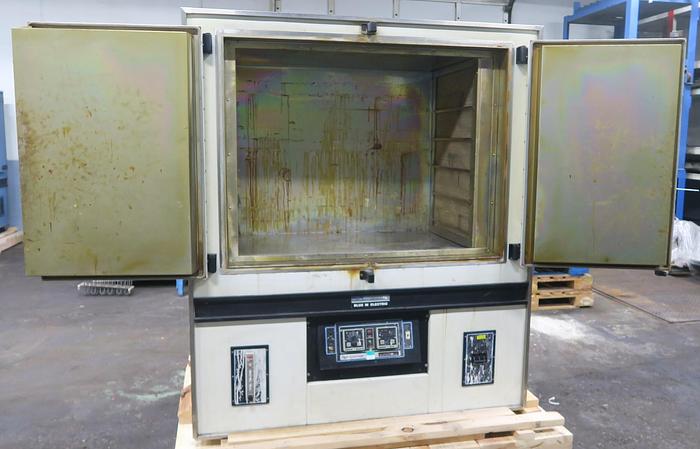

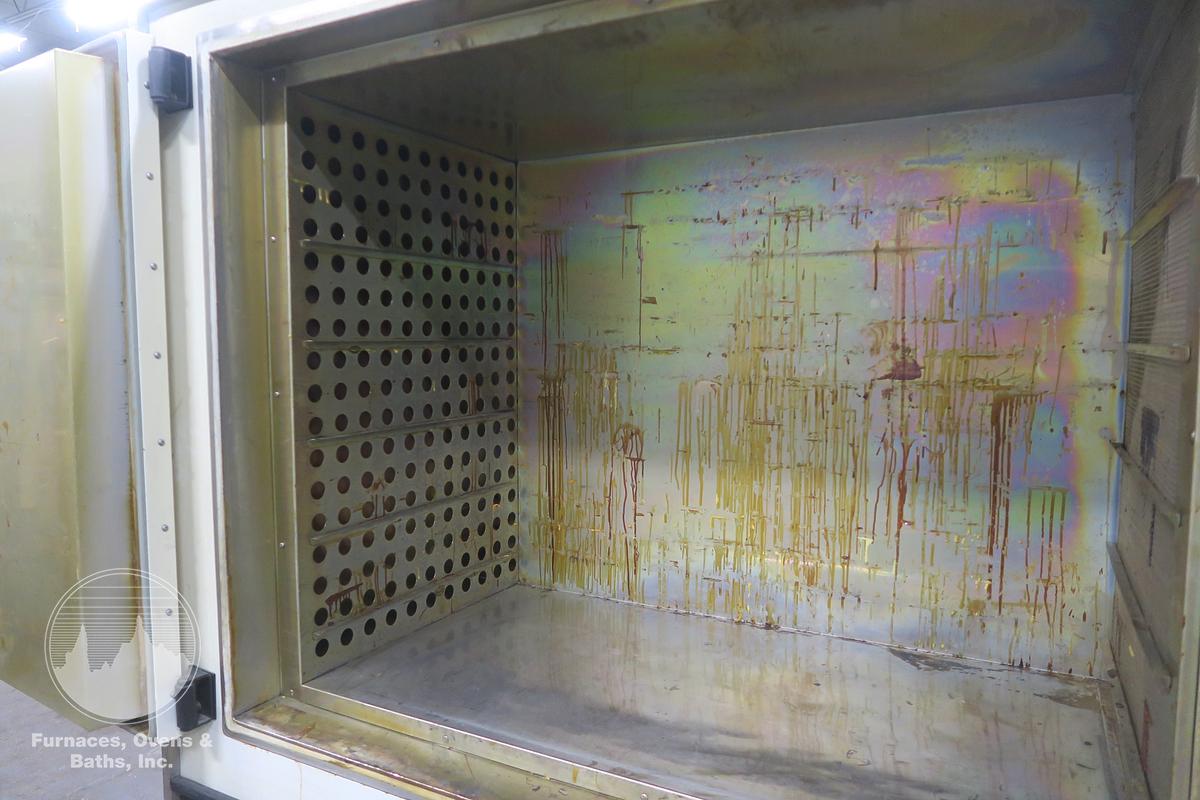

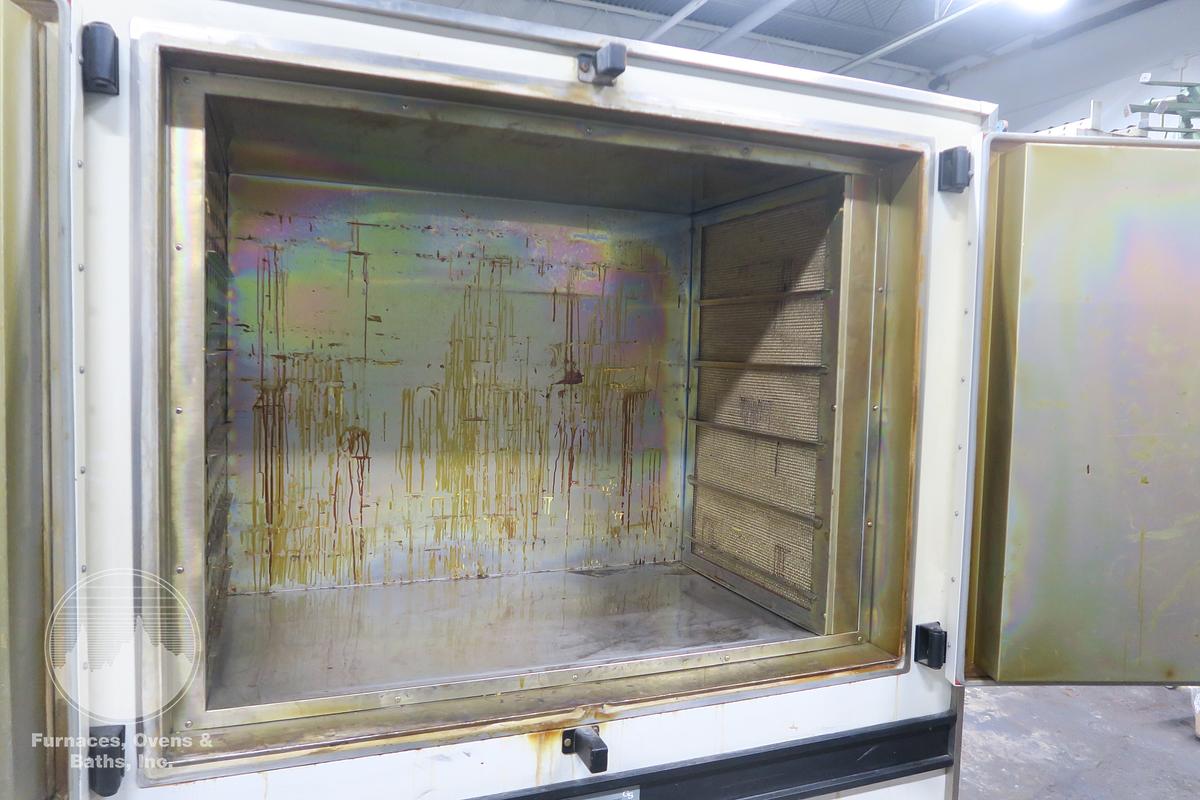

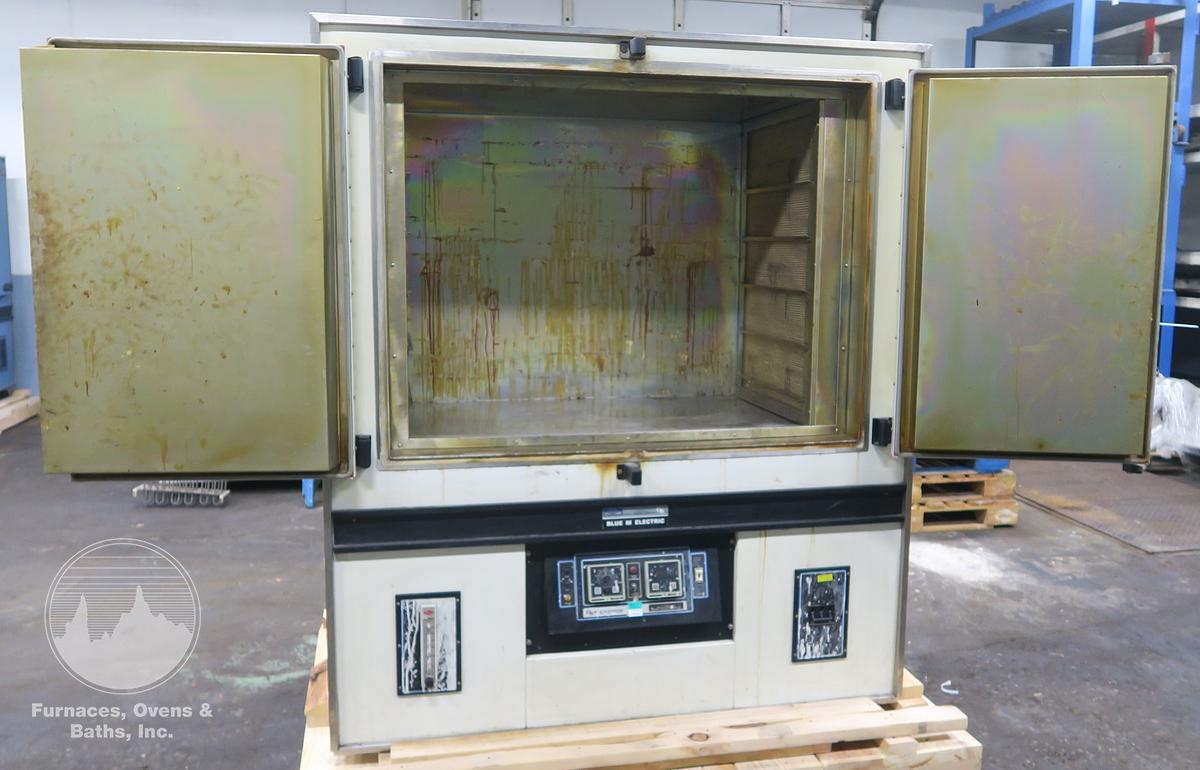

Double doors with 2 cam action positive seal latches and silicone rubber gasket. Stainless steel interior with 5 shelf brackets on 6" centers, no shelves are supplied with the oven. A HEPA filter is installed in the right-side wall and removes contaminants in the air flow. Coiled style heating elements and direct drive circulating fan are located under the floor. Heated air is circulated in a horizontal pattern across the chamber. A finned cooling coil is also located under the floor to provide more rapid cooling if required. A chamber vent port 1/2" NPT located on top of the oven to vent out moisture and contaminants while Nitrogen gas is introduced into the chamber. Oven will be tested prior to shipping. Oven is banded to a pallet. Shipping Dimensions: 48" wide x 85" high x 77" long.

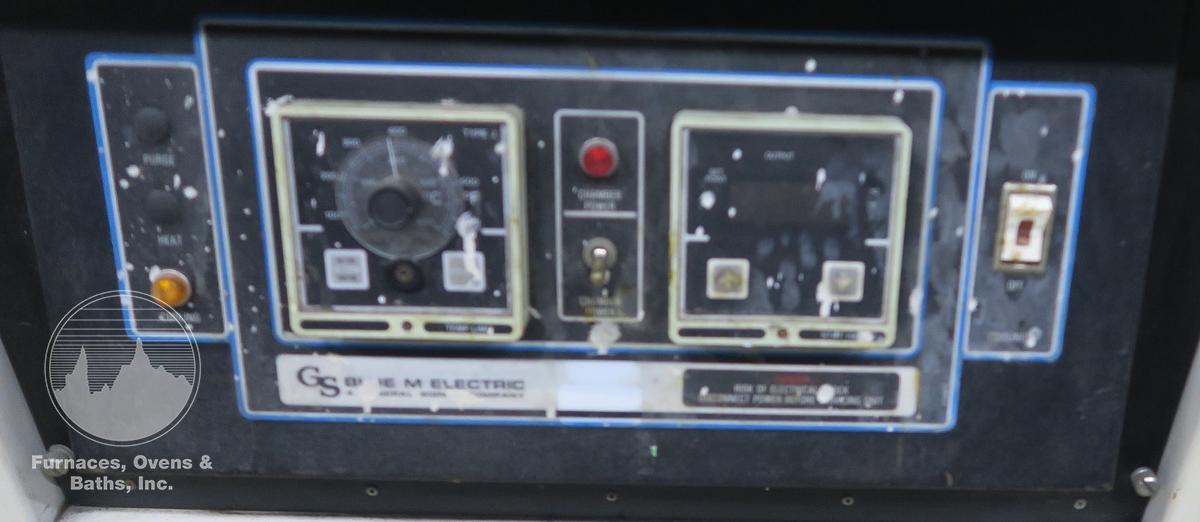

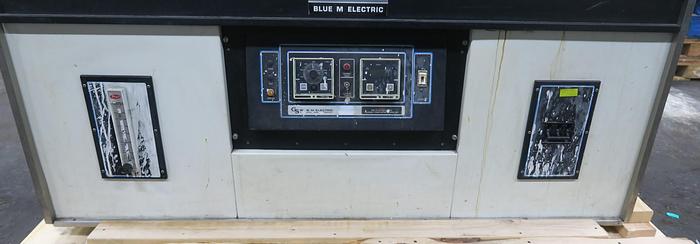

Controls are located in a slide out console located directly under the work chamber. A Partlow/Blue M STAT 1900 digital temperature controller, a Partlow/Blue M analog high limit control and chamber power control switch with indicating light are flush mounted in the face of the console. A circuit breaker disconnect switch is mounted on the front panel - right side. A flow meter (0-600CFH) for Nitrogen atmosphere is located on the left-hand side. A separate selector switch for the cooling activates the solenoid to allow water to flow through the cooling coil.


ManufacturerBlue M

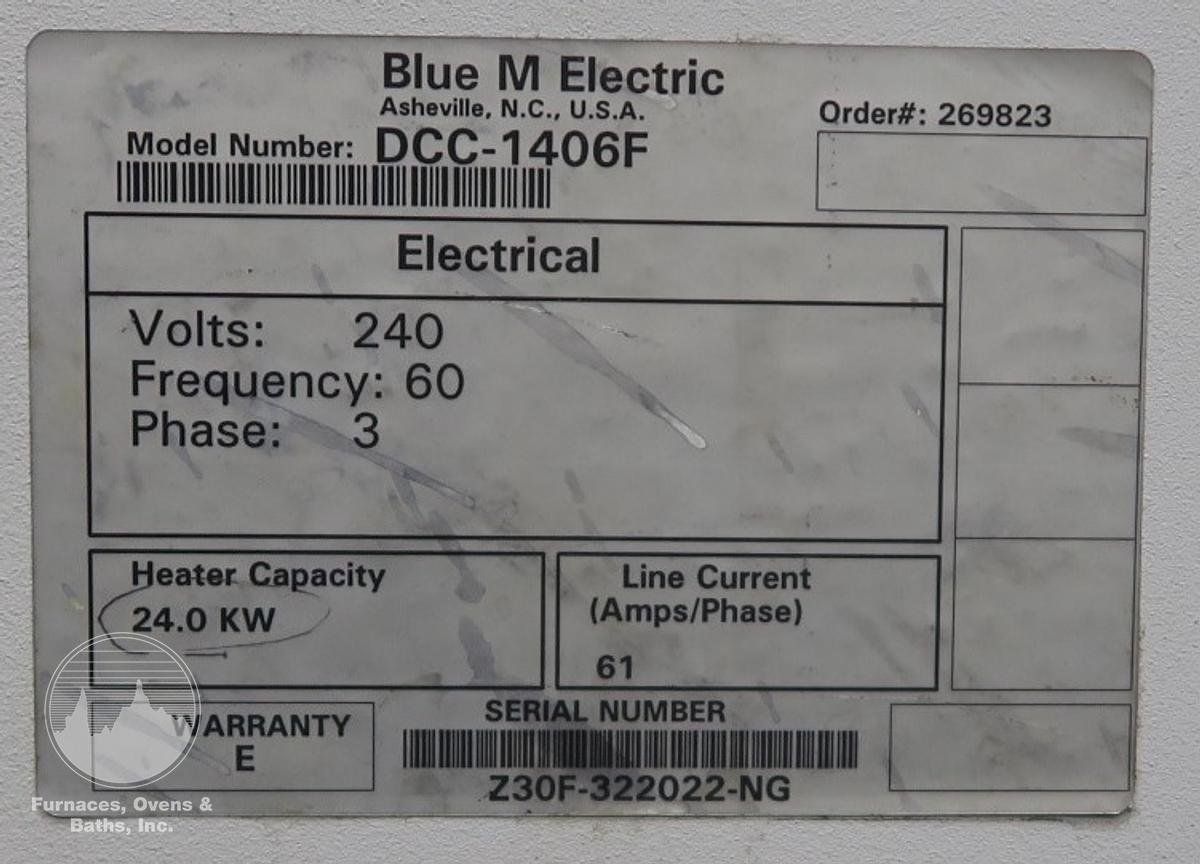

Serial NumberZ30F-322022-NG
Stock Number7791
Work area43"W x 36"H x 24"L
Max temperature350°C / 662°F

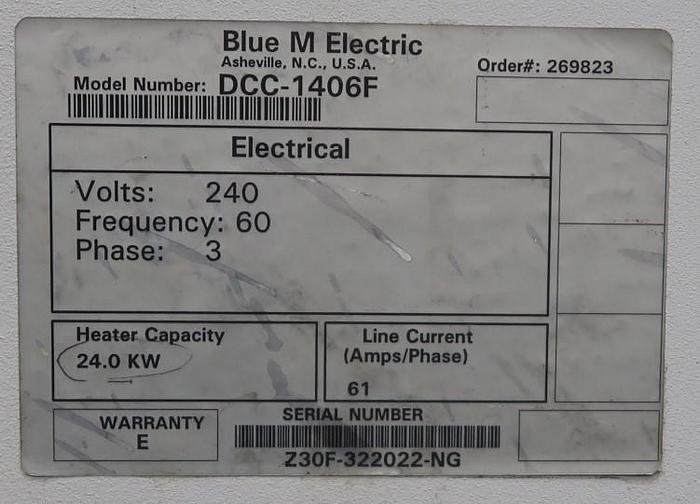

Voltage240/3/60/24 kW/61 Amps
External dimensions64" wide x 39" deep x 79" high
