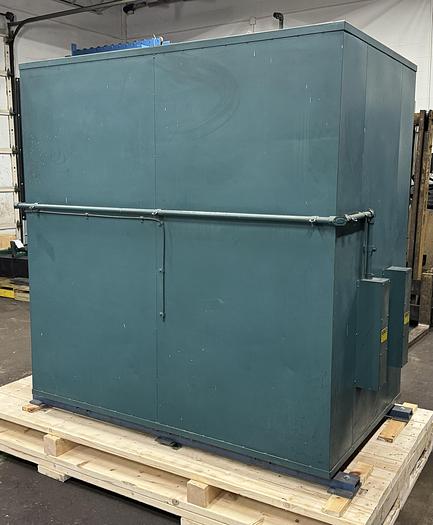

38"W x 26"H x 20"L Grieve HX-1250 Cabinet Oven, 1250°F, Electric

38"W x 26"H x 20"L Grieve HX-1250 Cabinet Oven, 1250°F, Electric

Contact us for price

orCall 248-343-1421

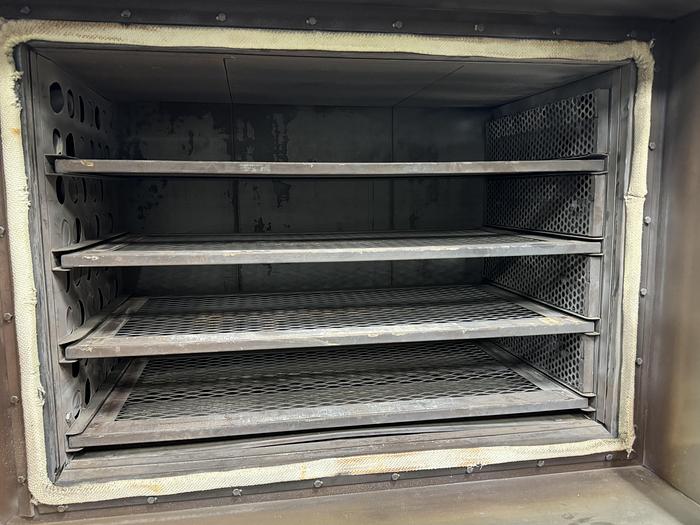

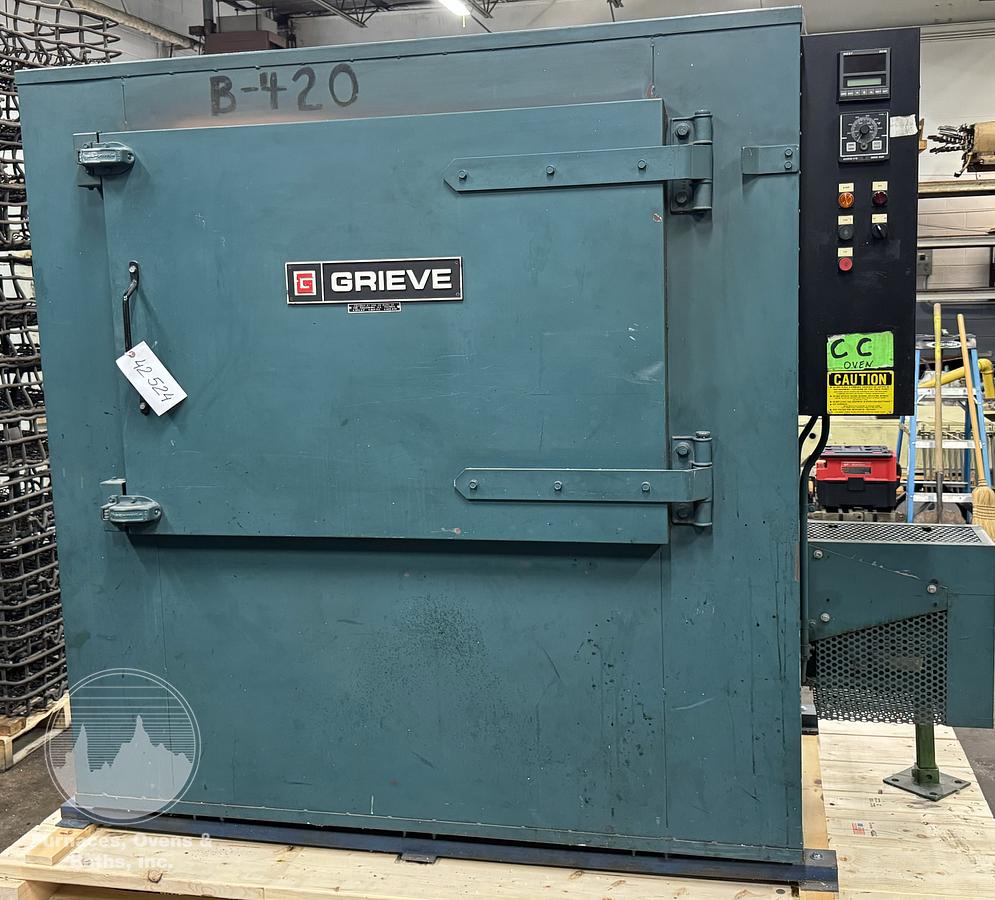

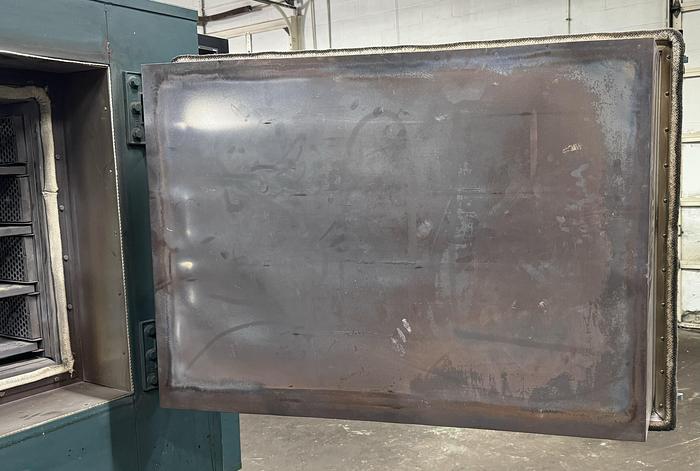

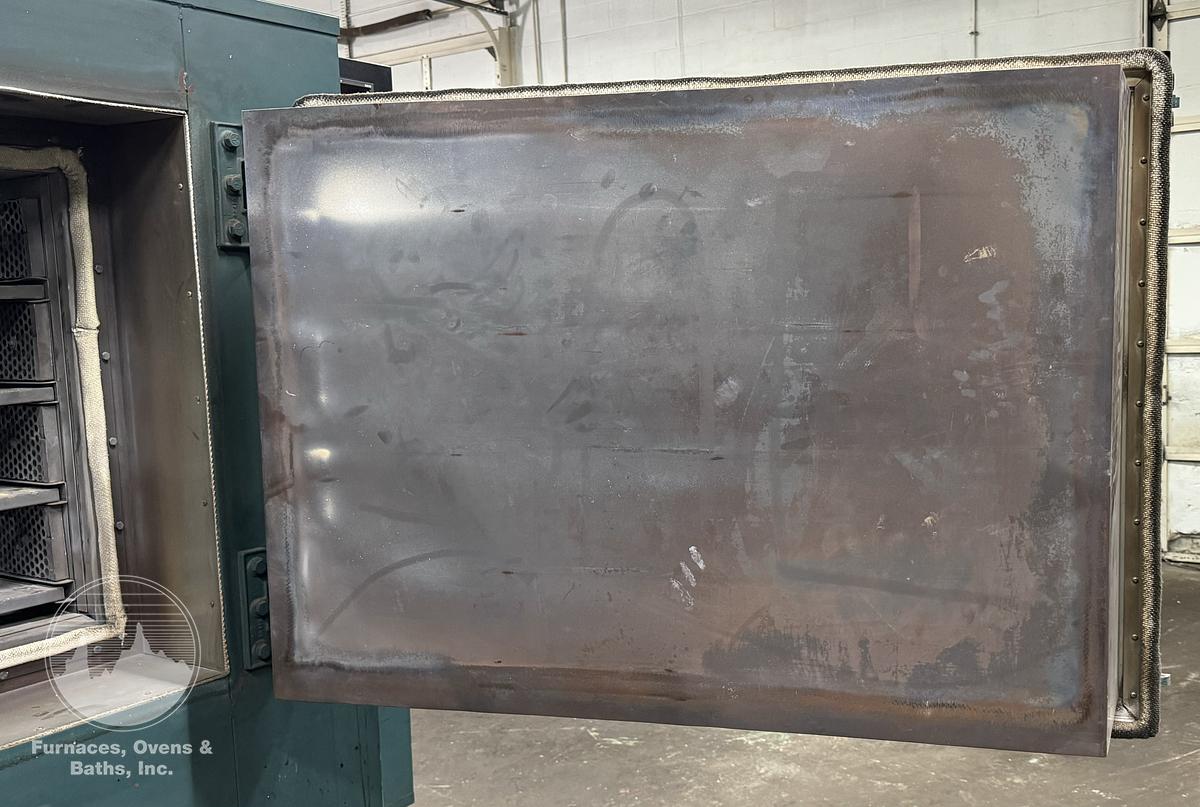

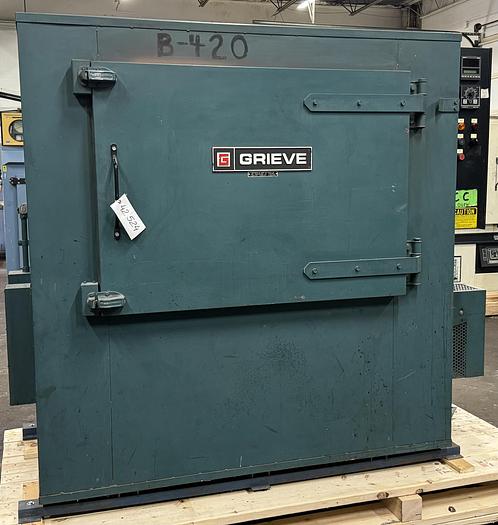

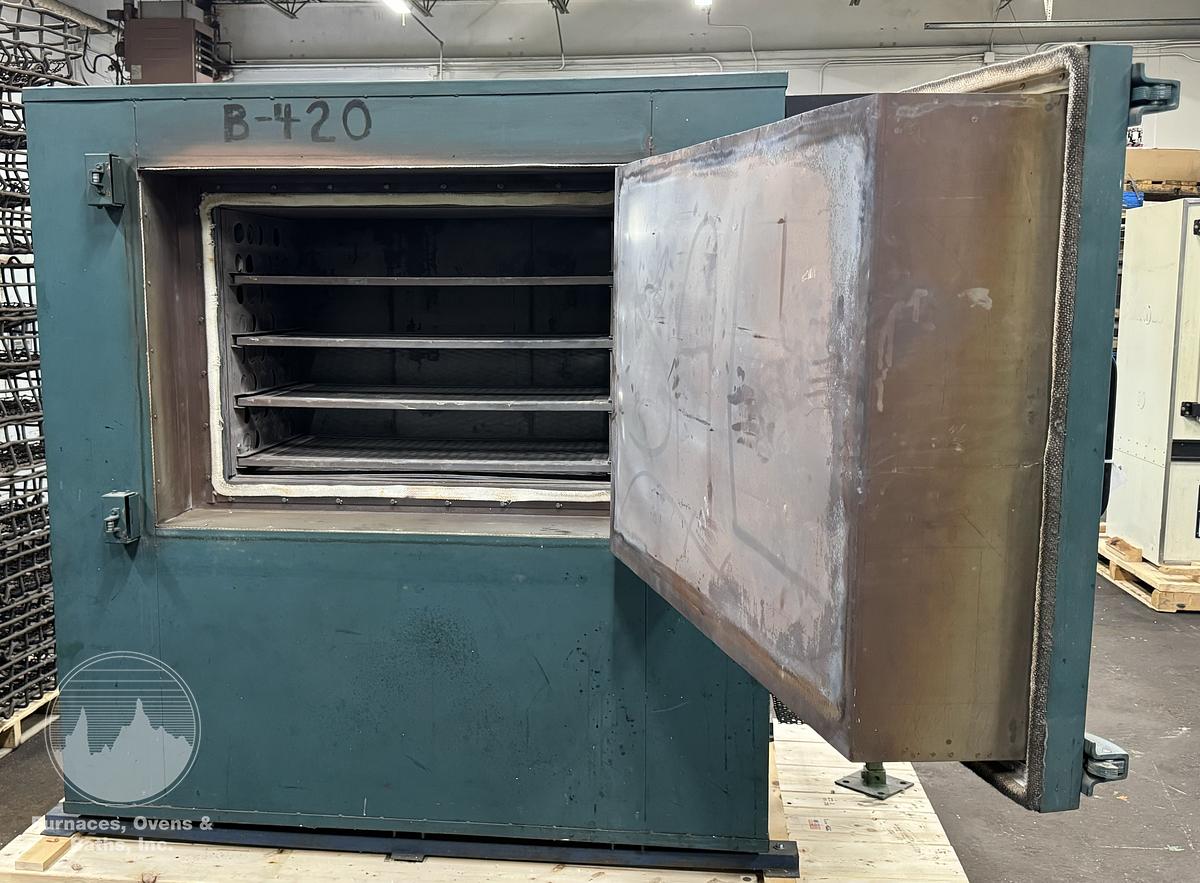

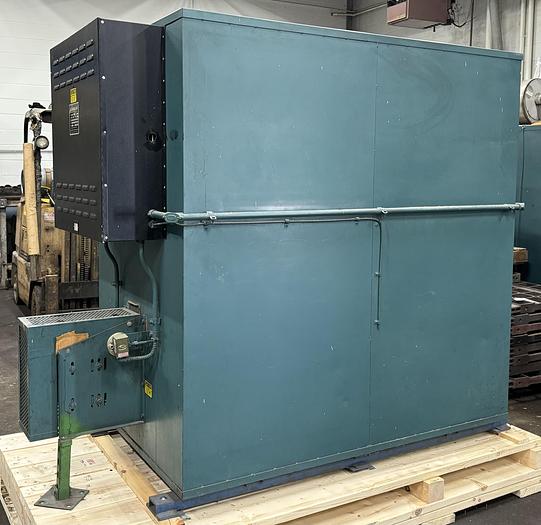

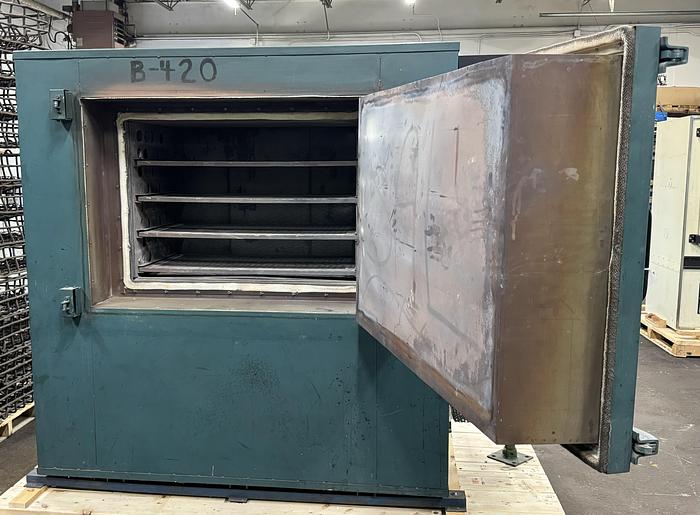

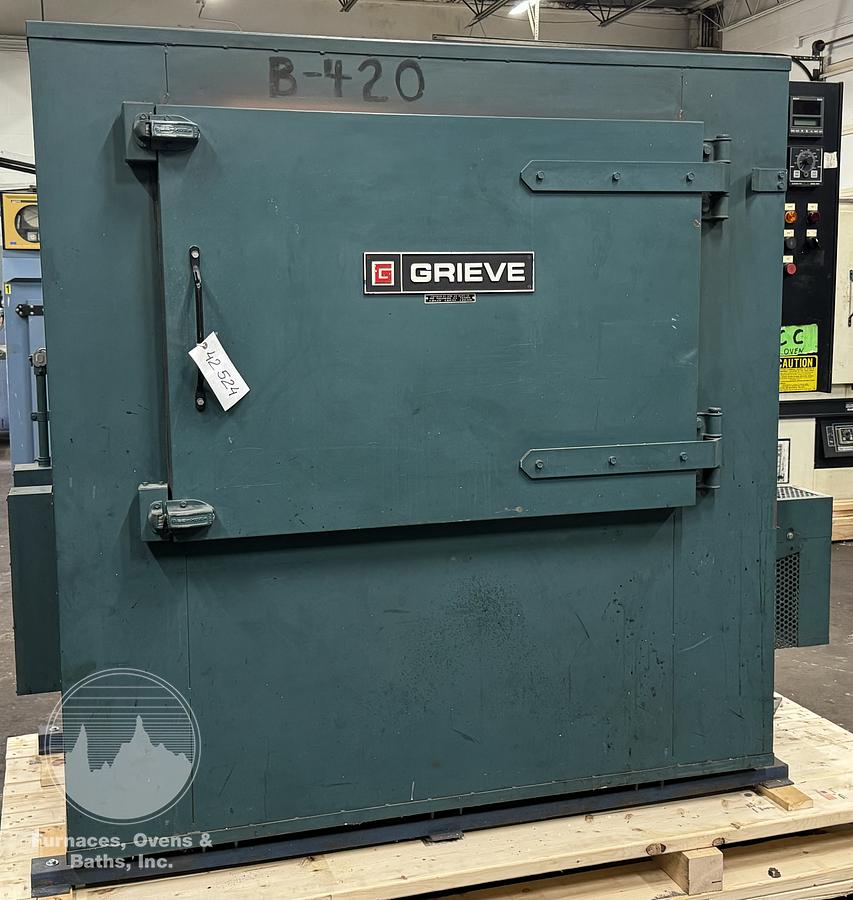

Single door with woven fiberglass gasket and Brixon spring tension latches. Stainless steel interior with 5 shelf brackets, 4 shelves are supplied with the oven. Heating elements and belt driven circulating fan are located under the work chamber. Heated air is circulated in a horizontal pattern through adjustable punched louvered air duct panels across the work area for good uniform heating. An exhaust vent is located on top of the oven. Oven will be tested prior to shipping.

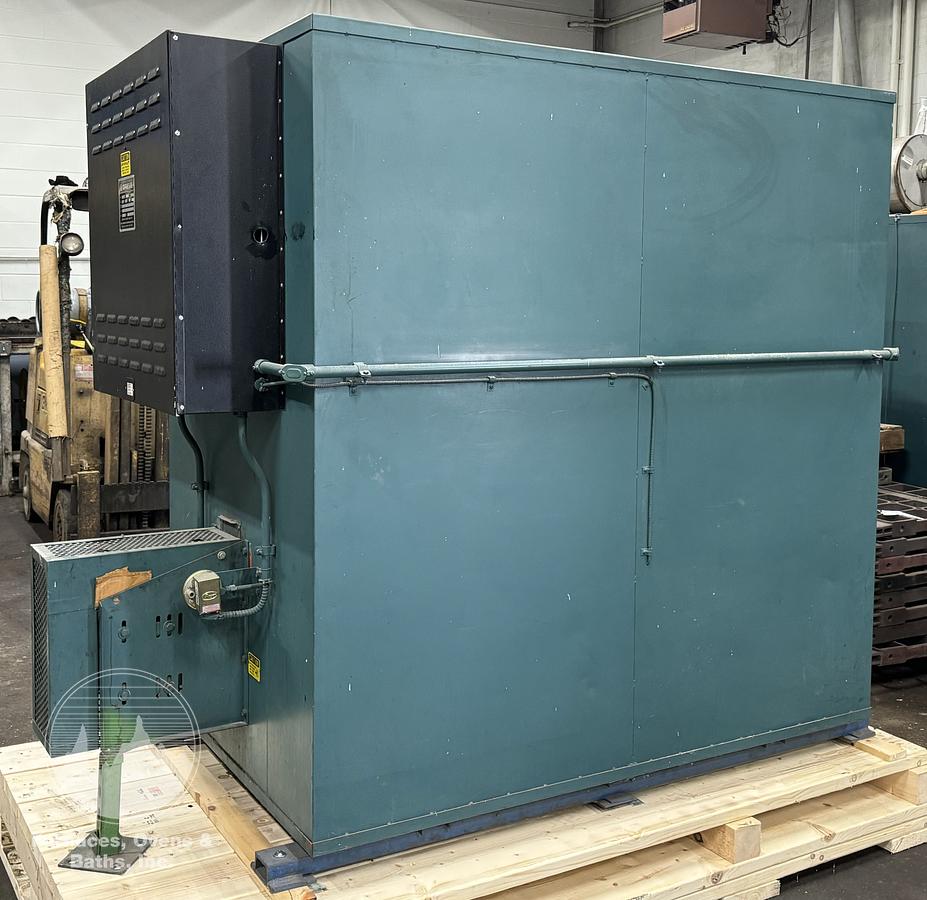

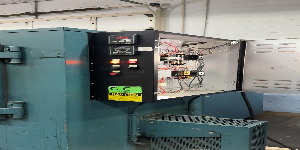

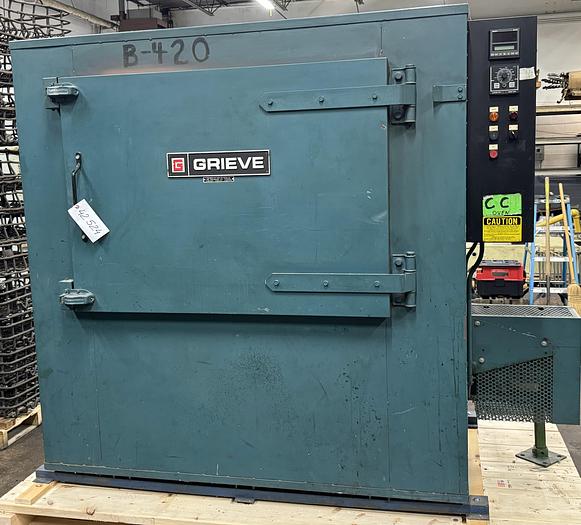

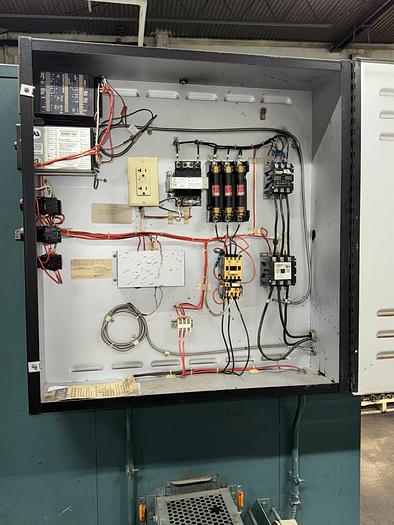

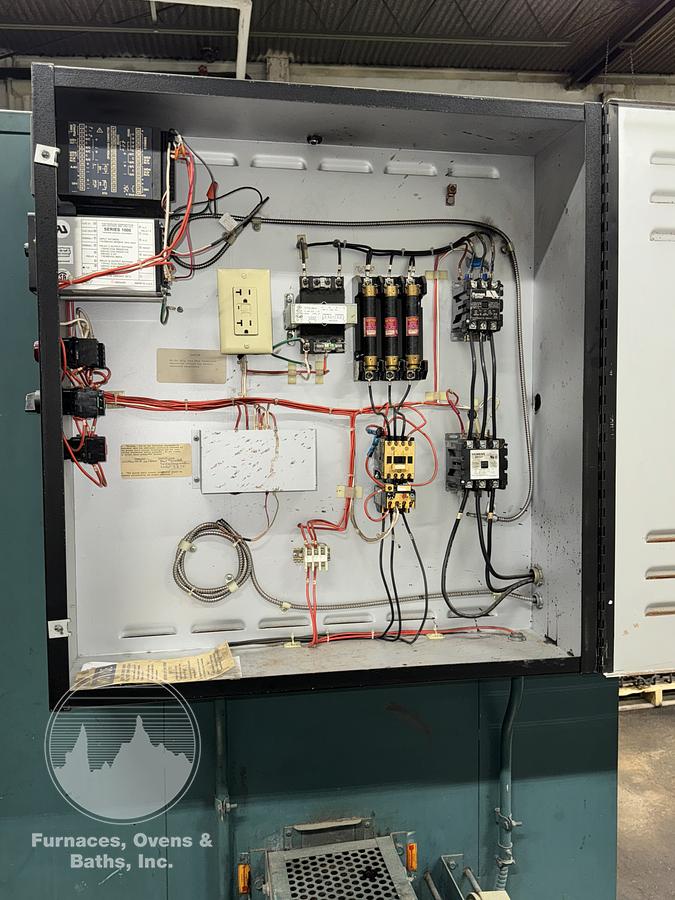

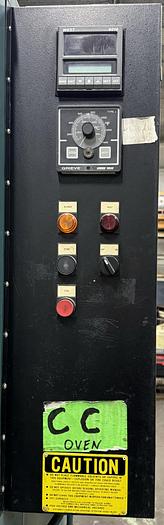

Controls are mounted in a small enclosure attached to the right hand side. A digital temperature control, analog high limit control, push button start /stop with indicating light for the circ. fan and an Off / On selector switch with indicating light for the heat are flush mounted in the enclosure. Motor starter, fuses, high limit and control contactors, control transformer, relay are mounted inside the enclosure.

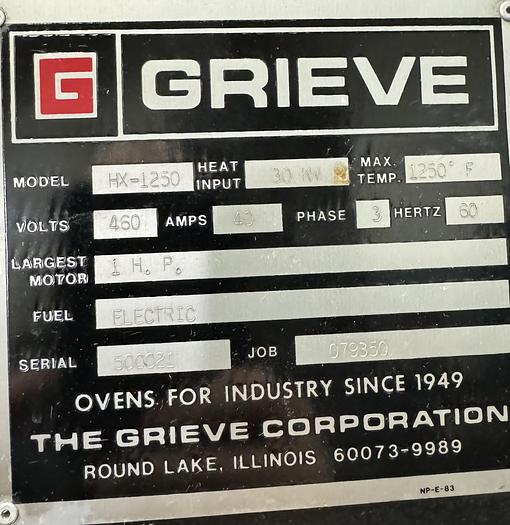

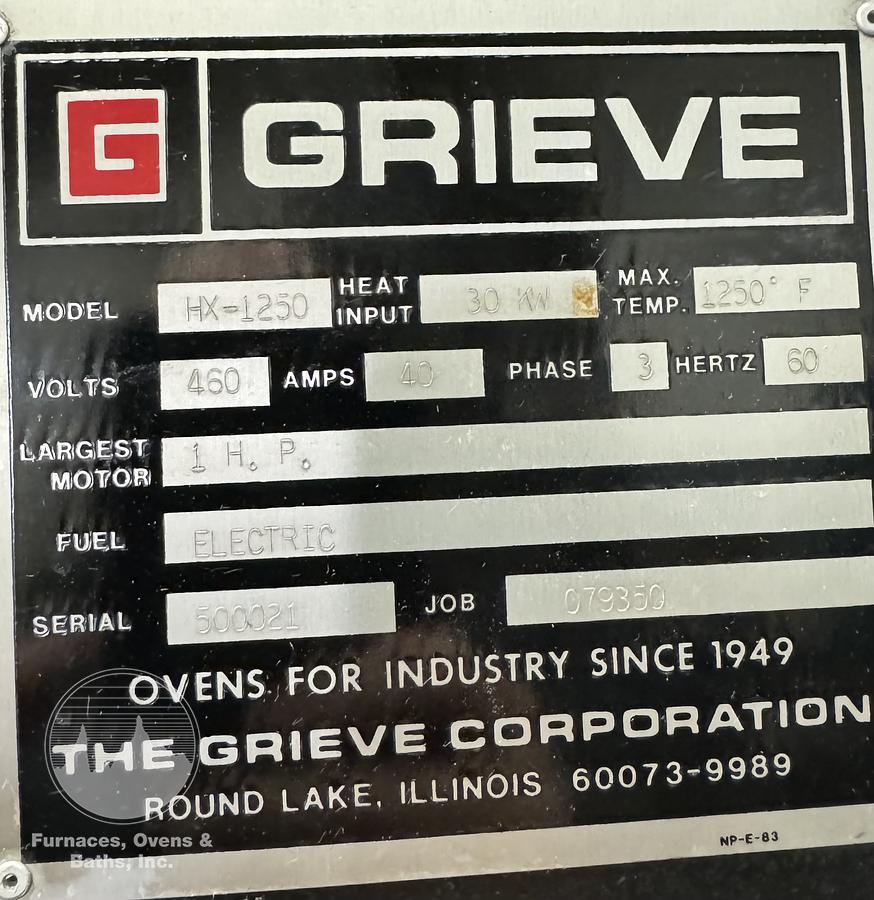

Serial Number500021, JOB #079350
Stock Number7795
Work area38"W x 26"H x 20"L
Max temperature1250°F
Voltage460/3/60/40 Amps/30 kW
External dimensions64" wide x 34" deep x 77" high
