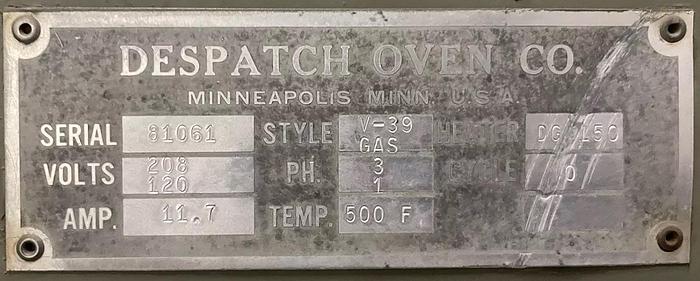

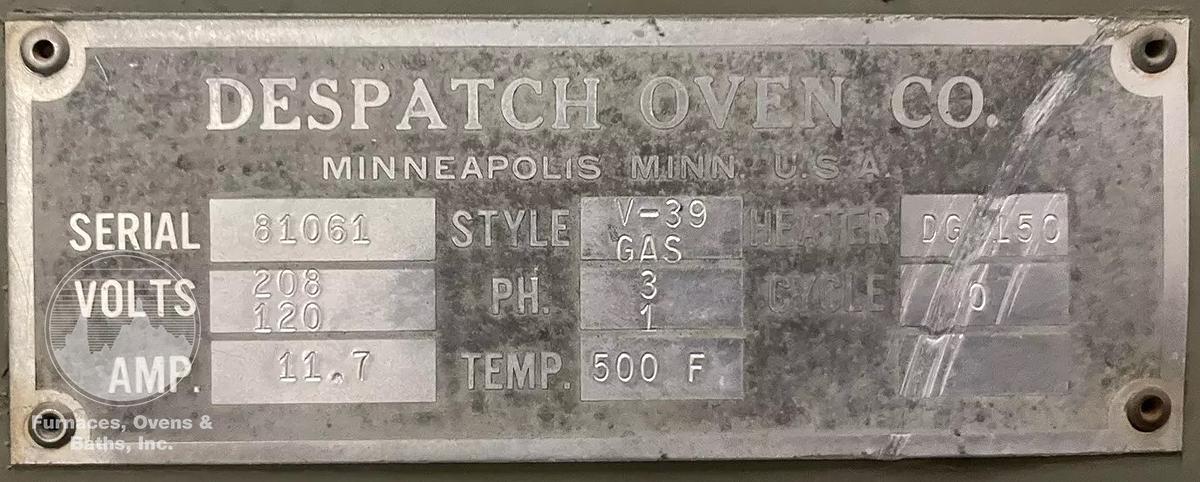

40"W x 63"H x 52"L Despatch V-39 STD Walk-In Oven, 500°F, Gas

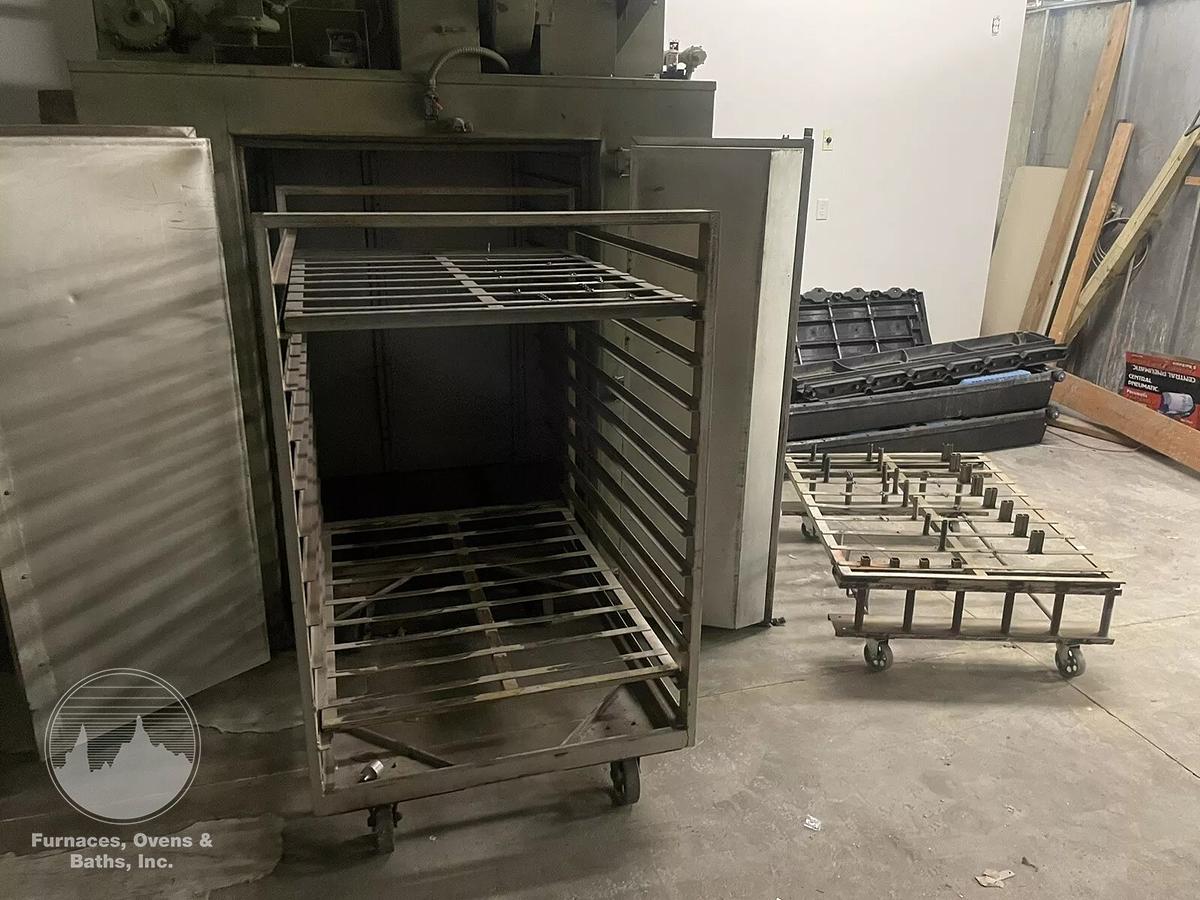

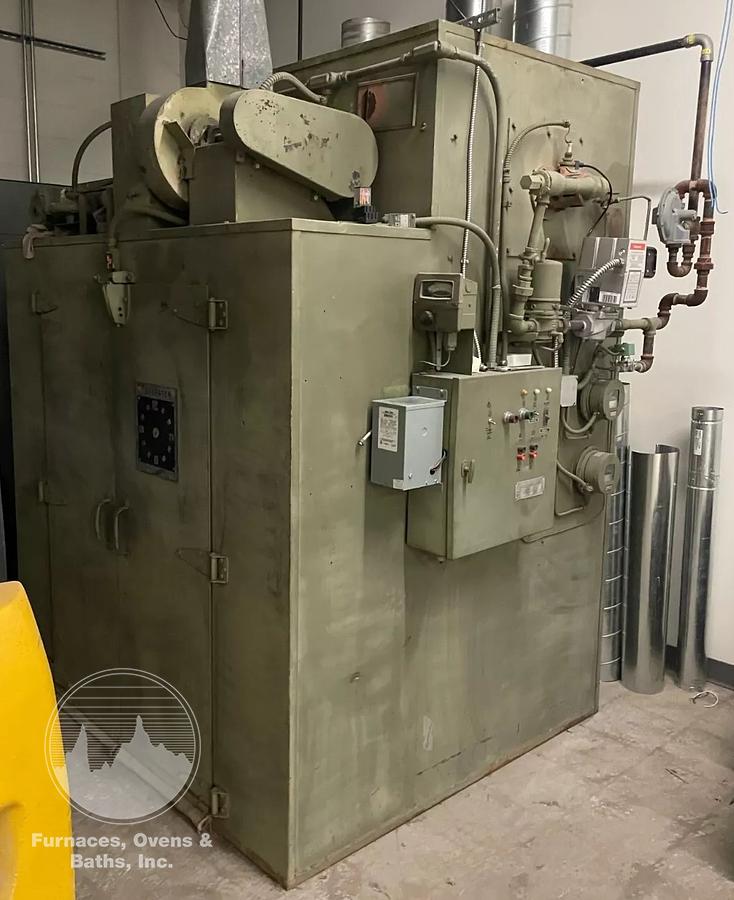

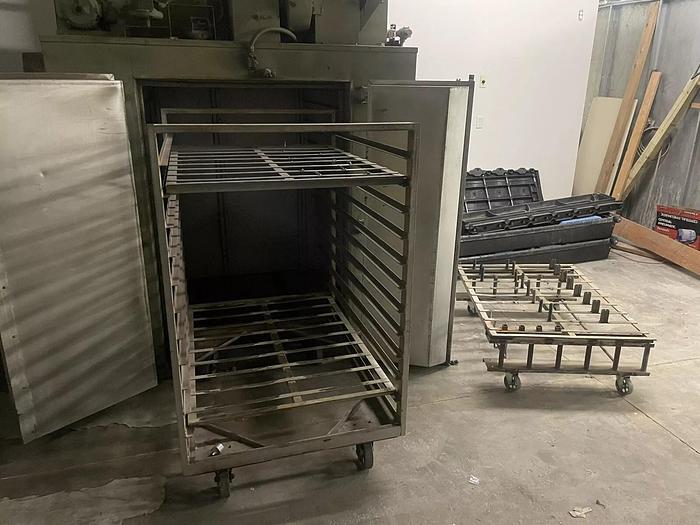

This oven has double doors with fiberglass gasket, "Brixon" spring tension latches and door limit switch. Aluminized steel interior and insulated floor. Adjustable louvers on each side wall to control airflow though the chamber. Burner and circulating fan are located in a separate plenum above the work area. Heated air is circulated horizontally across the work chamber for good uniform heating. A fresh air inlet and powered exhauster is mounted on top of the oven. Cart is included with this oven.

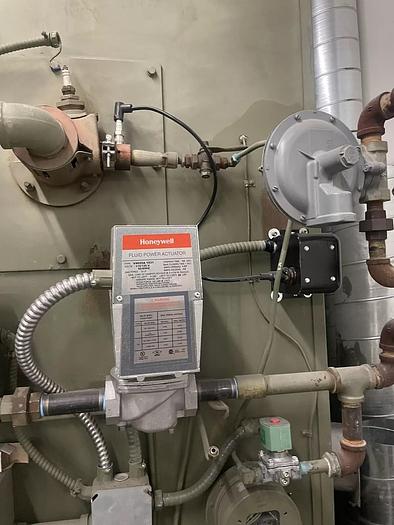

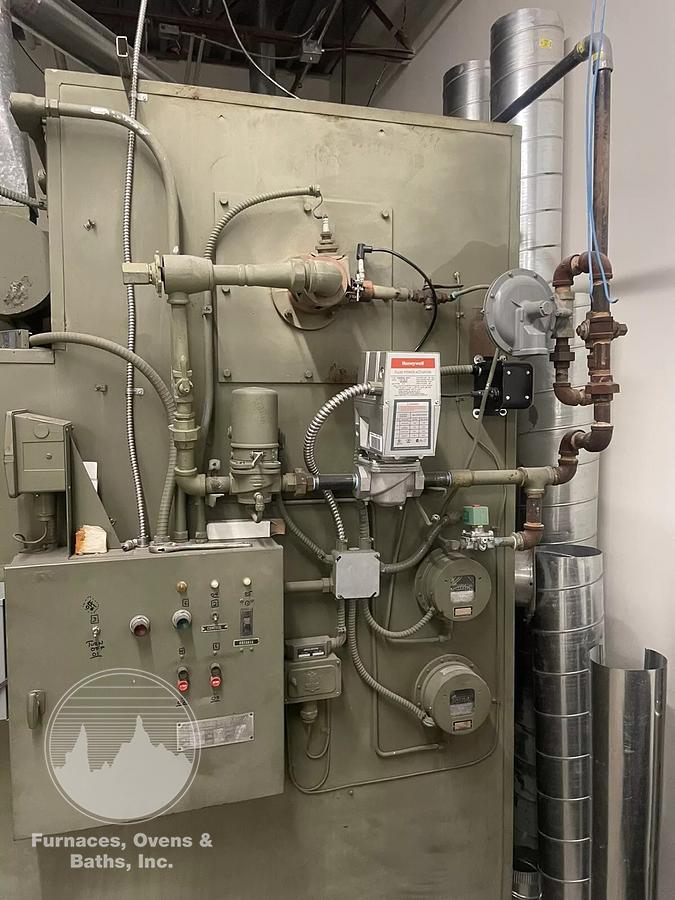

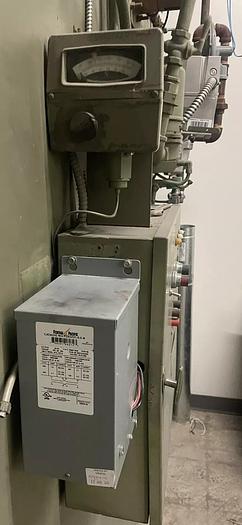

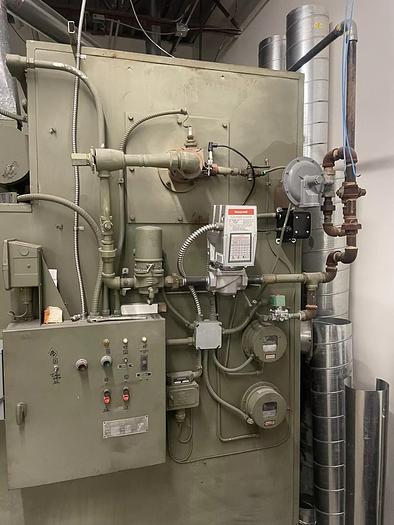

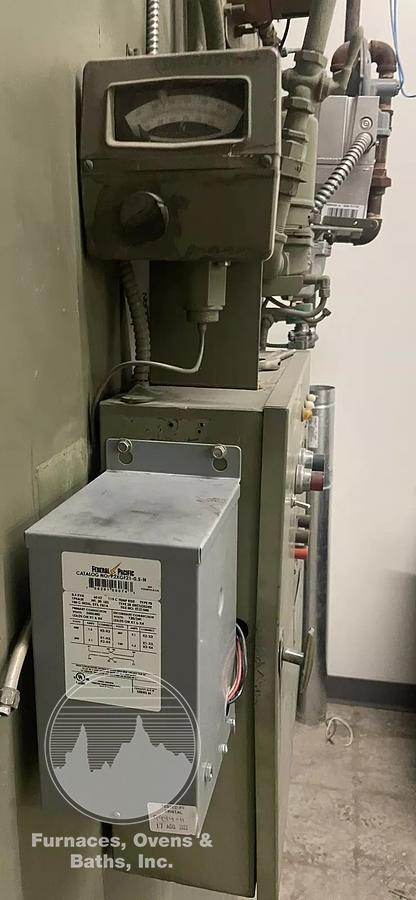

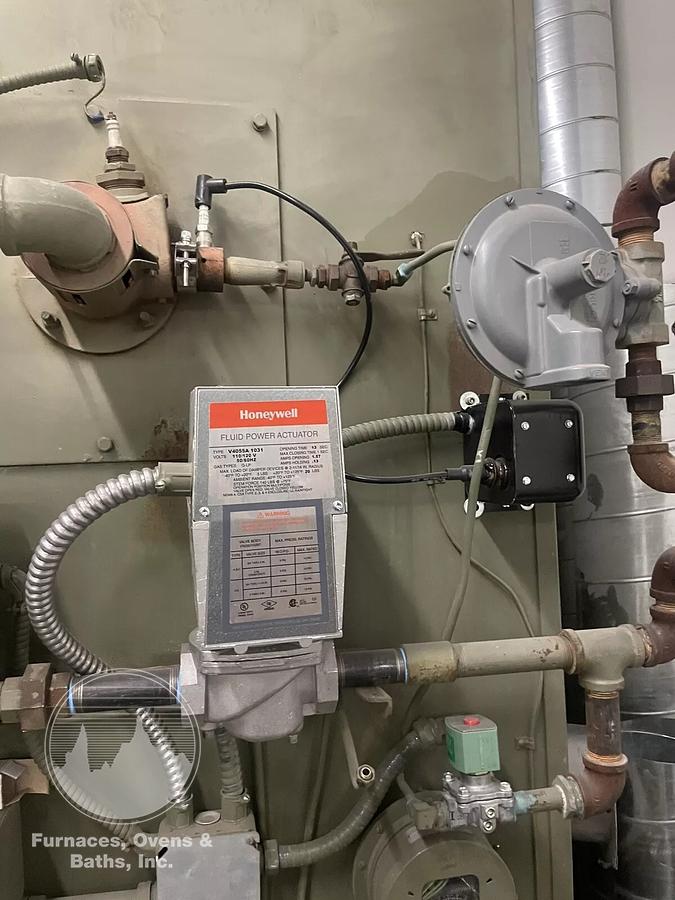

Controls are mounted in an enclosure attached to the right-hand side of the oven. There is a Partlow analog temperature controller and control switches with indicating lights flush mounted in the enclosure. Motor starters, purge timer, fuses, relays, etc. are mounted and wired inside the enclosure. Burner has spark ignition with flame rod and newer Honeywell gas safety valve.
