48"W x 72"H x 48"L, Gruenberg, Electric Walk-In Oven, Stainless Steel Interior, Solvent Rated
48"W x 72"H x 48"L, Gruenberg, Electric Walk-In Oven, Stainless Steel Interior, Solvent Rated
Contact us for price
Description

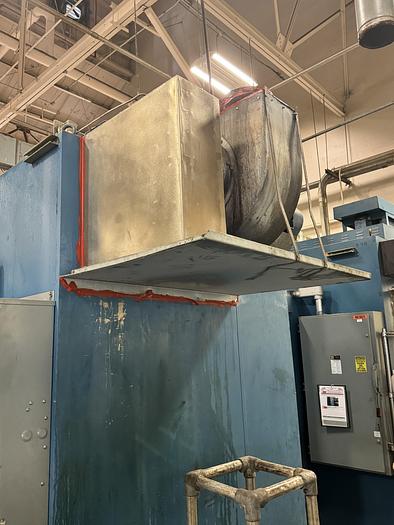

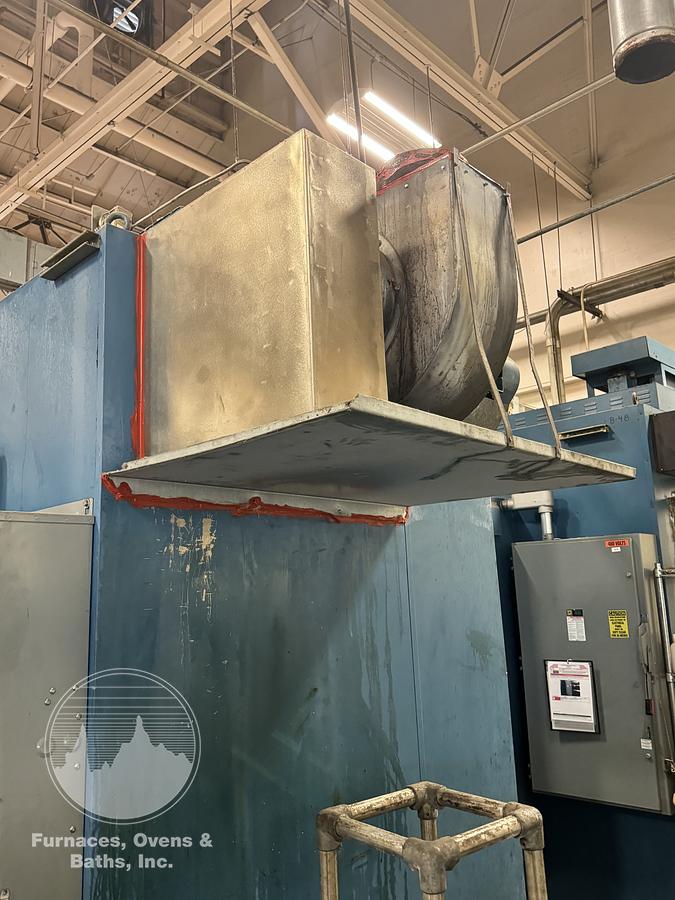

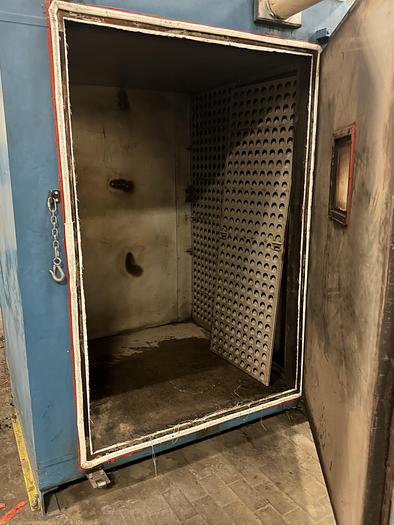

Single door with Brixon spring tension latches with door limit switch and high temperature ceramic fiber gasket for an excellent door seal. Stainless steel interior with an insulated floor. Perforated air duct panels are located on both sides. Tubular style heating elements and belt driven circulating fan are located above the work chamber. Heated air is circulated in a horizontal pattern across the work area for good uniform heating. A fresh air inlet with slide damper is located on the front wall. A powered exhauster with adjustable damper is mounted on the rear of the oven. Oven will be tested prior to shipping.

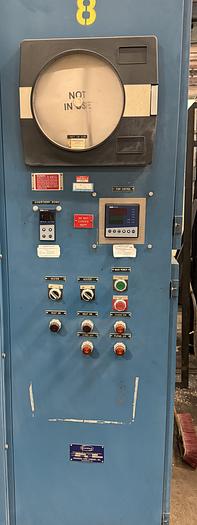

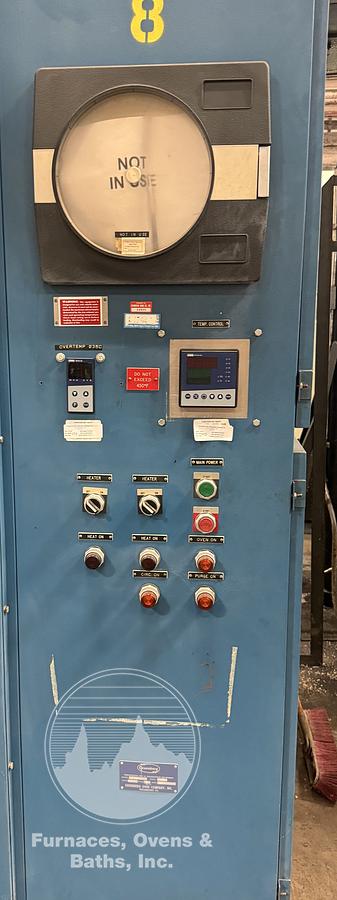

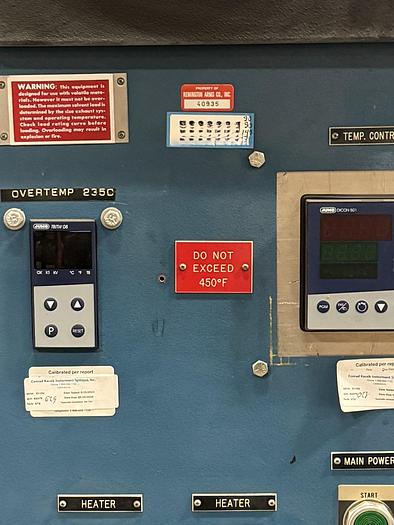

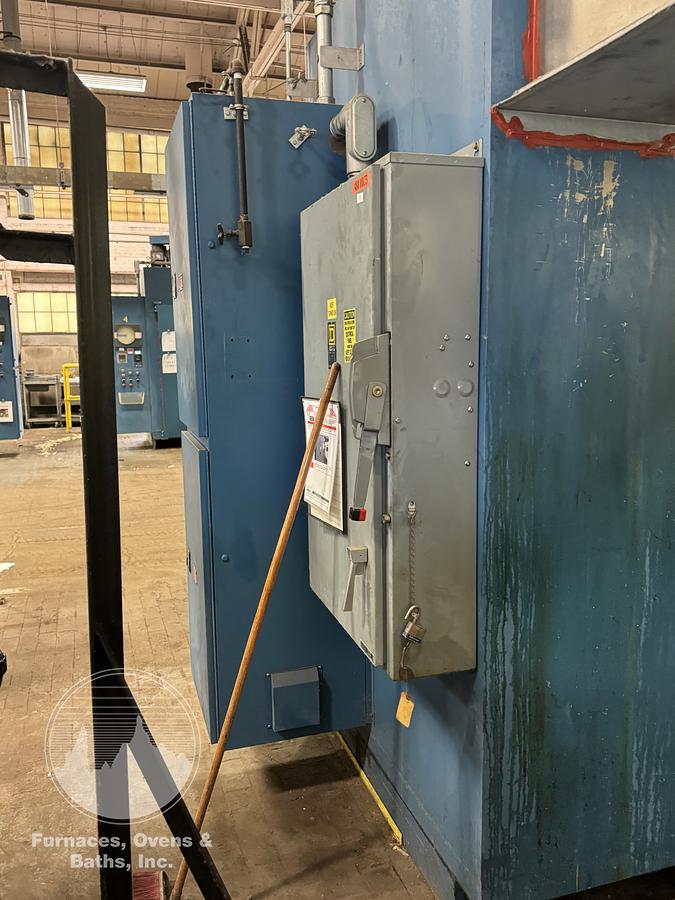

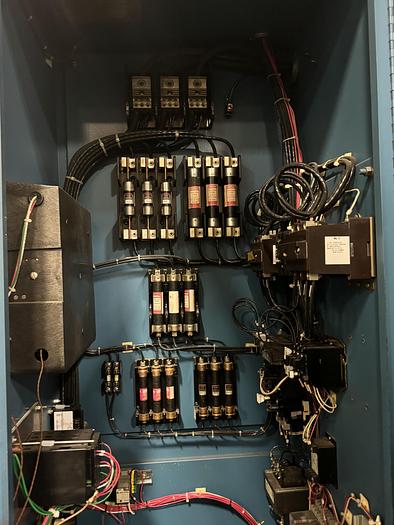

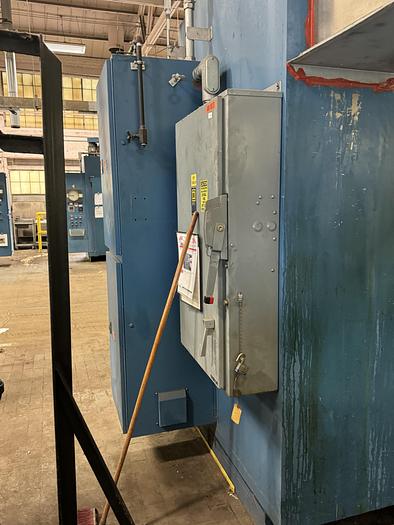

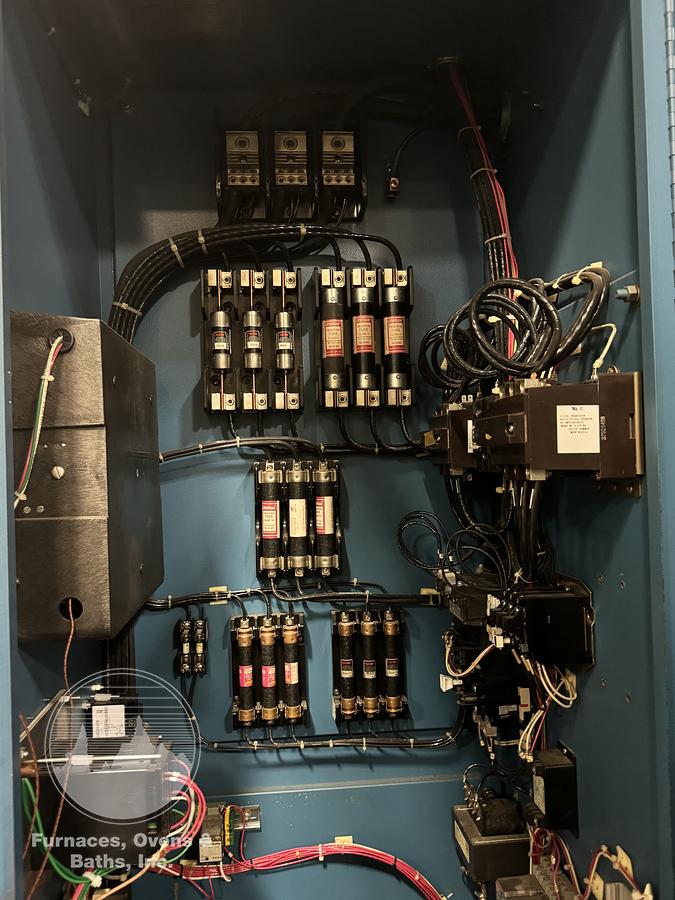

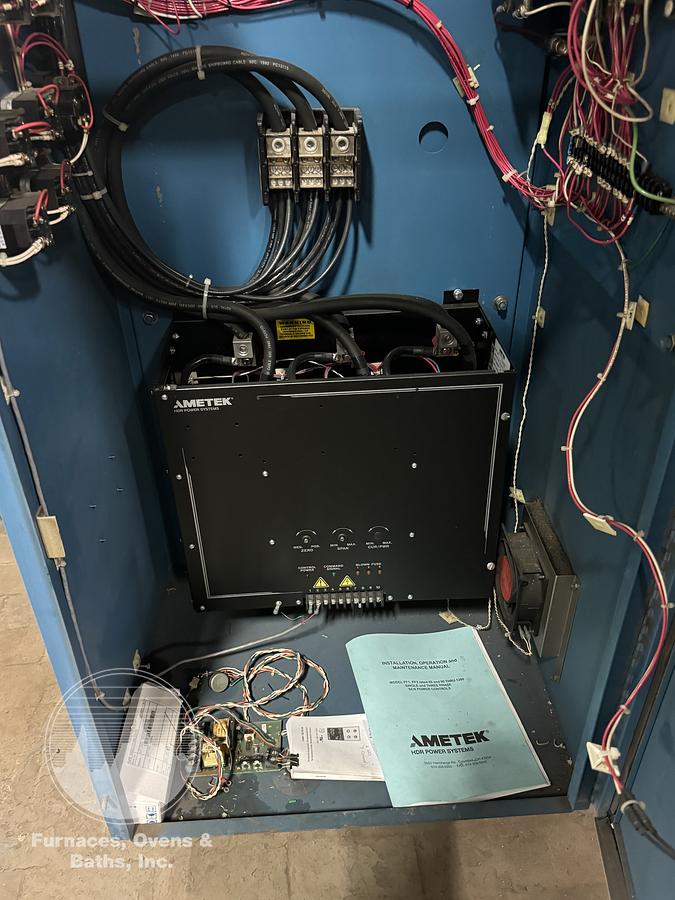

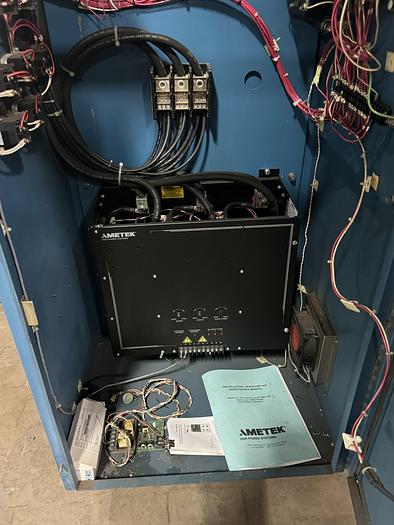

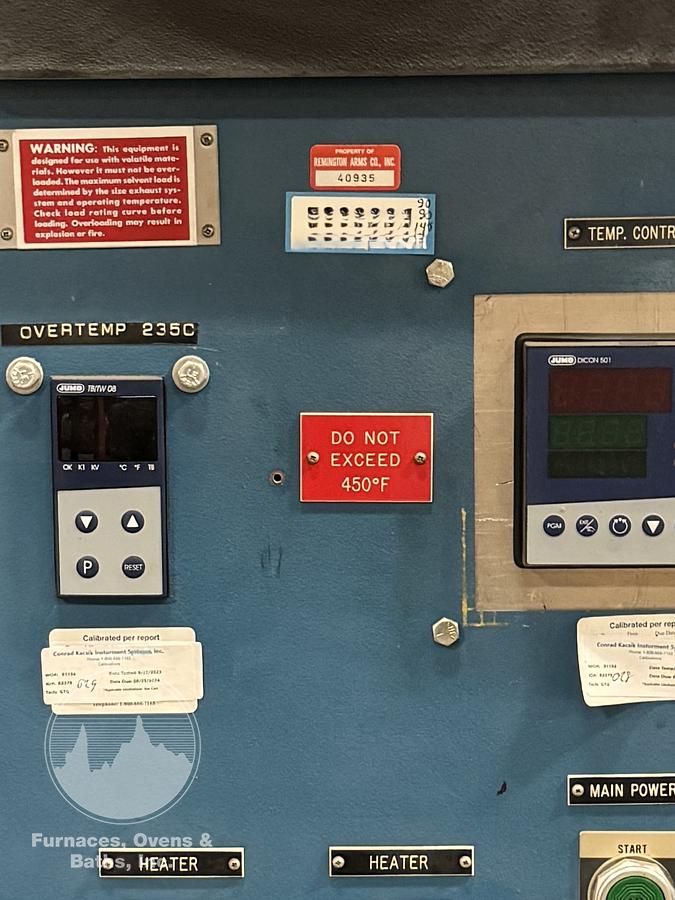

Controls are located in an enclosure attached to the right-hand side of the oven. There is a JUMO digital temperature controller, JUMO digital high limit controller and a Partlow circular recorder. Pushbuttons and signal lights for on/off etc., high limit contactors, Ametek SCR, motor starters, fuses, relay etc. are mounted and wired inside the enclosure. Heating elements are wired in two (2) 66 kW banks which provides the option of operating the oven at 1/2 power or full power. A fused disconnect switch is mounted on the side of the oven.
Specifications

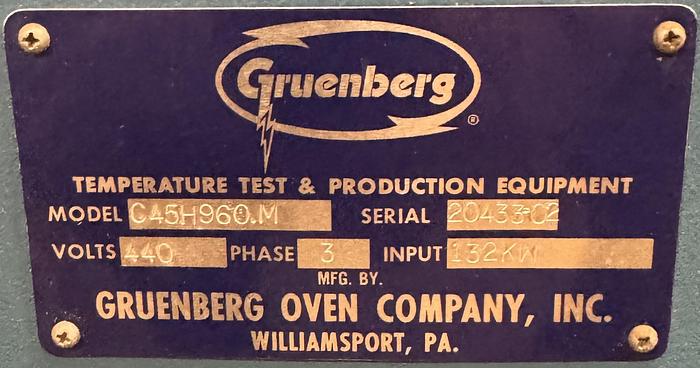

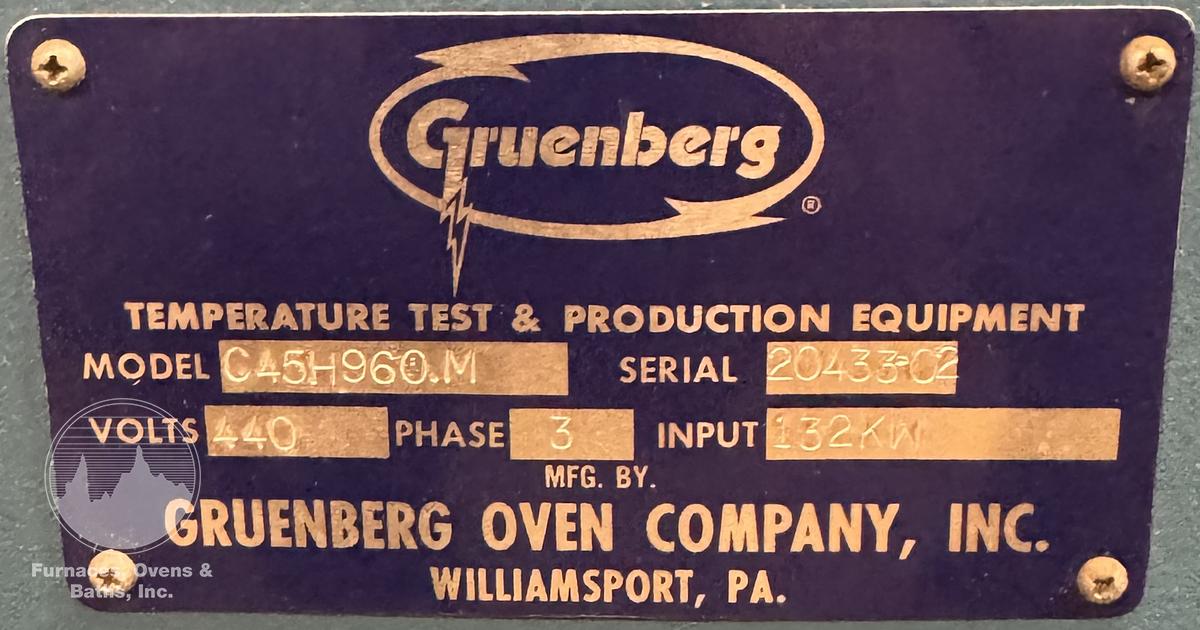

Manufacturer | Gruenberg |
Model | C45H960.M |
Condition | Used |
Serial Number | 20433-02 |
Stock Number | 7805 |
Work area | 48"W x 72"H x 48"L |
Heated | Electric |
Max temperature | 450°F |
Voltage | 440/3/60/132 kW/ 2 Elements Banks |
External dimensions | 83" wide x 72" deep x 120" high. |
Availability | Immediate |
