48"W x 72"H x 48"L, Blue M DC-966 Cabinet Oven, 600°F, Stainless Interior

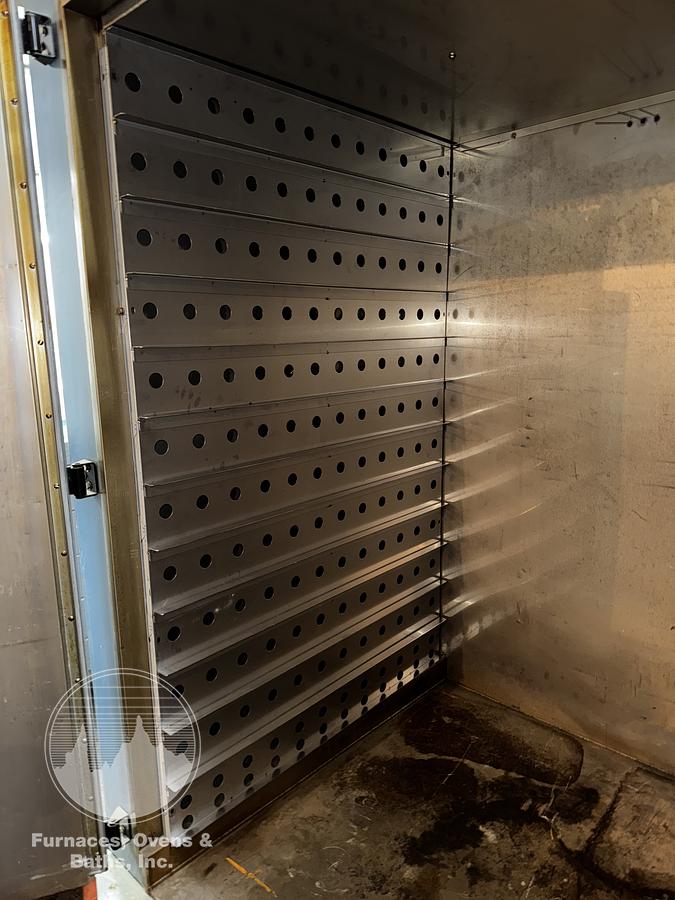

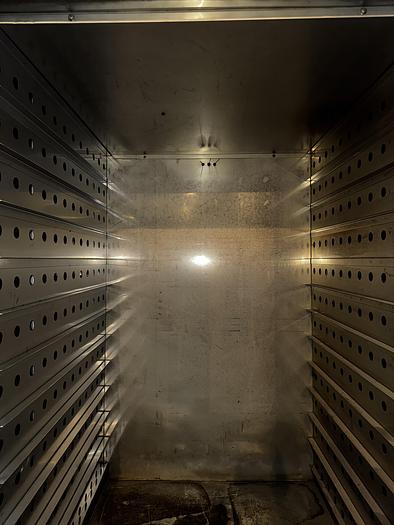

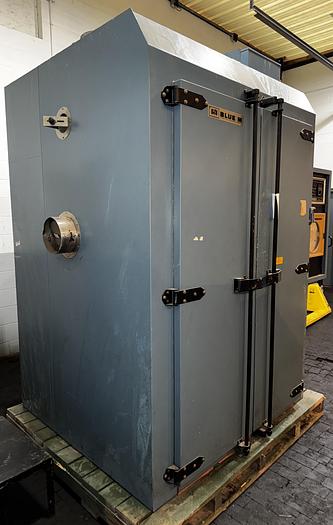

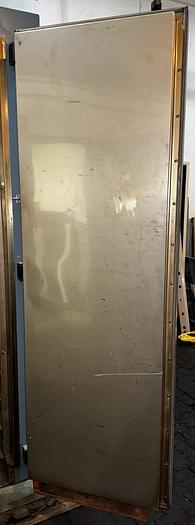

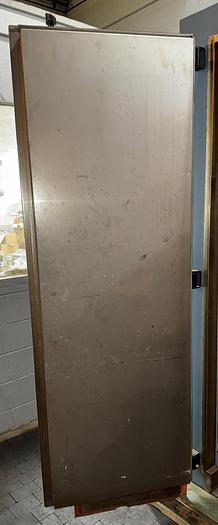

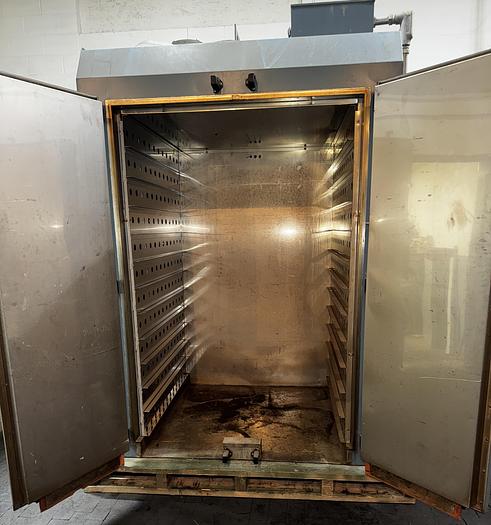

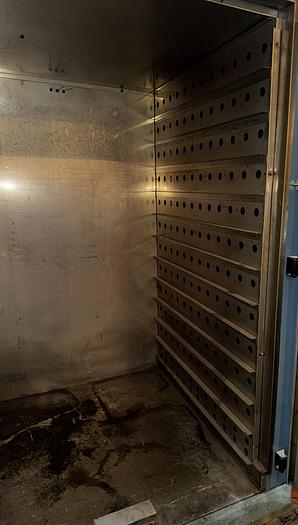

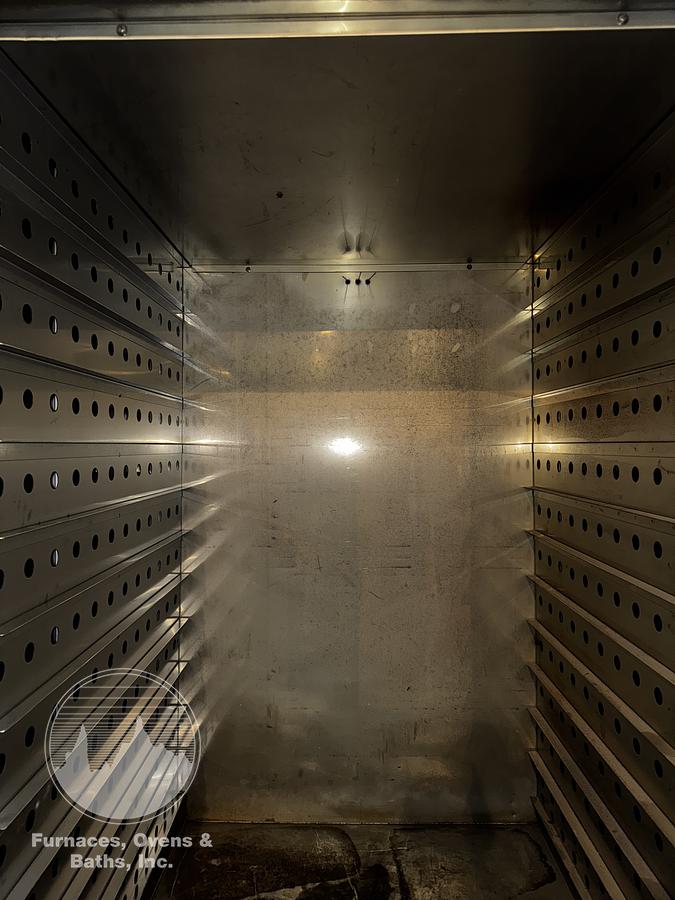

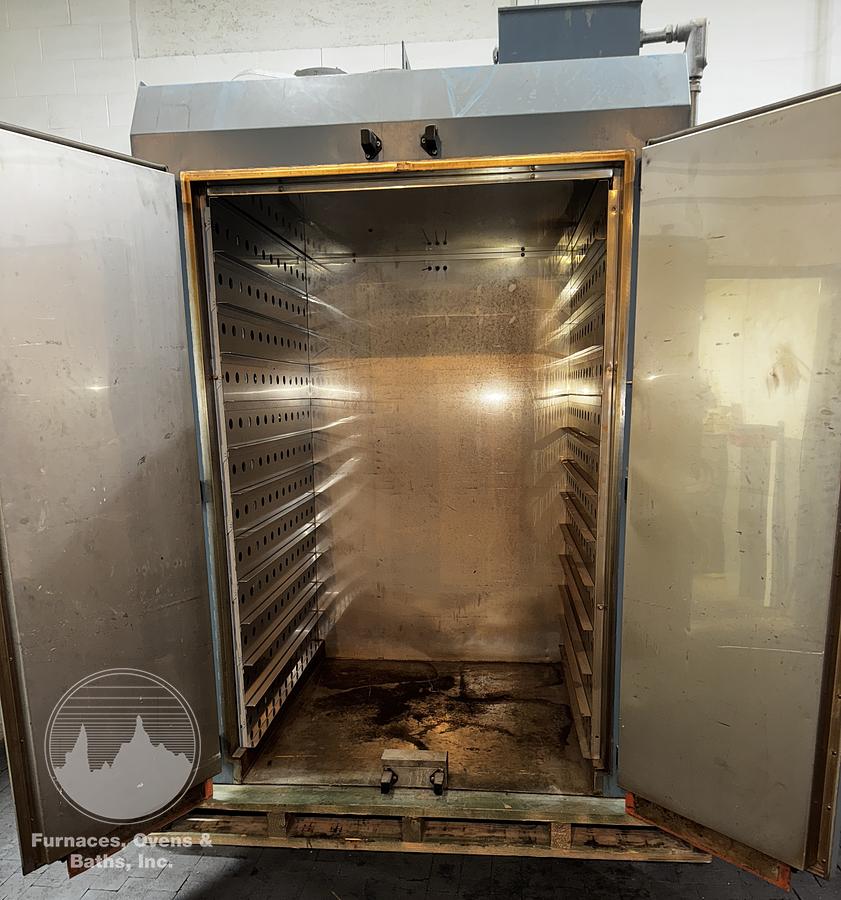

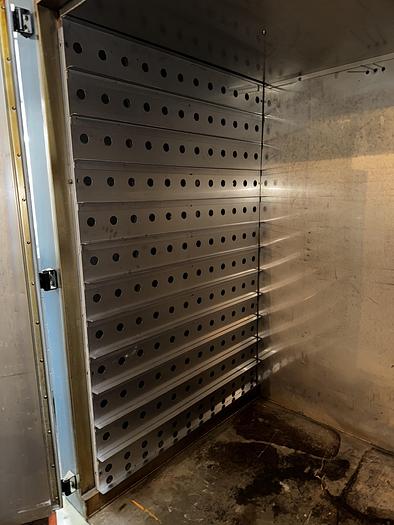

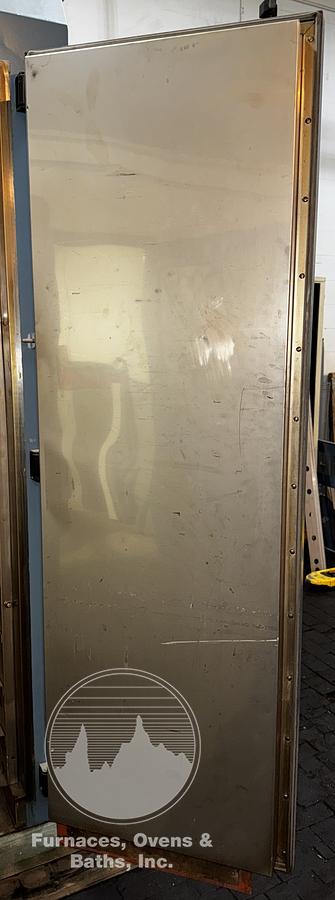

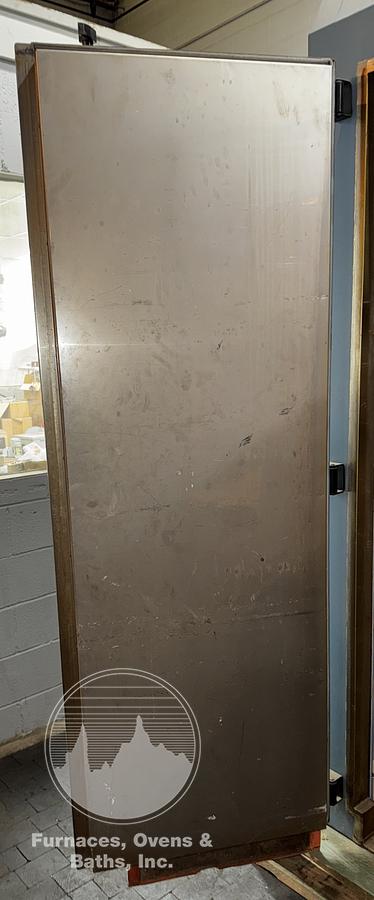

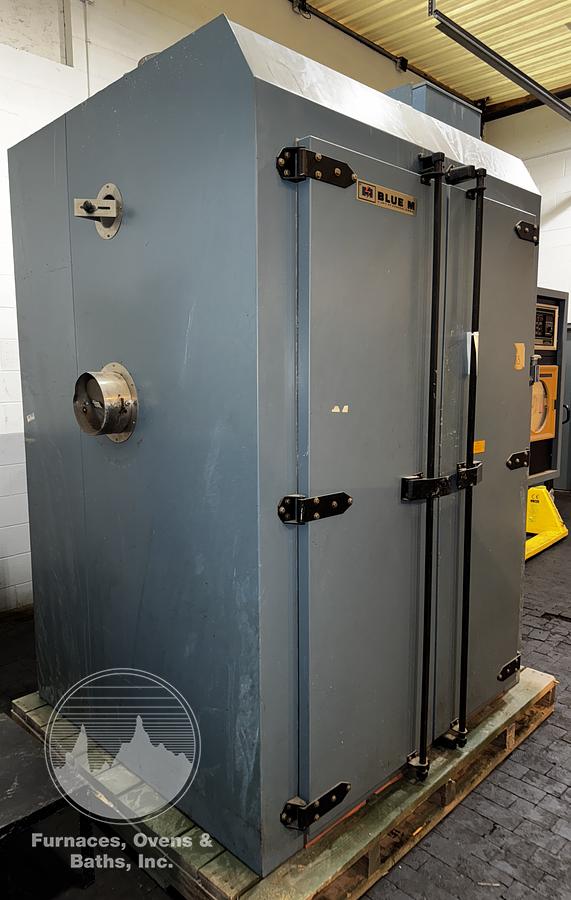

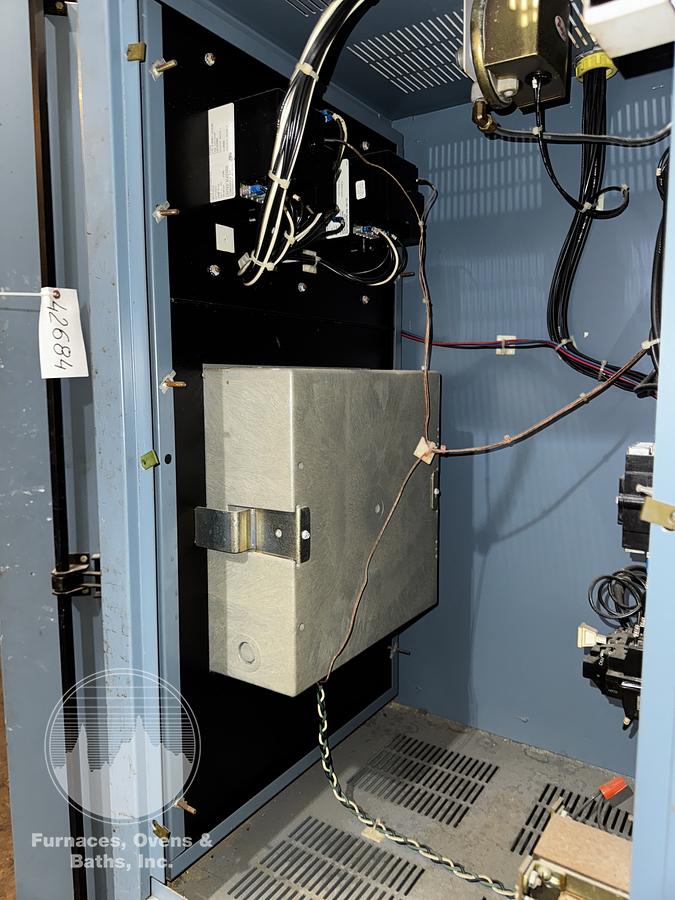

Double doors, floor model cabinet oven with 3-point cam action latch with silicon rubber door gasket for a good seal. Oven has a door limit switch which cuts power to the heating elements when the door is open. Stainless steel interior with perforated air duct side wall panels. Coiled style heating elements and direct driven circulating fan are above the work area. Heated air is circulated in a horizontal pattern across the chamber. Adjustable fresh air inlet and exhaust port is located on the left-hand side. Oven will be tested prior to shipping

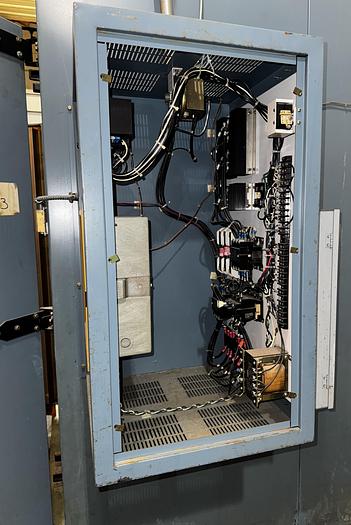

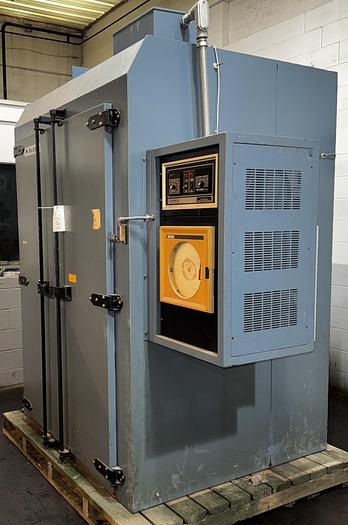

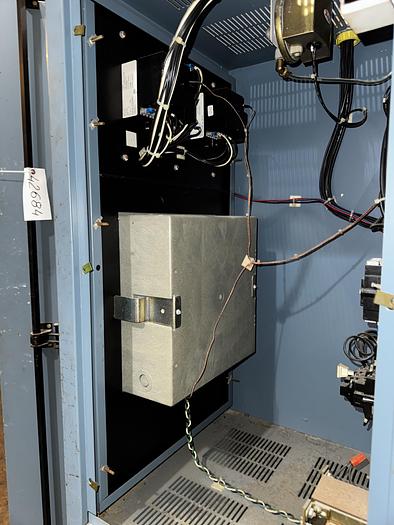

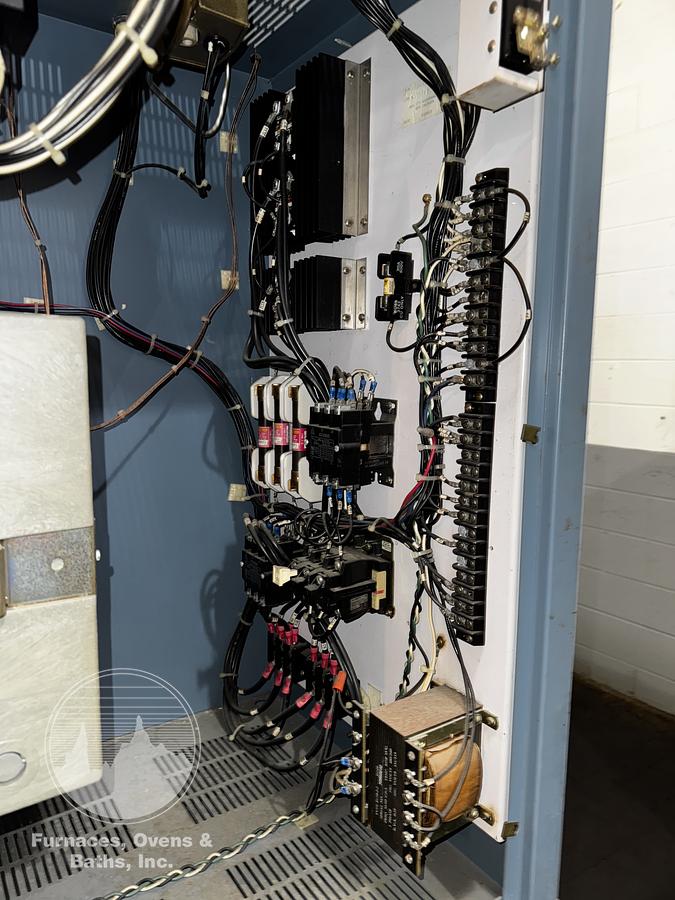

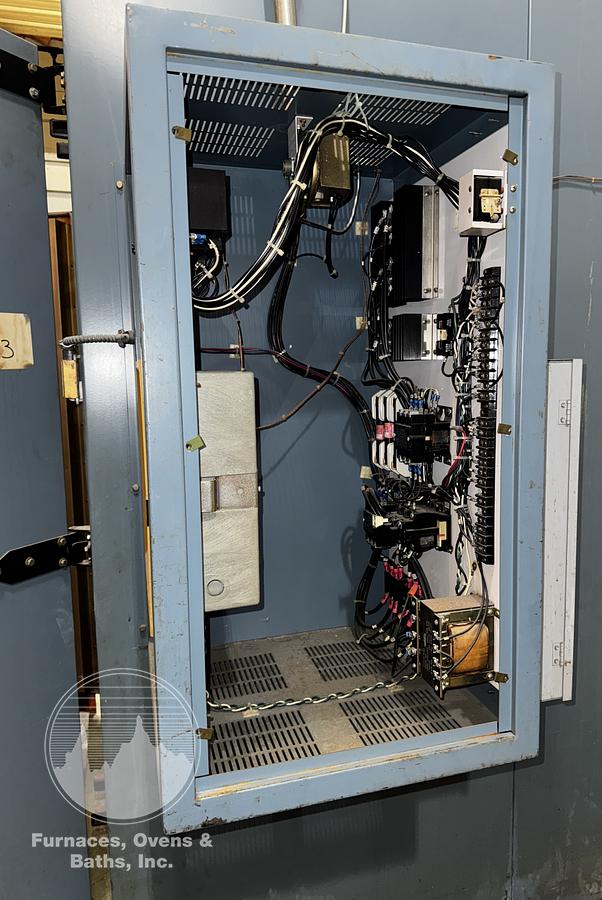

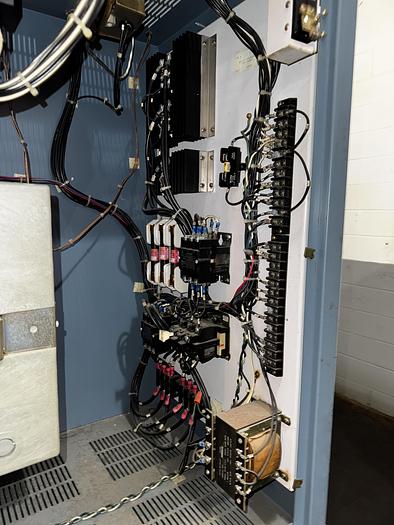

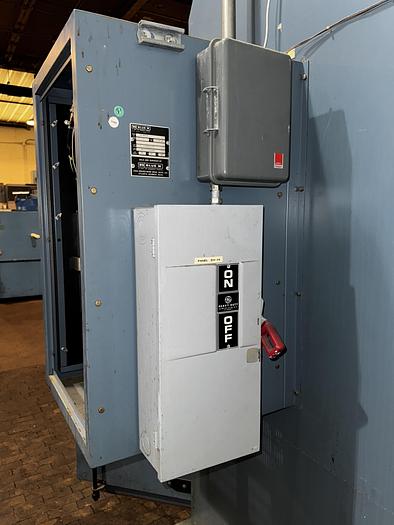

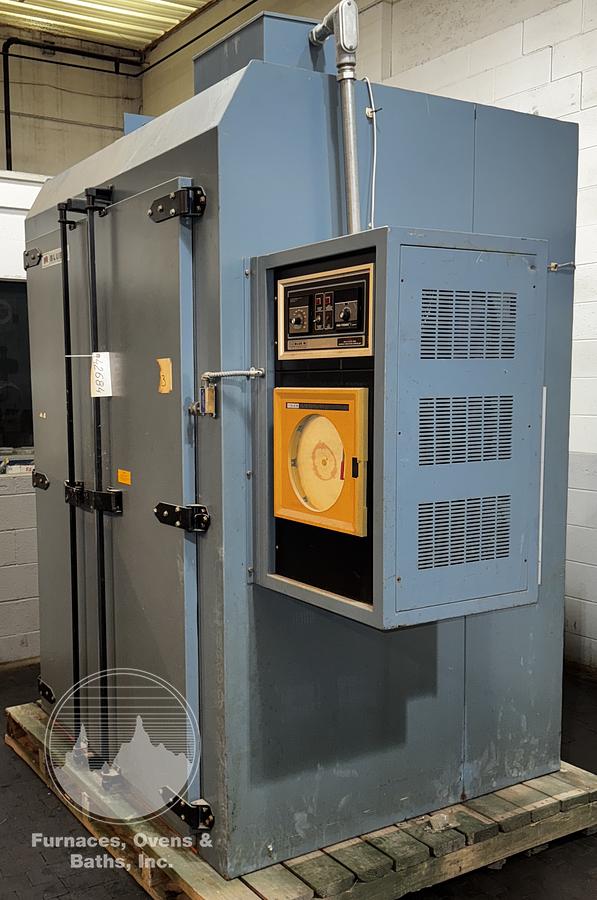

Control panel is located on the right-hand side of the oven. This cabinet includes a Pro-Tronix digital temperature control and a Partlow analog high limit. A power toggle switch with indicating light for on/off is flush mounted in the face of the cabinet. Solid state power relays, high limit contactor, motor starer, fuses, relays etc. are mounted inside. Fused disconnect and mechanical timer is mounted on the back side of the control panel cabinet.
